LAN9252&LAN9253模塊,SPI轉EtherCAT module 參考設計+原始碼+技術支持，有需求的留言我。QQ:1048643578
提供完整解決方案。SPI轉EtherCAT小模塊，源代碼+參考設計+技術支持，需要的請留言!

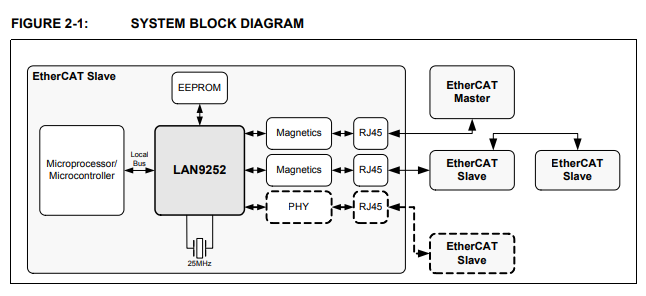

LAN9252/3 is a 2/3-port EtherCAT slave controller with 3 Fieldbus Memory Management Units (FMMUs) and 4 SyncManagers
? Interfaces to most 8/16-bit embedded controllers and 32-bit embedded controllers with an 8/16-bit bus
? Integrated Ethernet PHYs with HP Auto-MDIX
? Wake on LAN (WoL) support
? Low power mode allows systems to enter sleep mode until addressed by the Master
? Cable diagnostic support
? 1.8V to 3.3V variable voltage I/O
? Integrated 1.2V regulator for single 3.3V operation
? Low pin count and small body size package
TABLE OF CONTENTS
1. Key benefits?
2. Target Applications
3. Pinout diagram
4. Jumpers and settings
5. LEDs and buttons
6. Software support
7. Third party support
8. Downloads
KEY BENEFITS?
? Integrated high-performance 100Mbps Ethernet transceivers - Compliant with IEEE 802.3/802.3u (Fast Ethernet) - 100BASE-FX support via external fiber transceiver - Loop-back modes - Automatic polarity detection and correction - HP Auto-MDIX
? EtherCAT slave controller - Supports 3 FMMUs - Supports 4 SyncManagers - Distributed clock support allows synchronization with other EtherCAT devices - 4K bytes of DPRAM
? 8/16-Bit Host Bus Interface - Indexed register or multiplexed bus - Allows local host to enter sleep mode until addressed by EtherCAT Master - SPI / Quad SPI support
? Digital I/O Mode for optimized system cost
? 3rd port for flexible network configurations
? Comprehensive power management features - 3 power-down levels - Wake on link status change (energy detect) - Magic packet wakeup, Wake on LAN (WoL), wake on broadcast, wake on perfect DA - Wakeup indicator event signal
? Power and I/O - Integrated power-on reset circuit - Latch-up performance exceeds 150mA per EIA/JESD78, Class II - JEDEC Class 3A ESD performance - Single 3.3V power supply (integrated 1.2V regulator)
? Additional Features - Multifunction GPIOs - Ability to use low cost 25MHz crystal for reduced BOM
? Packaging - Pb-free RoHS compliant 64-pin QFN or 64-pin TQFPEP
? Available in commercial, industrial, and extended industrial* temp. ranges
TARGET APPLICATIONS
? Motor Motion Control
? Process/Factory Automation
? Communication Modules, Interface Cards
? Sensors
? Hydraulic & Pneumatic Valve Systems
? Operator Interfaces
PINOUT DIAGRAM
This table shows how the pinout on LAN9252/3 Pro.
LAN9253 the details of PIN description, Pls refer Datasheet Page12 LAN9253 datasheet
LAN9252 the details of PIN description, Pls refer Datasheet Page12 LAN9252 datasheet

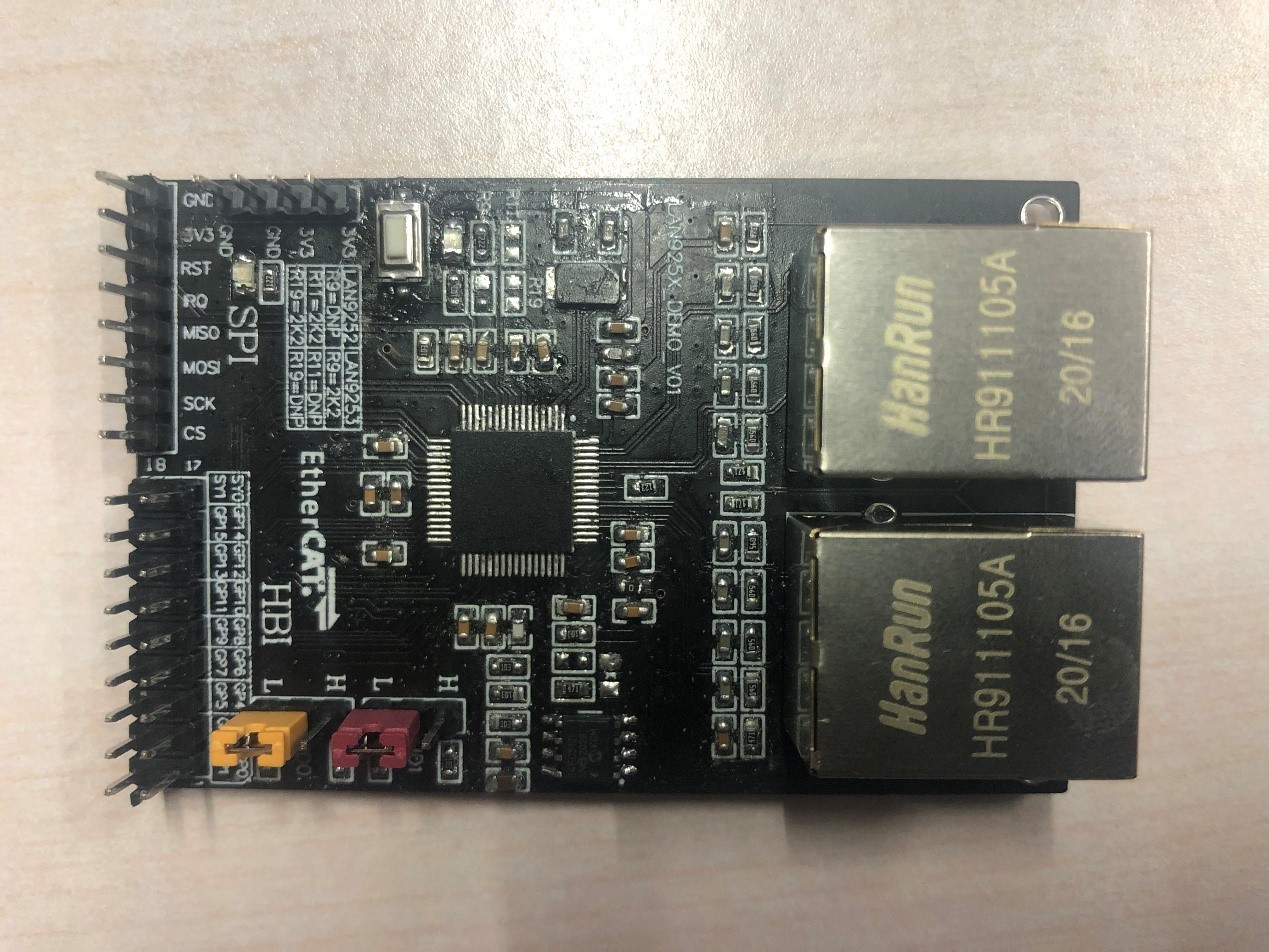

The LAN9252/3 EtherCAT module PIN description as following:
PIN Notes PIN Notes PIN Notes
1 GPIO0 2 GPIO1 CS Chip select
3 GPIO2 4 GPIO3 SCK SPI Clock
5 GPIO4 6 GPIO5 MISO SPI data OP
7 GPIO6 8 GPIO7 MOSI SPI data IP
9 GPIO8 10 GPIO9 IRQ IRQ
11 GPIO10 12 GPIO11 RST Reset
13 GPIO12 14 GPIO13 +3.3V Power supply
15 GPIO14 16 GPIO15 GND Ground
17 SYNC0 18 SYNC1
Chip set
ADDITIONAL PINS
CHIP MODE SELECTION
Jumper settings as following:
LEDS AND BUTTONS
Designator Name Type Description
D1 D1 INDICATOR INDICATOR
SOFTWARE SUPPORT
We provide a library for the LAN9252/3 Pro on Microchip page:for LAN9252
https://www.microchip.com/wwwproducts/en/LAN9252
for LAN9253 https://www.microchip.com/wwwproducts/en/LAN9253
as well as a demo application (example), developed using. The demo can run on all the mainboard.
DOWNLOADS
Pls Press Ctrl+click to enter the link
LAN9252 datasheet
LAN9252 all Doc
LAN9252 reference design
LAN9252 Driver
LAN9253 datasheet
LAN925x family Doc
LAN9253 all Doc
LAN9253 reference design
LAN9252 & LAN9253 compare
LAN9253 Driver
THIRD PARTY SUPPORT
Driver support:
https://github.com/MicrochipTech/ethercat-software-framework
https://download.csdn.net/download/weixin_41740665/10914039
鏈接：https://pan.baidu.com/s/1LYyLEkbiOvv2sJ5vqb8MrQ
提取碼：89ac
