目的
爬取搜狗圖片上千張美女圖片并下載到本地
準備作業
爬取地址：https://pic.sogou.com/pics?query=%E7%BE%8E%E5%A5%B3
分析

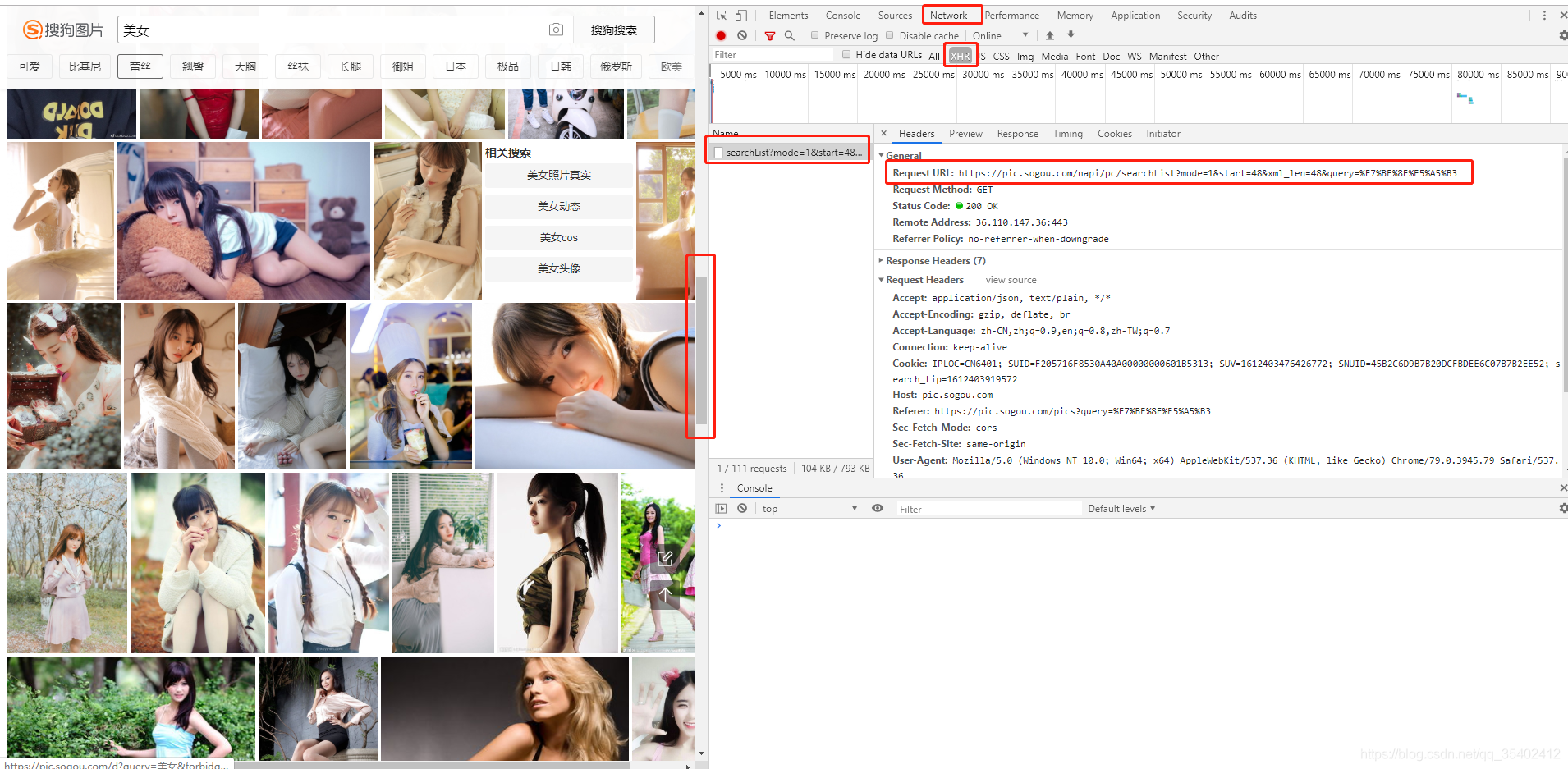

打開上面的地址，按F12開發者工具 - NetWork - XHR - 頁面往下滑動XHR欄出現請求資訊如下：
Request URL ： https://pic.sogou.com/napi/pc/searchList?mode=1&start=48&xml_len=48&query=%E7%BE%8E%E5%A5%B3
分析這段請求URL的主要幾個引數：
start=48 表示從第48張圖片開始檢索
xml_len=48 從地48張往后獲取48張圖片
query=？ 搜索關鍵詞（例：美女，這里瀏覽器自動做了轉碼，不影響我們使用）

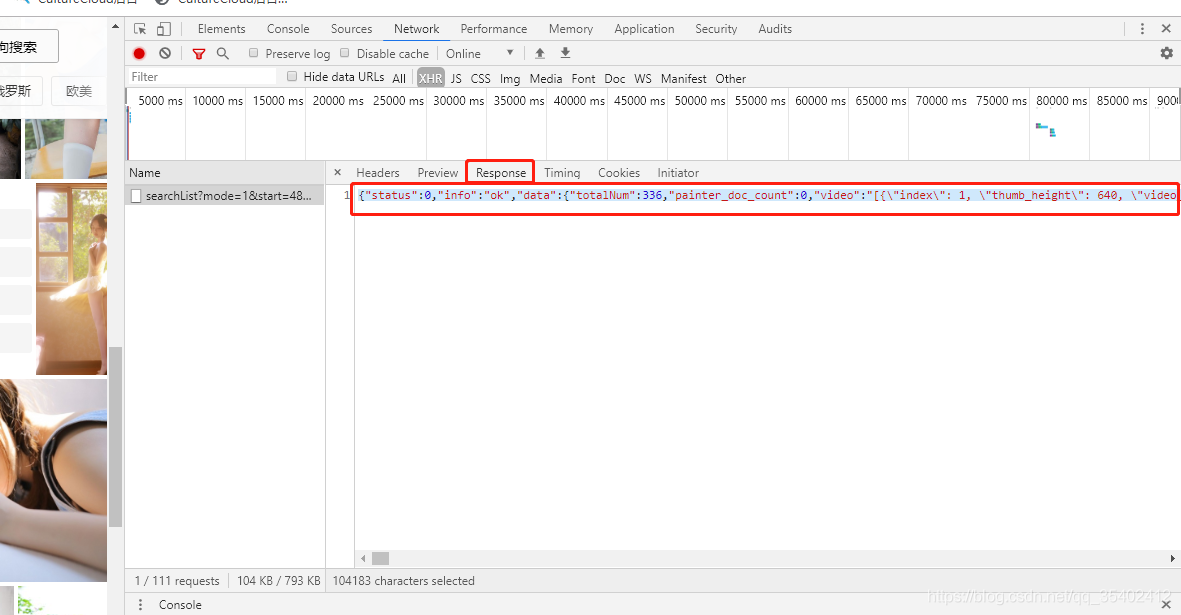

點擊Respose，找個JSON格式器輔助過去看看，
JSON格式： https://www.bejson.com/

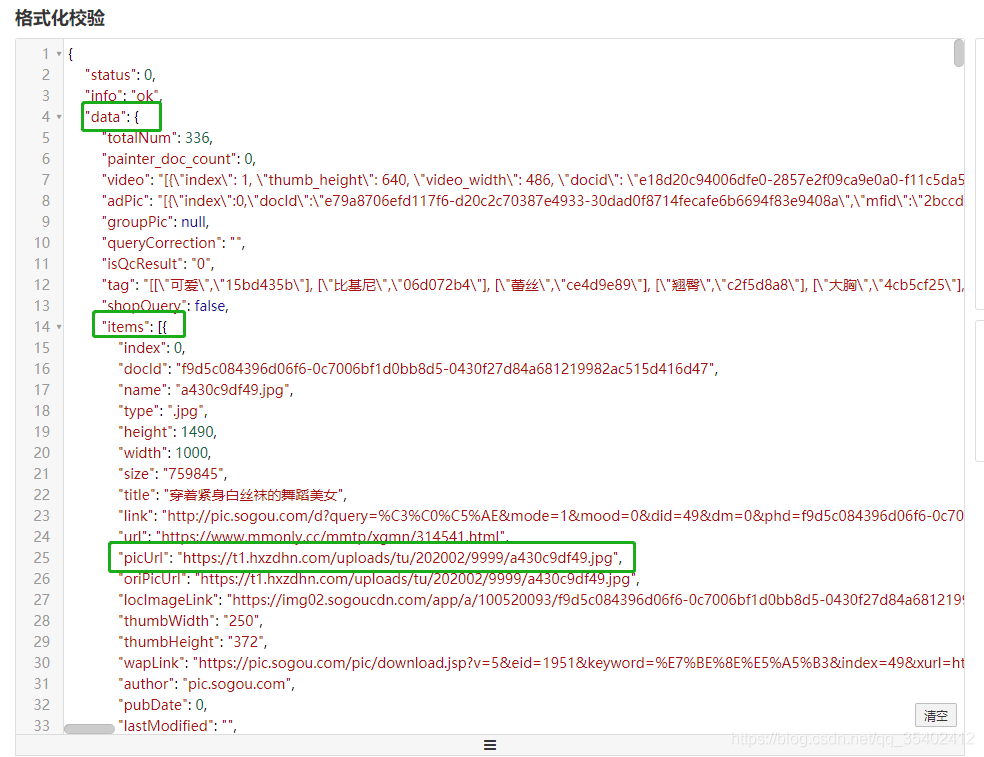

分析Respose回傳的資訊，可以發現我們想要的圖片地址放在 picUrl里，
思路
通過以上分析，不難實作下載方法，思路如下：
- 設定URL請求引數
- 訪問URL請求，獲取圖片地址
- 圖片地址存入List
- 遍歷List，使用執行緒池下載到本地
代碼
SougouImgProcessor.java 爬取圖片類import com.alibaba.fastjson.JSONObject;
import us.codecraft.webmagic.utils.HttpClientUtils;
import victor.chang.crawler.pipeline.SougouImgPipeline;
import java.util.ArrayList;
import java.util.List;
/**
* A simple PageProcessor.
*
* @author code4crafter@gmail.com <br>
* @since 0.1.0
*/
public class SougouImgProcessor {
private String url;
private SougouImgPipeline pipeline;
private List<JSONObject> dataList;
private List<String> urlList;
private String word;
public SougouImgProcessor(String url,String word) {
this.url = url;
this.word = word;
this.pipeline = new SougouImgPipeline();
this.dataList = new ArrayList<>();
this.urlList = new ArrayList<>();
}
public void process(int idx, int size) {
String res = HttpClientUtils.get(String.format(this.url, idx, size, this.word));
JSONObject object = JSONObject.parseObject(res);
List<JSONObject> items = (List<JSONObject>)((JSONObject)object.get("data")).get("items");
for(JSONObject item : items){
this.urlList.add(item.getString("picUrl"));
}
this.dataList.addAll(items);
}
// 下載
public void pipelineData(){
// pipeline.process(this.urlList, word); // 單執行緒
pipeline.processSync(this.urlList, this.word); // 多執行緒
}
public static void main(String[] args) {
String url = "https://pic.sogou.com/napi/pc/searchList?mode=1&start=%s&xml_len=%s&query=%s";
SougouImgProcessor processor = new SougouImgProcessor(url,"美女");
int start = 0, size = 50, limit = 1000; // 定義爬取開始索引、每次爬取數量、總共爬取數量
for(int i=start;i<start+limit;i+=size)
processor.process(i, size);
processor.pipelineData();
}
}
SougouImgPipeline.java 圖片下載類
import java.io.File;
import java.io.FileOutputStream;
import java.io.InputStream;
import java.net.URL;
import java.net.URLConnection;
import java.util.List;
import java.util.Objects;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicInteger;
/**
* Store results in files.<br>
*
* @author code4crafter@gmail.com <br>
* @since 0.1.0
*/
public class SougouImgPipeline {
private String extension = ".jpg";
private String path;
private volatile AtomicInteger suc;
private volatile AtomicInteger fails;
public SougouImgPipeline() {
setPath("E:/pipeline/sougou");
suc = new AtomicInteger();
fails = new AtomicInteger();
}
public SougouImgPipeline(String path) {
setPath(path);
suc = new AtomicInteger();
fails = new AtomicInteger();
}
public SougouImgPipeline(String path, String extension) {
setPath(path);
this.extension = extension;
suc = new AtomicInteger();
fails = new AtomicInteger();
}
public void setPath(String path) {
this.path = path;
}
/**
* 下載
*
* @param url
* @param cate
* @throws Exception
*/
private void downloadImg(String url, String cate, String name) throws Exception {
String path = this.path + "/" + cate + "/";
File dir = new File(path);
if (!dir.exists()) { // 目錄不存在則創建目錄
dir.mkdirs();
}
String realExt = url.substring(url.lastIndexOf(".")); // 獲取擴展名
String fileName = name + realExt;
fileName = fileName.replace("-", "");
String filePath = path + fileName;
File img = new File(filePath);
if(img.exists()){ // 若檔案之前已經下載過，則跳過
System.out.println(String.format("檔案%s已存在本地目錄",fileName));
return;
}
URLConnection con = new URL(url).openConnection();
con.setConnectTimeout(5000);
con.setReadTimeout(5000);
InputStream inputStream = con.getInputStream();
byte[] bs = new byte[1024];
File file = new File(filePath);
FileOutputStream os = new FileOutputStream(file, true);
// 開始讀取 寫入
int len;
while ((len = inputStream.read(bs)) != -1) {
os.write(bs, 0, len);
}
System.out.println("picUrl: " + url);
System.out.println(String.format("正在下載第%s張圖片", suc.getAndIncrement()));
}
/**
* 單執行緒處理
*
* @param data
* @param word
*/
public void process(List<String> data, String word) {
long start = System.currentTimeMillis();
for (String picUrl : data) {
if (picUrl == null)
continue;
try {
downloadImg(picUrl, word, picUrl);
} catch (Exception e) {
// e.printStackTrace();
fails.incrementAndGet();
}
}
System.out.println("下載成功: " + suc.get());
System.out.println("下載失敗: " + fails.get());
long end = System.currentTimeMillis();
System.out.println("耗時：" + (end - start) / 1000 + "秒");
}
/**
* 多執行緒處理
*
* @param data
* @param word
*/
public void processSync(List<String> data, String word) {
long start = System.currentTimeMillis();
int count = 0;
ExecutorService executorService = Executors.newCachedThreadPool(); // 創建快取執行緒池
for (int i=0;i<data.size();i++) {
String picUrl = data.get(i);
if (picUrl == null)
continue;
String name = "";
if(i<10){
name="000"+i;
}else if(i<100){
name="00"+i;
}else if(i<1000){
name="0"+i;
}
String finalName = name;
executorService.execute(() -> {
try {
downloadImg(picUrl, word, finalName);
} catch (Exception e) {
// e.printStackTrace();
fails.incrementAndGet();
}
});
count++;
}
executorService.shutdown();
try {
if (!executorService.awaitTermination(60, TimeUnit.SECONDS)) {
// 超時的時候向執行緒池中所有的執行緒發出中斷(interrupted)，
// executorService.shutdownNow();
}
System.out.println("AwaitTermination Finished");
System.out.println("共有URL: "+data.size());
System.out.println("下載成功: " + suc);
System.out.println("下載失敗: " + fails);
File dir = new File(this.path + "/" + word + "/");
int len = Objects.requireNonNull(dir.list()).length;
System.out.println("當前共有檔案： "+len);
long end = System.currentTimeMillis();
System.out.println("耗時：" + (end - start) / 1000.0 + "秒");
} catch (InterruptedException e) {
e.printStackTrace();
}
}
/**
* 多執行緒分段處理
*
* @param data
* @param word
* @param threadNum
*/
public void processSync2(List<String> data, final String word, int threadNum) {
if (data.size() < threadNum) {
process(data, word);
} else {
ExecutorService executorService = Executors.newCachedThreadPool();
int num = data.size() / threadNum; //每段要處理的數量
for (int i = 0; i < threadNum; i++) {
int start = i * num;
int end = (i + 1) * num;
if (i == threadNum - 1) {
end = data.size();
}
final List<String> cutList = data.subList(start, end);
executorService.execute(() -> process(cutList, word));
}
executorService.shutdown();
}
}
}
HttpClientUtils.java http請求工具類import org.apache.http.Header;
import org.apache.http.HttpEntity;
import org.apache.http.NameValuePair;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.client.methods.HttpUriRequest;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.conn.ssl.TrustStrategy;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.message.BasicNameValuePair;
import org.apache.http.ssl.SSLContextBuilder;
import org.apache.http.util.EntityUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import javax.net.ssl.HostnameVerifier;
import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLSession;
import java.io.IOException;
import java.io.UnsupportedEncodingException;
import java.security.GeneralSecurityException;
import java.security.cert.CertificateException;
import java.security.cert.X509Certificate;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
/**
* @author code4crafter@gmail.com
* Date: 17/3/27
*/
public abstract class HttpClientUtils {
public static Map<String, List<String>> convertHeaders(Header[] headers) {
Map<String, List<String>> results = new HashMap<String, List<String>>();
for (Header header : headers) {
List<String> list = results.get(header.getName());
if (list == null) {
list = new ArrayList<String>();
results.put(header.getName(), list);
}
list.add(header.getValue());
}
return results;
}
/**
* http的get請求
*
* @param url
*/
public static String get(String url) {
return get(url, "UTF-8");
}
public static Logger logger = LoggerFactory.getLogger(HttpClientUtils.class);
/**
* http的get請求
*
* @param url
*/
public static String get(String url, String charset) {
HttpGet httpGet = new HttpGet(url);
return executeRequest(httpGet, charset);
}
/**
* http的get請求，增加異步請求頭引數
*
* @param url
*/
public static String ajaxGet(String url) {
return ajaxGet(url, "UTF-8");
}
/**
* http的get請求，增加異步請求頭引數
*
* @param url
*/
public static String ajaxGet(String url, String charset) {
HttpGet httpGet = new HttpGet(url);
httpGet.setHeader("X-Requested-With", "XMLHttpRequest");
return executeRequest(httpGet, charset);
}
/**
* @param url
* @return
*/
public static String ajaxGet(CloseableHttpClient httpclient, String url) {
HttpGet httpGet = new HttpGet(url);
httpGet.setHeader("X-Requested-With", "XMLHttpRequest");
return executeRequest(httpclient, httpGet, "UTF-8");
}
/**
* http的post請求，傳遞map格式引數
*/
public static String post(String url, Map<String, String> dataMap) {
return post(url, dataMap, "UTF-8");
}
/**
* http的post請求，傳遞map格式引數
*/
public static String post(String url, Map<String, String> dataMap, String charset) {
HttpPost httpPost = new HttpPost(url);
try {
if (dataMap != null) {
List<NameValuePair> nvps = new ArrayList<NameValuePair>();
for (Map.Entry<String, String> entry : dataMap.entrySet()) {
nvps.add(new BasicNameValuePair(entry.getKey(), entry.getValue()));
}
UrlEncodedFormEntity formEntity = new UrlEncodedFormEntity(nvps, charset);
formEntity.setContentEncoding(charset);
httpPost.setEntity(formEntity);
}
} catch (UnsupportedEncodingException e) {
e.printStackTrace();
}
return executeRequest(httpPost, charset);
}
/**
* http的post請求，增加異步請求頭引數，傳遞map格式引數
*/
public static String ajaxPost(String url, Map<String, String> dataMap) {
return ajaxPost(url, dataMap, "UTF-8");
}
/**
* http的post請求，增加異步請求頭引數，傳遞map格式引數
*/
public static String ajaxPost(String url, Map<String, String> dataMap, String charset) {
HttpPost httpPost = new HttpPost(url);
httpPost.setHeader("X-Requested-With", "XMLHttpRequest");
try {
if (dataMap != null) {
List<NameValuePair> nvps = new ArrayList<NameValuePair>();
for (Map.Entry<String, String> entry : dataMap.entrySet()) {
nvps.add(new BasicNameValuePair(entry.getKey(), entry.getValue()));
}
UrlEncodedFormEntity formEntity = new UrlEncodedFormEntity(nvps, charset);
formEntity.setContentEncoding(charset);
httpPost.setEntity(formEntity);
}
} catch (UnsupportedEncodingException e) {
e.printStackTrace();
}
return executeRequest(httpPost, charset);
}
/**
* http的post請求，增加異步請求頭引數，傳遞json格式引數
*/
public static String ajaxPostJson(String url, String jsonString) {
return ajaxPostJson(url, jsonString, "UTF-8");
}
/**
* http的post請求，增加異步請求頭引數，傳遞json格式引數
*/
public static String ajaxPostJson(String url, String jsonString, String charset) {
HttpPost httpPost = new HttpPost(url);
httpPost.setHeader("X-Requested-With", "XMLHttpRequest");
// try {
StringEntity stringEntity = new StringEntity(jsonString, charset);// 解決中文亂碼問題
stringEntity.setContentEncoding(charset);
stringEntity.setContentType("application/json");
httpPost.setEntity(stringEntity);
// } catch (UnsupportedEncodingException e) {
// e.printStackTrace();
// }
return executeRequest(httpPost, charset);
}
/**
* 執行一個http請求，傳遞HttpGet或HttpPost引數
*/
public static String executeRequest(HttpUriRequest httpRequest) {
return executeRequest(httpRequest, "UTF-8");
}
/**
* 執行一個http請求，傳遞HttpGet或HttpPost引數
*/
public static String executeRequest(HttpUriRequest httpRequest, String charset) {
CloseableHttpClient httpclient;
if ("https".equals(httpRequest.getURI().getScheme())) {
httpclient = createSSLInsecureClient();
} else {
httpclient = HttpClients.createDefault();
}
String result = "";
try {
try {
CloseableHttpResponse response = httpclient.execute(httpRequest);
HttpEntity entity = null;
try {
entity = response.getEntity();
result = EntityUtils.toString(entity, charset);
} finally {
EntityUtils.consume(entity);
response.close();
}
} finally {
httpclient.close();
}
} catch (IOException ex) {
ex.printStackTrace();
}
return result;
}
public static String executeRequest(CloseableHttpClient httpclient, HttpUriRequest httpRequest, String charset) {
String result = "";
try {
try {
CloseableHttpResponse response = httpclient.execute(httpRequest);
HttpEntity entity = null;
try {
entity = response.getEntity();
result = EntityUtils.toString(entity, charset);
} finally {
EntityUtils.consume(entity);
response.close();
}
} finally {
httpclient.close();
}
} catch (IOException ex) {
ex.printStackTrace();
}
return result;
}
/**
* 創建 SSL連接
*/
public static CloseableHttpClient createSSLInsecureClient() {
try {
SSLContext sslContext = new SSLContextBuilder().loadTrustMaterial(new TrustStrategy() {
@Override
public boolean isTrusted(X509Certificate[] chain, String authType) throws CertificateException {
return true;
}
}).build();
SSLConnectionSocketFactory sslsf = new SSLConnectionSocketFactory(sslContext, new HostnameVerifier() {
@Override
public boolean verify(String hostname, SSLSession session) {
return true;
}
});
return HttpClients.custom().setSSLSocketFactory(sslsf).build();
} catch (GeneralSecurityException ex) {
throw new RuntimeException(ex);
}
}
}

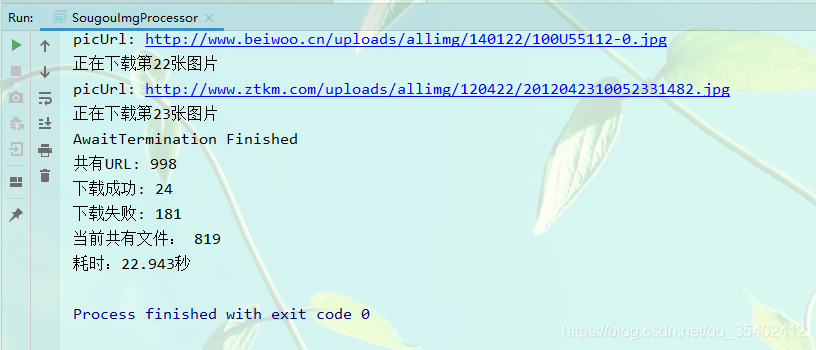

運行

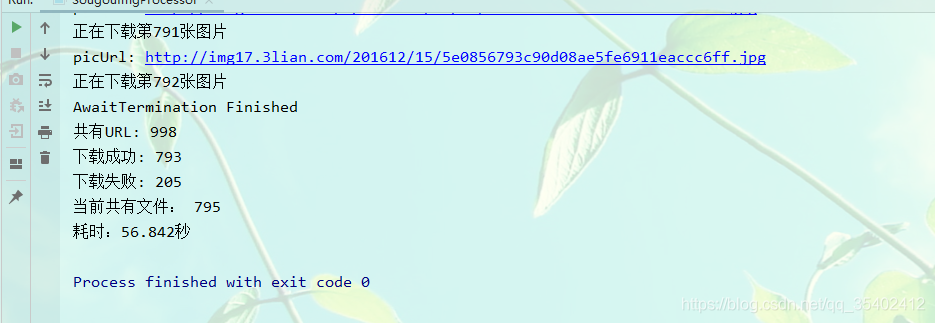

由于網路等原因，我們發現并不能全部下載成功，不過可以多次運行嘗試，可以實作較高的下載成功率，
---------------------------------------------------------------------------------------------------------------------------------------------------
有興趣的朋友可以加Q群交流學習，群里有更多原始碼，學習資料，大神解答，
QQ群：741909960
點我進群
轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/257091.html
標籤：java
上一篇：二十個集合常見面試題！
