MinIO概要

MinIO 是一個基于Apache License v2.0開源協議的物件存盤服務，它兼容亞馬遜S3云存盤服務介面，非常適合于存盤大容量非結構化的資料，例如圖片、視頻、日志檔案、備份資料和容器/虛擬機鏡像等，而一個物件檔案可以是任意大小，從幾kb到最大5T不等，

MinIO是一個非常輕量的服務,可以很簡單的和其他應用的結合，類似 NodeJS, Redis 或者 MySQL，

快速入門地址 -> http://docs.minio.org.cn/docs/
PS: 之前官網檔案API有些已廢棄，提過issue，官方已更新，也許還有部分檔案未更新

MinIO & FastDFS 對比

MinIO：
Kubernetes原生支持，高性能，物件存盤，有官方檔案，API簡單，有控制臺

FastDFS：
部署較為復雜，要理解FastDFS的架構才好上手部署開發，沒有官方檔案，沒有控制臺

思路

1. 方案一：
   前端 將附件與表單屬性一同提交
2. 方案二：
   前端分兩步
   2.1 前端 上傳圖片 呼叫“附件上傳介面” -> 成功，回傳attachmentId；
   2.2 前端 提交表單 將 attachmentId 和其他表單資訊一同提交，

選擇方案二，理由：解耦，成功率更高，

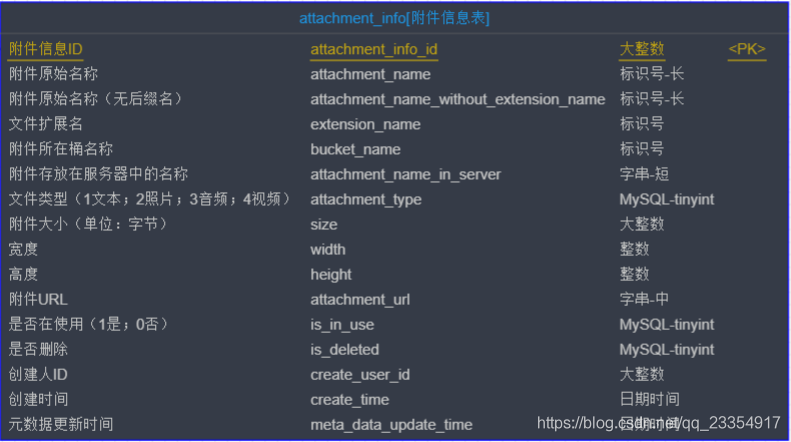

附件資訊表 資料庫表結構設計參考

talk is cheap -> show me the code（核心代碼）

Spring Boot 工程 application.yml

spring:
  servlet:
    # 附件上傳限制大小
    multipart:
      # 單個檔案的最大值
      max-file-size: 10MB
      # 最大請求檔案的大小
      max-request-size: 100MB

# MinIO
minio:
  url: http://127.0.0.1:9000
  access-key: minioadmin
  secret-key: minioadmin
  bucket-name: spring-festival

MinIOConfig.java

import io.minio.MinioClient;
import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * MinIO config
 *
 * @author Jiahai
 */
@Data
@Configuration
@ConfigurationProperties(value = "minio")
public class MinIOConfig {
    /**
     * URL
     */
    private String url;

    /**
     * access-key
     */
    private String accessKey;

    /**
     * secretKey
     */
    private String secretKey;

    /**
     * bucket name
     */
    private String bucketName;

    /**
     * 初始化 MinIO Client
     *
     * @return
     */
    @Bean
    public MinioClient initMinioClient () {
        return MinioClient.builder().endpoint(url).credentials(accessKey, secretKey).build();
    }
}

MinIOComponent.java

import com.wisdom.attachment.service.AttachmentInfoService;
import com.wisdom.config.MinIOConfig;
import com.wisdom.exception.BusinessException;
import io.minio.*;
import io.minio.http.Method;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.io.IOUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.stereotype.Component;
import org.springframework.web.multipart.MultipartFile;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletResponse;
import java.io.InputStream;
import java.net.URLEncoder;
import java.util.concurrent.ThreadPoolExecutor;

/**
 * MinIO 組件
 *
 * @author Jiahai
 */
@Slf4j
@Component
public class MinIOComponent {
    @Autowired
    private MinIOConfig minIOConfig;

    @Autowired
    private MinioClient minioClient;

	/**
	 * 自定義的執行緒池
	**/
    @Resource(name = "updateAttachmentInfoThreadPoolExecutor")
    private ThreadPoolExecutor updateAttachmentInfoThreadPoolExecutor;

    @Autowired
    private AttachmentInfoService attachmentInfoService;

    /**
     * 附件上傳
     *
     * @param attachmentInfoId       附件ID
     * @param multipartFile          附件
     * @param attachmentNameInServer 存盤在檔案服務器中的附件名稱
     */
    public String upload(Long attachmentInfoId, MultipartFile multipartFile, String attachmentNameInServer) {
        // 獲取 原始檔案名，例如 hello.txt
        String originalFilename = multipartFile.getOriginalFilename();
        String contentType = multipartFile.getContentType();

        // 桶名稱
        String bucketName = minIOConfig.getBucketName();

        try (InputStream inputStream = multipartFile.getInputStream()) {
            boolean bucketExists = minioClient.bucketExists(BucketExistsArgs.builder().bucket(bucketName).build());
            if (!bucketExists) {
                minioClient.makeBucket(MakeBucketArgs.builder().bucket(bucketName).build());
            }
            minioClient.putObject(PutObjectArgs.builder().bucket(bucketName)
                    .object(attachmentNameInServer)
                    .stream(inputStream, multipartFile.getSize(), -1)
                    .contentType(contentType).build()
            );
            log.info("附件上傳成功, fileName: {}, contentType: {}, size(Byte): {}", originalFilename, contentType, multipartFile.getSize());

            // 異步更新附件URL
            String presignedObjectUrl = minioClient.getPresignedObjectUrl(GetPresignedObjectUrlArgs.builder().method(Method.GET).bucket(bucketName).object(attachmentNameInServer).build());
            updateAttachmentInfoThreadPoolExecutor.execute(() -> {
                try {
                    int row = attachmentInfoService.updateAttachmentUrlByAttachmentInfoId(attachmentInfoId, presignedObjectUrl);
                    log.info("ID為{}的附件，URL更新{}", attachmentInfoId, row > 0 ? "成功" : "失敗");
                } catch (Exception e) {
                    e.printStackTrace();
                }
            });
            return presignedObjectUrl;
        } catch (Exception e) {
            log.error("附件上傳失敗, fileName: {}, contentType: {}, size(Byte): {}", originalFilename, contentType, multipartFile.getSize());
            e.printStackTrace();
            throw new BusinessException(HttpStatus.INTERNAL_SERVER_ERROR.value(), "附件上傳失敗");
        }
    }

    /**
     * 附件下載
     *
     * @param attachmentName         附件原始名稱
     * @param bucketName             桶名稱
     * @param attachmentNameInServer 存盤在檔案服務器中的附件名稱
     * @param httpServletResponse    httpServletResponse
     */
    public void download(String attachmentName, String bucketName, String attachmentNameInServer, HttpServletResponse httpServletResponse) {
        try {
            StatObjectResponse statObjectResponse = minioClient.statObject(StatObjectArgs.builder().bucket(bucketName).object(attachmentNameInServer).build());
            httpServletResponse.setHeader("Content-Disposition", "attachment;filename=" + URLEncoder.encode(attachmentName, "UTF-8"));
            httpServletResponse.setContentType(statObjectResponse.contentType());
            httpServletResponse.setCharacterEncoding("UTF-8");
            InputStream inputStream = minioClient.getObject(GetObjectArgs.builder().bucket(bucketName).object(attachmentNameInServer).build());
            IOUtils.copy(inputStream, httpServletResponse.getOutputStream());
        } catch (Exception e) {
            log.error("附件下載失敗, fileName: {}, bucketName: {}, attachmentNameInServer: {}", attachmentName, bucketName, attachmentNameInServer);
            e.printStackTrace();
        }
    }

    /**
     * 獲取預覽URL
     * 注：.txt的附件會亂碼，PDF正常
     * 注：默認有效期7天
     *
     * @param bucketName             桶名稱
     * @param attachmentNameInServer 存盤在檔案服務器中的附件名稱
     * @return
     */
    public String getPresignedUrl(String bucketName, String attachmentNameInServer) {
        try {
            minioClient.statObject(StatObjectArgs.builder().bucket(bucketName).object(attachmentNameInServer).build());
            return minioClient.getPresignedObjectUrl(GetPresignedObjectUrlArgs.builder().method(Method.GET).bucket(bucketName).object(attachmentNameInServer).build());
        } catch (Exception e) {
            throw new BusinessException(HttpStatus.BAD_REQUEST.value(), e.getMessage());
        }
    }

    /**
     * 洗掉附件
     *
     * @param bucketName             桶名稱
     * @param attachmentNameInServer 存盤在檔案服務器中的附件名稱
     */
    public void remove(String bucketName, String attachmentNameInServer) {
        try {
            minioClient.removeObject(RemoveObjectArgs.builder().bucket(bucketName).object(attachmentNameInServer).build());
            log.info("附件: {}, 洗掉成功!", attachmentNameInServer);
        } catch (Exception e) {
            log.error("附件: {}, 洗掉失敗...", attachmentNameInServer);
            e.printStackTrace();
        }
    }
}

PS：

• 新版MinIO的API主要使用建造者模式；
• MinIO的預覽URL有時效性，注意使用定時任務去完成重繪，自行把握時間視窗，
