流行的APM(Application Performance Management工具有很多，比如Cat、Zipkin、Pinpoint、SkyWalking，優秀的監控工具還有很多，其它比如還有zabbix、prometheus、Arthas、Grafana之類的，這里主要介紹SkyWalking，它是一款優秀的國產APM工具，包括了分布式追蹤、性能指標分析、應用和服務依賴分析等，
Skywalking是一個分布式系統的應用程式性能監視工具，專為微服務、云原生架構和基于容器（Docker、K8s、Mesos）架構而設計，SkyWalking 是觀察性分析平臺和應用性能管理系統，提供分布式追蹤、服務網格遙測分析、度量聚合和可視化一體化解決方案，支持Java, .Net Core, PHP, NodeJS, Golang, LUA語言探針，支持Envoy + Istio構建的Service Mesh，
v介紹

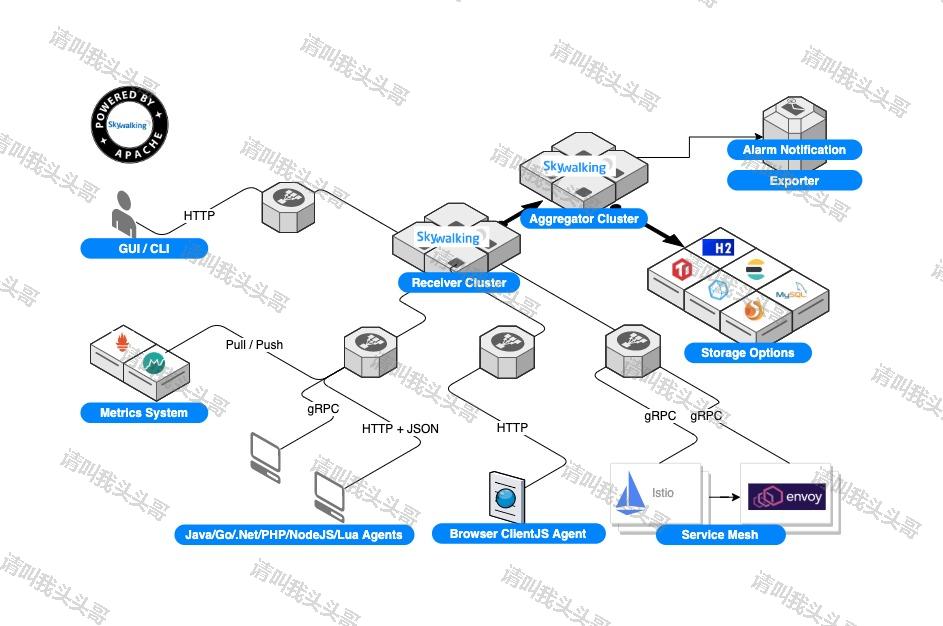

1.1 SkyWalking 在邏輯上分為四部分：探針、平臺后端、存盤和用戶界面，其架構圖如下：
圖片來源于網路，侵刪，
探針：基于不同的來源探針可能是不一樣的，但作用都是收集資料，將資料格式化為SkyWalking適用的格式，例如在Java中則是做位元組碼植入，無侵入式的收集，并通過HTTP或者GRPC方式發送資料到平臺后端.
平臺后端：是一個支持集群模式運行的后臺，用于資料聚合、資料分析以及驅動資料流從探針到用戶界面的流程，平臺后端還提供了各種可插拔的能力，如不同來源資料（如來自 Zipkin）格式化，不同存盤系統以及集群管理，你甚至還可以使用觀測分析語言來進行自定義聚合分析，
存盤：是開放式的，可以選擇一個既有的存盤系統，如ElasticSearch、H2 或 MySQL 集群（Sharding-Sphere 管理），也可以選擇自己實作一個存盤系統，
用戶界面：SkyWalking的可視化界面，UI非常炫酷且強大，同樣它也是可定制以匹配你已存在的后端的，
1.2 在SkyWalking中也存在服務、服務實體及端點概念，因為SkyWalking就是提供了這些概念的觀測能力：
服務（Service）：表示對請求提供相同行為的一系列或一組作業負載，在使用打點代理或 SDK 的時候，你可以定義服務的名字，如果不定義的話，SkyWalking 將會使用你在平臺上定義的名字，如 Istio，
服務實體（Service Instance）：上述的一組作業負載中的每一個作業負載稱為一個實體，就像 Kubernetes 中的 pods 一樣，服務實體未必就是作業系統上的一個行程，但當你在使用打點代理的時候， 一個服務實體實際就是作業系統上的一個真實行程，
端點（Endpoint）：對于特定服務所接收的請求路徑，如 HTTP 的 URI 路徑和 gRPC 服務的類名 + 方法簽名
1.3 SkyWalking的優勢如下：
1.多種監控手段，語言探針和服務網格（Service Mesh）
2.模塊化，UI、存盤、集群管理多種機制可選
3.支持告警(告警可以推送到釘釘)
4.優秀的可視化方案
v環境準備
2.1 拉取鏡像
docker pull elasticsearch:7.5.1 docker pull apache/skywalking-oap-server:8.3.0-es7 docker pull apache/skywalking-ui:8.3.0
2.2 創建&啟動elasticsearch
docker run -d --name=es7 \ -p 9200:9200 -p 9300:9300 \ -e "discovery.type=single-node" elasticsearch:7.5.1
注意：若創建es持久化目錄，則按下面的命令執行，
mkdir -p /data/elasticsearch docker cp es7:/usr/share/elasticsearch/data /data/elasticsearch/ docker cp es7:/usr/share/elasticsearch/logs /data/elasticsearch/ docker rm -f es7 docker run -d --name=es7 \ --restart=always \ -p 9200:9200 -p 9300:9300 \ -e "discovery.type=single-node" \ -v /data/elasticsearch/data:/usr/share/elasticsearch/data \ -v /data/elasticsearch/logs:/usr/share/elasticsearch/logs \ elasticsearch:7.5.1
2.3 創建&啟動OAP
docker run --name oap --restart always -d \ --restart=always \ -e TZ=Asia/Shanghai \ -p 12800:12800 \ -p 11800:11800 \ --link es7:es7 \ -e SW_STORAGE=elasticsearch7 \ -e SW_STORAGE_ES_CLUSTER_NODES=es7:9200 \ apache/skywalking-oap-server:8.3.0-es7
SW_STORAGE：表示選擇elasticsearch7作為存盤組件
SW_STORAGE_ES_CLUSTER_NODES：elasticsearch的節點，多個用逗號隔開
以上引數均為application.yml檔案中的引數，
application.yml詳細資訊如下：
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
cluster:
selector: ${SW_CLUSTER:standalone}
standalone:
# Please check your ZooKeeper is 3.5+, However, it is also compatible with ZooKeeper 3.4.x. Replace the ZooKeeper 3.5+
# library the oap-libs folder with your ZooKeeper 3.4.x library.
zookeeper:
nameSpace: ${SW_NAMESPACE:""}
hostPort: ${SW_CLUSTER_ZK_HOST_PORT:localhost:2181}
# Retry Policy
baseSleepTimeMs: ${SW_CLUSTER_ZK_SLEEP_TIME:1000} # initial amount of time to wait between retries
maxRetries: ${SW_CLUSTER_ZK_MAX_RETRIES:3} # max number of times to retry
# Enable ACL
enableACL: ${SW_ZK_ENABLE_ACL:false} # disable ACL in default
schema: ${SW_ZK_SCHEMA:digest} # only support digest schema
expression: ${SW_ZK_EXPRESSION:skywalking:skywalking}
kubernetes:
namespace: ${SW_CLUSTER_K8S_NAMESPACE:default}
labelSelector: ${SW_CLUSTER_K8S_LABEL:app=collector,release=skywalking}
uidEnvName: ${SW_CLUSTER_K8S_UID:SKYWALKING_COLLECTOR_UID}
consul:
serviceName: ${SW_SERVICE_NAME:"SkyWalking_OAP_Cluster"}
# Consul cluster nodes, example: 10.0.0.1:8500,10.0.0.2:8500,10.0.0.3:8500
hostPort: ${SW_CLUSTER_CONSUL_HOST_PORT:localhost:8500}
aclToken: ${SW_CLUSTER_CONSUL_ACLTOKEN:""}
etcd:
serviceName: ${SW_SERVICE_NAME:"SkyWalking_OAP_Cluster"}
# etcd cluster nodes, example: 10.0.0.1:2379,10.0.0.2:2379,10.0.0.3:2379
hostPort: ${SW_CLUSTER_ETCD_HOST_PORT:localhost:2379}
nacos:
serviceName: ${SW_SERVICE_NAME:"SkyWalking_OAP_Cluster"}
hostPort: ${SW_CLUSTER_NACOS_HOST_PORT:localhost:8848}
# Nacos Configuration namespace
namespace: ${SW_CLUSTER_NACOS_NAMESPACE:"public"}
# Nacos auth username
username: ${SW_CLUSTER_NACOS_USERNAME:""}
password: ${SW_CLUSTER_NACOS_PASSWORD:""}
# Nacos auth accessKey
accessKey: ${SW_CLUSTER_NACOS_ACCESSKEY:""}
secretKey: ${SW_CLUSTER_NACOS_SECRETKEY:""}
core:
selector: ${SW_CORE:default}
default:
# Mixed: Receive agent data, Level 1 aggregate, Level 2 aggregate
# Receiver: Receive agent data, Level 1 aggregate
# Aggregator: Level 2 aggregate
role: ${SW_CORE_ROLE:Mixed} # Mixed/Receiver/Aggregator
restHost: ${SW_CORE_REST_HOST:0.0.0.0}
restPort: ${SW_CORE_REST_PORT:12800}
restContextPath: ${SW_CORE_REST_CONTEXT_PATH:/}
restMinThreads: ${SW_CORE_REST_JETTY_MIN_THREADS:1}
restMaxThreads: ${SW_CORE_REST_JETTY_MAX_THREADS:200}
restIdleTimeOut: ${SW_CORE_REST_JETTY_IDLE_TIMEOUT:30000}
restAcceptorPriorityDelta: ${SW_CORE_REST_JETTY_DELTA:0}
restAcceptQueueSize: ${SW_CORE_REST_JETTY_QUEUE_SIZE:0}
gRPCHost: ${SW_CORE_GRPC_HOST:0.0.0.0}
gRPCPort: ${SW_CORE_GRPC_PORT:11800}
maxConcurrentCallsPerConnection: ${SW_CORE_GRPC_MAX_CONCURRENT_CALL:0}
maxMessageSize: ${SW_CORE_GRPC_MAX_MESSAGE_SIZE:0}
gRPCThreadPoolQueueSize: ${SW_CORE_GRPC_POOL_QUEUE_SIZE:-1}
gRPCThreadPoolSize: ${SW_CORE_GRPC_THREAD_POOL_SIZE:-1}
gRPCSslEnabled: ${SW_CORE_GRPC_SSL_ENABLED:false}
gRPCSslKeyPath: ${SW_CORE_GRPC_SSL_KEY_PATH:""}
gRPCSslCertChainPath: ${SW_CORE_GRPC_SSL_CERT_CHAIN_PATH:""}
gRPCSslTrustedCAPath: ${SW_CORE_GRPC_SSL_TRUSTED_CA_PATH:""}
downsampling:
- Hour
- Day
# Set a timeout on metrics data. After the timeout has expired, the metrics data will automatically be deleted.
enableDataKeeperExecutor: ${SW_CORE_ENABLE_DATA_KEEPER_EXECUTOR:true} # Turn it off then automatically metrics data delete will be close.
dataKeeperExecutePeriod: ${SW_CORE_DATA_KEEPER_EXECUTE_PERIOD:5} # How often the data keeper executor runs periodically, unit is minute
recordDataTTL: ${SW_CORE_RECORD_DATA_TTL:3} # Unit is day
metricsDataTTL: ${SW_CORE_METRICS_DATA_TTL:7} # Unit is day
# Cache metrics data for 1 minute to reduce database queries, and if the OAP cluster changes within that minute,
# the metrics may not be accurate within that minute.
enableDatabaseSession: ${SW_CORE_ENABLE_DATABASE_SESSION:true}
topNReportPeriod: ${SW_CORE_TOPN_REPORT_PERIOD:10} # top_n record worker report cycle, unit is minute
# Extra model column are the column defined by in the codes, These columns of model are not required logically in aggregation or further query,
# and it will cause more load for memory, network of OAP and storage.
# But, being activated, user could see the name in the storage entities, which make users easier to use 3rd party tool, such as Kibana->ES, to query the data by themselves.
activeExtraModelColumns: ${SW_CORE_ACTIVE_EXTRA_MODEL_COLUMNS:false}
# The max length of service + instance names should be less than 200
serviceNameMaxLength: ${SW_SERVICE_NAME_MAX_LENGTH:70}
instanceNameMaxLength: ${SW_INSTANCE_NAME_MAX_LENGTH:70}
# The max length of service + endpoint names should be less than 240
endpointNameMaxLength: ${SW_ENDPOINT_NAME_MAX_LENGTH:150}
# Define the set of span tag keys, which should be searchable through the GraphQL.
searchableTracesTags: ${SW_SEARCHABLE_TAG_KEYS:http.method,status_code,db.type,db.instance,mq.queue,mq.topic,mq.broker}
storage:
selector: ${SW_STORAGE:h2}
elasticsearch:
nameSpace: ${SW_NAMESPACE:""}
clusterNodes: ${SW_STORAGE_ES_CLUSTER_NODES:localhost:9200}
protocol: ${SW_STORAGE_ES_HTTP_PROTOCOL:"http"}
user: ${SW_ES_USER:""}
password: ${SW_ES_PASSWORD:""}
trustStorePath: ${SW_STORAGE_ES_SSL_JKS_PATH:""}
trustStorePass: ${SW_STORAGE_ES_SSL_JKS_PASS:""}
secretsManagementFile: ${SW_ES_SECRETS_MANAGEMENT_FILE:""} # Secrets management file in the properties format includes the username, password, which are managed by 3rd party tool.
dayStep: ${SW_STORAGE_DAY_STEP:1} # Represent the number of days in the one minute/hour/day index.
indexShardsNumber: ${SW_STORAGE_ES_INDEX_SHARDS_NUMBER:1} # Shard number of new indexes
indexReplicasNumber: ${SW_STORAGE_ES_INDEX_REPLICAS_NUMBER:1} # Replicas number of new indexes
# Super data set has been defined in the codes, such as trace segments.The following 3 config would be improve es performance when storage super size data in es.
superDatasetDayStep: ${SW_SUPERDATASET_STORAGE_DAY_STEP:-1} # Represent the number of days in the super size dataset record index, the default value is the same as dayStep when the value is less than 0
superDatasetIndexShardsFactor: ${SW_STORAGE_ES_SUPER_DATASET_INDEX_SHARDS_FACTOR:5} # This factor provides more shards for the super data set, shards number = indexShardsNumber * superDatasetIndexShardsFactor. Also, this factor effects Zipkin and Jaeger traces.
superDatasetIndexReplicasNumber: ${SW_STORAGE_ES_SUPER_DATASET_INDEX_REPLICAS_NUMBER:0} # Represent the replicas number in the super size dataset record index, the default value is 0.
bulkActions: ${SW_STORAGE_ES_BULK_ACTIONS:1000} # Execute the async bulk record data every ${SW_STORAGE_ES_BULK_ACTIONS} requests
syncBulkActions: ${SW_STORAGE_ES_SYNC_BULK_ACTIONS:50000} # Execute the sync bulk metrics data every ${SW_STORAGE_ES_SYNC_BULK_ACTIONS} requests
flushInterval: ${SW_STORAGE_ES_FLUSH_INTERVAL:10} # flush the bulk every 10 seconds whatever the number of requests
concurrentRequests: ${SW_STORAGE_ES_CONCURRENT_REQUESTS:2} # the number of concurrent requests
resultWindowMaxSize: ${SW_STORAGE_ES_QUERY_MAX_WINDOW_SIZE:10000}
metadataQueryMaxSize: ${SW_STORAGE_ES_QUERY_MAX_SIZE:5000}
segmentQueryMaxSize: ${SW_STORAGE_ES_QUERY_SEGMENT_SIZE:200}
profileTaskQueryMaxSize: ${SW_STORAGE_ES_QUERY_PROFILE_TASK_SIZE:200}
advanced: ${SW_STORAGE_ES_ADVANCED:""}
elasticsearch7:
nameSpace: ${SW_NAMESPACE:""}
clusterNodes: ${SW_STORAGE_ES_CLUSTER_NODES:localhost:9200}
protocol: ${SW_STORAGE_ES_HTTP_PROTOCOL:"http"}
trustStorePath: ${SW_STORAGE_ES_SSL_JKS_PATH:""}
trustStorePass: ${SW_STORAGE_ES_SSL_JKS_PASS:""}
dayStep: ${SW_STORAGE_DAY_STEP:1} # Represent the number of days in the one minute/hour/day index.
indexShardsNumber: ${SW_STORAGE_ES_INDEX_SHARDS_NUMBER:1} # Shard number of new indexes
indexReplicasNumber: ${SW_STORAGE_ES_INDEX_REPLICAS_NUMBER:1} # Replicas number of new indexes
# Super data set has been defined in the codes, such as trace segments.The following 3 config would be improve es performance when storage super size data in es.
superDatasetDayStep: ${SW_SUPERDATASET_STORAGE_DAY_STEP:-1} # Represent the number of days in the super size dataset record index, the default value is the same as dayStep when the value is less than 0
superDatasetIndexShardsFactor: ${SW_STORAGE_ES_SUPER_DATASET_INDEX_SHARDS_FACTOR:5} # This factor provides more shards for the super data set, shards number = indexShardsNumber * superDatasetIndexShardsFactor. Also, this factor effects Zipkin and Jaeger traces.
superDatasetIndexReplicasNumber: ${SW_STORAGE_ES_SUPER_DATASET_INDEX_REPLICAS_NUMBER:0} # Represent the replicas number in the super size dataset record index, the default value is 0.
user: ${SW_ES_USER:""}
password: ${SW_ES_PASSWORD:""}
secretsManagementFile: ${SW_ES_SECRETS_MANAGEMENT_FILE:""} # Secrets management file in the properties format includes the username, password, which are managed by 3rd party tool.
bulkActions: ${SW_STORAGE_ES_BULK_ACTIONS:1000} # Execute the async bulk record data every ${SW_STORAGE_ES_BULK_ACTIONS} requests
syncBulkActions: ${SW_STORAGE_ES_SYNC_BULK_ACTIONS:50000} # Execute the sync bulk metrics data every ${SW_STORAGE_ES_SYNC_BULK_ACTIONS} requests
flushInterval: ${SW_STORAGE_ES_FLUSH_INTERVAL:10} # flush the bulk every 10 seconds whatever the number of requests
concurrentRequests: ${SW_STORAGE_ES_CONCURRENT_REQUESTS:2} # the number of concurrent requests
resultWindowMaxSize: ${SW_STORAGE_ES_QUERY_MAX_WINDOW_SIZE:10000}
metadataQueryMaxSize: ${SW_STORAGE_ES_QUERY_MAX_SIZE:5000}
segmentQueryMaxSize: ${SW_STORAGE_ES_QUERY_SEGMENT_SIZE:200}
profileTaskQueryMaxSize: ${SW_STORAGE_ES_QUERY_PROFILE_TASK_SIZE:200}
advanced: ${SW_STORAGE_ES_ADVANCED:""}
h2:
driver: ${SW_STORAGE_H2_DRIVER:org.h2.jdbcx.JdbcDataSource}
url: ${SW_STORAGE_H2_URL:jdbc:h2:mem:skywalking-oap-db}
user: ${SW_STORAGE_H2_USER:sa}
metadataQueryMaxSize: ${SW_STORAGE_H2_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
mysql:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:mysql://localhost:3306/swtest"}
dataSource.user: ${SW_DATA_SOURCE_USER:root}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:root@1234}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
tidb:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:mysql://localhost:4000/tidbswtest"}
dataSource.user: ${SW_DATA_SOURCE_USER:root}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:""}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
dataSource.useAffectedRows: ${SW_DATA_SOURCE_USE_AFFECTED_ROWS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
influxdb:
# InfluxDB configuration
url: ${SW_STORAGE_INFLUXDB_URL:http://localhost:8086}
user: ${SW_STORAGE_INFLUXDB_USER:root}
password: ${SW_STORAGE_INFLUXDB_PASSWORD:}
database: ${SW_STORAGE_INFLUXDB_DATABASE:skywalking}
actions: ${SW_STORAGE_INFLUXDB_ACTIONS:1000} # the number of actions to collect
duration: ${SW_STORAGE_INFLUXDB_DURATION:1000} # the time to wait at most (milliseconds)
batchEnabled: ${SW_STORAGE_INFLUXDB_BATCH_ENABLED:true}
fetchTaskLogMaxSize: ${SW_STORAGE_INFLUXDB_FETCH_TASK_LOG_MAX_SIZE:5000} # the max number of fetch task log in a request
agent-analyzer:
selector: ${SW_AGENT_ANALYZER:default}
default:
sampleRate: ${SW_TRACE_SAMPLE_RATE:10000} # The sample rate precision is 1/10000. 10000 means 100% sample in default.
slowDBAccessThreshold: ${SW_SLOW_DB_THRESHOLD:default:200,mongodb:100} # The slow database access thresholds. Unit ms.
forceSampleErrorSegment: ${SW_FORCE_SAMPLE_ERROR_SEGMENT:true} # When sampling mechanism active, this config can open(true) force save some error segment. true is default.
segmentStatusAnalysisStrategy: ${SW_SEGMENT_STATUS_ANALYSIS_STRATEGY:FROM_SPAN_STATUS} # Determine the final segment status from the status of spans. Available values are `FROM_SPAN_STATUS` , `FROM_ENTRY_SPAN` and `FROM_FIRST_SPAN`. `FROM_SPAN_STATUS` represents the segment status would be error if any span is in error status. `FROM_ENTRY_SPAN` means the segment status would be determined by the status of entry spans only. `FROM_FIRST_SPAN` means the segment status would be determined by the status of the first span only.
# Nginx and Envoy agents can't get the real remote address.
# Exit spans with the component in the list would not generate the client-side instance relation metrics.
noUpstreamRealAddressAgents: ${SW_NO_UPSTREAM_REAL_ADDRESS:6000,9000}
slowTraceSegmentThreshold: ${SW_SLOW_TRACE_SEGMENT_THRESHOLD:-1} # Setting this threshold about the latency would make the slow trace segments sampled if they cost more time, even the sampling mechanism activated. The default value is `-1`, which means would not sample slow traces. Unit, millisecond.
meterAnalyzerActiveFiles: ${SW_METER_ANALYZER_ACTIVE_FILES:} # Which files could be meter analyzed, files split by ","
receiver-sharing-server:
selector: ${SW_RECEIVER_SHARING_SERVER:default}
default:
# For Jetty server
restHost: ${SW_RECEIVER_SHARING_REST_HOST:0.0.0.0}
restPort: ${SW_RECEIVER_SHARING_REST_PORT:0}
contextPath: ${SW_RECEIVER_SHARING_REST_CONTEXT_PATH:/}
restMinThreads: ${SW_RECEIVER_SHARING_JETTY_MIN_THREADS:1}
restMaxThreads: ${SW_RECEIVER_SHARING_JETTY_MAX_THREADS:200}
restIdleTimeOut: ${SW_RECEIVER_SHARING_JETTY_IDLE_TIMEOUT:30000}
restAcceptorPriorityDelta: ${SW_RECEIVER_SHARING_JETTY_DELTA:0}
restAcceptQueueSize: ${SW_RECEIVER_SHARING_JETTY_QUEUE_SIZE:0}
# For gRPC server
gRPCHost: ${SW_RECEIVER_GRPC_HOST:0.0.0.0}
gRPCPort: ${SW_RECEIVER_GRPC_PORT:0}
maxConcurrentCallsPerConnection: ${SW_RECEIVER_GRPC_MAX_CONCURRENT_CALL:0}
maxMessageSize: ${SW_RECEIVER_GRPC_MAX_MESSAGE_SIZE:0}
gRPCThreadPoolQueueSize: ${SW_RECEIVER_GRPC_POOL_QUEUE_SIZE:0}
gRPCThreadPoolSize: ${SW_RECEIVER_GRPC_THREAD_POOL_SIZE:0}
gRPCSslEnabled: ${SW_RECEIVER_GRPC_SSL_ENABLED:false}
gRPCSslKeyPath: ${SW_RECEIVER_GRPC_SSL_KEY_PATH:""}
gRPCSslCertChainPath: ${SW_RECEIVER_GRPC_SSL_CERT_CHAIN_PATH:""}
authentication: ${SW_AUTHENTICATION:""}
receiver-register:
selector: ${SW_RECEIVER_REGISTER:default}
default:
receiver-trace:
selector: ${SW_RECEIVER_TRACE:default}
default:
receiver-jvm:
selector: ${SW_RECEIVER_JVM:default}
default:
receiver-clr:
selector: ${SW_RECEIVER_CLR:default}
default:
receiver-profile:
selector: ${SW_RECEIVER_PROFILE:default}
default:
service-mesh:
selector: ${SW_SERVICE_MESH:default}
default:
envoy-metric:
selector: ${SW_ENVOY_METRIC:default}
default:
acceptMetricsService: ${SW_ENVOY_METRIC_SERVICE:true}
alsHTTPAnalysis: ${SW_ENVOY_METRIC_ALS_HTTP_ANALYSIS:""}
# `k8sServiceNameRule` allows you to customize the service name in ALS via Kubernetes metadata,
# the available variables are `pod`, `service`, f.e., you can use `${service.metadata.name}-${pod.metadata.labels.version}`
# to append the version number to the service name.
# Be careful, when using environment variables to pass this configuration, use single quotes(`''`) to avoid it being evaluated by the shell.
k8sServiceNameRule: ${K8S_SERVICE_NAME_RULE:"${service.metadata.name}"}
prometheus-fetcher:
selector: ${SW_PROMETHEUS_FETCHER:-}
default:
enabledRules: ${SW_PROMETHEUS_FETCHER_ENABLED_RULES:"self"}
kafka-fetcher:
selector: ${SW_KAFKA_FETCHER:-}
default:
bootstrapServers: ${SW_KAFKA_FETCHER_SERVERS:localhost:9092}
partitions: ${SW_KAFKA_FETCHER_PARTITIONS:3}
replicationFactor: ${SW_KAFKA_FETCHER_PARTITIONS_FACTOR:2}
enableMeterSystem: ${SW_KAFKA_FETCHER_ENABLE_METER_SYSTEM:false}
isSharding: ${SW_KAFKA_FETCHER_IS_SHARDING:false}
consumePartitions: ${SW_KAFKA_FETCHER_CONSUME_PARTITIONS:""}
kafkaHandlerThreadPoolSize: ${SW_KAFKA_HANDLER_THREAD_POOL_SIZE:-1}
kafkaHandlerThreadPoolQueueSize: ${SW_KAFKA_HANDLER_THREAD_POOL_QUEUE_SIZE:-1}
receiver-meter:
selector: ${SW_RECEIVER_METER:default}
default:
receiver-otel:
selector: ${SW_OTEL_RECEIVER:-}
default:
enabledHandlers: ${SW_OTEL_RECEIVER_ENABLED_HANDLERS:"oc"}
enabledOcRules: ${SW_OTEL_RECEIVER_ENABLED_OC_RULES:"istio-controlplane"}
receiver_zipkin:
selector: ${SW_RECEIVER_ZIPKIN:-}
default:
host: ${SW_RECEIVER_ZIPKIN_HOST:0.0.0.0}
port: ${SW_RECEIVER_ZIPKIN_PORT:9411}
contextPath: ${SW_RECEIVER_ZIPKIN_CONTEXT_PATH:/}
jettyMinThreads: ${SW_RECEIVER_ZIPKIN_JETTY_MIN_THREADS:1}
jettyMaxThreads: ${SW_RECEIVER_ZIPKIN_JETTY_MAX_THREADS:200}
jettyIdleTimeOut: ${SW_RECEIVER_ZIPKIN_JETTY_IDLE_TIMEOUT:30000}
jettyAcceptorPriorityDelta: ${SW_RECEIVER_ZIPKIN_JETTY_DELTA:0}
jettyAcceptQueueSize: ${SW_RECEIVER_ZIPKIN_QUEUE_SIZE:0}
receiver_jaeger:
selector: ${SW_RECEIVER_JAEGER:-}
default:
gRPCHost: ${SW_RECEIVER_JAEGER_HOST:0.0.0.0}
gRPCPort: ${SW_RECEIVER_JAEGER_PORT:14250}
receiver-browser:
selector: ${SW_RECEIVER_BROWSER:default}
default:
# The sample rate precision is 1/10000. 10000 means 100% sample in default.
sampleRate: ${SW_RECEIVER_BROWSER_SAMPLE_RATE:10000}
query:
selector: ${SW_QUERY:graphql}
graphql:
path: ${SW_QUERY_GRAPHQL_PATH:/graphql}
alarm:
selector: ${SW_ALARM:default}
default:
telemetry:
selector: ${SW_TELEMETRY:none}
none:
prometheus:
host: ${SW_TELEMETRY_PROMETHEUS_HOST:0.0.0.0}
port: ${SW_TELEMETRY_PROMETHEUS_PORT:1234}
sslEnabled: ${SW_TELEMETRY_PROMETHEUS_SSL_ENABLED:false}
sslKeyPath: ${SW_TELEMETRY_PROMETHEUS_SSL_KEY_PATH:""}
sslCertChainPath: ${SW_TELEMETRY_PROMETHEUS_SSL_CERT_CHAIN_PATH:""}
configuration:
selector: ${SW_CONFIGURATION:none}
none:
grpc:
host: ${SW_DCS_SERVER_HOST:""}
port: ${SW_DCS_SERVER_PORT:80}
clusterName: ${SW_DCS_CLUSTER_NAME:SkyWalking}
period: ${SW_DCS_PERIOD:20}
apollo:
apolloMeta: ${SW_CONFIG_APOLLO:http://localhost:8080}
apolloCluster: ${SW_CONFIG_APOLLO_CLUSTER:default}
apolloEnv: ${SW_CONFIG_APOLLO_ENV:""}
appId: ${SW_CONFIG_APOLLO_APP_ID:skywalking}
period: ${SW_CONFIG_APOLLO_PERIOD:5}
zookeeper:
period: ${SW_CONFIG_ZK_PERIOD:60} # Unit seconds, sync period. Default fetch every 60 seconds.
nameSpace: ${SW_CONFIG_ZK_NAMESPACE:/default}
hostPort: ${SW_CONFIG_ZK_HOST_PORT:localhost:2181}
# Retry Policy
baseSleepTimeMs: ${SW_CONFIG_ZK_BASE_SLEEP_TIME_MS:1000} # initial amount of time to wait between retries
maxRetries: ${SW_CONFIG_ZK_MAX_RETRIES:3} # max number of times to retry
etcd:
period: ${SW_CONFIG_ETCD_PERIOD:60} # Unit seconds, sync period. Default fetch every 60 seconds.
group: ${SW_CONFIG_ETCD_GROUP:skywalking}
serverAddr: ${SW_CONFIG_ETCD_SERVER_ADDR:localhost:2379}
clusterName: ${SW_CONFIG_ETCD_CLUSTER_NAME:default}
consul:
# Consul host and ports, separated by comma, e.g. 1.2.3.4:8500,2.3.4.5:8500
hostAndPorts: ${SW_CONFIG_CONSUL_HOST_AND_PORTS:1.2.3.4:8500}
# Sync period in seconds. Defaults to 60 seconds.
period: ${SW_CONFIG_CONSUL_PERIOD:60}
# Consul aclToken
aclToken: ${SW_CONFIG_CONSUL_ACL_TOKEN:""}
k8s-configmap:
period: ${SW_CONFIG_CONFIGMAP_PERIOD:60}
namespace: ${SW_CLUSTER_K8S_NAMESPACE:default}
labelSelector: ${SW_CLUSTER_K8S_LABEL:app=collector,release=skywalking}
nacos:
# Nacos Server Host
serverAddr: ${SW_CONFIG_NACOS_SERVER_ADDR:127.0.0.1}
# Nacos Server Port
port: ${SW_CONFIG_NACOS_SERVER_PORT:8848}
# Nacos Configuration Group
group: ${SW_CONFIG_NACOS_SERVER_GROUP:skywalking}
# Nacos Configuration namespace
namespace: ${SW_CONFIG_NACOS_SERVER_NAMESPACE:}
# Unit seconds, sync period. Default fetch every 60 seconds.
period: ${SW_CONFIG_NACOS_PERIOD:60}
# Nacos auth username
username: ${SW_CONFIG_NACOS_USERNAME:""}
password: ${SW_CONFIG_NACOS_PASSWORD:""}
# Nacos auth accessKey
accessKey: ${SW_CONFIG_NACOS_ACCESSKEY:""}
secretKey: ${SW_CONFIG_NACOS_SECRETKEY:""}
exporter:
selector: ${SW_EXPORTER:-}
grpc:
targetHost: ${SW_EXPORTER_GRPC_HOST:127.0.0.1}
targetPort: ${SW_EXPORTER_GRPC_PORT:9870}
health-checker:
selector: ${SW_HEALTH_CHECKER:-}
default:
checkIntervalSeconds: ${SW_HEALTH_CHECKER_INTERVAL_SECONDS:5}
View Code
2.4 創建&啟動UI
docker run -d --name skywalking-ui \
--restart=always \
-e TZ=Asia/Shanghai \
-p 8101:8080 \
--link oap:oap \
-e SW_OAP_ADDRESS=oap:12800 \
apache/skywalking-ui:8.3.0
2.5 下載原始碼包
wget https://mirrors.tuna.tsinghua.edu.cn/apache/skywalking/8.3.0/apache-skywalking-apm-8.3.0.tar.gz
官網的原始碼包下載比較慢，就換成tuna的了，下載好了之后，解壓在/opt目錄下，暫時不用管，這個在后面會用到agent，
v部署/接入SkyWalking
3.1 生成springboot JAR包
若生成springbootJAR包有疑惑的，可以看看這篇文章，SpringBoot入門教程(二)CentOS部署SpringBoot專案從0到1
3.2 啟動JAR包
nohup java -javaagent:/opt/apache-skywalking-apm-bin/agent/skywalking-agent.jar -Dskywalking.agent.service_name=toutou_blog -Dskywalking.collector.backend_service=127.0.0.1:11800 -jar /data/package/learn-web-0.0.1-SNAPSHOT.jar -d --server.port=8100 &
-javaagent：用于指定探針路徑，指定agent包位置，在上面的步驟中已經將apache-skywalking-apm-8.3.0.tar.gz解壓到/opt目錄了，因此路徑為：/opt/apache-skywalking-apm-bin/agent/skywalking-agent.jar
-Dskywalking.agent.service_name：用于重寫 agent/config/agent.config 組態檔中的服務名
-Dskywalking.collector.backend_service：用于重寫agent/config/agent.config 組態檔中的服務地址
3.3 訪問UI

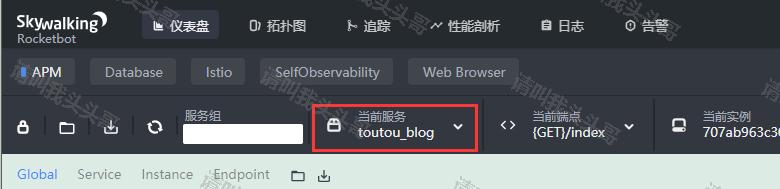

第一次訪問時，需要先呼叫springboot中的介面后，SkyWalking UI中即會load對應的資訊，效果如下圖，
拓撲圖/topology：

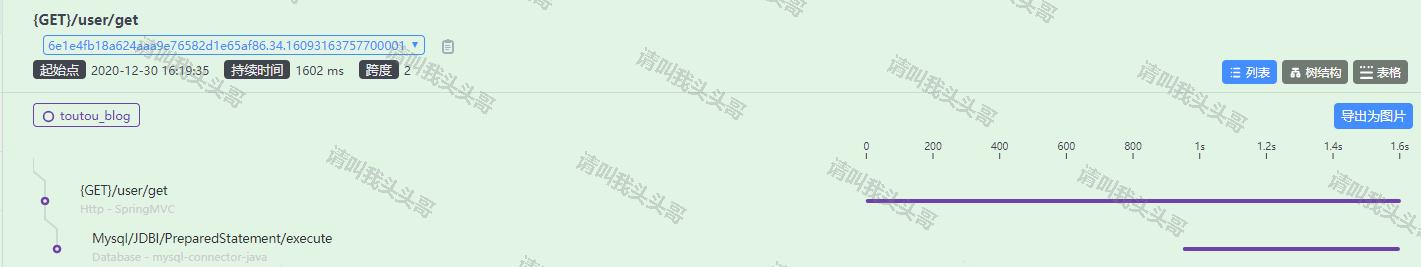

追蹤/trace：
關于更多SkyWalking UI介紹，可以看看官方介紹，
其他參考/學習資料：
- Apache SkyWalking 官方檔案
- SkyWalking中文博客
- SkyWalking 檔案中文版（社區提供）
v原始碼地址
https://github.com/toutouge/javademosecond/tree/master/hellolearn
作 者：請叫我頭頭哥
出 處：http://www.cnblogs.com/toutou/
關于作者：專注于基礎平臺的專案開發，如有問題或建議，請多多賜教！
著作權宣告：本文著作權歸作者和博客園共有，歡迎轉載，但未經作者同意必須保留此段宣告，且在文章頁面明顯位置給出原文鏈接，
特此宣告：所有評論和私信都會在第一時間回復，也歡迎園子的大大們指正錯誤，共同進步，或者直接私信我
聲援博主：如果您覺得文章對您有幫助，可以點擊文章右下角【推薦】一下，您的鼓勵是作者堅持原創和持續寫作的最大動力！
轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/259391.html
標籤：Java
