目錄

一.用PyInstaller打包PyQt5應用

二.使用PyQtGraph進行資料可視化

一.用PyInstaller打包PyQt5應用

打包時會自動將依賴庫都打打包進去！所以體積不小，，

安裝：pip3 install pyinstaller

代碼：

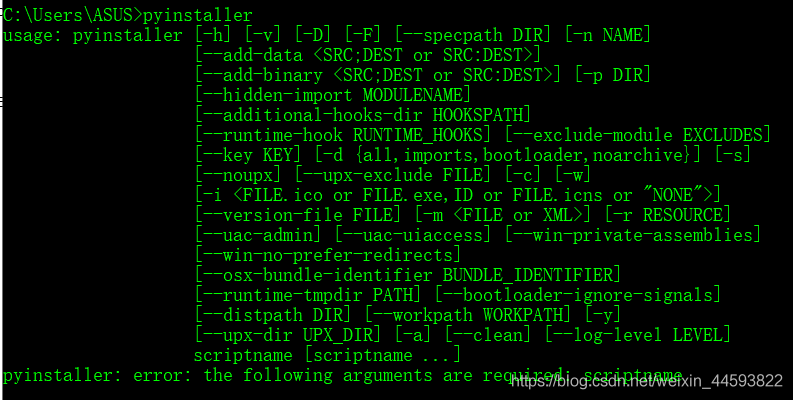

直接在命令列下操作

常用：pyinstaller -Fw python檔案名

pyinstaller -Fw Calc. py
-W:不顯示終端
-F:將所有的庫打包成-個單獨的檔案

bug：

 from importlib_metadata import PackagePath as _PackagePath
ImportError: cannot import name 'PackagePath' from 'importlib_metadata' (D:\anaconda\lib\site-packages\importlib_metadata\__init__.py)

現在pyinstaller是不支持python3.6的，正在完善中，所以可以去GitHub下載最新版的使用，戳這里

下開發版，

嘗試了開發版，還是同樣的錯誤！！！心態炸了！！！

看到一句話：一定要把pip升級成最新版的pip在安裝pyinstaller哈，要不然可能會出現莫名奇妙的問題，

試過之后，還是不行！！！！

早晨突然看見anaconda沒有被激活

于是開始激活,戳這里

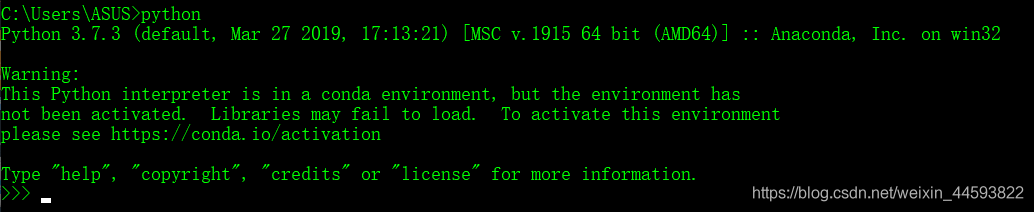

激活之后重新打開cmd輸入python發現還是出警告，，，，

最后最后，發現是anaconda的問題，，，我換了一個python原生的編譯器下的pyinstaller沒問題，，，當然之前的問題我還是不會解決，，，

在我的原生python下裝上相應的包，再打包即可成功，會在當前目錄生成三個檔案夾和一個spec檔案，exe檔案在dist中

二.使用PyQtGraph進行資料可視化

代碼：

pyqtgraph_pyqt.py

# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'pyqtgraph_pyqt.ui'
#
# Created by: PyQt5 UI code generator 5.9.2
#
# WARNING! All changes made in this file will be lost!

from PyQt5 import QtCore, QtGui, QtWidgets

class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(800, 600)
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setObjectName("centralwidget")
        self.pyqtgraph1 = GraphicsLayoutWidget(self.centralwidget)
        self.pyqtgraph1.setGeometry(QtCore.QRect(10, 10, 721, 251))
        self.pyqtgraph1.setObjectName("pyqtgraph1")
        self.pyqtgraph2 = GraphicsLayoutWidget(self.centralwidget)
        self.pyqtgraph2.setGeometry(QtCore.QRect(10, 290, 501, 281))
        self.pyqtgraph2.setObjectName("pyqtgraph2")
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 800, 22))
        self.menubar.setObjectName("menubar")
        MainWindow.setMenuBar(self.menubar)
        self.statusbar = QtWidgets.QStatusBar(MainWindow)
        self.statusbar.setObjectName("statusbar")
        MainWindow.setStatusBar(self.statusbar)

        self.retranslateUi(MainWindow)
        QtCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))

from pyqtgraph import GraphicsLayoutWidget

Graph.py

'''

使用PyQtGraph繪圖

pip Install pyqtgraph
'''


from PyQt5.QtCore import pyqtSlot
from PyQt5.QtWidgets import QMainWindow, QApplication
import pyqtgraph as pg
from pyqtgraph_pyqt import Ui_MainWindow
import numpy as np



class MainWindow(QMainWindow, Ui_MainWindow):

    def __init__(self, parent=None):

        super(MainWindow, self).__init__(parent)

        pg.setConfigOption('background', '#f0f0f0')
        pg.setConfigOption('foreground', 'd')


        self.setupUi(self)
        self.draw1()
        self.draw2()


    def draw1(self):

        self.pyqtgraph1.clear()

        '''第一種繪圖方式'''
        print(np.random.normal(size=120))
        self.pyqtgraph1.addPlot(title="繪圖單條線", y=np.random.normal(size=120), pen=pg.mkPen(color='b', width=2))

        '''第二種繪圖方式'''
        plt2 = self.pyqtgraph1.addPlot(title='繪制多條線')

        plt2.plot(np.random.normal(size=150), pen=pg.mkPen(color='r', width=2),
                  name="Red curve")
        plt2.plot(np.random.normal(size=110) + 5, pen=(0, 255, 0), name="Green curve")
        plt2.plot(np.random.normal(size=120) + 10, pen=(0, 0, 255), name="Blue curve")


    def draw2(self):


        plt = self.pyqtgraph2.addPlot(title='繪制條狀圖')
        x = np.arange(10)
        print(x)
        y1 = np.sin(x)
        y2 = 1.1 * np.sin(x + 1)
        y3 = 1.2 * np.sin(x + 2)

        bg1 = pg.BarGraphItem(x=x, height=y1, width=0.3, brush='r')
        bg2 = pg.BarGraphItem(x=x + 0.33, height=y2, width=0.3, brush='g')
        bg3 = pg.BarGraphItem(x=x + 0.66, height=y3, width=0.3, brush='b')

        plt.addItem(bg1)
        plt.addItem(bg2)
        plt.addItem(bg3)

        self.pyqtgraph2.nextRow()

        p4 = self.pyqtgraph2.addPlot(title="引數圖+顯示網格")
        x = np.cos(np.linspace(0, 2 * np.pi, 1000))
        y = np.sin(np.linspace(0, 4 * np.pi, 1000))
        p4.plot(x, y, pen=pg.mkPen(color='d', width=2))
        #p4.showGrid(x=True, y=True)  # 顯示網格



if __name__ == "__main__":
    import sys

    app = QApplication(sys.argv)
    ui = MainWindow()
    ui.show()
    sys.exit(app.exec_())

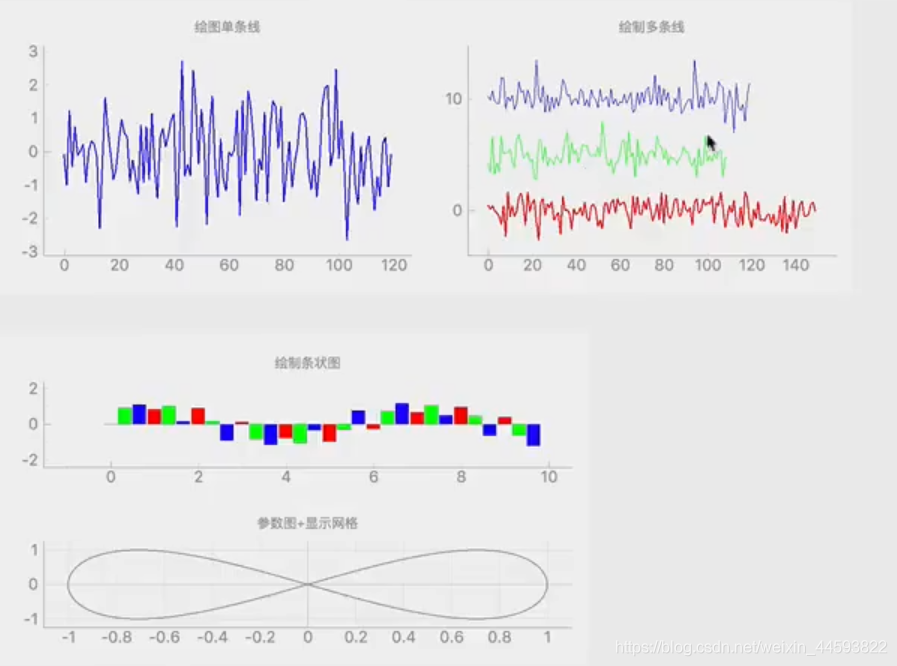

運行結果：
