Qt 圓角按鈕，面版自動布局

一、前言

　　在部分界面開發中，有時需要動態添加控制元件或按鈕到面板中，在不需要時又需要洗掉該控制元件，故模仿視頻開發中的設定屏蔽詞，通過自己繪制的按鈕與排布面板控制元件實作，

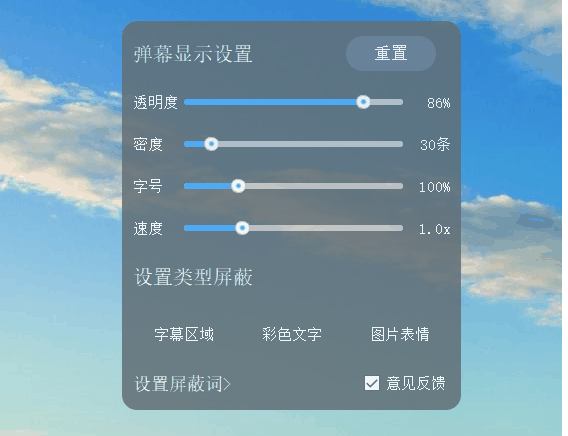

　　實作效果如下：

　　說明：

　　1、輸入框可設定背景色、圓角角度、顏色高亮等

　　2、采用圓角輸入框輸入字符，回車或點擊“添加”可觸發信號，獲取輸入字串

　　3、字符以圓角按鈕控制元件顯示，點擊“X”可洗掉該按鈕

　　4、面版自動排布，洗掉中間的圓角按鈕，后續的會往前移

　　5、添加的屏蔽詞都放在后面，已有屏蔽詞會提示已存在，洗掉屏蔽詞后可再次添加

二、實作程序

　　1、運行環境Qt5.5 VS2013

　　2、制作圓角按鈕

　　1）繼承QWidget，封裝KeyButton控制元件

 1 #ifndef KEYBUTTON
 2 #define KEYBUTTON
 3
 4 #include <QEvent>
 5 #include <QWidget>
 6 #include <QMouseEvent>
 7 #include <QResizeEvent>
 8
 9 class KeyButton : public QWidget
10 {
11     Q_OBJECT
12
13 public:
14     KeyButton(QWidget *parent = 0);
15
16 public:
17     void setBorderColor(const QString &);
18     void setHoverColor(const QString &);
19
20     void setText(const QString &);
21     QString getText();
22
23 signals:
24     void closeSig();
25
26 protected:
27     bool eventFilter(QObject *, QEvent *);
28     void paintEvent(QPaintEvent *event);
29     void leaveEvent(QEvent *);
30     void resizeEvent(QResizeEvent *);
31     void mouseReleaseEvent(QMouseEvent *e);
32     void mouseMoveEvent(QMouseEvent *e);
33
34 private:
35     void drawIcon(QPainter *painter, const QRect &rect, int icon);
36
37 private:
38     bool m_IsHover;
39     QString bgColor;        //背景色
40     QString borderColor;    //邊框顏色
41     QString hoverColor;     //高亮字體顏色
42     QString text;           //字體文本
43     QString textColor;      //文本正常顏色
44     int padding;            //左側右側間距
45     int iconSize;           //圖示大小
46     QRect rightRect;        //右側圖示區域
47     bool pressed;           //滑鼠是否按下
48     QPoint lastPoint;       //滑鼠按下處的坐標
49
50     QPoint m_Point;
51     QPixmap m_Pixmap;
52 };
53
54 #endif // KEYBUTTON

　　2）重寫paintEvent事件，繪制按鈕圓角按鈕，包括字符

 1 void KeyButton::paintEvent(QPaintEvent *event)
 2 {
 3     QPainter painter(this);
 4     painter.setRenderHints(QPainter::Antialiasing | QPainter::TextAntialiasing);
 5
 6     //繪制背景+邊框
 7     painter.setPen(borderColor);
 8     painter.setBrush(QColor(bgColor));
 9     int min = qMin(this->rect().width(), this->rect().height());
10     int radius = min / 2;
11     //畫圓角矩形
12     QPainterPath path;
13     QRect rect = this->rect();
14     path.moveTo(rect.bottomRight() - QPointF(0, radius));
15     path.lineTo(rect.topRight() + QPointF(0, radius));
16     path.arcTo(QRectF(QPointF(rect.topRight() - QPointF(radius * 2, 0)), QSize(radius * 2, radius *2)), 0, 90);
17     path.lineTo(rect.topLeft() + QPointF(radius, 0));
18     path.arcTo(QRectF(QPointF(rect.topLeft()), QSize(radius * 2, radius * 2)), 90, 90);
19     path.lineTo(rect.bottomLeft() - QPointF(0, radius));
20     path.arcTo(QRectF(QPointF(rect.bottomLeft() - QPointF(0, radius * 2)), QSize(radius * 2, radius * 2)), 180, 90);
21     path.lineTo(rect.bottomLeft() + QPointF(radius, 0));
22     path.arcTo(QRectF(QPointF(rect.bottomRight() - QPointF(radius * 2, radius * 2)), QSize(radius * 2, radius * 2)), 270, 90);
23     painter.drawPath(path);
24
25     QFont font = qApp->font();
26     font.setPixelSize(12);
27     painter.setFont(font);
28
29     //繪制文字
30     if (!text.isEmpty())
31     {
32         if(m_IsHover)
33             painter.setPen(hoverColor);
34         else
35             painter.setPen(textColor);
36         QRect textRect(padding * 1.5, 0, this->width(), this->height());
37         painter.drawText(textRect, Qt::AlignLeft | Qt::AlignVCenter, text);
38     }
39     //繪制右側圖示
40     font.setPixelSize(15);
41     painter.setFont(font);
42     painter.drawText(rightRect, Qt::AlignHCenter | Qt::AlignVCenter, "X");
43 }

　　3）繼承resizeEvent事件，計算“X”的繪制位置

1 void KeyButton::resizeEvent(QResizeEvent *)
2 {
3     //重新計算圖示位置區域
4     int height = this->height() / 2 - m_Pixmap.height() / 2;
5     m_Point = QPoint(this->width() - (iconSize * 1) - padding, height);
6     rightRect = QRect(this->width() - (iconSize * 1) - padding, 0, iconSize, this->height());
7 }

　　4）繼承mouseReleaseEvent事件，用戶點擊“X”后觸發洗掉信號

1 void KeyButton::mouseReleaseEvent(QMouseEvent *e)
2 {
3     pressed = true;
4     lastPoint = e->pos();
5     this->update();
6
7     if (rightRect.contains(lastPoint))
8         emit closeSig();
9 }

　　3、面板自動布局

　　1）繼承QWidget，自定義PanelWidget控制元件

 1 #ifndef PANEL_WIDGET_H
 2 #define PANEL_WIDGET_H
 3
 4 #include <QWidget>
 5
 6 class QScrollArea;
 7 class QFrame;
 8 class QVBoxLayout;
 9 class QGridLayout;
10 class QSpacerItem;
11
12 class PanelWidget : public QWidget
13 {
14     Q_OBJECT
15 public:
16     explicit PanelWidget(QWidget *parent = 0);
17
18 protected:
19     void resizeEvent(QResizeEvent *);
20     void showEvent(QShowEvent *event);
21
22 public:
23     QSize sizeHint()                const;
24     QSize minimumSizeHint()         const;
25
26     void setWidgets(QList<QWidget *> widgets);
27     void setWidget(QWidget *widget);
28     void delWidget(QWidget *widget);
29     void setColumnCount(int nColumn);
30     void setMargin(int left, int top, int right, int bottom);
31     void setMargin(int margin);
32     void setSpacing(int space);
33     void resetLayout();
34
35 private:
36     void initFrom();
37     void hideWidget();
38     void showPanel();
39
40 private:
41     QList<QWidget *> m_widgets;
42     int m_nColumn{ 0 };
43
44 private:
45     QScrollArea *scrollArea;
46     QWidget *scrollAreaWidgetContents;
47     QFrame *frame;
48     QVBoxLayout *verticalLayout;
49     QGridLayout *gridLayout;
50
51     QSpacerItem *m_HorizontalSpacer;
52     QSpacerItem *m_VerticalSpacer;
53
54     bool m_IsShow;
55 };
56
57 #endif // PANEL_WIDGET_H

　　2）考慮增加的控制元件可能比較多，采用QScrollArea控制元件（存盤不下時可左右拉動顯示）

 1 void PanelWidget::initFrom()
 2 {
 3     scrollArea = new QScrollArea(this);
 4     scrollArea->setObjectName("scrollAreaMain");
 5     scrollArea->setWidgetResizable(true);
 6
 7     scrollAreaWidgetContents = new QWidget();
 8     scrollAreaWidgetContents->setGeometry(QRect(0, 0, 100, 100));
 9     scrollAreaWidgetContents->setStyleSheet("border:none;");
10
11     verticalLayout = new QVBoxLayout(scrollAreaWidgetContents);
12     verticalLayout->setSpacing(0);
13     verticalLayout->setContentsMargins(0, 0, 0, 0);
14
15     frame = new QFrame(scrollAreaWidgetContents);
16     frame->setObjectName("panelWidget");
17
18     gridLayout = new QGridLayout(frame);
19     gridLayout->setSpacing(6);
20
21     verticalLayout->addWidget(frame);
22     scrollArea->setWidget(scrollAreaWidgetContents);
23 }

　　3）通過setWidget和setWidgets，更新面板內的控制元件

 1 void PanelWidget::setWidgets(QList<QWidget *> widgets)
 2 {
 3     m_widgets = widgets;
 4     //先清空原有所有元素
 5     QList<QWidget *> widgetList = frame->findChildren<QWidget *>();
 6     foreach(QWidget *w, widgetList)
 7         w->hide();
 8
 9     resetLayout();
10 }
11
12 void PanelWidget::setWidget(QWidget *widget)
13 {
14     if (!m_widgets.contains(widget))
15     {
16         m_widgets << widget;
17         resetLayout();
18     }
19 }

　　4）更新面版內容后，通過QGridLayout更新控制元件的布局

 1 void PanelWidget::resetLayout()
 2 {
 3     int row = 0;
 4     int column = 0;
 5     int index = 0;
 6
 7     for (QWidget *widget : m_widgets)
 8     {
 9         gridLayout->addWidget(widget, row, column);
10         widget->setVisible(true);
11         column++;
12         index++;
13
14         if (index % m_nColumn == 0) {
15             row++;
16             column = 0;
17         }
18     }
19     if (NULL == m_HorizontalSpacer)
20         m_HorizontalSpacer = new QSpacerItem(1, 1, QSizePolicy::Expanding, QSizePolicy::Minimum);
21     if(1 == m_widgets.count())
22         gridLayout->addItem(m_HorizontalSpacer, 0, m_nColumn);
23     row++;
24     if (NULL == m_VerticalSpacer)
25         m_VerticalSpacer = new QSpacerItem(1, 1, QSizePolicy::Minimum, QSizePolicy::Expanding);
26     gridLayout->addItem(m_VerticalSpacer, row, 0);
27 }
