1 簡介

見名知義，Spring Cloud Gateway是用于微服務場景的網關組件，它是基于Spring WebFlux，也就是Reactive的，從實作原理上，它的性能應該是比Zuul會更好，

它的作業原理如下圖所示：

簡單而言就是通過一連串的Filter處理匹配到特定規則Predicates的請求，所以最主要就是做了兩件事：

（1）哪些請求可以被它處理，由Predicates決定；

（2）如何處理，由Filters決定，

2 路由條件判斷Predicates

2.1 時間匹配After

表示在什么時間之后才算滿足條件匹配路由：

spring:
  cloud:
    gateway:
      routes:
      - id: after_route
        uri: https://example.org
        predicates:
        - After=2020-01-20T17:42:47.789-07:00[America/Denver]

2.2 時間匹配Before

表示在什么時間之前匹配路由：

spring:
  cloud:
    gateway:
      routes:
      - id: before_route
        uri: https://example.org
        predicates:
        - Before=2017-01-20T17:42:47.789-07:00[America/Denver]

2.3 時間段匹配Between

表示在什么時間段匹配路由：

spring:
  cloud:
    gateway:
      routes:
      - id: between_route
        uri: https://example.org
        predicates:
        - Between=2017-01-20T17:42:47.789-07:00[America/Denver], 2017-01-21T17:42:47.789-07:00[America/Denver]

2.4 Cookie匹配

表示通過判斷Cookie的鍵值來匹配路由，其中值支持正則運算式：

spring:
  cloud:
    gateway:
      routes:
      - id: cookie_route
        uri: https://example.org
        predicates:
        - Cookie=chocolate, ch.p

表示通過判斷Http請求的Header來匹配路由：

spring:
  cloud:
    gateway:
      routes:
      - id: header_route
        uri: https://example.org
        predicates:
        - Header=X-Request-Id, \d+

2.6 主機名匹配Host

通過判斷Hostname來匹配路由：

spring:
  cloud:
    gateway:
      routes:
      - id: host_route
        uri: https://example.org
        predicates:
        - Host=**.somehost.org,**.anotherhost.org

2.7 請求方法匹配Method

表示通過判斷請求方法來匹配路由：

spring:
  cloud:
    gateway:
      routes:
      - id: method_route
        uri: https://example.org
        predicates:
        - Method=GET,POST

2.8 請求路徑匹配Path

表示通過判斷請求路徑來匹配路由，很常用：

spring:
  cloud:
    gateway:
      routes:
      - id: path_route
        uri: https://example.org
        predicates:
        - Path=/red/{segment},/blue/{segment}

2.9 請求引數匹配Query

表示通過判斷請求引數來匹配路由：

spring:
  cloud:
    gateway:
      routes:
      - id: query_route
        uri: https://example.org
        predicates:
        - Query=red, gree.

2.10 IP地址匹配RemoteAddr

表示通過判斷IP地址來匹配路由：

spring:
  cloud:
    gateway:
      routes:
      - id: remoteaddr_route
        uri: https://example.org
        predicates:
        - RemoteAddr=192.168.1.1/24

2.11 權重匹配Weight

通過權重來匹配路由：

spring:
  cloud:
    gateway:
      routes:
      - id: weight_high
        uri: https://weighthigh.org
        predicates:
        - Weight=group1, 8
      - id: weight_low
        uri: https://weightlow.org
        predicates:
        - Weight=group1, 2

3 功能強大的GatewayFilter

Spring提供許多強大的GatewayFilter對請求進行處理，

3.1 添加請求頭

給請求添加Header：

spring:
  cloud:
    gateway:
      routes:
      - id: add_request_header_route
        uri: https://example.org
        predicates:
        - Path=/red/{segment}
        filters:
        - AddRequestHeader=X-Request-Red, Blue-{segment}

3.2 添加請求引數

spring:
  cloud:
    gateway:
      routes:
      - id: add_request_parameter_route
        uri: https://example.org
        predicates:
        - Host: {segment}.myhost.org
        filters:
        - AddRequestParameter=foo, bar-{segment}

spring:
  cloud:
    gateway:
      routes:
      - id: add_response_header_route
        uri: https://example.org
        predicates:
        - Host: {segment}.myhost.org
        filters:
        - AddResponseHeader=foo, bar-{segment}

spring:
  cloud:
    gateway:
      routes:
      - id: dedupe_response_header_route
        uri: https://example.org
        filters:
        - DedupeResponseHeader=Access-Control-Allow-Credentials Access-Control-Allow-Origin

3.5 斷路器Hystrix

簡單配置：

spring:
  cloud:
    gateway:
      routes:
      - id: hystrix_route
        uri: https://example.org
        filters:
        - Hystrix=myCommandName

較復雜配置：

spring:
  cloud:
    gateway:
      routes:
      - id: hystrix_route
        uri: lb://backing-service:8088
        predicates:
        - Path=/consumingserviceendpoint
        filters:
        - name: Hystrix
          args:
            name: fallbackcmd
            fallbackUri: forward:/incaseoffailureusethis
        - RewritePath=/consumingserviceendpoint, /backingserviceendpoint

3.6 斷路器CircuitBreaker

簡單配置：

spring:
  cloud:
    gateway:
      routes:
      - id: circuitbreaker_route
        uri: https://example.org
        filters:
        - CircuitBreaker=myCircuitBreaker

較復雜配置：

spring:
  cloud:
    gateway:
      routes:
      - id: circuitbreaker_route
        uri: lb://backing-service:8088
        predicates:
        - Path=/consumingServiceEndpoint
        filters:
        - name: CircuitBreaker
          args:
            name: myCircuitBreaker
            fallbackUri: forward:/inCaseOfFailureUseThis
        - RewritePath=/consumingServiceEndpoint, /backingServiceEndpoint

3. 7 請求頭改名

spring:
  cloud:
    gateway:
      routes:
      - id: map_request_header_route
        uri: https://example.org
        filters:
        - MapRequestHeader=Blue, X-Request-Red

3.8 路徑添加前綴

這個要注意和匹配路徑區分，它是在匹配后再加個前綴：

spring:
  cloud:
    gateway:
      routes:
      - id: prefixpath_route
        uri: https://example.org
        filters:
        - PrefixPath=/mypath

請求/hello變成/mypath/hello，

3.9 重定向

spring:
  cloud:
    gateway:
      routes:
      - id: prefixpath_route
        uri: https://example.org
        filters:
        - RedirectTo=302, https://acme.org

3.10 洗掉請求頭

spring:
  cloud:
    gateway:
      routes:
      - id: removerequestheader_route
        uri: https://example.org
        filters:
        - RemoveRequestHeader=X-Request-Foo

3.11 洗掉回傳頭

spring:
  cloud:
    gateway:
      routes:
      - id: removeresponseheader_route
        uri: https://example.org
        filters:
        - RemoveResponseHeader=X-Response-Foo

3.12 洗掉請求引數

spring:
  cloud:
    gateway:
      routes:
      - id: removerequestparameter_route
        uri: https://example.org
        filters:
        - RemoveRequestParameter=red

3.13 重寫路徑

spring:
  cloud:
    gateway:
      routes:
      - id: rewritepath_route
        uri: https://example.org
        predicates:
        - Path=/red/**
        filters:
        - RewritePath=/red(?<segment>/?.*), $\{segment}

3.14 設定路徑

spring:
  cloud:
    gateway:
      routes:
      - id: setpath_route
        uri: https://example.org
        predicates:
        - Path=/red/{segment}
        filters:
        - SetPath=/{segment}

3.15 設定請求頭

spring:
  cloud:
    gateway:
      routes:
      - id: setrequestheader_route
        uri: https://example.org
        predicates:
        - Host: {segment}.myhost.org
        filters:
        - SetRequestHeader=foo, bar-{segment}

3.16 設定回傳頭

spring:
  cloud:
    gateway:
      routes:
      - id: setresponseheader_route
        uri: https://example.org
        predicates:
        - Host: {segment}.myhost.org
        filters:
        - SetResponseHeader=foo, bar-{segment}

3.17 設定回傳狀態碼

spring:
  cloud:
    gateway:
      routes:
      - id: setstatusstring_route
        uri: https://example.org
        filters:
        - SetStatus=BAD_REQUEST
      - id: setstatusint_route
        uri: https://example.org
        filters:
        - SetStatus=401

3.18 去掉路徑前綴

spring:
  cloud:
    gateway:
      routes:
      - id: nameRoot
        uri: https://nameservice
        predicates:
        - Path=/name/**
        filters:
        - StripPrefix=2

這配置請求/name/blue/red，實際就是請求nameservice的/red，去掉兩個前綴，

3.19 重試Retry `GatewayFilter`

想不到居然還有強大的重試功能：

spring:
  cloud:
    gateway:
      routes:
      - id: retry_test
        uri: http://localhost:8080/flakey
        predicates:
        - Host=*.retry.com
        filters:
        - name: Retry
          args:
            retries: 3
            statuses: BAD_GATEWAY
            methods: GET,POST
            backoff:
              firstBackoff: 10ms
              maxBackoff: 50ms
              factor: 2
              basedOnPreviousValue: false

3.20 請求大小限制

spring:
  cloud:
    gateway:
      routes:
      - id: request_size_route
        uri: http://localhost:8080/upload
        predicates:
        - Path=/upload
        filters:
        - name: RequestSize
          args:
            maxSize: 5000000

3.21 默認Filter

如果希望對所有路由都生效，可以添加默認Filter：

spring:
  cloud:
    gateway:
      default-filters:
      - AddResponseHeader=X-Response-Default-Red, Default-Blue
      - PrefixPath=/httpbin

4 全域Global Filters

全域過濾器GlobalFilter介面和GatewayFilter的方法是一樣的，但它是用于所有路由的，當請求過來時，整個Filter Chain是包含了所有的GlobalFilters和匹配上的GatewayFilters，執行順序由getOrder()方法決定，

如下：

@Bean
public GlobalFilter customFilter() {
    return new CustomGlobalFilter();
}

public class CustomGlobalFilter implements GlobalFilter, Ordered {

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        log.info("custom global filter");
        return chain.filter(exchange);
    }

    @Override
    public int getOrder() {
        return -1;
    }
}

5 一切皆可自定義

Spring支持開發人員自定義Predicate、GatewayFilter和GlobalFilter，

5.1 自定義Predicate

public class MyRoutePredicateFactory extends AbstractRoutePredicateFactory<HeaderRoutePredicateFactory.Config> {

    public MyRoutePredicateFactory() {
        super(Config.class);
    }

    @Override
    public Predicate<ServerWebExchange> apply(Config config) {
        // grab configuration from Config object
        return exchange -> {
            //grab the request
            ServerHttpRequest request = exchange.getRequest();
            //take information from the request to see if it
            //matches configuration.
            return matches(config, request);
        };
    }

    public static class Config {
        //Put the configuration properties for your filter here
    }
}

5.2 自定義GatewayFilter

Pre的過濾器：

public class PreGatewayFilterFactory extends AbstractGatewayFilterFactory<PreGatewayFilterFactory.Config> {

    public PreGatewayFilterFactory() {
        super(Config.class);
    }

    @Override
    public GatewayFilter apply(Config config) {
        // grab configuration from Config object
        return (exchange, chain) -> {
            //If you want to build a "pre" filter you need to manipulate the
            //request before calling chain.filter
            ServerHttpRequest.Builder builder = exchange.getRequest().mutate();
            //use builder to manipulate the request
            return chain.filter(exchange.mutate().request(builder.build()).build());
        };
    }

    public static class Config {
        //Put the configuration properties for your filter here
    }
}

Post的過濾器：

public class PostGatewayFilterFactory extends AbstractGatewayFilterFactory<PostGatewayFilterFactory.Config> {

    public PostGatewayFilterFactory() {
        super(Config.class);
    }

    @Override
    public GatewayFilter apply(Config config) {
        // grab configuration from Config object
        return (exchange, chain) -> {
            return chain.filter(exchange).then(Mono.fromRunnable(() -> {
                ServerHttpResponse response = exchange.getResponse();
                //Manipulate the response in some way
            }));
        };
    }

    public static class Config {
        //Put the configuration properties for your filter here
    }
}

5.3 自定義GlobalFilter

@Bean
public GlobalFilter customGlobalFilter() {
    return (exchange, chain) -> exchange.getPrincipal()
        .map(Principal::getName)
        .defaultIfEmpty("Default User")
        .map(userName -> {
          //adds header to proxied request
          exchange.getRequest().mutate().header("CUSTOM-REQUEST-HEADER", userName).build();
          return exchange;
        })
        .flatMap(chain::filter);
}

@Bean
public GlobalFilter customGlobalPostFilter() {
    return (exchange, chain) -> chain.filter(exchange)
        .then(Mono.just(exchange))
        .map(serverWebExchange -> {
          //adds header to response
          serverWebExchange.getResponse().getHeaders().set("CUSTOM-RESPONSE-HEADER",
              HttpStatus.OK.equals(serverWebExchange.getResponse().getStatusCode()) ? "It worked": "It did not work");
          return serverWebExchange;
        })
        .then();
}

6 專案使用

添加依賴：

<dependency>
  <groupId>org.springframework.cloud</groupId>
  <artifactId>spring-cloud-starter-gateway</artifactId>
</dependency>

配置Main啟動應用：

package com.pkslow.cloud.gateway;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class GatewayService {
    public static void main(String[] args) {
        SpringApplication.run(GatewayService.class, args);
    }
}

配置路由：

server:
  port: 8080
spring:
  cloud:
    gateway:
      routes:
      - id: pkslow
        uri: https://www.pkslow.com
        predicates:
        - Path=/pkslow/**
        filters:
        - RewritePath=/pkslow(?<segment>.*), /$\{segment}

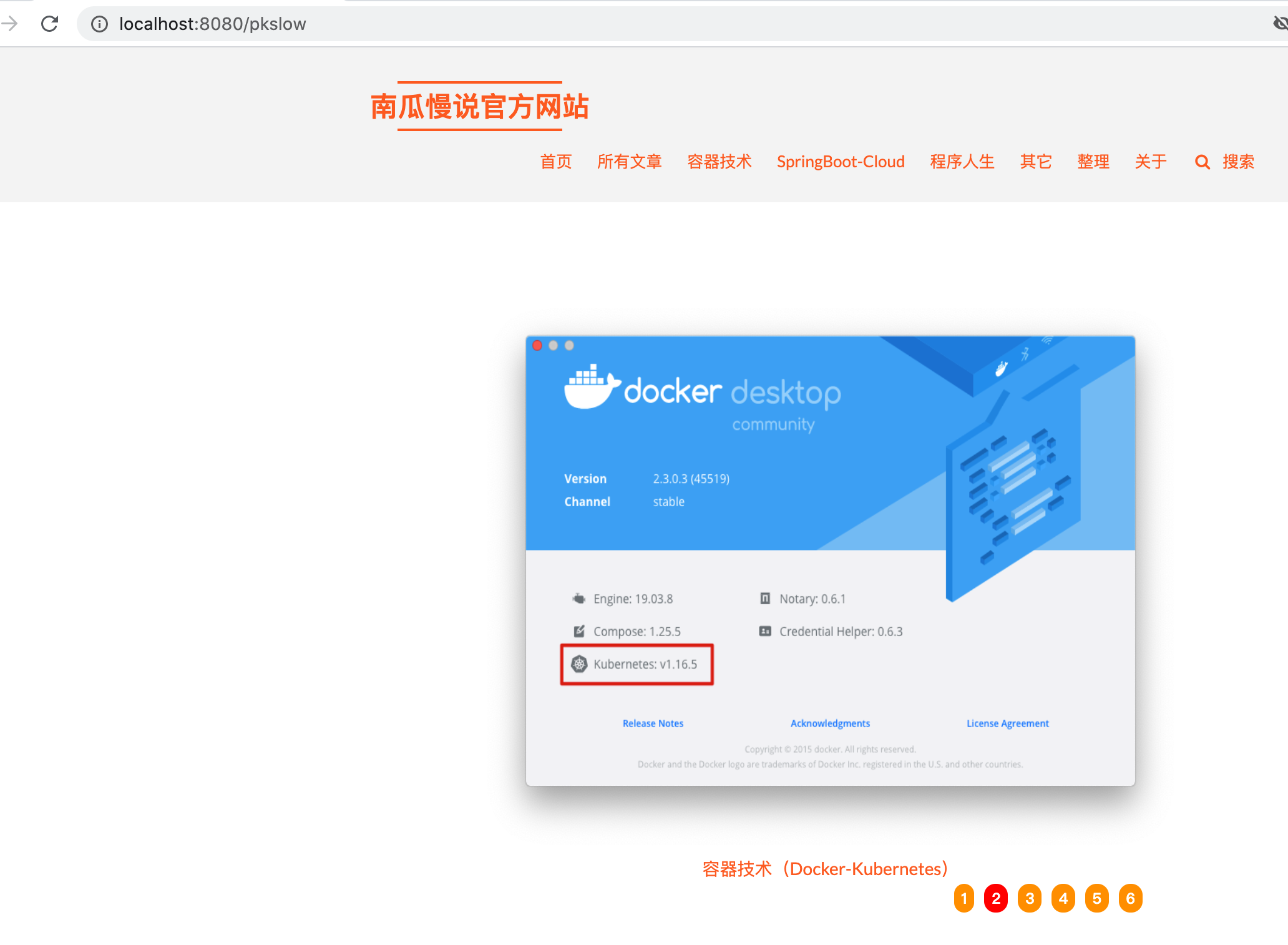

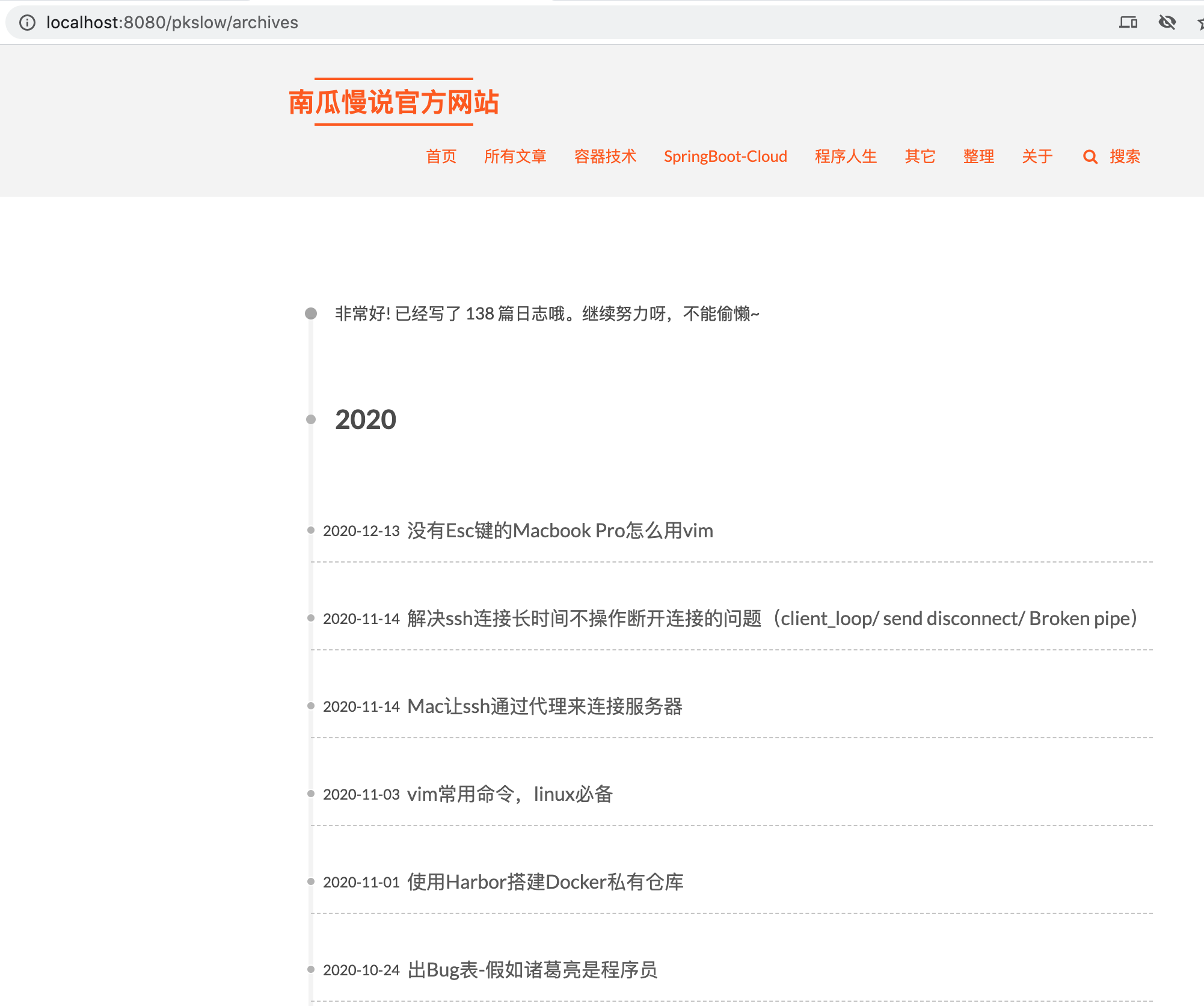

啟動后可正常訪問了：

7 總結

Spring Cloud Gateway實在是非常強大，能滿足微服務絕大多數應用場景了，還是很有必要了解一下的，

代碼請查看：https://github.com/LarryDpk/pkslow-samples

參考資料：官網

歡迎關注微信公眾號<南瓜慢說>，將持續為你更新...

多讀書，多分享；多寫作，多整理，

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/288250.html

標籤：其他

上一篇：Python爬蟲實戰，Scrapy實戰，中國地震臺網資料可視化

下一篇：java并發編程JUC第十一篇：如何在執行緒之間進行對等資料交換

Spring Cloud Gateway簡單入門，強大的微服務網關
