Java Kafka 消費積壓監控

后端代碼：

Monitor.java代碼：

package com.suncreate.kafkaConsumerMonitor.service;

import com.suncreate.kafkaConsumerMonitor.model.ConsumerInfo;
import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import org.apache.kafka.clients.consumer.OffsetAndMetadata;
import org.apache.kafka.common.PartitionInfo;
import org.apache.kafka.common.TopicPartition;
import org.apache.kafka.common.serialization.StringDeserializer;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.text.DecimalFormat;
import java.text.SimpleDateFormat;
import java.util.*;

/**
 * kafka消費監控
 *
 * @author suxiang
 */
public class Monitor {
    private static final Logger log = LoggerFactory.getLogger(Monitor.class);

    private String servers;

    private String topic;

    private String groupId;

    private long lastTime;

    private long lastTotalLag = 0L;

    private long lastLogSize = 0L;

    private long lastOffset = 0L;

    private double lastRatio = 0;

    private long speedLogSize = 0L;

    private long speedOffset = 0L;

    private String time;

    private List<ConsumerInfo> list;

    private final SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");

    public String getTime() {
        return time;
    }

    public void setTime(String time) {
        this.time = time;
    }

    public long getLastTotalLag() {
        return lastTotalLag;
    }

    public double getLastRatio() {
        return lastRatio;
    }

    public String getTopic() {
        return topic;
    }

    public String getGroupId() {
        return groupId;
    }

    public long getSpeedLogSize() {
        return speedLogSize;
    }

    public long getSpeedOffset() {
        return speedOffset;
    }

    public List<ConsumerInfo> getList() {
        return list;
    }

    public void setList(List<ConsumerInfo> list) {
        this.list = list;
    }

    private KafkaConsumer<String, String> consumer;

    private List<TopicPartition> topicPartitionList;

    private final DecimalFormat decimalFormat = new DecimalFormat("0.00");

    public Monitor(String servers, ConsumerGroupsService consumerGroupsService, String topic, String groupId) {
        this.servers = servers;
        this.topic = topic;
        this.groupId = consumerGroupsService.getGroupId(topic, groupId);

        this.list = new ArrayList<>();

        //消費者
        Properties properties = new Properties();
        properties.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, this.servers);
        properties.put(ConsumerConfig.GROUP_ID_CONFIG, this.groupId);
        properties.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class);
        properties.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class);

        consumer = new KafkaConsumer<String, String>(properties);

        //查詢 topic partitions
        topicPartitionList = new ArrayList<>();
        List<PartitionInfo> partitionInfoList = consumer.partitionsFor(topic);
        for (PartitionInfo partitionInfo : partitionInfoList) {
            TopicPartition topicPartition = new TopicPartition(partitionInfo.topic(), partitionInfo.partition());
            topicPartitionList.add(topicPartition);
        }
    }

    public void monitor(boolean addToList) {
        try {
            long startTime = System.currentTimeMillis();

            //查詢 log size
            Map<Integer, Long> endOffsetMap = new HashMap<>();
            Map<TopicPartition, Long> endOffsets = consumer.endOffsets(topicPartitionList);
            for (TopicPartition partitionInfo : endOffsets.keySet()) {
                endOffsetMap.put(partitionInfo.partition(), endOffsets.get(partitionInfo));
            }

            //查詢消費 offset
            Map<Integer, Long> commitOffsetMap = new HashMap<>();
            for (TopicPartition topicAndPartition : topicPartitionList) {
                OffsetAndMetadata committed = consumer.committed(topicAndPartition);
                commitOffsetMap.put(topicAndPartition.partition(), committed.offset());
            }

            long endTime = System.currentTimeMillis();
            log.info("查詢logSize和offset耗時:" + (new DecimalFormat("0.000")).format((endTime - startTime) / 1000.0) + " 秒");
            startTime = System.currentTimeMillis();

            //累加lag
            long totalLag = 0L;
            long logSize = 0L;
            long offset = 0L;
            if (endOffsetMap.size() == commitOffsetMap.size()) {
                for (Integer partition : endOffsetMap.keySet()) {
                    long endOffset = endOffsetMap.get(partition);
                    long commitOffset = commitOffsetMap.get(partition);
                    long diffOffset = endOffset - commitOffset;
                    totalLag += diffOffset;
                    logSize += endOffset;
                    offset += commitOffset;
                }

            } else {
                log.error("Topic:" + topic + "  consumer:" + consumer + "  topic partitions lost");
            }

            log.info("Topic:" + topic + "  logSize:" + logSize + "  offset:" + offset + "  totalLag:" + totalLag);

            if (lastTime > 0) {
                if (System.currentTimeMillis() - lastTime > 0) {
                    speedLogSize = (long) ((logSize - lastLogSize) / ((System.currentTimeMillis() - lastTime) / 1000.0));
                    speedOffset = (long) ((offset - lastOffset) / ((System.currentTimeMillis() - lastTime) / 1000.0));
                }

                if (speedLogSize > 0) {
                    String strRatio = decimalFormat.format(speedOffset * 100 / (speedLogSize * 1.0));
                    lastRatio = Double.parseDouble(strRatio);
                    log.info("Topic:" + topic + "  speedLogSize:" + speedLogSize + "  speedOffset:" + speedOffset + "  百分比:" + strRatio + "%");
                }
            }

            lastTime = System.currentTimeMillis();
            lastTotalLag = totalLag;
            lastLogSize = logSize;
            lastOffset = offset;

            endTime = System.currentTimeMillis();
            log.info("計算耗時:" + (new DecimalFormat("0.000")).format((endTime - startTime) / 1000.0) + " 秒");

            if (addToList) {
                this.setTime(simpleDateFormat.format(new Date()));
                this.list.add(new ConsumerInfo(this.getTopic(), this.getGroupId(), this.getLastTotalLag(), this.getLastRatio(), this.getSpeedLogSize(), this.getSpeedOffset(), this.getTime()));
                if (this.list.size() > 500) {
                    this.list.remove(0);
                }
            }

        } catch (Exception e) {
            log.error("Monitor error", e);
        }
    }

}

View Code

MonitorService.java代碼：

package com.suncreate.kafkaConsumerMonitor.service;

import com.suncreate.kafkaConsumerMonitor.model.ConsumerInfo;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;

import javax.annotation.PostConstruct;
import java.util.*;

@Service
public class MonitorService {
    private static final Logger log = LoggerFactory.getLogger(MonitorService.class);

    @Value("${kafka.consumer.servers}")
    private String servers;

    @Autowired
    private ConsumerGroupsService consumerGroupsService;

    private List<Monitor> monitorList;

    @PostConstruct
    private void Init() {
        monitorList = new ArrayList<>();

        monitorList.add(new Monitor(servers, consumerGroupsService, "wifiData", "wifi-kafka-hbase"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "KK_PASS_INFO_TYCC", "EXTRACT-SAMPLE"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "KK_PASS_INFO_TYCC", "dblrecog-upload2vcn"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "KK_PASS_INFO_TYCC_FILTER", "yisa"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "KK_PASS_INFO_TYCC_FILTER", "kafka-filter-check"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "motorVehicle", "unifiedstorage-downloader"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "motorVehicle", "full-vehicle-data-storage-kafka2ch"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "motorVehicle", "vehicle_store"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "motorVehicle", "vcn-sk-upload-luyang"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "motorVehicle", "vcn-sk-upload-yaohai"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "motorVehicle", "vcn-sk-upload-baohe"));
        monitorList.add(new Monitor(servers, consumerGroupsService, "peopleFace", "kafka-filter-check"));
    }

    public void monitorOnce(boolean addToList) {
        for (Monitor monitor : monitorList) {
            monitor.monitor(addToList);
        }
    }

    public List<ConsumerInfo> getConsumerList() {
        List<ConsumerInfo> list = new ArrayList<>();

        for (Monitor monitor : monitorList) {
            list.add(new ConsumerInfo(monitor.getTopic(), monitor.getGroupId(), monitor.getLastTotalLag(), monitor.getLastRatio(), monitor.getSpeedLogSize(), monitor.getSpeedOffset(), monitor.getTime()));
        }

        return list;
    }

    public List<ConsumerInfo> getDetails(String topic, String groupId) {
        for (Monitor monitor : monitorList) {
            if (monitor.getTopic().equals(topic) && monitor.getGroupId().equals(groupId)) {
                return monitor.getList();
            }
        }
        return new ArrayList<>();
    }

}

View Code

ConsumerGroupsService.java代碼：

用于獲取kafka的topic下的所有消費者組，new Monitor傳的groupId引數可能不是消費者組的全稱，所以需要從topic的所有消費者組中匹配到全稱，

由于對接的是華為FusionInsight平臺的Kafka，所以需要使用帶身份認證的埠連接，才能使用AdminClient類獲取到所有消費者組，代碼里把不帶安全認證的埠21005換成帶安全認證的埠21007，

package com.suncreate.kafkaConsumerMonitor.service;

import kafka.admin.AdminClient;
import kafka.coordinator.group.GroupOverview;
import org.apache.kafka.clients.admin.AdminClientConfig;
import org.apache.kafka.common.TopicPartition;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;
import scala.collection.JavaConversions;

import javax.annotation.PostConstruct;
import java.util.*;

@Service
public class ConsumerGroupsService {
    private static final Logger log = LoggerFactory.getLogger(ConsumerGroupsService.class);

    @Value("${kafka.consumer.servers}")
    private String servers;

    private List<GroupOverview> groupListAll;

    @PostConstruct
    private void Init() {
        try {
            //身份認證
            System.setProperty("java.security.auth.login.config", "/home/server/import/conf/jaas.conf");
            System.setProperty("java.security.krb5.conf", "/home/server/import/conf/krb5.conf");
            //System.setProperty("java.security.auth.login.config", "D:/Project/shiny/kafka-consumer-monitor/conf/jaas.conf");
            //System.setProperty("java.security.krb5.conf", "D:/Project/shiny/kafka-consumer-monitor/conf/krb5.conf");

            Properties properties = new Properties();
            properties.put(AdminClientConfig.BOOTSTRAP_SERVERS_CONFIG, servers.replace("21005", "21007"));
            properties.put(AdminClientConfig.SECURITY_PROTOCOL_CONFIG, "SASL_PLAINTEXT");

            AdminClient client = AdminClient.create(properties);

            try {
                groupListAll = scala.collection.JavaConversions.seqAsJavaList(client.listAllGroupsFlattened().toSeq());

                if (groupListAll != null) {
                    log.info("ConsumerGroupsService Init 獲取所有消費者組 成功 groupListAll size=" + groupListAll.size());
                } else {
                    log.error("ConsumerGroupsService Init 獲取所有消費者組 失敗 groupListAll=null");
                }
            } catch (Exception e) {
                log.error("ConsumerGroupsService Init 獲取所有消費者組 失敗", e);
            } finally {
                client.close();
            }
        } catch (Exception e) {
            log.error("ConsumerGroupsService Init 失敗", e);
        }
    }

    public String getGroupId(String topic, String groupId) {
        java.util.Set<String> groups = getConsumerGroups(topic);

        for (String item : groups) {
            if (item.indexOf(groupId) >= 0) {
                return item;
            }
        }

        return groupId;
    }

    private java.util.Set<String> getConsumerGroups(String topic) {
        Properties properties = new Properties();
        properties.put(AdminClientConfig.BOOTSTRAP_SERVERS_CONFIG, servers.replace("21005", "21007"));
        properties.put(AdminClientConfig.SECURITY_PROTOCOL_CONFIG, "SASL_PLAINTEXT");

        AdminClient client = AdminClient.create(properties);

        java.util.Set<String> groups = new HashSet<String>();

        try {
            if (groupListAll != null) {
                for (GroupOverview overview : groupListAll) {
                    String groupID = overview.groupId();
                    Map<TopicPartition, Object> offsets = JavaConversions.mapAsJavaMap(client.listGroupOffsets(groupID));
                    for (TopicPartition partition : offsets.keySet()) {
                        if (partition.topic().equals(topic)) {
                            groups.add(groupID);
                        }
                    }
                }
            }

            log.info("Topic:" + topic + " 消費者組集合:" + groups);
        } catch (Exception e) {
            log.error("getConsumerGroups error", e);
        } finally {
            client.close();
        }

        return groups;
    }
}

View Code

MonitorConfig.java代碼：

package com.suncreate.kafkaConsumerMonitor.task;

import com.suncreate.kafkaConsumerMonitor.service.MonitorService;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.scheduling.annotation.SchedulingConfigurer;
import org.springframework.scheduling.config.ScheduledTaskRegistrar;
import org.springframework.scheduling.support.CronTrigger;

import java.text.SimpleDateFormat;

@Configuration
@EnableScheduling
public class MonitorConfig implements SchedulingConfigurer {
    private static final Logger logger = LoggerFactory.getLogger(MonitorConfig.class);

    private String cronExpression = "0 */3 * * * ?";

    //private String cronExpression = "*/20 * * * * ?";

    private final SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss.SSS");

    @Autowired
    private MonitorService monitorService;

    @Override
    public void configureTasks(ScheduledTaskRegistrar taskRegistrar) {
        taskRegistrar.addTriggerTask(() -> {

            monitorService.monitorOnce(true);

        }, triggerContext -> new CronTrigger(cronExpression).nextExecutionTime(triggerContext));
    }
}

View Code

MonitorController.java代碼：

package com.suncreate.kafkaConsumerMonitor.controller;

import com.suncreate.kafkaConsumerMonitor.model.ConsumerInfo;
import com.suncreate.kafkaConsumerMonitor.model.LayuiData;
import com.suncreate.kafkaConsumerMonitor.service.MonitorService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
@RequestMapping("/monitor")
public class MonitorController {

    @Autowired
    private MonitorService monitorService;

    @GetMapping("/getConsumers")
    public LayuiData getConsumers() {

        List<ConsumerInfo> list = monitorService.getConsumerList();

        LayuiData data = new LayuiData(list);
        return data;
    }

    @GetMapping("/monitorOnce")
    public void monitorOnce() {
        monitorService.monitorOnce(false);
    }

    @GetMapping("/getDetails")
    public LayuiData getDetails(String topic, String groupId) {

        List<ConsumerInfo> list = monitorService.getDetails(topic, groupId);

        LayuiData data = new LayuiData(list);
        return data;
    }
}

View Code

pom.xml檔案(有些東西沒用到或者備用，沒有刪)：

pom檔案中參考的jar包，跟開源的jar包版本完全一致，但jar包中的內容大不相同，所以必須參考華為平臺給的jar包才行，需要注意jar包依賴的jar包也不能使用開源jar包，一定要參考到華為平臺給的jar包，

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.6.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.suncreate</groupId>
    <artifactId>kafka-consumer-monitor</artifactId>
    <version>1.0</version>
    <name>kafka-consumer-monitor</name>
    <description>Kafka消費積壓監控預警</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.12</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.54</version>
        </dependency>

        <dependency>
            <groupId>com.google.code.gson</groupId>
            <artifactId>gson</artifactId>
            <version>2.8.0</version>
        </dependency>

        <!-- postgresql -->
        <dependency>
            <groupId>org.postgresql</groupId>
            <artifactId>postgresql</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!-- elasticsearch -->
        <dependency>
            <groupId>org.elasticsearch.client</groupId>
            <artifactId>elasticsearch-rest-high-level-client</artifactId>
            <version>6.1.4</version>
        </dependency>

        <!-- oracle -->
        <dependency>
            <groupId>com.oracle</groupId>
            <artifactId>ojdbc6</artifactId>
            <version>11.1.0.7.0</version>
        </dependency>

        <!-- kafka -->
        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka_2.11</artifactId>
            <version>0.11.0.1</version>
            <classifier>huawei</classifier>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-api</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.apache.zookeeper</groupId>
                    <artifactId>zookeeper</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.apache.kafka</groupId>
                    <artifactId>kafka-clients</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.apache.kafka</groupId>
                    <artifactId>kafka-clients</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>net.sf.jopt-simple</groupId>
                    <artifactId>jopt-simple</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>com.yammer.metrics</groupId>
                    <artifactId>metrics-core</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.scala-lang</groupId>
                    <artifactId>scala-library</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>com.101tec</groupId>
                    <artifactId>zkclient</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.scala-lang.modules</groupId>
                    <artifactId>scala-parser-combinators_2.11</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka-clients</artifactId>
            <version>0.11.0.1</version>
            <classifier>huawei</classifier>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-api</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>net.jpountz.lz4</groupId>
                    <artifactId>lz4</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.xerial.snappy</groupId>
                    <artifactId>snappy-java</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <!-- kafka_2.11 依賴的jar包 -->
        <dependency>
            <groupId>net.sf.jopt-simple</groupId>
            <artifactId>jopt-simple</artifactId>
            <version>5.0.3</version>
            <classifier>huawei</classifier>
        </dependency>

        <dependency>
            <groupId>com.yammer.metrics</groupId>
            <artifactId>metrics-core</artifactId>
            <version>2.2.0</version>
            <classifier>huawei</classifier>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-api</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.scala-lang</groupId>
            <artifactId>scala-library</artifactId>
            <version>2.11.11</version>
            <classifier>huawei</classifier>
        </dependency>

        <dependency>
            <groupId>com.101tec</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.10</version>
            <classifier>huawei</classifier>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-api</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.apache.zookeeper</groupId>
                    <artifactId>zookeeper</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.scala-lang.modules</groupId>
            <artifactId>scala-parser-combinators_2.11</artifactId>
            <version>1.0.4</version>
            <classifier>huawei</classifier>
            <exclusions>
                <exclusion>
                    <groupId>org.scala-lang</groupId>
                    <artifactId>scala-library</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.25</version>
            <classifier>huawei</classifier>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.25</version>
            <classifier>huawei</classifier>
        </dependency>

        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.5.1</version>
            <classifier>huawei</classifier>
        </dependency>

        <!-- kafka-clients 依賴的jar包 -->
        <dependency>
            <groupId>net.jpountz.lz4</groupId>
            <artifactId>lz4</artifactId>
            <version>1.3.0</version>
            <classifier>huawei</classifier>
        </dependency>

        <dependency>
            <groupId>org.xerial.snappy</groupId>
            <artifactId>snappy-java</artifactId>
            <version>1.1.2.6</version>
            <classifier>huawei</classifier>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>8</source>
                    <target>8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

View Code

前端使用了 Layui 和 ECharts 展示表格和圖表

index.css代碼：

.div-title {
    font-size: 18px;
    margin-top: 10px;
    margin-left: 10px;
}

.div-right {
    text-align: right;
}

.span-red {
    color: #ff0000;
}

View Code

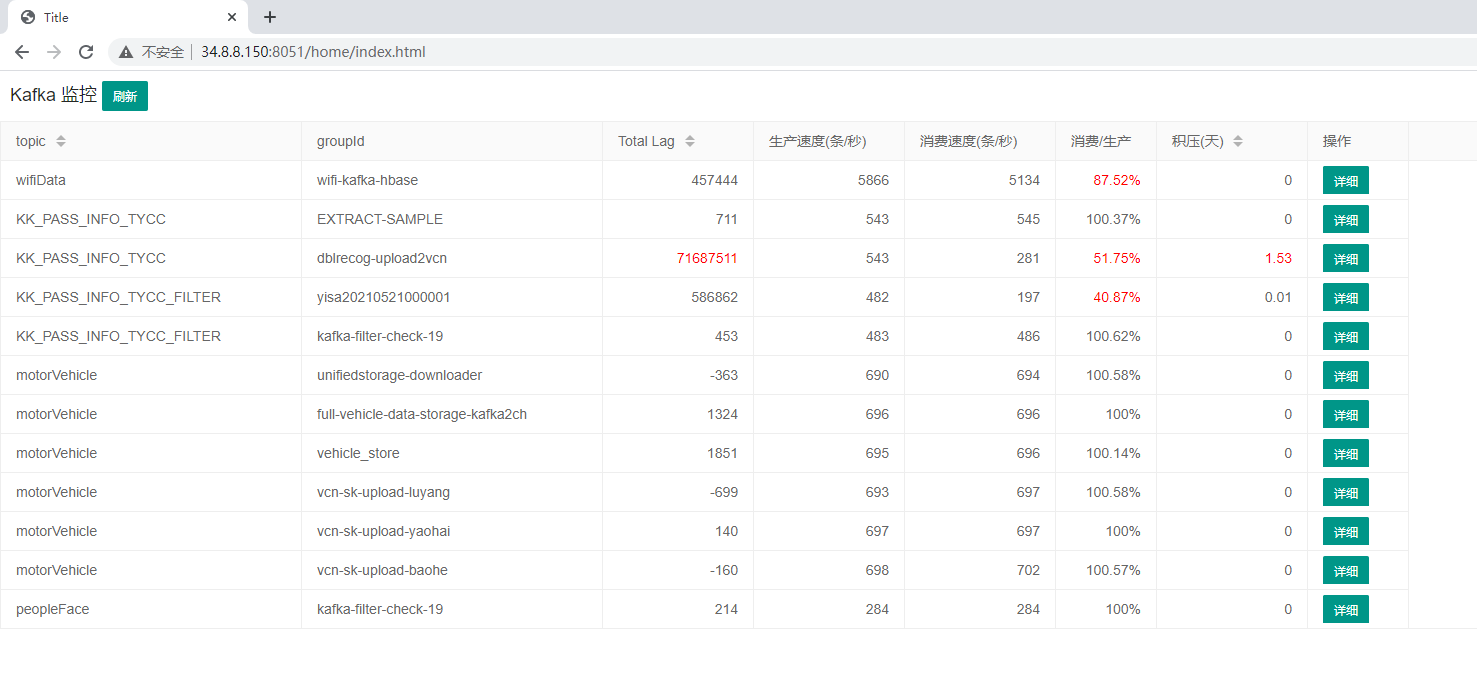

index.html代碼(展示topic、消費者組Consumer GroupId、Total Lag、Kafka資料生產速度、Kafka資料消費速度等)：

<!DOCTYPE html>
<html lang="zh">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <link rel="stylesheet" href="css/index.css">
    <link rel="stylesheet" href="js/layui-v2.6.8/css/layui.css" media="all">
    <script type="text/javascript" src="js/jquery-1.7.1.js"></script>
    <script type="text/javascript" src="js/layui-v2.6.8/layui.js" charset="utf-8"></script>
</head>
<body>

<div class="div-title">Kafka 監控
    <button type="button" class="layui-btn layui-btn-sm" onclick="refreshTable()">重繪</button>
</div>
<table class="layui-hide" id="myTable"></table>

<script type="text/javascript">
    var myTable;

    layui.use('table', function () {
        var table = layui.table;

        myTable = table.render({
            elem: '#myTable',
            url: '/home/monitor/getConsumers',
            cellMinWidth: 80, //全域定義常規單元格的最小寬度
            cols: [[
                {field: 'topic', width: 300, title: 'topic', sort: true},
                {field: 'groupId', width: 300, title: 'groupId'},
                {
                    field: 'totalLag', width: 150, title: 'Total Lag', sort: true, templet: function (d) {
                        if (d.delayDay * 24 > 2) {
                            return '<div ><span >' + formatLongNum(d.totalLag) + '</span></div>'
                        } else {
                            return '<div ><span>' + formatLongNum(d.totalLag) + '</span></div>'
                        }
                    }
                },
                {
                    field: 'speedLogSize', width: 150, title: '生產速度(條/秒)', templet: function (d) {
                        return '<div >' + d.speedLogSize + '</div>'
                    }
                },
                {
                    field: 'speedOffset', width: 150, title: '消費速度(條/秒)', templet: function (d) {
                        return '<div >' + d.speedOffset + '</div>'
                    }
                },
                {
                    field: 'ratio', width: 100, title: '消費/生產', templet: function (d) {
                        if (d.ratio < 90) {
                            return '<div ><span >' + d.ratio + '%</span></div>'
                        } else {
                            return '<div ><span>' + d.ratio + '%</span></div>'
                        }
                    }
                },
                {
                    field: 'delayDay', width: 150, title: '積壓(天)', sort: true, templet: function (d) {
                        if (d.delayDay * 24 > 2) {
                            return '<div ><span >' + d.delayDay + '</span></div>'
                        } else {
                            return '<div ><span>' + d.delayDay + '</span></div>'
                        }
                    }
                },
                {
                    field: 'ope', width: 100, title: '操作', templet: function (d) {
                        return '<a href="https://www.cnblogs.com/home/detail.html?topic=' + d.topic + '&groupId=' + d.groupId + '" target="_blank"  >詳細</a>';
                    }
                }
            ]]
        });
    });

    function refreshTable() {
        if (myTable) {
            myTable.reload();
        }
    }

    setInterval(function () {
        refreshTable();
    }, 30000);

    function formatLongNum(num) {
        return (num + '').replace(/(\d{1,4})(?=(\d{4})+(?:$|\.))/g, '$1 ')
    }

    // setInterval(function () {
    //     $.get("/home/monitor/monitorOnce");
    // }, 30000);

</script>

</body>
</html>

View Code

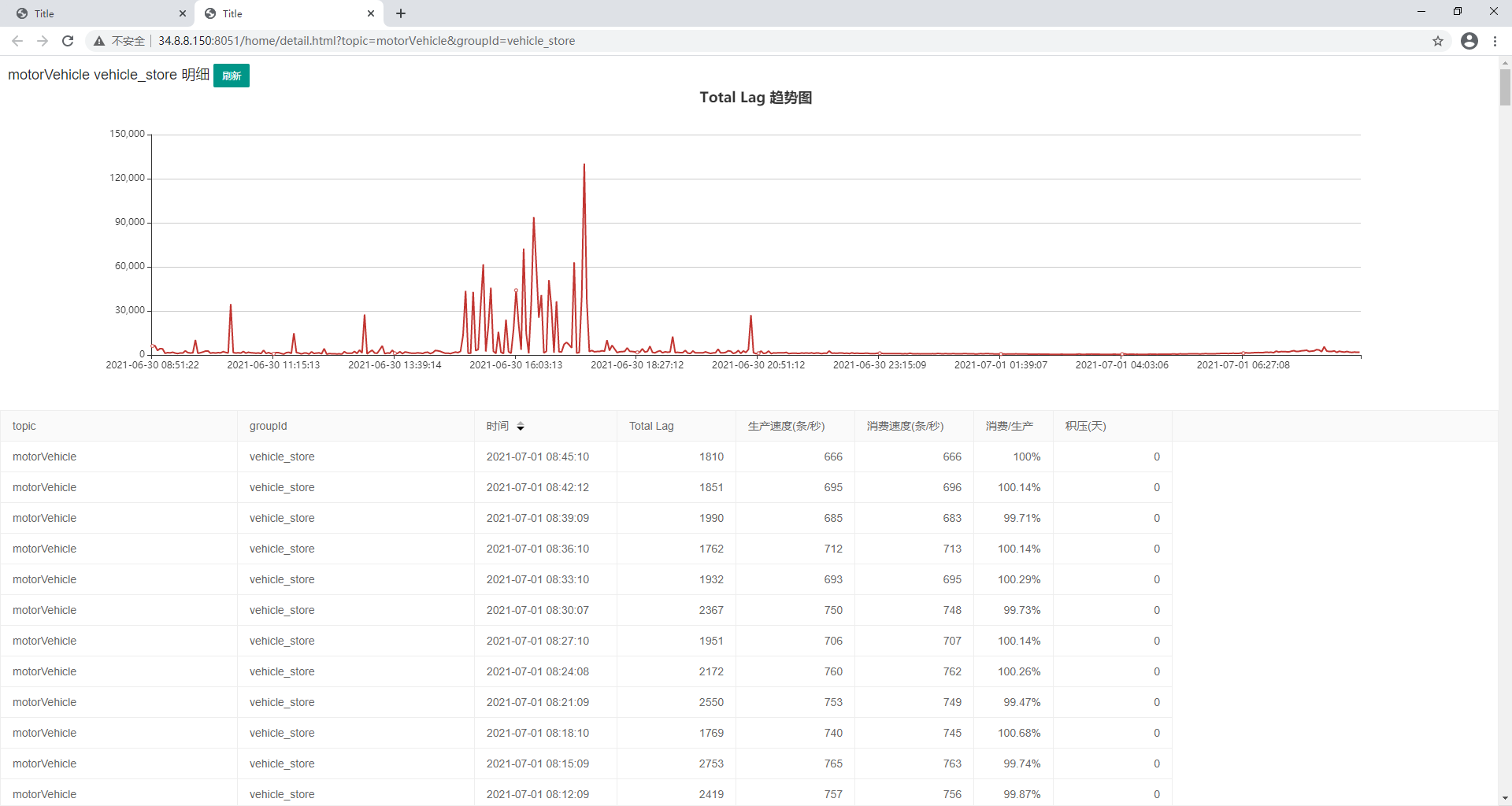

detail.html代碼(展示單個消費者組的Total Lag、生產速度、消費速度以及Total Lag趨勢圖)：

<!DOCTYPE html>
<html lang="zh">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <link rel="stylesheet" href="css/index.css">
    <link rel="stylesheet" href="js/layui-v2.6.8/css/layui.css" media="all">
    <script type="text/javascript" src="js/jquery-1.7.1.js"></script>
    <script type="text/javascript" src="js/layui-v2.6.8/layui.js" charset="utf-8"></script>
    <script type="text/javascript" src="js/echarts-v4.7.0/echarts.min.js"></script>
</head>
<body>

<div class="div-title"><span id="detailTitle"></span> 明細
    <button type="button" class="layui-btn layui-btn-sm" onclick="refreshTable()">重繪</button>
</div>
<div id="main" style="height:400px;"></div>
<table class="layui-hide" id="test"></table>

<script type="text/javascript">
    var myTable;
    var topic = getQueryVariable("topic");
    var groupId = getQueryVariable("groupId");

    $("#detailTitle").html(topic + "  " + groupId);

    layui.use('table', function () {
        var table = layui.table;

        myTable = table.render({
            elem: '#test',
            url: '/home/monitor/getDetails?topic=' + topic + '&groupId=' + groupId,
            cellMinWidth: 80, //全域定義常規單元格的最小寬度
            initSort: {
                field: 'time', //排序欄位，對應 cols 設定的各欄位名
                type: 'desc' //排序方式  asc: 升序、desc: 降序、null: 默認排序
            },
            cols: [[
                {field: 'topic', width: 300, title: 'topic'},
                {field: 'groupId', width: 300, title: 'groupId'},
                {field: 'time', width: 180, title: '時間', sort: true},
                {
                    field: 'totalLag', width: 150, title: 'Total Lag', templet: function (d) {
                        if (d.delayDay * 24 > 2) {
                            return '<div ><span >' + formatLongNum(d.totalLag) + '</span></div>'
                        } else {
                            return '<div ><span>' + formatLongNum(d.totalLag) + '</span></div>'
                        }
                    }
                },
                {
                    field: 'speedLogSize', width: 150, title: '生產速度(條/秒)', templet: function (d) {
                        return '<div >' + d.speedLogSize + '</div>'
                    }
                },
                {
                    field: 'speedOffset', width: 150, title: '消費速度(條/秒)', templet: function (d) {
                        return '<div >' + d.speedOffset + '</div>'
                    }
                },
                {
                    field: 'ratio', width: 100, title: '消費/生產', templet: function (d) {
                        if (d.ratio < 90) {
                            return '<div ><span >' + d.ratio + '%</span></div>'
                        } else {
                            return '<div ><span>' + d.ratio + '%</span></div>'
                        }
                    }
                },
                {
                    field: 'delayDay', width: 150, title: '積壓(天)', templet: function (d) {
                        if (d.delayDay * 24 > 2) {
                            return '<div ><span >' + d.delayDay + '</span></div>'
                        } else {
                            return '<div ><span>' + d.delayDay + '</span></div>'
                        }
                    }
                }
            ]]
        });
    });

    function refreshTable() {
        if (myTable) {
            myTable.reload();
        }
        showChart();
    }

    setInterval(function () {
        refreshTable();
    }, 30000);

    function formatLongNum(num) {
        return (num + '').replace(/(\d{1,4})(?=(\d{4})+(?:$|\.))/g, '$1 ')
    }

    function getQueryVariable(variable) {
        var query = window.location.search.substring(1);
        var vars = query.split("&");
        for (var i = 0; i < vars.length; i++) {
            var pair = vars[i].split("=");
            if (pair[0] == variable) {
                return pair[1];
            }
        }
        return (false);
    }

    function showChart() {
        $.ajax({
            type: "GET",
            url: '/home/monitor/getDetails?topic=' + topic + '&groupId=' + groupId,
            success: function (data) {
                if (data && data.data && data.data.length > 1) {
                    debugger;
                    var chartDom = document.getElementById('main');
                    var myChart = echarts.init(chartDom);
                    var option;

                    var xAxis = [];
                    var serseis = [];
                    for (var i = 0; i < data.data.length; i++) {
                        xAxis.push(data.data[i].time);
                        serseis.push(data.data[i].totalLag);

                    }

                    option = {
                        title: {
                            show: true,
                            text: "Total Lag 趨勢圖",
                            x: 'center'
                        },
                        xAxis: {
                            type: 'category',
                            data: xAxis
                        },
                        yAxis: {
                            type: 'value'
                        },
                        series: [{
                            data: serseis,
                            type: 'line'
                        }]
                    };

                    myChart.setOption(option);
                }
            }
        });
    }

    showChart();

</script>

</body>
</html>

View Code

原始碼：

https://files-cdn.cnblogs.com/files/s0611163/kafka-consumer-monitor.zip

效果圖：

消費者組串列：

消費者組明細：

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/288736.html

標籤：Java

上一篇：演算法-堆疊佇列堆

下一篇：精盡Spring Boot原始碼分析 - 文章導讀
