Mybatis核心原理

簡介

Mybatis是一款流行的持久層框架，基于ORM(Object-Relation Mapper)思想，對針對JDBC的封裝，通過xml配置支持靈活復雜的SQL查詢，

框架組件架構圖

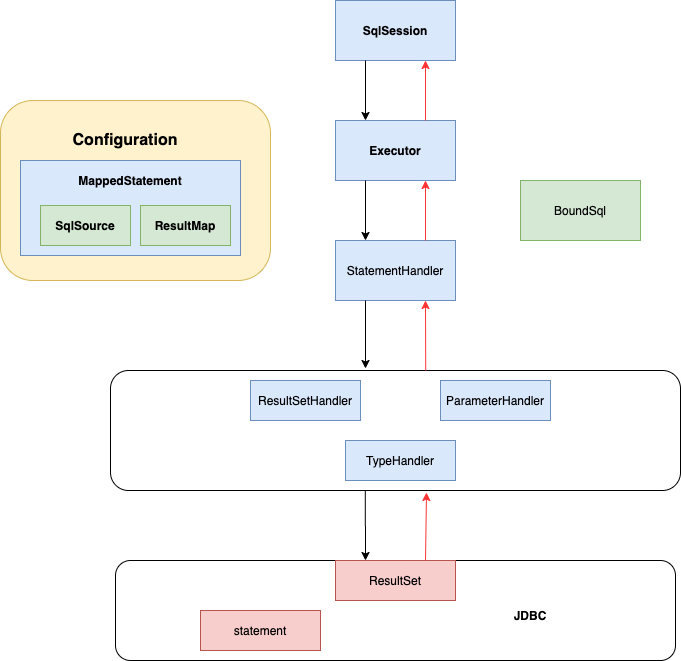

Mybatis核心成員資料流

核心成員說明

核心代碼流程

1）Mybatis通過SqlSessionFactory獲取sqlSession，然后有sqlSession完成資料庫的互動，SqlSessionFactory默認介面實作是是DefaultSqlSessionFactory，

//默認new DefaultSqlSessionFactory()
public SqlSessionFactory build(Configuration config) {
        return new DefaultSqlSessionFactory(config);
}

2） SqlSessionFactory有多個openSession方法，以無參的方法為例，

public SqlSession openSession() {
    return this.openSessionFromDataSource(this.configuration.getDefaultExecutorType(), (TransactionIsolationLevel)null, false);
}

//executor 默認有多個實作，根據ExecutorType可知有以下幾種
public enum ExecutorType {
    SIMPLE,
    REUSE,
    BATCH;
    private ExecutorType() {
    }
}

3. 針對Dao層的定義的介面,MapperRegistry維護了Dao層介面的代理工廠，并由工廠生成具體的代理去處理sqlSession，并交底層Executor調度器去執行，

public class MapperProxyFactory<T> {
    private final Class<T> mapperInterface;
    //MapperMethod對應Dao層介面的方法
    private final Map<Method, MapperMethod> methodCache = new ConcurrentHashMap();

    public MapperProxyFactory(Class<T> mapperInterface) {
        this.mapperInterface = mapperInterface;
    }

    public Class<T> getMapperInterface() {
        return this.mapperInterface;
    }

    public Map<Method, MapperMethod> getMethodCache() {
        return this.methodCache;
    }

    protected T newInstance(MapperProxy<T> mapperProxy) {
        return Proxy.newProxyInstance(this.mapperInterface.getClassLoader(), new Class[]{this.mapperInterface}, mapperProxy);
    }

    //根據介面型別生成具體代理
    public T newInstance(SqlSession sqlSession) {
        MapperProxy<T> mapperProxy = new MapperProxy(sqlSession, this.mapperInterface, this.methodCache);
        return this.newInstance(mapperProxy);
    }
}

4. Executor調度器與StatementHandler等處理器互動，完成SQL操作

public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
        Statement stmt = null;

        List var9;
        try {
            Configuration configuration = ms.getConfiguration();
          StatementHandler handler = configuration.newStatementHandler(this.wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
            stmt = this.prepareStatement(handler, ms.getStatementLog());
            var9 = handler.query(stmt, resultHandler);
        } finally {
            this.closeStatement(stmt);
        }

        return var9;
    }

并發場景的思考：DefaultSqlSessionFactory是執行緒安全的么？如何做到執行緒安全？

是不執行緒安全的，這個會在后面解釋，

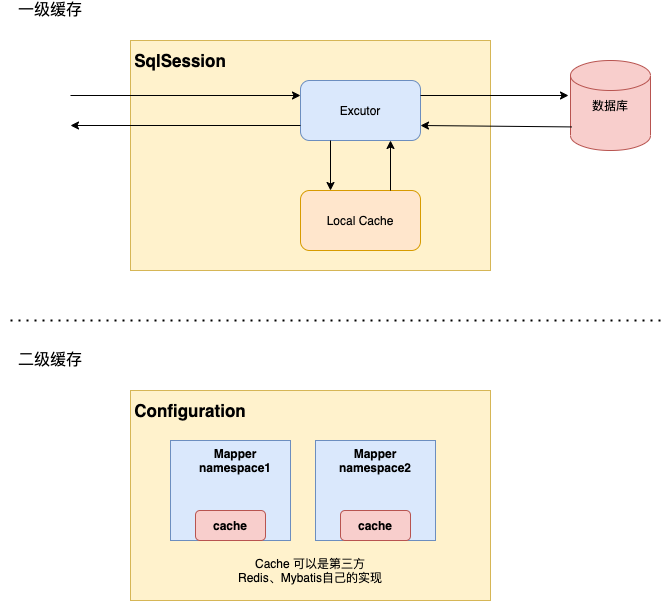

快取機制

一級快取核心類是PerpetualCache，本質是一個hashMap

二級快取默認不開啟，

Spring 與Mybatis的整合

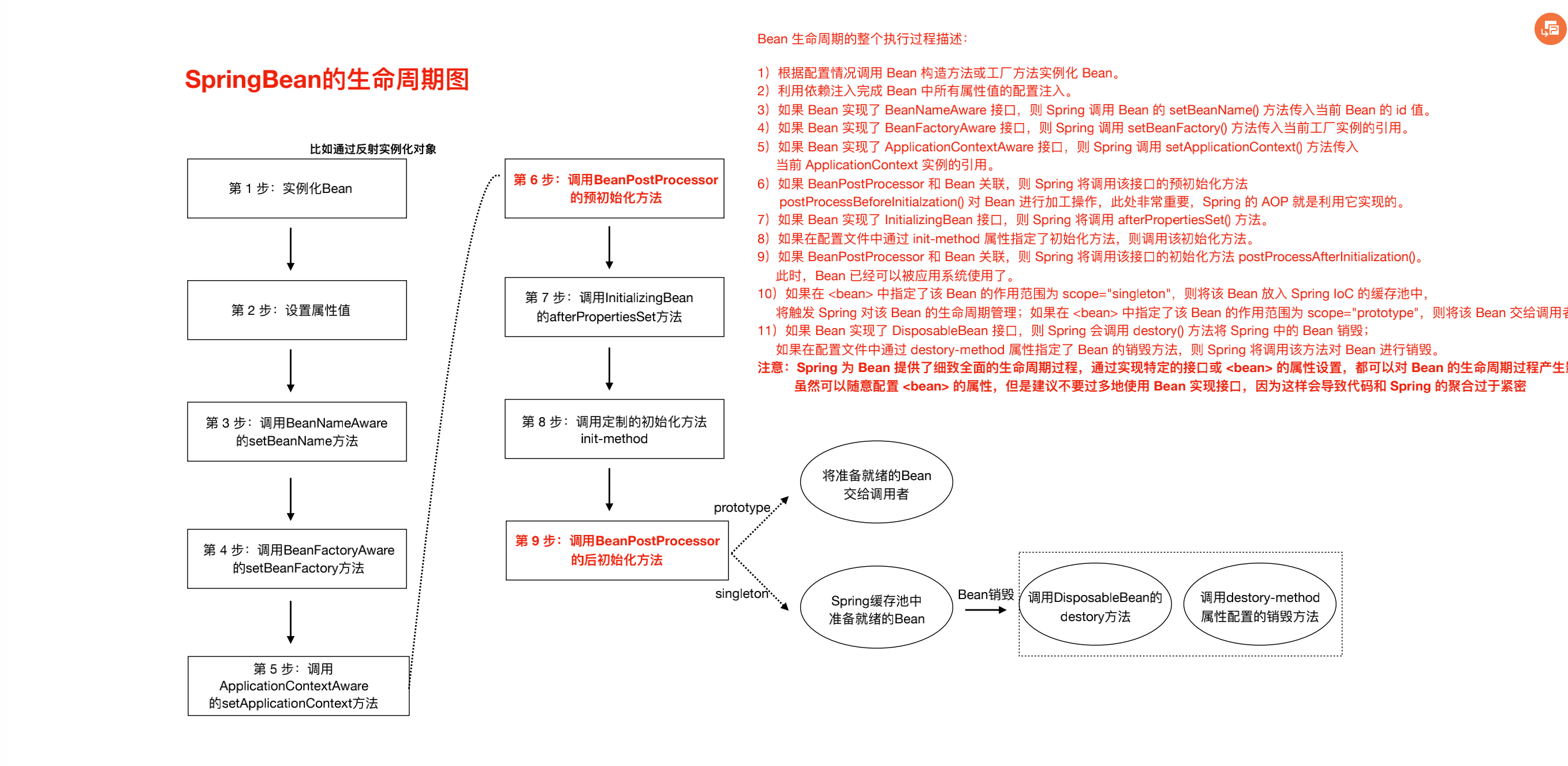

Spring bean 生命周期

MapperScannerConfigurer

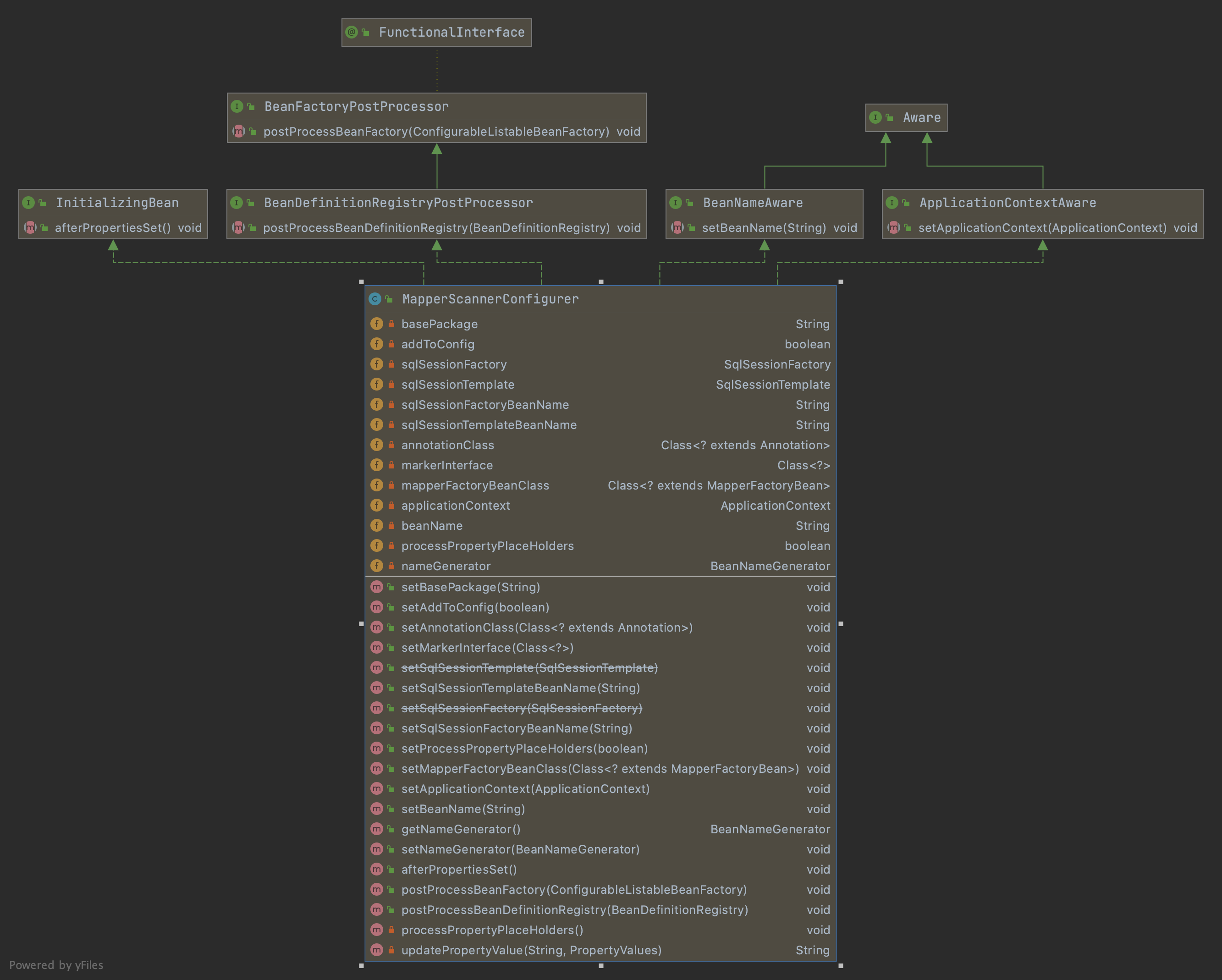

MapperScannerConfigurer的主要作業是掃描basePackage包下所有的mapper介面類，并將mapper介面類封裝成為BeanDefinition物件，注冊到spring的BeanFactory容器中核心類圖如下：

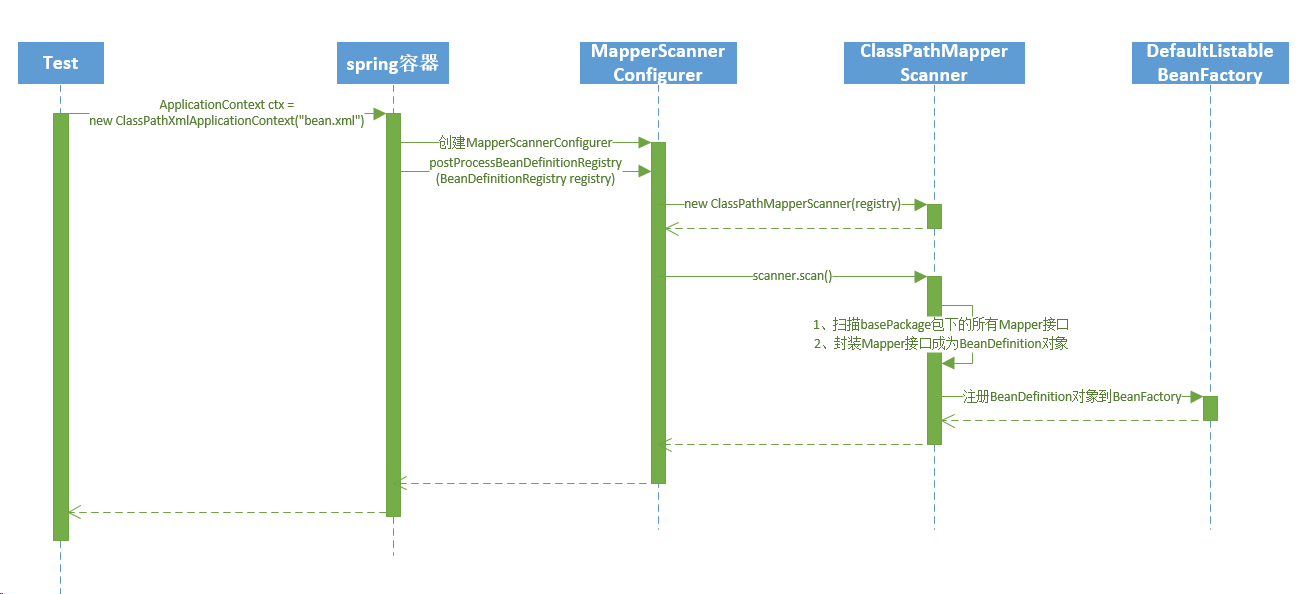

以上知道了Spring的bean注冊到容器的核心流程，通過理解Spring的核心流程，可以梳理出Dao層介面Mapper通過MapperScannerConfigurer整合到spring的流程：

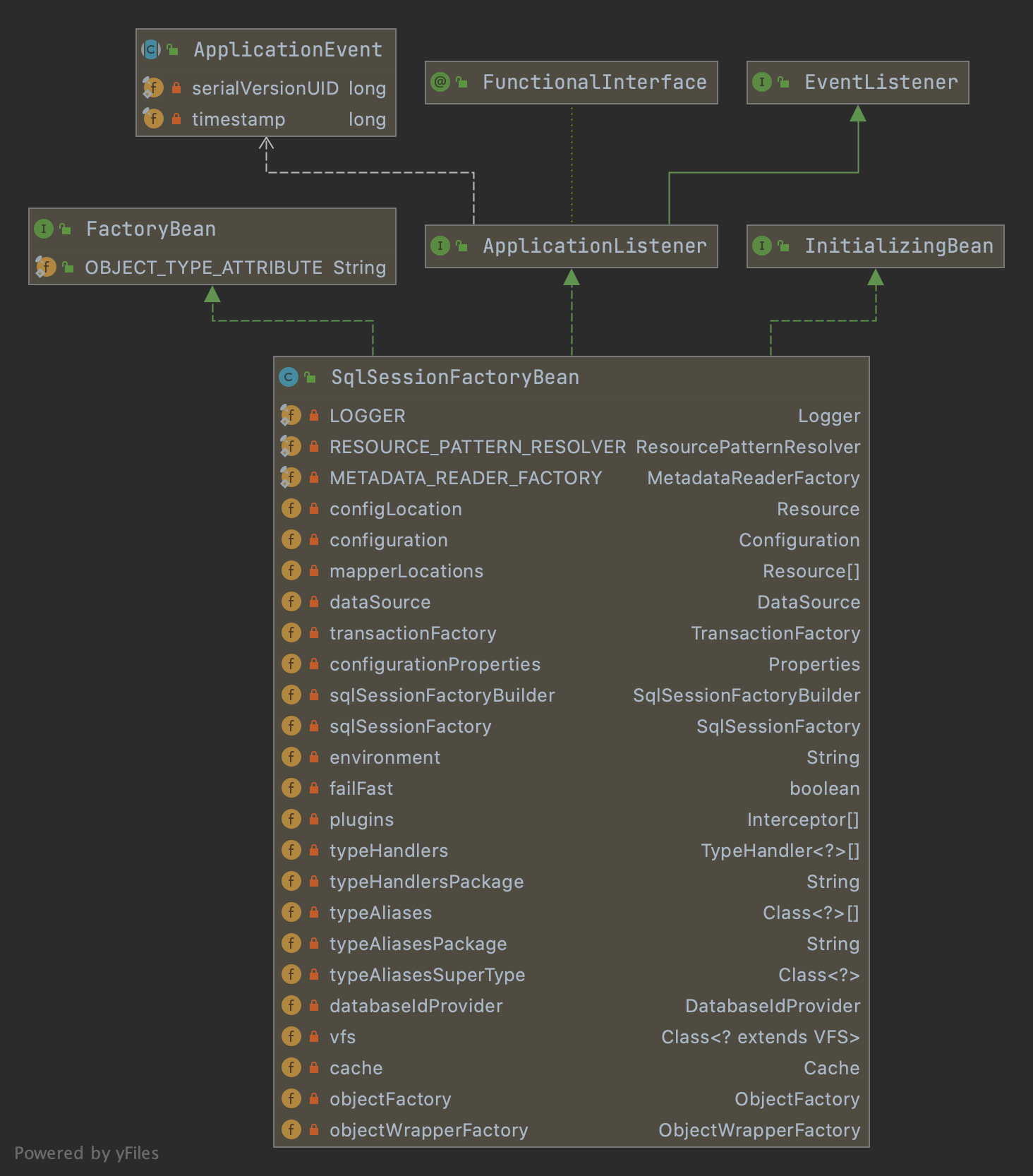

SqlSessionFactoryBean

類定義如下：

public class SqlSessionFactoryBean implements FactoryBean<SqlSessionFactory>, InitializingBean, ApplicationListener<ApplicationEvent> {
   //省略一些詳細代碼

   public void setDataSource(DataSource dataSource) {
      if (dataSource instanceof TransactionAwareDataSourceProxy) {
          this.dataSource = ((TransactionAwareDataSourceProxy)dataSource).getTargetDataSource();
      } else {
          this.dataSource = dataSource;
      }
    }
    public void setMapperLocations(Resource[] mapperLocations) {
        this.mapperLocations = mapperLocations;
    }
}

從這個類的定義可以看出SqlSessionFactoryBean與DataSource和Mapper有關，

在bean被創建的中，通過介面InitializingBean中的afterPropertiesSet方法設定屬性，

public void afterPropertiesSet() throws Exception {
        Assert.notNull(this.dataSource, "Property 'dataSource' is required");
        Assert.notNull(this.sqlSessionFactoryBuilder, "Property 'sqlSessionFactoryBuilder' is required");
        Assert.state(this.configuration == null && this.configLocation == null || this.configuration == null || this.configLocation == null, "Property 'configuration' and 'configLocation' can not specified with together");
        this.sqlSessionFactory = this.buildSqlSessionFactory();
 }

buildSqlSessionFactory方法主要完成SqlSession的初始化操作，完成在上面講的Mybatis核心代碼流程，

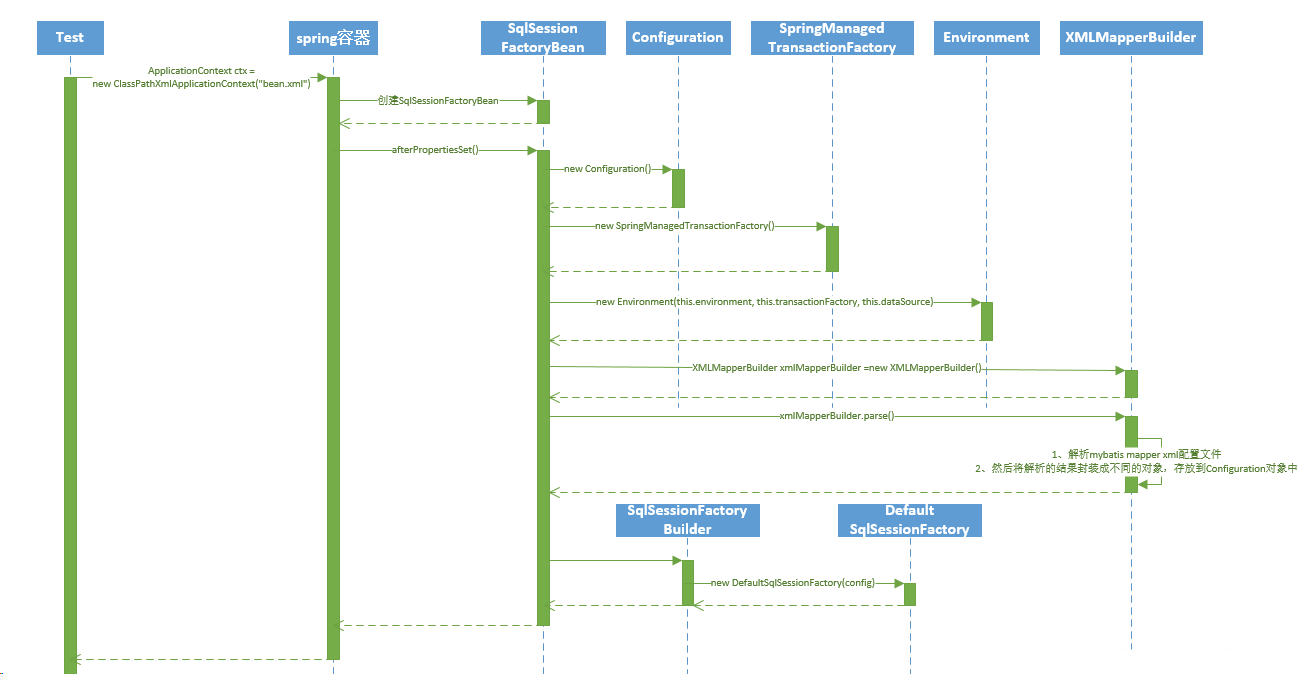

SqlSessionFactoryBean整合進Spring的流程

Mybatis整合Spring的整體流程

以下面簡單的代碼做主要流程說明

@Service
class AService{
   @Autowire
   private BDao bDao;
}

Spring在初始化的程序中@Service注解的類，AService類初始化完成之后，會進行屬性賦值，bDao介面就是AService的一個屬性，

1）首先根據這個bDao的名字或者型別從spring的BeanFactory中獲取它的BeanDefinition，再從BeanDefinition中獲取BeanClass，bDao對應的BeanClass就是MapperFactoryBean，這在創建MapperScannerConfigurer物件的時候設定的，

2）創建MapperFactoryBean物件，創建完成后，對屬性進行賦值，其中有一個屬性就是SqlSessionFactoryBean

3）MapperFactoryBean物件的屬性設定完成之后，就呼叫它的getObject()方法，來獲取bDao對應的實作類，獲取的是一個JDK的代理類

public class MapperProxy<T> implements InvocationHandler, Serializable {
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        if (Object.class.equals(method.getDeclaringClass())) {
            return method.invoke(this, args);
        } else {
            MapperMethod mapperMethod = this.cachedMapperMethod(method);
            return mapperMethod.execute(this.sqlSession, args);
        }
    }
}

程式在呼叫AService物件的某個方法的時候，就會呼叫到MapperProxy物件的invoke()方法，去完成對資料庫的操作，

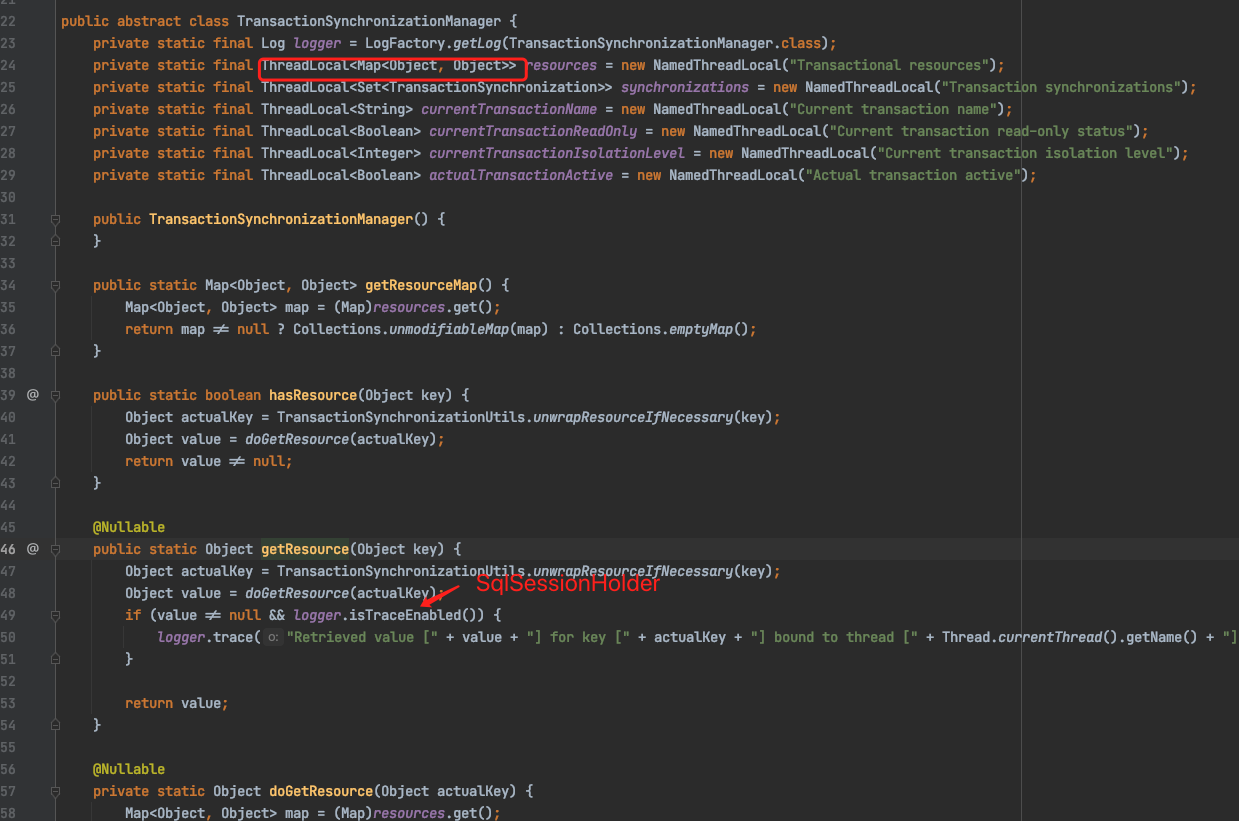

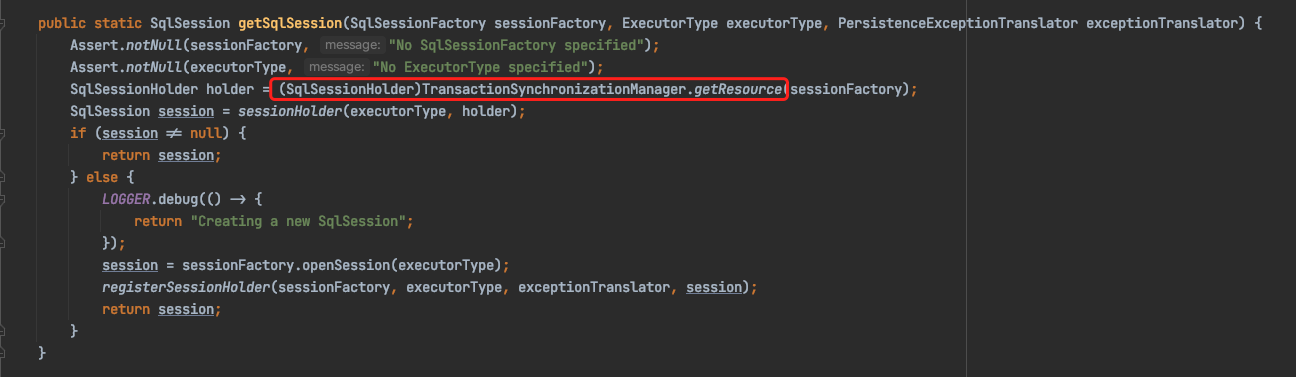

如何解決SqlSession的執行緒安全問題

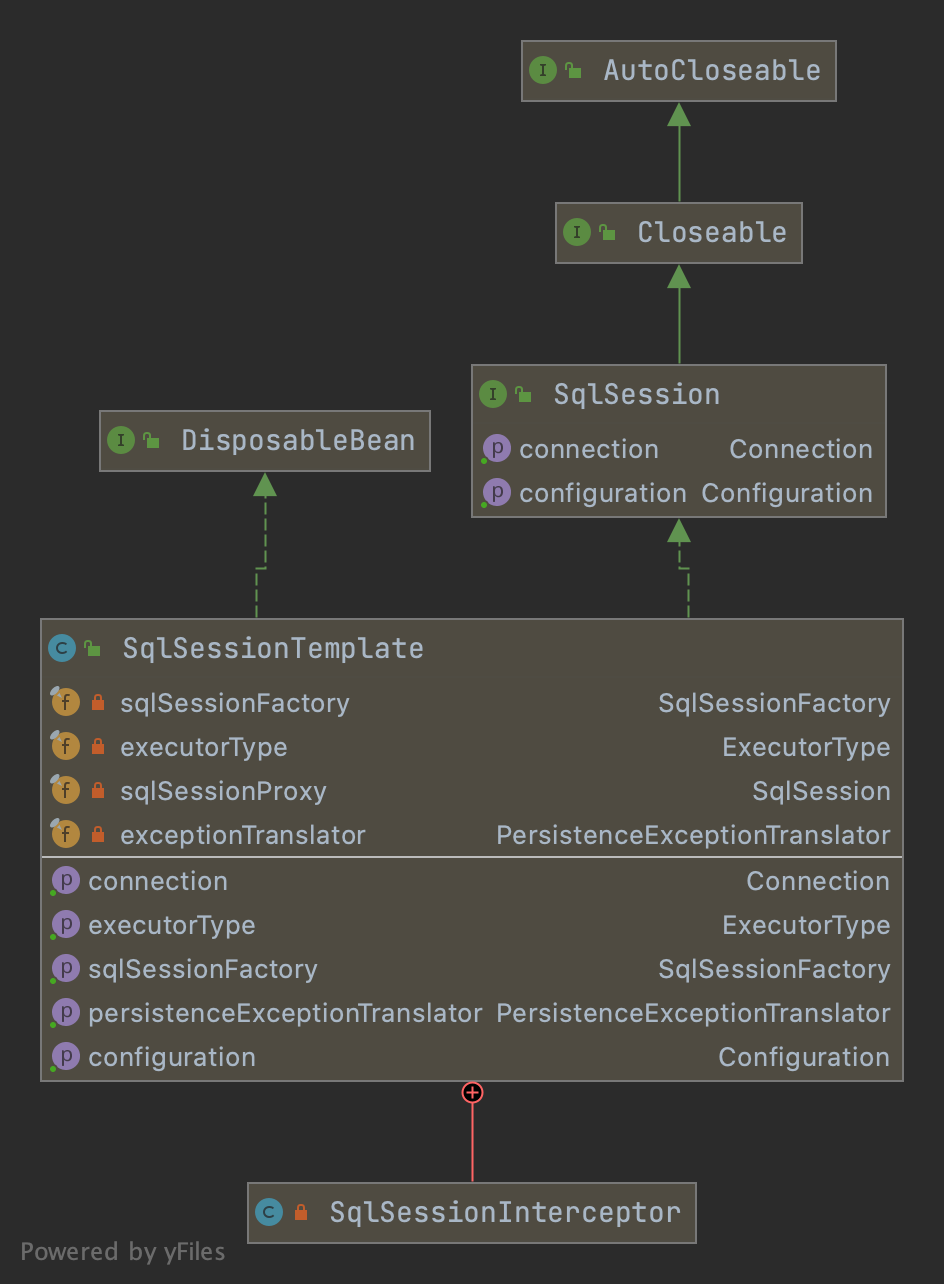

MapperFactoryBean.getObject()獲取的實體，實際是通過一個SqlSessionTemplate物件創建的，注入的Mapper物件實際上最終都執行的是SqlSessionTemplate方法，

關鍵代碼如下：

public SqlSessionTemplate(SqlSessionFactory sqlSessionFactory, ExecutorType executorType, PersistenceExceptionTranslator exceptionTranslator) {
        Assert.notNull(sqlSessionFactory, "Property 'sqlSessionFactory' is required");
        Assert.notNull(executorType, "Property 'executorType' is required");
        this.sqlSessionFactory = sqlSessionFactory;
        this.executorType = executorType;
        this.exceptionTranslator = exceptionTranslator;
        this.sqlSessionProxy = (SqlSession)Proxy.newProxyInstance(SqlSessionFactory.class.getClassLoader(), new Class[]{SqlSession.class}, new SqlSessionTemplate.SqlSessionInterceptor());
}

private class SqlSessionInterceptor implements InvocationHandler {
        private SqlSessionInterceptor() {
        }

        public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
            SqlSession sqlSession = SqlSessionUtils.getSqlSession(SqlSessionTemplate.this.sqlSessionFactory, SqlSessionTemplate.this.executorType, SqlSessionTemplate.this.exceptionTranslator);

            Object unwrapped;
            try {
                Object result = method.invoke(sqlSession, args);
                if (!SqlSessionUtils.isSqlSessionTransactional(sqlSession, SqlSessionTemplate.this.sqlSessionFactory)) {
                    sqlSession.commit(true);
                }

                unwrapped = result;
            } catch (Throwable var11) {
                unwrapped = ExceptionUtil.unwrapThrowable(var11);
                if (SqlSessionTemplate.this.exceptionTranslator != null && unwrapped instanceof PersistenceException) {
                    SqlSessionUtils.closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);
                    sqlSession = null;
                    Throwable translated = SqlSessionTemplate.this.exceptionTranslator.translateExceptionIfPossible((PersistenceException)unwrapped);
                    if (translated != null) {
                        unwrapped = translated;
                    }
                }

                throw (Throwable)unwrapped;
            } finally {
                if (sqlSession != null) {
                    SqlSessionUtils.closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);
                }

            }

            return unwrapped;
        }
    }
