如何使用python制作一款螢屏顏色提取器，附帶exe檔案-有解無憂

- - 0使用效果
  - 1所需python包
  - 2python小技巧
  - - 2.1控制元件陣列
    - 2.2將控制元件作為屬性
    - 2.3怎樣重設控制元件顏色
    - 2.4一些用到的字串操作
    - 2.5滑鼠位置像素顏色
    - 2.6視窗始終置頂
    - 2.7文本框不允許編輯但允許復制
  - 3完整代碼
  - 4exe檔案包

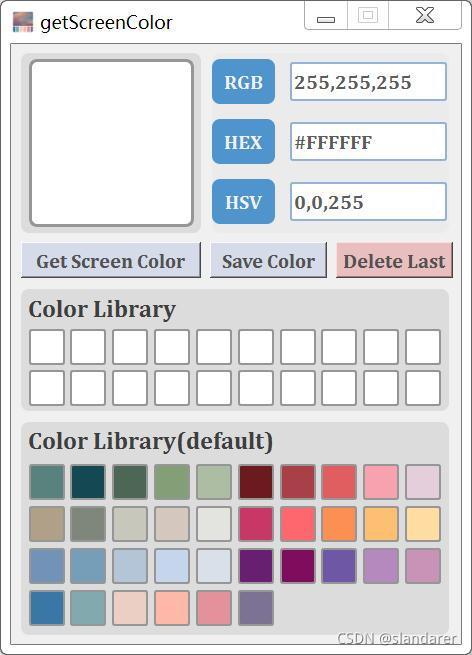

0使用效果

在這里插入圖片描述

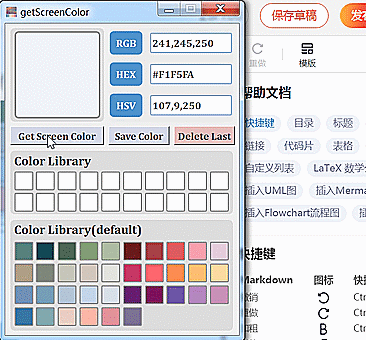

如下面動圖所示，點擊取色按鈕后，將滑鼠移動到想要取色的位置，等待兩秒即可取色：

在這里插入圖片描述

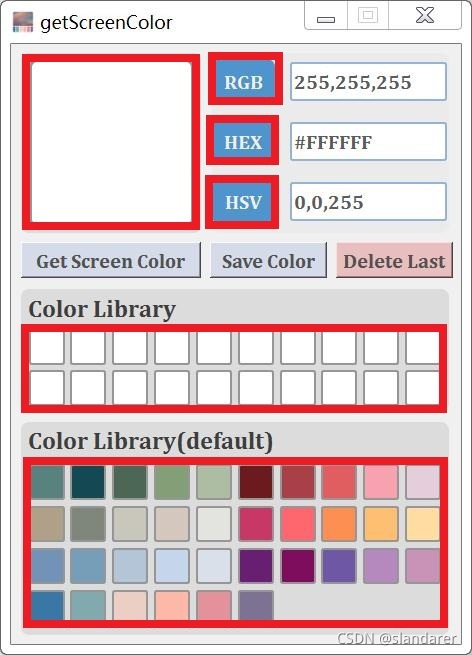

點擊save color按鈕可以將顏色存盤到color library區域，同時如圖所示，

! ! ! !紅框內所有的方形元件其實都是按鈕，點擊后能獲得顏色資訊 ! ! ! !

在這里插入圖片描述
資訊格式為：(173, 189, 163) #ADBDA3 (48, 35, 189)

1所需python包

PySide2
pyautogui
pyperclip
ctypes

from PySide2.QtWidgets import QApplication,QWidget,QLineEdit
from PySide2.QtWidgets import QLabel,QPushButton
from PySide2.QtGui import QIcon,QFont
from PySide2.QtCore import Qt

import sys
sys.path.append("...")

import time
import pyautogui as pag
import pyperclip
from ctypes import *

2python小技巧

2.1控制元件陣列

和matlab一樣，python得控制元件也能構成陣列，例如我在創建小顏色框時，是這么寫的：

# 存盤顏色框
for i in range(0,2):
    for j in range(0,10):
        storeColorBox=QPushButton(self)
        storeColorBox.setGeometry((0.04+0.093*j)*Width,(0.475+0.07*i)*Height,0.08*Width,0.06*Height)
        storeColorBox.setStyleSheet(self.SS_Color_Box)
        storeColorBox.setProperty("storeId",i*10+j)
        storeColorBox.setProperty("Color",'#FFFFFF')
        storeColorBox.clicked.connect(self.selectedStore)
        self.storeList.append(storeColorBox)

就是將各個顏色框存入了self.storeList這個陣列，
想要例如想要呼叫第i個顏色框，就可以這么寫：

storeBox=self.storeList[i]

2.2將控制元件作為屬性

將控制元件控制元件作為屬性賦給另一個控制元件
因為我們想要點擊左側標簽時獲得對應文本框內資訊：

在這里插入圖片描述
就可以這么寫（舉個例子）：

# 創建文本框
self.CB1=QLineEdit(self)
self.CB1.setText("255,255,255")
self.CB1.move(0.62*Width,0.03*Height)
self.CB1.resize(0.35*Width,0.065*Height)
self.CB1.setFont(qf)
self.CB1.setStyleSheet(self.SS_Inf_Box)

# 創建標簽
self.CL1=QPushButton(self)
self.CL1.setGeometry(0.448*Width,0.025*Height,0.14*Width,0.075*Height)
self.CL1.setStyleSheet(self.SS_Inf_Label)
self.CL1.setText("RGB")
self.CL1.setFont(qf)
self.CL1.setProperty('Children',self.CB1) # 把控制元件作為屬性
self.CL1.clicked.connect(self.copyInf)# 與回呼函式相連

然后我的回呼函式是這樣寫的：

def copyInf(self):
	infLabel=self.sender()
	infBox=infLabel.property('Children') # 通過找到屬性找到對應控制元件
	pyperclip.copy(infBox.text())

2.3怎樣重設控制元件顏色

還是通過setStyleSheet設定嗷，不過把字串部分應該放顏色的部分換成了要重設的顏色：

self.mainBox.setStyleSheet("QPushButton{background:"+self.curColor_HEX
        +";border: 3px solid rgb(150,150,150);border-radius:8px}")

2.4一些用到的字串操作

字串字母大寫

STR=STR.upper()

字串去掉空格
例如把(10, 50, 255)變為(10,50,255)

STR=STR.replace(" ", "")

字串去掉兩頭括號
例如把(10,50,255)變為10,50,255

STR=STR[1:-1]

2.5滑鼠位置像素顏色

如何獲得當前滑鼠位置像素顏色

import pyautogui as pag
from ctypes import *

x,y=pag.position()
RGB=get_color(x,y)

# 獲取x,y位置像素顏色
def get_color(x, y):
    gdi32 = windll.gdi32
    user32 = windll.user32
    hdc = user32.GetDC(None)  # 獲取顏色值
    pixel = gdi32.GetPixel(hdc, x, y)  # 提取RGB值
    r = pixel & 0x0000ff
    g = (pixel & 0x00ff00) >> 8
    b = pixel >> 16
    return [r, g, b]

2.6視窗始終置頂

self.setWindowFlags(Qt.WindowStaysOnTopHint)

2.7文本框不允許編輯但允許復制

用setFocusPolicy(Qt.NoFocus)，例如程式中：

self.CB1.setFocusPolicy(Qt.NoFocus)
self.CB2.setFocusPolicy(Qt.NoFocus)
self.CB3.setFocusPolicy(Qt.NoFocus)

3完整代碼

from PySide2.QtWidgets import QApplication,QWidget,QLineEdit
from PySide2.QtWidgets import QLabel,QPushButton
from PySide2.QtGui import QIcon,QFont
from PySide2.QtCore import Qt

import sys
sys.path.append("...")

import time
import pyautogui as pag
import pyperclip
from ctypes import *

# ===========================================================================================
# 相關函式：


# 獲取x,y位置像素顏色
def get_color(x, y):
    gdi32 = windll.gdi32
    user32 = windll.user32
    hdc = user32.GetDC(None)  # 獲取顏色值
    pixel = gdi32.GetPixel(hdc, x, y)  # 提取RGB值
    r = pixel & 0x0000ff
    g = (pixel & 0x00ff00) >> 8
    b = pixel >> 16
    return [r, g, b]


# HEX轉RGB
def hex2rgb(hexcolor):
    '''HEX轉RGB

    :param hexcolor: int or str
    :return: Tuple[int, int, int]

    >>> hex2rgb(16777215)
    (255, 255, 255)
    >>> hex2rgb('0xffffff')
    (255, 255, 255)
    '''
    hexcolor = int(hexcolor, base=16) if isinstance(hexcolor, str) else hexcolor
    rgb = ((hexcolor >> 16) & 0xff, (hexcolor >> 8) & 0xff, hexcolor & 0xff)
    return rgb

# RGB轉HEX
def rgb2hex(r, g, b):
    color = "#"
    color += str(hex(r)).replace('x','0')[-2:]
    color += str(hex(g)).replace('x','0')[-2:]
    color += str(hex(b)).replace('x','0')[-2:]
    return color

# RGB轉HSV
def rgb2hsv(r, g, b):
    r, g, b = r/255.0, g/255.0, b/255.0
    mx = max(r, g, b)
    mn = min(r, g, b)
    m = mx-mn
    if mx == mn:
        h = 0
    elif mx == r:
        if g >= b:
            h = ((g-b)/m)*60
        else:
            h = ((g-b)/m)*60 + 360
    elif mx == g:
        h = ((b-r)/m)*60 + 120
    elif mx == b:
        h = ((r-g)/m)*60 + 240
    if mx == 0:
        s = 0
    else:
        s = m/mx
    v = mx
    H = h / 2
    S = s * 255.0
    V = v * 255.0
    return (round(H), round(S), round(V))

# ===========================================================================================
# 視窗類：
class Window(QWidget):
    def __init__(self,Width=450,Height=600):
        super().__init__()
        self.setWindowTitle("getScreenColor")
        self.setWindowFlags(Qt.WindowStaysOnTopHint)
        self.Width=Width
        self.Height=Height

        # 樣式表
        self.SS_bkg_Label="QLabel{background: rgb(220,220,220);color:rgb(62,62,62);border-radius:8px}"
        self.SS_Inf_Label="QPushButton{background: rgb(79,148,204);color:rgb(240,240,240);border-radius:8px}"
        self.SS_Inf_Box="QLineEdit{border-radius:3px;border: 2px solid rgb(149,179,215);color:rgb(92,92,92)}"
        self.SS_Main_Box="QPushButton{background: #FFFFFF;border: 3px solid rgb(150,150,150);border-radius:8px}"
        self.SS_Color_Box="QPushButton{background: #FFFFFF;border: 2px solid rgb(150,150,150);border-radius:3px}"
        self.SS_btn_1="QPushButton{background: rgb(214,219,233);color:rgb(82,82,82)}"
        self.SS_btn_2="QPushButton{background: rgb(225,235,205);color:rgb(82,82,82)}"
        self.SS_btn_3="QPushButton{background: rgb(232,191,190);color:rgb(82,82,82)}"

        # 該類私有變數或屬性
        self.defaultColor=['#58827E','#144853','#4C6756','#849E77','#ADBDA3',
                           '#6B1B1E','#A94047','#E05E60','#F8A2AF','#E4CEDB',
                           '#B0A087','#7F877C','#C7C7BB','#D4C7BE','#E3E4DF',
                           '#C63866','#FE676E','#FD8F52','#FFBF73','#FFDCA2',
                           '#7292B8','#769EB8','#B4C5D7','#C5D5EC','#D9E0EA',
                           '#681F71','#7E0D5D','#6E57A5','#B589BE','#C993B7',
                           '#3978A4','#81AAAE','#EBCFC4','#FDB8A8','#E3929B','#7D7294']
        self.curBoxId=0
        self.curColor_RGB=[255,255,255]
        self.curColor_HEX='#FFFFFF'
        self.curColor_HSV=[0,0,255]
        self.storeList=[]
        self.defaultList=[]



        # 框架建構式呼叫
        self.setSize()
        self.partition()
        self.setInfBox()
        self.setMainBox()
        self.setBtn()
        self.setIcon()
        self.setColorBox()


    # ================================================================================================
    # 顏色框回呼函式部分：
    def selectedMain(self):
        tColor_HEX=self.curColor_HEX
        tColor_RGB=hex2rgb('0x'+tColor_HEX[1:])
        tColor_HSV=rgb2hsv(tColor_RGB[0], tColor_RGB[1], tColor_RGB[2])
        pyperclip.copy(str(tColor_RGB)+' '+tColor_HEX+' '+str(tColor_HSV))
        print(str(tColor_RGB)+' '+tColor_HEX+' '+str(tColor_HSV))

    def selectedStore(self):
        storeBox=self.sender()
        tColor_HEX=storeBox.property("Color")
        tColor_RGB=hex2rgb('0x'+tColor_HEX[1:])
        tColor_HSV=rgb2hsv(tColor_RGB[0], tColor_RGB[1], tColor_RGB[2])
        pyperclip.copy(str(tColor_RGB)+' '+tColor_HEX+' '+str(tColor_HSV))
        print(str(tColor_RGB)+' '+tColor_HEX+' '+str(tColor_HSV))

    def selectedDefault(self):
        defaultBox=self.sender()
        tNum=defaultBox.property("defaultId")
        tColor_HEX=self.defaultColor[tNum]
        tColor_RGB=hex2rgb('0x'+tColor_HEX[1:])
        tColor_HSV=rgb2hsv(tColor_RGB[0], tColor_RGB[1], tColor_RGB[2])
        pyperclip.copy(str(tColor_RGB)+' '+tColor_HEX+' '+str(tColor_HSV))
        print(str(tColor_RGB)+' '+tColor_HEX+' '+str(tColor_HSV))
    # ------------------------------------------------------------------------------------------------
    # 顏色資訊標簽回呼
    def copyInf(self):
        infLabel=self.sender()
        infBox=infLabel.property('Children')
        pyperclip.copy(infBox.text())
        print(infBox.text())

    # ------------------------------------------------------------------------------------------------
    # 按鈕回呼函式部分：
    def getColor(self):
        time.sleep(2)
        x,y=pag.position()
        self.curColor_RGB=get_color(x,y)
        self.curColor_HSV=rgb2hsv(self.curColor_RGB[0], self.curColor_RGB[1], self.curColor_RGB[2])
        self.curColor_HEX=rgb2hex(self.curColor_RGB[0], self.curColor_RGB[1], self.curColor_RGB[2]).upper()

        RGB_STR=str(self.curColor_RGB).replace(" ", "")[1:-1]
        HSV_STR=str(self.curColor_HSV).replace(" ", "")[1:-1]
        self.CB1.setText(RGB_STR)
        self.CB2.setText(self.curColor_HEX)
        self.CB3.setText(HSV_STR)
        self.mainBox.setStyleSheet("QPushButton{background:"+self.curColor_HEX
        +";border: 3px solid rgb(150,150,150);border-radius:8px}")
    def saveColor(self):
        if self.curBoxId<20:
            tempBox=self.storeList[self.curBoxId]
            tempBox.setProperty("Color",self.curColor_HEX)
            tempBox.setStyleSheet("QPushButton{background:"+self.curColor_HEX
            +";border: 2px solid rgb(150,150,150);border-radius:3px}")
            self.curBoxId+=1
    def deleteColor(self):
        if self.curBoxId>0:
            self.curBoxId-=1
            tempBox=self.storeList[self.curBoxId]
            tempBox.setProperty("Color",'#FFFFFF')
            tempBox.setStyleSheet(self.SS_Color_Box)

    # ================================================================================================
    # 框架建構式部分：
    def setSize(self):# 調整框架大小
        self.setGeometry(80,80,self.Width,self.Height)
        self.setMaximumSize(self.Width,self.Height)
        self.setMinimumSize(self.Width,self.Height)

    def setIcon(self):# 設定圖示
        appIcon=QIcon("ICON.ico")
        self.setWindowIcon(appIcon)

    def partition(self):# 各部分劃分
        Width=self.Width
        Height=self.Height
        qf=QFont()
        qf.setBold(True)
        qf.setPointSize(12)
        qf.setFamily("Cambria")
        # --part1--當前顏色顯示框背景-----
        self.bkgLabel1=QLabel(self)
        self.bkgLabel1.setGeometry(0.024*Width,0.015*Height,0.4*Width,0.3*Height)
        self.bkgLabel1.setStyleSheet(self.SS_bkg_Label)
        # --part2--當前顏色資訊背景-----
        self.bkgLabel2=QLabel(self)
        self.bkgLabel2.setGeometry(0.448*Width,0.015*Height,0.528*Width,0.3*Height)
        self.bkgLabel2.setStyleSheet("QLabel{background: rgb(235,235,235);border-radius:8px}")
        # --part3--顏色存盤庫背景-----
        self.bkgLabel3=QLabel(self)
        self.bkgLabel3.setGeometry(0.024*Width,0.41*Height,0.952*Width,0.205*Height)
        self.bkgLabel3.setStyleSheet(self.SS_bkg_Label)
        self.bkgLabel3_title=QLabel(self)
        self.bkgLabel3_title.setGeometry(0.038*Width,0.415*Height,0.4*Width,0.05*Height)
        self.bkgLabel3_title.setStyleSheet(self.SS_bkg_Label)
        self.bkgLabel3_title.setText("Color Library")
        self.bkgLabel3_title.setFont(qf)
        # --part4--預設顏色庫背景-----
        self.bkgLabel4=QLabel(self)
        self.bkgLabel4.setGeometry(0.024*Width,0.63*Height,0.952*Width,0.355*Height)
        self.bkgLabel4.setStyleSheet(self.SS_bkg_Label)
        self.bkgLabel4_title=QLabel(self)
        self.bkgLabel4_title.setGeometry(0.038*Width,0.635*Height,0.8*Width,0.05*Height)
        self.bkgLabel4_title.setStyleSheet(self.SS_bkg_Label)
        self.bkgLabel4_title.setText("Color Library(default)")
        self.bkgLabel4_title.setFont(qf)


    def setInfBox(self):# 設定資訊顯示框
        Width=self.Width
        Height=self.Height
        # 字體設定
        qf=QFont()
        qf.setBold(True)
        qf.setPointSize(12)
        qf.setFamily("Cambria")
        # 繪制顏色資訊框
        qf.setPointSize(10)
        self.CB1=QLineEdit(self)
        self.CB1.setText("255,255,255")
        self.CB1.move(0.62*Width,0.03*Height)
        self.CB1.resize(0.35*Width,0.065*Height)
        self.CB1.setFont(qf)
        self.CB1.setStyleSheet(self.SS_Inf_Box)
        #
        self.CB2=QLineEdit(self)
        self.CB2.setText("#FFFFFF")
        self.CB2.move(0.62*Width,0.13*Height)
        self.CB2.resize(0.35*Width,0.065*Height)
        self.CB2.setFont(qf)
        self.CB2.setStyleSheet(self.SS_Inf_Box)
        #
        self.CB3=QLineEdit(self)
        self.CB3.setText("0,0,255")
        self.CB3.move(0.62*Width,0.23*Height)
        self.CB3.resize(0.35*Width,0.065*Height)
        self.CB3.setFont(qf)
        self.CB3.setStyleSheet(self.SS_Inf_Box)
        #
        self.CB1.setFocusPolicy(Qt.NoFocus)
        self.CB2.setFocusPolicy(Qt.NoFocus)
        self.CB3.setFocusPolicy(Qt.NoFocus)
        # 繪制顏色資訊標簽
        self.CL1=QPushButton(self)
        self.CL1.setGeometry(0.448*Width,0.025*Height,0.14*Width,0.075*Height)
        self.CL1.setStyleSheet(self.SS_Inf_Label)
        self.CL1.setText("RGB")
        self.CL1.setFont(qf)
        self.CL1.setProperty('Children',self.CB1)
        self.CL1.clicked.connect(self.copyInf)
        #
        self.CL2=QPushButton(self)
        self.CL2.setGeometry(0.448*Width,0.125*Height,0.14*Width,0.075*Height)
        self.CL2.setStyleSheet(self.SS_Inf_Label)
        self.CL2.setText("HEX")
        self.CL2.setFont(qf)
        self.CL2.setProperty('Children',self.CB2)
        self.CL2.clicked.connect(self.copyInf)
        #
        self.CL3=QPushButton(self)
        self.CL3.setGeometry(0.448*Width,0.225*Height,0.14*Width,0.075*Height)
        self.CL3.setStyleSheet(self.SS_Inf_Label)
        self.CL3.setText("HSV")
        self.CL3.setFont(qf)
        self.CL3.setProperty('Children',self.CB3)
        self.CL3.clicked.connect(self.copyInf)


    def setMainBox(self):# 設定其他label
        Width=self.Width
        Height=self.Height
        # 左上角當前顏色顯示框
        self.mainBox=QPushButton(self)
        self.mainBox.setGeometry(0.04*Width,0.025*Height,0.368*Width,0.28*Height)
        self.mainBox.setStyleSheet(self.SS_Main_Box)
        self.mainBox.clicked.connect(self.selectedMain)

    def setBtn(self):# 設定按鈕
        Width=self.Width
        Height=self.Height
        # 按鈕字體
        qf=QFont()
        qf.setBold(True)
        qf.setPointSize(10)
        qf.setFamily("Cambria")
        # 獲取顏色按鈕
        self.bnt1=QPushButton(self)
        self.bnt1.setGeometry(0.024*Width,0.33*Height,0.4*Width,0.06*Height)
        self.bnt1.setStyleSheet(self.SS_btn_1)
        self.bnt1.setText("Get Screen Color")
        self.bnt1.setFont(qf)
        self.bnt1.clicked.connect(self.getColor)
        # 保存顏色按鈕
        self.bnt2=QPushButton(self)
        self.bnt2.setGeometry(0.444*Width,0.33*Height,0.26*Width,0.06*Height)
        self.bnt2.setStyleSheet(self.SS_btn_1)
        self.bnt2.setText("Save Color")
        self.bnt2.setFont(qf)
        self.bnt2.clicked.connect(self.saveColor)
        # 洗掉顏色按鈕
        self.bnt3=QPushButton(self)
        self.bnt3.setGeometry(0.724*Width,0.33*Height,0.26*Width,0.06*Height)
        self.bnt3.setStyleSheet(self.SS_btn_3)
        self.bnt3.setText("Delete Last")
        self.bnt3.setFont(qf)
        self.bnt3.clicked.connect(self.deleteColor)

    def setColorBox(self):# 繪制存盤顏色及預設顏色框
        Width=self.Width
        Height=self.Height
        # 存盤顏色框
        for i in range(0,2):
            for j in range(0,10):
                storeColorBox=QPushButton(self)
                storeColorBox.setGeometry((0.04+0.093*j)*Width,(0.475+0.07*i)*Height,0.08*Width,0.06*Height)
                storeColorBox.setStyleSheet(self.SS_Color_Box)
                storeColorBox.setProperty("storeId",i*10+j)
                storeColorBox.setProperty("Color",'#FFFFFF')
                storeColorBox.clicked.connect(self.selectedStore)
                self.storeList.append(storeColorBox)

        # 預設顏色框
        for i in range(0,4):
            for j in range(0,10):
                if i*10+j<36:
                    defaultColorBox=QPushButton(self)
                    defaultColorBox.setGeometry((0.04+0.093*j)*Width,(0.7+0.07*i)*Height,0.08*Width,0.06*Height)
                    defaultColorBox.setStyleSheet("QPushButton{background: "
                    +self.defaultColor[i*10+j]+";border: 2px solid rgb(150,150,150);border-radius:3px}")
                    defaultColorBox.setProperty("defaultId",i*10+j)
                    defaultColorBox.clicked.connect(self.selectedDefault)
                    self.defaultList.append(storeColorBox)

# ===========================================================================================
# 函式呼叫：
myapp = QApplication(sys.argv)
window = Window()
window.show()
sys.exit(myapp.exec_())

4exe檔案包

鏈接： https://pan.baidu.com/s/1c2peKrGkg1E92Ata-QRSEg
提取碼： v85a

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/298380.html

標籤：python

上一篇：周文康的大一Python學習心得體會

下一篇：1. 滾雪球學Python第四季開啟，一需三吃，Python 函式式編程初識，面向程序，面向物件，函式式

如何使用python制作一款螢屏顏色提取器，附帶exe檔案

目錄
