之前寫過一款python3GUI–微博圖片爬取工具V1.5（附原始碼）
，是基于python自帶的GUI開發包tkinter，實作了對指定用戶圖片的爬取，本次使用PyQt5，遵循UI界面與爬蟲邏輯分離開來，實作思路大體相同，只不過tkinter與QT組件方法有所差別，走起~

一．準備作業

本程式是基于PyQt5的，需要額外安裝一下，這里不多說，
UI界面的設計基于QT設計師，用它設計UI很方便，
關于以上模塊、工具的安裝可以參考PyCharm安裝PyQt5及其工具（Qt Designer、PyUIC、PyRcc）詳細教程

二．預覽

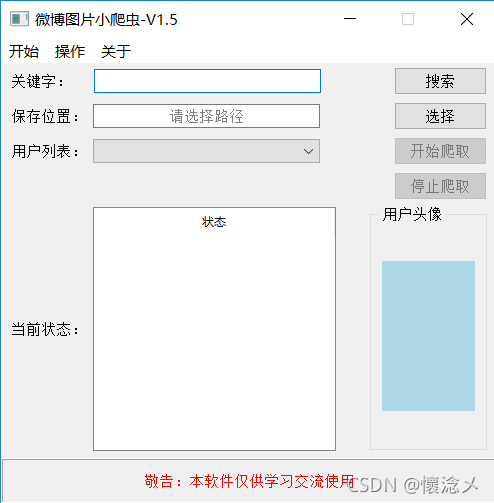

1.啟動

怎么樣，是不是熟悉的感覺

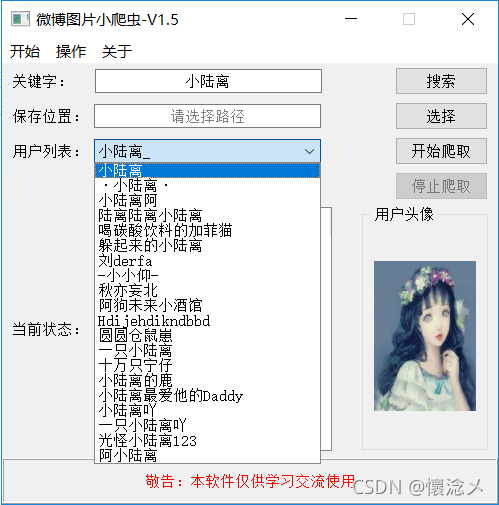

2.搜索

用戶搜索會呼叫兩個API進行檢索，將搜索到的相關用戶去重后，展示在組合框中，

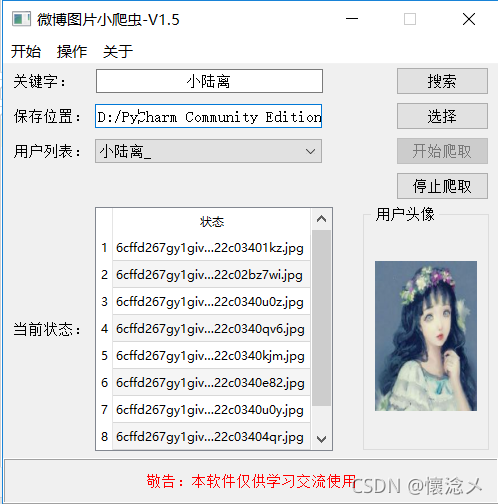

3.開始爬取

選取完圖片保存路徑，點擊開始爬取，程式就開始作業了，爬取狀態會在表格中實時顯示，

4.結果

僅拿一張圖片作為展示，

三．設計流程

1.整體流程

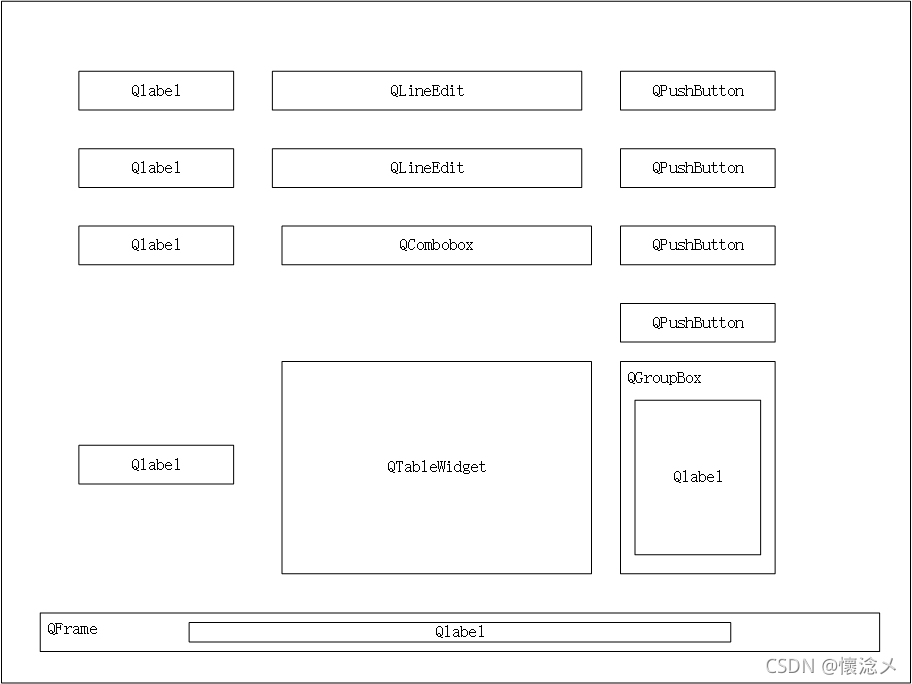

2.UI設計(草圖)

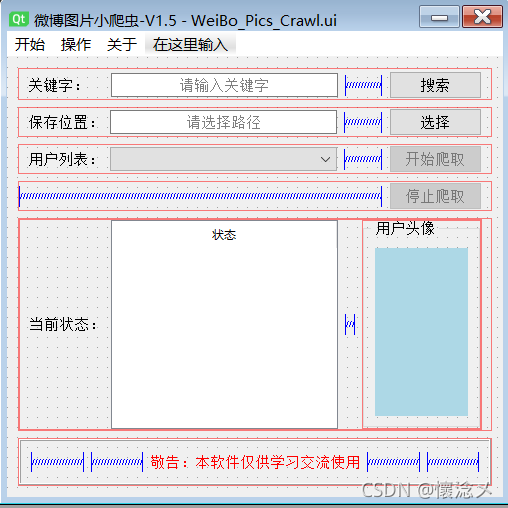

3.UI設計(QT設計師)

使用QT設計師，設計UI界面，使用QMainWindow作為模板，去除了工具列與狀態欄，保留了選單欄，使用QLabel、QLineEdit、QPushButton、QCombobox、QTableWidget、QGroupBox等組件，整體垂直布局，區域水平布局，

四．源代碼

1.Wei_Bo_pics_Crawl.py（主程式）

#-*-coding:utf-8-*-
import os
import sys
from threading import Thread
from PyQt5.Qt import QMainWindow,QMessageBox,QFileDialog,QMenu,QTableWidgetItem,QApplication
from PyQt5.QtCore import pyqtSignal, pyqtSlot, QSize
from PyQt5.QtGui import QPixmap
from Weibo_Crawl_Engine import Weibo_Pic_Spider
from WeiBo_Pics_Crawl import Ui_MainWindow
"""

圖片可以爬取了，但是圖片爬完的tablewidget顯示還有問題    **已解決**
保存圖片路徑有問題，還要加上用戶名子目錄名稱  **已實作**
1.加載網路圖片
2.自定義信號槽，保證tablewidget在UI執行緒中
"""
class Wei_Bo_Pics_Crawl_Window(QMainWindow):
    single=pyqtSignal(str)
    def __init__(self):
        super().__init__()
        self.s=Weibo_Pic_Spider()
        self.current_path=os.getcwd()
        self.ui=Ui_MainWindow()
        self.ui.setupUi(self)
        self.setFixedSize(self.width(),self.height())
        self.ui.label_show_user_head_img.setMaximumSize(QSize(120,150))
        self.ui.comboBox_users.currentIndexChanged.connect(self.show_user_img)
        self.ui.pushButton_start_crawl.clicked.connect(lambda :self.thread_it(self.do_start_crawl))
        self.ui.action_quit_window.triggered.connect(self.close)
        self.ui.action_do_search.triggered.connect(self.do_search_users)
        self.ui.action_start_crawl.triggered.connect(self.do_start_crawl)
        self.ui.action_do_stop_crawl.triggered.connect(self.do_stop_crawl)
        self.ui.action_open_dir.triggered.connect(self.open_dir)
        self.ui.action_show_about_author.triggered.connect(lambda :QMessageBox.information(self,'關于作者','作者：懷淰メ\nBy:PyQt5'))
        self.ui.tableWidget_show_satauts.customContextMenuRequested.connect(self.show_right_menu)
        self.ui.pushButton_stop_crawl.clicked.connect(self.do_stop_crawl)
        self.single[str].connect(self.insert_into_table_widget)

    def do_search_users(self):
        self.ui.comboBox_users.clear()
        self.s.user_list.clear()
        key_word=self.ui.lineEdit_keyword.text()
        if key_word !='':
            self.search_result=self.s.get_users(key_word)
            if self.search_result:
                user_names=[user_['user_name'] for user_ in self.search_result]
                self.ui.comboBox_users.addItems(user_names)
                self.ui.pushButton_start_crawl.setEnabled(True)
                self.ui.action_start_crawl.setEnabled(True)
            else:
                QMessageBox.information(self,'提示',f'很抱歉，沒有檢索到關于[{key_word}]的用戶！')
        else:
            QMessageBox.warning(self,'警告','關鍵字不能為空！')

    def do_select_save_path(self):
        while True:
            dir_choose = QFileDialog.getExistingDirectory(self,"選擇要視頻圖片的檔案夾",self.current_path)  # 起始路徑
            if dir_choose!='':
                self.ui.lineEdit_save_path.setText(dir_choose)
                break

    def do_start_crawl(self):
        save_path = self.ui.lineEdit_save_path.text()
        if save_path == '':
            QMessageBox.warning(self, '警告', '存盤路徑不能為空！')
        else:
            if os.path.isdir(save_path):
                self.ui.tableWidget_show_satauts.clear()
                self.ui.tableWidget_show_satauts.setRowCount(0)
                self.ui.tableWidget_show_satauts.setHorizontalHeaderLabels(['狀態'])
                combobox_current_index = self.ui.comboBox_users.currentIndex()
                user_name = self.search_result[combobox_current_index]['user_name']
                user_id = self.search_result[combobox_current_index]['user_id']
                self.pic_save_dir = save_path + '/' + user_name
                os.makedirs(self.pic_save_dir,exist_ok=True)
                self.s.set_start_url(user_id=user_id)
                self.ui.pushButton_start_crawl.setEnabled(False)
                self.ui.action_start_crawl.setEnabled(False)
                self.ui.pushButton_stop_crawl.setEnabled(True)
                self.ui.action_do_stop_crawl.setEnabled(True)
                self.running_flag=True
                self.do_download_pics()
                if self.ui.action_open_dir_after_crawl.isChecked():
                    os.startfile(self.pic_save_dir)
                self.ui.pushButton_start_crawl.setEnabled(True)
                self.ui.action_start_crawl.setEnabled(True)
                self.ui.action_do_stop_crawl.setEnabled(False)
            else:
                QMessageBox.warning(self, '警告', '所選目錄不合法！')
                self.ui.lineEdit_save_path.setText('')

    def do_download_pics(self):
        for pic in self.s.get_pics_url():
            if self.running_flag:
                file_name = pic.split('/')[-1]
                self.s.do_download_pic(pic, file_name, self.pic_save_dir)
                self.single.emit(file_name)
            else:
                self.single.emit('程式已停止！')
                break
        if self.running_flag:
            self.single.emit('圖片爬取結束!')

    def show_user_img(self,index):
        current_user_item=self.search_result[index]
        user_header_img_url=current_user_item['user_head_img']
        pix_map=QPixmap()
        header_img_bytes=self.s.get_img_bytes(user_header_img_url)
        pix_map.loadFromData(header_img_bytes)
        self.ui.label_show_user_head_img.setPixmap(pix_map)

    def do_stop_crawl(self):
        self.single.emit('程式正在停止，請耐心等待...')
        self.running_flag=False
        self.ui.pushButton_start_crawl.setEnabled(True)
        self.ui.action_start_crawl.setEnabled(True)
        self.ui.action_do_stop_crawl.setEnabled(False)
        self.ui.pushButton_stop_crawl.setEnabled(False)

    def show_right_menu(self,pos):
        menu=QMenu()
        item=menu.addAction('查看此圖片')
        screen_pos=self.ui.tableWidget_show_satauts.mapToGlobal(pos)
        action = menu.exec(screen_pos)
        if action==item:
            try:
                current_pic_name=self.ui.tableWidget_show_satauts.currentItem().text()
                pic_path=self.pic_save_dir+'/'+current_pic_name
                os.startfile(pic_path)
            except AttributeError:
                QMessageBox.warning(self,'警告','請務必選擇一張圖片！')
            except FileNotFoundError:
                QMessageBox.warning(self,'警告','此為系統訊息！')


    def closeEvent(self,event):
        reply = QMessageBox.question(self, '關閉', "確定要退出嗎？",
                                     QMessageBox.Yes | QMessageBox.No, QMessageBox.Yes)
        if reply == QMessageBox.Yes:
            event.accept()
        else:
            event.ignore()

    @pyqtSlot(str)
    def insert_into_table_widget(self,line):
        row_num=self.ui.tableWidget_show_satauts.rowCount()
        self.ui.tableWidget_show_satauts.setRowCount(row_num+1)
        new_table_widget_item=QTableWidgetItem(line)
        self.ui.tableWidget_show_satauts.setItem(row_num,0,new_table_widget_item)
        self.ui.tableWidget_show_satauts.scrollToBottom()

    def open_dir(self):
        try:
            os.startfile(self.save_path)
        except AttributeError:
            QMessageBox.warning(self,'警告','請先開始爬取圖片！')

    def thread_it(self,func,*args):
        t=Thread(target=func,args=args)
        t.setDaemon(True)
        t.start()

if __name__ == '__main__':
    app=QApplication(sys.argv)
    ui=Wei_Bo_Pics_Crawl_Window()
    ui.show()
    sys.exit(app.exec_())

2.WeiBo_Pics_Crawl.py（UI）

# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'WeiBo_Pics_Crawl.ui'
#
# Created by: PyQt5 UI code generator 5.15.4
#
# WARNING: Any manual changes made to this file will be lost when pyuic5 is
# run again.  Do not edit this file unless you know what you are doing.


from PyQt5 import QtCore, QtGui, QtWidgets


class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.setEnabled(True)
        MainWindow.resize(496, 466)
        MainWindow.setMouseTracking(False)
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setObjectName("centralwidget")
        self.verticalLayout_2 = QtWidgets.QVBoxLayout(self.centralwidget)
        self.verticalLayout_2.setObjectName("verticalLayout_2")
        self.horizontalLayout_2 = QtWidgets.QHBoxLayout()
        self.horizontalLayout_2.setContentsMargins(10, 3, 10, -1)
        self.horizontalLayout_2.setObjectName("horizontalLayout_2")
        self.label = QtWidgets.QLabel(self.centralwidget)
        self.label.setObjectName("label")
        self.horizontalLayout_2.addWidget(self.label)
        self.lineEdit_keyword = QtWidgets.QLineEdit(self.centralwidget)
        self.lineEdit_keyword.setMinimumSize(QtCore.QSize(227, 0))
        self.lineEdit_keyword.setMaximumSize(QtCore.QSize(227, 24))
        self.lineEdit_keyword.setAlignment(QtCore.Qt.AlignCenter)
        self.lineEdit_keyword.setObjectName("lineEdit_keyword")
        self.horizontalLayout_2.addWidget(self.lineEdit_keyword)
        spacerItem = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.horizontalLayout_2.addItem(spacerItem)
        self.pushButton_do_search = QtWidgets.QPushButton(self.centralwidget)
        self.pushButton_do_search.setObjectName("pushButton_do_search")
        self.horizontalLayout_2.addWidget(self.pushButton_do_search)
        self.verticalLayout_2.addLayout(self.horizontalLayout_2)
        self.horizontalLayout_3 = QtWidgets.QHBoxLayout()
        self.horizontalLayout_3.setContentsMargins(10, -1, 10, -1)
        self.horizontalLayout_3.setObjectName("horizontalLayout_3")
        self.label_2 = QtWidgets.QLabel(self.centralwidget)
        self.label_2.setObjectName("label_2")
        self.horizontalLayout_3.addWidget(self.label_2)
        self.lineEdit_save_path = QtWidgets.QLineEdit(self.centralwidget)
        self.lineEdit_save_path.setMinimumSize(QtCore.QSize(227, 0))
        self.lineEdit_save_path.setMaximumSize(QtCore.QSize(227, 24))
        self.lineEdit_save_path.setAlignment(QtCore.Qt.AlignCenter)
        self.lineEdit_save_path.setObjectName("lineEdit_save_path")
        self.horizontalLayout_3.addWidget(self.lineEdit_save_path)
        spacerItem1 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.horizontalLayout_3.addItem(spacerItem1)
        self.pushButton_select_save_path = QtWidgets.QPushButton(self.centralwidget)
        self.pushButton_select_save_path.setObjectName("pushButton_select_save_path")
        self.horizontalLayout_3.addWidget(self.pushButton_select_save_path)
        self.verticalLayout_2.addLayout(self.horizontalLayout_3)
        self.horizontalLayout_4 = QtWidgets.QHBoxLayout()
        self.horizontalLayout_4.setContentsMargins(10, -1, 10, -1)
        self.horizontalLayout_4.setObjectName("horizontalLayout_4")
        self.label_3 = QtWidgets.QLabel(self.centralwidget)
        self.label_3.setObjectName("label_3")
        self.horizontalLayout_4.addWidget(self.label_3)
        self.comboBox_users = QtWidgets.QComboBox(self.centralwidget)
        sizePolicy = QtWidgets.QSizePolicy(QtWidgets.QSizePolicy.Preferred, QtWidgets.QSizePolicy.Preferred)
        sizePolicy.setHorizontalStretch(0)
        sizePolicy.setVerticalStretch(0)
        sizePolicy.setHeightForWidth(self.comboBox_users.sizePolicy().hasHeightForWidth())
        self.comboBox_users.setSizePolicy(sizePolicy)
        self.comboBox_users.setMinimumSize(QtCore.QSize(227, 0))
        self.comboBox_users.setMaximumSize(QtCore.QSize(227, 24))
        self.comboBox_users.setMaxVisibleItems(30)
        self.comboBox_users.setSizeAdjustPolicy(QtWidgets.QComboBox.AdjustToContents)
        self.comboBox_users.setObjectName("comboBox_users")
        self.horizontalLayout_4.addWidget(self.comboBox_users)
        spacerItem2 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.horizontalLayout_4.addItem(spacerItem2)
        self.pushButton_start_crawl = QtWidgets.QPushButton(self.centralwidget)
        self.pushButton_start_crawl.setEnabled(False)
        self.pushButton_start_crawl.setMaximumSize(QtCore.QSize(93, 16777215))
        self.pushButton_start_crawl.setObjectName("pushButton_start_crawl")
        self.horizontalLayout_4.addWidget(self.pushButton_start_crawl)
        self.verticalLayout_2.addLayout(self.horizontalLayout_4)
        self.horizontalLayout_9 = QtWidgets.QHBoxLayout()
        self.horizontalLayout_9.setContentsMargins(-1, -1, 10, -1)
        self.horizontalLayout_9.setObjectName("horizontalLayout_9")
        spacerItem3 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.horizontalLayout_9.addItem(spacerItem3)
        self.pushButton_stop_crawl = QtWidgets.QPushButton(self.centralwidget)
        self.pushButton_stop_crawl.setEnabled(False)
        self.pushButton_stop_crawl.setMaximumSize(QtCore.QSize(93, 16777215))
        self.pushButton_stop_crawl.setObjectName("pushButton_stop_crawl")
        self.horizontalLayout_9.addWidget(self.pushButton_stop_crawl)
        self.verticalLayout_2.addLayout(self.horizontalLayout_9)
        self.horizontalLayout_7 = QtWidgets.QHBoxLayout()
        self.horizontalLayout_7.setSizeConstraint(QtWidgets.QLayout.SetDefaultConstraint)
        self.horizontalLayout_7.setContentsMargins(-1, -1, 10, -1)
        self.horizontalLayout_7.setObjectName("horizontalLayout_7")
        self.horizontalLayout_5 = QtWidgets.QHBoxLayout()
        self.horizontalLayout_5.setContentsMargins(10, -1, 0, -1)
        self.horizontalLayout_5.setObjectName("horizontalLayout_5")
        self.label_4 = QtWidgets.QLabel(self.centralwidget)
        self.label_4.setObjectName("label_4")
        self.horizontalLayout_5.addWidget(self.label_4)
        self.tableWidget_show_satauts = QtWidgets.QTableWidget(self.centralwidget)
        self.tableWidget_show_satauts.setMinimumSize(QtCore.QSize(227, 0))
        font = QtGui.QFont()
        font.setFamily("微軟雅黑")
        font.setPointSize(7)
        self.tableWidget_show_satauts.setFont(font)
        self.tableWidget_show_satauts.setContextMenuPolicy(QtCore.Qt.CustomContextMenu)
        self.tableWidget_show_satauts.setAlternatingRowColors(True)
        self.tableWidget_show_satauts.setTextElideMode(QtCore.Qt.ElideMiddle)
        self.tableWidget_show_satauts.setVerticalScrollMode(QtWidgets.QAbstractItemView.ScrollPerPixel)
        self.tableWidget_show_satauts.setHorizontalScrollMode(QtWidgets.QAbstractItemView.ScrollPerPixel)
        self.tableWidget_show_satauts.setObjectName("tableWidget_show_satauts")
        self.tableWidget_show_satauts.setColumnCount(1)
        self.tableWidget_show_satauts.setRowCount(0)
        item = QtWidgets.QTableWidgetItem()
        self.tableWidget_show_satauts.setHorizontalHeaderItem(0, item)
        self.tableWidget_show_satauts.horizontalHeader().setStretchLastSection(True)
        self.tableWidget_show_satauts.verticalHeader().setDefaultSectionSize(20)
        self.tableWidget_show_satauts.verticalHeader().setMinimumSectionSize(18)
        self.horizontalLayout_5.addWidget(self.tableWidget_show_satauts)
        spacerItem4 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.horizontalLayout_5.addItem(spacerItem4)
        self.horizontalLayout_6 = QtWidgets.QHBoxLayout()
        self.horizontalLayout_6.setContentsMargins(0, -1, -1, -1)
        self.horizontalLayout_6.setSpacing(0)
        self.horizontalLayout_6.setObjectName("horizontalLayout_6")
        self.groupBox = QtWidgets.QGroupBox(self.centralwidget)
        self.groupBox.setObjectName("groupBox")
        self.verticalLayout = QtWidgets.QVBoxLayout(self.groupBox)
        self.verticalLayout.setObjectName("verticalLayout")
        self.label_show_user_head_img = QtWidgets.QLabel(self.groupBox)
        self.label_show_user_head_img.setMinimumSize(QtCore.QSize(93, 0))
        self.label_show_user_head_img.setAutoFillBackground(False)
        self.label_show_user_head_img.setStyleSheet("QLabel{\n"
"background-color:rgb(173, 216, 230);\n"
"position:absolute;\n"
"bottom:1;\n"
"}")
        self.label_show_user_head_img.setText("")
        self.label_show_user_head_img.setTextFormat(QtCore.Qt.AutoText)
        self.label_show_user_head_img.setScaledContents(True)
        self.label_show_user_head_img.setAlignment(QtCore.Qt.AlignHCenter|QtCore.Qt.AlignTop)
        self.label_show_user_head_img.setObjectName("label_show_user_head_img")
        self.verticalLayout.addWidget(self.label_show_user_head_img)
        self.horizontalLayout_6.addWidget(self.groupBox)
        self.horizontalLayout_5.addLayout(self.horizontalLayout_6)
        self.horizontalLayout_7.addLayout(self.horizontalLayout_5)
        self.verticalLayout_2.addLayout(self.horizontalLayout_7)
        self.horizontalLayout = QtWidgets.QHBoxLayout()
        self.horizontalLayout.setObjectName("horizontalLayout")
        self.frame = QtWidgets.QFrame(self.centralwidget)
        self.frame.setLayoutDirection(QtCore.Qt.LeftToRight)
        self.frame.setStyleSheet("color: rgb(255, 0, 0);")
        self.frame.setFrameShape(QtWidgets.QFrame.Box)
        self.frame.setFrameShadow(QtWidgets.QFrame.Raised)
        self.frame.setObjectName("frame")
        self.horizontalLayout_8 = QtWidgets.QHBoxLayout(self.frame)
        self.horizontalLayout_8.setContentsMargins(10, -1, 10, -1)
        self.horizontalLayout_8.setObjectName("horizontalLayout_8")
        spacerItem5 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.horizontalLayout_8.addItem(spacerItem5)
        spacerItem6 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.horizontalLayout_8.addItem(spacerItem6)
        self.label_6 = QtWidgets.QLabel(self.frame)
        self.label_6.setAlignment(QtCore.Qt.AlignCenter)
        self.label_6.setObjectName("label_6")
        self.horizontalLayout_8.addWidget(self.label_6)
        spacerItem7 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.horizontalLayout_8.addItem(spacerItem7)
        spacerItem8 = QtWidgets.QSpacerItem(40, 20, QtWidgets.QSizePolicy.Expanding, QtWidgets.QSizePolicy.Minimum)
        self.horizontalLayout_8.addItem(spacerItem8)
        self.horizontalLayout.addWidget(self.frame)
        self.verticalLayout_2.addLayout(self.horizontalLayout)
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 496, 26))
        self.menubar.setObjectName("menubar")
        self.menu = QtWidgets.QMenu(self.menubar)
        self.menu.setObjectName("menu")
        self.menu_2 = QtWidgets.QMenu(self.menubar)
        self.menu_2.setObjectName("menu_2")
        self.menu_3 = QtWidgets.QMenu(self.menubar)
        self.menu_3.setObjectName("menu_3")
        MainWindow.setMenuBar(self.menubar)
        self.action_open_dir = QtWidgets.QAction(MainWindow)
        self.action_open_dir.setObjectName("action_open_dir")
        self.action_quit_window = QtWidgets.QAction(MainWindow)
        self.action_quit_window.setObjectName("action_quit_window")
        self.action_do_search = QtWidgets.QAction(MainWindow)
        self.action_do_search.setObjectName("action_do_search")
        self.action_start_crawl = QtWidgets.QAction(MainWindow)
        self.action_start_crawl.setEnabled(False)
        self.action_start_crawl.setObjectName("action_start_crawl")
        self.action_open_dir_after_crawl = QtWidgets.QAction(MainWindow)
        self.action_open_dir_after_crawl.setCheckable(True)
        self.action_open_dir_after_crawl.setObjectName("action_open_dir_after_crawl")
        self.action_show_about_author = QtWidgets.QAction(MainWindow)
        self.action_show_about_author.setObjectName("action_show_about_author")
        self.action_do_stop_crawl = QtWidgets.QAction(MainWindow)
        self.action_do_stop_crawl.setEnabled(False)
        self.action_do_stop_crawl.setObjectName("action_do_stop_crawl")
        self.menu.addAction(self.action_open_dir)
        self.menu.addSeparator()
        self.menu.addAction(self.action_quit_window)
        self.menu_2.addAction(self.action_do_search)
        self.menu_2.addAction(self.action_start_crawl)
        self.menu_2.addAction(self.action_do_stop_crawl)
        self.menu_2.addSeparator()
        self.menu_2.addAction(self.action_open_dir_after_crawl)
        self.menu_3.addAction(self.action_show_about_author)
        self.menubar.addAction(self.menu.menuAction())
        self.menubar.addAction(self.menu_2.menuAction())
        self.menubar.addAction(self.menu_3.menuAction())

        self.retranslateUi(MainWindow)
        self.pushButton_do_search.clicked.connect(MainWindow.do_search_users)
        self.pushButton_select_save_path.clicked.connect(MainWindow.do_select_save_path)
        QtCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "微博圖片小爬蟲-V1.5"))
        self.label.setText(_translate("MainWindow", "關鍵字：  "))
        self.lineEdit_keyword.setPlaceholderText(_translate("MainWindow", "請輸入關鍵字"))
        self.pushButton_do_search.setText(_translate("MainWindow", "搜索"))
        self.pushButton_do_search.setShortcut(_translate("MainWindow", "Return"))
        self.label_2.setText(_translate("MainWindow", "保存位置："))
        self.lineEdit_save_path.setPlaceholderText(_translate("MainWindow", "請選擇路徑"))
        self.pushButton_select_save_path.setText(_translate("MainWindow", "選擇"))
        self.pushButton_select_save_path.setShortcut(_translate("MainWindow", "Ctrl+Shift+D"))
        self.label_3.setText(_translate("MainWindow", "用戶串列："))
        self.pushButton_start_crawl.setText(_translate("MainWindow", "開始爬取"))
        self.pushButton_start_crawl.setShortcut(_translate("MainWindow", "Ctrl+Shift+S"))
        self.pushButton_stop_crawl.setText(_translate("MainWindow", "停止爬取"))
        self.label_4.setText(_translate("MainWindow", "當前狀態："))
        item = self.tableWidget_show_satauts.horizontalHeaderItem(0)
        item.setText(_translate("MainWindow", "狀態"))
        self.groupBox.setTitle(_translate("MainWindow", "用戶頭像"))
        self.label_6.setText(_translate("MainWindow", "敬告：本軟體僅供學習交流使用"))
        self.menu.setTitle(_translate("MainWindow", "開始"))
        self.menu_2.setTitle(_translate("MainWindow", "操作"))
        self.menu_3.setTitle(_translate("MainWindow", "關于"))
        self.action_open_dir.setText(_translate("MainWindow", "打開檔案夾"))
        self.action_open_dir.setShortcut(_translate("MainWindow", "Ctrl+O"))
        self.action_quit_window.setText(_translate("MainWindow", "退出"))
        self.action_quit_window.setShortcut(_translate("MainWindow", "Ctrl+Q"))
        self.action_do_search.setText(_translate("MainWindow", "搜索"))
        self.action_do_search.setShortcut(_translate("MainWindow", "Ctrl+Return"))
        self.action_start_crawl.setText(_translate("MainWindow", "開始爬取"))
        self.action_start_crawl.setShortcut(_translate("MainWindow", "Ctrl+Shift+S"))
        self.action_open_dir_after_crawl.setText(_translate("MainWindow", "爬取完成后打開檔案夾"))
        self.action_show_about_author.setText(_translate("MainWindow", "關于作者"))
        self.action_show_about_author.setShortcut(_translate("MainWindow", "Ctrl+B"))
        self.action_do_stop_crawl.setText(_translate("MainWindow", "停止爬取"))
        self.action_do_stop_crawl.setShortcut(_translate("MainWindow", "Ctrl+Shift+B"))

3.Weibo_Crawl_Engine.py（爬蟲）

由于篇幅，Weibo_Crawl_Engine.py的代碼詳見：

python3GUI–微博圖片爬取工具V1.5（附原始碼）

五．總結

本次使用PyQt5撰寫一款微博圖片爬取工具，在爬取程序中遇到了兩個難點問題：
1.Qlabel顯示網路圖片
此問題解決參考了pyqt5加載網路圖片，不本地下載，
2.自定義信號槽，保證tablewidget在UI執行緒中
此問題解決參考了PyQt 5信號與槽的幾種高級玩法
感謝各位！程式打包好放在了百度云 密碼：8888，思路、代碼方面有什么不足歡迎各位大佬指正、批評！
