SpringBoot成長記7:容器的擴展操作是如何執行的

2021-10-04 06:29:44 後端開發

file

目前我們分析的代碼已經到了容器處理相關的SpringBoot原理,代碼如下:

public ConfigurableApplicationContext run(String... args) {
   //DONE 擴展點 SpringApplicationRunListeners listeners.starting();

   //DONE 組態檔的處理和抽象封裝 ConfigurableEnvironment

   //容器相關處理
   //1)核心就是創建了Context和BeanFactory物件,內部初始化了Reader和Scanner,加載了一些內部Bean
   context = createApplicationContext();
   exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
                          new Class[] {ConfigurableApplicationContext.class }, context);
    //2) 給容器Context、BeanFactory設定了一堆屬性和組件,執行了initialize/listener的擴展點
    //比較重要屬性有:singletonObjects 、beanDefinitionMap 、beanFactoryPostProcessors、applicationListeners
    prepareContext(context, environment, listeners, applicationArguments,printedBanner);
    //3) TODO 容器關鍵的擴展操作執行了,也是很多容器功能和第三方功能的擴展之處
	refreshContext(context);
   //其他邏輯
}

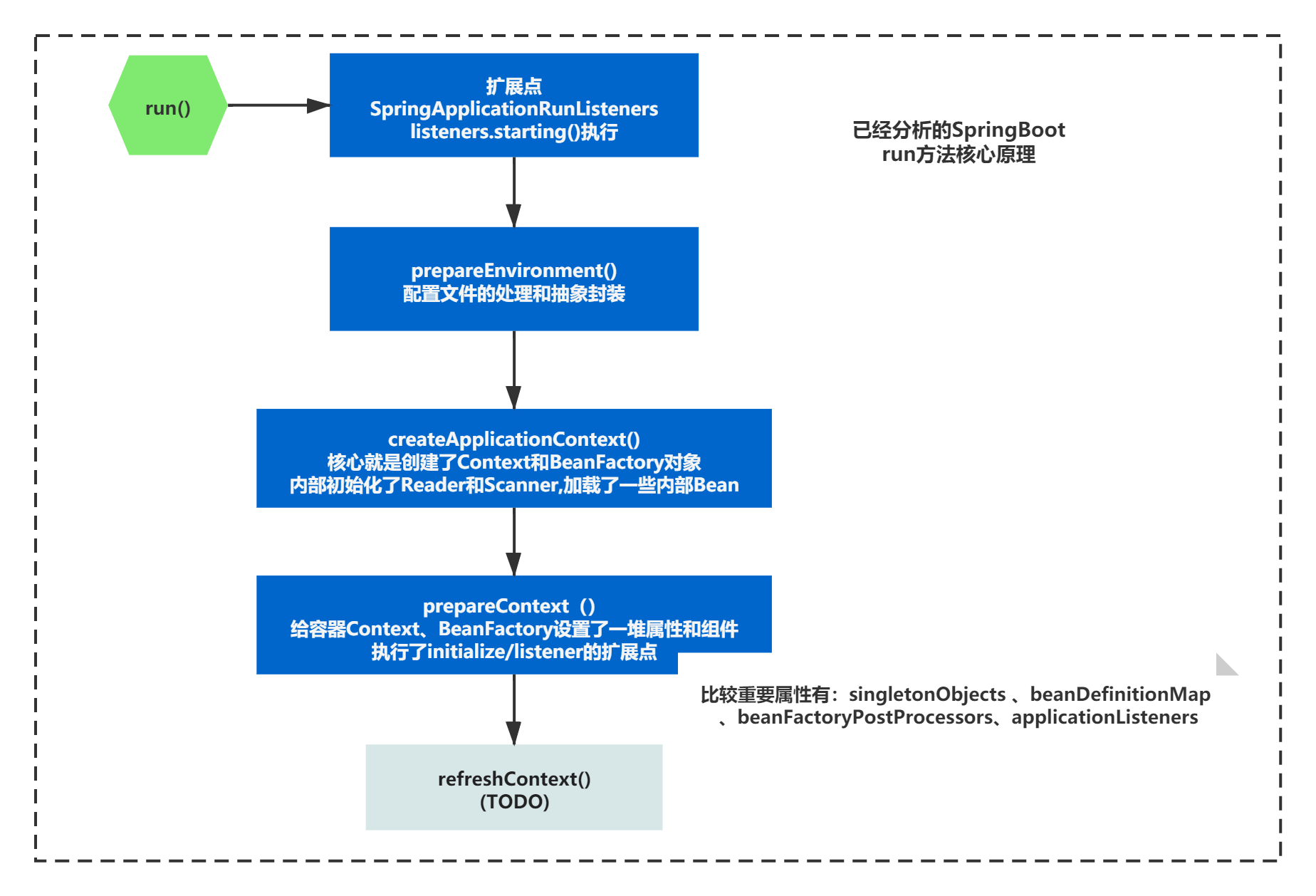

已經分析的階段如下圖:

file

prepareContext()準備完成之后,接下來就是refreshContext(),容器關鍵的擴展操作執行了,也是很多容器功能和第三方功能的擴展之處,我們來一起看下吧,

快速摸一下refreshCotenxt的脈絡

refreshCotenxt()方法最終呼叫了容器的refresh方法,我們還是先來看下它的脈絡,之后從中間抽絲剝繭的找到重點,

先來快速的看下它的代碼脈絡:

public void refresh() throws BeansException, IllegalStateException {
		synchronized (this.startupShutdownMonitor) {
			// Prepare this context for refreshing.
			prepareRefresh();

			// Tell the subclass to refresh the internal bean factory.
			ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

			// Prepare the bean factory for use in this context.
			prepareBeanFactory(beanFactory);

			try {
				// Allows post-processing of the bean factory in context subclasses.
				postProcessBeanFactory(beanFactory);

				// Invoke factory processors registered as beans in the context.
				invokeBeanFactoryPostProcessors(beanFactory);

				// Register bean processors that intercept bean creation.
				registerBeanPostProcessors(beanFactory);

				// Initialize message source for this context.
				initMessageSource();

				// Initialize event multicaster for this context.
				initApplicationEventMulticaster();

				// Initialize other special beans in specific context subclasses.
				onRefresh();

				// Check for listener beans and register them.
				registerListeners();

				// Instantiate all remaining (non-lazy-init) singletons.
				finishBeanFactoryInitialization(beanFactory);

				// Last step: publish corresponding event.
				finishRefresh();
			}

			catch (BeansException ex) {
				if (logger.isWarnEnabled()) {
					logger.warn("Exception encountered during context initialization - " +
							"cancelling refresh attempt: " + ex);
				}

				// Destroy already created singletons to avoid dangling resources.
				destroyBeans();

				// Reset 'active' flag.
				cancelRefresh(ex);

				// Propagate exception to caller.
				throw ex;
			}

			finally {
				// Reset common introspection caches in Spring's core, since we
				// might not ever need metadata for singleton beans anymore...
				resetCommonCaches();
			}
		}
	}

整體由一個try-catch構成,內部有很多個方法組成,看上去讓人找不到重點所在,感覺每個方法都挺重要的,

我第一次看的時候,每個方法,都分開從脈絡到細節,分析,

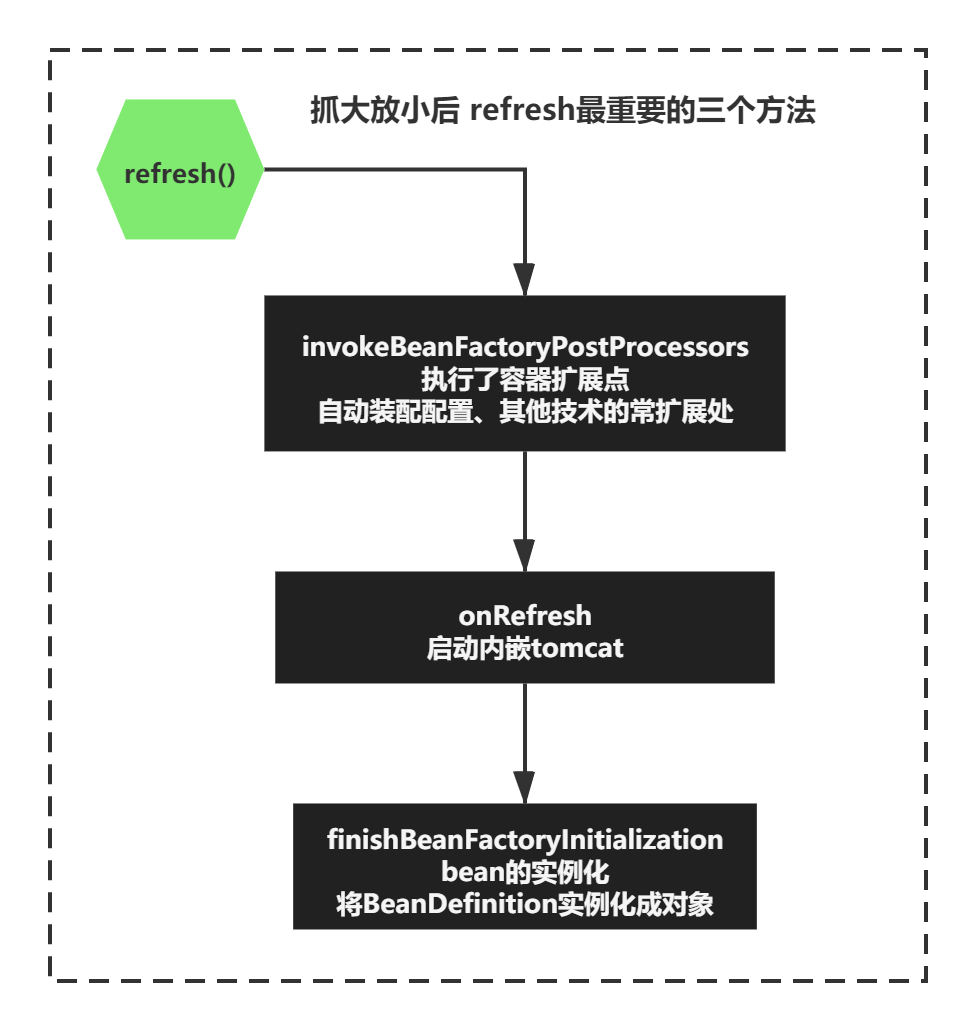

最后抓大放小,其實refresh在上面最重要的三個方法是:

invokeBeanFactoryPostProcessors 執行了容器擴展點,自動裝配配置、其他技術的常擴展處

onRefresh 內嵌的web容器啟動,默認是tomcat

finishBeanFactoryInitialization bean的實體化

file

那么,本著抓大放小的思想,其余的方法不是很重要,這個確認程序就不帶大家一一去展開看每個方法了,

當然除了核心給大家分析上面這三個方法,其他的會順帶提到下,讓大家了解下就行,

今天我們就來先refresh的看看第一個核心方法做了什么,

invokeBeanFactoryPostProcessors執行容器擴展點之前的主要操作

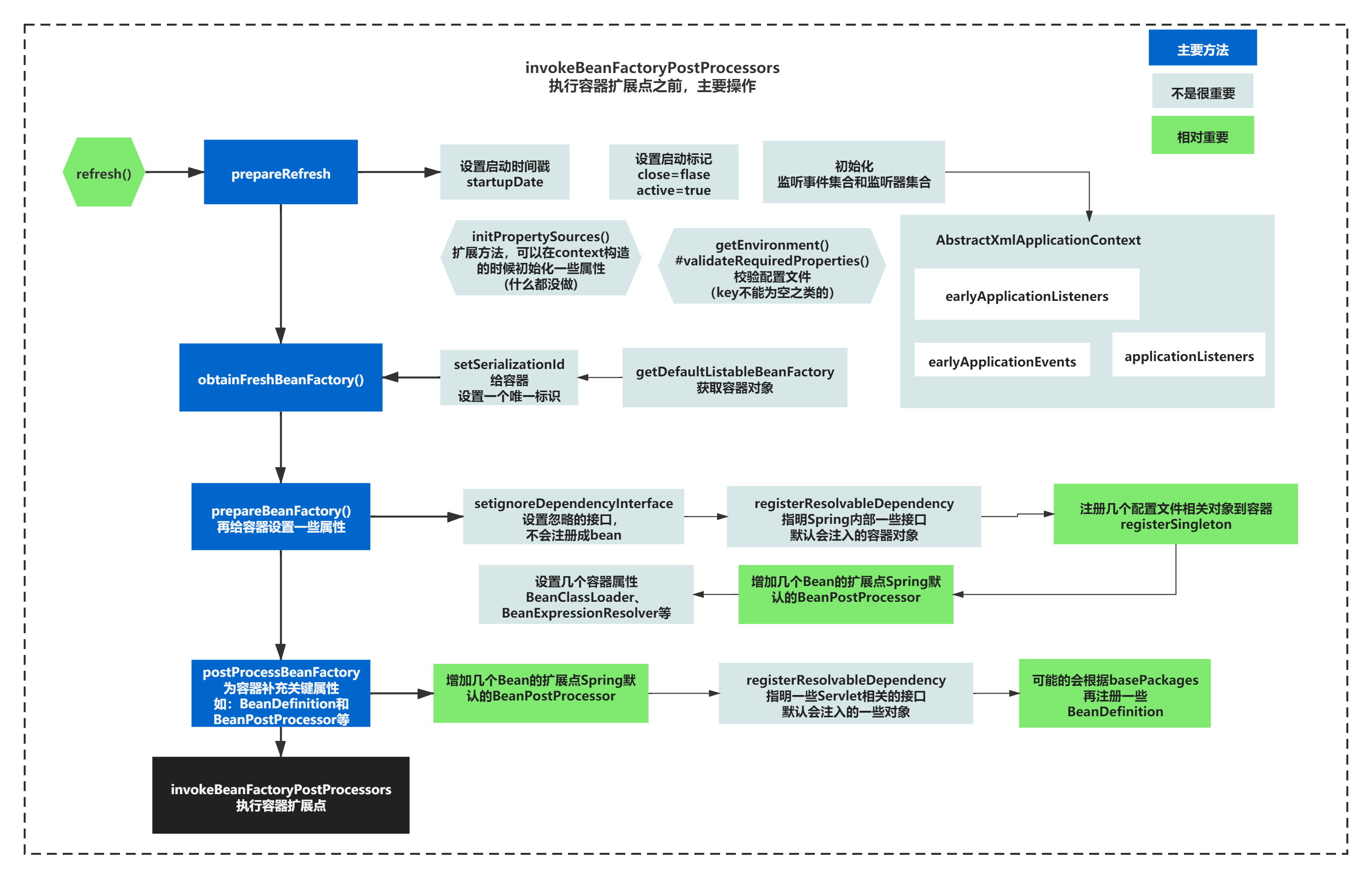

refresh()執行到invokeBeanFactoryPostProcessors是非常重要的邏輯,前面的方法大體可以概括如下圖所示:

file

整個程序中,不是很重要,用淺藍色標注的內容

涉及設定了一些無關緊要的值,startupDate、setSerializationId、BeanExpressionResolver等等

也設涉及了基本物件集合的初始化earlyApplicationEvents、earlyApplicationListeners

也標注了幾個容器注入物件需要特別考慮和忽略的介面等

setignoreDependencyInterface 設定忽略的介面,不會注冊成bean

registerResolvableDependency 指明Spring內部一些介面 默認會注入的容器物件

相對重要一點的點是,圖中用綠色標注了下

主要還補充了一些Spring自己的對Bean的擴展點BeanPostProcessor,Spring默認的BeanPostProcessor,補充一些BeanDefinition、registerSingleton補充一些內部的物件到集合,

術語普及BeanPostProcessor是什么?

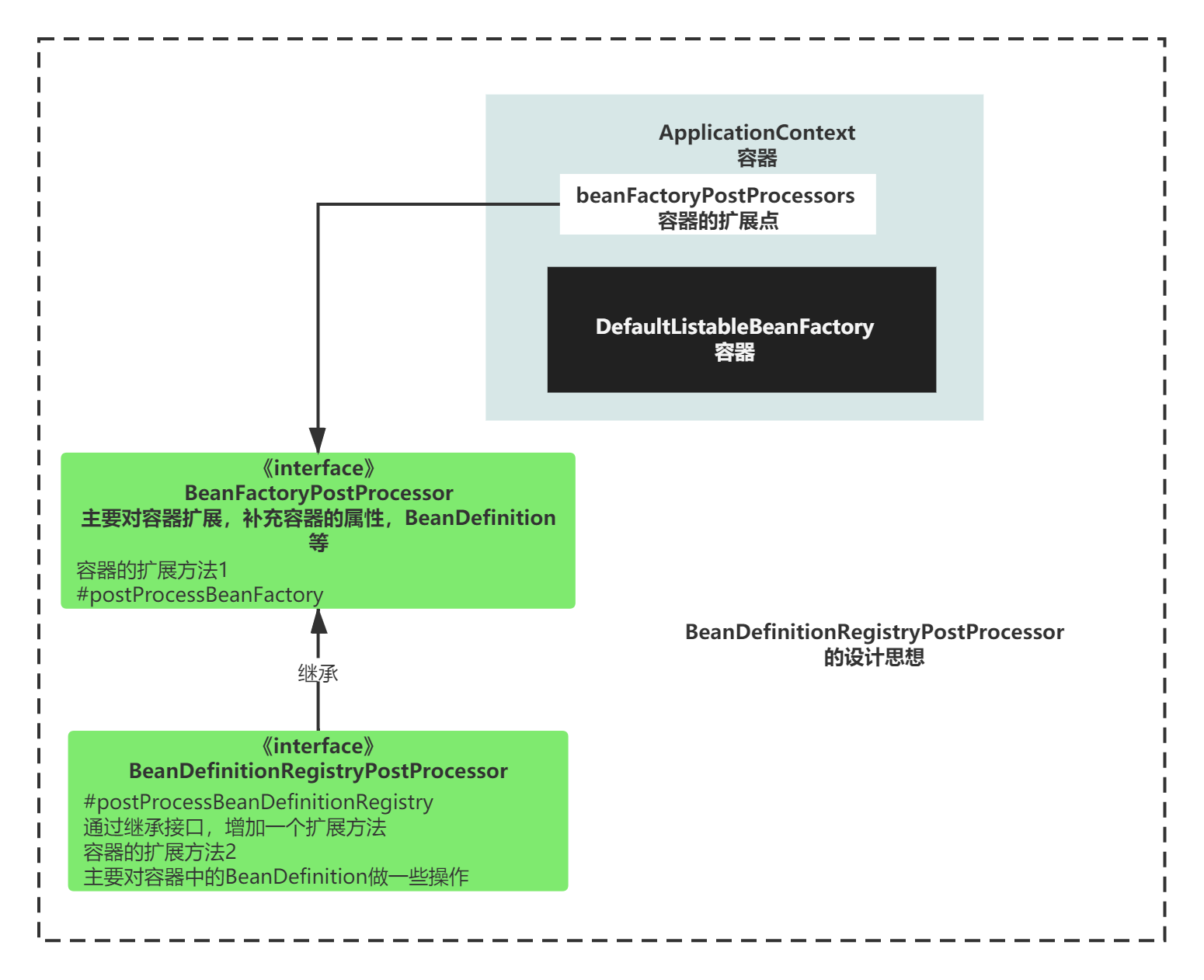

之前BeanFactoryPostProcessor是對容器的擴展,主要有一個方法,可以給容器設定屬性,補充一些單例物件,補充一些BeanDefinition,

那BeanPostProcessor是對bean的擴展,有before和after兩類方法,對Bean如何做擴展,在bean的創建前后,給bean補充一些屬性等,

invokeBeanFactoryPostProcessors之前的邏輯,我們快速過一下就好,當中并沒有特別重要的邏輯,主要是Spring對內部的處理,給容器補充了一堆屬性,

invokeBeanFactoryPostProcessors的核心脈絡

大體了解了invokeBeanFactoryPostProcessors之前的主要操作后,接下來我們核心首先來先看看這個方法的脈絡,看看它主要做了寫什么的?

protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
   PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

   // Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
   // (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
   if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
      beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
      beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
   }
}

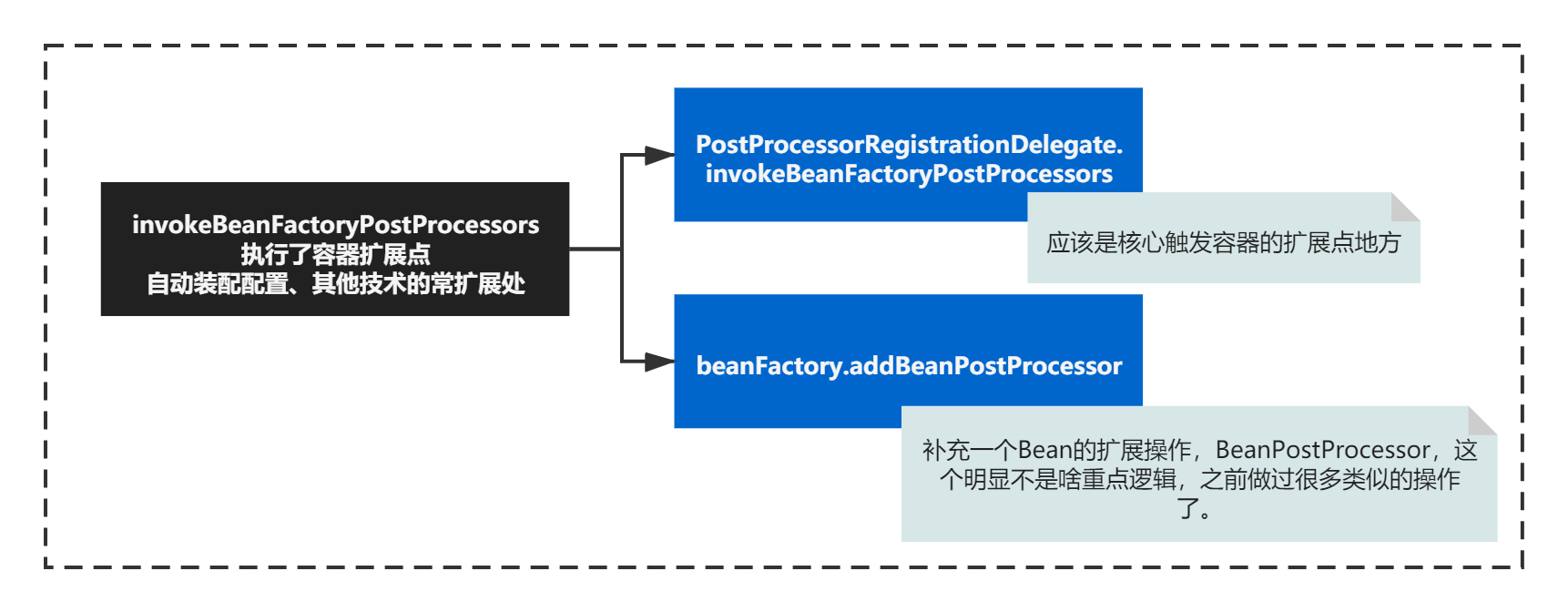

乍一看,這個方法好像挺簡單的, 只有2段邏輯,你很容易抓到重點

invokeBeanFactoryPostProcessors執行擴展點,這個應該是核心觸發容器的擴展點地方,

根據條件,補充一個Bean的擴展操作,BeanPostProcessor,這個明顯不是啥重點邏輯,之前做過很多類似的操作了,

如下圖所示:

file

那你深入到PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors這個方法是,你會發現如下一大坨的代碼:

	public static void invokeBeanFactoryPostProcessors(
			ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {

		// Invoke BeanDefinitionRegistryPostProcessors first, if any.
		Set<String> processedBeans = new HashSet<>();

		if (beanFactory instanceof BeanDefinitionRegistry) {
			BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
			List<BeanFactoryPostProcessor> regularPostProcessors = new ArrayList<>();
			List<BeanDefinitionRegistryPostProcessor> registryProcessors = new ArrayList<>();

			for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
				if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
					BeanDefinitionRegistryPostProcessor registryProcessor =
							(BeanDefinitionRegistryPostProcessor) postProcessor;
					registryProcessor.postProcessBeanDefinitionRegistry(registry);
					registryProcessors.add(registryProcessor);
				}
				else {
					regularPostProcessors.add(postProcessor);
				}
			}

			// Do not initialize FactoryBeans here: We need to leave all regular beans
			// uninitialized to let the bean factory post-processors apply to them!
			// Separate between BeanDefinitionRegistryPostProcessors that implement
			// PriorityOrdered, Ordered, and the rest.
			List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<>();

			// First, invoke the BeanDefinitionRegistryPostProcessors that implement PriorityOrdered.
			String[] postProcessorNames =
					beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
			for (String ppName : postProcessorNames) {
				if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
					currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
					processedBeans.add(ppName);
				}
			}
			sortPostProcessors(currentRegistryProcessors, beanFactory);
			registryProcessors.addAll(currentRegistryProcessors);
			invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
			currentRegistryProcessors.clear();

			// Next, invoke the BeanDefinitionRegistryPostProcessors that implement Ordered.
			postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
			for (String ppName : postProcessorNames) {
				if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
					currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
					processedBeans.add(ppName);
				}
			}
			sortPostProcessors(currentRegistryProcessors, beanFactory);
			registryProcessors.addAll(currentRegistryProcessors);
			invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
			currentRegistryProcessors.clear();

			// Finally, invoke all other BeanDefinitionRegistryPostProcessors until no further ones appear.
			boolean reiterate = true;
			while (reiterate) {
				reiterate = false;
				postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
				for (String ppName : postProcessorNames) {
					if (!processedBeans.contains(ppName)) {
						currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
						processedBeans.add(ppName);
						reiterate = true;
					}
				}
				sortPostProcessors(currentRegistryProcessors, beanFactory);
				registryProcessors.addAll(currentRegistryProcessors);
				invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
				currentRegistryProcessors.clear();
			}

			// Now, invoke the postProcessBeanFactory callback of all processors handled so far.
			invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
			invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
		}

		else {
			// Invoke factory processors registered with the context instance.
			invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
		}

		// Do not initialize FactoryBeans here: We need to leave all regular beans
		// uninitialized to let the bean factory post-processors apply to them!
		String[] postProcessorNames =
				beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);

		// Separate between BeanFactoryPostProcessors that implement PriorityOrdered,
		// Ordered, and the rest.
		List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
		List<String> orderedPostProcessorNames = new ArrayList<>();
		List<String> nonOrderedPostProcessorNames = new ArrayList<>();
		for (String ppName : postProcessorNames) {
			if (processedBeans.contains(ppName)) {
				// skip - already processed in first phase above
			}
			else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
				priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
			}
			else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
				orderedPostProcessorNames.add(ppName);
			}
			else {
				nonOrderedPostProcessorNames.add(ppName);
			}
		}

		// First, invoke the BeanFactoryPostProcessors that implement PriorityOrdered.
		sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
		invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);

		// Next, invoke the BeanFactoryPostProcessors that implement Ordered.
		List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());
		for (String postProcessorName : orderedPostProcessorNames) {
			orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
		}
		sortPostProcessors(orderedPostProcessors, beanFactory);
		invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);

		// Finally, invoke all other BeanFactoryPostProcessors.
		List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());
		for (String postProcessorName : nonOrderedPostProcessorNames) {
			nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
		}
		invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);

		// Clear cached merged bean definitions since the post-processors might have
		// modified the original metadata, e.g. replacing placeholders in values...
		beanFactory.clearMetadataCache();
	}

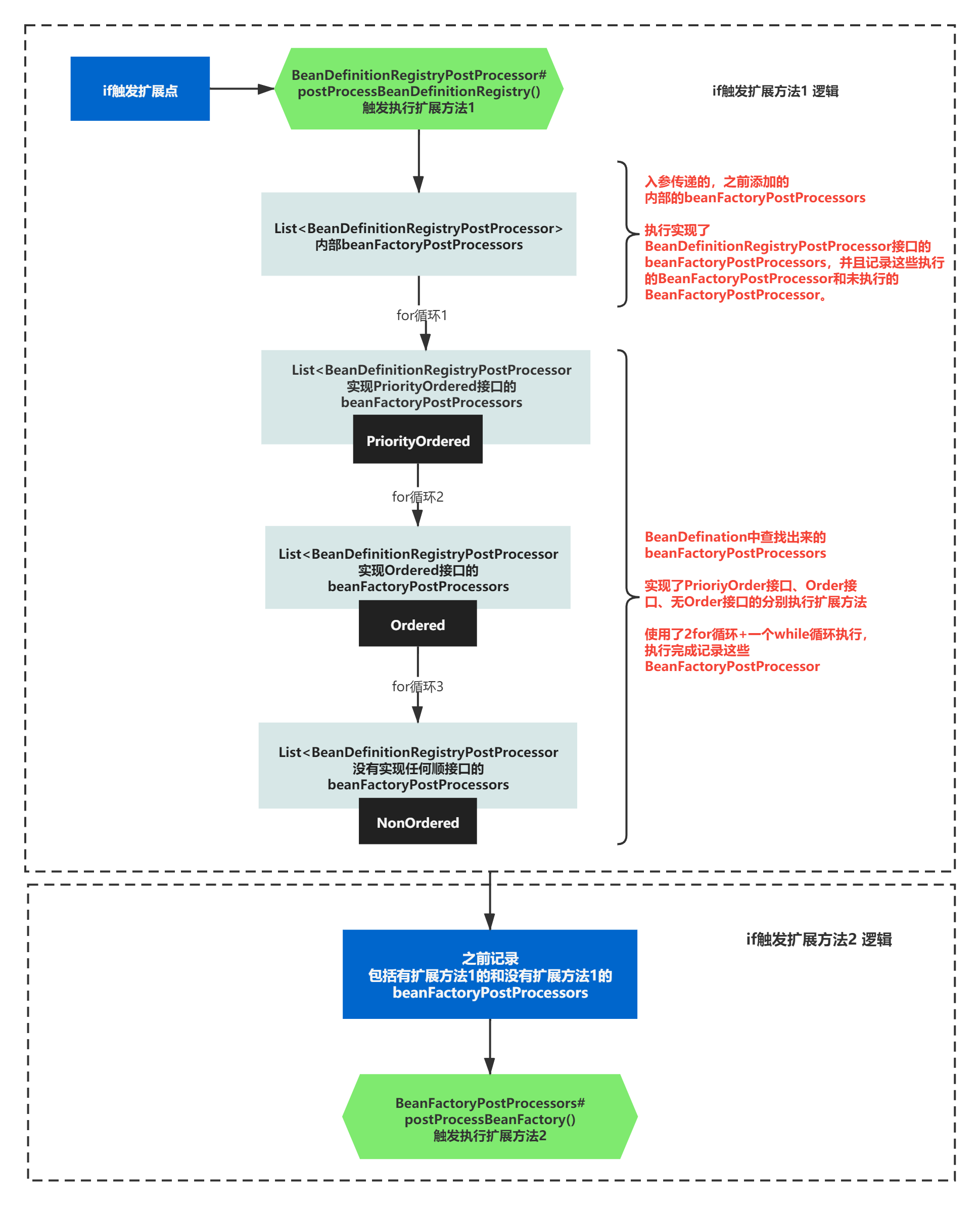

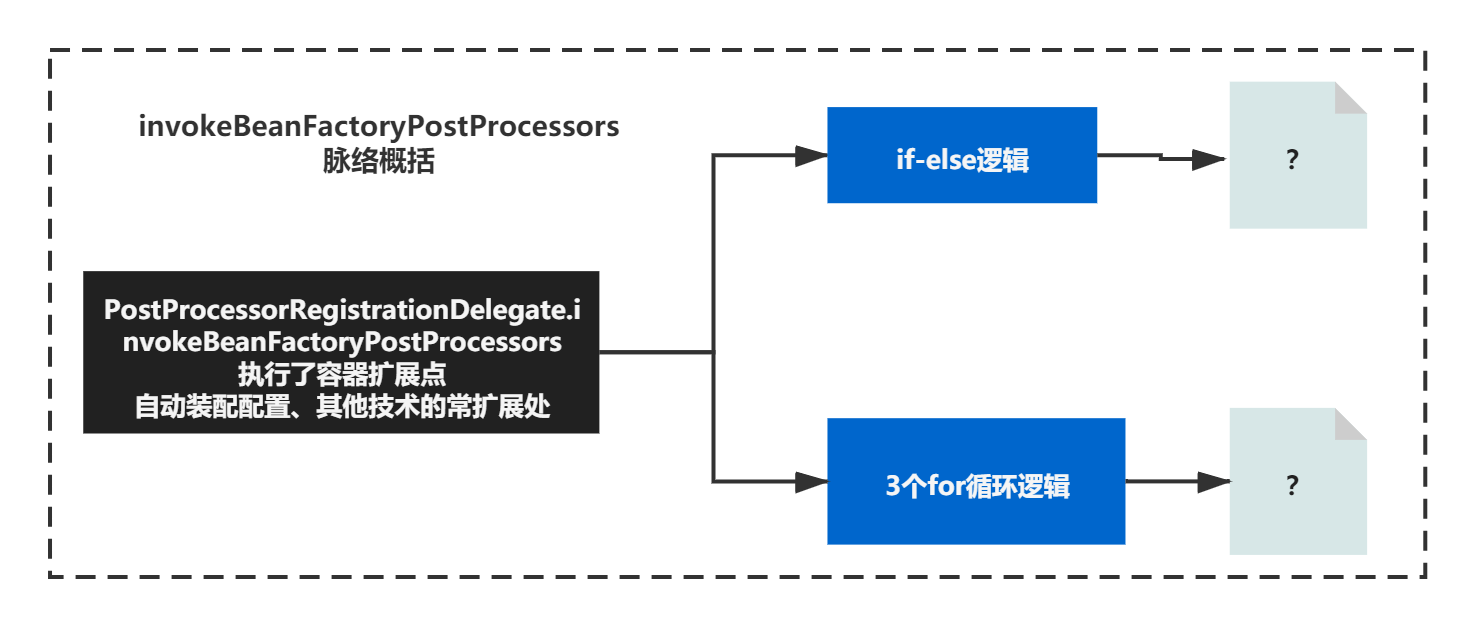

這個方法,初看上去的是有一點復雜,但是沒關系,你可以先摸清一下它的脈絡:

1)首先主要有一個if-else組成

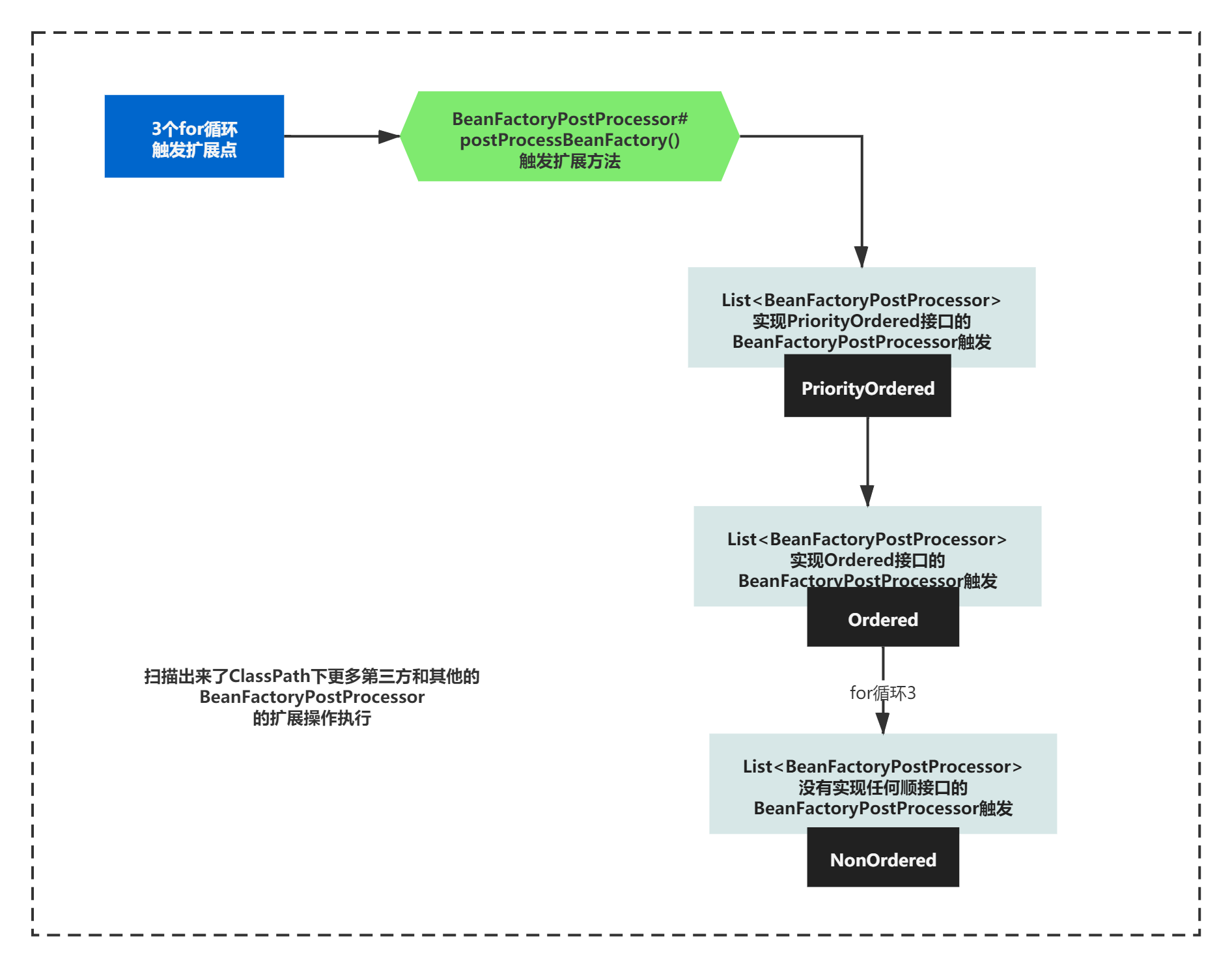

2)之后是連續的3個for回圈

如下圖:

file

好了,這就是這個方法的核心脈絡了,接下來我們分別來弄清楚,if-else邏輯在做什么,之后的3個for回圈在做什么,這個方法基本就知道在做什么了,

讓我們來看下第一個if-else在做什么呢?

if-esle核心脈絡邏輯

第一個if-esle核心邏輯主要是判斷了容器是否實作了BeanDefinitionRegistry這個介面,從而決定如何執行BeanFactoryPostProcessor的擴展操作,

BeanDefinitionRegistry這個介面,之前我們普及過,封裝了對BeanDefinition常見操作的介面,容器默認實作了這個介面,所以一般它也代表了容器,可以通過實作的方法,維護容器內List

代碼如下:

public static void invokeBeanFactoryPostProcessors(
			ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {
    if (beanFactory instanceof BeanDefinitionRegistry) {

    }else {
       // Invoke factory processors registered with the context instance.
       invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
    }
}

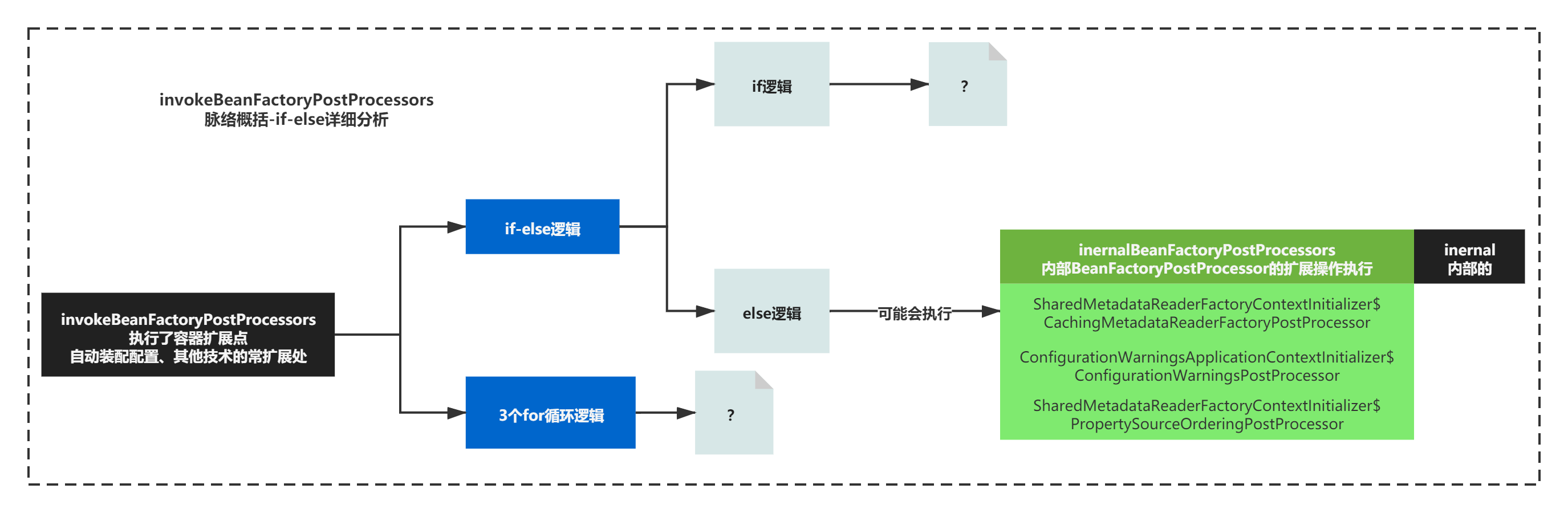

容器默認是實作了BeanDefinitionRegistry介面,正常會執行if邏輯,由于if邏輯相對復雜,我們先來看下,else邏輯在做什么,再去理解if邏輯,

else邏輯

else邏輯比較簡單主要就是觸發了入參中的beanFactoryPostProcessors的擴展方法postProcessBeanFactory(),代碼如下:

private static void invokeBeanFactoryPostProcessors(
    Collection<? extends BeanFactoryPostProcessor> postProcessors, ConfigurableListableBeanFactory beanFactory) {

    for (BeanFactoryPostProcessor postProcessor : postProcessors) {
        postProcessor.postProcessBeanFactory(beanFactory);
    }
}

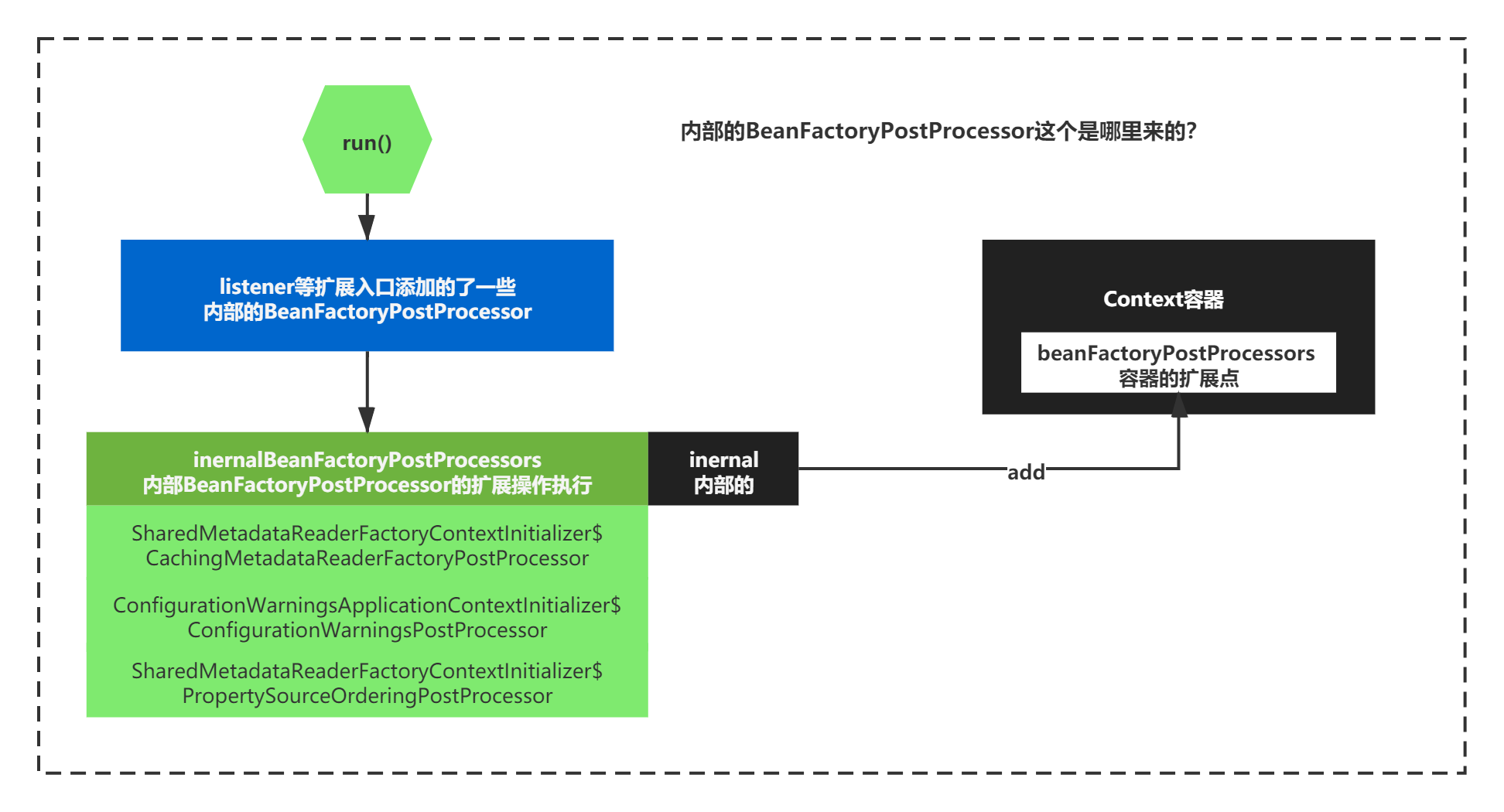

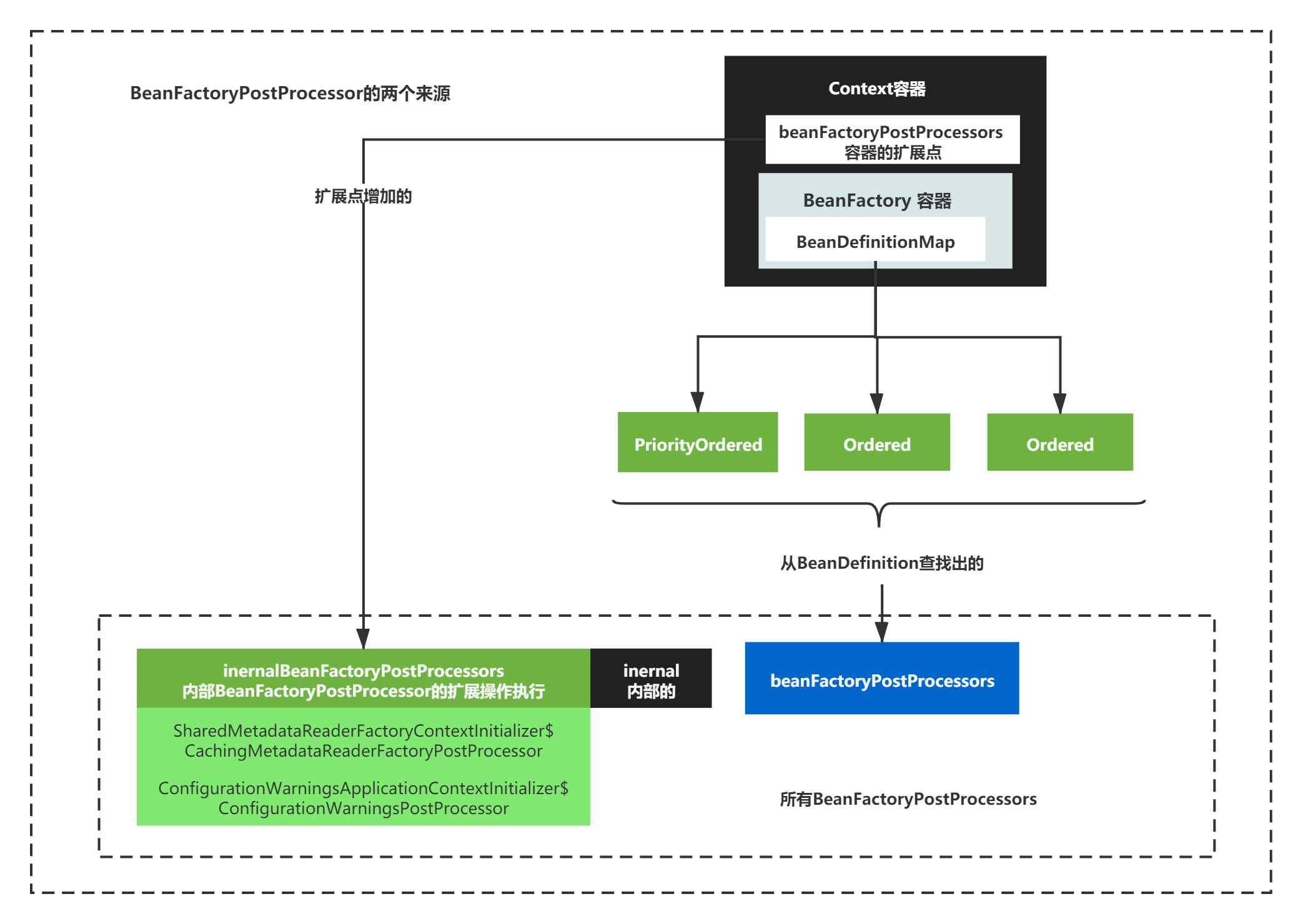

疑問:入參中這些內部的BeanFactoryPostProcessor這個是哪里來的?

是通過從容器中的一個屬性 List beanFactoryPostProcessors,

這個屬性時之前通過listener等擴展點增加進來的一些Spring內部的BeanFactoryPostProcessor,主要有如下三個:

beanFactoryPostProcessors = {ArrayList@2882}  size = 3
 0 = {SharedMetadataReaderFactoryContextInitializer
 $CachingMetadataReaderFactoryPostProcessor@2887}
 1 = {ConfigurationWarningsApplicationContextInitializer
 $ConfigurationWarningsPostProcessor@2888}
 2 = {ConfigFileApplicationListener
 $PropertySourceOrderingPostProcessor@2889}

我們這里把它們稱之為inernalBeanFactoryPostProcessors

如下圖:

file

那最終else邏輯其實主要就是觸發了這些內部BeanFactoryPostProcessor的postProcessBeanFactory()擴展方法而已,整體如下圖所示:

file

至于這些擴展操作具體做了什么,我們稍后在分析,先整體摸清楚方法脈絡在來看細節,

if邏輯

了解了else 的邏輯之后,我們再看下if主要做了什么,因為if-else邏輯,其實默認是不會執行的else的,優先執行的肯定是if,

這里要先普及一些概念,才可以更好的理解if的代碼邏輯,

術語普及BeanDefinitionRegistryPostProcessor是什么?

BeanDefinitionRegistryPostProcessor
也是擴展點,繼承自BeanFactoryPostProcessor,對BeanFactoryPostProcessor增加了一個擴展方法而已,

整體設計如下圖所示:

file

BeanFactoryPostProcessor可以有兩個擴展操作

也就是說,原來的BeanFactoryPostProcessor的擴展方法,從一個增加到了兩個,一個是postProcessBeanFactory(),另一個事postProcessBeanDefinitionRegistry(),

另外一個要強調的其實是BeanFactoryPostProcessor來源有兩個

1)容器中,事先通過擴展點加入的BeanFactoryPostProcessor

2)BeanDefinition中的,定義的但是沒有實體化的BeanFactoryPostProcessor

如下圖:

file

BeanFactoryPostProcessor可以有兩個擴展操作BeanFactoryPostProcessor來源有兩個

這2點很關鍵,帶著這個知識,我們再看if邏輯,就會很容易,

if邏輯主要代碼如下:

if (beanFactory instanceof BeanDefinitionRegistry) {
			BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
			List<BeanFactoryPostProcessor> regularPostProcessors = new ArrayList<>();
			List<BeanDefinitionRegistryPostProcessor> registryProcessors = new ArrayList<>();

			for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
				if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
					BeanDefinitionRegistryPostProcessor registryProcessor =
							(BeanDefinitionRegistryPostProcessor) postProcessor;
					registryProcessor.postProcessBeanDefinitionRegistry(registry);
					registryProcessors.add(registryProcessor);
				}
				else {
					regularPostProcessors.add(postProcessor);
				}
			}

			// Do not initialize FactoryBeans here: We need to leave all regular beans
			// uninitialized to let the bean factory post-processors apply to them!
			// Separate between BeanDefinitionRegistryPostProcessors that implement
			// PriorityOrdered, Ordered, and the rest.
			List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<>();

			// First, invoke the BeanDefinitionRegistryPostProcessors that implement PriorityOrdered.
			String[] postProcessorNames =
					beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
			for (String ppName : postProcessorNames) {
				if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
					currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
					processedBeans.add(ppName);
				}
			}
			sortPostProcessors(currentRegistryProcessors, beanFactory);
			registryProcessors.addAll(currentRegistryProcessors);
			invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
			currentRegistryProcessors.clear();

			// Next, invoke the BeanDefinitionRegistryPostProcessors that implement Ordered.
			postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
			for (String ppName : postProcessorNames) {
				if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
					currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
					processedBeans.add(ppName);
				}
			}
			sortPostProcessors(currentRegistryProcessors, beanFactory);
			registryProcessors.addAll(currentRegistryProcessors);
			invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
			currentRegistryProcessors.clear();

			// Finally, invoke all other BeanDefinitionRegistryPostProcessors until no further ones appear.
			boolean reiterate = true;
			while (reiterate) {
				reiterate = false;
				postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
				for (String ppName : postProcessorNames) {
					if (!processedBeans.contains(ppName)) {
						currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
						processedBeans.add(ppName);
						reiterate = true;
					}
				}
				sortPostProcessors(currentRegistryProcessors, beanFactory);
				registryProcessors.addAll(currentRegistryProcessors);
				invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
				currentRegistryProcessors.clear();
			}

			// Now, invoke the postProcessBeanFactory callback of all processors handled so far.
			invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
			invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
}

這個if邏輯的代碼脈絡,主要的邏輯是有3個for+1while邏輯,其實可以按照擴展操作1和擴展操作2的執行劃分開,

讓我們分別看下,

執行擴展方法1:postProcessBeanDefinitionRegistry()

執行擴展方法1時,首先就需要分別從兩個來源開始執行,而且執行的是實作了BeanDefinitionRegistryPostProcessor的BeanFactoryPostProcessor,

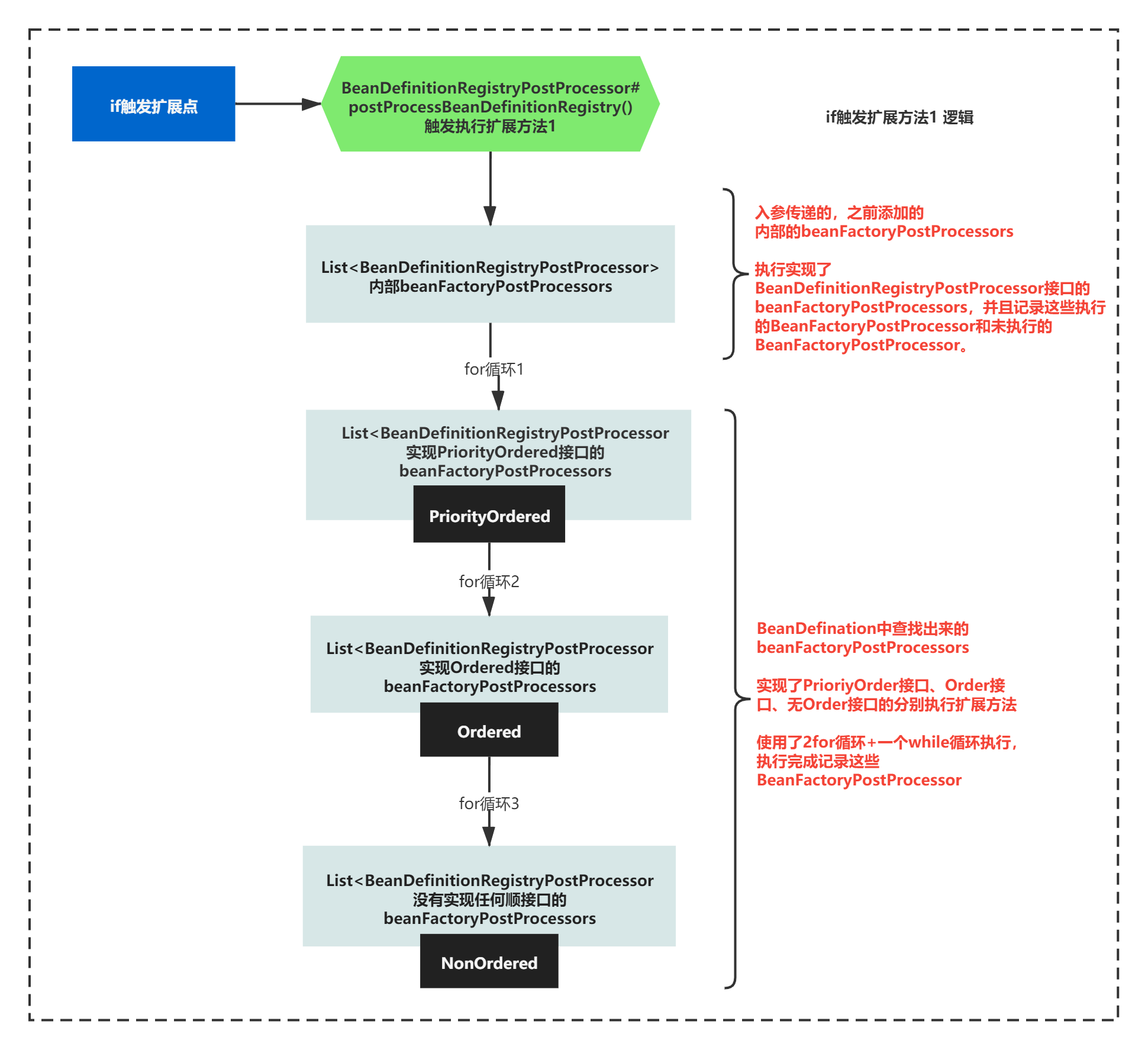

主要邏輯可以概括如下圖:

file

用文字解釋下上圖的話,就是:

1)容器中,之前增加的內部相關的BeanFactoryPostProcessor有沒有實作這個BeanDefinitionRegistryPostProcessor介面增加了擴展方法postProcessBeanDefinitionRegistry()的?如果有,對應的所有BeanFactoryPostProcessor,通過for回圈執行這個方法,并且記錄這些執行的BeanFactoryPostProcessor和未執行的BeanFactoryPostProcessor,

2)容器中,之前增加的內部相關的BeanDefinition中,有沒有定義為BeanFactoryPostProcessor的,如果有,按照實作了PrioriyOrder介面、Order介面、無Order介面的分別執行擴展方法postProcessBeanDefinitionRegistry(),使用了2for回圈+一個while回圈執行,執行完成記錄這些BeanFactoryPostProcessor,

執行擴展方法2:postProcessBeanFactory()

之前執行擴展方法1的時候記錄的所有BeanFactoryPostProcessor,包括擴展點之前添加的,BeanDefinition定義的,

我們可以通過記錄的這些BeanFactoryPostProcessor ,來在執行執行擴展方法2—postProcessBeanFactory(),

如下圖所示:

file

整個if-else的邏輯的脈絡,我們就摸清楚了,至于這些擴展操作具體做了什么,我們稍后在分析,還是先整體摸清楚方法脈絡在來看細節,

3個For回圈的核心脈絡邏輯

invokeBeanFactoryPostProcessors的核心脈絡中,除了一個if-else邏輯,接下來的就是連續的3次for回圈執行,

分為主要排序、排序、無順序要求的BeanFactoryPostProcessor三類,主要執行擴展點BeanFactoryPostProcessor的postProcessBeanFactory方法,

這個邏輯聽上去,其實和之前if-else中的邏輯是很像的,只不過之前執行的是BeanDefinitionRegistryPostProcessor,

而且此時的BeanFactoryPostProcessor都來自與BeanDefinition中的,

你可能說,之前已經執行過了BeanDefinition中的BeanFactoryPostProcessor了,怎么還有?

之前執行的是Spring內部定義好的一些BeanFactoryPostProcessor,在執行了if-else邏輯后,其實掃描出來了ClassPath下更多第三方和其他的BeanFactoryPostProcessor

這些新掃描出來BeanFactoryPostProcessor,參考之前BeanDefinitionRegistryPostProcessor的執行方式,執行了如下的擴展操作:

file

3個for的邏輯的脈絡,其實并不復雜,至于這些擴展操作具體做了什么,既然我們摸清楚了整個方法invokeBeanFactoryPostProcessors的脈絡了,我們下一節馬上就來分析,

小結

最后,簡單小結下,invokeBeanFactoryPostProcessors主要做的就是執行BeanDefinitionRegistryPostProcessor、BeanFactoryPostProcessor的2個擴展方法,這些BeanFactoryPostProcessors可能是內部Spring實作添加好的,也可能是來自ClassPath掃描出來的BeanFactoryPostProcessors,

這些擴展點具體執行了寫什么,有哪些重點操作呢?我們下一節一起來仔細看看細節,我們下節再見!

本文由博客群發一文多發等運營工具平臺 OpenWrite 發布

轉載請註明出處,本文鏈接:https://www.uj5u.com/houduan/305088.html

標籤:其他

上一篇:【LeetCode】300.最長遞增子序列——暴力遞回(O(n^3)),動態規劃(O(n^2)),動態規劃+二分法(O(nlogn))

下一篇:JVM記憶體模型

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C#(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 【C++】Microsoft C++、C 和匯編程式檔案

    ......

    uj5u.com 2020-09-10 00:57:23 more
  • 例外宣告

    相比于斷言適用于排除邏輯上不可能存在的狀態,例外通常是用于邏輯上可能發生的錯誤。 例外宣告 Item 1:當函式不可能拋出例外或不能接受拋出例外時,使用noexcept 理由 如果不打算拋出例外的話,程式就會認為無法處理這種錯誤,并且應當盡早終止,如此可以有效地阻止例外的傳播與擴散。 示例 //不可 ......

    uj5u.com 2020-09-10 00:57:27 more
  • Codeforces 1400E Clear the Multiset(貪心 + 分治)

    鏈接:https://codeforces.com/problemset/problem/1400/E 來源:Codeforces 思路:給你一個陣列,現在你可以進行兩種操作,操作1:將一段沒有 0 的區間進行減一的操作,操作2:將 i 位置上的元素歸零。最終問:將這個陣列的全部元素歸零后操作的最少 ......

    uj5u.com 2020-09-10 00:57:30 more
  • UVA11610 【Reverse Prime】

    本人看到此題沒有翻譯,就附帶了一個自己的翻譯版本 思考 這一題,它的第一個要求是找出所有 $7$ 位反向質數及其質因數的個數。 我們應該需要質數篩篩選1~$10^{7}$的所有數,這里就不慢慢介紹了。但是,重讀題,我們突然發現反向質數都是 $7$ 位,而將它反過來后的數字卻是 $6$ 位數,這就說明 ......

    uj5u.com 2020-09-10 00:57:36 more
  • 統計區間素數數量

    1 #pragma GCC optimize(2) 2 #include <bits/stdc++.h> 3 using namespace std; 4 bool isprime[1000000010]; 5 vector<int> prime; 6 inline int getlist(int ......

    uj5u.com 2020-09-10 00:57:47 more
  • C/C++編程筆記:C++中的 const 變數詳解,教你正確認識const用法

    1、C中的const 1、區域const變數存放在堆疊區中,會分配記憶體(也就是說可以通過地址間接修改變數的值)。測驗代碼如下: 運行結果: 2、全域const變數存放在只讀資料段(不能通過地址修改,會發生寫入錯誤), 默認為外部聯編,可以給其他源檔案使用(需要用extern關鍵字修飾) 運行結果: ......

    uj5u.com 2020-09-10 00:58:04 more
  • 【C++犯錯記錄】VS2019 MFC添加資源不懂如何修改資源宏ID

    1. 首先在資源視圖中,添加資源 2. 點擊新添加的資源,復制自動生成的ID 3. 在解決方案資源管理器中找到Resource.h檔案,編輯,使用整個專案搜索和替換的方式快速替換 宏宣告 4. Ctrl+Shift+F 全域搜索,點擊查找全部,然后逐個替換 5. 為什么使用搜索替換而不使用屬性視窗直 ......

    uj5u.com 2020-09-10 00:59:11 more
  • 【C++犯錯記錄】VS2019 MFC不懂的批量添加資源

    1. 打開資源頭檔案Resource.h,在其中預先定義好宏 ID(不清楚其實ID值應該設定多少,可以先新建一個相同的資源項,再在這個資源的ID值的基礎上遞增即可) 2. 在資源視圖中選中專案資源,按F7編輯資源檔案,按 ID 型別 相對路徑的形式添加 資源。(別忘了先把檔案拷貝到專案中的res檔案 ......

    uj5u.com 2020-09-10 01:00:19 more
  • C/C++編程筆記:關于C++的參考型別,專供新手入門使用

    今天要講的是C++中我最喜歡的一個用法——參考,也叫別名。 參考就是給一個變數名取一個變數名,方便我們間接地使用這個變數。我們可以給一個變數創建N個參考,這N + 1個變數共享了同一塊記憶體區域。(參考型別的變數會占用記憶體空間,占用的記憶體空間的大小和指標型別的大小是相同的。雖然參考是一個物件的別名,但 ......

    uj5u.com 2020-09-10 01:00:22 more
  • 【C/C++編程筆記】從頭開始學習C ++:初學者完整指南

    眾所周知,C ++的學習曲線陡峭,但是花時間學習這種語言將為您的職業帶來奇跡,并使您與其他開發人員區分開。您會更輕松地學習新語言,形成真正的解決問題的技能,并在編程的基礎上打下堅實的基礎。 C ++將幫助您養成良好的編程習慣(即清晰一致的編碼風格,在撰寫代碼時注釋代碼,并限制類內部的可見性),并且由 ......

    uj5u.com 2020-09-10 01:00:41 more
最新发布
  • Rust中的智能指標:Box<T> Rc<T> Arc<T> Cell<T> RefCell<T> Weak

    Rust中的智能指標是什么 智能指標(smart pointers)是一類資料結構,是擁有資料所有權和額外功能的指標。是指標的進一步發展 指標(pointer)是一個包含記憶體地址的變數的通用概念。這個地址參考,或 ” 指向”(points at)一些其 他資料 。參考以 & 符號為標志并借用了他們所 ......

    uj5u.com 2023-04-20 07:24:10 more
  • Java的值傳遞和參考傳遞

    值傳遞不會改變本身,參考傳遞(如果傳遞的值需要實體化到堆里)如果發生修改了會改變本身。 1.基本資料型別都是值傳遞 package com.example.basic; public class Test { public static void main(String[] args) { int ......

    uj5u.com 2023-04-20 07:24:04 more
  • [2]SpinalHDL教程——Scala簡單入門

    第一個 Scala 程式 shell里面輸入 $ scala scala> 1 + 1 res0: Int = 2 scala> println("Hello World!") Hello World! 檔案形式 object HelloWorld { /* 這是我的第一個 Scala 程式 * 以 ......

    uj5u.com 2023-04-20 07:23:58 more
  • 理解函式指標和回呼函式

    理解 函式指標 指向函式的指標。比如: 理解函式指標的偽代碼 void (*p)(int type, char *data); // 定義一個函式指標p void func(int type, char *data); // 宣告一個函式func p = func; // 將指標p指向函式func ......

    uj5u.com 2023-04-20 07:23:52 more
  • Django筆記二十五之資料庫函式之日期函式

    本文首發于公眾號:Hunter后端 原文鏈接:Django筆記二十五之資料庫函式之日期函式 日期函式主要介紹兩個大類,Extract() 和 Trunc() Extract() 函式作用是提取日期,比如我們可以提取一個日期欄位的年份,月份,日等資料 Trunc() 的作用則是截取,比如 2022-0 ......

    uj5u.com 2023-04-20 07:23:45 more
  • 一天吃透JVM面試八股文

    什么是JVM? JVM,全稱Java Virtual Machine(Java虛擬機),是通過在實際的計算機上仿真模擬各種計算機功能來實作的。由一套位元組碼指令集、一組暫存器、一個堆疊、一個垃圾回收堆和一個存盤方法域等組成。JVM屏蔽了與作業系統平臺相關的資訊,使得Java程式只需要生成在Java虛擬機 ......

    uj5u.com 2023-04-20 07:23:31 more
  • 使用Java接入小程式訂閱訊息!

    更新完微信服務號的模板訊息之后,我又趕緊把微信小程式的訂閱訊息給實作了!之前我一直以為微信小程式也是要企業才能申請,沒想到小程式個人就能申請。 訊息推送平臺🔥推送下發【郵件】【短信】【微信服務號】【微信小程式】【企業微信】【釘釘】等訊息型別。 https://gitee.com/zhongfuch ......

    uj5u.com 2023-04-20 07:22:59 more
  • java -- 緩沖流、轉換流、序列化流

    緩沖流 緩沖流, 也叫高效流, 按照資料型別分類: 位元組緩沖流:BufferedInputStream,BufferedOutputStream 字符緩沖流:BufferedReader,BufferedWriter 緩沖流的基本原理,是在創建流物件時,會創建一個內置的默認大小的緩沖區陣列,通過緩沖 ......

    uj5u.com 2023-04-20 07:22:49 more
  • Java-SpringBoot-Range請求頭設定實作視頻分段傳輸

    老實說,人太懶了,現在基本都不喜歡寫筆記了,但是網上有關Range請求頭的文章都太水了 下面是抄的一段StackOverflow的代碼...自己大修改過的,寫的注釋挺全的,應該直接看得懂,就不解釋了 寫的不好...只是希望能給視頻網站開發的新手一點點幫助吧. 業務場景:視頻分段傳輸、視頻多段傳輸(理 ......

    uj5u.com 2023-04-20 07:22:42 more
  • Windows 10開發教程_編程入門自學教程_菜鳥教程-免費教程分享

    教程簡介 Windows 10開發入門教程 - 從簡單的步驟了解Windows 10開發,從基本到高級概念,包括簡介,UWP,第一個應用程式,商店,XAML控制元件,資料系結,XAML性能,自適應設計,自適應UI,自適應代碼,檔案管理,SQLite資料庫,應用程式到應用程式通信,應用程式本地化,應用程式 ......

    uj5u.com 2023-04-20 07:22:35 more
