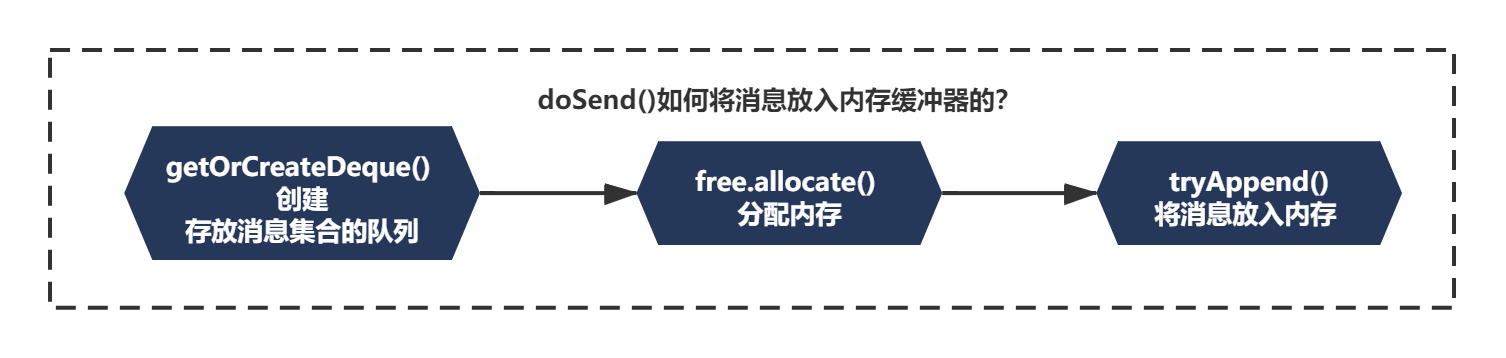

上一節我們分析到如何將訊息放入記憶體緩沖器主要分三步，如下圖所示：

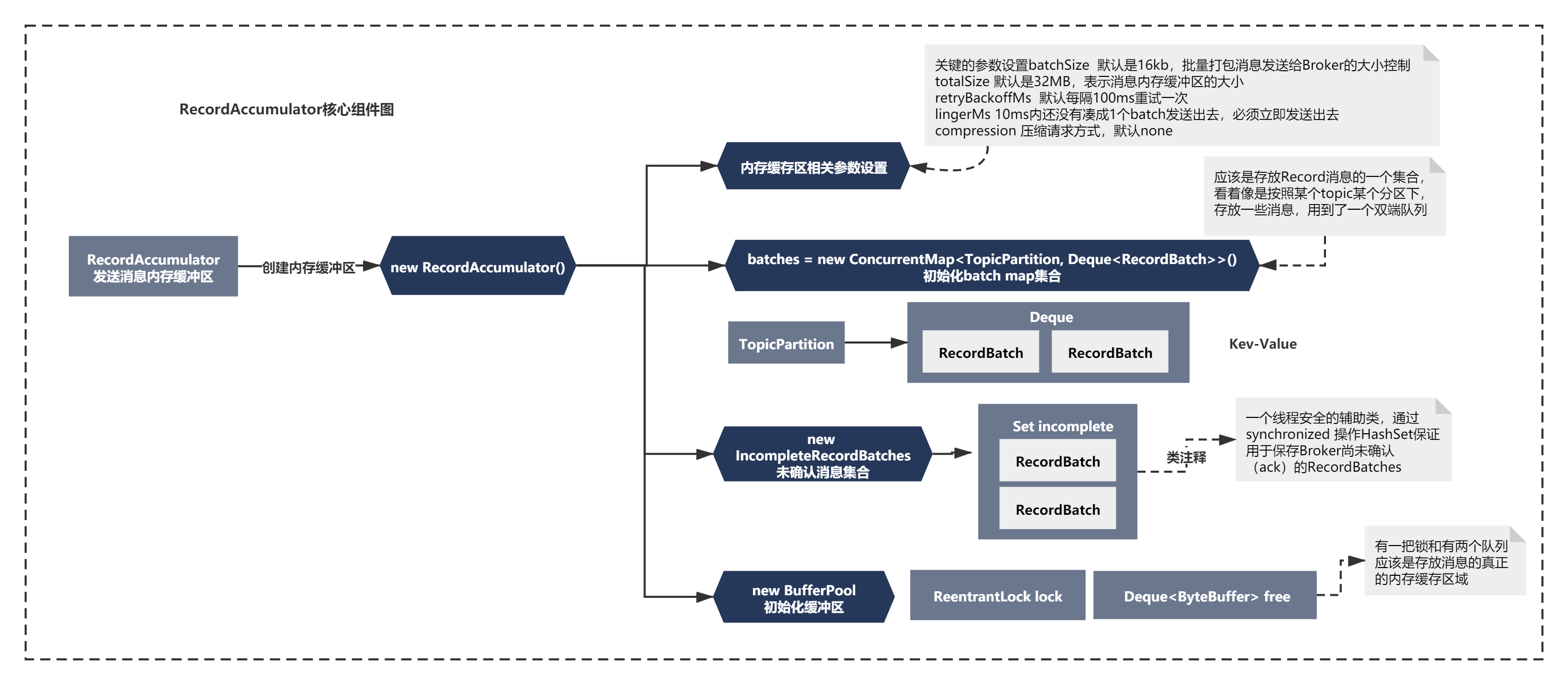

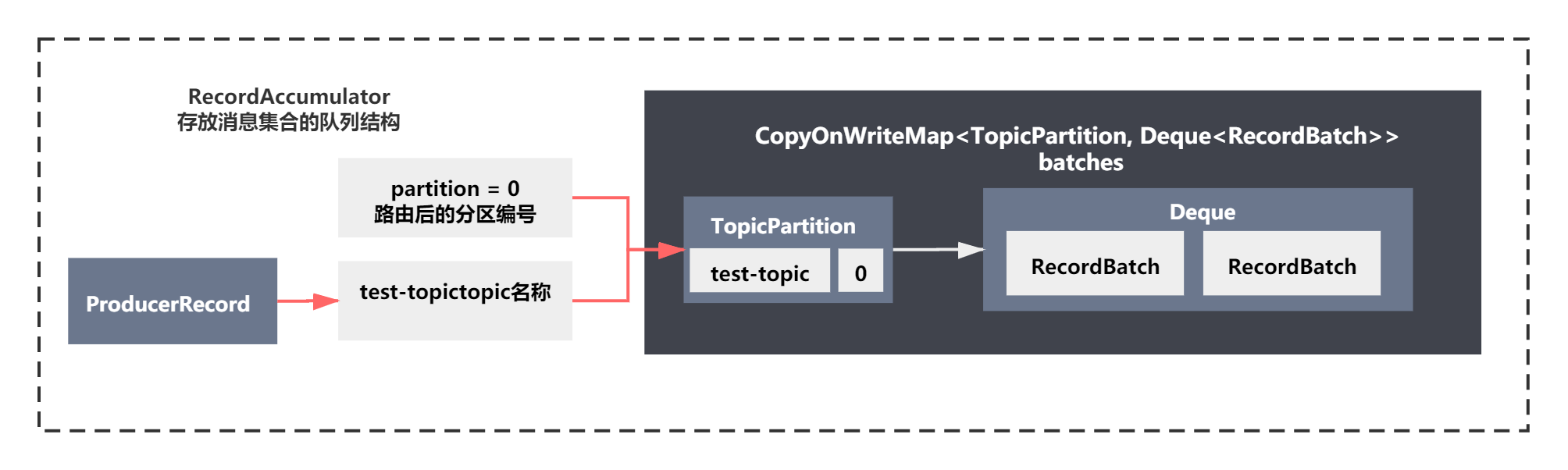

我們重點分析了getOrCreateDeque()方法，它主要創建了如下資料結構，如下所示：
這一節我們繼續向下分析，看看如何通過BufferPool申請記憶體空間NIO的多塊記憶體ByteBuffer的，
BufferPool的創建
記憶體緩沖區，分配記憶體的邏輯代碼主要如下所示：
private final BufferPool free;
public RecordAppendResult append(TopicPartition tp,
long timestamp,
byte[] key,
byte[] value,
Callback callback,
long maxTimeToBlock) throws InterruptedException {
//getOrCreateDeque()相關邏輯 省略...
//free.allocate()相關邏輯
// we don't have an in-progress record batch try to allocate a new batch
int size = Math.max(this.batchSize, Records.LOG_OVERHEAD + Record.recordSize(key, value));
ByteBuffer buffer = free.allocate(size, maxTimeToBlock);
//tryAppend相關邏輯 省略...
}
可以看到這個邏輯非常簡單，只是計算了一個空間大小，之后根據free.allocate()創建記憶體空間ByteBuffer，
熟悉NIO的同學，一定知道ByteBuffer這個組件，是NIO核心3大組件之一，它是一塊記憶體，這里通過一個記憶體池來維護多塊ByteBuffer，這樣的好處就是避免創建的記憶體空間，頻繁的被GC，而且可以達到很好的重用性，這一點是不錯的思考，而且由于 Kafka底層使用NIO進行通信，使用ByteBuffer存放的資料，可以更好、更簡單的被發送出去，
好了回到正題，這個ByteBuffer可以明顯的看到是被BufferPool的allocate方法創建的，但是在研究allocate方法之前，我們先來看看ByteBuffer是如何創建的，
在之前第二節組件分析時，初步看過BufferPool這個類的結構，可以看到之前初始化RecordAccumulator時候，創建的BufferPool，它的基本核心是一個ReentrantLock和Deque
有了之前初步的了解，現在我們再仔細看下它的創建細節：
public final class BufferPool {
private final long totalMemory;
private final int poolableSize;
private final ReentrantLock lock;
private final Deque<ByteBuffer> free;
private final Deque<Condition> waiters;
private long availableMemory;
private final Metrics metrics;
private final Time time;
private final Sensor waitTime;
/**
* Create a new buffer pool
*
* @param memory The maximum amount of memory that this buffer pool can allocate
* @param poolableSize The buffer size to cache in the free list rather than deallocating
* @param metrics instance of Metrics
* @param time time instance
* @param metricGrpName logical group name for metrics
*/
public BufferPool(long memory, int poolableSize, Metrics metrics, Time time, String metricGrpName) {
this.poolableSize = poolableSize;
this.lock = new ReentrantLock();
this.free = new ArrayDeque<ByteBuffer>();
this.waiters = new ArrayDeque<Condition>();
this.totalMemory = memory;
this.availableMemory = memory;
this.metrics = metrics;
this.time = time;
this.waitTime = this.metrics.sensor("bufferpool-wait-time");
MetricName metricName = metrics.metricName("bufferpool-wait-ratio",
metricGrpName,
"The fraction of time an appender waits for space allocation.");
this.waitTime.add(metricName, new Rate(TimeUnit.NANOSECONDS));
}
}
這個建構式主要脈絡如下：
1）根據入參，設定核心的引數，主要有兩個，long memory, int poolableSize,其余的入參都是時間或者統計相關的，可以先忽略，你可以向上查找建構式傳遞入參的入口，最侄訓找到ConfigDef中默認初始化的值，如下：
memory默認對應的配置buffer.memory=33554432 ，也就是總緩沖區的大小，默認是32MB，poolableSize對應的配置batch.size=16384， 默認是16KB，也就是說訊息可以打包的batch默認一批是16KB，這里要注意如果訊息比較大，這個兩個引數需要適當調整，
2）初始化核心記憶體結構和一把鎖，new ArrayDeque

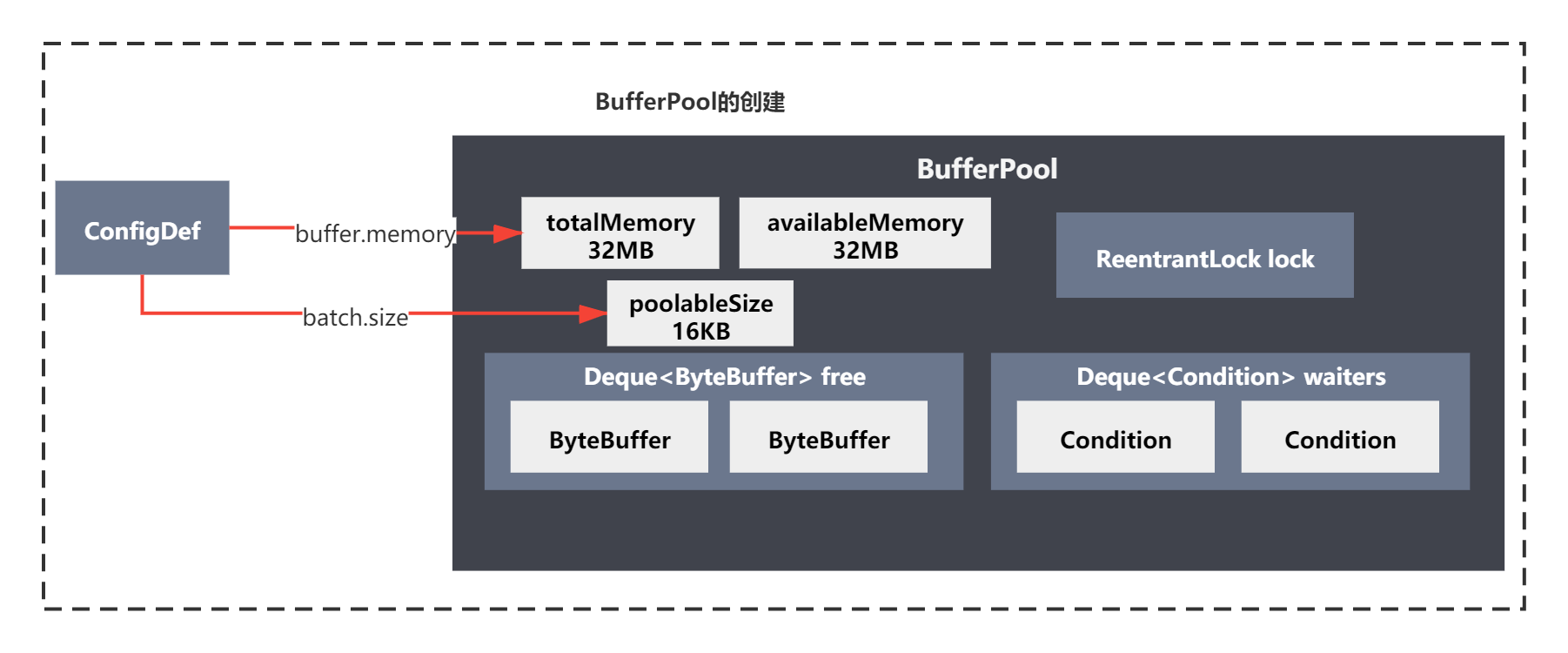

建構式的邏輯整體如下圖所示：
你可以連蒙帶猜下，free這個佇列，應該是存放記憶體塊ByteBuffer的，由于是ArrayDeque，所以需要ReentrantLock進行并發控制，waiters的Condition佇列暫時不知道是做什么的，可能是執行緒排隊等待獲取記憶體塊使用的，
BufferPool如何申請記憶體
創建好了BufferPool，它是如何通過allocate()申請記憶體的呢？
首先申請記憶體前需要明確申請記憶體的大小size，如下：
int size = Math.max(this.batchSize, Records.LOG_OVERHEAD + Record.recordSize(key, value));
ByteBuffer buffer = free.allocate(size, maxTimeToBlock);
public interface Records extends Iterable<LogEntry> {
int SIZE_LENGTH = 4;
int OFFSET_LENGTH = 8;
int LOG_OVERHEAD = SIZE_LENGTH + OFFSET_LENGTH;
}
size的計算涉及到了幾個值取Max的邏輯，
batchSize就是之前BufferPool使用的引數，默認是16KB，
LOG_OVERHEAD+訊息大小：12+keyBytes.size()+valueBytes.size();
簡單的說意思就是，如果訊息的大小大于默認的batchSize，申請的記憶體以訊息大小為主，否則就是默認batchSize的大小16KB，
PS：batchSize一般根據我們發送的訊息肯定會調整的，如果你訊息大于16KB，之后打包發送的時候是基于batchSize大小的ByteBuffer記憶體塊的，結果由于你的訊息大小超過默認batchSize，每次打包發送其實就是一條訊息，這樣每一條訊息一次網路傳輸，批量打包發送的意義就不大了，

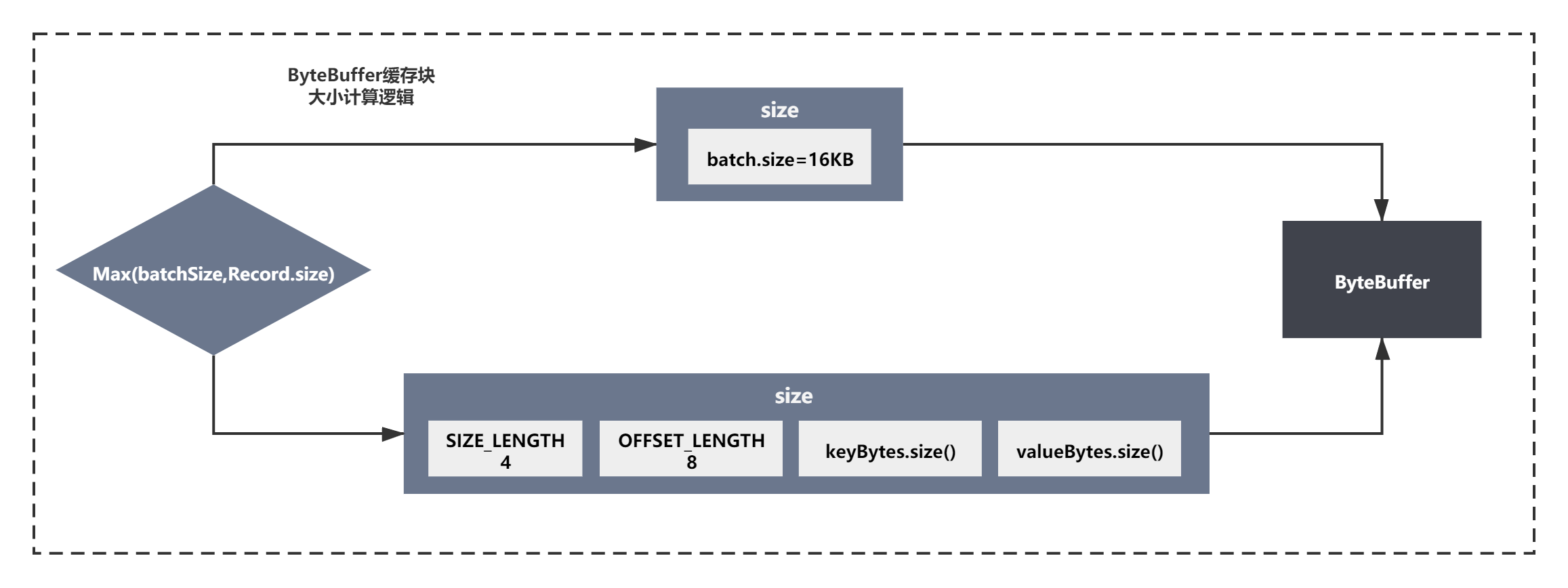

上面的邏輯如下圖所示：
確認了申請記憶體空間的大小后，就會執行如下代碼申請記憶體了：
public ByteBuffer allocate(int size, long maxTimeToBlockMs) throws InterruptedException {
if (size > this.totalMemory)
throw new IllegalArgumentException("Attempt to allocate " + size
+ " bytes, but there is a hard limit of "
+ this.totalMemory
+ " on memory allocations.");
this.lock.lock();
try {
// check if we have a free buffer of the right size pooled
if (size == poolableSize && !this.free.isEmpty())
return this.free.pollFirst();
// now check if the request is immediately satisfiable with the
// memory on hand or if we need to block
int freeListSize = this.free.size() * this.poolableSize;
if (this.availableMemory + freeListSize >= size) {
// we have enough unallocated or pooled memory to immediately
// satisfy the request
freeUp(size);
this.availableMemory -= size;
lock.unlock();
return ByteBuffer.allocate(size);
} else {
// we are out of memory and will have to block
int accumulated = 0;
ByteBuffer buffer = null;
Condition moreMemory = this.lock.newCondition();
long remainingTimeToBlockNs = TimeUnit.MILLISECONDS.toNanos(maxTimeToBlockMs);
this.waiters.addLast(moreMemory);
// loop over and over until we have a buffer or have reserved
// enough memory to allocate one
while (accumulated < size) {
long startWaitNs = time.nanoseconds();
long timeNs;
boolean waitingTimeElapsed;
try {
waitingTimeElapsed = !moreMemory.await(remainingTimeToBlockNs, TimeUnit.NANOSECONDS);
} catch (InterruptedException e) {
this.waiters.remove(moreMemory);
throw e;
} finally {
long endWaitNs = time.nanoseconds();
timeNs = Math.max(0L, endWaitNs - startWaitNs);
this.waitTime.record(timeNs, time.milliseconds());
}
if (waitingTimeElapsed) {
this.waiters.remove(moreMemory);
throw new TimeoutException("Failed to allocate memory within the configured max blocking time " + maxTimeToBlockMs + " ms.");
}
remainingTimeToBlockNs -= timeNs;
// check if we can satisfy this request from the free list,
// otherwise allocate memory
if (accumulated == 0 && size == this.poolableSize && !this.free.isEmpty()) {
// just grab a buffer from the free list
buffer = this.free.pollFirst();
accumulated = size;
} else {
// we'll need to allocate memory, but we may only get
// part of what we need on this iteration
freeUp(size - accumulated);
int got = (int) Math.min(size - accumulated, this.availableMemory);
this.availableMemory -= got;
accumulated += got;
}
}
// remove the condition for this thread to let the next thread
// in line start getting memory
Condition removed = this.waiters.removeFirst();
if (removed != moreMemory)
throw new IllegalStateException("Wrong condition: this shouldn't happen.");
// signal any additional waiters if there is more memory left
// over for them
if (this.availableMemory > 0 || !this.free.isEmpty()) {
if (!this.waiters.isEmpty())
this.waiters.peekFirst().signal();
}
// unlock and return the buffer
lock.unlock();
if (buffer == null)
return ByteBuffer.allocate(size);
else
return buffer;
}
} finally {
if (lock.isHeldByCurrentThread())
lock.unlock();
}
}
這個方法比較長，但是邏輯比較清晰，整體分為一個大的if-else 主要脈絡如下：
1）最外層的if主要邏輯是：如果free佇列存在空閑記憶體，直接使用，否則創建一塊大小為size的ByteBuffer，可用記憶體會扣減相應值
2）else主要邏輯是：如果總緩沖區的記憶體32MB都使用完了，執行緒需要通過Condition佇列進行排隊等待，獲取ByteBuffer

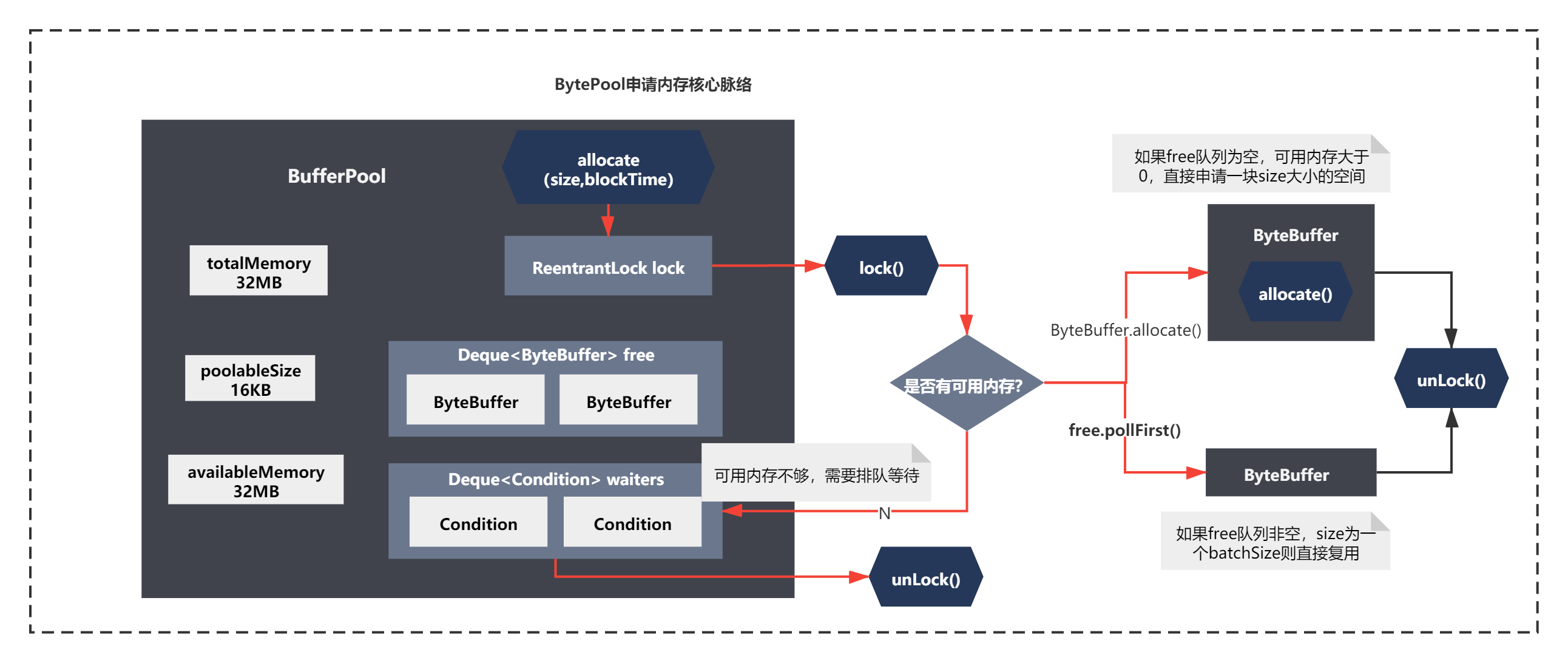

整體如下圖所示：
我們分別來看下細節，首先是第一段邏輯：
//如果free佇列存在空閑記憶體，直接使用
if (size == poolableSize && !this.free.isEmpty())
return this.free.pollFirst();
// now check if the request is immediately satisfiable with the
// memory on hand or if we need to block
int freeListSize = this.free.size() * this.poolableSize;
if (this.availableMemory + freeListSize >= size) {
//創建一塊大小為size的ByteBuffer，可用記憶體會扣減相應值
// we have enough unallocated or pooled memory to immediately
// satisfy the request
freeUp(size);
this.availableMemory -= size;
lock.unlock();
return ByteBuffer.allocate(size);
}
這塊邏輯很簡單，獲取ByteBuffer的方式不是從free佇列就是新創建，
但是這里有一個問題，free佇列什么時候有值的？

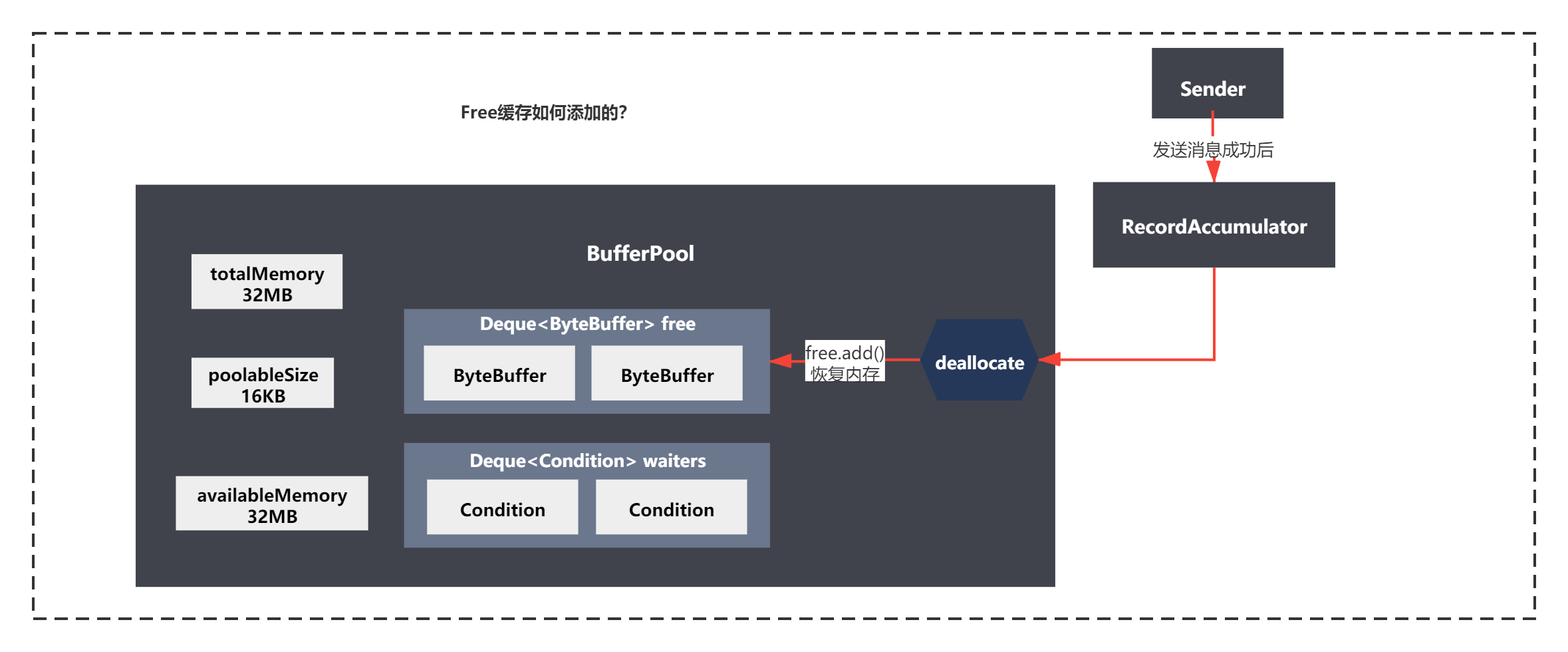

其實可以猜到，當從緩沖區發送出去訊息后，會清空ByteBuffer，之后就會空閑這塊記憶體，自然也就會加入free這個佇列中了，你可以搜索下這個free佇列的參考自己大體看下，之后分析如何發送緩沖器中的訊息時會帶大家看到的，
剩下的第二段邏輯是總記憶體不夠用的時候執行緒排隊等待，之后喚醒的邏輯，這塊邏輯考慮很多特殊邏輯，看上去比較復雜，
// we are out of memory and will have to block
int accumulated = 0;
ByteBuffer buffer = null;
Condition moreMemory = this.lock.newCondition();
long remainingTimeToBlockNs = TimeUnit.MILLISECONDS.toNanos(maxTimeToBlockMs);
this.waiters.addLast(moreMemory);
// loop over and over until we have a buffer or have reserved
// enough memory to allocate one
while (accumulated < size) {
long startWaitNs = time.nanoseconds();
long timeNs;
boolean waitingTimeElapsed;
try {
waitingTimeElapsed = !moreMemory.await(remainingTimeToBlockNs, TimeUnit.NANOSECONDS);
} catch (InterruptedException e) {
this.waiters.remove(moreMemory);
throw e;
} finally {
long endWaitNs = time.nanoseconds();
timeNs = Math.max(0L, endWaitNs - startWaitNs);
this.waitTime.record(timeNs, time.milliseconds());
}
if (waitingTimeElapsed) {
this.waiters.remove(moreMemory);
throw new TimeoutException("Failed to allocate memory within the configured max blocking time " + maxTimeToBlockMs + " ms.");
}
remainingTimeToBlockNs -= timeNs;
// check if we can satisfy this request from the free list,
// otherwise allocate memory
if (accumulated == 0 && size == this.poolableSize && !this.free.isEmpty()) {
// just grab a buffer from the free list
buffer = this.free.pollFirst();
accumulated = size;
} else {
// we'll need to allocate memory, but we may only get
// part of what we need on this iteration
freeUp(size - accumulated);
int got = (int) Math.min(size - accumulated, this.availableMemory);
this.availableMemory -= got;
accumulated += got;
}
}
// remove the condition for this thread to let the next thread
// in line start getting memory
Condition removed = this.waiters.removeFirst();
if (removed != moreMemory)
throw new IllegalStateException("Wrong condition: this shouldn't happen.");
// signal any additional waiters if there is more memory left
// over for them
if (this.availableMemory > 0 || !this.free.isEmpty()) {
if (!this.waiters.isEmpty())
this.waiters.peekFirst().signal();
}
// unlock and return the buffer
lock.unlock();
if (buffer == null)
return ByteBuffer.allocate(size);
else
return buffer;
}

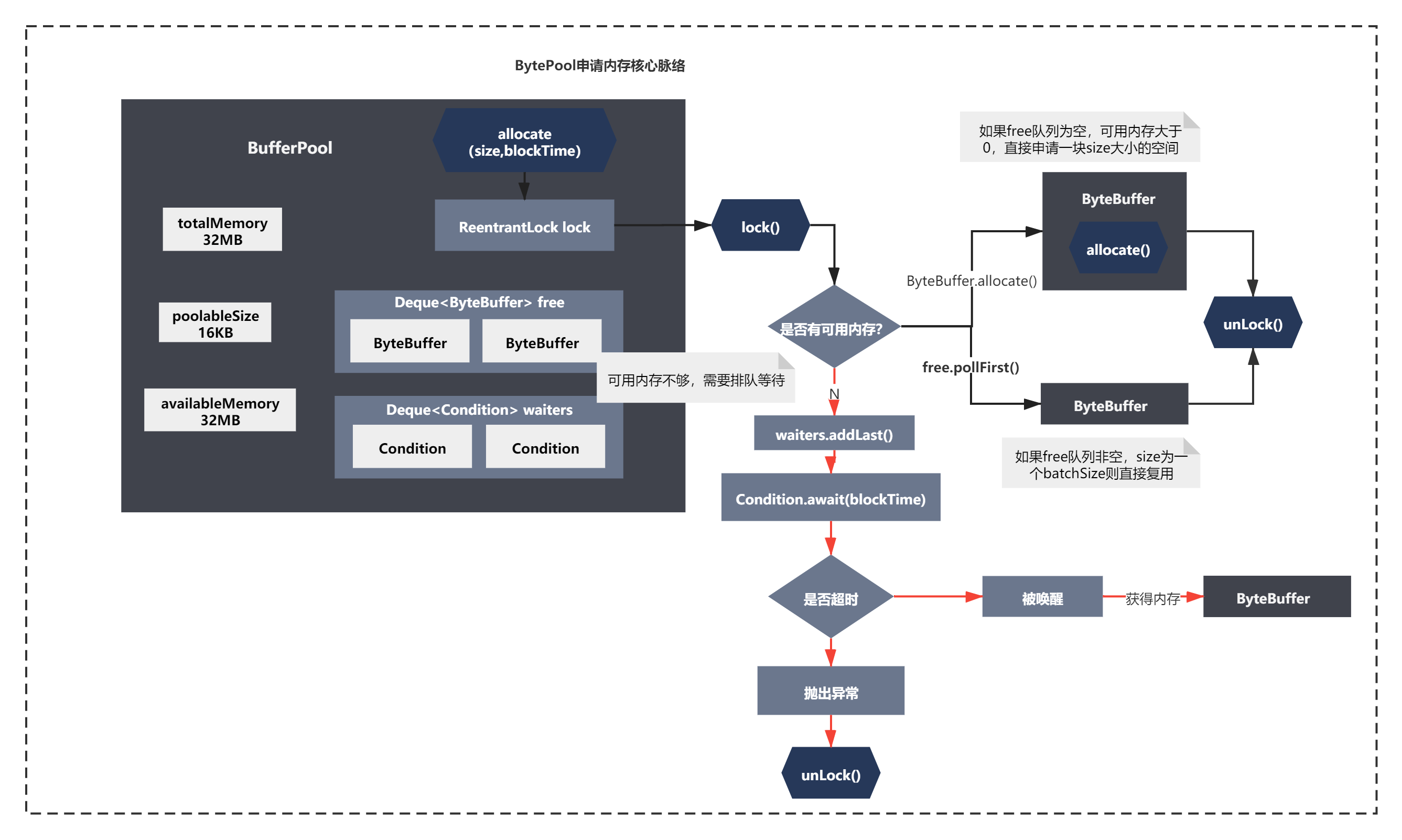

但是當你梳理清楚后，發現其實本質就是Condition的await和signal而已，而且這里有一個最大的等待超時時間，超時后會拋出例外，具體就不一步一步帶大家分析了，我們肯定是盡量避免這種情況的，大體邏輯總結如下圖：

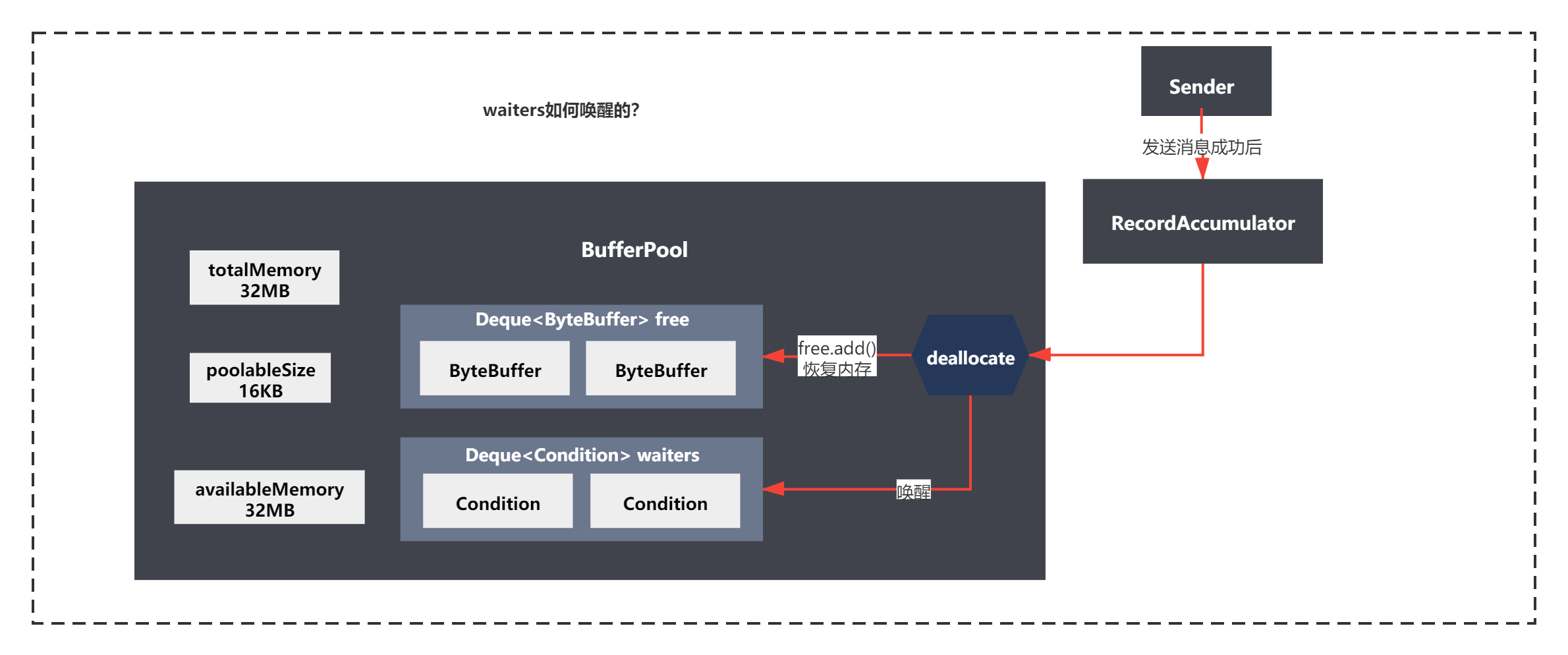

Condition這個waiter佇列如何被喚醒的呢？其實和free記憶體增加是一樣的，當發送訊息之后，記憶體使用完成，有可用記憶體之后，自然會被喚醒，之后分析如何發送緩沖器中的訊息時會帶大家看到的，如下所示：
小結
好了， 到這里，記憶體緩沖器RecordAccumulator通過BufferPool申請記憶體的原始碼原理基本就分析完了，你主要知道了：
BufferPool的創建多塊記憶體ByteBuffer的原因
兩個核心的引數batchSize=16kb,bufferMemory=32MB
核心資料結構Deque
每一塊ByteBuffer的大小計算邏輯
如何申請和重用記憶體ByteBuffer的邏輯
下一節我們繼續來分析發送訊息的記憶體緩沖器原理—tryAppend的邏輯，之后如何打包訊息，并將打包好的訊息發送出去的，訊息的最終序列化格式和NIO的拆包粘包問題，大家敬請期待！
