前言
最近,有一個業務需求,給我一份資料 A ,把它在資料庫 B 中存在,而又比 A 多出的部分算出來,由于資料比較雜亂,我這里簡化模型,
然后就會發現,我去,這不就是 not in ,not exists 嘛,
那么問題來了,in, not in , exists , not exists 它們有什么區別,效率如何?
曾經從網上聽說,in 和 exists 不會走索引,那么事實真的是這樣嗎?
帶著疑問,我們研究下去,
注意: 在說這個問題時,不說明 MySQL 版本的都是耍流氓,我這里用的是 5.7.18 ,
用法講解

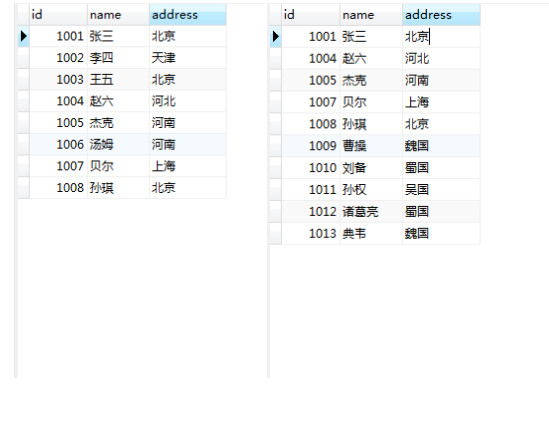

為了方便,我們創建兩張表 t1 和 t2 ,并分別加入一些資料,(id為主鍵,name為普通索引)
-- t1
DROP TABLE IF EXISTS `t1`;
CREATE TABLE `t1` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`name` varchar(255) DEFAULT NULL,
`address` varchar(255) DEFAULT NULL,
PRIMARY KEY (`id`),
KEY `idx_t1_name` (`name`(191)) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=1009 DEFAULT CHARSET=utf8mb4;
INSERT INTO `t1` VALUES ('1001', '張三', '北京'), ('1002', '李四', '天津'), ('1003', '王五', '北京'), ('1004', '趙六', '河北'), ('1005', '杰克', '河南'), ('1006', '湯姆', '河南'), ('1007', '貝爾', '上海'), ('1008', '孫琪', '北京');
-- t2
DROP TABLE IF EXISTS `t2`;
CREATE TABLE `t2` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`name` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
`address` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
PRIMARY KEY (`id`) USING BTREE,
INDEX `idx_t2_name`(`name`(191)) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1014 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;
INSERT INTO `t2` VALUES (1001, '張三', '北京');
INSERT INTO `t2` VALUES (1004, '趙六', '河北');
INSERT INTO `t2` VALUES (1005, '杰克', '河南');
INSERT INTO `t2` VALUES (1007, '貝爾', '上海');
INSERT INTO `t2` VALUES (1008, '孫琪', '北京');
INSERT INTO `t2` VALUES (1009, '曹操', '魏國');
INSERT INTO `t2` VALUES (1010, '劉備', '蜀國');
INSERT INTO `t2` VALUES (1011, '孫權', '吳國');
INSERT INTO `t2` VALUES (1012, '諸葛亮', '蜀國');
INSERT INTO `t2` VALUES (1013, '典韋', '魏國');

那么,對于當前的問題,就很簡單了,用 not in 或者 not exists 都可以把 t1 表中比 t2 表多出的那部分資料給挑出來,(當然,t2 比 t1 多出來的那部分不算)
這里假設用 name 來匹配資料,
select * from t1 where name not in (select name from t2);
或者用
select * from t1 where not exists (select name from t2 where t1.name=t2.name);
得到的結果都是一樣的,

但是,需要注意的是,not in 和 not exists 還是有不同點的,
在使用 not in 的時候,需要保證子查詢的匹配欄位是非空的,如,此表 t2 中的 name 需要有非空限制,如若不然,就會導致 not in 回傳的整個結果集為空,
例如,我在 t2 表中加入一條 name 為空的資料,
INSERT INTO `t2` VALUES (1014, NULL, '魏國');
則此時,not in 結果就會回傳空,

另外需要明白的是, exists 回傳的結果是一個 boolean 值 true 或者 false ,而不是某個結果集,因為它不關心回傳的具體資料是什么,只是外層查詢需要拿這個布林值做判斷,
區別是,用 exists 時,若子查詢查到了資料,則回傳真, 用 not exists 時,若子查詢沒有查到資料,則回傳真,
由于 exists 子查詢不關心具體回傳的資料是什么,因此,以上的陳述句完全可以修改為如下,
-- 子查詢中 name 可以修改為其他任意的欄位,如此處改為 1 ,
select * from t1 where not exists (select 1 from t2 where t1.name=t2.name);
從執行效率來說,1 > column > * ,因此推薦用 select 1,(準確的說應該是常量值)
in, exists 執行流程
1、 對于 in 查詢來說,會先執行子查詢,如上邊的 t2 表,然后把查詢得到的結果和外表 t1 做笛卡爾積,再通過條件進行篩選(這里的條件就是指 name 是否相等),把每個符合條件的資料都加入到結果集中,
sql 如下,
select * from t1 where name in (select name from t2);
偽代碼如下:
for(x in A){
for(y in B){
if(condition is true) {result.add();}
}
}
這里的 condition 其實就是對比兩張表中的 name 是否相同,
2、對于 exists 來說,是先查詢遍歷外表 t1 ,然后每次遍歷時,再檢查在內表是否符合匹配條件,即檢查是否存在 name 相等的資料,
sql 如下,
select * from t1 where name exists (select 1 from t2);
偽代碼如下:
for(x in A){
if(exists condition is true){result.add();}
}
對應于此例,就是從 id 為 1001 開始遍歷 t1 表 ,然后遍歷時檢查 t2 中是否有相等的 name ,
如 id=1001時,張三存在于 t2 表中,則回傳 true,把 t1 中張三的這條記錄加入到結果集,繼續下次回圈, id=1002 時,李四不在 t2 表中,則回傳 false,不做任何操作,繼續下次回圈,直到遍歷完整個 t1 表,
是否走索引?
針對網上說的 in 和 exists 不走索引,那么究竟是否如此呢?
我們在 MySQL 5.7.18 中驗證一下,(注意版本號哦)
單表查詢
首先,驗證單表的最簡單的情況,我們就以 t1 表為例,id為主鍵, name 為普通索引,
分別執行以下陳述句,
explain select * from t1 where id in (1001,1002,1003,1004);
explain select * from t1 where id in (1001,1002,1003,1004,1005);
explain select * from t1 where name in ('張三','李四');
explain select * from t1 where name in ('張三','李四','王五');

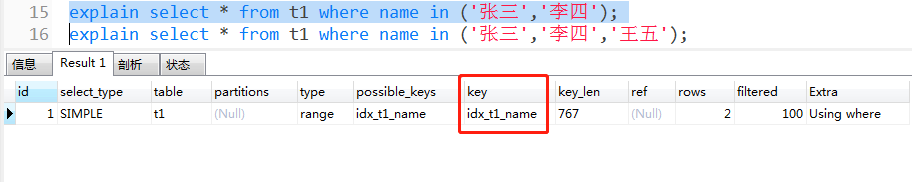

為什么我要分別查不同的 id 個數呢? 看截圖,


會驚奇的發現,當 id 是四個值時,還走主鍵索引,而當 id 是五個值時,就不走索引了,這就很耐人尋味了,
再看 name 的情況,


同樣的當值多了之后,就不走索引了,
所以,我猜測這個跟匹配欄位的長度有關,按照漢字是三個位元組來計算,且程式設計中喜歡用2的n次冪的尿性,這里大概就是以 16 個位元組為分界點,
然而,我又以同樣的資料,去我的服務器上查詢(版本號 5.7.22),發現四個id值時,就不走索引了,因此,估算這里的臨界值為 12 個位元組,
不管怎樣,這說明了,在 MySQL 中應該對 in 查詢的位元組長度是有限制的,(沒有官方確切說法,所以,僅供參考)
多表涉及子查詢
我們主要是去看當前的這個例子中的兩表查詢時, in 和 exists 是否走索引,
一、分別執行以下陳述句,主鍵索引(id)和普通索引(name),在 in , not in 下是否走索引,
explain select * from t1 where id in (select id from t2); --1
explain select * from t1 where name in (select name from t2); --2
explain select * from t1 where id not in (select id from t2); --3
explain select * from t1 where name not in (select name from t2); --4
結果截圖如下,
1、t1 走索引,t2 走索引,

2、t1 不走索引,t2不走索引,(此種情況,實測若把name改為唯一索引,則t1也會走索引)

3、t1 不走索引,t2走索引,

4、t1不走索引,t2不走索引,

我滴天,這結果看起來亂七八糟的,好像走不走索引,完全看心情,
但是,我們發現只有第一種情況,即用主鍵索引欄位匹配,且用 in 的情況下,兩張表才都走索引,
這個到底是不是規律呢?有待考察,且往下看,
二、接下來測驗,主鍵索引和普通索引在 exists 和 not exists 下的情況,sql如下,
explain select * from t1 where exists (select 1 from t2 where t1.id=t2.id);
explain select * from t1 where exists (select 1 from t2 where t1.name=t2.name);
explain select * from t1 where not exists (select 1 from t2 where t1.id=t2.id);
explain select * from t1 where not exists (select 1 from t2 where t1.name=t2.name);
這個結果就非常有規律了,且看,




有沒有發現, t1 表哪種情況都不會走索引,而 t2 表是有索引的情況下就會走索引,為什么會出現這種情況?
其實,上一小節說到了 exists 的執行流程,就已經說明問題了,
它是以外層表為驅動表,無論如何都會回圈遍歷的,所以會全表掃描,而內層表通過走索引,可以快速判斷當前記錄是否匹配,
效率如何?
針對網上說的 exists 一定比 in 的執行效率高,我們做一個測驗,
分別在 t1,t2 中插入 100W,200W 條資料,
我這里,用的是自定義函式來回圈插入,陳述句參考如下,(沒有把表名抽離成變數,因為我沒有找到方法,尷尬)
-- 傳入需要插入資料的id開始值和資料量大小,函式回傳結果為最終插入的條數,此值正常應該等于資料量大小,
-- id自增,回圈往 t1 表添加資料,這里為了方便,id、name取同一個變數,address就為北京,
delimiter //
drop function if exists insert_datas1//
create function insert_datas1(in_start int(11),in_len int(11)) returns int(11)
begin
declare cur_len int(11) default 0;
declare cur_id int(11);
set cur_id = in_start;
while cur_len < in_len do
insert into t1 values(cur_id,cur_id,'北京');
set cur_len = cur_len + 1;
set cur_id = cur_id + 1;
end while;
return cur_len;
end
//
delimiter ;
-- 同樣的,往 t2 表插入資料
delimiter //
drop function if exists insert_datas2//
create function insert_datas2(in_start int(11),in_len int(11)) returns int(11)
begin
declare cur_len int(11) default 0;
declare cur_id int(11);
set cur_id = in_start;
while cur_len < in_len do
insert into t2 values(cur_id,cur_id,'北京');
set cur_len = cur_len + 1;
set cur_id = cur_id + 1;
end while;
return cur_len;
end
//
delimiter ;
在此之前,先清空表里的資料,然后執行函式,
select insert_datas1(1,1000000);
對 t2 做同樣的處理,不過為了兩張表資料有交叉,就從 70W 開始,然后插入 200W 資料,
select insert_datas2(700000,2000000);
在家里的電腦,實際執行時間,分別為 36s 和 74s,
不知為何,家里的電腦還沒有在 Docker 虛擬機中跑的腳本快,,害,就這樣湊合著用吧,
等我有了新歡錢,就把它換掉,哼哼,
同樣的,把上邊的執行計劃都執行一遍,進行對比,我這里就不貼圖了,
in 和 exists 孰快孰慢
為了方便,主要拿以下這兩個 sql 來對比分析,
select * from t1 where id in (select id from t2);
select * from t1 where exists (select 1 from t2 where t1.id=t2.id);
執行結果顯示,兩個 sql 分別執行 1.3s 和 3.4s ,
注意此時,t1 表資料量為 100W, t2 表資料量為 200W ,
按照網上對 in 和 exists 區別的通俗說法,
如果查詢的兩個表大小相當,那么用in和exists差別不大;如果兩個表中一個較小一個較大,則子查詢表大的用exists,子查詢表小的用in;
對應于此處就是:
- 當 t1 為小表, t2 為大表時,應該用 exists ,這樣效率高,
- 當 t1 為大表,t2 為小表時,應該用 in,這樣效率較高,
而我用實際資料測驗,就把第一種說法給推翻了,因為很明顯,t1 是小表,但是 in 比 exists 的執行速度還快,
為了繼續測驗它這個觀點,我把兩個表的內表外表關系調換一下,讓 t2 大表作為外表,來對比查詢,
select * from t2 where id in (select id from t1);
select * from t2 where exists (select 1 from t1 where t1.id=t2.id);
執行結果顯示,兩個 sql 分別執行 1.8s 和 10.0s ,
是不是很有意思, 可以發現,
- 對于 in 來說,大表小表調換了內外層關系,執行時間并無太大區別,一個是 1.3s,一個是 1.8s,
- 對于 exists 來說,大小表調換了內外層關系,執行時間天壤之別,一個是 3.4s ,一個是 10.0s,足足慢了兩倍,
一、以查詢優化器維度對比,
為了探究這個結果的原因,我去查看它們分別在查詢優化器中優化后的 sql ,
以 select * from t1 where id in (select id from t2); 為例,順序執行以下兩個陳述句,
-- 此為 5.7 寫法,如果是 5.6版本,需要用 explain extended ...
explain select * from t1 where id in (select id from t2);
-- 本意為顯示警告資訊,但是和 explain 一塊兒使用,就會顯示出優化后的sql,需要注意使用順序,
show warnings;
在結果 Message 里邊就會顯示我們要的陳述句,

-- message 優化后的sql
select `test`.`t1`.`id` AS `id`,`test`.`t1`.`name` AS `name`,`test`.`t1`.`address` AS `address` from `test`.`t2` join `test`.`t1` where (`test`.`t2`.`id` = `test`.`t1`.`id`)
可以發現,這里它把 in 轉換為了 join 來執行,
這里沒有用 on,而用了 where,是因為當只有 join 時,后邊的 on 可以用 where 來代替,即 join on 等價于 join where ,
PS: 這里我們也可以發現,select * 最侄訓被轉化為具體的欄位,知道為什么我們不建議用 select * 了吧,
同樣的,以 t2 大表為外表的查詢情況,也查看優化后的陳述句,
explain select * from t2 where id in (select id from t1);
show warnings;
我們會發現,它也會轉化為 join 的,
select `test`.`t2`.`id` AS `id`,`test`.`t2`.`name` AS `name`,`test`.`t2`.`address` AS `address` from `test`.`t1` join `test`.`t2` where (`test`.`t2`.`id` = `test`.`t1`.`id`)
這里不再貼 exists 的轉化 sql ,其實它沒有什么大的變化,
二、以執行計劃維度對比,
我們再以執行計劃維度來對比他們的區別,
explain select * from t1 where id in (select id from t2);
explain select * from t2 where id in (select id from t1);
explain select * from t1 where exists (select 1 from t2 where t1.id=t2.id);
explain select * from t2 where exists (select 1 from t1 where t1.id=t2.id);
執行結果分別為,




可以發現,對于 in 來說,大表 t2 做外表還是內表,都會走索引的,小表 t1 做內表時也會走索引,看它們的 rows 一列也可以看出來,前兩張圖結果一樣,
對于 exists 來說,當小表 t1 做外表時,t1 全表掃描,rows 近 100W;當 大表 t2 做外表時, t2 全表掃描,rows 近 200W ,這也是為什么 t2 做外表時,執行效率非常低的原因,
因為對于 exists 來說,外表總會執行全表掃描的,當然表資料越少越好了,
最終結論: 外層大表內層小表,用in,外層小表內層大表,in和exists效率差不多(甚至 in 比 exists 還快,而并不是網上說的 exists 比 in 效率高),
not in 和 not exists 孰快孰慢
此外,實測對比 not in 和 not exists ,
explain select * from t1 where id not in (select id from t2);
explain select * from t1 where not exists (select 1 from t2 where t1.id=t2.id);
explain select * from t1 where name not in (select name from t2);
explain select * from t1 where not exists (select 1 from t2 where t1.name=t2.name);
explain select * from t2 where id not in (select id from t1);
explain select * from t2 where not exists (select 1 from t1 where t1.id=t2.id);
explain select * from t2 where name not in (select name from t1);
explain select * from t2 where not exists (select 1 from t1 where t1.name=t2.name);
小表做外表的情況下,對于主鍵來說, not exists 比 not in 快,對于普通索引來說, not in 和 not exists 差不了多少,甚至 not in 會稍快,
大表做外表的情況下,對于主鍵來說, not in 比 not exists 快,對于普通索引來說, not in 和 not exists 差不了多少,甚至 not in 會稍快,
感興趣的同學,可自行嘗試,以上邊的兩個維度(查詢優化器和執行計劃)分別來對比一下,
join 的嵌套回圈 (Nested-Loop Join)
為了理解為什么這里的 in 會轉換為 join ,我感覺有必要了解一下 join 的三種嵌套回圈連接,
1、簡單嵌套回圈連接,Simple Nested-Loop Join ,簡稱 SNLJ
join 即是 inner join ,內連接,它是一個笛卡爾積,即利用雙層回圈遍歷兩張表,
我們知道,一般在 sql 中都會以小表作為驅動表,所以,對于 A,B 兩張表,若A的結果集較少,則把它放在外層回圈,作為驅動表,自然,B 就在內層回圈,作為被驅動表,
簡單嵌套回圈,就是最簡單的一種情況,沒有做任何優化,
因此,復雜度也是最高的,O(mn),偽代碼如下,
for(id1 in A){
for(id2 in B){
if(id1==id2){
result.add();
}
}
}
2、索引嵌套回圈連接,Index Nested-Loop Join ,簡稱 INLJ
看名字也能看出來了,這是通過索引進行匹配的,外層表直接和內層表的索引進行匹配,這樣就不需要遍歷整個內層表了,利用索引,減少了外層表和內層表的匹配次數,
所以,此種情況要求內層表的列要有索引,
偽代碼如下,
for(id1 in A){
if(id1 matched B.id){
result.add();
}
}
3、塊索引嵌套連接,Block Nested-Loop Join ,簡稱 BNLJ
塊索引嵌套連接,是通過快取外層表的資料到 join buffer 中,然后 buffer 中的資料批量和內層表資料進行匹配,從而減少內層回圈的次數,
以外層回圈100次為例,正常情況下需要在內層回圈讀取外層資料100次,如果以每10條資料存入快取buffer中,并傳遞給內層回圈,則內層回圈只需要讀取10次(100/10)就可以了,這樣就降低了內層回圈的讀取次數,
MySQL 官方檔案也有相關說明,可以參考:https://dev.mysql.com/doc/refman/5.7/en/nested-loop-joins.html#block-nested-loop-join-algorithm
所以,這里轉化為 join,可以用到索引嵌套回圈連接,從而提高了執行效率,
宣告: 以上是以我的測驗資料為準,測出來的結果,實際真實資料和測驗結果很有可能會不太一樣,如果有不同意見,歡迎留言討論,
