如何使用geom_col在x軸上添加0個計數？[復制]

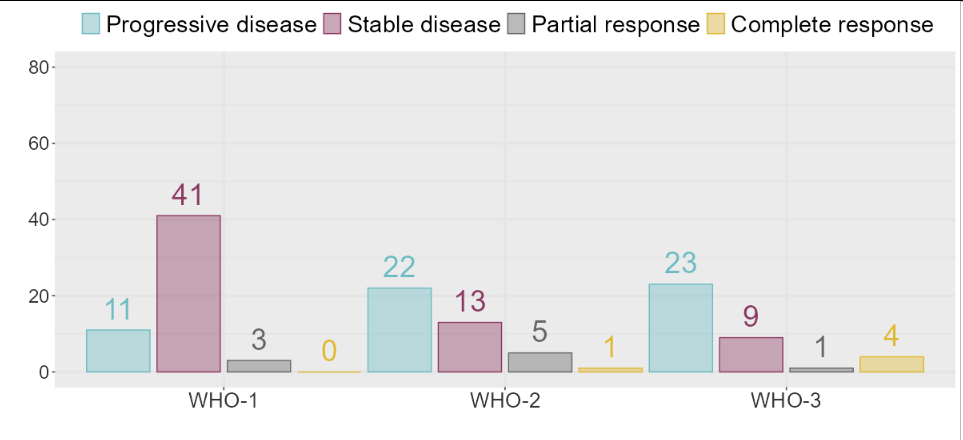

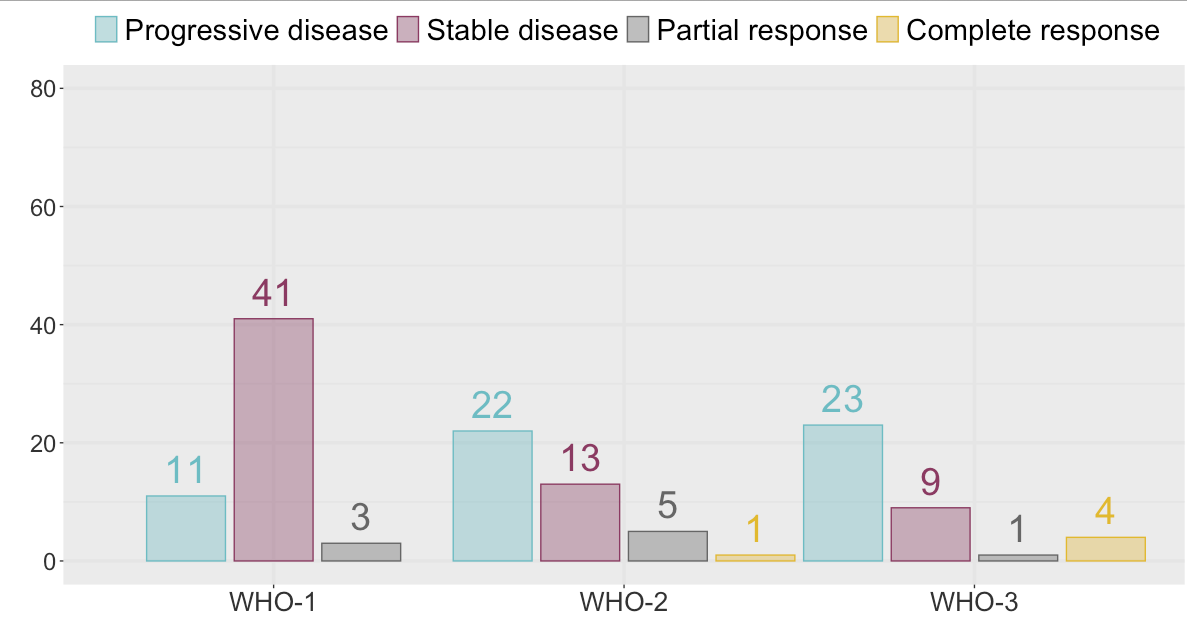

正如你所看到的，有0完全反應的WHO-1，但也有其他類別的情況。因此，從圖形geom_col上看， -category 中有三個-bars，另外兩個中有WHO-1四個geom_col-bars。

如何添加第四個欄來WHO-1指示對應于Complete Response的空間？

就像是

腳本

pp %>%
  as_tibble() %>%
  mutate(nyWHO = as.factor(WHO),
         best.resp = as.factor(case_when(best_rad == "CR" ~ 4,
                                         best_rad == "PR" ~ 3,
                                         best_rad == "SD" ~ 2,
                                         best_rad == "PD" ~ 1))) %>%
  count(nyWHO, best.resp) %>%
  ggplot(aes(nyWHO, n, color = best.resp, fill= best.resp))
  scale_fill_manual(values = alpha(c("#6DBCC3", "#8B3A62", "grey40", "#E1B930"), 0.4),
                    name="",
                    labels = c("Progressive disease", "Stable disease", "Partial response", "Complete response"))
  scale_colour_manual(values = cols,
                      name="",
                      labels = c("Progressive disease", "Stable disease", "Partial response", "Complete response"))
  geom_col(width=1, position = position_dodge2(width = 1, preserve = "single"))
  geom_text(aes(label = n), position = position_dodge2(width = 1, preserve = "single"),
            vjust=-0.5, size = 10, show.legend = F)
  scale_x_discrete(name = "", labels = c("WHO-1", "WHO-2", "WHO-3"))
  scale_y_continuous(name="", breaks = seq(0, 80, by = 20))
  coord_cartesian(ylim=c(0, 80))
  theme(axis.title.x = element_text(size = 22),
                axis.title.y = element_text(size = 22),
                axis.text.x = ggtext::element_markdown(color = "grey20", size = 20),
                axis.text.y = element_text(color = "grey20", size = 18),
                panel.grid.major = element_line(colour = "gray90", size = 1.2),
                panel.grid.minor = element_line(colour = "gray90", size = 0.6),
                legend.text = element_text(size = 22),
                legend.position = "top")

資料

pp <- structure(list(WHO = structure(c(3L, 3L, 3L, 3L, 3L, 3L, 2L, 2L, 2L, 2L, 2L, 2L, 3L, 3L, 1L, 3L, 1L, 3L, 3L, 2L, 3L, 1L, 1L, 2L, 1L, 1L, 3L, 2L, 1L, 1L, 3L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 3L, 2L, 3L, 2L, 1L, 2L, 3L, 2L, 2L, 2L, 1L, 3L, 3L, 3L, 2L, 3L, 2L, 3L, 1L, 1L, 1L, 3L, 1L, 1L, 1L, 1L, 2L, 1L, 1L, 3L, 2L, 3L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 2L, 2L, 1L, 1L, 1L, 3L, 1L, 1L, 3L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 3L, 1L, 1L, 1L, 2L, 1L, 2L, 1L, 3L, 3L, 3L, 3L, 3L, 2L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 2L, 1L, 1L, 1L, 1L, 2L, 3L, 2L, 2L, 2L, 3L, 2L, 3L, 3L), .Label = c("1", "2", "3"), class = "factor"), best_rad = c("SD", "SD", "CR", "CR", "SD", "SD", "SD", "SD", "PR", "PR", "PR", "PR", "CR", "CR", "PR", "PR", "PR", "SD", "PD", "PR", "PD", "SD", "SD", "PD", "PD", "PD", "PD", "SD", "PD", "PR", "PD", "PD", "PD", "PD", "SD", "PD", "SD", "SD", "PD", "PD", "PD", "PD", "PD", "PD", "PD", "PD", "PD", "PD", "PD", "PD", "SD", "PD", "PD", "PD", "PD", "SD", "PD", "PD", "SD", "SD", "SD", "PD", "SD", "PD", "SD", "SD", "PD", "PD", "SD", "PD", "PD", "PD", "SD", "SD", "SD", "SD", "PD", "SD", "PD", "SD", "PD", "SD", "PD", "SD", "PD", "SD", "SD", "PD", "SD", "SD", "SD", "PD", "SD", "SD", "SD", "PD", "PD", "PD", "SD", "SD", "SD", "CR", "SD", "SD", "SD", "PD", "PD", "PD", "SD", "SD", "SD", "SD", "SD", "SD", "SD", "SD", "SD", "SD", "SD", "SD", "SD", "SD", "SD", "SD", "PD", "PD", "SD", "SD", "PD", "PD", "PD", "SD", "PD")), row.names = c(NA, -133L), class = "data.frame")

uj5u.com熱心網友回復：

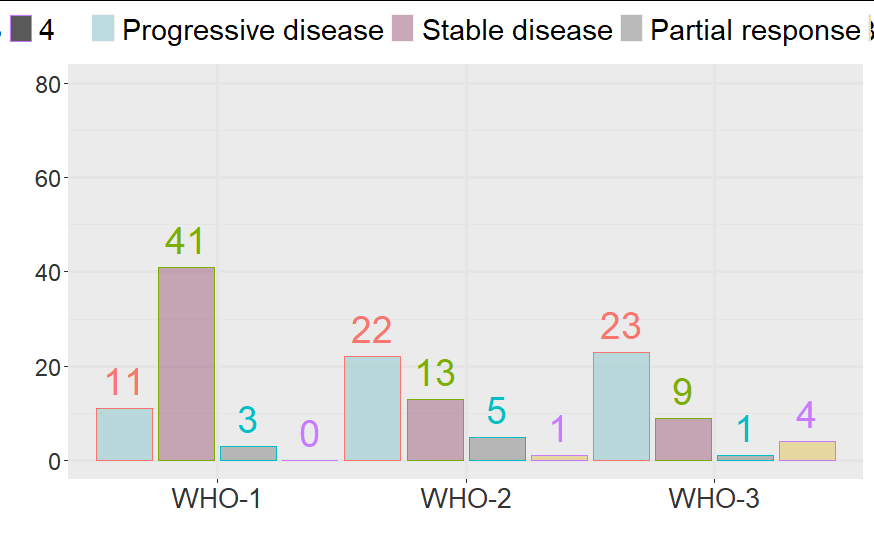

用 count(nyWHO, best.resp, .drop = FALSE)

d <- pp %>%
  as_tibble() %>%
  mutate(nyWHO = as.factor(WHO),
         best.resp = as.factor(case_when(best_rad == "CR" ~ 4,
                                         best_rad == "PR" ~ 3,
                                         best_rad == "SD" ~ 2,
                                         best_rad == "PD" ~ 1))) %>%
  count(nyWHO, best.resp, .drop = FALSE)
d
# A tibble: 12 x 3
   nyWHO best.resp     n
   <fct> <fct>     <int>
 1 1     1            11
 2 1     2            41
 3 1     3             3
 4 1     4             0
 5 2     1            22
 6 2     2            13
 7 2     3             5
 8 2     4             1
 9 3     1            23
10 3     2             9
11 3     3             1
12 3     4             4

ggplot(...)

uj5u.com熱心網友回復：

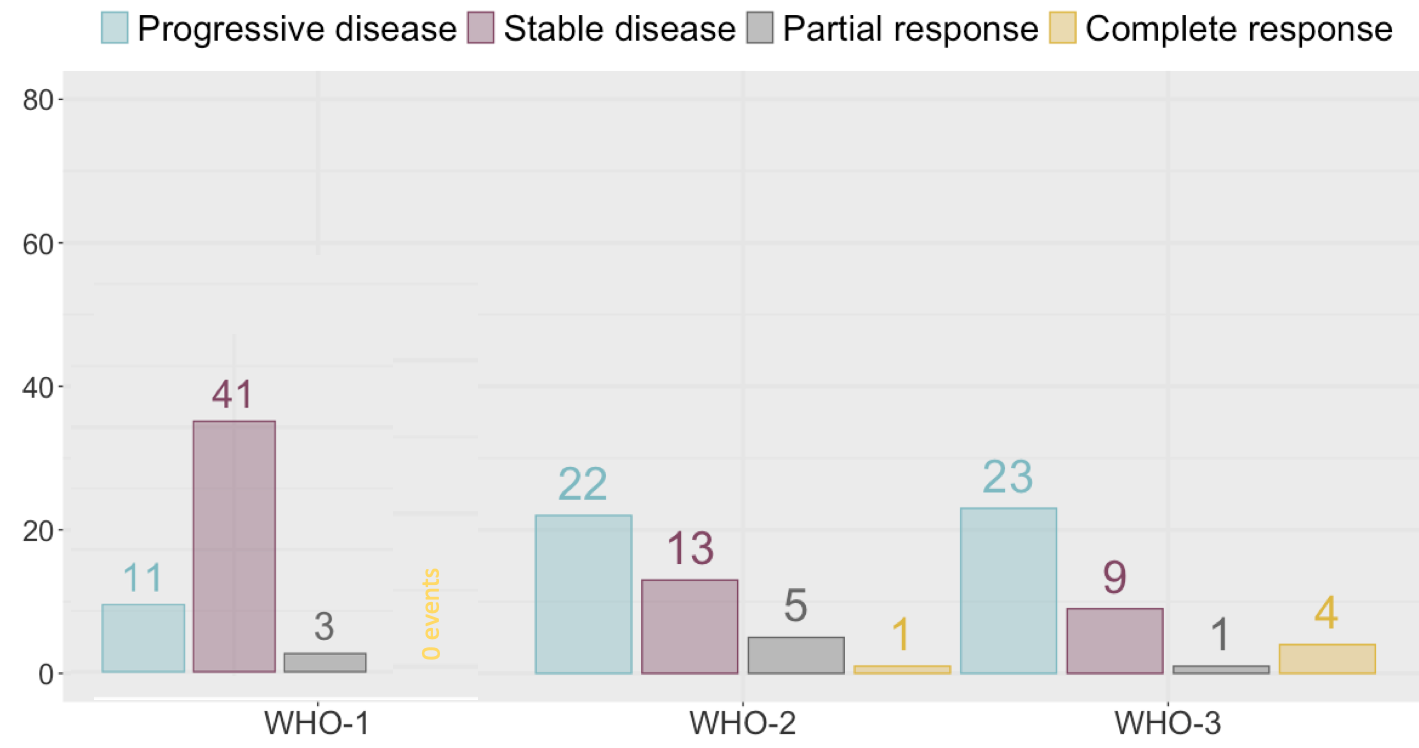

使用.drop = FALSE是解決方案，但如果不可能的話，原始資料不可用，那么解決方案是使用連接擴展所有級別的資料：

...
data <- pp %>%
  as_tibble() %>%
  mutate(nyWHO = as.factor(WHO),
         best.resp = as.factor(case_when(best_rad == "CR" ~ 4,
                                         best_rad == "PR" ~ 3,
                                         best_rad == "SD" ~ 2,
                                         best_rad == "PD" ~ 1))) %>%
  count(nyWHO, best.resp)

data %>%
  full_join(expand(data, nyWHO, best.resp), by = c("nyWHO", "best.resp")) %>%
  replace_na(list(n = 0)) %>%

  ggplot(aes(nyWHO, n, color = best.resp, fill= best.resp))
... # rest of ggplot statement
