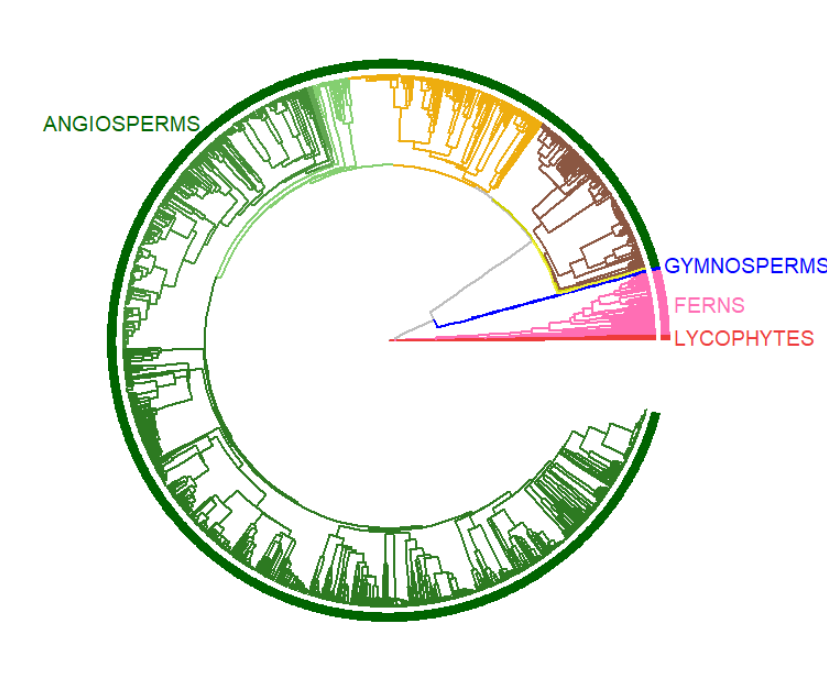

我有一個系統發育樹，如下圖。

將圖例插入不同的圖形

我確實制作了一個假資料框來獲取圖例，現在我想將該圖例插入到系統發育樹的中心。我使用過grid.arrange但我無法移動圖例位置。

我創造的虛假傳說

df <- data.frame(name = c("ANA-GRADE", "ASTERIDS","BASAL EUDICOTS", "BASAL SUPERASTERIDS",
                          "CHOLORANTHALES", "MAGNOLIIDS", "MONOCOTS","ROSIDS",
                          "ANA-GRADE", "ASTERIDS","BASAL EUDICOTS", "BASAL SUPERASTERIDS",
                          "CHOLORANTHALES", "MAGNOLIIDS", "MONOCOTS","ROSIDS"),
                 colour = c("#EFF13A", "#428d34", "#84cf70", "#62a852", "#CDD100",
                            "#8B5742", "#EEAD0E", "#2d7a21", "#EFF13A", "#428d34",
                            "#84cf70", "#62a852", "#CDD100", "#8B5742", "#EEAD0E", "#2d7a21"),
                 x1 = runif(16, 5,100),
                 y1 = runif(16, 20,50))

fake <- df %>% ggplot(aes(x1,y1, colour = name))
  geom_line(size = 1)
  scale_colour_manual(values = c("#EFF13A", "#428d34", "#84cf70", "#62a852", "#CDD100",
                       "#8B5742", "#EEAD0E", "#2d7a21"),
                      name = "Major clade")
  theme_bw()
  theme(legend.title = element_text(face = "bold",size = 12))

legend <- get_legend(fake)

# using grid.arrange

有沒有人建議我使用grid.arrange？

uj5u.com熱心網友回復：

新ggdraw功能 fromcowplot提供了一種選擇。

它接受任何 grob，而不僅僅是 ggplot 物件。

library(tidyverse)
library(cowplot)

df <- data.frame(name = c("ANA-GRADE", "ASTERIDS","BASAL EUDICOTS", "BASAL SUPERASTERIDS",
                          "CHOLORANTHALES", "MAGNOLIIDS", "MONOCOTS","ROSIDS",
                          "ANA-GRADE", "ASTERIDS","BASAL EUDICOTS", "BASAL SUPERASTERIDS",
                          "CHOLORANTHALES", "MAGNOLIIDS", "MONOCOTS","ROSIDS"),
                 colour = c("#EFF13A", "#428d34", "#84cf70", "#62a852", "#CDD100",
                            "#8B5742", "#EEAD0E", "#2d7a21", "#EFF13A", "#428d34",
                            "#84cf70", "#62a852", "#CDD100", "#8B5742", "#EEAD0E", "#2d7a21"),
                 x1 = runif(16, 5,100),
                 y1 = runif(16, 20,50))

fake <-
  df %>% ggplot(aes(x1,y1, colour = name))
  geom_line(size = 1)
  scale_colour_manual(values = c("#EFF13A", "#428d34", "#84cf70", "#62a852", "#CDD100",
                                 "#8B5742", "#EEAD0E", "#2d7a21"),
                      name = "Major clade")
  theme_bw()
  theme(legend.title = element_text(face = "bold",size = 12))


sample_donut_plot <-
  data.frame() %>%
  ggplot(aes(ymin = 0, ymax = 1, xmin = 3, xmax = 4), )
  geom_rect()
  coord_polar(theta="y")
  xlim(c(0, 4))
  theme_void()

legend <- cowplot::get_legend(fake)

cowplot::ggdraw(sample_donut_plot)
  cowplot::draw_plot(legend, x = .25, y = .25, width = .5, height = .5)

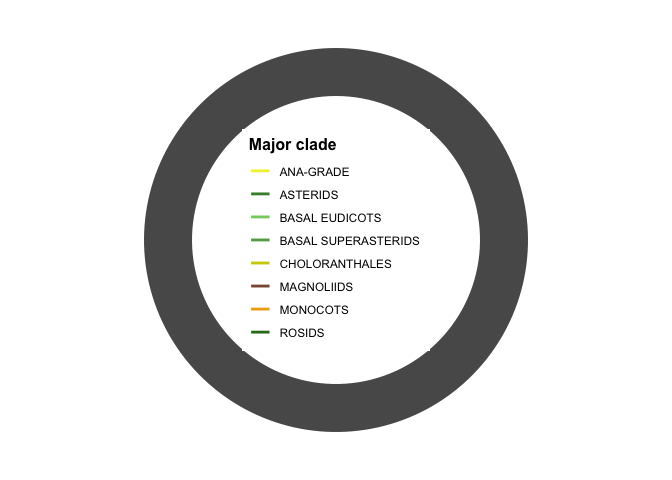

將圖例插入不同的圖形

^{由reprex 包(v2.0.1)于 2021 年 10 月 25 日創建}
