本篇概覽
- 本文是《spring-cloud-square學習》系列的終篇，上一篇咱們了解了spring-cloud-square-okhttp庫的原始碼和原理，今天提升一點難度，看看spring-cloud-square的另一種型別的原始碼：spring-cloud-square-retrofit，也就是下圖紅框中的那種：
原始碼分析目標

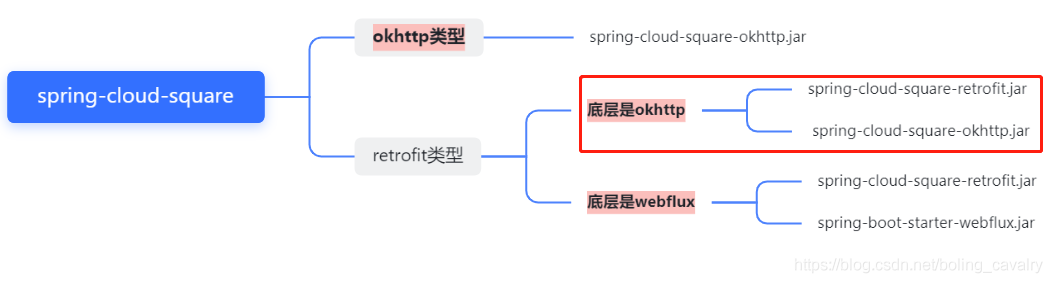

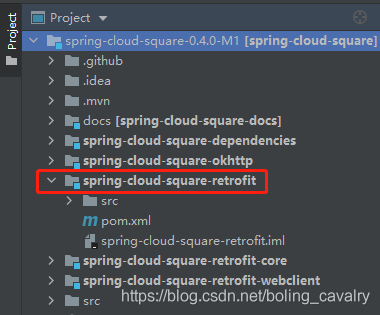

- 接下來開始分析spring-cloud-square-retrofit工程的原始碼，如下圖紅框所示：
- 本篇目標非常明確，只搞清楚一件事：在使用spring-cloud-square的時候，以前文的consumer-retrofit-okhttp子工程為例，為什么咱們只寫了HelloService介面，但卻能通過Autowired注解使用HelloService的實作類？
提前小結
- 如果您想了解spring-cloud-square的retrofit部分的原理，卻又苦于沒有時間深入研究，可以看看下面這份提前小結的內容：
-
整個機制的運轉，可以分為相對獨立的四個部分：業務應用編碼使用spring-cloud-square相關的注解、bean的factory注冊到spring環境、bean的factory類在spring環境實體化、通過factory的實體在spring生產HelloService介面的實作類
-

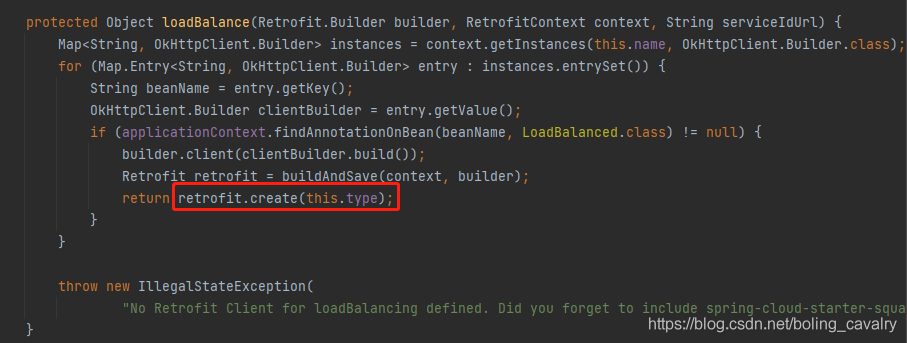

根據上面的分析，最重要的應該是bean的factory類：RetrofitClientFactoryBean，它實作了FactoryBean介面，其getObject方法就是根據HelloService介面生成實作類和關鍵，最侄訓呼叫下圖紅框中的Retrofit.create方法創建實體：

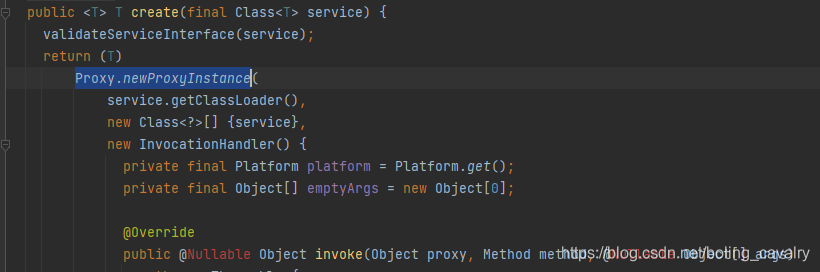

- Retrofit類并非spring-cloud的專案，而是來自Retrofit庫，其create方法中使用了JDK的Proxy.newProxyInstance方法，該方法可以根據HelloService介面生成一個實作了該介面的實體：
- 在使用spring-cloud-square的retrofit + okhttp方案時，HelloService介面中使用的還是遠程服務的服務名，而不是地址和埠，這是因為使用了spring-cloud-square-okhttp庫，所以服務名轉為地址+埠的邏輯與前文《spring-cloud-square原始碼速讀(spring-cloud-square-okhttp篇)》保持一致

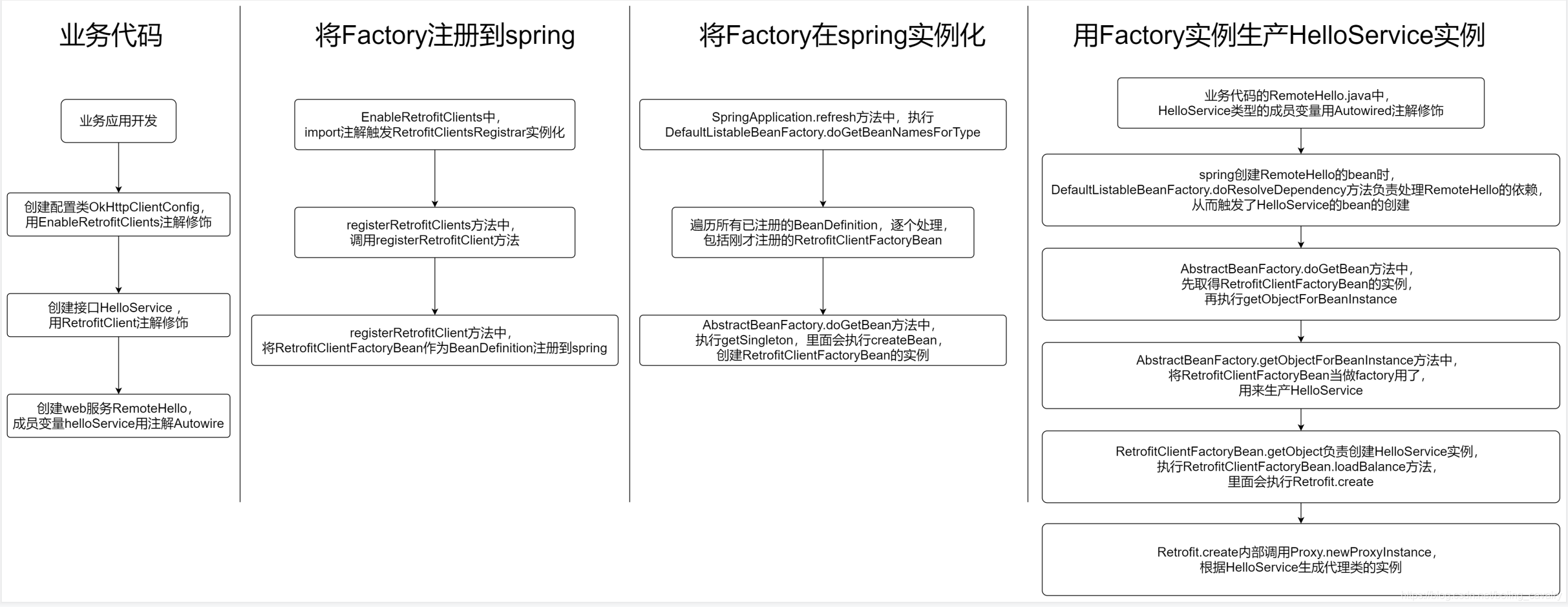

- 以上就是整個原始碼分析的結論了，我將涉及到的關聯代碼流程整理成簡圖，如下所示：
回顧應用如何使用spring-cloud-square-retrofit
- 在分析原始碼之前，先回顧一下《spring-cloud-square開發實戰》中的代碼，咱們當時是如何使用spring-cloud-square-retrofit的(對應demo中的consumer-retrofit-okhttp子工程)
- 新建配置類OkHttpClientConfig，使用了EnableRetrofitClients注解，向spring環境注冊OkHttpClient.Builder實體：
@Configuration
@EnableRetrofitClients
class OkHttpClientConfig{
@Bean
@LoadBalanced
public OkHttpClient.Builder okHttpClientBuilder() {
return new OkHttpClient.Builder();
}
}
- 定義HelloService介面，用注解RetrofitClient修飾，注解的值是遠程呼叫的服務名，里面宣告hello方法，用注解GET修飾，注解的值是遠程呼叫的介面的path：
@RetrofitClient("provider")
public interface HelloService {
@GET("/hello-obj")
Call<HelloResponse> hello(@Query("name") String name);
}
- 在業務要做遠程呼叫的時候，用Autowired注解修飾HelloService介面，即可呼叫HelloService.hello方法，至于介面對應的實體來自哪里，開發者不必關注：
@RestController
public class RemoteHello {
@Autowired(required = false)
HelloService helloService;
@GetMapping("/remote-obj")
public HelloResponse hello(@RequestParam("name") String name) throws IOException {
return helloService.hello(name).execute().body();
}
}
- 以上就是咱們開發業務代碼時使用spring-cloud-square的關鍵操作，接下來就從原始碼角度來分析這些操作到底發揮了什么作用
原始碼分析(類定義注冊階段)
- 回憶一下咱們寫的OkHttpClientConfig.java，里面使用了注解EnableRetrofitClients，這就是本次閱讀代碼的入口：
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import({ RetrofitConfiguration.class, RetrofitClientsRegistrar.class })
public @interface EnableRetrofitClients {
String[] value() default {};
String[] basePackages() default {};
Class<?>[] basePackageClasses() default {};
Class<?>[] defaultConfiguration() default {};
Class<?>[] clients() default {};
}
-
從上述代碼可見RetrofitConfiguration和RetrofitClientsRegistrar都會比實體化，RetrofitConfiguration過于簡單就不看了，重點關注RetrofitClientsRegistrar，先來看它的類圖，搞清楚繼承和實作
-

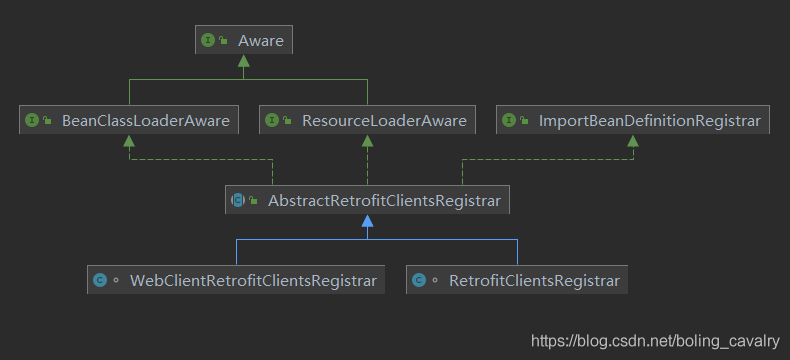

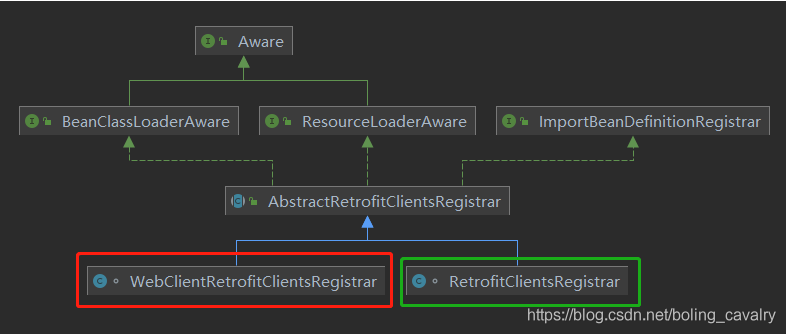

如下圖所示，RetrofitClientsRegistrar集成自AbstractRetrofitClientsRegistrar，而AbstractRetrofitClientsRegistrar又集成自ImportBeanDefinitionRegistrar
-
所以，RetrofitClientsRegistrar被實體化的時候，就相當于ImportBeanDefinitionRegistrar介面的實作類被實體化了，這個ImportBeanDefinitionRegistrar介面，相信熟悉spring的同學對其不會陌生，它是用來動態注冊bean的，那么接下來的重點就是ImportBeanDefinitionRegistrar的registerBeanDefinitions方法的具體內容，看看它到底注冊了什么bean
-
registerBeanDefinitions方法的代碼在AbstractRetrofitClientsRegistrar.java中（請在上面的類圖中找到AbstractRetrofitClientsRegistrar的位置），如下所示，由于EnableRetrofitClients修飾的是咱們創建的OkHttpClientConfig.java，所以下面的入參AnnotationMetadata是OkHttpClientConfig類的注解資訊：
@Override
public void registerBeanDefinitions(AnnotationMetadata metadata, BeanDefinitionRegistry registry) {
registerDefaultConfiguration(metadata, registry);
registerRetrofitClients(metadata, registry);
}
-
上述代碼的第一個方法registerDefaultConfiguration是注冊配置資訊的，非重點，跳過
-
上述代碼的第二個方法registerRetrofitClients，這是本篇的關鍵，請重點關注下面代碼中的中文注釋：
public void registerRetrofitClients(AnnotationMetadata metadata, BeanDefinitionRegistry registry) {
ClassPathScanningCandidateComponentProvider scanner = getScanner();
scanner.setResourceLoader(this.resourceLoader);
Set<String> basePackages;
Map<String, Object> attrs = metadata.getAnnotationAttributes(getAnnotationClass().getName());
// 過濾條件：有RetrofitClient注解修飾的類，對應咱們代碼中的HelloService.java
AnnotationTypeFilter annotationTypeFilter = new AnnotationTypeFilter(RetrofitClient.class);
final Class<?>[] clients = attrs == null ? null : (Class<?>[]) attrs.get("clients");
if (clients == null || clients.length == 0) {
scanner.addIncludeFilter(annotationTypeFilter);
basePackages = getBasePackages(metadata);
}
else {
final Set<String> clientClasses = new HashSet<>();
basePackages = new HashSet<>();
for (Class<?> clazz : clients) {
basePackages.add(ClassUtils.getPackageName(clazz));
clientClasses.add(clazz.getCanonicalName());
}
AbstractClassTestingTypeFilter filter = new AbstractClassTestingTypeFilter() {
@Override
protected boolean match(ClassMetadata metadata) {
String cleaned = metadata.getClassName().replaceAll("\\$", ".");
return clientClasses.contains(cleaned);
}
};
scanner.addIncludeFilter(new AllTypeFilter(Arrays.asList(filter, annotationTypeFilter)));
}
for (String basePackage : basePackages) {
Set<BeanDefinition> candidateComponents = scanner.findCandidateComponents(basePackage);
for (BeanDefinition candidateComponent : candidateComponents) {
// 找到的結果就是HelloService介面
if (candidateComponent instanceof AnnotatedBeanDefinition) {
// verify annotated class is an interface
AnnotatedBeanDefinition beanDefinition = (AnnotatedBeanDefinition) candidateComponent;
AnnotationMetadata annotationMetadata = https://www.cnblogs.com/bolingcavalry/archive/2021/11/04/beanDefinition.getMetadata();
Assert.isTrue(annotationMetadata.isInterface(),"@RetrofitClient can only be specified on an interface");
// 取得修飾HelloService類的RetrofitClient注解的所有屬性
Map<String, Object> attributes = annotationMetadata
.getAnnotationAttributes(RetrofitClient.class.getCanonicalName());
// 根據這些屬性，得到遠程訪問的服務名是provider
String name = getClientName(attributes);
// 在spring注冊一個配置類，名為provider.RetrofitClientSpecification，
// 由于修飾HelloService的RetrofitClient注解并沒有什么屬性，所以這個配置類沒有什么內容
registerClientConfiguration(registry, name, attributes.get("configuration"));
// 這個方法要重點關注，
// 入參annotationMetadata是HelloService的元資訊，
// attributes是修飾HelloService類的RetrofitClient注解的所有屬性
registerRetrofitClient(registry, annotationMetadata, attributes);
}
}
}
}
- 將上述代碼中最后呼叫的registerRetrofitClient方法展開如下，這段代碼做了件很重要的事情：注冊BeanDefinition到spring，注冊的name等于com.bolingcavalry.consumer.service.HelloService，對應的BeanDefinition的beanClass等于RetrofitClientFactoryBean：
private void registerRetrofitClient(BeanDefinitionRegistry registry, AnnotationMetadata annotationMetadata,
Map<String, Object> attributes) {
// 由于注解修飾的是HelloService類，所以這里className等于com.bolingcavalry.consumer.service.HelloService
String className = annotationMetadata.getClassName();
// 注意getFactoryBeanClass()方法，來自RetrofitClientsRegistrar類，回傳值是RetrofitClientFactoryBean.class，
// 因此，RetrofitClientFactoryBean就被帶入了definition中，
// 注意，這個definition變數的型別是BeanDefinitionBuilder,
// 其內部有個成員變數beanDefinition，此時該成員變數的beanClass欄位已經被設定為RetrofitClientFactoryBean.class
BeanDefinitionBuilder definition = BeanDefinitionBuilder.genericBeanDefinition(getFactoryBeanClass());
validate(attributes);
// HelloService的RetrofitClient注解沒有設定url屬性，因此這里是空字串
definition.addPropertyValue("url", getUrl(attributes));
// RetrofitClient注解的value屬性配置為遠程服務名，這里是provider
String name = getName(attributes);
definition.addPropertyValue("name", name);
// 型別就是HelloService
definition.addPropertyValue("type", className);
// by_type，意味著autowire注解修飾HelloService的時候，可以用HelloService獲取對應的實作類
definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
String alias = name + "RetrofitClient";
// 通過BeanDefinitionBuilder得到了beanDefinition，
// 這個beanDefinition的beanClass欄位在前面已經被設定為RetrofitClientFactoryBean.class
AbstractBeanDefinition beanDefinition = definition.getBeanDefinition();
beanDefinition.setPrimary(true);
String qualifier = getQualifier(attributes);
if (StringUtils.hasText(qualifier)) {
alias = qualifier;
}
// 將注冊BeanDefinition所需的兩個引數beanName和beanDefinition放入BeanDefinitionHolder物件中
BeanDefinitionHolder holder = new BeanDefinitionHolder(beanDefinition, className, new String[] { alias });
// 完成BeanDefinition在spring環境的注冊，name等于com.bolingcavalry.consumer.service.HelloService，對應的BeanDefinition的beanClass等于RetrofitClientFactoryBean(注意，這很重要)
BeanDefinitionReaderUtils.registerBeanDefinition(holder, registry);
}
- 此刻，HelloService的類定義已經在spring完成了注冊，接下來要看HelloService介面的實作類來自何處；
BeanDefinition中的RetrofitClientFactoryBean被實體化
-

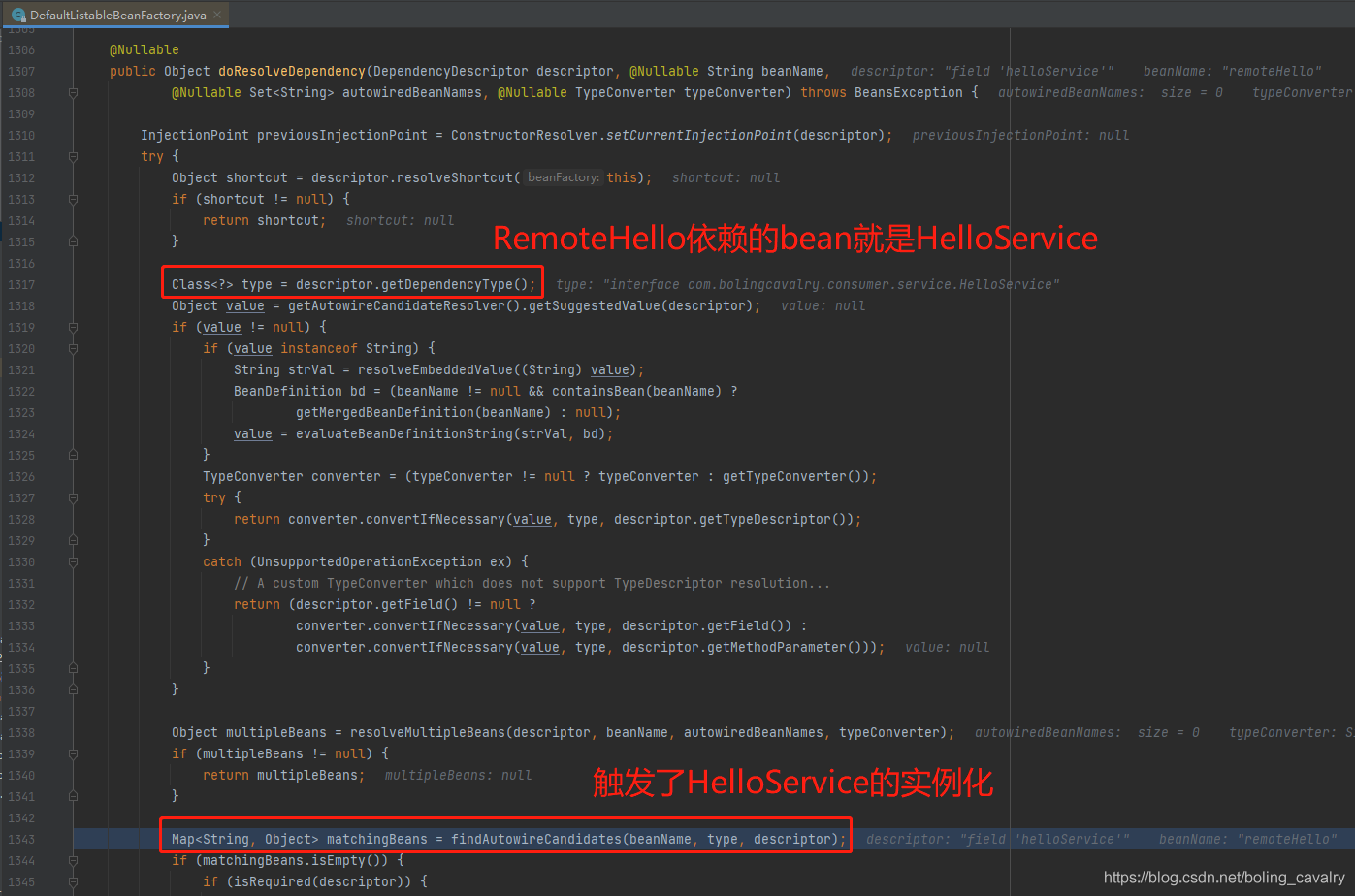

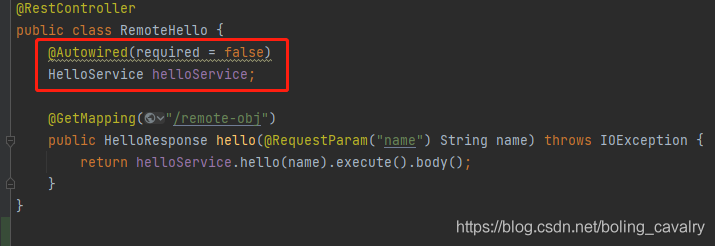

在spring初始化程序中，上述紅框中的代碼會觸發spring環境對HelloService介面實作類的實體化，完整的觸發程序和詳細堆疊就不細說了，這都是spring的標準處理流程，接下來會挑這里面的重點去看
-

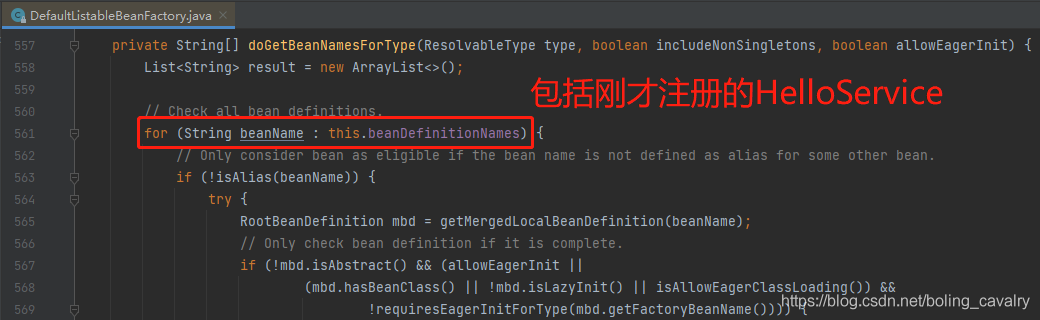

首先就是大名鼎鼎的SpringApplication.refresh方法，這里面是bean的實體化邏輯，會執行一個重要方法，就是DefaultListableBeanFactory.doGetBeanNamesForType，這里面會遍歷所有已注冊的BeanDefinition，逐個處理，如下圖：

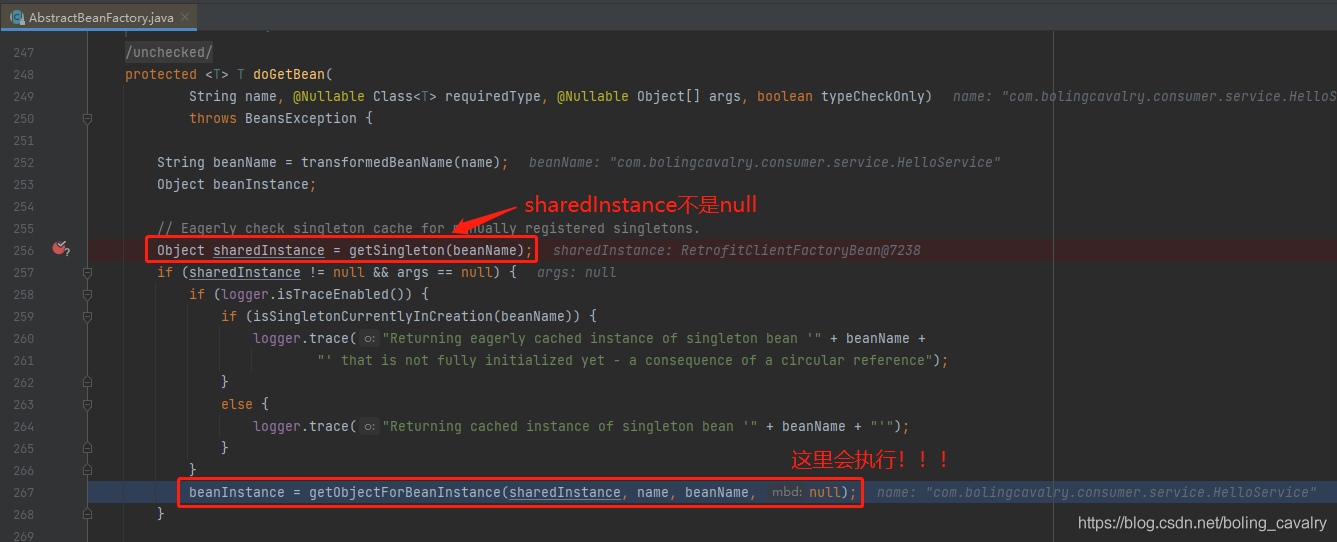

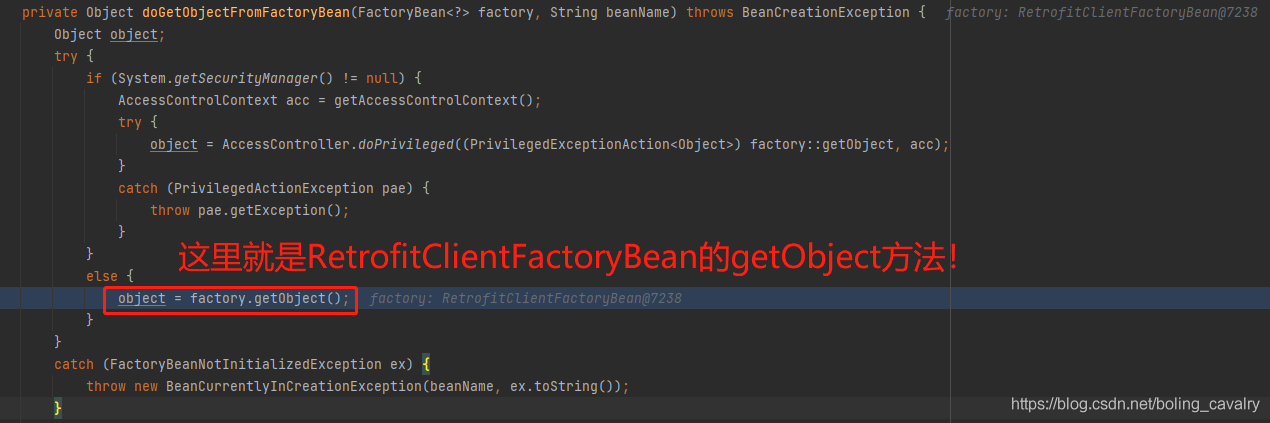

- DefaultListableBeanFactory.doGetBeanNamesForType繼續執行，會到下一個重點：根據BeanDefinition創建bean，堆疊如下，這是用條件斷點得到的：
doGetBean:256, AbstractBeanFactory (org.springframework.beans.factory.support) [2]
getTypeForFactoryBean:1709, AbstractBeanFactory (org.springframework.beans.factory.support)
getTypeForFactoryBean:899, AbstractAutowireCapableBeanFactory (org.springframework.beans.factory.support)
isTypeMatch:637, AbstractBeanFactory (org.springframework.beans.factory.support)
doGetBeanNamesForType:583, DefaultListableBeanFactory (org.springframework.beans.factory.support)
getBeanNamesForType:542, DefaultListableBeanFactory (org.springframework.beans.factory.support)
beanNamesForTypeIncludingAncestors:265, BeanFactoryUtils (org.springframework.beans.factory)
findAutowireCandidates:1546, DefaultListableBeanFactory (org.springframework.beans.factory.support)
doResolveDependency:1343, DefaultListableBeanFactory (org.springframework.beans.factory.support)
resolveDependency:1300, DefaultListableBeanFactory (org.springframework.beans.factory.support)
resolveAutowiredArgument:887, ConstructorResolver (org.springframework.beans.factory.support)
createArgumentArray:791, ConstructorResolver (org.springframework.beans.factory.support)
instantiateUsingFactoryMethod:541, ConstructorResolver (org.springframework.beans.factory.support)
instantiateUsingFactoryMethod:1334, AbstractAutowireCapableBeanFactory (org.springframework.beans.factory.support)
createBeanInstance:1177, AbstractAutowireCapableBeanFactory (org.springframework.beans.factory.support)
doCreateBean:564, AbstractAutowireCapableBeanFactory (org.springframework.beans.factory.support)
createBean:524, AbstractAutowireCapableBeanFactory (org.springframework.beans.factory.support)
lambda$doGetBean$0:335, AbstractBeanFactory (org.springframework.beans.factory.support)
getObject:-1, 1485624601 (org.springframework.beans.factory.support.AbstractBeanFactory$$Lambda$488)
getSingleton:234, DefaultSingletonBeanRegistry (org.springframework.beans.factory.support)
doGetBean:333, AbstractBeanFactory (org.springframework.beans.factory.support) [1]
getBean:213, AbstractBeanFactory (org.springframework.beans.factory.support)
registerBeanPostProcessors:258, PostProcessorRegistrationDelegate (org.springframework.context.support)
registerBeanPostProcessors:762, AbstractApplicationContext (org.springframework.context.support)
refresh:567, AbstractApplicationContext (org.springframework.context.support)
refresh:769, SpringApplication (org.springframework.boot)
refresh:761, SpringApplication (org.springframework.boot)
refreshContext:426, SpringApplication (org.springframework.boot)
run:326, SpringApplication (org.springframework.boot)
loadContext:123, SpringBootContextLoader (org.springframework.boot.test.context)
loadContextInternal:99, DefaultCacheAwareContextLoaderDelegate (org.springframework.test.context.cache)
loadContext:124, DefaultCacheAwareContextLoaderDelegate (org.springframework.test.context.cache)
getApplicationContext:124, DefaultTestContext (org.springframework.test.context.support)
setUpRequestContextIfNecessary:190, ServletTestExecutionListener (org.springframework.test.context.web)
prepareTestInstance:132, ServletTestExecutionListener (org.springframework.test.context.web)
prepareTestInstance:244, TestContextManager (org.springframework.test.context)
postProcessTestInstance:138, SpringExtension (org.springframework.test.context.junit.jupiter)
lambda$invokeTestInstancePostProcessors$6:350, ClassBasedTestDescriptor (org.junit.jupiter.engine.descriptor)
execute:-1, 2001115307 (org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor$$Lambda$344)
executeAndMaskThrowable:355, ClassBasedTestDescriptor (org.junit.jupiter.engine.descriptor)
lambda$invokeTestInstancePostProcessors$7:350, ClassBasedTestDescriptor (org.junit.jupiter.engine.descriptor)
accept:-1, 1650113431 (org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor$$Lambda$343)
accept:-1, 796667727 (java.util.stream.StreamSpliterators$WrappingSpliterator$$Lambda$107)
accept:193, ReferencePipeline$3$1 (java.util.stream)
accept:175, ReferencePipeline$2$1 (java.util.stream)
forEachRemaining:1384, ArrayList$ArrayListSpliterator (java.util)
copyInto:482, AbstractPipeline (java.util.stream)
wrapAndCopyInto:472, AbstractPipeline (java.util.stream)
forEachRemaining:312, StreamSpliterators$WrappingSpliterator (java.util.stream)
forEachRemaining:743, Streams$ConcatSpliterator (java.util.stream)
forEachRemaining:742, Streams$ConcatSpliterator (java.util.stream)
forEach:580, ReferencePipeline$Head (java.util.stream)
invokeTestInstancePostProcessors:349, ClassBasedTestDescriptor (org.junit.jupiter.engine.descriptor)
lambda$instantiateAndPostProcessTestInstance$4:270, ClassBasedTestDescriptor (org.junit.jupiter.engine.descriptor)
execute:-1, 1547883191 (org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor$$Lambda$342)
execute:73, ThrowableCollector (org.junit.platform.engine.support.hierarchical)
instantiateAndPostProcessTestInstance:269, ClassBasedTestDescriptor (org.junit.jupiter.engine.descriptor)
lambda$testInstancesProvider$2:259, ClassBasedTestDescriptor (org.junit.jupiter.engine.descriptor)
get:-1, 795748540 (org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor$$Lambda$335)
orElseGet:267, Optional (java.util)
lambda$testInstancesProvider$3:258, ClassBasedTestDescriptor (org.junit.jupiter.engine.descriptor)
getTestInstances:-1, 361398902 (org.junit.jupiter.engine.descriptor.ClassBasedTestDescriptor$$Lambda$234)
getTestInstances:31, TestInstancesProvider (org.junit.jupiter.engine.execution)
lambda$prepare$0:101, TestMethodTestDescriptor (org.junit.jupiter.engine.descriptor)
execute:-1, 451312813 (org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor$$Lambda$334)
execute:73, ThrowableCollector (org.junit.platform.engine.support.hierarchical)
prepare:100, TestMethodTestDescriptor (org.junit.jupiter.engine.descriptor)
prepare:65, TestMethodTestDescriptor (org.junit.jupiter.engine.descriptor)
lambda$prepare$1:111, NodeTestTask (org.junit.platform.engine.support.hierarchical)
execute:-1, 1008315045 (org.junit.platform.engine.support.hierarchical.NodeTestTask$$Lambda$182)
execute:73, ThrowableCollector (org.junit.platform.engine.support.hierarchical)
prepare:111, NodeTestTask (org.junit.platform.engine.support.hierarchical)
execute:79, NodeTestTask (org.junit.platform.engine.support.hierarchical)
accept:-1, 1976870338 (org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService$$Lambda$201)
forEach:1259, ArrayList (java.util)
invokeAll:38, SameThreadHierarchicalTestExecutorService (org.junit.platform.engine.support.hierarchical)
lambda$executeRecursively$5:143, NodeTestTask (org.junit.platform.engine.support.hierarchical)
execute:-1, 1647809929 (org.junit.platform.engine.support.hierarchical.NodeTestTask$$Lambda$197)
execute:73, ThrowableCollector (org.junit.platform.engine.support.hierarchical)
lambda$executeRecursively$7:129, NodeTestTask (org.junit.platform.engine.support.hierarchical)
invoke:-1, 928294079 (org.junit.platform.engine.support.hierarchical.NodeTestTask$$Lambda$196)
around:137, Node (org.junit.platform.engine.support.hierarchical)
lambda$executeRecursively$8:127, NodeTestTask (org.junit.platform.engine.support.hierarchical)
execute:-1, 728885526 (org.junit.platform.engine.support.hierarchical.NodeTestTask$$Lambda$195)
execute:73, ThrowableCollector (org.junit.platform.engine.support.hierarchical)
executeRecursively:126, NodeTestTask (org.junit.platform.engine.support.hierarchical)
execute:84, NodeTestTask (org.junit.platform.engine.support.hierarchical)
accept:-1, 1976870338 (org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService$$Lambda$201)
forEach:1259, ArrayList (java.util)
invokeAll:38, SameThreadHierarchicalTestExecutorService (org.junit.platform.engine.support.hierarchical)
lambda$executeRecursively$5:143, NodeTestTask (org.junit.platform.engine.support.hierarchical)
execute:-1, 1647809929 (org.junit.platform.engine.support.hierarchical.NodeTestTask$$Lambda$197)
execute:73, ThrowableCollector (org.junit.platform.engine.support.hierarchical)
lambda$executeRecursively$7:129, NodeTestTask (org.junit.platform.engine.support.hierarchical)
invoke:-1, 928294079 (org.junit.platform.engine.support.hierarchical.NodeTestTask$$Lambda$196)
around:137, Node (org.junit.platform.engine.support.hierarchical)
lambda$executeRecursively$8:127, NodeTestTask (org.junit.platform.engine.support.hierarchical)
execute:-1, 728885526 (org.junit.platform.engine.support.hierarchical.NodeTestTask$$Lambda$195)
execute:73, ThrowableCollector (org.junit.platform.engine.support.hierarchical)
executeRecursively:126, NodeTestTask (org.junit.platform.engine.support.hierarchical)
execute:84, NodeTestTask (org.junit.platform.engine.support.hierarchical)
submit:32, SameThreadHierarchicalTestExecutorService (org.junit.platform.engine.support.hierarchical)
execute:57, HierarchicalTestExecutor (org.junit.platform.engine.support.hierarchical)
execute:51, HierarchicalTestEngine (org.junit.platform.engine.support.hierarchical)
execute:108, EngineExecutionOrchestrator (org.junit.platform.launcher.core)
execute:88, EngineExecutionOrchestrator (org.junit.platform.launcher.core)
lambda$execute$0:54, EngineExecutionOrchestrator (org.junit.platform.launcher.core)
accept:-1, 607932305 (org.junit.platform.launcher.core.EngineExecutionOrchestrator$$Lambda$150)
withInterceptedStreams:67, EngineExecutionOrchestrator (org.junit.platform.launcher.core)
execute:52, EngineExecutionOrchestrator (org.junit.platform.launcher.core)
execute:96, DefaultLauncher (org.junit.platform.launcher.core)
execute:75, DefaultLauncher (org.junit.platform.launcher.core)
startRunnerWithArgs:71, JUnit5IdeaTestRunner (com.intellij.junit5)
startRunnerWithArgs:33, IdeaTestRunner$Repeater (com.intellij.rt.junit)
prepareStreamsAndStart:221, JUnitStarter (com.intellij.rt.junit)
main:54, JUnitStarter (com.intellij.rt.junit)
- 根據上述堆疊，要細看AbstractBeanFactory的doGetBean方法，請關注中文注釋：
protected <T> T doGetBean(
String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
throws BeansException {
// 入參name等于"com.bolingcavalry.consumer.service.HelloService"
String beanName = transformedBeanName(name);
Object beanInstance;
// Eagerly check singleton cache for manually registered singletons.
Object sharedInstance = getSingleton(beanName);
// sharedInstance等于null，因此下面的if判斷不成立
if (sharedInstance != null && args == null) {
if (logger.isTraceEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
}
}
beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
else {
// Fail if we're already creating this bean instance:
// We're assumably within a circular reference.
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
// Check if bean definition exists in this factory.
BeanFactory parentBeanFactory = getParentBeanFactory();
// parentBeanFactory等于null，因此下面的if判斷不成立
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// Not found -> check parent.
String nameToLookup = originalBeanName(name);
if (parentBeanFactory instanceof AbstractBeanFactory) {
return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
nameToLookup, requiredType, args, typeCheckOnly);
}
else if (args != null) {
// Delegation to parent with explicit args.
return (T) parentBeanFactory.getBean(nameToLookup, args);
}
else if (requiredType != null) {
// No args -> delegate to standard getBean method.
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
else {
return (T) parentBeanFactory.getBean(nameToLookup);
}
}
// typeCheckOnly等于true，因此下面的if判斷不成立
if (!typeCheckOnly) {
markBeanAsCreated(beanName);
}
StartupStep beanCreation = this.applicationStartup.start("spring.beans.instantiate")
.tag("beanName", name);
try {
if (requiredType != null) {
beanCreation.tag("beanType", requiredType::toString);
}
// 前面咱們分析過，BeanDefinition已經注冊到spring環境了，
// 此處呼叫getMergedLocalBeanDefinition即可取得這個BeanDefinition
RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
checkMergedBeanDefinition(mbd, beanName, args);
// Guarantee initialization of beans that the current bean depends on.
String[] dependsOn = mbd.getDependsOn();
// HelloService的BeanDefinition沒有依賴，
// 因此dependsOn等于null，下面的if不成立
if (dependsOn != null) {
for (String dep : dependsOn) {
if (isDependent(beanName, dep)) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
registerDependentBean(dep, beanName);
try {
getBean(dep);
}
catch (NoSuchBeanDefinitionException ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"'" + beanName + "' depends on missing bean '" + dep + "'", ex);
}
}
}
// Create bean instance.
// HelloService的bean是單例，因此下面的if判斷成立
if (mbd.isSingleton()) {
// 這里是創建bean的關鍵！！！
// getSingleton傳入一個lambda運算式，方法內會呼叫該運算式，
sharedInstance = getSingleton(beanName, () -> {
try {
// 根據BeanDefinition創建bean，
// 實際上執行的是AbstractAutowireCapableBeanFactory.createBean方法
return createBean(beanName, mbd, args);
}
catch (BeansException ex) {
// Explicitly remove instance from singleton cache: It might have been put there
// eagerly by the creation process, to allow for circular reference resolution.
// Also remove any beans that received a temporary reference to the bean.
destroySingleton(beanName);
throw ex;
}
});
beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
else if (mbd.isPrototype()) {
// It's a prototype -> create a new instance.
Object prototypeInstance = null;
try {
beforePrototypeCreation(beanName);
prototypeInstance = createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
beanInstance = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
}
else {
String scopeName = mbd.getScope();
if (!StringUtils.hasLength(scopeName)) {
throw new IllegalStateException("No scope name defined for bean ′" + beanName + "'");
}
Scope scope = this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
}
try {
Object scopedInstance = scope.get(beanName, () -> {
beforePrototypeCreation(beanName);
try {
return createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
});
beanInstance = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
}
catch (IllegalStateException ex) {
throw new ScopeNotActiveException(beanName, scopeName, ex);
}
}
}
catch (BeansException ex) {
beanCreation.tag("exception", ex.getClass().toString());
beanCreation.tag("message", String.valueOf(ex.getMessage()));
cleanupAfterBeanCreationFailure(beanName);
throw ex;
}
finally {
beanCreation.end();
}
}
return adaptBeanInstance(name, beanInstance, requiredType);
}
- 至此，RetrofitClientFactoryBean已經完成了實體化，接下來要去看HelloService介面背后的bean是怎么創建的
HelloService對應的bean是如何創建的
- 回顧一下，咱們的應用代碼中用到HelloService的場景，如下圖紅框所示，使用Autowired注解修飾HelloService：
- 首先，上圖中的RemoteHello是一定會創建bean的，在創建的程序中，DefaultListableBeanFactory.doResolveDependency方法負責處理RemoteHello依賴的bean，如下圖所示，在此處觸發了HelloService的bean的實體化
- 輾轉反側，再次走到了AbstractBeanFactory.doGetBean方法，這次會執行下圖第二個紅框中的getObjectForBeanInstance方法：

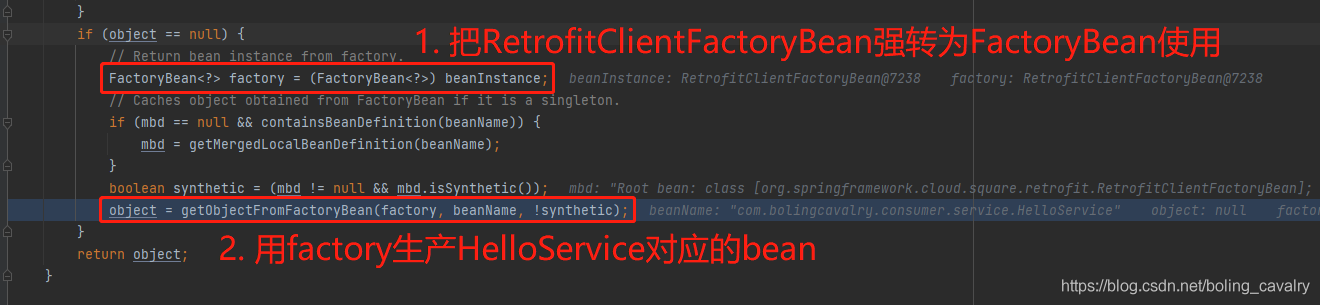

- 然后到了最關鍵的位置：AbstractBeanFactory.getObjectForBeanInstance方法，這里面將RetrofitClientFactoryBean當做factory用了，用來生產HelloService：
- 將上圖紅框2中的getObjectFromFactoryBean方法繼續展開，進入FactoryBeanRegistrySupport.doGetObjectFromFactoryBean方法，這里完成了從spring框架到應用自定義之間的過渡：將bean的創建交給應用自己注冊的Factory來處理：

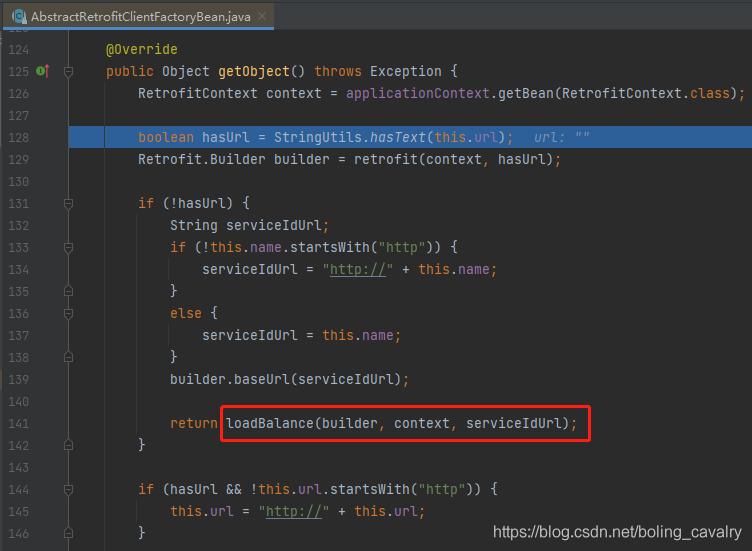

- 在RetrofitClientFactoryBean.getObject中，執行loadBalance(builder, context, serviceIdUrl)：
- loadBalance的實作在RetrofitClientFactoryBean中：
protected Object loadBalance(Retrofit.Builder builder, RetrofitContext context, String serviceIdUrl) {
// 應用代碼的OkHttpClientConfig.java中，okHttpClientBuilder方法生成了OkHttpClient.Builder實體，此處的instances中就是這個實體
Map<String, OkHttpClient.Builder> instances = context.getInstances(this.name, OkHttpClient.Builder.class);
for (Map.Entry<String, OkHttpClient.Builder> entry : instances.entrySet()) {
String beanName = entry.getKey();
OkHttpClient.Builder clientBuilder = entry.getValue();
// 應用代碼的OkHttpClientConfig.java中，okHttpClientBuilder方法上已經用了LoadBalanced注解，
//所以下面這個if判斷為true
if (applicationContext.findAnnotationOnBean(beanName, LoadBalanced.class) != null) {
// 創建了OkHttpClient實體，傳給了這個Retrofit.Builder
builder.client(clientBuilder.build());
// 使用這個Retrofit.Builder去創建retrofit，相當于把上面創建的OkHttpClient實體帶給了retrofit
// 所以，這個retrofit實體的底層就是OkHttpClient
Retrofit retrofit = buildAndSave(context, builder);
// type的型別是HelloService，
// retrofit.create就是要創建一個實體,該實體實作了HelloService介面
return retrofit.create(this.type);
}
}
throw new IllegalStateException(
"No Retrofit Client for loadBalancing defined. Did you forget to include spring-cloud-starter-square-okhttp?");
}
-
從上面的分析可見，咱們只寫HelloService介面不寫HelloService實作的關鍵就是retrofit.create方法，傳入了一個介面定義，就能回傳該介面的實作類的實體
-
說實話retrofit.create的原始碼并不屬于spring-cloud-square，而是Retrofit自己的，在本文中看這段原始碼屬于超綱，但我還是忍不住要看一下：
public <T> T create(final Class<T> service) {
// 一些檢查，例如service是不是介面
validateServiceInterface(service);
return (T)
// 這個實體是通過JDK的Proxy.newProxyInstance創建的
Proxy.newProxyInstance(
service.getClassLoader(),
new Class<?>[] {service},
new InvocationHandler() {
private final Platform platform = Platform.get();
private final Object[] emptyArgs = new Object[0];
// 業務應用執行HelloService的hello方法時，實際上執行的是下面的方法
@Override
public @Nullable Object invoke(Object proxy, Method method, @Nullable Object[] args)
throws Throwable {
// If the method is a method from Object then defer to normal invocation.
if (method.getDeclaringClass() == Object.class) {
return method.invoke(this, args);
}
args = args != null ? args : emptyArgs;
return platform.isDefaultMethod(method)
? platform.invokeDefaultMethod(method, service, proxy, args)
: loadServiceMethod(method).invoke(args);
}
});
}
-
至此終于真像大白，最侄訓是用Proxy.newProxyInstance生成了HelloService的代理類實體，作為HelloService.hello呼叫背后的真正實作
-
最后似憾訓有一點疑問，就是HelloService的RetrofitClient注解的屬性是服務名provider，那么真正網路請求的時候，是如何轉成真實的地址和埠的呢？
-

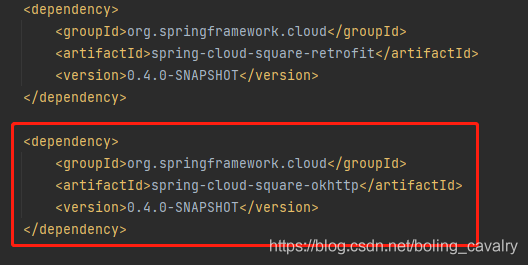

再回頭看看咱應用consumer-retrofit-okhttp的pom.xml檔案，如下圖紅框所示，和前文一樣，這里也使用了spring-cloud-square-okhttp，而且咱們寫的OkHttpClientConfig.java和前文也是一樣的，所以，根據服務名獲取地址和埠的操作依舊可以用前文的分析來解釋：
- 至于HelloService.hello方法，如何對應到web請求，請容我說一聲：這是retrofit和okhttp之間的事情，在這里算是超綱了，篇幅所限，實在展不開了...
尾記：關于另一種spring-cloud-square型別：retrofit + webflux

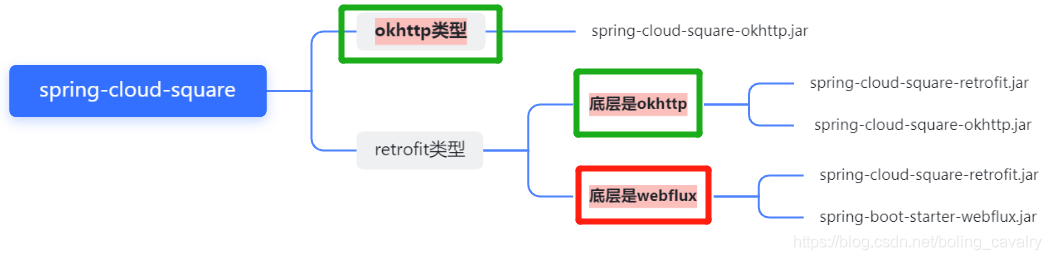

- 之前的文章已經分析過，spring-cloud-square一共有三種型別，如下圖所示，兩個綠框中的原始碼都分析過了，還剩下的只有紅色的retrofit + webflux組合：
-
欣宸還要再寫一篇retrofit + webflux原始碼分析的文章？不不不，讀原始碼太累，寫出的文章，聰明的您讀起來也累，所以就此打住吧
-
如果勤奮努力的您想獨立閱讀分析retrofit + webflux原始碼，這里給您一個建議，還記得本篇前面的那個類圖嗎，如下圖，使用retrofit + webflux的時候，會用到spring-cloud-square-retrofit-webclient.jar，這個jar里面也有OkHttpClientConfig注解，它的import會實體化下圖紅框中的類，這個類就是您閱讀原始碼的入口：
- 至此《spring-cloud-square學習》系列已經全部完成，希望這四篇文章可以幫助您全面掌握spring-cloud-square，在您的專案中對遠程呼叫的操作更加得心應手；
你不孤單，欣宸原創一路相伴
- Java系列
- Spring系列
- Docker系列
- kubernetes系列
- 資料庫+中間件系列
- DevOps系列
歡迎關注公眾號：程式員欣宸
微信搜索「程式員欣宸」，我是欣宸，期待與您一同暢游Java世界...
https://github.com/zq2599/blog_demos
轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/347264.html
標籤：其他
