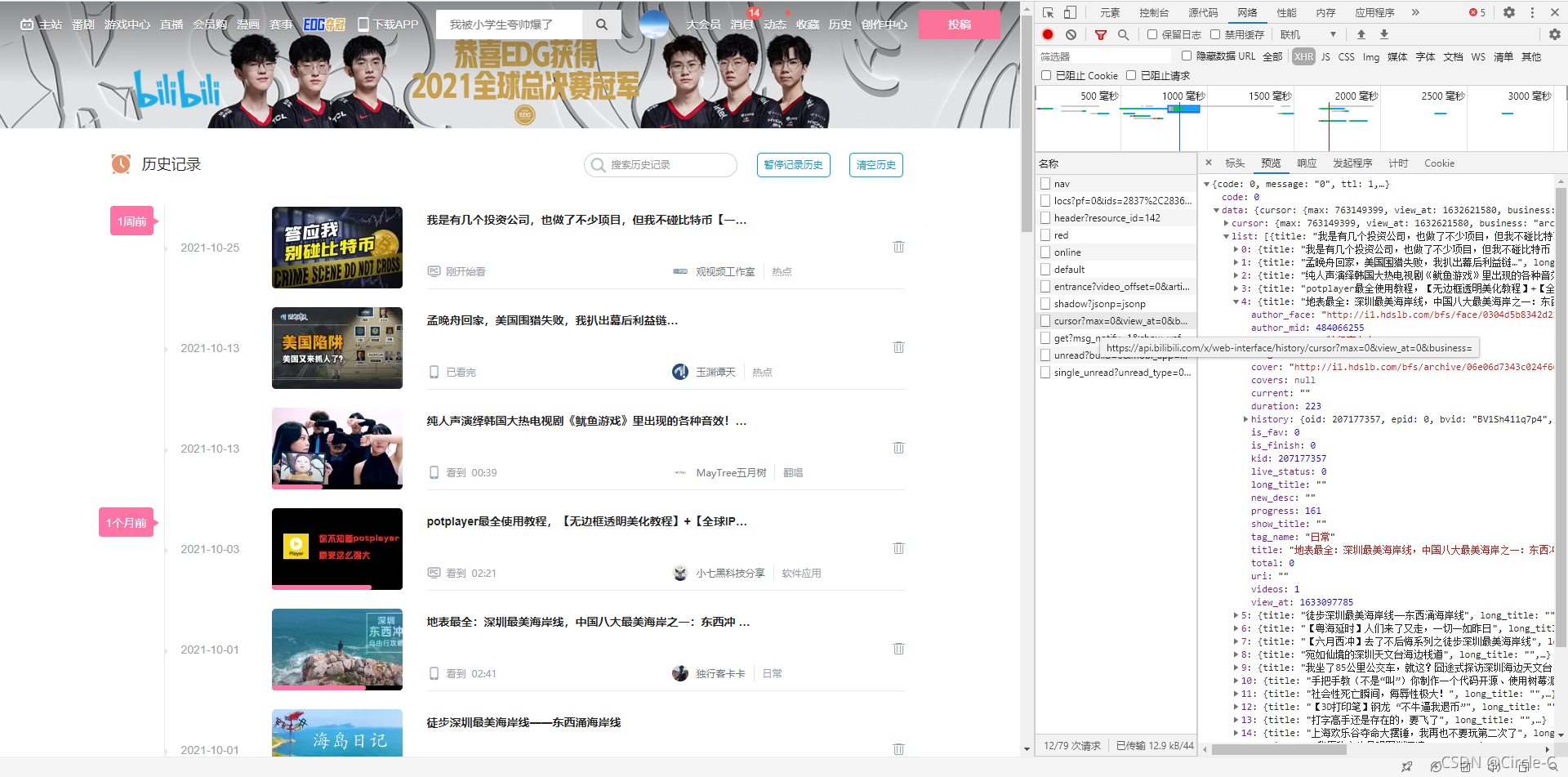

待爬取的資料
爬蟲代碼
import os
import time
import requests
import pandas as pd
# cookie 用瀏覽器登錄B站，按F12打開開發人員工具，找到自己的cookie替換
cookies_dict = {'_uuid': "1C7F0395-1CDC-5BBF-E859-528F14EA305F09211infoc",
'bili_jct': "379cd5610f8d21596f2b2f29737b8369",
'blackside_state': "1",
'bp_t_offset_23436622': "590187858631120173",
'bp_video_offset_23436622': "590019044938733647",
'buvid_fp': "39749394-CBB7-407C-9BDE-FCE21FA6F68A13420infoc",
'buvid_fp_plain': "39749394-CBB7-407C-9BDE-FCE21FA6F68A13420infoc",
'buvid3': "39749394-CBB7-407C-9BDE-FCE21FA6F68A13420infoc",
'CURRENT_FNVAL': "976",
'CURRENT_QUALITY': "80",
'DedeUserID': "23436622",
'DedeUserID__ckMd5': "4dee66ab9d320fb1",
'fingerprint': "a705f93cd569878dd9441844801a58b0",
'innersign': "0",
'LIVE_BUVID': "AUTO6116247192375889",
'PVID': "1",
'rpdid': "|(RlllJ~R~R1J'uYkRllukkR",
'SESSDATA': "9ed4af92,1643348674,9e746*81",
'sid': "j08zwekk",
'video_page_version': "v_old_home_5"}
session = requests.Session()
response = session.get('https://api.bilibili.com/x/web-interface/history/cursor', cookies=cookies_dict)
history_list = []
cur_list = response.json()['data']['list']
while cur_list:
view_at = cur_list[0].get('view_at')
strftime = time.strftime('%Y-%m-%d %H:%M:%S', time.localtime(view_at))
title = cur_list[0].get('title')
print(strftime, title)
history_list += cur_list
cursor = response.json()['data']['cursor']
url = 'https://api.bilibili.com/x/web-interface/history/cursor?max={}&view_at={}&business=archive'.format(cursor['max'], cursor['view_at'])
response = session.get(url, cookies=cookies_dict)
cur_list = response.json()['data']['list']
time.sleep(1)
print('git history info success')
df_history = pd.DataFrame(history_list)
strftime = time.strftime('%Y-%m-%d', time.localtime())
fpath = os.path.join(os.getcwd(), f'bili_history_{strftime}.xlsx')
df_history.to_excel(fpath, index=False)

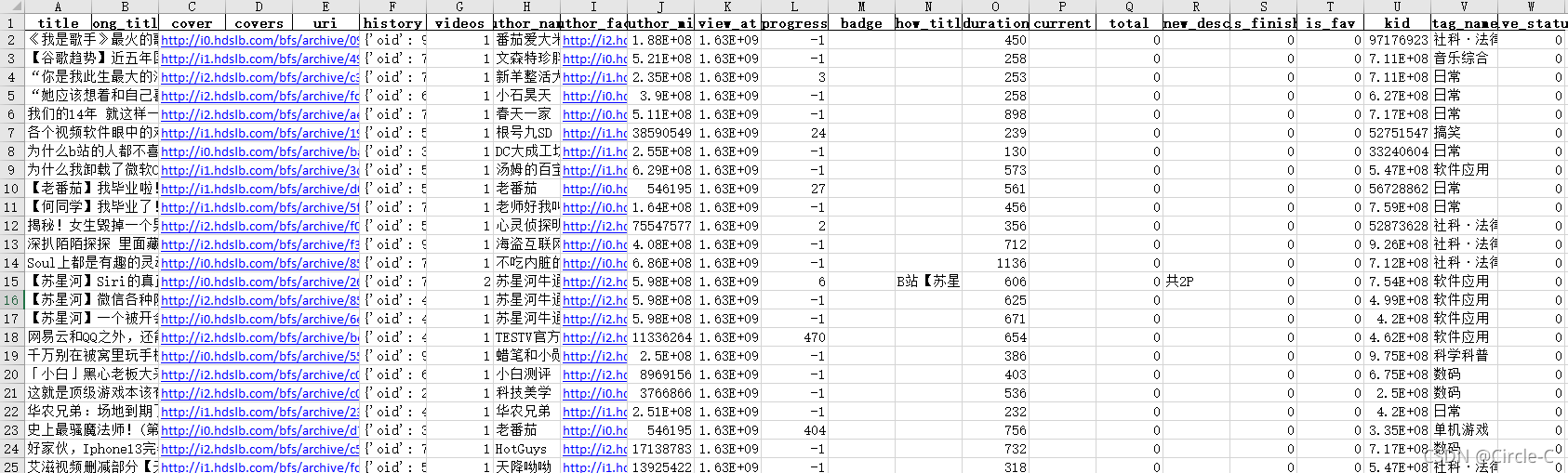

print('save success', fpath)執行完畢后，資料保存到當前目錄下的bili_history_XXX-XX-XX.xlsx檔案
只有最近3個月的資料
打開jupyter notebook用Boken做可視化
# 匯入模塊
import os
import time
import pandas as pd
import numpy as np
from bokeh.plotting import figure, show, output_notebook
from bokeh.layouts import gridplot
output_notebook()
# 從包含bili_history的excel檔案匯入資料
data_dir = r'D:\Program\JupyterNotebook'
identifier = 'bili_history'
df = pd.DataFrame()
for file_name in os.listdir(data_dir):
if file_name.startswith(identifier) and file_name.endswith('.xlsx'):
fpath = os.path.join(data_dir, file_name)
print(fpath)
df_ = pd.read_excel(fpath)
df = df.append(pd.read_excel(fpath))

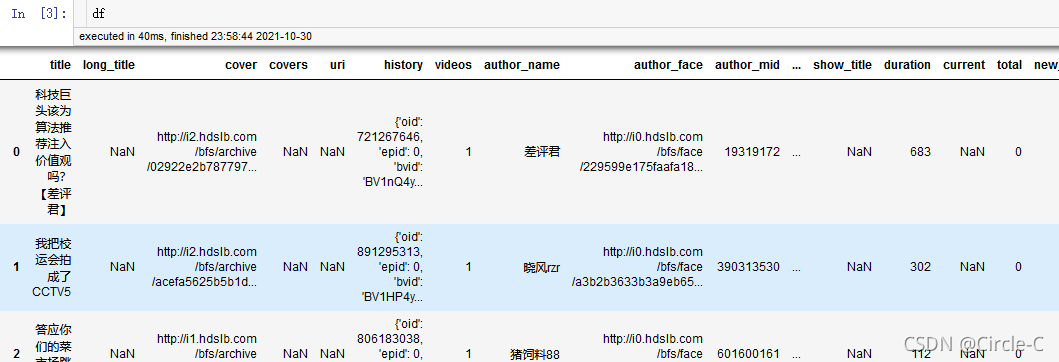

# 資料預處理
df.drop_duplicates(inplace=True)
df = df.astype({'tag_name': 'string', 'author_name': 'string'})
df['date'] = pd.to_datetime(df['view_at'],unit='s',origin=pd.Timestamp('1970-01-01 08:00:00'))
df['date'] = df['date'].dt.strftime("%Y-%m-%d")
df = df.fillna({"tag_name":"無"})
category = {
'生活': ['搞笑', '家居房產', '手工', '繪畫', '日常', '熱點', '社會', '環球'],
'游戲': ['單機游戲', '網路游戲', '手機游戲', '電子競技', '桌游棋牌', '音游', 'GMV', 'Mugen'],
'娛樂': ['綜藝', '明星', '視頻聊天'],
'知識': ['科學科普', '科技科普', '社科·法律·心理', '人文歷史', '財經商業', '校園學習', '職業職場', '設計·創意', '野生技能協會', '陪伴學習'],
'影視': ['短片', '影視雜談', '影視剪輯', '預告·資訊'],
'音樂': ['音樂綜合', '音樂現場', '演奏', '翻唱', 'MV', 'VOCALOID·UTAU', '電音', '原創音樂', '視頻唱見'],
'影片': ['MAD·AMV', 'MMD·3D', '綜合', '短片·手書·配音', '手辦·模玩', '特攝'],
'時尚': ['美妝護膚', '穿搭', '時尚潮流', '風尚標', '美妝', '服飾'],
'美食': ['美食制作', '美食偵探', '美食測評', '田園美食', '美食記錄'],
'汽車': ['汽車生活', '汽車文化', '汽車極客', '摩托車', '智能出行', '購車攻略'],
'運動': ['籃球·足球', '健身', '競技體育', '運動文化', '運動綜合'],
'科技': ['數碼', '軟體應用', '計算機技術', '工業·工程·機械', '極客DIY'],
'動物圈': ['喵星人', '汪星人', '野生動物', '爬寵', '大熊貓', '動物綜合'],
'舞蹈': ['宅舞', '舞蹈綜合', '舞蹈教程', '街舞', '明星舞蹈', '中國舞'],
'國創': ['國產影片', '國產原創相關', '布袋戲', '資訊', '動態漫·廣播劇'],
'鬼畜': ['鬼畜調教', '音MAD', '人力VOCALOID', '鬼畜劇場', '教程演示'],
'紀錄片': ['人文·歷史', '科學·探索·自然', '軍事', '社會·美食·旅行'],
'番劇': ['資訊', '官方延伸'],
'電視劇': ['國產劇', '海外劇'],
'電影': ['其他國家', '歐美電影', '日本電影', '國產電影'],
'無': ['無', '其他', '']
}
df['category'] = df['tag_name'].apply(
lambda x: [cate for cate, tags in category.items() if x in tags][0],
)
可視化

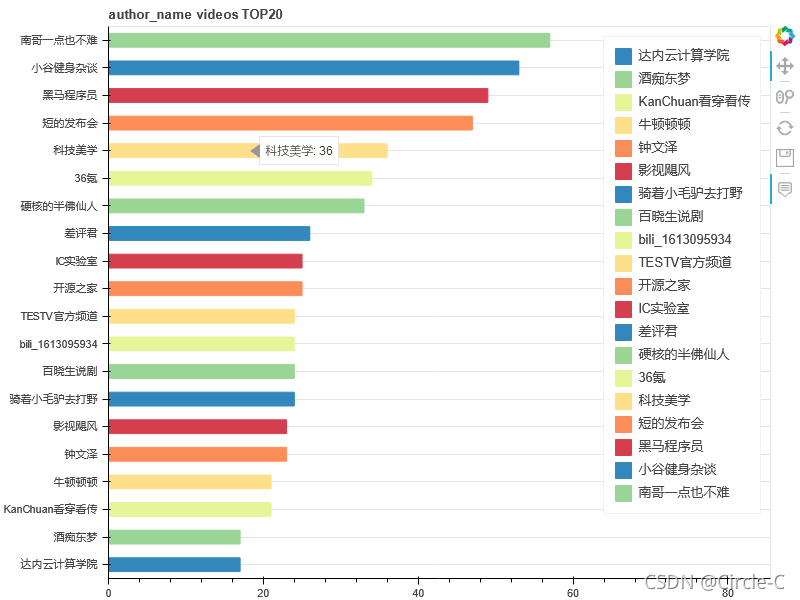

TOP20的up主（按視頻數排行）
from bokeh.models import ColumnDataSource
from bokeh.palettes import Spectral6 # ['#3288bd', '#99d594', '#e6f598', '#fee08b', '#fc8d59', '#d53e4f']
key = 'author_name'
value = 'videos'
agg_fun = 'sum'
top_count = 20
df_ = df.groupby([key]).agg({value: agg_fun}).sort_values(by=[value], ascending=False)
names = df_.index.to_list()[:top_count][::-1]
values = df_[value].to_list()[:top_count][::-1]
source = ColumnDataSource(data=dict(names=names, values=values, color=Spectral6*(len(names)//6+1))) # color=Spectral6
# 工具條
TOOLS = "pan,wheel_zoom,reset,hover,save"
p = figure(x_range=[0, values[-1]*1.5], y_range=names, plot_width=800, plot_height=len(names)*30,
title=f"{key} {value} TOP{top_count}",
toolbar_location='right', tools=TOOLS,
tooltips="@names: @values"
)
p.hbar(y='names',left=0,right='values', height=0.5 ,color='color', legend="names", source=source)
p.xgrid.grid_line_color = None
# p.legend.orientation = "horizontal"
p.legend.location = "top_right"
show(p)

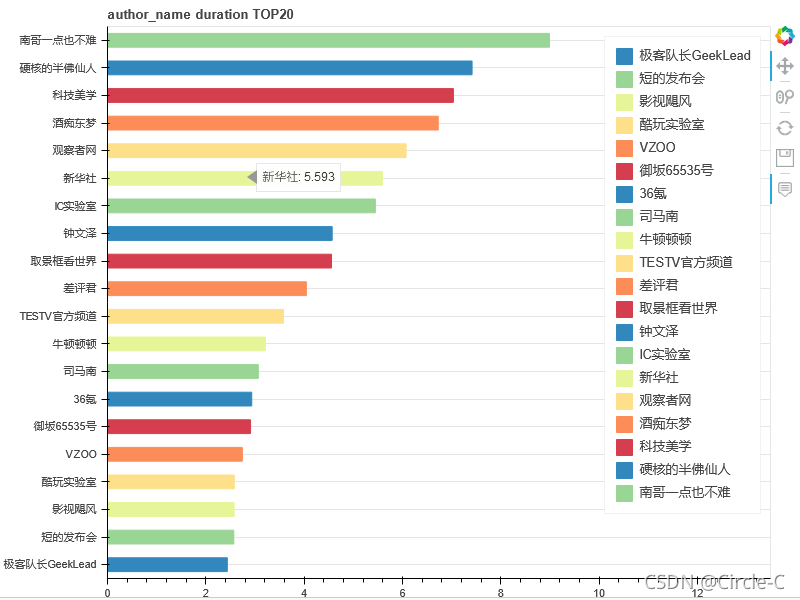

TOP20的up主（按視頻時長排行，單位：小時）

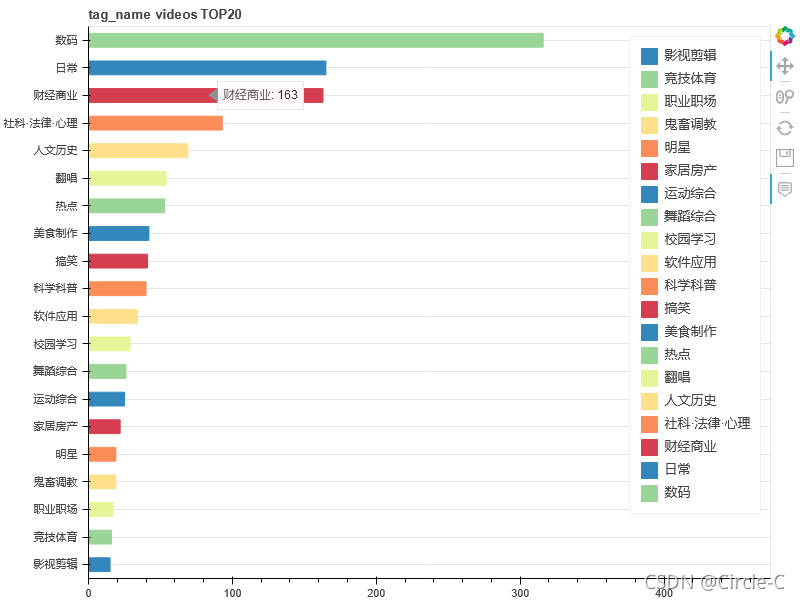

標簽TOP20（按視頻數排行）
from bokeh.models import ColumnDataSource
from bokeh.palettes import Spectral6 # ['#3288bd', '#99d594', '#e6f598', '#fee08b', '#fc8d59', '#d53e4f']
key = 'tag_name'
value = 'videos'
agg_fun = 'count'
top_count = 20
df_ = df.groupby([key]).agg({value: agg_fun}).sort_values(by=[value], ascending=False)
names = df_.index.to_list()[:top_count][::-1]
values = df_[value].to_list()[:top_count][::-1]
source = ColumnDataSource(data=dict(names=names, values=values, color=Spectral6*(len(names)//6+1))) # color=Spectral6
# 工具條
TOOLS = "pan,wheel_zoom,reset,hover,save"
p = figure(x_range=[0, values[-1]*1.5], y_range=names, plot_width=800, plot_height=len(names)*30,
title=f"{key} {value} TOP{top_count}",
toolbar_location='right', tools=TOOLS,
tooltips="@names: @values"
)
p.hbar(y='names',left=0,right='values', height=0.5 ,color='color', legend="names", source=source)
p.xgrid.grid_line_color = None
# p.legend.orientation = "horizontal"
p.legend.location = "top_right"
p.legend.click_policy="hide"
show(p)
標簽TOP20（按視頻時長排行，單位：秒）
from bokeh.models import ColumnDataSource, LabelSet
from bokeh.palettes import Spectral6 # ['#3288bd', '#99d594', '#e6f598', '#fee08b', '#fc8d59', '#d53e4f']
key = 'tag_name'
value = 'duration'
agg_fun = 'count'
top_count = 20
df_ = df.groupby([key]).agg({value: agg_fun}).sort_values(by=[value], ascending=False)
names = df_.index.to_list()[:top_count][::-1]
values = df_[value].to_list()[:top_count][::-1]
text = [str(val) for val in values]
source = ColumnDataSource(data=dict(names=names, values=values, color=Spectral6*(len(names)//6+1), text=text)) # color=Spectral6
# 工具條
TOOLS = "pan,wheel_zoom,reset,hover,save"
p = figure(x_range=[0, values[-1]*1.5], y_range=names, plot_width=800, plot_height=len(names)*30,
title=f"{key} {value} TOP{top_count}",
toolbar_location='right', tools=TOOLS,
tooltips="@names: @values"
)
p.hbar(y='names',left=0,right='values', height=0.5 ,color='color', legend="names", source=source)
# p.xgrid.grid_line_color = None
p.ygrid.grid_line_color = None
# p.legend.orientation = "horizontal"
# 標簽
labels = LabelSet(x="values",y="names",text="text",source=source)
# 添加圖層
p.add_layout(labels)
p.legend.location = "top_right"
p.legend.click_policy="hide"
show(p)

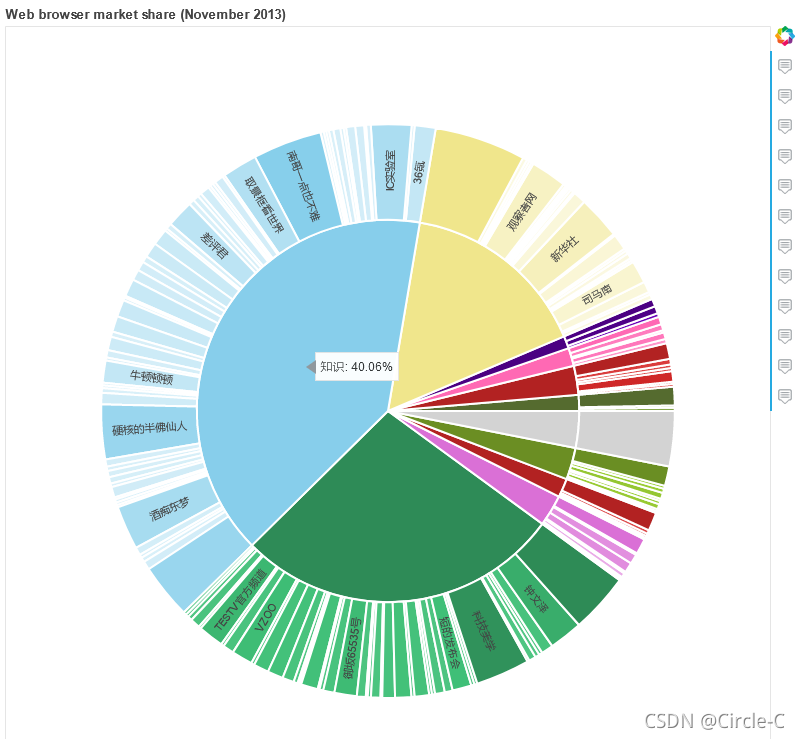

旭日圖 按類別
import base64
from math import pi, sin, cos
from bokeh.util.browser import view
from bokeh.colors.named import (aquamarine, bisque, crimson, darkolivegreen, firebrick, gainsboro, hotpink, indigo, khaki,
mediumvioletred, olivedrab, orchid, paleturquoise, skyblue, seagreen, tomato, orchid, firebrick, lightgray)
from bokeh.document import Document
from bokeh.models.glyphs import Wedge, AnnularWedge, ImageURL, Text
from bokeh.models import ColumnDataSource, Plot, Range1d
from bokeh.resources import INLINE
from bokeh.sampledata.browsers import browsers_nov_2013, icons
# 資料
df_ = df.groupby(by=['category', 'author_name']).agg(
count=('author_name', 'count'),
duration_avg=('duration', 'mean'),
duration_sum=('duration', 'sum'),
author_face=('author_face', 'first')
)
df_ = df_.reset_index()
df_['duration_avg'] = df_['duration_avg'] / 60
df_['duration_sum'] = df_['duration_sum'] / 60
df_['duration_percentage'] = df_['duration_sum'] / df_['duration_sum'].sum() * 100
xdr = Range1d(start=-2, end=2)
ydr = Range1d(start=-2, end=2)
# 畫布
plot = Plot(x_range=xdr, y_range=ydr, plot_width=800, plot_height=800)
# 自定義屬性
plot.title.text = "Web browser market share (November 2013)"
# plot.toolbar_location = None
# 調色
colors = {"動物圈": aquamarine, "影片": bisque, "國創": crimson, "娛樂": darkolivegreen, "影視": firebrick, "時尚": gainsboro,
"汽車": hotpink, "游戲": indigo, "生活": khaki, "知識": skyblue, "科技": seagreen, "紀錄片": tomato, "美食": orchid,
"舞蹈": paleturquoise, "運動": firebrick, "音樂": olivedrab, "鬼畜": mediumvioletred, "無": lightgray, "Other": lightgray}
# 資料預處理
aggregated = df_.groupby("category").agg(sum)
selected = aggregated[aggregated.duration_percentage >= 1].copy()
selected.loc["Other"] = aggregated[aggregated.duration_percentage < 1].sum()
categorys = selected.index.tolist()
radians = lambda x: 2*pi*(x/100)
angles = selected.duration_percentage.map(radians).cumsum()
end_angles = angles.tolist()
start_angles = [0] + end_angles[:-1]
name_first = selected.index.tolist()
percentages = [('{:.2f}%'.format((y - x) / 6.2831852 * 100)) for x, y in zip(start_angles, end_angles)]
categorys_source = ColumnDataSource(dict(
start = start_angles,
end = end_angles,
colors = [colors[category] for category in categorys ],
name_first = name_first,
percentages = percentages,
))
# 繪圖
glyph = Wedge(x=0, y=0, radius=1, line_color="white",
line_width=2, start_angle="start", end_angle="end", fill_color="colors")
glyph_renderer = plot.add_glyph(categorys_source, glyph)
# 添加hover工具
tooltips = f"@name_first: @percentages"
plot.add_tools(HoverTool(tooltips=tooltips, renderers=[glyph_renderer]))
def polar_to_cartesian(r, start_angles, end_angles):
cartesian = lambda r, alpha: (r*cos(alpha), r*sin(alpha))
points = []
for start, end in zip(start_angles, end_angles):
points.append(cartesian(r, (end + start)/2))
return zip(*points)
first = True
for category, start_angle, end_angle in zip(categorys, start_angles, end_angles):
versions = df_[(df_.category == category) & (df_.duration_percentage >= 0.1)]
angles = versions.duration_percentage.map(radians).cumsum() + start_angle
end = angles.tolist() + [end_angle]
start = [start_angle] + end[:-1]
angle = end[-1] - start[0]
angle = angle if angle else 1
name_second = versions['author_name'].tolist() if not versions.empty else ['orthers']
if len(start) > len(name_second):
name_second += ['orthers']
percentages = [(y - x) / angle for x, y in zip(start, end)]
max_percentage = max(percentages) if max(percentages) else 1
base_color = colors[category]
fill = [ base_color.lighten((1 - i / max_percentage)*0.2).to_hex() for i in percentages ]
percentages = [('{:.2f}%'.format((y - x) / 6.2831852 * 100)) for x, y in zip(start, end)]
# extra empty string accounts for all versions with share < 0.5 together
text = [ number if share >= 1 else "" for number, share in zip(versions.author_name, versions.duration_percentage) ] + [""]
x, y = polar_to_cartesian(1.25, start, end)
source = ColumnDataSource(dict(start=start, end=end, fill=fill,
name_second=name_second, percentages=percentages))
glyph = AnnularWedge(x=0, y=0,
inner_radius=1, outer_radius=1.5, start_angle="start", end_angle="end",
line_color="white", line_width=2, fill_color="fill")
glyph_renderer = plot.add_glyph(source, glyph)
# 添加hover工具
tooltips = f"@name_second: @percentages"
plot.add_tools(HoverTool(tooltips=tooltips, renderers=[glyph_renderer]))
text_angle = [(start[i]+end[i])/2 for i in range(len(start))]
text_angle = [angle + pi if pi/2 < angle < 3*pi/2 else angle for angle in text_angle]
text_source = ColumnDataSource(dict(text=text, x=x, y=y, angle=text_angle))
glyph = Text(x="x", y="y", text="text", angle="angle",
text_align="center", text_baseline="middle", text_font_size="8pt")
plot.add_glyph(text_source, glyph)
text = [ "%.02f%%" % value for value in selected.duration_percentage ]
x, y = polar_to_cartesian(0.7, start_angles, end_angles)
text_source = ColumnDataSource(dict(text=text, x=x, y=y))
glyph = Text(x="start", y="end", text="text", text_align="center", text_baseline="middle")
plot.add_glyph(text_source, glyph)
# 顯示
show(plot)
轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/353404.html
標籤：python
