SpringBoot整合阿里云視頻點播

1.準備作業

首先需要在阿里云開通視頻點播服務：

1. 首先，進入到阿里云視頻點播平臺，點擊開通服務，選擇按使用流量計費即可

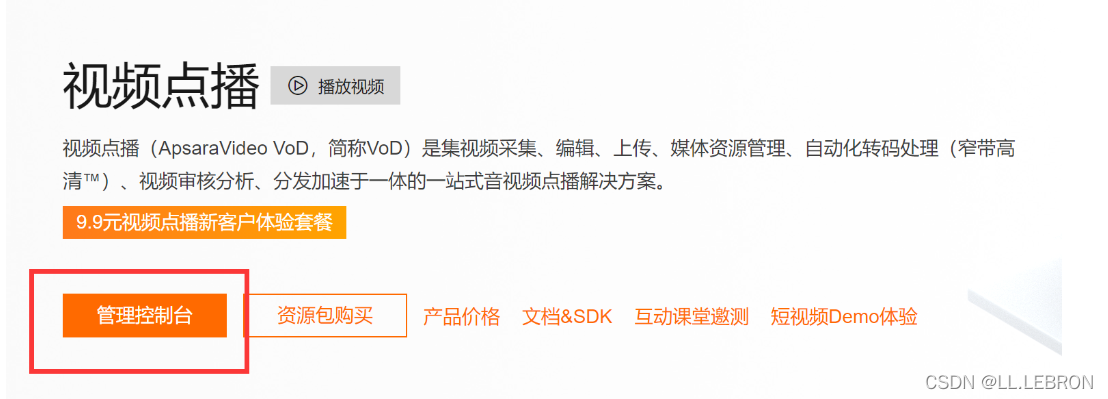

2. 開通之后點擊進入管理控制臺即可



視頻點播有什么用？

視頻點播（ApsaraVideo for VoD）是集音視頻采集、編輯、上傳、自動化轉碼處理、媒體資源管理、分發加速于一體的一站式音視頻點播解決方案，

2.服務端SDK的使用

官方檔案鏈接：Java SDK

SDK的方式將api進行了進一步的封裝，不用自己創建工具類， 我們可以基于服務端SDK撰寫代碼來呼叫點播API，實作對點播產品和服務的快速操作，

2.1 匯入依賴

注意：環境必須是JDK6 及以上版本

<dependency>
    <groupId>com.aliyun</groupId>
    <artifactId>aliyun-java-sdk-core</artifactId>
    <version>4.5.1</version>
</dependency>
<dependency>
    <groupId>com.aliyun</groupId>
    <artifactId>aliyun-java-sdk-vod</artifactId>
    <version>2.15.11</version>
</dependency>
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.62</version>
</dependency>
<dependency>
    <groupId>com.aliyun</groupId>
    <artifactId>aliyun-java-sdk-kms</artifactId>
    <version>2.10.1</version>
</dependency>

2.2 初始化類

根據官方檔案示例創建初始化類InitObject：

/**
 * @author xppll
 * @date 2021/12/5 13:57
 */
public class InitObject {
    //初始化：需要傳入accessKeyId+accessKeySecret
    public static DefaultAcsClient initVodClient(String accessKeyId, String accessKeySecret) throws ClientException {
        String regionId = "cn-shanghai";  //點播服務接入區域
        DefaultProfile profile = DefaultProfile.getProfile(regionId, accessKeyId, accessKeySecret);
        DefaultAcsClient client = new DefaultAcsClient(profile);
        return client;
    }
}

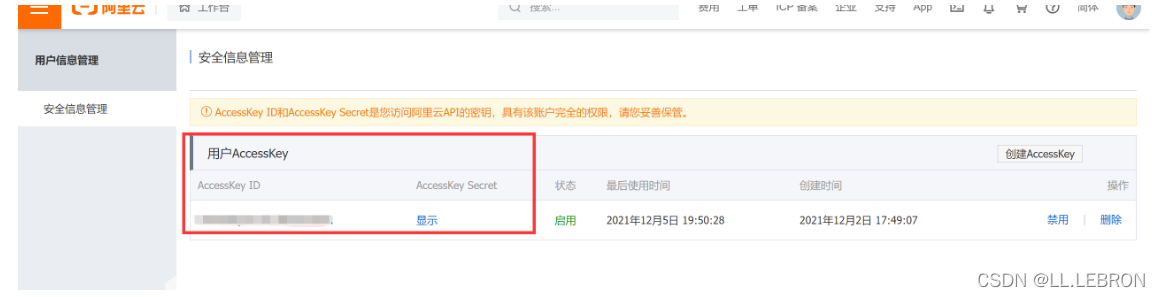

accessKeyId和accessKeySecret的獲取：

這里的初始化方法需要傳入賬號Access Key資訊，可以在阿里云Access Key管理創建主賬號Access Key

點播服務接入區域regionId的獲取：

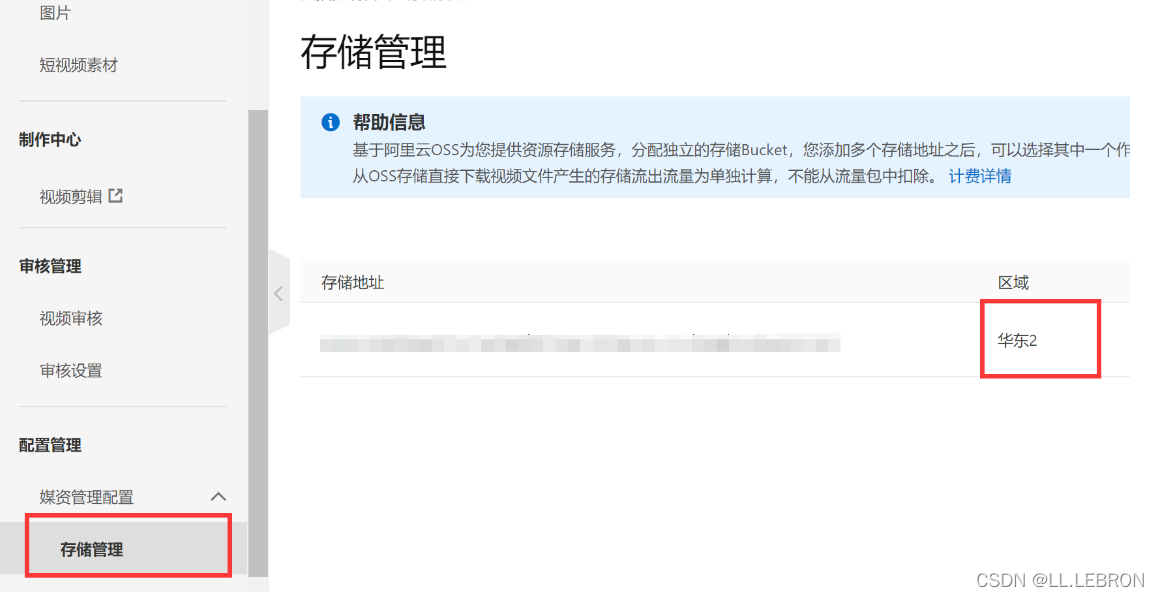

點擊點播控制臺的存盤管理，查看自己所選的區域：

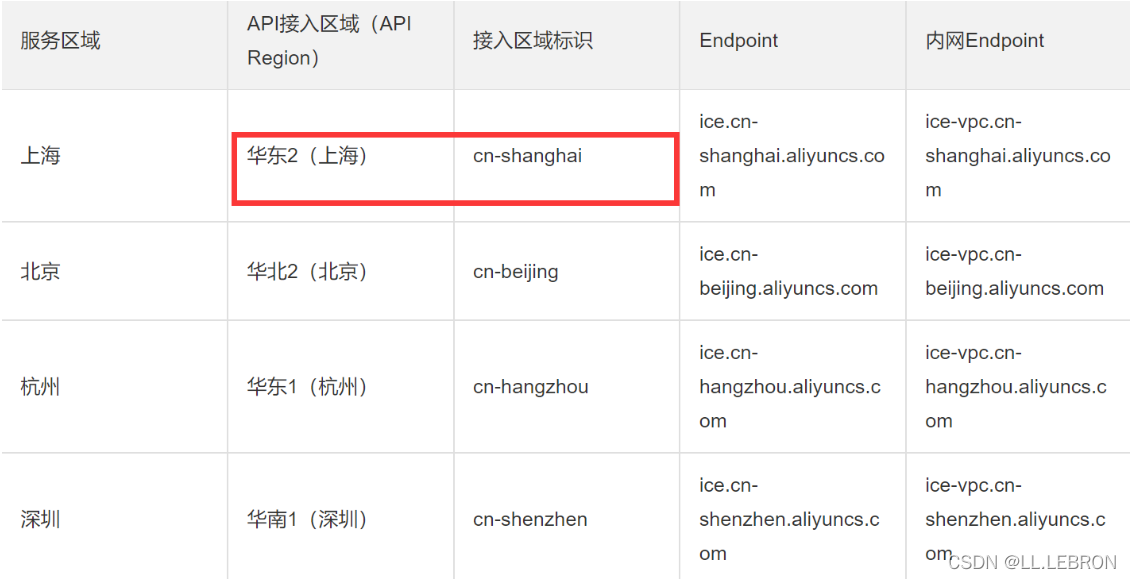

在查看接入區域標識對應API/SDK的RegionId引數：

2.3 創建讀取公共常量的工具類

首先在組態檔application.properties添加：

aliyun.vod.file.keyid=LTAI5tGqf41adadaxxAa
aliyun.vod.file.keysecret=zE4nEzmcU7GxxxxmTgWRk0tytJKD

# 最大上傳單個檔案大小：默認1M
spring.servlet.multipart.max-file-size=1024MB
# 最大置總上傳的資料大小 ：默認10M
spring.servlet.multipart.max-request-size=1024MB

在創建讀取公共常量的工具類ConstantVodUtils：

/**
 * @author xppll
 * @date 2021/12/2 19:11
 */
@Component
public class ConstantVodUtils implements InitializingBean {

    @Value("${aliyun.vod.file.keyid}")
    private String keyId;
    @Value("${aliyun.vod.file.keysecret}")
    private String keySecret;

    //定義公共靜態常量
    public static String ACCESS_KEY_ID;
    public static String ACCESS_KEY_SECRET;

    @Override
    public void afterPropertiesSet() throws Exception {
        ACCESS_KEY_ID = keyId;
        ACCESS_KEY_SECRET = keySecret;
    }
}

2.4 獲取視頻播放地址

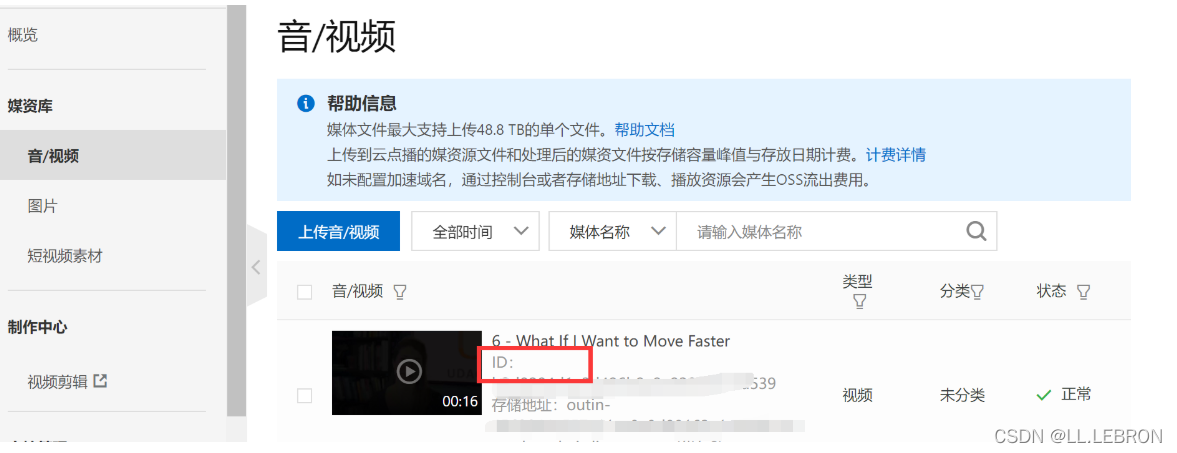

首先手動先在點播控制臺上傳一個視頻用于測驗：

步驟：

1. 創建初始化物件
2. 創建獲取視頻地址request和response
3. 向request物件里面設定視頻id
4. 用初始化物件里面的方法getAcsResponse，傳遞request，獲取資料
5. 列印資訊

代碼如下：

//獲取視頻播放地址
private static void getPlayUrl() throws ClientException {
    //1.創建初始化物件
    DefaultAcsClient client = InitObject.initVodClient(ConstantVodUtils.ACCESS_KEY_ID,ConstantVodUtils.ACCESS_KEY_SECRET);
    //2.創建獲取視頻地址request和response
    GetPlayInfoRequest request = new GetPlayInfoRequest();
    GetPlayInfoResponse response = new GetPlayInfoResponse();
    //3.向request物件里面設定視頻id
    request.setVideoId("ffe90bfaxxx94d0d722caad");
    //4.呼叫初始化物件里面的方法，傳遞request，獲取資料
    response = client.getAcsResponse(request);

    List<GetPlayInfoResponse.PlayInfo> playInfoList = response.getPlayInfoList();
    //播放地址
    for (GetPlayInfoResponse.PlayInfo playInfo : playInfoList) {
        System.out.print("PlayInfo.PlayURL = " + playInfo.getPlayURL() + "\n");
    }
    //Base資訊
    System.out.print("VideoBase.Title = " + response.getVideoBase().getTitle() + "\n");
}

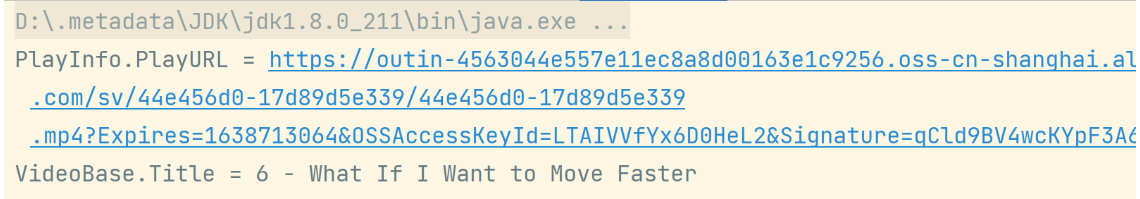

測驗成功：

2.5 獲取視頻播放憑證

步驟與獲取視頻播放地址差不多，區別是獲取request和response方式不同：

//獲取視頻播放憑證
private static void getPlayAuth() throws ClientException {
    //1.創建初始化物件
    DefaultAcsClient client = InitObject.initVodClient(ConstantVodUtils.ACCESS_KEY_ID,ConstantVodUtils.ACCESS_KEY_SECRET);
    //2.創建獲取視頻憑證的request和response
    GetVideoPlayAuthRequest request = new GetVideoPlayAuthRequest();
    GetVideoPlayAuthResponse response = new GetVideoPlayAuthResponse();
    //3.向request設定視頻id
    request.setVideoId("ffe90bfaaadd4xxxx0d722caad");
    //4.呼叫初始化物件的方法得到憑證
    response = client.getAcsResponse(request);
    //播放憑證
    System.out.println("playauth" + response.getPlayAuth());
}

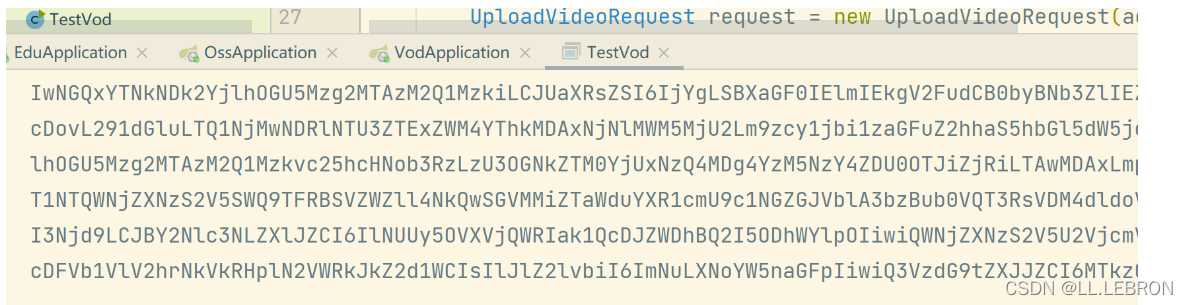

測驗成功：

2.6 上傳視頻到阿里云視頻點播服務

可以參考：Java上傳SDK

需要匯入依賴：

<dependency>
    <groupId>com.aliyun</groupId>
    <artifactId>aliyun-java-sdk-core</artifactId>
    <version>4.5.1</version>
</dependency>
<dependency>
    <groupId>com.aliyun.oss</groupId>
    <artifactId>aliyun-sdk-oss</artifactId>
    <version>3.10.2</version>
</dependency>
<dependency>
    <groupId>com.aliyun</groupId>
    <artifactId>aliyun-java-sdk-vod</artifactId>
    <version>2.15.11</version>
</dependency>
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.28</version>
</dependency>
<dependency>
    <groupId>org.json</groupId>
    <artifactId>json</artifactId>
    <version>20170516</version>
</dependency>
<dependency>
    <groupId>com.google.code.gson</groupId>
    <artifactId>gson</artifactId>
    <version>2.8.2</version>
</dependency>

代碼如下：

//上傳視頻到阿里云視頻點播服務
private static void uploadVideo() {
    String accessKeyId = ConstantVodUtils.ACCESS_KEY_ID;
    String accessKeySecret = ConstantVodUtils.ACCESS_KEY_SECRET;
    //上傳后視頻的標題
    String title = "xpp1";
    //本地檔案上傳路徑
    String fileName = "D:/6 - What If I Want to Move Faster.mp4";
    UploadVideoRequest request = new UploadVideoRequest(accessKeyId, accessKeySecret, title, fileName);
    //可指定分片上傳時每個分片的大小，默認為2M位元組
    request.setPartSize(2 * 1024 * 1024L);
    //可指定分片上傳時的并發執行緒數，默認為1
    request.setTaskNum(1);
    UploadVideoImpl uploader = new UploadVideoImpl();
    UploadVideoResponse response = uploader.uploadVideo(request);


    if (response.isSuccess()) {
        System.out.print("VideoId=" + response.getVideoId() + "\n");
    } else {
        /* 如果設定回呼URL無效，不影響視頻上傳，可以回傳VideoId同時會回傳錯誤碼，其他情況上傳失敗時，VideoId為空，此時需要根據回傳錯誤碼分析具體錯誤原因 */
        System.out.print("VideoId=" + response.getVideoId() + "\n");
        System.out.print("ErrorCode=" + response.getCode() + "\n");
        System.out.print("ErrorMessage=" + response.getMessage() + "\n");
    }
}

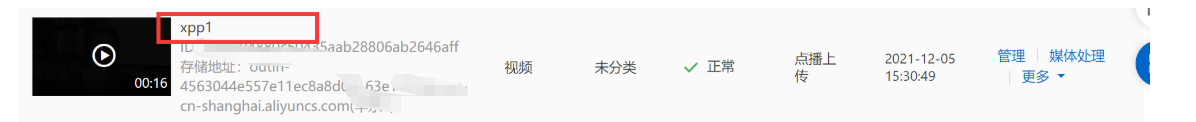

測驗成功：

3.springboot專案中實踐

創建初始化類：

/**
 * @author xppll
 * @date 2021/12/5 13:57
 */
public class InitVodCilent {
    //初始化：需要傳入accessKeyId+accessKeySecret
    public static DefaultAcsClient initVodClient(String accessKeyId, String accessKeySecret) throws ClientException {
        String regionId = "cn-shanghai";  // 點播服務接入區域
        DefaultProfile profile = DefaultProfile.getProfile(regionId, accessKeyId, accessKeySecret);
        DefaultAcsClient client = new DefaultAcsClient(profile);
        return client;
    }
}

3.1 上傳視頻到阿里云

controller層：

@Autowired
private VodService vodService;
//上傳視頻到阿里云
@PostMapping("uploadAlyiVideo")
public R uploadAlyVideo(MultipartFile file){
    //回傳上傳視頻id
    String videoId=vodService.uploadVideoAly(file);
    //將視頻`id`回傳給前端
    return R.ok().data("videoId",videoId);
}

service層：

//上傳視頻到阿里云
@Override
public String uploadVideoAly(MultipartFile file) {
    try {
        //fileName：上傳檔案原始名稱
        String fileName = file.getOriginalFilename();
        //title：上傳之后顯示名稱(例子：01.mp4=>01)
        String title = fileName.substring(0, fileName.lastIndexOf("."));

        //inputStream：上傳檔案輸入流
        InputStream inputStream = file.getInputStream();
        //獲得request
        UploadStreamRequest request = new UploadStreamRequest(ConstantVodUtils.ACCESS_KEY_ID, ConstantVodUtils.ACCESS_KEY_SECRET, title, fileName, inputStream);

        UploadVideoImpl uploader = new UploadVideoImpl();
        //上傳獲得response
        UploadStreamResponse response = uploader.uploadStream(request);

        String videoId = null;
        if (response.isSuccess()) {
            //得到視頻id
            videoId = response.getVideoId();
        } else { //如果設定回呼URL無效，不影響視頻上傳，可以回傳VideoId同時會回傳錯誤碼，其他情況上傳失敗時，VideoId為空，此時需要根據回傳錯誤碼分析具體錯誤原因
            videoId = response.getVideoId();

        }
        return videoId;
    } catch (IOException e) {
        e.printStackTrace();
        return null;
    }
}

3.2 根據視頻id洗掉視頻

controller層：

//根據視頻id洗掉視頻
@DeleteMapping("removeAlyVideo/{id}")
public R removeAlyVideo(@PathVariable String id){
    vodService.deleteAlyVideo(id);
    return R.ok();
}

service層：

//根據視頻id洗掉視頻
@Override
public void deleteAlyVideo(String id) {
    try {
        //1.初始化物件
        DefaultAcsClient client = InitVodCilent.initVodClient(ConstantVodUtils.ACCESS_KEY_ID, ConstantVodUtils.ACCESS_KEY_SECRET);
        //2.創建洗掉視頻的request物件
        DeleteVideoRequest request=new DeleteVideoRequest();
        //3.向request設定視頻id
        request.setVideoIds(id);
        //4.呼叫初始化物件的方法實作洗掉
        client.getAcsResponse(request);
    } catch (Exception e) {
        e.printStackTrace();
        throw new GuliException(20001,"洗掉視頻失敗");
    }
}
