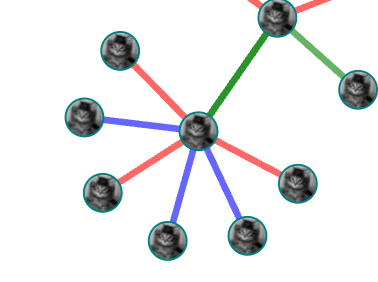

更新我已經使用 D3.js 制作了一個力有向圖。每個節點對應一個公司，每個鏈接根據鏈接顏色對應它們之間的關系。我想要實作的是使用“節點”資料中的影像 URL 并為每個氣泡顯示不同的影像。目前，我能夠為我的所有氣泡設定固定的靜態/相同影像。我試圖將模式連接到我的“節點”資料，但沒有成功，最終陷入無限回圈。
我的 svg 的簡單 HTML 畫布和兩個用于單擊放大和縮小的按鈕。
<div class="main-map-container" style="overflow: hidden">
<div class="canvas">
<div>
<button id="zoom_in"> </button>
<button id="zoom_out">-</button>
</div>
</div>
</div>
我的資料集（鏈接和節點），注意節點上的影像屬性。它指的是我希望設定為節點背景的影像
const links = [
{src:"Amazon",target:"Aurora",link:"Investment",market:"Semi_Truck",tags:"AD_L3-4|AD_Driverless",technology:"",aces:"Automated",amount:"",region:"EU| US",date:"2019-02-01",description:"Amazon Investing in Aurora in an $530 million Financing Round",source:"https://drive.google.com/open?id=1aLuuUqXKSQcGzivH21CSuO7204pdyP7K",years:"2019"},
{src:"Amazon",target:"Aurora",link:"Investment",market:"Robotaxi | Semi_Truck",tags:"AD_Driverless",technology:"",aces:"Automated",amount:"$530",region:"EU| US",date:"2019-02-01",description:"Aurora announced that they have secured over $530 million in Series B financing led by Sequoia. This funding and partnership will accelerate their mission of delivering the benefits of self-driving technology safely, quickly, and broadly.\r\n\r\nIn addition to Sequoia, Amazon, and funds and accounts advised by T. Rowe Price Associates, Inc. are making significant investments in Aurora. Amazon’s unique expertise, capabilities, and perspectives will be valuable for us as we drive towards our mission.",source:"https://drive.google.com/open?id=1aLuuUqXKSQcGzivH21CSuO7204pdyP7K",years:"2019"},
{src:"Amazon",target:"Zoox",link:"Acquisition",market:"Robotaxi",tags:"AD_Driverless",technology:"",aces:"Automated",amount:"$1,200",region:"US",date:"2020-06-01",description:"Amazon acquires Zoox to help bring their vision of autonomous ride-hailing to reality. [The Financial Times reports that Amazon spends $1.2bn on the acquisition.]",source:"https://drive.google.com/open?id=18-zXDSHy9_o0OrIwYFfb5FdyMxMzgtHH",years:"2020"},
{src:"Amazon",target:"Rivian",link:"Investment",market:"Light_CV",tags:"Other",technology:"",aces:"Automated",amount:"",region:"US",date:"2020-10-01",description:"Amazon unveils its new electric delivery vans built by Rivian\nThe delivery giant aims to have 10,000 vehicles on the road by 2022, 100,000 vehicles expected by 2030.",source:"https://www.theverge.com/2020/10/8/21507495/amazon-electric-delivery-van-rivian-date-specs",years:"2020"},
{src:"Amazon",target:"Torc",link:"Partnership",market:"Semi_Truck",tags:"AD_L3-4| Edge/Cloud_computing",technology:"",aces:"Automated| Connected",amount:"",region:"US",date:"2021-02-17",description:"Torc selects AWS as preferred cloud provider for self-driving truck fleet",source:"https://drive.google.com/open?id=1QDHZIyUHpAY4oKEqmeM9cngPIWZWV2doE0r1emQZuNY",years:"2021"},
{src:"Amazon",target:"Intel",link:"Partnership",market:"PoV",tags:"Edge/Cloud_computing",technology:"",aces:"Connected",amount:"",region:"EU| US| China| Korea| Japan| Others",date:"2021-03-01",description:"Intel Achieves AWS High Performance Computing Competency Status",source:"https://drive.google.com/open?id=1MvhLikyzwbu-Mz_OuXUvytAuqXNEnUjHdSxMGXcKLok",years:"2021"},
{src:"Aurora",target:"Blackmore",link:"Acquisition",market:"Semi_Truck | Robotaxi",tags:"AD_Driverless",technology:"LiDAR",aces:"Automated",amount:"",region:"US",date:"2019-01-09",description:"Yesterday announce that they plan to acquire the industry-leading lidar company Blackmore, located in Bozeman, Montana.\r\n\r\nThe Bozeman, Montana–based outfit, which started up a decade ago to do work for the defense industry, uses a “frequency modulated continuous wave” system, also known as a Doppler lidar. When the infrared light hits an object and bounces back, the system determines both how far away it is and its velocity. Knowing where something is headed and how fast is prized data. Blackmore has at least one Doppler lidar competitor in Aeva, founded in early 2017 by a pair of former Apple engineers. [...]",source:"https://drive.google.com/open?id=1UkF-sxgA1AgpgWoRCd2qgWjovLQULoAP",years:"2019"},
{src:"Aurora",target:"Uber ATG",link:"Acquisition",market:"Robotaxi | Semi_Truck",tags:"AD_Driverless",technology:"",aces:"Automated",amount:"$4,000",region:"US",date:"2020-12-01",description:"Aurora is acquiring Uber's self-driving unit, ATG, accelerating the first Aurora Driver applications for heavy-duty trucks while allowing us to continue and accelerate our work on light-vehicle products. \"Simply put, Aurora will be the company best positioned to deliver the self-driving products necessary to make transportation and logistics safer, more accessible, and less expensive,\" said Chris Urmson, co-founder and CEO of Aurora.",source:"https://drive.google.com/open?id=1rc-_3VLlITe2bdxBgws3Bvb2rPvCluMfsMkFXiwbg98",years:"2020"},
{src:"Aurora",target:"Paccar",link:"Partnership",market:"Semi_Truck",tags:"AD_L3-4",technology:"",aces:"Automated",amount:"",region:"US",date:"2021-01-19",description:"Aurora teams up with PACCAR to build and deploy self-driving trucks",source:"https://drive.google.com/open?id=1TfA9U81CbyNwQc4Xfg2iJ9wqmka7RLqVEIsES2-62Ww",years:"2021"},
{src:"Aurora",target:"Denso",link:"Partnership",market:"Robotaxi",tags:"AD_Driverless",technology:"",aces:"Automated",amount:"",region:"EU| US| China| Korea| Japan| Others",date:"2021-02-09",description:"Aurora enters into long-term, global, and strategic collaboration with Toyota and Denso",source:"https://drive.google.com/open?id=1QnlNnMMxbcPdnbi4AcBo36_UWM9TuMrNqItZHfPDUos",years:"2021"},
{src:"Aurora",target:"Toyota",link:"Partnership",market:"Robotaxi",tags:"AD_Driverless",technology:"",aces:"Automated",amount:"",region:"EU| US| China| Korea| Japan| Others",date:"2021-02-09",description:"Aurora enters into long-term, global, and strategic collaboration with Toyota and Denso",source:"https://drive.google.com/open?id=1QnlNnMMxbcPdnbi4AcBo36_UWM9TuMrNqItZHfPDUos",years:"2021"},
{src:"Aurora",target:"OURS-Tech",link:"Acquisition",market:"Semi_Truck| Robotaxi",tags:"",technology:"LiDAR",aces:"Automated",amount:"",region:"US",date:"2021-02-26",description:"Aurora acquires OURS lidar (FMCW), unlocking the commercialization of its Aurora Driver",source:"https://drive.google.com/open?id=1TWEII1c0jQk26DcCC2WXw3plT0XTnfDzmD-e551VWSQ",years:"2021"},
{src:"Zoox",target:"ZadarLabs",link:"Investment",market:"PoV| Robotaxi",tags:"AD_L3-4| AD_Driverless",technology:"Radar",aces:"Automated",amount:"",region:"US",date:"2021-01-26",description:"Zadar Labs, Developing Next Generation Imaging Radar, Closes $5.6M in Seed Funding",source:"https://drive.google.com/open?id=1fz3MhS4P_Cmq2VmT9crQztUBd9W5Pj-IWEL9ABq3ySg",years:"2021"},
{src:"Intel",target:"Mobileye",link:"Acquisition",market:"PoV",tags:"AD_L3-4",technology:"",aces:"Automated",amount:"$15,000",region:"Worldwide",date:"2017-01-14",description:"Instead of Mobileye being integrated into Intel, Intel’s AD Group (ADG) will be integrated into Mobileye.",source:"https://www.engadget.com/2017-08-08-intel-acquisition-Mobileye-complete.html",years:"<2017"},
{src:"Intel",target:"Infineon",link:"Acquisition",market:"",tags:"",technology:"",aces:"Automated|Experience",amount:"1400",region:"US|EU",date:"2010-01-01",description:"Intel to Acquire Infineon’s Wireless Solutions Business",source:"https://www.infineon.com/cms/en/about-infineon/press/press-releases/2010/INFXX201008-069.html",years:"<2017"},
]
const nodes = [
{id:"Amazon",type:"Tech",tags:"",technology:"",market:"Droid_Goods|Robotaxi",valuation:"",description:"Amazon is an international e-commerce website for consumers, sellers, and content creators.",country:"US",region:"North America",image:"https://images-eu.ssl-images-amazon.com/images/G/02/gc/designs/livepreview/a_generic_10_uk_noto_email_v2016_uk-main._CB485921599_.png"},
{id:"Aurora",type:"Tier1",tags:"AD_Driverless",technology:"",market:"Robotaxi|Semi_Truck",valuation:"1100",description:"Aurora is delivering the benefits of self-driving technology safely, quickly, and broadly.",country:"US",region:"North America",image:"https://res-3.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/oeagjbu7wau6o16zdhb1"},
{id:"Zoox",type:"Tier1",tags:"AD_Driverless",technology:"",market:"Robotaxi",valuation:"",description:"Zoox is an AI robotics company that provides mobility as-a-service and self-driving car services.",country:"US",region:"North America",image:"https://res-4.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/kpc7mmk886nbbipbeqau"},
{id:"Rivian",type:"OEM",tags:"",technology:"",market:"PoV",valuation:"8200",description:"Rivian is an electric vehicle manufacturer that develops products and services to advance the shift to sustainable mobility.",country:"US",region:"North America",image:"https://res-4.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/sdz7aspakybuxp7oojvh"},
{id:"Torc",type:"Tier1",tags:"AD_Driverless|AD_L3-4",technology:"",market:"Semi_Truck|Mining",valuation:"",description:"Torc provides L4 end-to-end self-driving software for mobility, trucking, mining, and defense markets through strategic partnerships",country:"US",region:"North America",image:"https://res-2.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/smfgyxvfot1dwq4vqvo7"},
{id:"Intel",type:"Tech",tags:"",technology:"",market:"PoV | Robotaxi",valuation:"",description:"Intel designs, manufactures, and sells integrated digital technology platforms worldwide.",country:"US",region:"North America",image:"https://res-3.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/v1505768454/wrhwa2ogipbd1o6tgggi.png"},
{id:"Blackmore",type:"Tier2",tags:"",technology:"LiDAR",market:"PoV|Other",valuation:"21.5",description:"Blackmore Sensors and Analytics develops frequency-modulated continuous wave lidar imaging and its supporting analytic tools software.",country:"US",region:"North America",image:"https://res-2.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/v1497015437/tqor2yimyfapcsn5uyaj.png"},
{id:"Uber ATG",type:"Tier1",tags:"AD_Driverless",technology:"",market:"Robotaxi",valuation:"1000",description:"Uber Advanced Technologies Group focuses on autonomous vehicles and the self-driving car business.",country:"US",region:"North America",image:"https://res-5.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/dlzugstswtlgq9wejmfi"},
{id:"Paccar",type:"OEM",tags:"",technology:"",market:"Semi_Truck",valuation:"",description:"Global technology leader in the design, manufacture and customer support of high-quality premium trucks.",country:"US",region:"North America",image:"https://res-2.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/v1404996232/nmvcucjqpgpnhrolbnnk.png"},
{id:"Denso",type:"Tier1",tags:"",technology:"",market:"PoV",valuation:"",description:"Supplier of advanced automotive technology",country:"Japan",region:"Japan",image:"https://res-5.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/v1398234958/fnjwkbbov8sivhs79wta.png"},
{id:"Toyota",type:"OEM",tags:"",technology:"",market:"PoV",valuation:"",description:"Toyota is a Japanese automotive company that manufactures and markets vehicles to over 170 countries and regions.",country:"Japan",region:"Japan",image:"https://res-3.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/v1425366959/cleoo1wmofcfxxspobul.jpg"},
{id:"OURS-Tech",type:"Tier2",tags:"",technology:"LiDAR",market:"Semi_Truck| Robotaxi",valuation:"",description:"Enabling mass-production 5D LiDAR for the autonomous future",country:"US",region:"North America",image:"https://static.wixstatic.com/media/c668c3_f1f58317e99d41deac4152d212fcdbc2~mv2.gif"},
{id:"ZadarLabs",type:"Tier2",tags:"",technology:"Radar",market:"PoV| Robotaxi",valuation:"",description:"Zadar Labs brings radar intelligence to autonomous systems",country:"US",region:"North America",image:"https://res-1.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/g3kgj9vsfjzlpbichdml"},
{id:"Mobileye",type:"Tech",tags:"AS_NCAP|ADAS_uptoL2 |AD_Driverless",technology:"ECU_ADAS",market:"PoV|Robotaxi|Semi_Truck",valuation:"515",description:"Mobileye is a technology company developing vision-based advanced driver assistance systems that help prevent and mitigate collisions.",country:"Israel",region:"Others",image:"https://res-3.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/bcuhhoflftvvdbpeaarx"},
{id:"Infineon",type:"Tier2",tags:"Interior_cocoon",technology:"",market:"PoV",valuation:"",description:"Infineon Technologies offers semiconductor solutions, microcontrollers, LED drivers, sensors and Automotive & Power Management ICs.",country:"Germany",region:"EU",image:"https://res-2.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/v1397183702/79bc5b009247cfd1a274f2a328ff17bf.png"},
]
至于我的 D3 javascript 代碼，這里有一個最相關的部分：
const svg = d3.create("svg")
.attr("preserveAspectRatio", "xMinYMin meet")
.attr("viewBox", [-width/2,-height/2, width,height])
.classed("svg-content-responsive", true)
const defs = svg.append('svg:defs');
defs.append("svg:pattern")
.attr("id", "grump_avatar")
.attr("width", 1)
.attr("height", 1)
//.attr("patternUnits", "userSpaceOnUse")
.append("svg:image")
.attr("xlink:href", 'http://placekitten.com/g/48/48')
.attr("width",40)
.attr("height",40)
.attr("x",0)
.attr("y",0)
const link = svg.append("g")
.attr("stroke-opacity", 0.6)
.attr("stroke-width", 7)
.attr("stroke-linecap", "round")
.selectAll("line")
.data(links)
.join("line")
if (l) link.attr("stroke", ({index: i}) => setLinkColor(l[i])); // set conditional link color
const node = svg.append("g")
.attr("stroke", "teal")
.attr("stroke-opacity", 1)
.attr("stroke-width", 2)
.selectAll("circle")
.data(nodes)
.join("circle")
.style("fill", "#fff")
.style("fill", "url(#grump_avatar)")
.attr("r", 20)
.call(drag(simulation))
uj5u.com熱心網友回復：
我已經使用您的代碼組裝了一個小示例，您可以在下面看到。
- 在里面
svg > defs，pattern為每個節點創建一個并使用它pattern（帶有公司的 ID）來獲取該公司的標志； pattern使用您已有的資訊參考節點的 。
關于您的代碼的一些指標：
- 您已經使用了 ES6 邏輯，因此您還可以使用
Array.prototype.map和其他功能。它們通常比;更具可讀性（并且本機實作！）d3.map - 沒有必要保留這么多的值陣列，通常資料的真實來源更少，這將使代碼在未來更易于維護和更新；
- 使用清晰的變數名！當您知道背景關系時，LS 和 LT 是合乎邏輯的，但是當您在 6 個月內重新訪問此代碼時，您可能不會立即知道您在撰寫它時在說什么。
const nodes = [{
id: "Amazon",
image: "https://images-eu.ssl-images-amazon.com/images/G/02/gc/designs/livepreview/a_generic_10_uk_noto_email_v2016_uk-main._CB485921599_.png"
},
{
id: "Aurora",
image: "https://res-3.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/oeagjbu7wau6o16zdhb1"
},
{
id: "Zoox",
image: "https://res-4.cloudinary.com/crunchbase-production/image/upload/c_lpad,h_170,w_170,f_auto,b_white,q_auto:eco/kpc7mmk886nbbipbeqau"
}
];
const links = [{
src: 'Amazon',
target: 'Aurora'
},
{
src: 'Amazon',
target: 'Zoox'
},
{
src: 'Aurora',
target: 'Zoox'
}
];
const width = 500,
height = 500;
function ForceGraph({
nodes, // an iterable of node objects (typically [{id}, …])
links // an iterable of link objects (typically [{src, target}, …])
}, {
nodeId = d => d.id, // given d in nodes, returns a unique identifier (string)
nodeTitle, // given d in nodes, a title string
nodeStroke = "teal", // node stroke color
nodeStrokeWidth = 2, // node stroke width, in pixels
nodeStrokeOpacity = 1, // node stroke opacity
nodeRadius = 20, // node radius, in pixels
nodeStrength = -750,
linkDistance = 100,
linkStrokeOpacity = 0.6, // link stroke opacity
linkStrokeWidth = 7, // given d in links, returns a stroke width in pixels
linkStrokeLinecap = "round", // link stroke linecap
linkStrength,
container
} = {}) {
// Compute values.
const N = d3.map(nodes, nodeId);
// HERE: Don't replace the input nodes using this complex method,
// just Object.assign({}, n) to essentially perform a deep copy of a node.
// Replace the input nodes and links with mutable objects for the simulation.
nodes = nodes.map(n => Object.assign({}, n));
links = links.map(l => ({
source: l.src,
target: l.target
}));
const svg = d3.select('body')
.append("svg")
.attr("preserveAspectRatio", "xMinYMin meet")
.attr("viewBox", [-width / 2, -height / 2, width, height])
.classed("svg-content-responsive", true)
const defs = svg.append('svg:defs');
// HERE: See we add one image per node
defs.selectAll("pattern")
.data(nodes)
.join(
enter => {
// For every new <pattern>, set the constants and append an <image> tag
const patterns = enter
.append("pattern")
.attr("width", 48)
.attr("height", 48);
patterns
.append("image")
.attr("width", 48)
.attr("height", 48)
.attr("x", 0)
.attr("y", 0);
return patterns;
}
)
// For every <pattern>, set it to point to the correct
// URL and have the correct (company) ID
.attr("id", d => d.id)
.select("image")
.datum(d => {
debugger;
return d;
})
.attr("xlink:href", d => {
debugger;
return d.image;
})
const link = svg.append("g")
.attr("stroke-opacity", linkStrokeOpacity)
.attr("stroke-width", linkStrokeWidth)
.attr("stroke-linecap", linkStrokeLinecap)
.selectAll("line")
.data(links)
.join("line");
// Construct the forces.
const forceNode = d3.forceManyBody();
const forceLink = d3.forceLink(links).id(({
index: i
}) => N[i]);
if (nodeStrength !== undefined) forceNode.strength(nodeStrength);
if (linkStrength !== undefined) forceLink.strength(linkStrength);
forceLink.distance(linkDistance)
const simulation = d3.forceSimulation(nodes)
.force(link, forceLink)
.force("charge", forceNode)
.force("x", d3.forceX())
.force("y", d3.forceY())
.on("tick", ticked);
const node = svg.append("g")
.attr("stroke", nodeStroke)
.attr("stroke-opacity", nodeStrokeOpacity)
.attr("stroke-width", nodeStrokeWidth)
.selectAll("circle")
.data(nodes)
.join("circle")
.style("fill", "#fff")
.style("fill", d => `url(#${d.id})`)
.attr("r", nodeRadius);
function ticked() {
link
.attr("x1", d => d.source.x)
.attr("y1", d => d.source.y)
.attr("x2", d => d.target.x)
.attr("y2", d => d.target.y);
node
.attr("cx", d => d.x)
.attr("cy", d => d.y);
}
} // ForceGraph
ForceGraph({
nodes,
links
});line {
stroke: red;
}<script src="https://cdnjs.cloudflare.com/ajax/libs/d3/6.2.0/d3.js"></script>轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/377329.html
