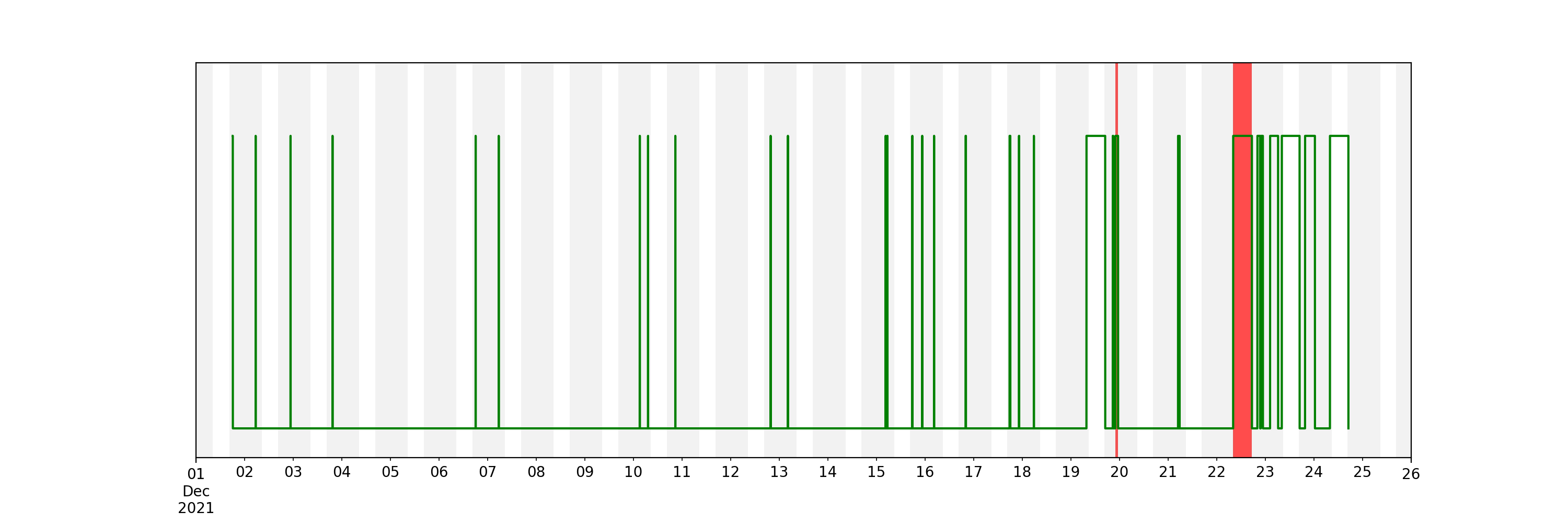

我有一些關于貓頭鷹出現在巢箱中的資料。在上一個問題中，您幫助我想象貓頭鷹在盒子里的時間：
此外，我使用下面的代碼創建了一個每天在框中花費的小時數的圖（可能這可以更有效地完成）：
import pandas as pd
import matplotlib.pyplot as plt
# raw data indicating time spent in box (each row represents start and end time)
time = pd.DatetimeIndex(["2021-12-01 18:08","2021-12-01 18:11",
"2021-12-02 05:27","2021-12-02 05:29",
"2021-12-02 22:40","2021-12-02 22:43",
"2021-12-03 19:24","2021-12-03 19:27",
"2021-12-06 18:04","2021-12-06 18:06",
"2021-12-07 05:28","2021-12-07 05:30",
"2021-12-10 03:05","2021-12-10 03:10",
"2021-12-10 07:11","2021-12-10 07:13",
"2021-12-10 20:40","2021-12-10 20:41",
"2021-12-12 19:42","2021-12-12 19:45",
"2021-12-13 04:13","2021-12-13 04:17",
"2021-12-15 04:28","2021-12-15 04:30",
"2021-12-15 05:21","2021-12-15 05:25",
"2021-12-15 17:40","2021-12-15 17:44",
"2021-12-15 22:31","2021-12-15 22:37",
"2021-12-16 04:24","2021-12-16 04:28",
"2021-12-16 19:58","2021-12-16 20:09",
"2021-12-17 17:42","2021-12-17 18:04",
"2021-12-17 22:19","2021-12-17 22:26",
"2021-12-18 05:41","2021-12-18 05:44",
"2021-12-19 07:40","2021-12-19 16:55",
"2021-12-19 20:39","2021-12-19 20:52",
"2021-12-19 21:56","2021-12-19 23:17",
"2021-12-21 04:53","2021-12-21 04:59",
"2021-12-21 05:37","2021-12-21 05:39",
"2021-12-22 08:06","2021-12-22 17:22",
"2021-12-22 20:04","2021-12-22 21:24",
"2021-12-22 21:44","2021-12-22 22:47",
"2021-12-23 02:20","2021-12-23 06:17",
"2021-12-23 08:07","2021-12-23 16:54",
"2021-12-23 19:36","2021-12-23 23:59:59",
"2021-12-24 00:00","2021-12-24 00:28",
"2021-12-24 07:53","2021-12-24 17:00",
])
# create dataframe with column indicating presence (1) or absence (0)
time_df = pd.DataFrame(data={'present':[1,0]*int(len(time)/2)}, index=time)
# calculate interval length and add to time_df
time_df['interval'] = time_df.index.to_series().diff().astype('timedelta64[m]')
# add column with day to time_df
time_df['day'] = time.day
#select only intervals where owl is present
timeinbox = time_df.iloc[1::2, :]
interval = timeinbox.interval
day = timeinbox.day
# sum multiple intervals per day
interval_tot = [interval[0]]
day_tot = [day[0]]
for i in range(1, len(day)):
if day[i] == day[i-1]:
interval_tot[-1] =interval[i]
else:
day_tot.append(day[i])
interval_tot.append(interval[i])
# recalculate to hours
for i in range(len(interval_tot)):
interval_tot[i] = interval_tot[i]/(60)
plt.figure(figsize=(15, 5))
plt.grid(zorder=0)
plt.bar(day_tot, interval_tot, color='g', zorder=3)
plt.xlim([1,31])
plt.xlabel('day in December')
plt.ylabel('hours per day in nest box')
plt.xticks(np.arange(1,31,1))
plt.ylim([0, 24])
現在我想通過制作堆積條形圖將所有資料合并在一個圖中，其中每一天由一個條形表示，每個條形指示 24*60 分鐘的每一分鐘是否存在貓頭鷹。從當前的資料結構來看，這可能嗎？
uj5u.com熱心網友回復：

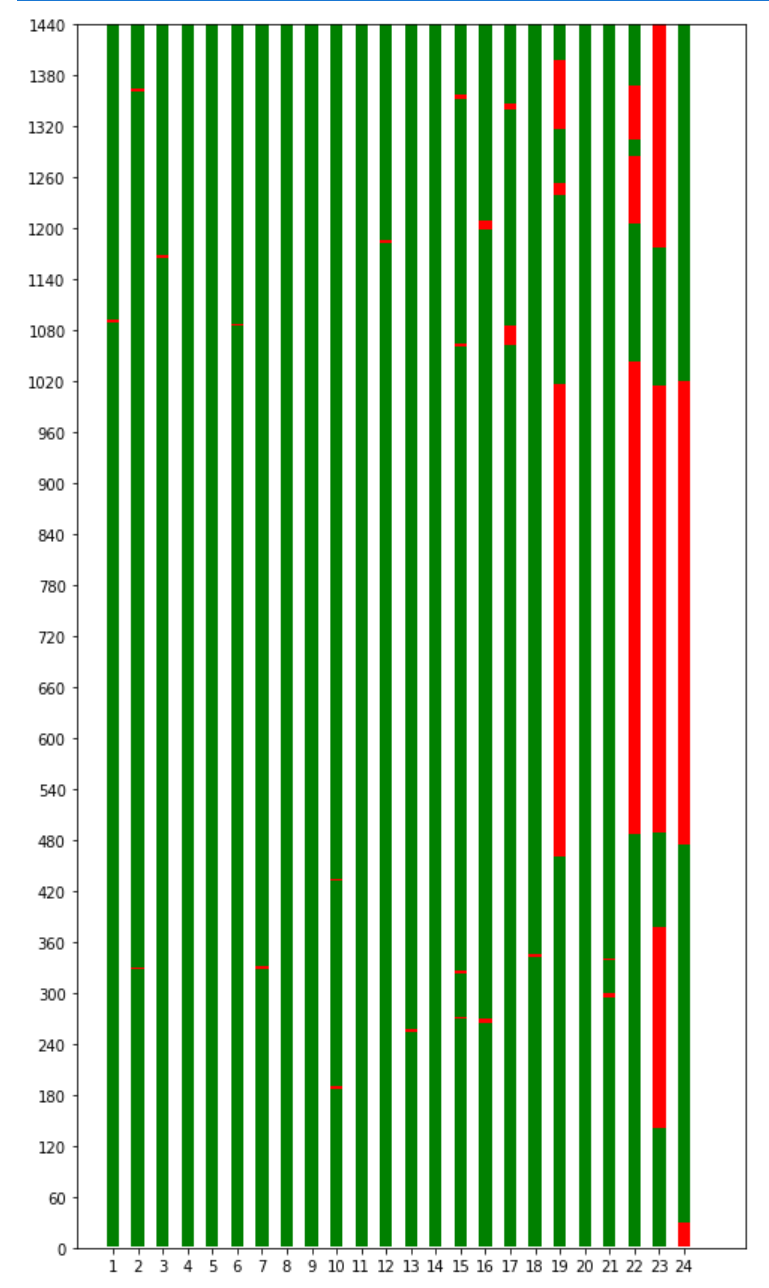

資料似乎是手動創建的，因此我更改了顯示資料的格式。我采取的方法是創建花費的時間和未花費的時間，以1分鐘為間隔的連續索引，以開始和結束時間為差異時間，標志為1。現在創建非停留時間，我將以 1 分鐘為間隔創建一個開始和結束日期 1 的時間序列索引。使用新創建的索引更新原始資料框。這是圖表的資料。在圖中，根據以天為單位提取的資料框，創建一個顏色串列，紅色為停留，綠色為非停留。然后，在條形圖中，堆疊高度。可能需要考慮將資料分組為小時單位。
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from datetime import timedelta
import io
data = '''
start_time,end_time
"2021-12-01 18:08","2021-12-01 18:11"
"2021-12-02 05:27","2021-12-02 05:29"
"2021-12-02 22:40","2021-12-02 22:43"
"2021-12-03 19:24","2021-12-03 19:27"
"2021-12-06 18:04","2021-12-06 18:06"
"2021-12-07 05:28","2021-12-07 05:30"
"2021-12-10 03:05","2021-12-10 03:10"
"2021-12-10 07:11","2021-12-10 07:13"
"2021-12-10 20:40","2021-12-10 20:41"
"2021-12-12 19:42","2021-12-12 19:45"
"2021-12-13 04:13","2021-12-13 04:17"
"2021-12-15 04:28","2021-12-15 04:30"
"2021-12-15 05:21","2021-12-15 05:25"
"2021-12-15 17:40","2021-12-15 17:44"
"2021-12-15 22:31","2021-12-15 22:37"
"2021-12-16 04:24","2021-12-16 04:28"
"2021-12-16 19:58","2021-12-16 20:09"
"2021-12-17 17:42","2021-12-17 18:04"
"2021-12-17 22:19","2021-12-17 22:26"
"2021-12-18 05:41","2021-12-18 05:44"
"2021-12-19 07:40","2021-12-19 16:55"
"2021-12-19 20:39","2021-12-19 20:52"
"2021-12-19 21:56","2021-12-19 23:17"
"2021-12-21 04:53","2021-12-21 04:59"
"2021-12-21 05:37","2021-12-21 05:39"
"2021-12-22 08:06","2021-12-22 17:22"
"2021-12-22 20:04","2021-12-22 21:24"
"2021-12-22 21:44","2021-12-22 22:47"
"2021-12-23 02:20","2021-12-23 06:17"
"2021-12-23 08:07","2021-12-23 16:54"
"2021-12-23 19:36","2021-12-24 00:00"
"2021-12-24 00:00","2021-12-24 00:28"
"2021-12-24 07:53","2021-12-24 17:00"
'''
df = pd.read_csv(io.StringIO(data), sep=',')
df['start_time'] = pd.to_datetime(df['start_time'])
df['end_time'] = pd.to_datetime(df['end_time'])
time_df = pd.DataFrame()
for idx, row in df.iterrows():
rng = pd.date_range(row['start_time'], row['end_time']-timedelta(minutes=1), freq='1min')
tmp = pd.DataFrame({'present':[1]*len(rng)}, index=rng)
time_df = time_df.append(tmp)
date_add = pd.date_range(time_df.index[0].date(), time_df.index[-1].date() timedelta(days=1), freq='1min')
time_df = time_df.reindex(date_add, fill_value=0)
time_df['day'] = time_df.index.day
import matplotlib.pyplot as plt
fig, ax = plt.subplots(figsize=(8,15))
ax.set_yticks(np.arange(0,1500,60))
ax.set_ylim(0,1440)
ax.set_xticks(np.arange(1,25,1))
days = time_df['day'].unique()
for d in days:
#if d == 1:
day_df = time_df.query('day == @d')
colors = [ 'r' if p == 1 else 'g' for p in day_df['present']]
for i in range(len(day_df)):
ax.bar(d, height=1, width=0.5, bottom=i 1, color=colors[i])
plt.show()
