我創建了一個滑塊條用戶控制元件，但是在運行時當我將滑塊向左或向右移動時，為什么它沒有走到盡頭或吞下？

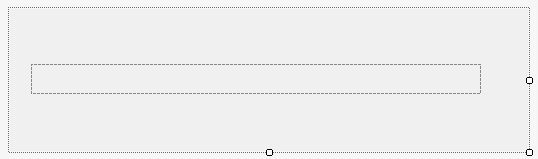

在用戶控制元件設計器中，我添加了一個 pictureBox 控制元件：

如何繪制自定義滑塊控制元件？

然后在我做的代碼中：

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace Extract
{
    public partial class Slider : UserControl
    {
        public float Height;
        public float Min = 0.0f;
        public float Max = 1.0f;

        private float defaultValue = 0.1f;

        public Slider()
        {
            InitializeComponent();
        }

        private void sliderControl_Paint(object sender, PaintEventArgs e)
        {
            float bar_size = 0.45f;
            float x = Bar(defaultValue);
            int y = (int)(sliderControl.Height * bar_size);

            e.Graphics.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias;
            e.Graphics.FillRectangle(Brushes.DimGray, 0, y, sliderControl.Width, y / 2);
            e.Graphics.FillRectangle(Brushes.Red, 0, y, x, sliderControl.Height - 2 * y);

            using (Pen pen = new Pen(Color.Black, 8))
            {
                e.Graphics.FillRectangle(Brushes.Red, 0, y, x, y / 2);
                FillCircle(e.Graphics, Brushes.Red, x, y   y / 4, y / 2);
            }

            using (Pen pen = new Pen(Color.White, 5))
            {
                DrawCircle(e.Graphics, pen, x, y   y / 4, y/ 2);
            }
        }

        public static void DrawCircle(Graphics g, Pen pen,
                                  float centerX, float centerY, float radius)
        {
            g.DrawEllipse(pen, centerX - radius, centerY - radius,
                          radius   radius, radius   radius);
        }

        public static void FillCircle(Graphics g, Brush brush,
                                      float centerX, float centerY, float radius)
        {
            g.FillEllipse(brush, centerX - radius, centerY - radius,
                          radius   radius, radius   radius);
        }

        private float Bar(float value)
        {
            return (sliderControl.Width - 24) * (value - Min) / (float)(Max - Min);
        }

        private void Thumb(float value)
        {
            if (value < Min) value = Min;
            if (value > Max) value = Max;
            defaultValue = value;

            sliderControl.Refresh();
        }

        private float SliderWidth(int x)
        {
            return Min   (Max - Min) * x / (float)(sliderControl.Width);
        }

        protected override void OnResize(EventArgs e)
        {
            base.OnResize(e);

            MaintainPictureBoxSize();
        }

        private void MaintainPictureBoxSize()
        {
            sliderControl.SizeMode = PictureBoxSizeMode.Normal;

            sliderControl.Location = new Point();
            sliderControl.Size = new Size();

            var clientSize = this.ClientSize;

            if (sliderControl.Image == null)
                sliderControl.Size = clientSize;
            else
            {
                Size s = sliderControl.Image.Size;
                sliderControl.Size = new Size(
                    clientSize.Width > s.Width ? clientSize.Width : s.Width,
                    clientSize.Height > s.Height ? clientSize.Height : s.Height);
            }
        }

        bool mouse = false;
        private void sliderControl_MouseDown(object sender, MouseEventArgs e)
        {
            mouse = true;
            Thumb(SliderWidth(e.X));
        }

        private void sliderControl_MouseMove(object sender, MouseEventArgs e)
        {
            if (!mouse) return;

            Thumb(SliderWidth(e.X));
        }

        private void sliderControl_MouseUp(object sender, MouseEventArgs e)
        {
            mouse = false;
        }
    }
}

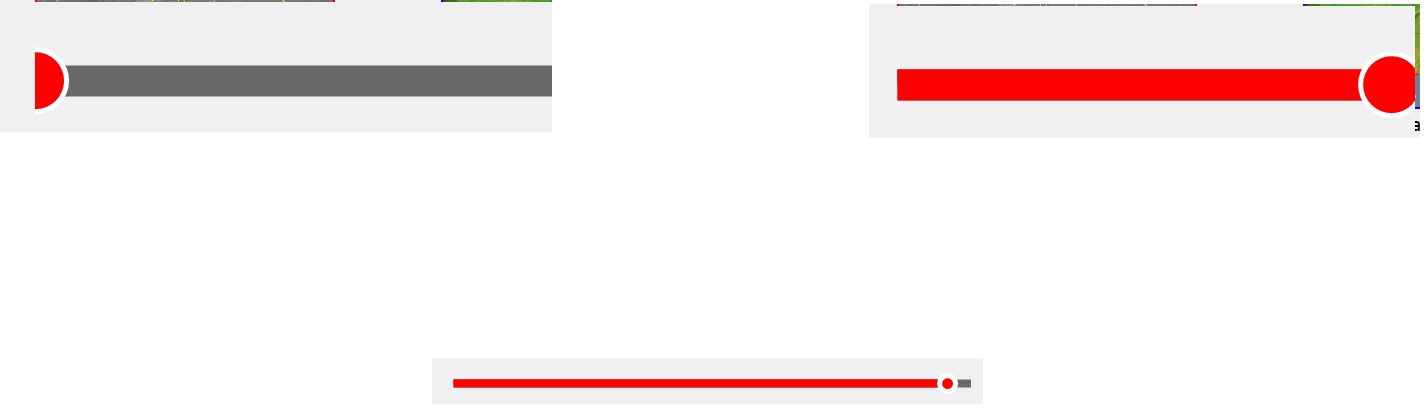

當我將控制元件拖動到 form1 設計器然后運行應用程式時，當我將滑塊拖動到例如左側或右側時，滑塊的圓圈部分被吞下。

如果我將 form1 設計器中的控制元件大小調整為更小，然后運行應用程式使其像以前一樣吞下，但在右側它根本不會結束。

如何繪制自定義滑塊控制元件？

uj5u.com熱心網友回復：

解釋它的最簡單方法是顯示影像：

如何繪制自定義滑塊控制元件？

現在，在圖片框內，想象拇指圓圈位于最左側和最右側的位置。這意味著條形必須從 x = 半徑開始，并且條形的寬度必須是圖片框的寬度減去半徑的兩倍。

一切都必須繪制在圖片框（虛線）內。但這不需要PictureBox放在一個UserControl. 讓我們從中派生出滑塊Control。

public class Slider : Control
{
    ...
}

現在，在第一次編譯此代碼后，此滑塊會自動出現在工具箱視窗中，并準備好放置在表單設計器中的表單上。

由于我們希望能夠在屬性視窗中設定其屬性，并且我們希望能夠在滑動后讀取當前值，所以讓我們添加一個事件和一些屬性。

public event EventHandler ValueChanged;

private float _min = 0.0f;
public float Min
{
    get => _min;
    set {
        _min = value;
        RecalculateParameters();
    }
}

private float _max = 1.0f;
public float Max
{
    get => _max;
    set {
        _max = value;
        RecalculateParameters();
    }
}

private float _value = 0.3f;
public float Value
{
    get => _value;
    set {
        _value = value;
        ValueChanged?.Invoke(this, EventArgs.Empty);
        RecalculateParameters();
    }
}

這需要一些欄位和RecalculateParameters方法。

private float _radius;
private PointF _thumbPos;
private SizeF _barSize;
private PointF _barPos;

private void RecalculateParameters()
{
    _radius = 0.5f * ClientSize.Height;
    _barSize = new SizeF(ClientSize.Width - 2f * _radius, 0.5f * ClientSize.Height);
    _barPos = new PointF(_radius, (ClientSize.Height - _barSize.Height) / 2);
    _thumbPos = new PointF(
        _barSize.Width / (Max - Min) * Value   _barPos.X,
        _barPos.Y   0.5f * _barSize.Height);
    Invalidate();
}

在這個派生控制元件中，我們覆寫事件處理程式（On...方法）而不是訂閱事件：

protected override void OnPaint(PaintEventArgs e)
{
    base.OnPaint(e);

    e.Graphics.SmoothingMode = SmoothingMode.AntiAlias;
    e.Graphics.FillRectangle(Brushes.DimGray,
        _barPos.X, _barPos.Y, _barSize.Width, _barSize.Height);
    e.Graphics.FillRectangle(Brushes.Red,
        _barPos.X, _barPos.Y, _thumbPos.X - _barPos.X, _barSize.Height);

    e.Graphics.FillCircle(Brushes.White, _thumbPos.X, _thumbPos.Y, _radius);
    e.Graphics.FillCircle(Brushes.Red, _thumbPos.X, _thumbPos.Y, 0.7f * _radius);
}

protected override void OnResize(EventArgs e)
{
    base.OnResize(e);
    RecalculateParameters();
}

現在讓我們編譯這段代碼，并為表單添加一個滑塊。看看我們如何在設計器中調整它的大小。

還要注意的是，在屬性視窗中，我們看到了新的Slider特性Max，Min并Value在“雜項”部分。我們可以在這里更改它們，拇指位置會自動更新。

We still need the code to enable moving the slider. When we click on the thumb, we might have clicked a bit off its center. It feels natural to keep this offset while moving the mouse. Therefore, we store this difference in a variable _delta.

bool _moving = false;
SizeF _delta;

protected override void OnMouseDown(MouseEventArgs e)
{
    base.OnMouseDown(e);

    // Difference between tumb and mouse position.
    _delta = new SizeF(e.Location.X - _thumbPos.X, e.Location.Y - _thumbPos.Y);
    if (_delta.Width * _delta.Width   _delta.Height * _delta.Height <= _radius * _radius) {
        // Clicking inside thumb.
        _moving = true;
    }
}

We also calculate the distance of the mouse position to the thumb position in OnMouseDown by using the Pythagorean theorem. Only if the mouse is inside the thumb, we initiate moving the thumb by setting _moving = true;

In OnMouseMove we calculate and set the new Value. This automatically triggers recalculating the parameters and redraws the slider.

protected override void OnMouseMove(MouseEventArgs e)
{
    base.OnMouseMove(e);
    if (_moving) {
        float thumbX = e.Location.X - _delta.Width;
        if (thumbX < _barPos.X) {
            thumbX = _barPos.X;
        } else if (thumbX > _barPos.X   _barSize.Width) {
            thumbX = _barPos.X   _barSize.Width;
        }
        Value = (thumbX - _barPos.X) * (Max - Min) / _barSize.Width;
    }
}

protected override void OnMouseUp(MouseEventArgs e)
{
    base.OnMouseUp(e);
    _moving = false;
}

我們可以通過向TextBox表單添加 a并回應ValueChanged事件來測驗滑塊。我們可以通過單擊閃光符號將屬性視窗切換到“事件”來添加事件處理程式，然后雙擊ValueChanged“其他”部分。

private void Slider1_ValueChanged(object sender, EventArgs e)
{
    textBox1.Text = slider1.Value.ToString();
}

現在，當我們移動拇指時，文本框會顯示值。

這里又是滑塊的整個代碼（使用 C# 10.0 檔案范圍命名空間）：

using System.Drawing.Drawing2D;

namespace WinFormsSliderBar;

public class Slider : Control
{
    private float _radius;
    private PointF _thumbPos;
    private SizeF _barSize;
    private PointF _barPos;

    public event EventHandler ValueChanged;

    public Slider()
    {
        // This reduces flicker
        DoubleBuffered = true;
    }

    private float _min = 0.0f;
    public float Min
    {
        get => _min;
        set {
            _min = value;
            RecalculateParameters();
        }
    }

    private float _max = 1.0f;
    public float Max
    {
        get => _max;
        set {
            _max = value;
            RecalculateParameters();
        }
    }

    private float _value = 0.3f;
    public float Value
    {
        get => _value;
        set {
            _value = value;
            ValueChanged?.Invoke(this, EventArgs.Empty);
            RecalculateParameters();
        }
    }

    protected override void OnPaint(PaintEventArgs e)
    {
        base.OnPaint(e);

        e.Graphics.SmoothingMode = SmoothingMode.AntiAlias;
        e.Graphics.FillRectangle(Brushes.DimGray,
            _barPos.X, _barPos.Y, _barSize.Width, _barSize.Height);
        e.Graphics.FillRectangle(Brushes.Red,
            _barPos.X, _barPos.Y, _thumbPos.X - _barPos.X, _barSize.Height);

        e.Graphics.FillCircle(Brushes.White, _thumbPos.X, _thumbPos.Y, _radius);
        e.Graphics.FillCircle(Brushes.Red, _thumbPos.X, _thumbPos.Y, 0.7f * _radius);
    }

    protected override void OnResize(EventArgs e)
    {
        base.OnResize(e);
        RecalculateParameters();
    }

    private void RecalculateParameters()
    {
        _radius = 0.5f * ClientSize.Height;
        _barSize = new SizeF(ClientSize.Width - 2f * _radius, 0.5f * ClientSize.Height);
        _barPos = new PointF(_radius, (ClientSize.Height - _barSize.Height) / 2);
        _thumbPos = new PointF(
            _barSize.Width / (Max - Min) * Value   _barPos.X,
            _barPos.Y   0.5f * _barSize.Height);
        Invalidate();
    }

    bool _moving = false;
    SizeF _delta;

    protected override void OnMouseDown(MouseEventArgs e)
    {
        base.OnMouseDown(e);

        // Difference between tumb and mouse position.
        _delta = new SizeF(e.Location.X - _thumbPos.X, e.Location.Y - _thumbPos.Y);
        if (_delta.Width * _delta.Width   _delta.Height * _delta.Height <= _radius * _radius) {
            // Clicking inside thumb.
            _moving = true;
        }
    }

    protected override void OnMouseMove(MouseEventArgs e)
    {
        base.OnMouseMove(e);
        if (_moving) {
            float thumbX = e.Location.X - _delta.Width;
            if (thumbX < _barPos.X) {
                thumbX = _barPos.X;
            } else if (thumbX > _barPos.X   _barSize.Width) {
                thumbX = _barPos.X   _barSize.Width;
            }
            Value = (thumbX - _barPos.X) * (Max - Min) / _barSize.Width;
        }
    }

    protected override void OnMouseUp(MouseEventArgs e)
    {
        base.OnMouseUp(e);
        _moving = false;
    }
}

以及用于繪制圓的圖形擴展：

namespace WinFormsSliderBar;

public static class GraphicsExtensions
{
    public static void DrawCircle(this Graphics g, Pen pen,
                                  float centerX, float centerY, float radius)
    {
        g.DrawEllipse(pen, centerX - radius, centerY - radius,
                      radius   radius, radius   radius);
    }

    public static void FillCircle(this Graphics g, Brush brush,
                                  float centerX, float centerY, float radius)
    {
        g.FillEllipse(brush, centerX - radius, centerY - radius,
                      radius   radius, radius   radius);
    }
}
