結尾附原始碼

redis安裝教程參考：Spring Boot 入門（三）部署Redis服務

新建一個maven專案，劃分三層

common-公共：存放服務宣告

comsuer-客戶端：存放服務呼叫

server-服務端：存放服務實作

maven參考

<!-- dubbo 依賴-->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-spring-boot-starter</artifactId>
    <version>2.7.8</version>
</dependency>
<!-- dubbo redis 依賴-->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-registry-redis</artifactId>
    <version>2.7.8</version>
</dependency>
<!-- redis 支持包 -->
<dependency>
    <groupId>redis.clients</groupId>
    <artifactId>jedis</artifactId>
    <version>2.9.1</version>
</dependency>

common

/**

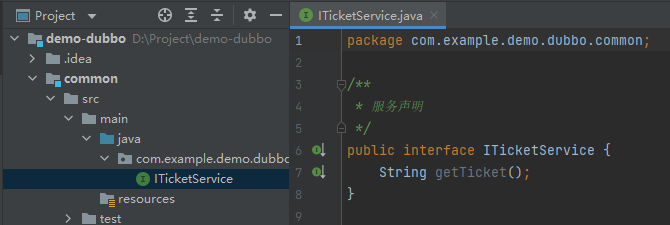

 * 服務宣告
 */
public interface ITicketService {
    String getTicket();
}

server

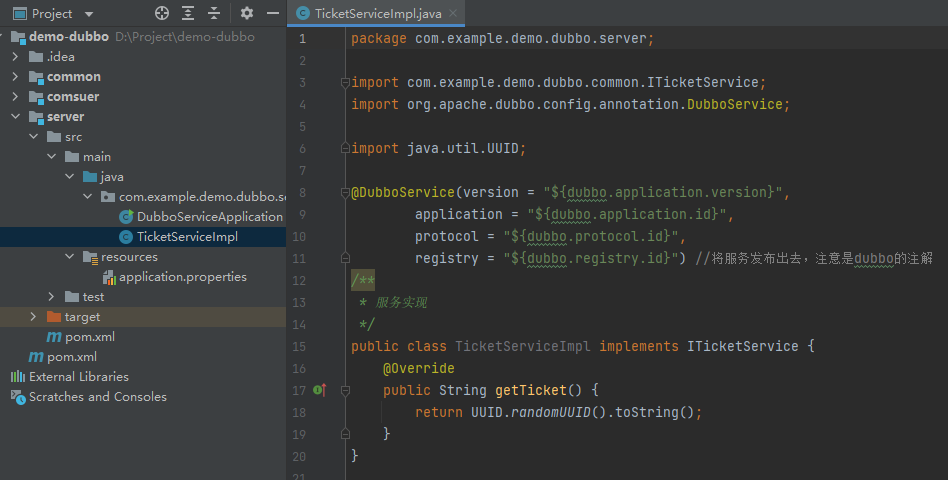

創建服務實作

import com.example.demo.dubbo.common.ITicketService;
import org.apache.dubbo.config.annotation.DubboService;

import java.util.UUID;

@DubboService(version = "${dubbo.application.version}",
        application = "${dubbo.application.id}",
        protocol = "${dubbo.protocol.id}",
        registry = "${dubbo.registry.id}") //將服務發布出去，注意是dubbo的注解
/**
 * 服務實作
 */
public class TicketServiceImpl implements ITicketService {
    @Override
    public String getTicket() {
        return UUID.randomUUID().toString();
    }
}

創建服務端的啟動類

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * 服務啟動類
 */
@SpringBootApplication
public class DubboServiceApplication {
    public static void main(String[] args) {
        SpringApplication.run(DubboServiceApplication.class, args);
    }
}

服務端配置

# dubbo 服務端配置
dubbo..application.name=server
dubbo.application.id=server
dubbo.application.version=1.0.0
dubbo.protocol.id=dubbo
dubbo.protocol.name=dubbo
dubbo.protocol.port=20880
dubbo.registry.id=dubbo-resis
dubbo.registry.address=redis://192.168.233.128:6379
dubbo.registry.username=root
dubbo.registry.password=123456
# 服務掃描位置
dubbo.scan.base-packages=com.example.demo.dubbo

redis沒有密碼可以洗掉這兩個配置（dubbo.registry.username、dubbo.registry.password）

我的redis有密碼，所以需要設定密碼，并且dubbo.registry.username隨便填，

啟動DubboServiceApplication

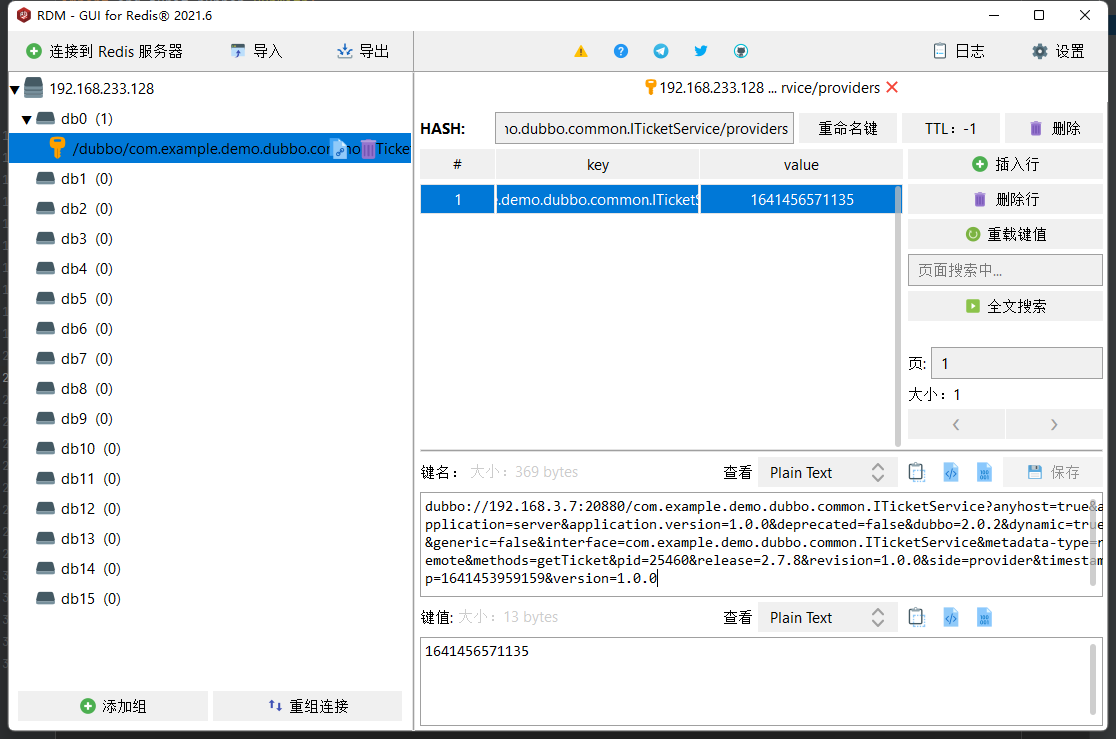

用RDM查詢到服務注冊成功

comsuer

創建服務呼叫

import com.example.demo.dubbo.common.ITicketService;
import org.apache.dubbo.config.annotation.DubboReference;
import org.springframework.stereotype.Component;

/**
 * 服務呼叫
 */
@Component
public class UserService {
    @DubboReference(version = "${dubbo.application.version}",
            application = "${dubbo.application.id}",
            registry = "${dubbo.registry.address}") //遠程參考指定的服務，他會按照全類名進行匹配，看誰給注冊中心注冊了這個全類名
    ITicketService ticketService;

    public String bugTicket() {
        String ticket = ticketService.getTicket();
        return "在注冊中心拿到:" + ticket;
    }
}

創建客戶端的啟動類

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * 服務啟動類
 */
@SpringBootApplication
public class DubboComsuerApplication {
    public static void main(String[] args) {
        SpringApplication.run(DubboComsuerApplication.class, args);
    }
}

客戶端配置

# dubbo 客戶端配置
dubbo..application.name=comsuer
dubbo.application.id=comsuer
dubbo.application.version=1.0.0
dubbo.protocol.id=dubbo
dubbo.protocol.name=dubbo
dubbo.protocol.port=20880
dubbo.registry.id=dubbo-resis
dubbo.registry.address=redis://192.168.233.128:6379
dubbo.registry.username=root
dubbo.registry.password=123456

測驗客戶端遠程呼叫服務

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.PropertySource;
import org.springframework.context.support.PropertySourcesPlaceholderConfigurer;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(classes = DubboComsuerApplication.class)
public class UserServiceTest {
    @Autowired
    UserService userService;

    @Test
    public void bugTicket() {
        System.err.println(userService.bugTicket());
    }

    /**
     * 注入組態檔
     */
    @Configuration
    @PropertySource("classpath:application.properties")
    static class PropertiesWithJavaConfig {

        @Bean
        public static PropertySourcesPlaceholderConfigurer
        propertySourcesPlaceholderConfigurer() {
            return new PropertySourcesPlaceholderConfigurer();
        }
    }
}

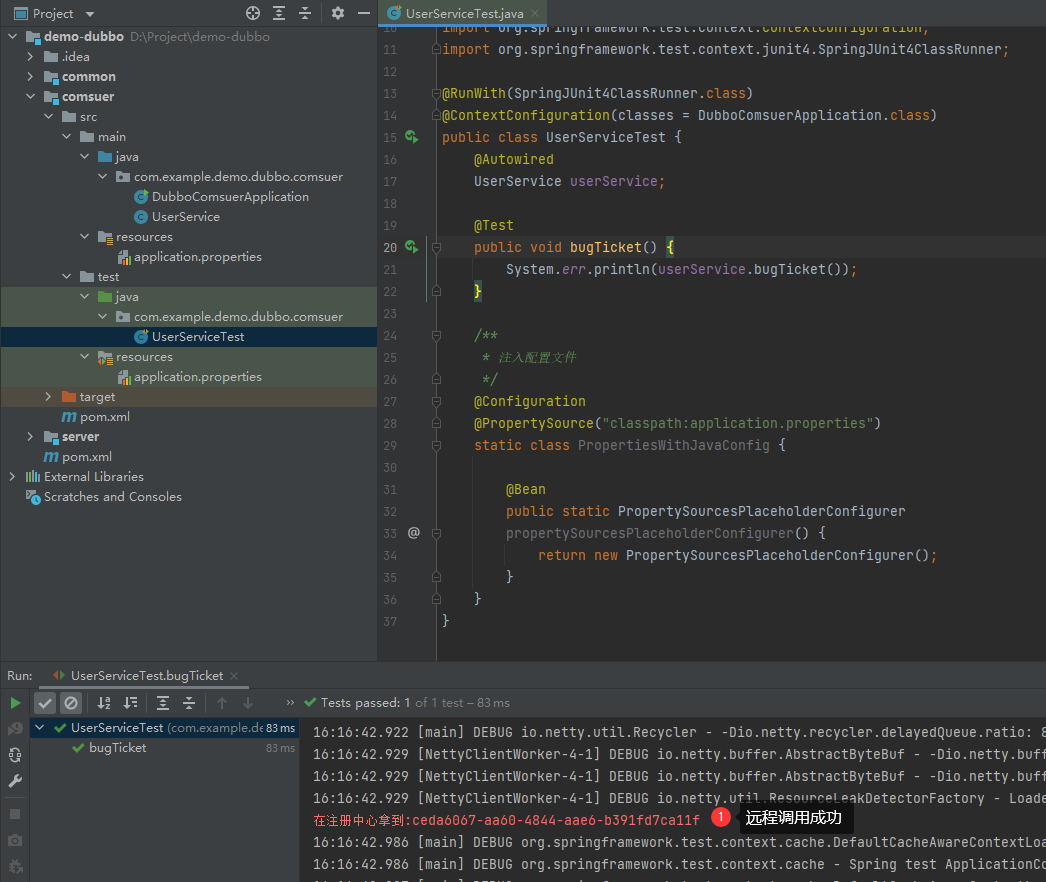

測驗成功，拿到一串UUID

 原始碼下載地址：https://download.csdn.net/download/yfq961651795/74416295
