下面的腳本是關于不同主題的 stackoverflow 答案的混合，但與尋找信號峰值密切相關。
這是我的python腳本：
import pandas as pd
import numpy as np
from datetime import datetime
import matplotlib.pyplot as plt
from scipy.signal import find_peaks
# A parser is required to translate the timestamp
custom_date_parser = lambda x: datetime.strptime(x, "%d-%m-%Y %H:%M_%S.%f")
df = pd.read_csv('15-01-2022_05_00.csv', parse_dates=[ 'Timestamp'], date_parser=custom_date_parser)
x = df['Timestamp']
y = df['Mean_values']
# As per accepted answer here:
#https://stackoverflow.com/questions/1713335/peak-finding-algorithm-for-python-scipy
peaks, _ = find_peaks(y, prominence=1)
# Invert the data to find the lowest points of peaks as per answer here:
#https://stackoverflow.com/questions/61365881/is-there-an-opposite-version-of-scipy-find-peaks
valleys, _ = find_peaks(-y, prominence=1)
print(y[peaks])
print(y[valleys])
plt.subplot(2, 1, 1)
plt.plot(peaks, y[peaks], "ob"); plt.plot(y); plt.legend(['Prominence'])
plt.subplot(2, 1, 2)
plt.plot(valleys, y[valleys], "vg"); plt.plot(y); plt.legend(['Prominence Inverted'])
plt.show()

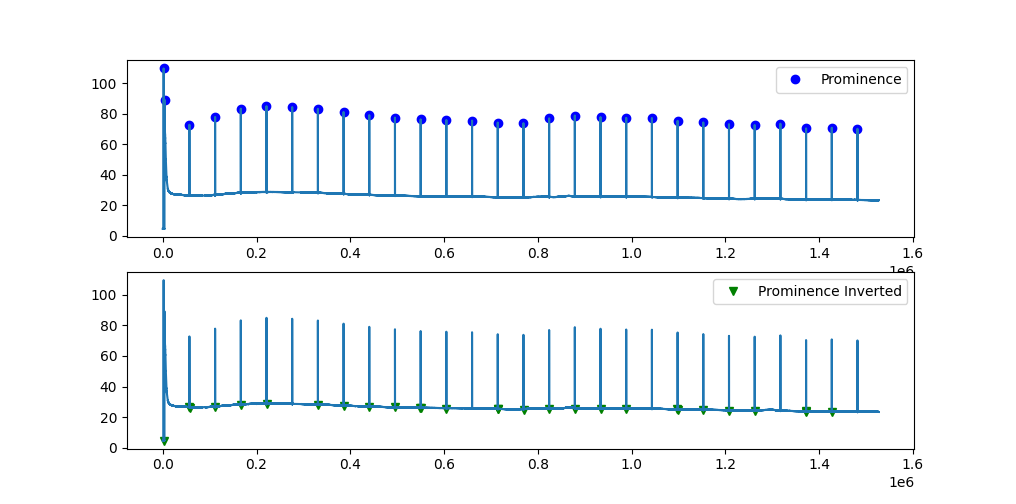

正如您在圖片中看到的，并非所有“突出倒置”點都低于相應的峰值。prominence 反轉函式來自

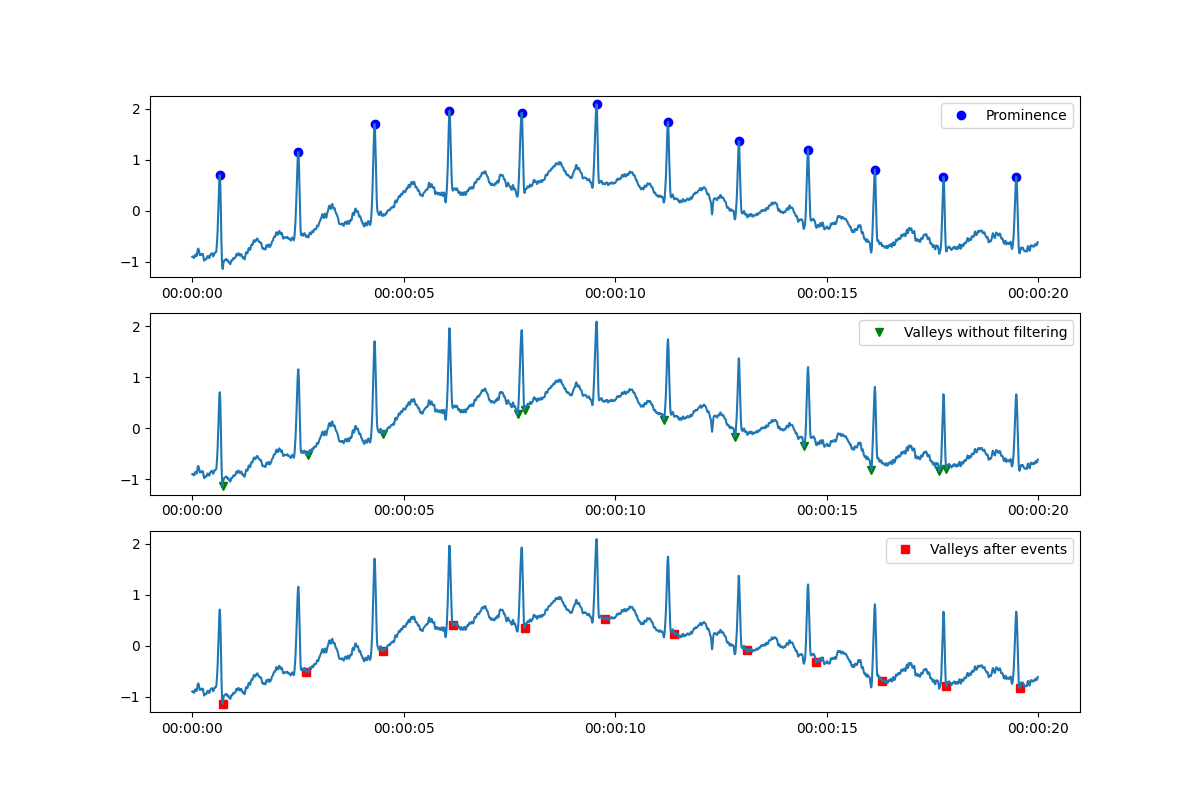

我不確定您打算如何處理這些最小值，但如果您只對基線偏移感興趣，您可以直接計算峰值基線值，例如
baseline_per_peak = peaks.copy().astype(float)
for i, (start, stop) in enumerate(zip(peaks, peak_end)):
baseline_per_peak[i] = y[start:stop].mean()
print(baseline_per_peak)
樣本輸出：
[-0.71125 -0.203 0.29225 0.72825 0.6835 0.79125 0.51225 0.23
0.0345 -0.3945 -0.48125 -0.4675 ]

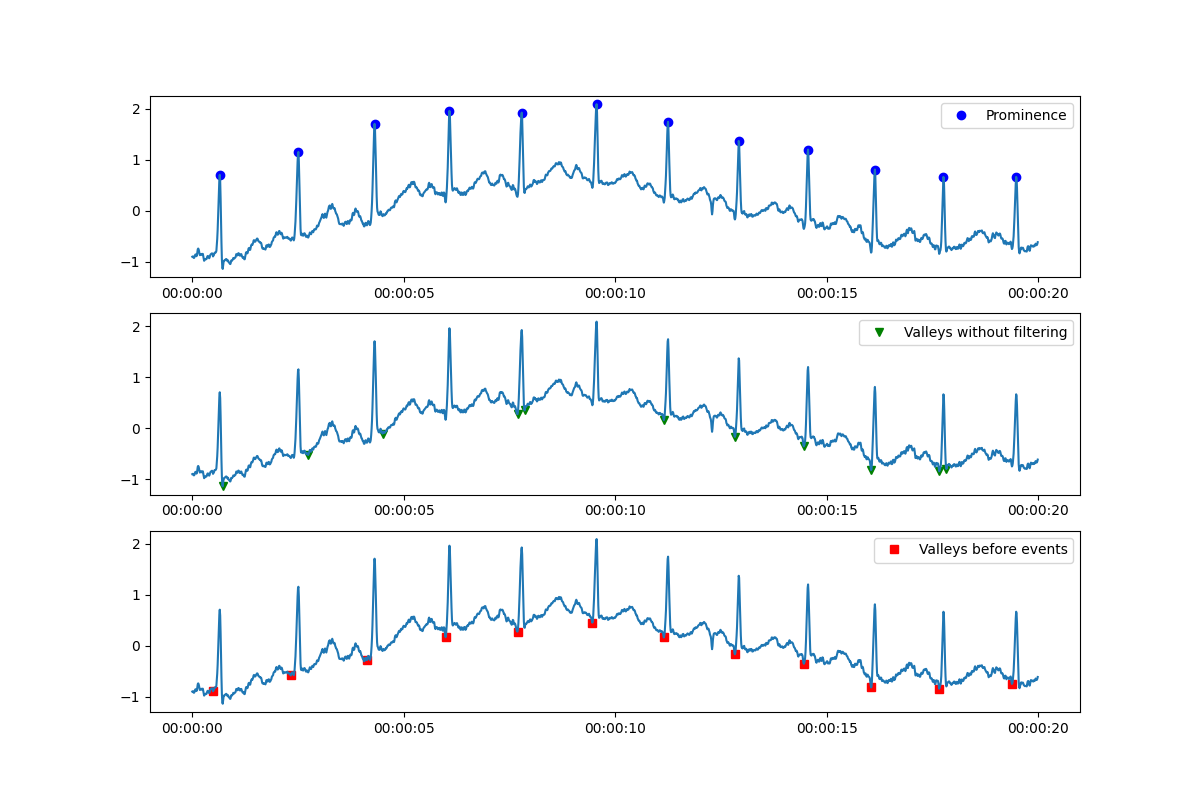

當然，這也可以很容易地適應高峰期之前的時期：
#valley in the short time period before a peak
#set time window, e.g., for 200 ms
time_window_size = pd.Timedelta(200, unit="ms")
time_of_peaks = x[peaks]
peak_start = x.searchsorted(time_of_peaks - time_window_size)
#in case of evenly spaced data points, this can be simplified
#and you just add n data points to your peak index array
#peak_start = peaks - n
true_valleys = peaks.copy()
for i, (start, stop) in enumerate(zip(peak_start, peaks)):
true_valleys[i] = start y[start:stop].argmin()
