我正在嘗試創建一個以 Netflix 風格列出電影的程式，以學習前端編碼。

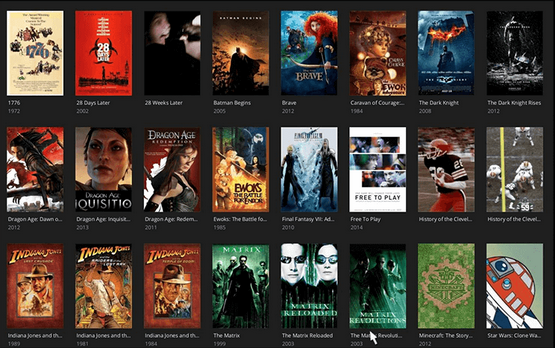

我希望它最終看起來如何：
我的猜測是，每部電影都是一個帶有影像、名稱標簽和發行年份標簽的按鈕組件。

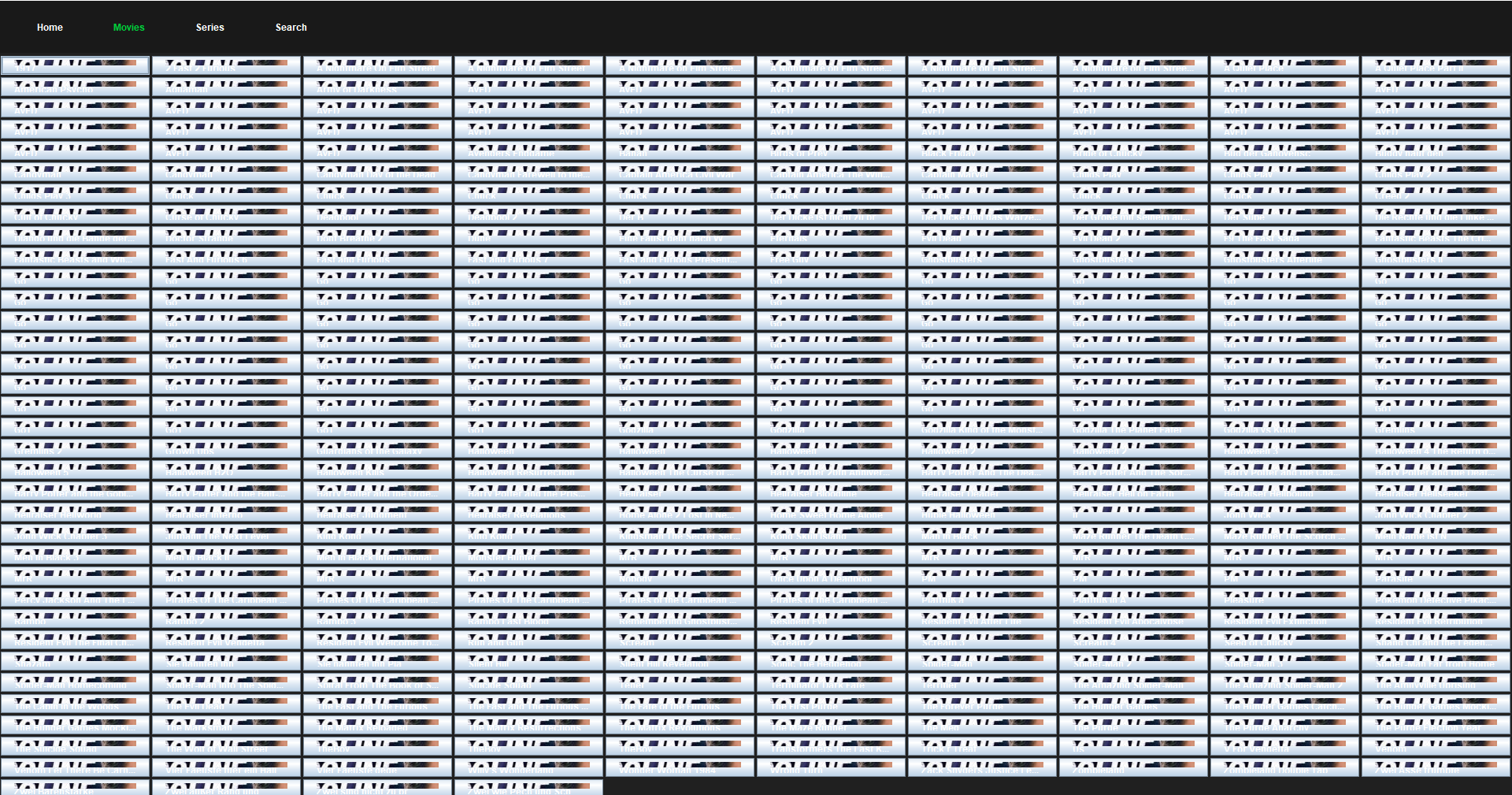

我正在努力重建這種外觀。這是我嘗試時的樣子：
我影像中的導航欄位于邊框布局的頁面開頭。在導航欄下方，電影容器位于邊框布局的中心。
我的想法是創建一個 GridLayout，然后為每部電影創建一個按鈕并將其添加到 GridLayout。
您可以使用以下代碼重新創建它：
public class Main {
private static JFrame frame;
public static void main(String[] args) throws HeadlessException {
frame = new JFrame();
frame.setLayout(new BorderLayout());
frame.setBackground(new Color(32, 32, 32));
JPanel navigationPanel = createNavigationBar();
frame.add(navigationPanel, BorderLayout.PAGE_START);
JPanel moviePanel = createMoviePanel();
frame.add(moviePanel, BorderLayout.CENTER);
frame.setPreferredSize(new Dimension(1920, 1080));
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.setTitle("Example App");
frame.pack();
frame.setExtendedState(JFrame.MAXIMIZED_BOTH);
frame.setVisible(true);
}
public static JPanel createMoviePanel() {
JPanel moviePanel = new JPanel();
GridLayout layout = new GridLayout(0, 10);
layout.setHgap(3);
layout.setVgap(3);
moviePanel.setLayout(layout);
moviePanel.setBackground(new Color(32, 32, 32));
ArrayList<String> exampleList = new ArrayList<>();
// Add stuff to the example list
for(int i = 0; i < 120; i ) {
exampleList.add(Integer.toString(i));
}
final File root = new File("");
for(final String movie : exampleList) {
JLabel picLabel = new JLabel();
try {
File imageFile = new File(root.getAbsolutePath() "\\src\\images\\" "imageName.jpg"); // Try to find the cover image
if(imageFile.exists()) {
BufferedImage movieCover = ImageIO.read(imageFile);
picLabel = new JLabel(new ImageIcon(movieCover));
} else {
BufferedImage movieCover = ImageIO.read(new File(root.getAbsolutePath() "\\src\\images\\temp.jpg")); // Get a temp image
picLabel = new JLabel(new ImageIcon(movieCover));
}
} catch (IOException e) {
e.printStackTrace();
}
JLabel movieName = new JLabel("New Movie");
movieName.setForeground(Color.WHITE);;
JButton movieButton = new JButton();
movieButton.setLayout(new GridLayout(0, 1));
//movieButton.setContentAreaFilled(false);
//movieButton.setBorderPainted(false);
//movieButton.setFocusPainted(false);
movieButton.add(picLabel);
movieButton.add(movieName);
moviePanel.add(movieButton);
}
return moviePanel;
}
public static JPanel createNavigationBar() {
JPanel navBar = new JPanel();
navBar.setLayout(new FlowLayout(FlowLayout.LEFT, 30, 20));
navBar.setBackground(new Color(25, 25, 25));
JButton homeButton = new JButton("Home");
homeButton.setContentAreaFilled(false);
homeButton.setBorderPainted(false);
homeButton.setFocusPainted(false);
JButton movieButton = new JButton("Movies");
movieButton.setContentAreaFilled(false);
movieButton.setBorderPainted(false);
movieButton.setFocusPainted(false);
// Add all the buttons to the navbar
navBar.add(homeButton);
navBar.add(movieButton);
return navBar;
}
}
我注意到GridLayout總是試圖把所有東西都放在窗戶上。
uj5u.com熱心網友回復：
所需要的只是JButton在GridLayout.
例如
public static JPanel createMoviePanel() {
JPanel movieLibraryPanel = new JPanel(new GridLayout(0, 10, 3, 3));
movieLibraryPanel.setBackground(new Color(132, 132, 132));
int m = 5;
BufferedImage image = new BufferedImage(9 * m, 16 * m, BufferedImage.TYPE_INT_RGB);
for (int ii = 1; ii < 21; ii ) {
JButton picButton = new JButton("Mov " ii, new ImageIcon(image));
picButton.setMargin(new Insets(0,0,0,0));
picButton.setForeground(Color.WHITE);
picButton.setContentAreaFilled(false);
picButton.setHorizontalTextPosition(JButton.CENTER);
picButton.setVerticalTextPosition(JButton.BOTTOM);
movieLibraryPanel.add(picButton);
}
return movieLibraryPanel;
}
這是上述內容的完整來源，并進行了調整以將年份放在新的線上。它使用 HTMLJButton將按鈕文本分成兩行。
輸入焦點在第一個按鈕上，而滑鼠懸停在“2009”電影上：
import java.awt.*;
import java.awt.image.*;
import javax.swing.*;
class MovieGrid {
MovieGrid() {
JFrame f = new JFrame("Movie Grid");
f.setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);
f.setLocationByPlatform(true);
f.add(createMoviePanel());
f.pack();
f.setVisible(true);
}
public static JPanel createMoviePanel() {
JPanel movieLibraryPanel = new JPanel(new GridLayout(0, 10, 3, 3));
movieLibraryPanel.setBackground(new Color(132, 132, 132));
int m = 5;
BufferedImage image = new BufferedImage(
9 * m, 16 * m, BufferedImage.TYPE_INT_RGB);
for (int ii = 2001; ii < 2021; ii ) {
JButton picButton = new JButton(
"<html>Movie<br>" ii, new ImageIcon(image));
picButton.setMargin(new Insets(0,0,0,0));
picButton.setForeground(Color.WHITE);
picButton.setContentAreaFilled(false);
picButton.setHorizontalTextPosition(JButton.CENTER);
picButton.setVerticalTextPosition(JButton.BOTTOM);
movieLibraryPanel.add(picButton);
}
return movieLibraryPanel;
}
public static void main(String[] args) {
Runnable r = new Runnable() {
@Override
public void run() {
new MovieGrid();
}
};
SwingUtilities.invokeLater(r);
}
}
uj5u.com熱心網友回復：
同樣的想法來自 Andrew Thompson 的回答，但有一些小的文本對齊變化和懸停效果
final class Testing
{
public static void main(String[] args)
{
JFrame frame=new JFrame("NEFLIX");
frame.setContentPane(new GridDisplay());
frame.pack();
frame.setResizable(false);
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.setVisible(true);
}
private static final class GridDisplay extends JPanel implements ActionListener
{
private GridDisplay()
{
super(new GridLayout(0,5,20,20));
setBackground(new Color(0,0,0,255));
BufferedImage image=new BufferedImage(150,200,BufferedImage.TYPE_INT_RGB);
Graphics2D g2d=(Graphics2D)image.getGraphics();
g2d.setColor(Color.BLUE);
g2d.fillRect(0,0,image.getWidth(),image.getHeight());
HoverPainter painter=new HoverPainter();
for(int i=0;i<10;i )
{
TVShowCard card=new TVShowCard(image,"Show " i,"199" i);
card.addMouseListener(painter);
add(card);
}
}
//highlight only on hover
private final class HoverPainter extends MouseAdapter
{
@Override
public void mouseExited(MouseEvent e) {
((TVShowCard)e.getSource()).setBorderPainted(false);
}
@Override
public void mouseEntered(MouseEvent e) {
((TVShowCard)e.getSource()).setBorderPainted(true);
}
}
private final class TVShowCard extends JButton
{
private TVShowCard(BufferedImage preview,String name,String year)
{
super();
setContentAreaFilled(false);
setBackground(new Color(0,0,0,0));
setFocusPainted(false);
setBorderPainted(false);
//I didn't use image icon & text horizontal allignment because the text always horizontally centered aligned but from the expected output it was left so created 2 labels for the job
setLayout(new GridBagLayout());
addIcon(preview);
addLabel(name,year);
addActionListener(GridDisplay.this);
}
private void addIcon(BufferedImage preview)
{
JLabel icon=new JLabel();
icon.setIcon(new ImageIcon(preview));
add(icon,new GridBagConstraints(0,0,1,1,1.0f,0.0f,GridBagConstraints.WEST,GridBagConstraints.NONE,new Insets(0,0,0,0),0,0));
}
private void addLabel(String name,String year)
{
JLabel label=new JLabel("<html><body>" name "<br>" year "</body></html>");
label.setForeground(Color.white);
label.setBackground(new Color(0,0,0,0));
add(label,new GridBagConstraints(0,1,1,1,1.0f,1.0f,GridBagConstraints.SOUTHWEST,GridBagConstraints.NONE,new Insets(5,0,0,0),0,0));
}
}
@Override
public void actionPerformed(ActionEvent e)
{
TVShowCard card=(TVShowCard)e.getSource();
//do stuff with it
}
}
}
