WPFvsWinFormsOxyplot自定義工具提示/跟蹤器

我正在構建一個 WPF 應用程式并使用 OxyPlot 呈現圖表。

為了最大化圖表的性能，我切換到OxyPlot.WindowsForms并使用嵌入圖表WindowsFormsHost。資料來源：

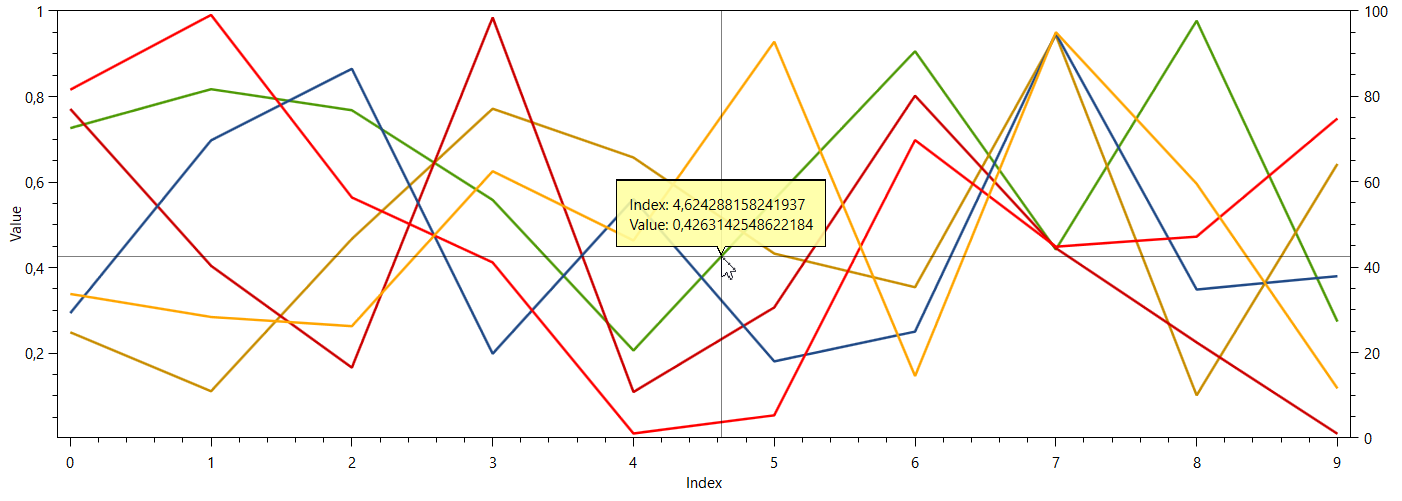

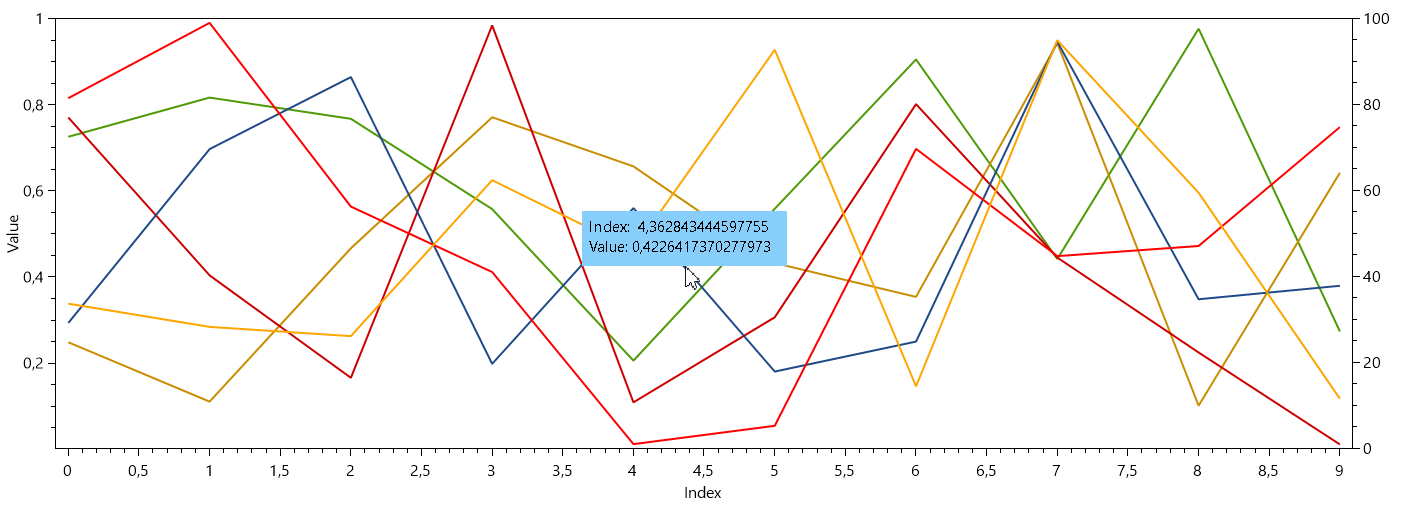

WPF：

有什么方法可以自定義 WindowsForms 工具提示，使其看起來像 WPF 工具提示？最重要的是點的垂直和水平線。

uj5u.com熱心網友回復：

查看組件的源代碼，它不是真正的工具提示，

使用以下代碼：

private Label trackerLabel;
private void Form1_Load(object sender, EventArgs e)
{
    var trackerLabelField = plotView1.GetType().GetField("trackerLabel",
        System.Reflection.BindingFlags.NonPublic | System.Reflection.BindingFlags.Instance);
    trackerLabel = new BalloonLabel()
    {
        Visible = false,
        Parent = plotView1
    };
    trackerLabelField.SetValue(plotView1, trackerLabel);

    var myModel = new PlotModel { Title = "Example 1" };
    myModel.Series.Add(new FunctionSeries(Math.Cos, 0, 10, 0.1, "cos(x)"));
    this.plotView1.Model = myModel;
    this.plotView1.Paint  = PlotView1_Paint;
    trackerLabel.VisibleChanged  = TrackerLabel_VisibleChanged;
}
private void TrackerLabel_VisibleChanged(object sender, EventArgs e)
{
    plotView1.Invalidate();
}
private void PlotView1_Paint(object sender, PaintEventArgs e)
{
    if (trackerLabel.Visible)
    {
        var r = plotView1.Model.PlotArea;
        e.Graphics.DrawLine(Pens.Blue, trackerLabel.Left   trackerLabel.Width / 2, (int)r.Top,
            trackerLabel.Left   trackerLabel.Width / 2, (int)r.Bottom);
        e.Graphics.DrawLine(Pens.Blue, (int)r.Left, trackerLabel.Bottom, (int)r.Right, trackerLabel.Bottom);
    }
}

這個氣球標簽，我認為這是一個足夠好的起點：

using System;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Windows.Forms;
public class BalloonLabel : Label
{
    public BalloonLabel()
    {
        BackColor = SystemColors.Info;
        Padding = new Padding(5, 5, 5, 20);
        ArrowSize = new Size(10, 20);
        AutoSize = true;
    }
    private Size arrowSize;
    public Size ArrowSize
    {
        get { return arrowSize; }
        set
        {
            arrowSize = value;
            this.RecreateRegion();
        }
    }

    private GraphicsPath GetBalloon(Rectangle bounds)
    {
        GraphicsPath path = new GraphicsPath();
        path.StartFigure();

        if (arrowSize.Width > 0 && arrowSize.Height > 0)
        {
            path.AddLine(bounds.Left, bounds.Bottom - arrowSize.Height / 2, bounds.Left, bounds.Top);
            path.AddLine(bounds.Left, bounds.Top, bounds.Right, bounds.Top);
            path.AddLine(bounds.Right, bounds.Top, bounds.Right, bounds.Bottom - arrowSize.Height / 2);
            path.AddLine(bounds.Right, bounds.Bottom - arrowSize.Height / 2, bounds.Left   bounds.Width / 2   arrowSize.Width / 2, bounds.Bottom - arrowSize.Height / 2);
            path.AddLine(bounds.Left   bounds.Width / 2   arrowSize.Width / 2, bounds.Bottom - arrowSize.Height / 2,
                bounds.Left   bounds.Width / 2, bounds.Bottom);
            path.AddLine(bounds.Left   bounds.Width / 2, bounds.Bottom,
                bounds.Left   bounds.Width / 2 - arrowSize.Width / 2, bounds.Bottom - arrowSize.Height / 2);
            path.AddLine(bounds.Left   bounds.Width / 2 - arrowSize.Width / 2, bounds.Bottom - arrowSize.Height / 2,
                bounds.Left, bounds.Bottom - arrowSize.Height / 2);
        }
        else
        {
            path.AddLine(bounds.Left, bounds.Bottom, bounds.Left, bounds.Top);
            path.AddLine(bounds.Left, bounds.Top, bounds.Right, bounds.Top);
            path.AddLine(bounds.Right, bounds.Top, bounds.Right, bounds.Bottom);
            path.AddLine(bounds.Right, bounds.Bottom, bounds.Left, bounds.Bottom);
        }
        path.CloseFigure();
        return path;
    }

    private void RecreateRegion()
    {
        var r = ClientRectangle;
        using (var path = GetBalloon(r))
            this.Region = new Region(path);
        this.Invalidate();
    }
    protected override void OnSizeChanged(EventArgs e)
    {
        base.OnSizeChanged(e);
        this.RecreateRegion();
    }
    protected override void OnPaint(PaintEventArgs e)
    {
        base.OnPaint(e);
        var r = ClientRectangle;
        r.Inflate(-1, -1);
        using (var path = GetBalloon(r))
        {
            e.Graphics.SmoothingMode = SmoothingMode.AntiAlias;
            using (var pen = new Pen(Color.Gray, 1) { Alignment = PenAlignment.Inset })
                e.Graphics.DrawPath(pen, path);
            if (Parent != null)
                Parent.Invalidate();
        }
    }
}

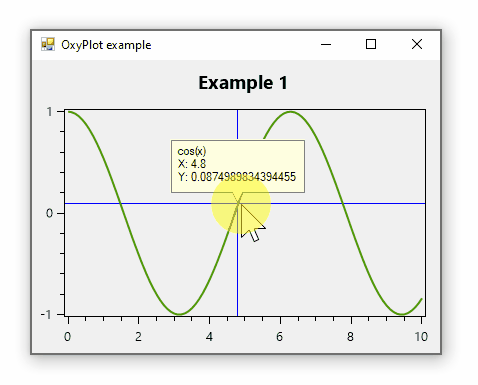

這是影片結果：
