在B站初學springboot整合mybatis，為了加深熟悉程度，于是就寫了這個漏洞百出的員工管理系統，好了，廢話不多說，開始！

不得作用于任何商業活動！！！！

1.環境準備

　　1.1 資料庫 mysql:8.0.26

　　1.2 maven:3.6.3

　　1.3 jdk:1.8

　　1.4 編輯器：IDEA 2022.1.2

　　　　　　　　eclipse 2018.09

　　1.5 mybatis 3.5.7

　　1.6 bootstrap 5.1.3

　　1.7 資料庫可視化工具 Navicat

　　1.7 字符集編碼 utf-8

2.環境搭建（注：springboot本來是不建議使用jsp，）

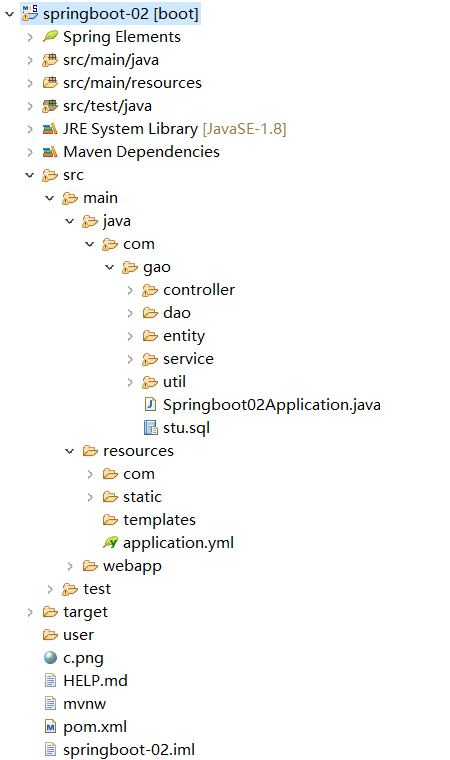

　　2.1 專案結構圖如下

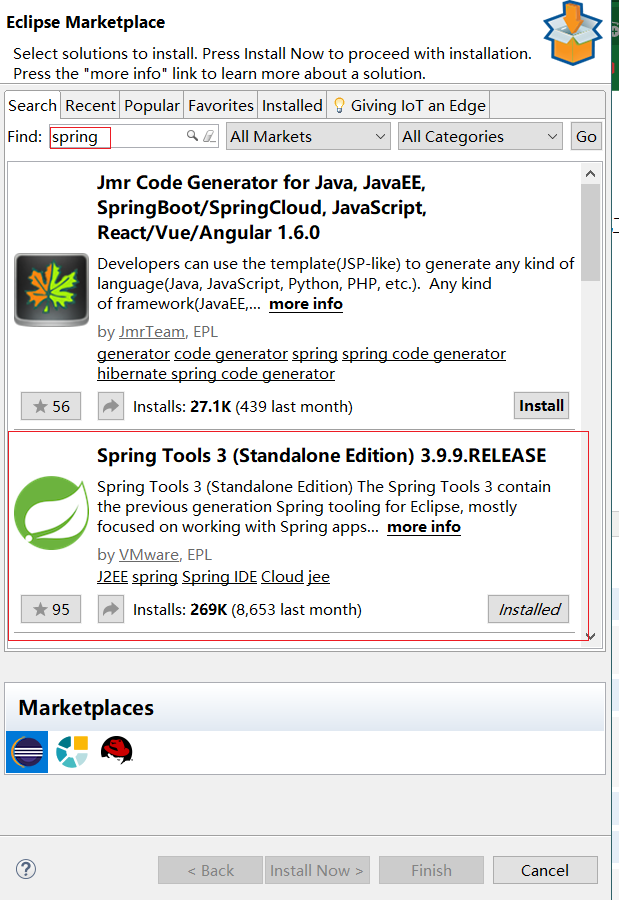

2.2此專案是基于maven創建的，為此可以利用eclipse中的springboot初始化工具進行創建，從官網上下載的eclipse中是沒有這個初始化工具的，為此，應另外安裝初始化工具，打開eclipse應用商店，搜索spring選擇如下圖所示，點擊下一步進行安裝即可，

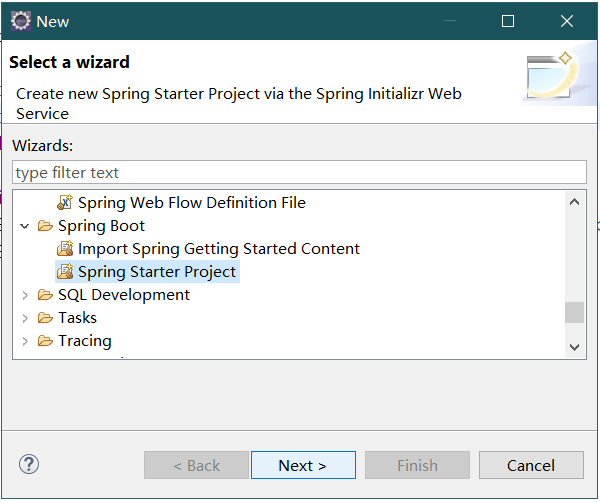

專案搭建

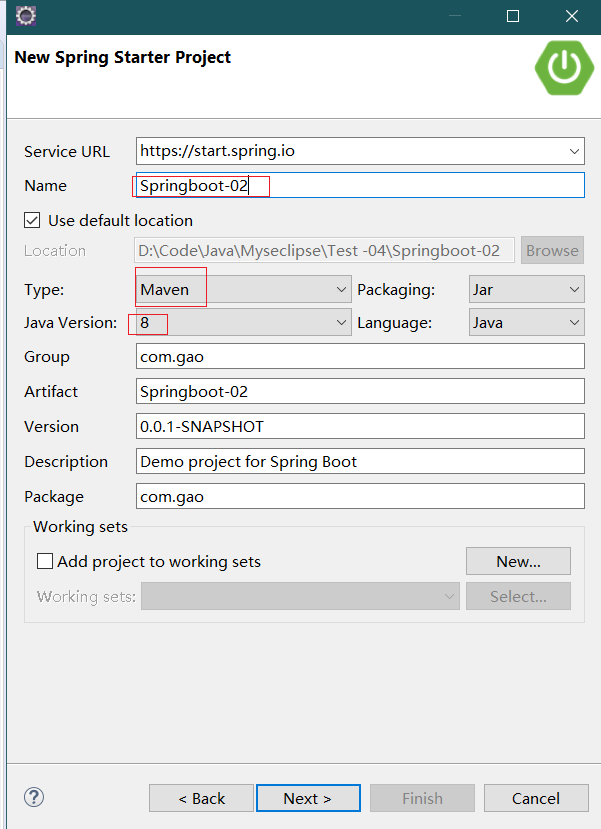

點擊next

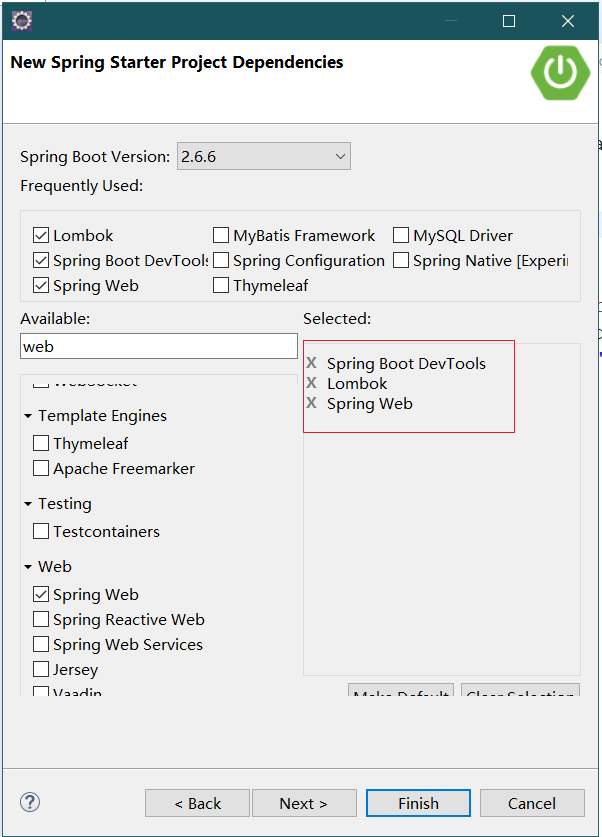

點擊next,因為搭建的是web專案，所以選擇springWeb

點擊finish,專案搭建完成，如果pom.xml檔案報錯，右鍵重繪即可，

2.3編輯application.yml檔案

server:
  port: 8088    # 定義埠號
  servlet:
    context-path: /springboot-02 # 指定專案名
    jsp:
      init-parameters:
        development: true # 啟用jsp開發者模式:可以更改jsp頁面內容

#配置jsp模板
spring:
  mvc:
    view:
      prefix: /
      suffix: .jsp
  #資料庫配置
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource #利用德魯伊連接池
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/stu
    username: root
    password: 123456

#配置mybatis
mybatis:
  mapper-locations: classpath:com/gao/mapper/*.xml
  type-aliases-package: com.gao.entity

#配置日志使用
logging:
  level:
    root: info
    com.gao: debug

2.4資料庫創建

/*
 Navicat Premium Data Transfer

 Source Server         : MysqlLink
 Source Server Type    : MySQL
 Source Server Version : 80026
 Source Host           : localhost:3306
 Source Schema         : stu

 Target Server Type    : MySQL
 Target Server Version : 80026
 File Encoding         : 65001

 Date: 21/03/2022 00:02:45
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for book
-- ----------------------------
DROP TABLE IF EXISTS `book`;
CREATE TABLE `book`  (
  `bno` varchar(6) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `name` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `price` float NULL DEFAULT NULL,
  `author` varchar(12) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `publish` varchar(30) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of book
-- ----------------------------
INSERT INTO `book` VALUES ('B00003', '新視界英語', 23.4, '張珊', '外語研究出版社');
INSERT INTO `book` VALUES ('B00004', 'vue高級設計', 50.23, '尤玉溪', '機械工業出版社');
INSERT INTO `book` VALUES ('B00005', 'C#高級程式實戰', 50.23, '微軟', '電子機械工業出版社');
INSERT INTO `book` VALUES ('B00006', 'C語言', 3.33, '毛人鳳', '南陽出版社');
INSERT INTO `book` VALUES (NULL, NULL, 0, NULL, NULL);
INSERT INTO `book` VALUES (NULL, NULL, 0, NULL, NULL);
INSERT INTO `book` VALUES (NULL, NULL, 0, NULL, NULL);
INSERT INTO `book` VALUES (NULL, NULL, 0, NULL, NULL);
INSERT INTO `book` VALUES (NULL, NULL, 0, NULL, NULL);

-- ----------------------------
-- Table structure for cad
-- ----------------------------
DROP TABLE IF EXISTS `cad`;
CREATE TABLE `cad`  (
  `id` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '編號',
  `name` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '姓名',
  `tel` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '電話號碼'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = '測驗表' ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of cad
-- ----------------------------
INSERT INTO `cad` VALUES ('1', '李飛', '1120');
INSERT INTO `cad` VALUES ('2', '1', '123');
INSERT INTO `cad` VALUES ('3', '2', '234');
INSERT INTO `cad` VALUES ('4', '3', '456');
INSERT INTO `cad` VALUES ('5', '4', '678');

-- ----------------------------
-- Table structure for emp
-- ----------------------------
DROP TABLE IF EXISTS `emp`;
CREATE TABLE `emp`  (
  `ebno` varchar(15) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT '員工銷售圖書編號',
  `eeno` varchar(15) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL DEFAULT '員工編號',
  PRIMARY KEY (`eeno`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of emp
-- ----------------------------
INSERT INTO `emp` VALUES ('B00001', 'e001');
INSERT INTO `emp` VALUES ('B00002', 'e002');
INSERT INTO `emp` VALUES ('B00003', 'e003');
INSERT INTO `emp` VALUES ('B00004', 'e004');

-- ----------------------------
-- Table structure for employee
-- ----------------------------
DROP TABLE IF EXISTS `employee`;
CREATE TABLE `employee`  (
  `eno` varchar(10) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  `pname` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  `age` int NOT NULL,
  `sex` enum('男','女') CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  `department` varchar(12) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  PRIMARY KEY (`eno`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of employee
-- ----------------------------
INSERT INTO `employee` VALUES ('e001', '戰英杰', 36, '男', '銷售二部');
INSERT INTO `employee` VALUES ('e002', '李國立', 24, '男', '銷售一部');
INSERT INTO `employee` VALUES ('e003', '張顯英', 30, '女', '銷售二部');
INSERT INTO `employee` VALUES ('e004', '李飛', 18, '男', '設計部');
INSERT INTO `employee` VALUES ('e006', '劉子凱', 28, '男', '硬體開發部');
INSERT INTO `employee` VALUES ('e008', '孫寶紅', 21, '女', '策劃部');

-- ----------------------------
-- Table structure for sale
-- ----------------------------
DROP TABLE IF EXISTS `sale`;
CREATE TABLE `sale`  (
  `bno` varchar(6) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `eno` varchar(4) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `quantity` int NULL DEFAULT NULL,
  `time` date NULL DEFAULT NULL,
  INDEX `FK_SA`(`eno`) USING BTREE,
  CONSTRAINT `FK_SA` FOREIGN KEY (`eno`) REFERENCES `emp` (`eeno`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of sale
-- ----------------------------
INSERT INTO `sale` VALUES ('B00001', 'e001', 1020, '2021-05-09');
INSERT INTO `sale` VALUES ('B00001', 'e002', 2030, '2021-09-12');
INSERT INTO `sale` VALUES ('B00002', 'e001', 300, '2021-03-04');
INSERT INTO `sale` VALUES ('B00003', 'e003', 503, '2021-01-09');

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user`  (
  `id` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  `psw` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES ('001', '7878');
INSERT INTO `user` VALUES ('0401200606', '280017');
INSERT INTO `user` VALUES ('0401200612', '7878');
INSERT INTO `user` VALUES ('0401200859', '123456');
INSERT INTO `user` VALUES ('0407200213', '456789');
INSERT INTO `user` VALUES ('0411200311', '123456');
INSERT INTO `user` VALUES ('admin', '123');
INSERT INTO `user` VALUES ('AI', '110');
INSERT INTO `user` VALUES ('CAD', '345');

-- ----------------------------
-- View structure for v_sc
-- ----------------------------
DROP VIEW IF EXISTS `v_sc`;
CREATE ALGORITHM = UNDEFINED SQL SECURITY DEFINER VIEW `v_sc` AS select `book`.`bno` AS `bno`,`book`.`name` AS `name`,`book`.`publish` AS `publish`,`sale`.`quantity` AS `quantity` from (`book` join `sale`) where (`book`.`bno` = `sale`.`bno`);

SET FOREIGN_KEY_CHECKS = 1;

2.5 工具類：實作驗證碼

package com.gao.util;

import javax.imageio.ImageIO;
import java.awt.*;
import java.awt.geom.AffineTransform;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.OutputStream;
import java.util.Arrays;
import java.util.Random;

/**
 * 生成驗證碼工具類 , 添加噪點以及扭曲
 */
public class CaptchaUtil {

    public static final String VERIFY_CODES = "123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ";
    private static Random random = new Random();


    /**
     * 使用系統默認字符源生成驗證碼
     * @param verifySize    驗證碼長度
     * @return
     */
    public static String generateVerifyCode(int verifySize){
        return generateVerifyCode(verifySize, VERIFY_CODES);
    }

    /**
     * 使用指定源生成驗證碼
     * @param verifySize    驗證碼長度
     * @param sources   驗證碼字符源
     * @return
     */
    public static String generateVerifyCode(int verifySize, String sources){
        // 未設定展示源的字碼，賦默認值大寫字母+數字
        if(sources == null || sources.length() == 0){
            sources = VERIFY_CODES;
        }
        int codesLen = sources.length();
        Random rand = new Random(System.currentTimeMillis());
        StringBuilder verifyCode = new StringBuilder(verifySize);
        for(int i = 0; i < verifySize; i++){
            verifyCode.append(sources.charAt(rand.nextInt(codesLen-1)));
        }
        return verifyCode.toString();
    }

    /**
     * 生成隨機驗證碼檔案,并回傳驗證碼值 (生成圖片形式，用的較少)
     * @param w
     * @param h
     * @param outputFile
     * @param verifySize
     * @return
     * @throws IOException
     */
    public static String outputVerifyImage(int w, int h, File outputFile, int verifySize) throws IOException {
        String verifyCode = generateVerifyCode(verifySize);
        outputImage(w, h, outputFile, verifyCode);
        return verifyCode;
    }

    /**
     * 輸出隨機驗證碼圖片流,并回傳驗證碼值（一般傳入輸入流，回應response頁面端，Web專案用的較多）
     * @param w
     * @param h
     * @param os
     * @param verifySize
     * @return
     * @throws IOException
     */
    public static String outputVerifyImage(int w, int h, OutputStream os, int verifySize) throws IOException{
        String verifyCode = generateVerifyCode(verifySize);
        outputImage(w, h, os, verifyCode);
        return verifyCode;
    }

    /**
     * 生成指定驗證碼影像檔案
     * @param w
     * @param h
     * @param outputFile
     * @param code
     * @throws IOException
     */
    public static void outputImage(int w, int h, File outputFile, String code) throws IOException{
        if(outputFile == null){
            return;
        }
        File dir = outputFile.getParentFile();
        //檔案不存在
        if(!dir.exists()){
            //創建
            dir.mkdirs();
        }
        try{
            outputFile.createNewFile();
            FileOutputStream fos = new FileOutputStream(outputFile);
            outputImage(w, h, fos, code);
            fos.close();
        } catch(IOException e){
            throw e;
        }
    }

    /**
     * 輸出指定驗證碼圖片流
     * @param w
     * @param h
     * @param os
     * @param code
     * @throws IOException
     */
    public static void outputImage(int w, int h, OutputStream os, String code) throws IOException{
        int verifySize = code.length();
        BufferedImage image = new BufferedImage(w, h, BufferedImage.TYPE_INT_RGB);
        Random rand = new Random();
        Graphics2D g2 = image.createGraphics();
        g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,RenderingHints.VALUE_ANTIALIAS_ON);

        // 創建顏色集合，使用java.awt包下的類
        Color[] colors = new Color[5];
        Color[] colorSpaces = new Color[] { Color.WHITE, Color.CYAN,
                Color.GRAY, Color.LIGHT_GRAY, Color.MAGENTA, Color.ORANGE,
                Color.PINK, Color.YELLOW };
        float[] fractions = new float[colors.length];
        for(int i = 0; i < colors.length; i++){
            colors[i] = colorSpaces[rand.nextInt(colorSpaces.length)];
            fractions[i] = rand.nextFloat();
        }
        Arrays.sort(fractions);
        // 設定邊框色
        g2.setColor(Color.GRAY);
        g2.fillRect(0, 0, w, h);

        Color c = getRandColor(200, 250);
        // 設定背景色
        g2.setColor(c);
        g2.fillRect(0, 2, w, h-4);

        // 繪制干擾線
        Random random = new Random();
        // 設定線條的顏色
        g2.setColor(getRandColor(160, 200));
        for (int i = 0; i < 20; i++) {
            int x = random.nextInt(w - 1);
            int y = random.nextInt(h - 1);
            int xl = random.nextInt(6) + 1;
            int yl = random.nextInt(12) + 1;
            g2.drawLine(x, y, x + xl + 40, y + yl + 20);
        }

        // 添加噪點
        // 噪聲率
        float yawpRate = 0.05f;
        int area = (int) (yawpRate * w * h);
        for (int i = 0; i < area; i++) {
            int x = random.nextInt(w);
            int y = random.nextInt(h);
            // 獲取隨機顏色
            int rgb = getRandomIntColor();
            image.setRGB(x, y, rgb);
        }
        // 添加圖片扭曲
        shear(g2, w, h, c);

        g2.setColor(getRandColor(100, 160));
        int fontSize = h-4;
        Font font = new Font("Algerian", Font.ITALIC, fontSize);
        g2.setFont(font);
        char[] chars = code.toCharArray();
        for(int i = 0; i < verifySize; i++){
            AffineTransform affine = new AffineTransform();
            affine.setToRotation(Math.PI / 4 * rand.nextDouble() * (rand.nextBoolean() ? 1 : -1), (w / verifySize) * i + fontSize/2, h/2);
            g2.setTransform(affine);
            g2.drawChars(chars, i, 1, ((w-10) / verifySize) * i + 5, h/2 + fontSize/2 - 10);
        }

        g2.dispose();
        ImageIO.write(image, "jpg", os);
    }

    /**
     *  隨機顏色
     * @param fc
     * @param bc
     * @return
     */
    private static Color getRandColor(int fc, int bc) {
        if (fc > 255){
            fc = 255;
        }
        if (bc > 255){
            bc = 255;
        }
        int r = fc + random.nextInt(bc - fc);
        int g = fc + random.nextInt(bc - fc);
        int b = fc + random.nextInt(bc - fc);
        return new Color(r, g, b);
    }

    private static int getRandomIntColor() {
        int[] rgb = getRandomRgb();
        int color = 0;
        for (int c : rgb) {
            color = color << 8;
            color = color | c;
        }
        return color;
    }

    private static int[] getRandomRgb() {
        int[] rgb = new int[3];
        for (int i = 0; i < 3; i++) {
            rgb[i] = random.nextInt(255);
        }
        return rgb;
    }

    private static void shear(Graphics g, int w1, int h1, Color color) {
        shearX(g, w1, h1, color);
        shearY(g, w1, h1, color);
    }

    private static void shearX(Graphics g, int w1, int h1, Color color) {

        int period = random.nextInt(2);

        boolean borderGap = true;
        int frames = 1;
        int phase = random.nextInt(2);

        for (int i = 0; i < h1; i++) {
            double d = (double) (period >> 1)
                    * Math.sin((double) i / (double) period
                    + (6.2831853071795862D * (double) phase)
                    / (double) frames);
            g.copyArea(0, i, w1, 1, (int) d, 0);
            if (borderGap) {
                g.setColor(color);
                g.drawLine((int) d, i, 0, i);
                g.drawLine((int) d + w1, i, w1, i);
            }
        }

    }

    private static void shearY(Graphics g, int w1, int h1, Color color) {

        int period = random.nextInt(40) + 10; // 50;

        boolean borderGap = true;
        int frames = 20;
        int phase = 7;
        for (int i = 0; i < w1; i++) {
            double d = (double) (period >> 1)
                    * Math.sin((double) i / (double) period
                    + (6.2831853071795862D * (double) phase)
                    / (double) frames);
            g.copyArea(i, 0, 1, h1, 0, (int) d);
            if (borderGap) {
                g.setColor(color);
                g.drawLine(i, (int) d, i, 0);
                g.drawLine(i, (int) d + h1, i, h1);
            }

        }

    }
}

2.6 控制層

　　用戶　　

package com.gao.controller;


import com.gao.entity.User;
import com.gao.service.EmployeeService;
import com.gao.service.userService;
import com.gao.util.CaptchaUtil;
import lombok.SneakyThrows;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.io.IOException;
import java.io.UnsupportedEncodingException;
import java.net.URLEncoder;

/**
 * @author gao
 */
@Controller
@RequestMapping("/user")
public class UserController {

    /*
    * 控制臺列印日志
    *
    */
    private  Logger log = LoggerFactory.getLogger(UserController.class);

    /*
    * 注入服務層
    */
    private userService userService;

    @Autowired
    public UserController(userService userService) {
        this.userService = userService;
    }

    /*
    * 用戶注冊
    *
    * */
    @SneakyThrows
    @RequestMapping("register")
    public String register(User user,String code,HttpSession session) throws UnsupportedEncodingException{
        log.debug("接收到的驗證碼:{}",code);
        log.debug("用戶名:{},密碼:{}",user.getId(),user.getPsw());
        try{
            String sessionCode = session.getAttribute("code").toString();
            if(!sessionCode.equalsIgnoreCase(code)) {
                throw  new RuntimeException("驗證碼錯誤！！");
            }
            userService.register(user);
        }catch(RuntimeException e){
            e.printStackTrace();
            return "redirect:/register.jsp?msg="+ URLEncoder.encode(e.getMessage(),"UTF-8");
        }
        return "redirect:/login.jsp";
    }

    /*
    * 用戶登錄
    * */
    @RequestMapping("login")
    public String login(String id,String psw,HttpSession session) throws UnsupportedEncodingException {
        log.debug("接收到的用戶名:{},接收到的用戶密碼:{}",id,psw);
        try{
            User user = userService.login(id,psw);
            //登錄成功
            session.setAttribute("user",user);
        }catch (Exception e){
            e.printStackTrace();
            return "redirect:/login.jsp?msg="+URLEncoder.encode(e.getMessage(),"UTF-8");
        }
        return "redirect:/employee/list";
    }


    //驗證碼實作層
    @RequestMapping("checkCode")
    public void getCheckCode(HttpSession session, HttpServletResponse response){
        String code = CaptchaUtil.generateVerifyCode(4);
        session.setAttribute("code",code);
        response.setContentType("image/png");
        try {
            ServletOutputStream os = response.getOutputStream();
        } catch (IOException e) {
            e.printStackTrace();
        }
        try {
            CaptchaUtil.outputImage(220,60,response.getOutputStream(),code);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

　　　　員工　

package com.gao.controller;


import com.gao.entity.Employee;
import com.gao.service.EmployeeService;
import lombok.SneakyThrows;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

import javax.servlet.http.HttpServletRequest;
import java.util.List;


/**
 * 員工控制器
 * @author gao
 */
@Controller
@RequestMapping("/employee")
public class EmployeeController {

    /*
     * 注入日志
     */
    private Logger log = LoggerFactory.getLogger(EmployeeController.class);
    private EmployeeService employeeService;
    @Autowired
    public EmployeeController(EmployeeService employeeService) {
        this.employeeService = employeeService;
    }

    /**
     * 員工串列
     */
    @RequestMapping("list")
    public String listEmployee(Model model, HttpServletRequest request){
        List<Employee> employees = employeeService.list();
        model.addAttribute("employees",employees);
        return "emplist";
    }

    /*
               * 添加員工資訊
     */
    @SneakyThrows
    @RequestMapping("added")
    public String addEmp(Employee employee){
        log.debug("員工編號：{}",employee.getEno());
        log.debug("員工姓名：{}",employee.getPname());
        log.debug("員工年齡：{}",employee.getAge());
        log.debug("員工性別：{}",employee.getSex());
        log.debug("員工部門：{}",employee.getDepartment());
        //保存員工資訊
        employeeService.add(employee);
        return "redirect:/employee/list";

    }


    //更新員工資訊
    @RequestMapping("updateEmployee")
    public String updateEmp(String eno,Model model){
        log.debug("接收的ID:{}",eno);
        //根據員工ID查詢員工資訊
        Employee employee = employeeService.idByEmp(eno);
        //存入作用域
        model.addAttribute("employee",employee);
        return "updateEmp";
    }

    //更新員工資訊1
    @RequestMapping("uep")
    public String updateEmployeePlus(Employee employee){
        log.debug("員工編號：{}",employee.getEno());
        log.debug("員工姓名：{}",employee.getPname());
        log.debug("員工年齡：{}",employee.getAge());
        log.debug("員工性別：{}",employee.getSex());
        log.debug("員工部門：{}",employee.getDepartment());
        employeeService.uemp(employee);
        return "redirect:/employee/list";
    }

    //洗掉員工
    @RequestMapping("del")
    public String delEmp(String eno){
        log.debug("接收的員工ID{}:",eno);
        employeeService.dele(eno);
        return "redirect:/employee/list";
    }

}

2.7 物體層


package com.gao.entity;

/**
 * 員工物體類
 * @author gao
 */
public class Employee {

    private String eno;
    private String pname;
    private int age;
    private String sex;
    private String department;

    public Employee() {
    }

    public Employee(String eno, String pname, Integer age, String sex, String department) {
        this.eno = eno;
        this.pname = pname;
        this.age = age;
        this.sex = sex;
        this.department = department;
    }

    public String getEno() {
        return eno;
    }

    public void setEno(String eno) {
        this.eno = eno;
    }

    public String getPname() {
        return pname;
    }

    public void setPname(String pname) {
        this.pname = pname;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }

    public String getSex() {
        return sex;
    }

    public void setSex(String sex) {
        this.sex = sex;
    }

    public String getDepartment() {
        return department;
    }

    public void setDepartment(String department) {
        this.department = department;
    }

    public void add(Employee employee) {
    }
}
=======================================================================================================================================================================

package com.gao.entity;

/**
 * 用戶物體類
 * @author gao
 */

public class User {

private String id;
private String psw;

public User() {
}

public User(String id, String psw) {
this.id = id;
this.psw = psw;
}

public String getId() {
return id;
}

public void setId(String id) {
this.id = id;
}

public String getPsw() {
return psw;
}

public void setPsw(String psw) {
this.psw = psw;
}
}

2.8 持久層

　　員工

package com.gao.dao;

import com.gao.entity.Employee;
import java.util.List;


public interface EmployeeDao {

    //查詢員工所有資訊
    List<Employee> list();

    //添加員工資訊
    void add(Employee employee);

    //根據員工ID查詢員工資訊
    Employee idByEmp(String eno);

    //更新員工個人資訊
    void uemp(Employee employee);

    //洗掉員工
    void dele(String eno);
}

　　用戶

package com.gao.dao;

import com.gao.entity.User;

public interface userDao {
    //查詢用戶
    User findByUserId(String id);

    //注冊用戶
    void save(User user);

    //洗掉用戶
    void del(User user);

    //修改用戶
    void upda(User user);
}

2.9 服務層

package com.gao.service;

import com.gao.entity.Employee;

import java.util.List;

/**
 * 員工服務層介面
 * @author gao
 */
public interface EmployeeService {

    //員工串列
    List<Employee> list();

    //添加員工資訊
    void add(Employee employee);

    //根據員工ID查詢員工資訊
    Employee idByEmp(String eno);

    //更新員工個人資訊
    void uemp(Employee employee);

    //洗掉員工資訊
    void dele(String eno);
}


package com.gao.service;

import com.gao.entity.User;

/**
 * 用戶服務層介面
 * @author gao
 */

public interface userService {
//用戶注冊
void register(User user);

//用戶登錄
User login(String id, String psw);

//洗掉用戶
User delUser(String id,String psw); }

2.10 服務層的實作層

package com.gao.service.impl;

import com.gao.dao.EmployeeDao;
import com.gao.entity.Employee;
import com.gao.service.EmployeeService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import java.util.List;

@Service
@Transactional //控制事務
public class EmployeeServiceImpl implements EmployeeService {

    private EmployeeDao employeeDao;
    @Autowired
    public EmployeeServiceImpl(EmployeeDao employeeDao) {
        this.employeeDao = employeeDao;
    }

    @Override
    public List<Employee> list() {
        return this.employeeDao.list();
    }

    //添加員工
    @Override
    public void add(Employee employee) {
        employeeDao.add(employee);
    }

    //根據員工ID查詢員工資訊
    @Override
    public Employee idByEmp(String eno) {
        return employeeDao.idByEmp(eno);
    }

    //更新員工個人資訊
    @Override
    public void uemp(Employee employee) {
        employeeDao.uemp(employee);
    }

    @Override
    public void dele(String eno) {
        employeeDao.dele(eno);
    }
}

package com.gao.service.impl;

import com.gao.dao.userDao;
import com.gao.entity.User;
import com.gao.service.userService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.util.DigestUtils;
import org.springframework.util.ObjectUtils;

import java.nio.charset.StandardCharsets;

/**
 * @author gao
 */
@Service
@Transactional
public class userServiceImpl implements userService {

    //自動注入
    private userDao userDao;
    @Autowired
    public userServiceImpl(userDao userDao) {
        this.userDao = userDao;
    }

    @Override
    public void register(User user) {
        //1.根據用戶查詢資料庫是否存在該用戶
        User userDB = userDao.findByUserId(user.getId());
        if(!ObjectUtils.isEmpty(userDB)) {
            throw new RuntimeException("用戶名已經存在！！！");
        }
//        String passwordSecret = DigestUtils.md5DigestAsHex(user.getPsw().getBytes(StandardCharsets.UTF_8));
//        user.setPsw(passwordSecret);  //密碼加密碼
        userDao.save(user);

    }

    /*
    * 用戶登錄實作類
    * */
    @Override
    public User login(String id, String psw) {
        //根據用戶輸入的用戶名查詢資料庫中是否存在！
        User user = userDao.findByUserId(id);
        //判斷物件是否存在
        if (ObjectUtils.isEmpty(user)) {
            throw new RuntimeException("用戶名輸入錯誤！！！！");
        }
        //判斷密碼正確性
        if (!user.getPsw().equals(psw)) {
            throw new RuntimeException("用戶密碼輸入錯誤！！");
        }
        return user;
    }


    /*
    * 用戶注銷
    * */
    @Override
    public User delUser(String id, String psw) {
        return null;
    }
}

2.11 用戶和員工的mapper檔案

　　　2.11.1 用戶

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.gao.dao.userDao">

    <select id="findByUserId" parameterType="String" resultType="User">
        select id,psw from user
        where id = #{id};
    </select>

    <!--注冊用戶-->
    <insert id="save" parameterType="User" useGeneratedKeys="true" keyProperty="id">
        insert into user values(#{id},#{psw})
    </insert>

</mapper>

　　2.11.2 員工

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.gao.dao.EmployeeDao">
    <!--查詢所有用戶-->
    <select id="list" resultType="Employee">
        select eno,pname,age,sex,department from employee
    </select>
    <!--洗掉用戶-->
    <delete id="del">
        delete from employee where eno = #{eno}
    </delete>
    <!--添加用戶-->
    <insert id="add" parameterType="Employee" useGeneratedKeys="true" keyProperty="eno">
        insert into employee values(#{eno},#{pname},#{age},#{sex},#{department})
    </insert>
    <!--根據員工ID查詢員工資訊-->
    <select id="idByEmp" parameterType="String" resultType="Employee">
        select eno,pname,age,sex,department from employee
        where eno = #{eno}
    </select>
    <!--更新員工個人資訊-->
    <update id="uemp" parameterType="Employee">
        update employee set pname = #{pname},age = #{age},sex = #{sex},department = #{department}
        where eno = #{eno}
    </update>

    <!--根據id洗掉員工資訊-->
    <delete id="dele" parameterType="String">
        delete
        from employee
        where eno = #{eno};
    </delete>
</mapper>

2.12 專案啟動類

package com.gao;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@MapperScan("com/gao/dao")
public class Springboot02Application {

    public static void main(String[] args) {
        SpringApplication.run(Springboot02Application.class, args);
        System.out.println("服務器啟動成功...");
    }

}

2.13 webapp檔案

　　訪問百度網盤：

　　　　鏈接：https://pan.baidu.com/s/1rqQoqm8u7ZtuRG6tyHmy8Q

　　　　提取碼：cbj7

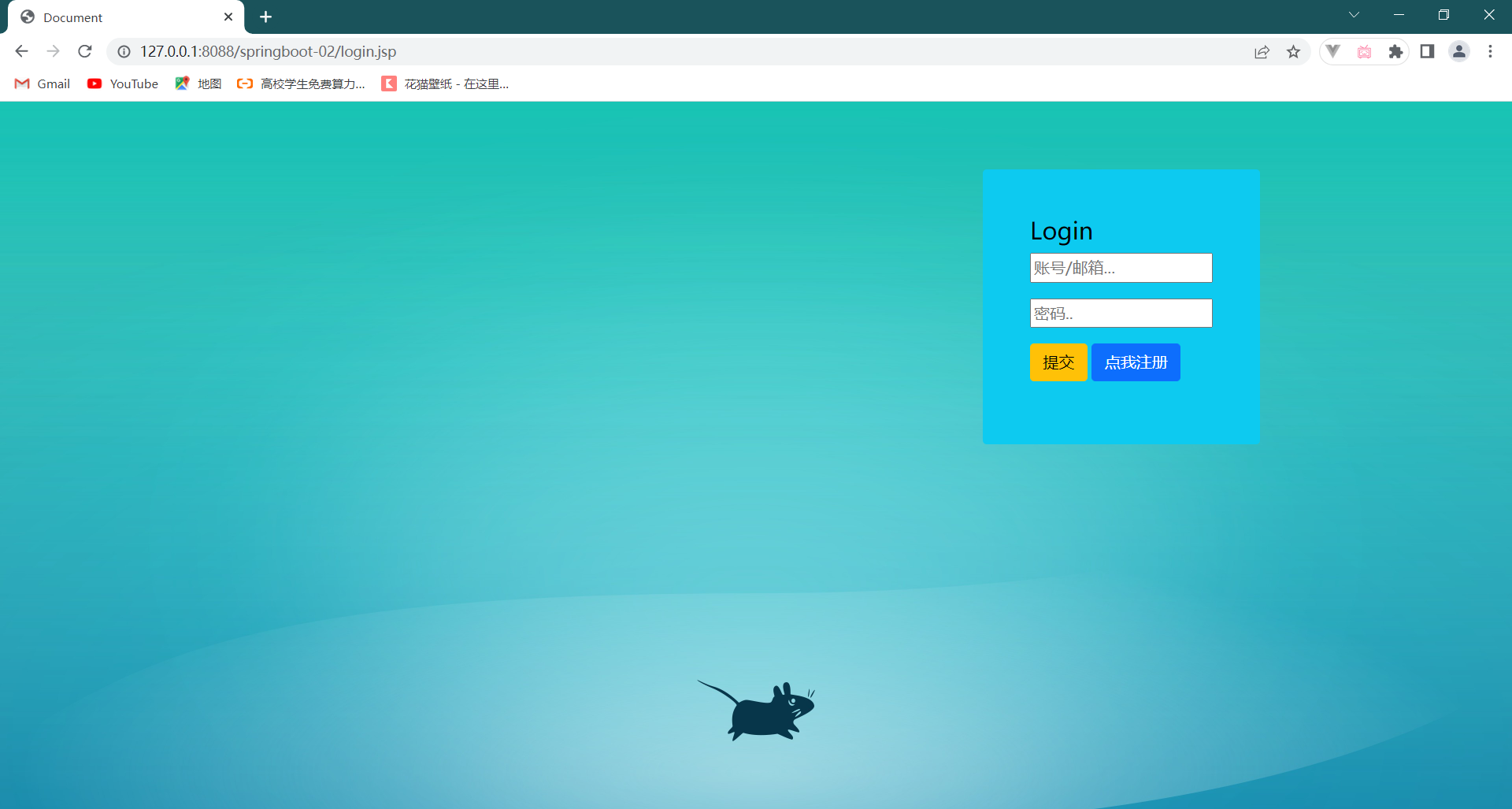

2.14 啟動專案，在瀏覽器輸入 http://127.0.0.1:8088/springboot-02/login.jsp

輸入賬號密碼

　　賬號：0401200606

　　密碼：280017

點擊提交

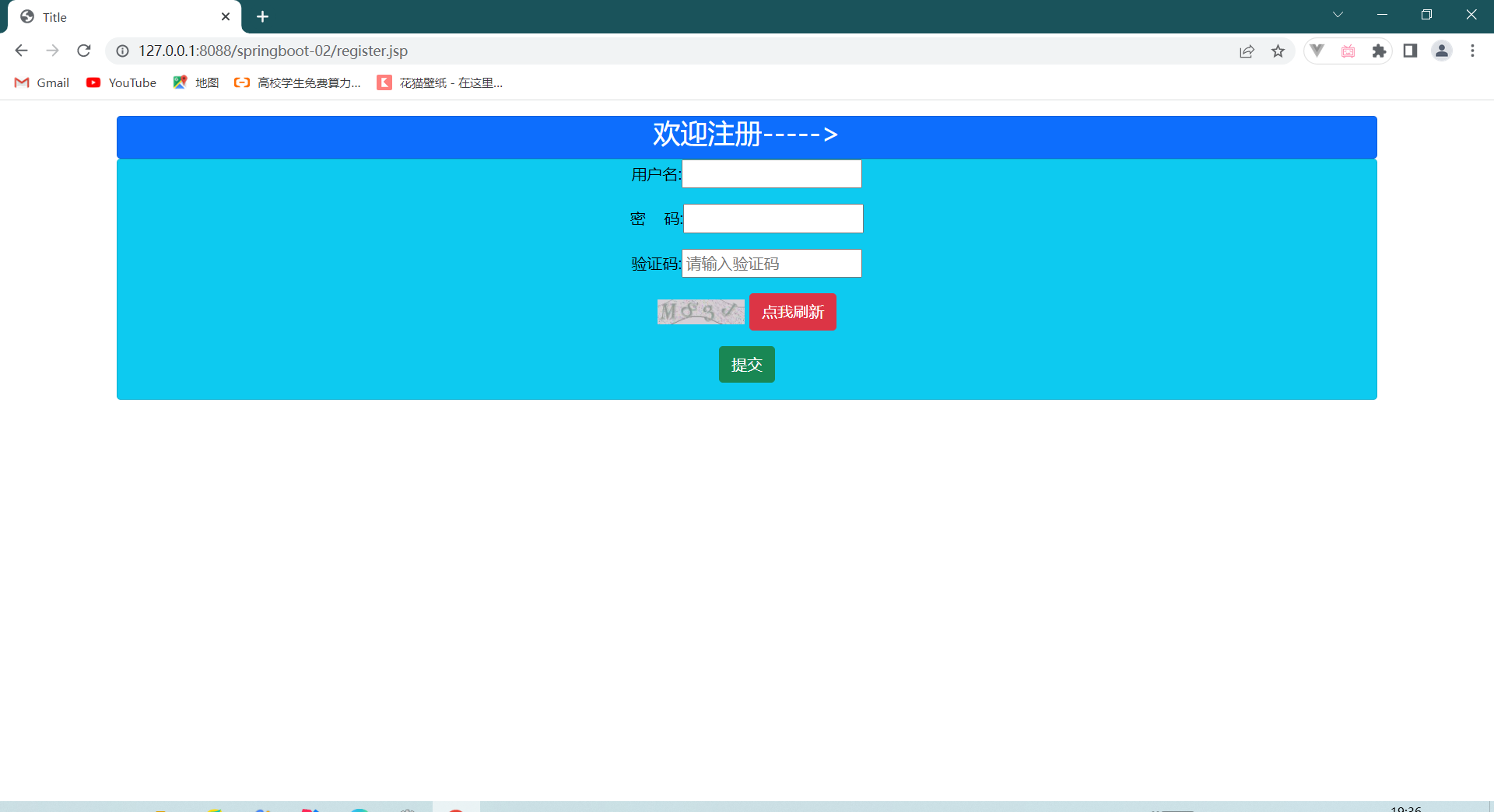

初次登錄，可以注冊密碼賬號，點擊提交即可

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/458370.html

標籤：其他

上一篇：執行緒池設計與實作

下一篇：java學習之多執行緒
