【Python】矢量影像批量裁剪、合并

前言

又到每日分享Python小技巧的時候了，今天給大家分享啥呢？大家要不要猜一猜，今天給大家分享矢量影像批量裁剪以及合并，

聽起來有點不懂，看完你就懂了，擴展知識，

矢量批量裁剪的代碼

在：chp10\python\矢量批量裁剪.tbx\矢量批量裁剪，可以直接運行，右鍵編輯查看代碼

代碼如下：

Python學習交流Q群：906715085###
#---------------------------------------------------------------------------
#1.py# Created on: 星期日 一月 10 2018 11:02:13 上午
#(generated by ArcGIS/ModelBuilder)
#Usage: 矢量圖批量切割， by 閆磊 4個引數
#原始資料 是圖層，可以多選
#切割工具是是接幅表 或者行政
#欄位是輸出mdb名稱
#輸出路徑
#---------------------------------------------------------------------------
#Create Geoprocessing Object
import  sys, os, string
import arcpyfrom arcpy import env
 defaultencoding = 'utf-8'if sys.getdefaultencoding() != defaultencoding:
 reload(sys)
  sys.setdefaultencoding(defaultencoding)
arcpy.env.overwriteOutput = True

inworkspace  = arcpy.GetParameterAsText(0)
arcpy.AddMessage("輸入資料="+inworkspace)
clipshp  = arcpy.GetParameterAsText(1)
arcpy.AddMessage("裁剪=clipshp"+clipshp)
fieldname= arcpy.GetParameterAsText(2)
arcpy.AddMessage("欄位=fieldname"+fieldname)
outworkspace  = arcpy.GetParameterAsText(3)
arcpy.AddMessage("輸出="+outworkspace)
mdbbool  = arcpy.GetParameterAsText(4)
arcpy.AddMessage("是否mdb="+mdbbool)
desc = arcpy.Describe(clipshp)
filepath=desc.CatalogPathp=filepath.find(".mdb")
ftype="String"for field in desc.fields:
if field.Name ==fieldname:
ftype=field.Type
breakarcpy.AddMessage(u"默認地理資料庫:"+arcpy.env.scratchWorkspace)jfb_
Select=arcpy.env.scratchWorkspace+"\yl999"#不能c:\要c:\\或者 c:/
rows = arcpy.SearchCursor(clipshp)
#arcpy.AddMessage(u"5=執行到這里")row = rows.next()#arcpy.AddMessage(u"6=執行到這里")while row:    #arcpy.AddMessage(u"7=執行到這里")    fieldvalue =""+ str(row.getValue(fieldname))    #arcpy.AddMessage(u"值fieldvalue="https://www.cnblogs.com/123456feng/archive/2022/04/21/+fieldvalue)    if p>0: #mdb        Expression="["+fieldname +"]="    else:        Expression="\""+fieldname +"\"="    #arcpy.AddMessage(u"運算式Expression1="+Expression)       if ftype=="String":
Expression=Expression+"'"+fieldvalue+"'"
else:
Expression=Expression+fieldvalue
    #arcpy.AddMessage(u"Expression2="+Expression)
    arcpy.Select_analysis(clipshp, jfb_Select,Expression)
     #arcpy.AddMessage(u"6=clipshp"+clipshp)    out_mdb=""    #arcpy.AddMessage("======================================================out_mdb"+out_mdb)    if mdbbool=="true":
     out_mdb=outworkspace + "\\"+fieldvalue+".mdb"  #os.path.basename(dataset)
     else:
     out_mdb=outworkspace + "\\"+fieldvalue+".gdb"
     arcpy.AddMessage(u"out_mdb"+out_mdb)
     if not arcpy.Exists(out_mdb):
     if mdbbool=="true":            arcpy.CreatePersonalGDB_management(os.path.dirname(out_mdb),os.path.basename(out_mdb))
     else:
     arcpy.CreateFileGDB_management(os.path.dirname(out_mdb),os.path.basename(out_mdb))
    mydatasets= string.split(inworkspace,";")

    for dataset in mydatasets:
        try:
        mylayer=os.path.basename(dataset)
        arcpy.AddMessage(u"clip:"+dataset+" to "+out_mdb+"\\"+ mylayer)
        mylayer=mylayer.replace("(","")
        mylayer=mylayer.replace(")","")
        arcpy.Clip_analysis(dataset, jfb_Select,out_mdb+"\\"+ mylayer, "")
        except Exception, ErrorDesc:
        #If an error set output boolean parameter "Error" to True.
         arcpy.AddError(str(ErrorDesc))
         row = rows.next()if arcpy.Exists(jfb_Select):
         arcpy.Delete_management(jfb_Select)

作用：使用一個矢量圖層批量裁剪多個矢量資料，欄位值是裁剪后資料庫名稱

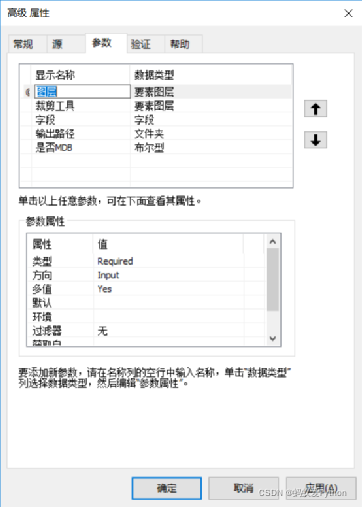

批量裁剪引數設定界面

界面如下：

批量裁剪運行界面

是否mdb，勾上是mdb,不勾是gdb

?矢量批量合并

在：chp10\python\批量合并.tbx\資料批量合并下，可以直接運行，右鍵編輯可以查看代碼

代碼如下：

import sys
##############################################
import arcpy
import string
try:
workspace =arcpy.GetParameterAsText(0)  #'C:\Users\Administrator\Desktop\\cc'

    outdb =arcpy.GetParameterAsText(1)   #'C:\Users\Administrator\Desktop\\lutian.mdb'
    arcpy.env.workspace = workspace
    arcpy.AddMessage("outdb:"+outdb)
    files = arcpy.ListWorkspaces("","")
    for File in files:
    arcpy.AddMessage("File:"+File)
        arcpy.env.workspace = outdb
        fcs = arcpy.ListFeatureClasses()
        for fc in fcs:
        arcpy.AddMessage("fc:"+fc)
        if arcpy.Exists(File + "\\" + fc):
        arcpy.Append_management([ File + "\\" + fc], outdb + "\\" + fc,"NO_TEST","","")
else:
arcpy.AddMessage("not exists:"+File + "\\" + fc)
fcs = arcpy.ListTables()
for fc in fcs:
arcpy.AddMessage("fc:"+fc)
if arcpy.Exists(File + "\\" + fc):
arcpy.Append_management([File + "\\" + fc], outdb + "\\" + fc,"NO_TEST","","")
else:
arcpy.AddMessage("not exists:"+File + "\\" + fc)
dss = arcpy.ListDatasets()
for ds in dss:
arcpy.AddMessage("ds:"+ds)
arcpy.env.workspace = outdb+"\\"+ds
fcs1 = arcpy.ListFeatureClasses()
for fc1 in fcs1:
arcpy.AddMessage("fc1:"+fc1)
if arcpy.Exists(File + "\\" + ds + "\\" + fc1):
arcpy.Append_management([File + "\\" + ds + "\\" + fc1], outdb + "\\" + ds + "\\" + fc1,"NO_TEST","","")
else:
arcpy.AddMessage("not exists:"+File + "\\" + ds + "\\" + fc1)
except arcpy.ExecuteError:
arcpy.AddWarning(arcpy.GetMessages())

引數如下，作業空間可以是地理資料庫（檔案地理資料或者個人地理資料），也是可以一個檔案夾，這里建議是資料庫

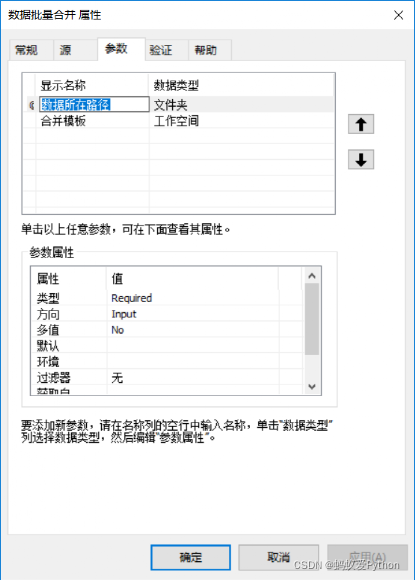

批量合并引數設定界面

運行界面如下：

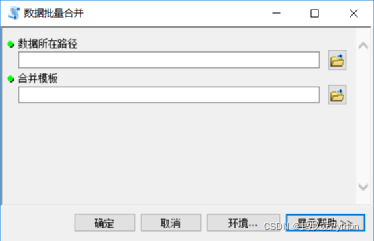

批量合并運行界面

?影像批量裁剪

在：chp10\python\影像切割.tbx\影像切割，可以直接運行，右鍵編輯可以查看程式源代碼

源代碼如下：

Python學習交流Q群：906715085###
import sys, os, string,types
import arcpy
from arcpy import env

arcpy.env.overwriteOutput = True

oldraster  = arcpy.GetParameterAsText(0)
arcpy.AddMessage("1oldraster="+oldraster)
clipshp  = arcpy.GetParameterAsText(1)
arcpy.AddMessage("2clipshp="+clipshp)
fieldname= arcpy.GetParameterAsText(2)
arcpy.AddMessage("3fieldname="+fieldname)
outworkspace= arcpy.GetParameterAsText(3)
arcpy.AddMessage("4="+outworkspace)

arcpy.CheckOutExtension("spatial")
rows = arcpy.SearchCursor(clipshp)

jfb_Select=outworkspace+"/temp.shp" #不能c:\要c:\\或者c:/
for row in rows:

    try:
    b=1
     value=row.getValue(fieldname)
     #gp.AddMessage("value="https://www.cnblogs.com/123456feng/archive/2022/04/21/+value)
     if (type(value) is types.IntType):
      fieldvalue = str(value)
      b=2
      elif (type(value)  is types.StringType):
      #是否string型別
      fieldvalue =https://www.cnblogs.com/123456feng/archive/2022/04/21/ value
      else:
      fieldvalue = str(value)
        arcpy.AddMessage("fieldvalue=https://www.cnblogs.com/123456feng/archive/2022/04/21/"+fieldvalue)
        if b==2:
         Expression="\""+fieldname +"\" ="+fieldvalue+""
          else:
          Expression="\""+fieldname +"\" ='"+fieldvalue+"'"        arcpy.AddMessage("Expression="+Expression+",jfb_Select="+jfb_Select+",clipshp="+clipshp)
          arcpy.Select_analysis(clipshp, jfb_Select, Expression)
        out_raster =outworkspace+"/"+fieldvalue+".tif"
         arcpy.gp.ExtractByMask_sa(oldraster, jfb_Select, out_raster)
          except Exception, ErrorDesc:
           #If an error set output boolean parameter "Error" to True.
            arcpy.AddError(str(ErrorDesc))if arcpy.Exists(jfb_Select):arcpy.Delete_management(jfb_Select)

作用：使用一個矢量資料，批量裁剪一個影像，矢量欄位值是裁剪后影像的資料名，格式為tif

引數：

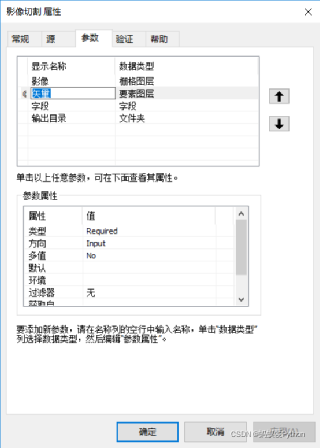

影像批量裁剪引數設定界面

運行界面如下：

最后

這篇文章到這里就結束了，再往下面也沒有了，有沒有學會的小伙伴，記得點一個贊，沒有學會的也沒關系，可以評論或者私信

我，
