基于大空白區域對掃描影像進行切片

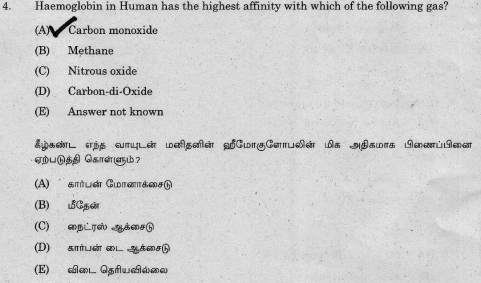

我打算從

并像這樣拆分成單獨的組件？

uj5u.com熱心網友回復：

我們可以使用（大部分）形態學運算來解決它：

• 將輸入影像讀取為灰度。
• 通過反轉應用閾值。
  使用自動閾值cv2.THRESH_OTSU處理效果很好。
• 應用開放形態學操作來去除小偽影（使用內核np.ones(1, 3)）
• 使用非常長的水平內核水平擴展 - 從文本行中制作水平線。
• 垂直應用關閉 - 創建兩個大集群。
  垂直內核的大小應根據典型間隙進行調整。
• 使用統計資訊查找連接的組件。
• 迭代連接的組件并在垂直方向裁剪相關區域。

完整的代碼示例：

import cv2
import numpy as np

img = cv2.imread('scanned_image.png', cv2.IMREAD_GRAYSCALE)  # Read image as grayscale

thesh = cv2.threshold(img, 0, 255, cv2.THRESH_OTSU   cv2.THRESH_BINARY_INV)[1]  # Apply automatic thresholding with inversion.

thesh = cv2.morphologyEx(thesh, cv2.MORPH_OPEN, np.ones((1, 3), np.uint8))  # Apply opening morphological operation for removing small artifacts.

thesh = cv2.dilate(thesh, np.ones((1, img.shape[1]), np.uint8))  # Dilate horizontally - make horizontally  lines out of the text.

thesh = cv2.morphologyEx(thesh, cv2.MORPH_CLOSE, np.ones((50, 1), np.uint8))  # Apply closing vertically - create two large clusters

nlabel, labels, stats, centroids = cv2.connectedComponentsWithStats(thesh, 4)  # Finding connected components with statistics

parts_list = []

# Iterate connected components:
for i in range(1, nlabel):
    top = int(stats[i, cv2.CC_STAT_TOP])  # Get most top y coordinate of the connected component
    height = int(stats[i, cv2.CC_STAT_HEIGHT])  # Get the height of the connected component

    roi = img[top-5:top height 5, :]  # Crop the relevant part of the image (add 5 extra rows from top and bottom).
    parts_list.append(roi.copy()) # Add the cropped area to a list

    cv2.imwrite(f'part{i}.png', roi)  # Save the image part for testing
    cv2.imshow(f'part{i}', roi)  # Show part for testing

# Show image and thesh testing
cv2.imshow('img', img)
cv2.imshow('thesh', thesh)

cv2.waitKey()
cv2.destroyAllWindows()

結果：

階段1：

這是有趣的部分發生的地方。我們假設相鄰的文本/字符是同一個問題的一部分，因此我們將單個單詞合并到一個輪廓中。問題是靠近在一起的單詞的一部分，因此我們將它們擴展以將它們連接在一起。

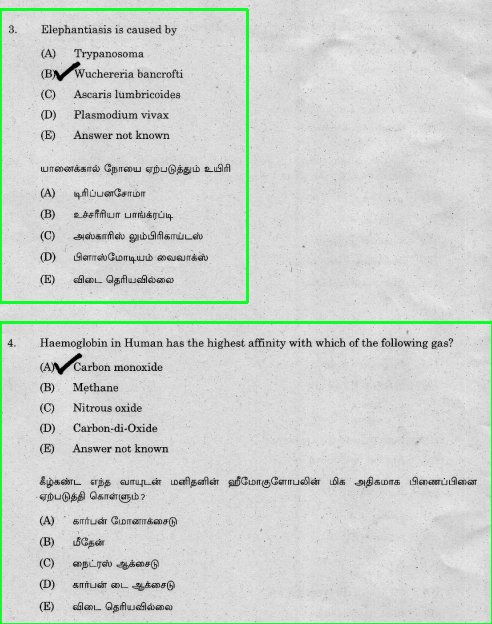

以綠色突出顯示的個別問題

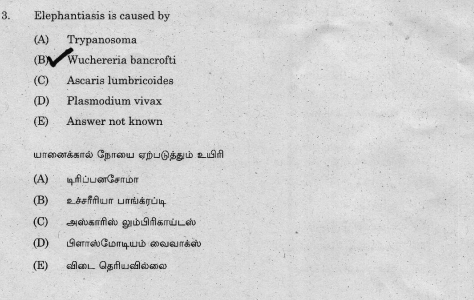

熱門問題

底部問題

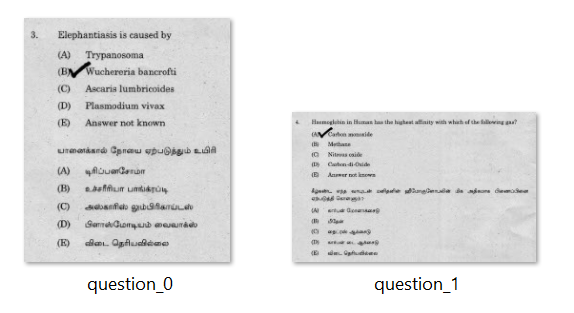

已保存的 ROI 問題（假設從上到下）

代碼

import cv2
from imutils import contours

# Load image, grayscale, Gaussian blur, Otsu's threshold
image = cv2.imread('1.png')
original = image.copy()
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
blur = cv2.GaussianBlur(gray, (7,7), 0)
thresh = cv2.threshold(blur, 0, 255, cv2.THRESH_BINARY_INV   cv2.THRESH_OTSU)[1]

# Remove small artifacts and noise with morph open
open_kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (5,5))
opening = cv2.morphologyEx(thresh, cv2.MORPH_OPEN, open_kernel, iterations=1)

# Create rectangular structuring element and dilate
kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (9,9))
dilate = cv2.dilate(opening, kernel, iterations=4)

# Find contours, sort from top to bottom, and extract each question
cnts = cv2.findContours(dilate, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
cnts = cnts[0] if len(cnts) == 2 else cnts[1]
(cnts, _) = contours.sort_contours(cnts, method="top-to-bottom")

# Get bounding box of each question, crop ROI, and save
question_number = 0
for c in cnts:
    # Filter by area to ensure its not noise
    area = cv2.contourArea(c)
    if area > 150:
        x,y,w,h = cv2.boundingRect(c)
        cv2.rectangle(image, (x, y), (x   w, y   h), (36,255,12), 2)
        question = original[y:y h, x:x w]
        cv2.imwrite('question_{}.png'.format(question_number), question)
        question_number  = 1

cv2.imshow('thresh', thresh)
cv2.imshow('dilate', dilate)
cv2.imshow('image', image)
cv2.waitKey()
