我正在創建一個包含 10 個子圖的 2D matplotlib 圖（i 和 j 坐標）。每個子圖包含 150 x 150 的網格單元資料。如何在這 10 個子圖的每個生成的熱圖子圖上的某個固定位置（坐標 62 和 62 的中心）插入一個小的黑色方形標記（3 x 3）？因此，方形標記將在 x 和 y 方向上包含從 60 到 64 的 10 個塊，并包含以 x 62 和 y 62 為中心的書面文本“Sale 1”。我下面的代碼不會生成任何補丁。非常感謝任何反饋。
from matplotlib.patches import Rectangle
import numpy as np
import matplotlib.pyplot as plt
from sklearn.metrics import r2_score, median_absolute_error
import os
import matplotlib.cm as cm
from mpl_toolkits import axes_grid1
import matplotlib.pyplot as plt
#import seaborn as sns
import matplotlib.pyplot as plt
import matplotlib.colors as mcolors
import matplotlib.colors
import matplotlib.colors as colors
data = np.random.rand(10, 150, 150)
data = data.reshape(-1, 1)
property = "Sale"
pmin = data.min()
pmax = data.max()
v = np.linspace(round(pmin,3), round(pmax,3),15, endpoint=True)
v = [round(x,3) for x in v]
fig, ax = plt.subplots(2, 5, figsize=(160, 80))
row_count = 0
col_count = 0
for i in range(10):
sub_plot_data = data[(i)*(150*150):(i 1)*150*150]
x = 150
y = 150
#--------------------------- Define the map boundary ----------------------
xmin = 1258096.6
xmax = 1291155.0
ymin = 11251941.6
ymax = 11285000.0
pmin = min(sub_plot_data)
pmax = max(sub_plot_data)
# --------------------------- define color bar for Discrete color
bounds = np.linspace(-1, 1, 10)
Discrete_colors = plt.get_cmap('jet')(np.linspace(0,1,len(bounds) 1))
# create colormap without the outmost colors
cmap = mcolors.ListedColormap(Discrete_colors[1:-1]) #
actual_2d = np.reshape(sub_plot_data,(y,x))
im1 = ax[row_count, col_count].imshow(actual_2d, interpolation=None, cmap=cmap,
extent=(xmin, xmax, ymin, ymax), vmin=pmin, vmax=pmax)
plt.text(actual_2d[62, 62], actual_2d[62, 62], '%s' % 'Sale_1',
horizontalalignment='center', verticalalignment='center', color= 'black', fontsize= 90)
ax[row_count, col_count].set_title("Sale_Stores-%s - L: %s"%(i 1, layer),
fontsize=130, pad=44, x=0.5, y=0.999) # new
ax[row_count, col_count].set_aspect('auto')
ax[row_count, col_count].tick_params(left=False, labelleft=False, top=False,
labeltop=False, right=False, labelright=False, bottom=False, labelbottom=False) # new
#ax[row_count, col_count] = plt.gca()
plt.gca().add_patch(Rectangle((60, 60), 3, 3, edgecolor='black',
facecolor='black',fill=True,lw=2))
ax[row_count, col_count].add_patch(plt.text(62, 62, '%s' % 'Sale_1',
horizontalalignment='center', verticalalignment='center', color= 'black', fontsize= 90))
col_count =1
if col_count == 5:
row_count =1
col_count =0
fig.tight_layout(h_pad=10)
plt.subplots_adjust(left=0.02,
bottom=0.1,
right=0.91,
top=0.8,
wspace=0.1,
hspace=0.2)
cbaxes = fig.add_axes([0.94, 0.05, 0.02, 0.8])
cbar = fig.colorbar(im1, ax=ax.ravel().tolist(), ticks=v, extend='both', cax =cbaxes)
cbar.ax.tick_params(labelsize=70)
#cbar.set_ticks(v)
cbar.ax.set_yticklabels([i for i in v], fontsize=120)
output_dir = r"D/test"
plot_dir = os.path.join(output_dir, reservoir_property)
if not os.path.exists(plot_dir):
os.makedirs(plot_dir)
fig.savefig(r"%s/per_allmodel.png"%(plot_dir))
uj5u.com熱心網友回復：

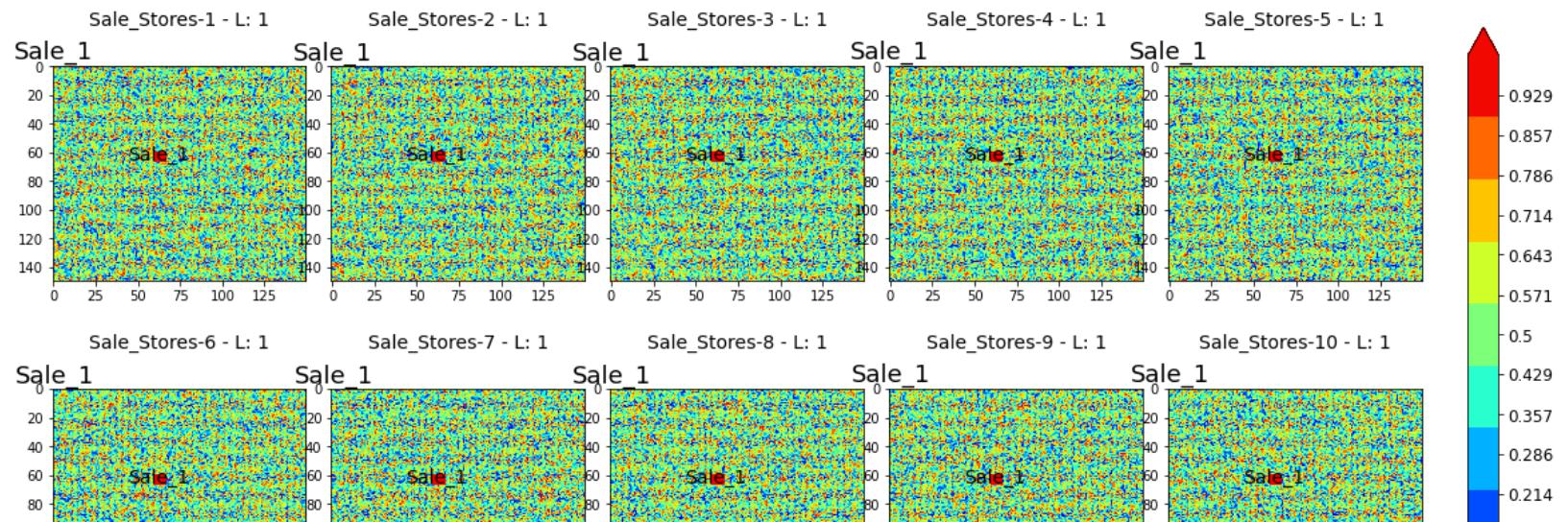

我嘗試了您的代碼并進行了一些修改：首先，圖形太大并導致錯誤，因此我將其縮小了；其次，我簡化了子圖：軸有一個子圖物件串列，所以我用axes.flat; 第三個是修改文本作為注釋。圖表大小已縮小，字體大小和間距已調整，請自行修改。最后，tick_params未設定，因為顏色條刻度被禁用。
fig, axes = plt.subplots(2, 5, figsize=(16, 8))
row_count = 0
col_count = 0
for i,ax in enumerate(axes.flat):
sub_plot_data = data[(i)*(150*150):(i 1)*150*150]
x = 150
y = 150
#--------------------------- Define the map boundary ----------------------
xmin = 1258096.6
xmax = 1291155.0
ymin = 11251941.6
ymax = 11285000.0
pmin = min(sub_plot_data)
pmax = max(sub_plot_data)
# --------------------------- define color bar for Discrete color
bounds = np.linspace(-1, 1, 10)
Discrete_colors = plt.get_cmap('jet')(np.linspace(0,1,len(bounds) 1))
# create colormap without the outmost colors
cmap = mcolors.ListedColormap(Discrete_colors[1:-1]) #
actual_2d = np.reshape(sub_plot_data,(y,x))
#im = ax.imshow(actual_2d, interpolation=None, cmap=cmap, extent=(xmin, xmax, ymin, ymax), vmin=pmin, vmax=pmax)
im = ax.imshow(actual_2d, interpolation=None, cmap=cmap)
ax.text(actual_2d[62, 62], actual_2d[62, 62]-10, '%s' % 'Sale_1',
horizontalalignment='center', verticalalignment='center', color= 'black', fontsize=18)
ax.set_title("Sale_Stores-%s - L: %s"%(i 1, 1), fontsize=14, pad=30, x=0.5, y=0.999)
ax.set_aspect('auto')
ax.add_patch(Rectangle((60, 60), 6, 6, edgecolor='red', facecolor='red', fill=True, lw=2))
ax.text(62, 62, '%s' % 'Sale_1', ha='center', va='center', color='black', fontsize=14)
fig.tight_layout(h_pad=10)
plt.subplots_adjust(left=0.02,
bottom=0.1,
right=0.91,
top=0.8,
wspace=0.1,
hspace=0.5)
cbaxes = fig.add_axes([0.94, 0.05, 0.02, 0.8])
cbar = fig.colorbar(im, ax=axes.flat, ticks=v, extend='both', cax=cbaxes)
cbar.ax.tick_params(labelsize=10)
#cbar.set_ticks(v)
cbar.ax.set_yticklabels([str(i) for i in v], fontsize=12)
#plt.tick_params(left=False, labelleft=False, top=False, labeltop=False, right=False, labelright=False, bottom=False, labelbottom=False)
plt.show()
