前言

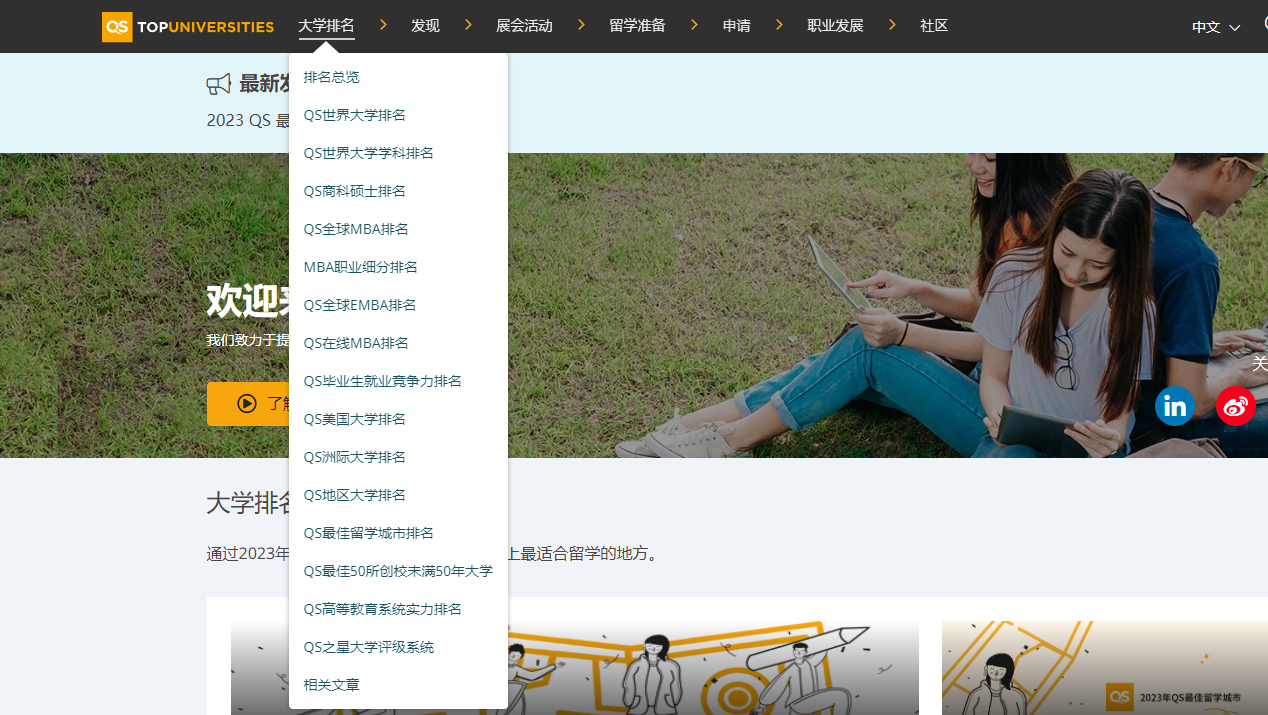

QS世界大學排名（QS World University Rankings）是由英國一家國際教育市場咨詢公司Quacquarelli Symonds（簡稱QS）所發表的年度世界大學排名

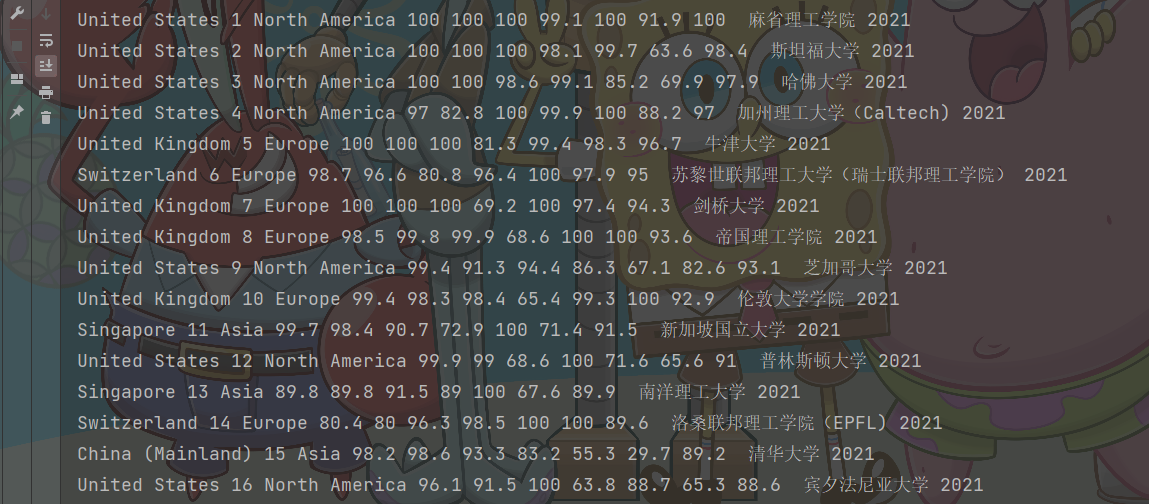

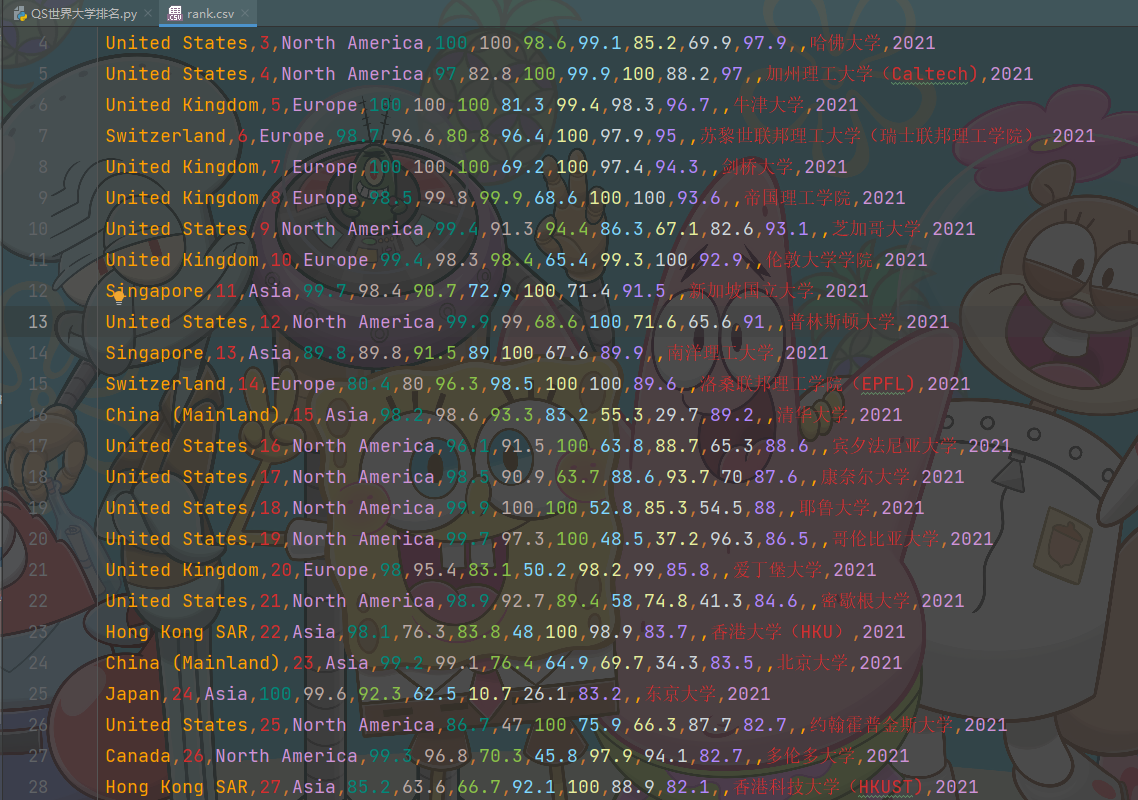

采集全球大學排名資料（原始碼已分享，求點贊）
import requests # 發送請求 import re import csv with open('rank.csv', mode='a', encoding='utf-8', newline='') as f: csv_writer = csv.writer(f) csv_writer.writerow(['country', 'rank', 'region', 'score_1', 'score_2', 'score_3', 'score_4', 'score_5', 'score_6', 'total_score', 'stars', 'university', 'year']) def replace(str_): str_ = re.findall('<div ><div >(.*?)</div></div>', str_)[0] return str_ url = 'https://www.qschina.cn/sites/default/files/qs-rankings-data/cn/2057712_indicators.txt' # 1. 發送請求 response = requests.get(url) # <Response [200]>: 請求成功 # 2. 獲取資料 json_data = https://www.cnblogs.com/qshhl/p/response.json() # Python 字典 # 3. 決議資料 # 字典 data_list = json_data['data'] for i in data_list: country = i['location'] # 國家/地區 rank = i['overall_rank'] # 排名 region = i['region'] # 大洲 score_1 = replace(i['ind_76']) # 學術聲譽 score_2 = replace(i['ind_77']) # 雇主聲譽 score_3 = replace(i['ind_36']) # 師生比 score_4 = replace(i['ind_73']) # 教員參考率 score_5 = replace(i['ind_18']) # 國際教師 score_6 = replace(i['ind_14']) # 國際學生 total_score = replace(i['overall']) # 總分 stars = i['stars'] # 星級 uni = i['uni'] # 大學名稱 university = re.findall('<div ><div ><a href="https://www.cnblogs.com/qshhl/p/.*?" >(.*?)</a></div></div>', uni)[0] year = "2021" # 年份 print(country, rank, region, score_1, score_2, score_3, score_4, score_5, score_6, total_score, stars, university, year) with open('rank.csv', mode='a', encoding='utf-8', newline='') as f: csv_writer = csv.writer(f) csv_writer.writerow([country, rank, region, score_1, score_2, score_3, score_4, score_5, score_6, total_score, stars, university, year])
可視化展示
匯入所需模塊
from pyecharts.charts import * from pyecharts import options as opts from pyecharts.commons.utils import JsCode from pyecharts.components import Table import re import pandas as pd

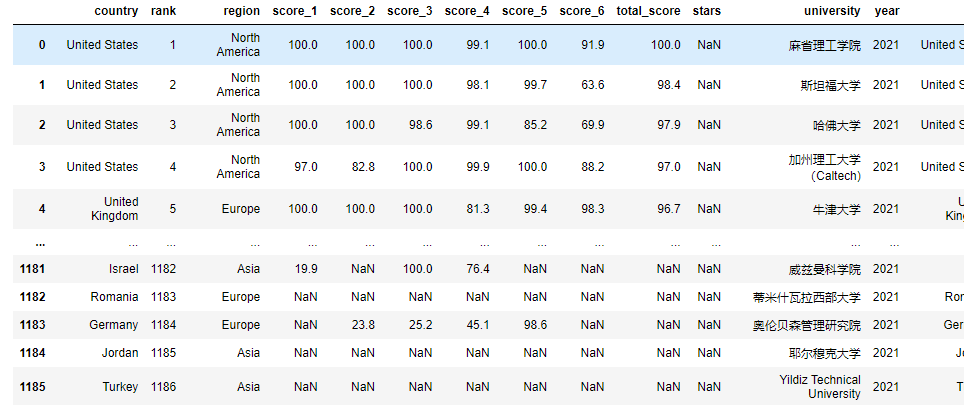

匯入資料
df = pd.read_csv('rank.csv') # 香港，澳門與中國大陸地區等在榜單中是分開的記錄的，這邊都歸為china df['loc'] = df['country'] df['country'].replace(['China (Mainland)', 'Hong Kong SAR', 'Taiwan', 'Macau SAR'],'China',inplace=True)

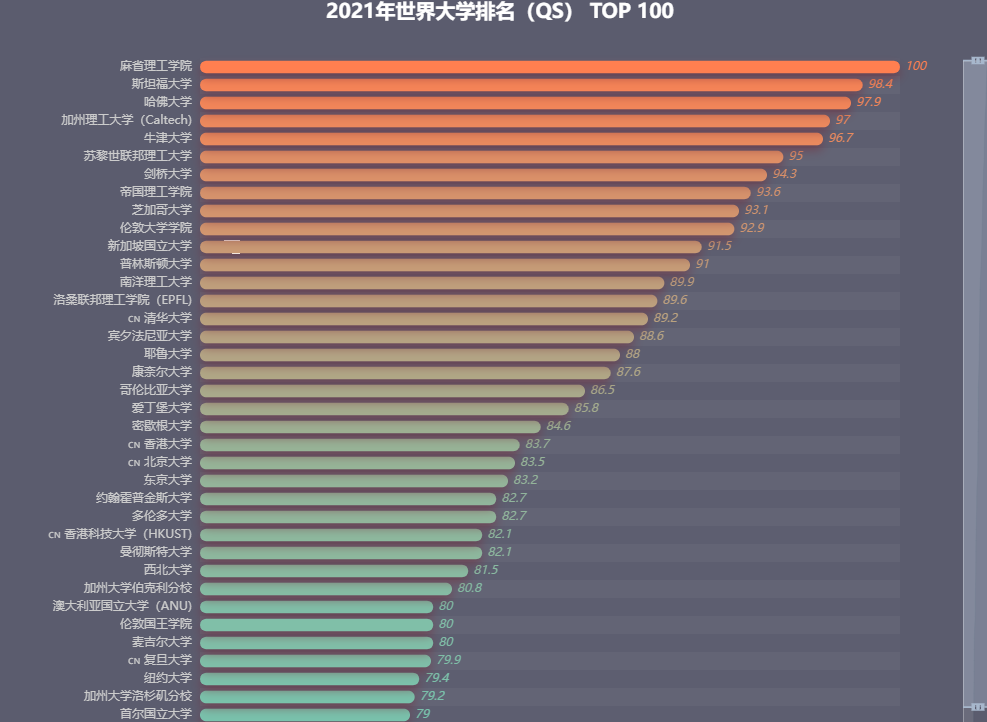

2021年世界大學排名（QS） TOP 100
bar = (Bar() .add_xaxis(university) .add_yaxis('', score, category_gap='30%') .set_global_opts(title_opts=opts.TitleOpts(title="2021年世界大學排名（QS） TOP 100", pos_left="center", title_textstyle_opts=opts.TextStyleOpts(font_size=20)), datazoom_opts=opts.DataZoomOpts(range_start=70, range_end=100, orient='vertical'), visualmap_opts=opts.VisualMapOpts(is_show=False, max_=100, min_=60, dimension=0, range_color=['#00FFFF', '#FF7F50']), legend_opts=opts.LegendOpts(is_show=False), xaxis_opts=opts.AxisOpts(is_show=False, is_scale=True), yaxis_opts=opts.AxisOpts(axistick_opts=opts.AxisTickOpts(is_show=False), axisline_opts=opts.AxisLineOpts(is_show=False), axislabel_opts=opts.LabelOpts(font_size=12))) .set_series_opts(label_opts=opts.LabelOpts(is_show=True, position='right', font_style='italic'), itemstyle_opts={"normal": { "barBorderRadius": [30, 30, 30, 30], 'shadowBlur': 10, 'shadowColor': 'rgba(120, 36, 50, 0.5)', 'shadowOffsetY': 5, } } ).reversal_axis()) grid = ( Grid(init_opts=opts.InitOpts(theme='purple-passion', width='1000px', height='1200px')) .add(bar, grid_opts=opts.GridOpts(pos_right='10%', pos_left='20%')) ) grid.render_notebook()

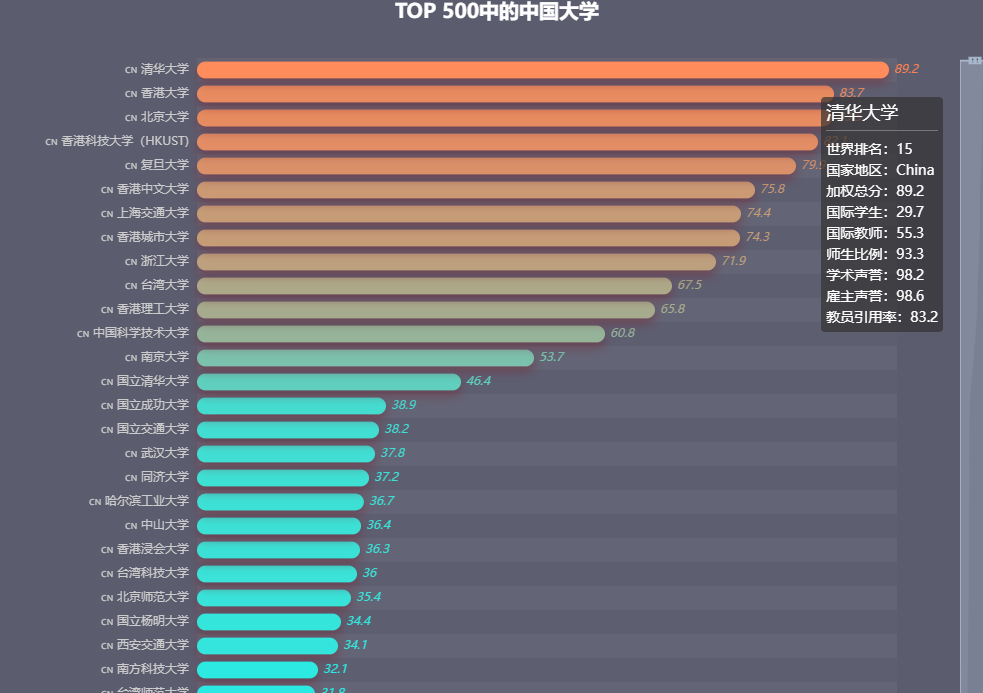

TOP 500中的中國大學
bar = (Bar() .add_xaxis(university) .add_yaxis('', score, category_gap='30%') .set_global_opts(title_opts=opts.TitleOpts(title="TOP 500中的中國大學", pos_left="center", title_textstyle_opts=opts.TextStyleOpts(font_size=20)), datazoom_opts=opts.DataZoomOpts(range_start=50, range_end=100, orient='vertical'), visualmap_opts=opts.VisualMapOpts(is_show=False, max_=90, min_=20, dimension=0, range_color=['#00FFFF', '#FF7F50']), legend_opts=opts.LegendOpts(is_show=False), xaxis_opts=opts.AxisOpts(is_show=False, is_scale=True), yaxis_opts=opts.AxisOpts(axistick_opts=opts.AxisTickOpts(is_show=False), axisline_opts=opts.AxisLineOpts(is_show=False), axislabel_opts=opts.LabelOpts(font_size=12))) .set_series_opts(label_opts=opts.LabelOpts(is_show=True, position='right', font_style='italic'), itemstyle_opts={"normal": { "barBorderRadius": [30, 30, 30, 30], 'shadowBlur': 10, 'shadowColor': 'rgba(120, 36, 50, 0.5)', 'shadowOffsetY': 5, } } ).reversal_axis()) grid = ( Grid(init_opts=opts.InitOpts(theme='purple-passion', width='1000px', height='1200px')) .add(bar, grid_opts=opts.GridOpts(pos_right='10%', pos_left='20%')) ) grid.render_notebook()

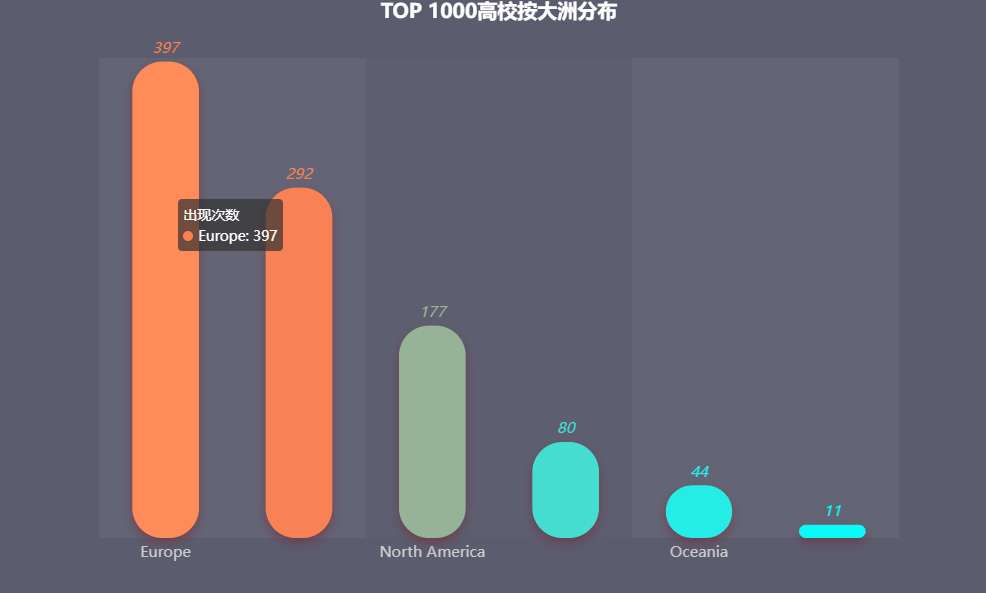

TOP 1000高校按大洲分布
t_data = https://www.cnblogs.com/qshhl/p/df[(df.year==2021) & (df['rank']<=1000)] t_data = t_data.groupby(['region'])['university'].count().reset_index() t_data.columns = ['region', 'num'] t_data = t_data.sort_values(by="num" , ascending=False) bar = (Bar(init_opts=opts.InitOpts(theme='purple-passion', width='1000px', height='600px')) .add_xaxis(t_data['region'].tolist()) .add_yaxis('出現次數', t_data['num'].tolist(), category_gap='50%') .set_global_opts(title_opts=opts.TitleOpts(title="TOP 1000高校按大洲分布", pos_left="center", title_textstyle_opts=opts.TextStyleOpts(font_size=20)), visualmap_opts=opts.VisualMapOpts(is_show=False, max_=300, min_=0, dimension=1, range_color=['#00FFFF', '#FF7F50']), legend_opts=opts.LegendOpts(is_show=False), xaxis_opts=opts.AxisOpts(axistick_opts=opts.AxisTickOpts(is_show=False), axisline_opts=opts.AxisLineOpts(is_show=False), axislabel_opts=opts.LabelOpts(font_size=15)), yaxis_opts=opts.AxisOpts(is_show=False)) .set_series_opts(label_opts=opts.LabelOpts(is_show=True, position='top', font_size=15, font_style='italic'), itemstyle_opts={"normal": { "barBorderRadius": [30, 30, 30, 30], 'shadowBlur': 10, 'shadowColor': 'rgba(120, 36, 50, 0.5)', 'shadowOffsetY': 5, } } )) bar.render_notebook()

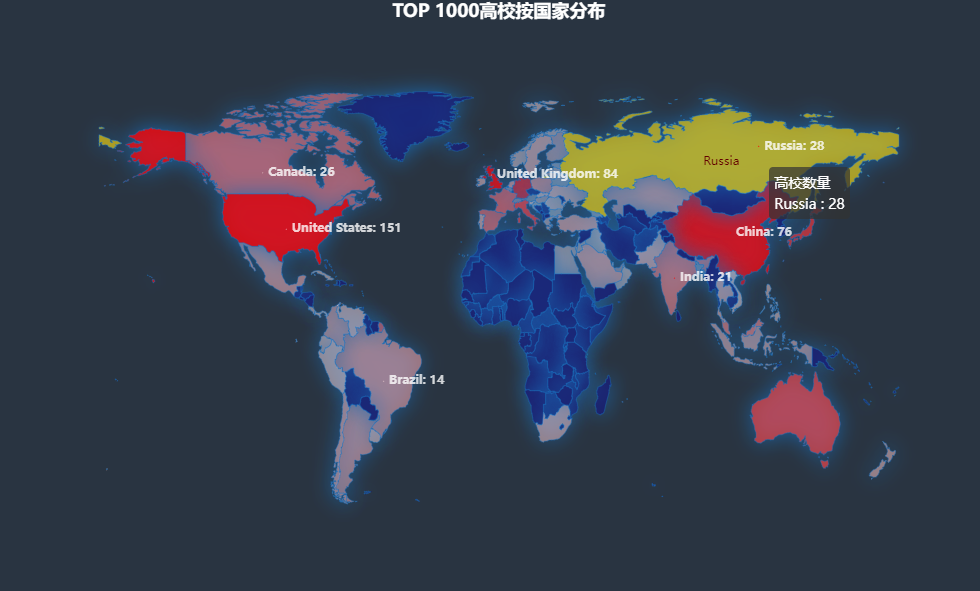

TOP 1000高校按國家分布
fmt_js = """function (params) {return params.name+': '+Number(params.value[2]);}""" mp = Map() mp.add( "高校數量", data_pair, "world", is_map_symbol_show=False, is_roam=False) mp.set_series_opts(label_opts=opts.LabelOpts(is_show=False), itemstyle_opts={'normal': { 'areaColor': '#191970', 'borderColor': '#1773c3', 'shadowColor': '#1773c3', 'shadowBlur': 20, 'opacity': 0.8 } }) mp.set_global_opts( title_opts=opts.TitleOpts(title="TOP 1000高校按國家分布", pos_left='center', title_textstyle_opts=opts.TextStyleOpts(font_size=18)), legend_opts=opts.LegendOpts(is_show=False), visualmap_opts=opts.VisualMapOpts(is_show=False, max_=100, is_piecewise=False, dimension=0, range_color=['rgba(255,228,225,0.6)', 'rgba(255,0,0,0.9)', 'rgba(255,0,0,1)']) ) data_pair = [[x, y] for x, y in data_pair if x in country_list] geo = Geo() # 需要先將幾個國家的經緯度資訊加入到geo中 for k, v in loc.items(): geo.add_coordinate(k, v[0], v[1]) # 這里將geo的地圖透明度配置為0 geo.add_schema(maptype="world", is_roam=False, itemstyle_opts={'normal': {'opacity': 0}}) geo.add("", data_pair, symbol_size=1) # 顯示標簽配置 geo.set_series_opts( label_opts=opts.LabelOpts( is_show=True, position='right', color='white', font_size=12, font_weight='bold', formatter=JsCode(fmt_js)), ) grid = ( Grid(init_opts=opts.InitOpts(theme='chalk', width='1000px', height='600px')) .add(mp, grid_opts=opts.GridOpts(pos_top="12%")) .add(geo, grid_opts=opts.GridOpts(pos_bottom="12%")) ) grid.render_notebook()

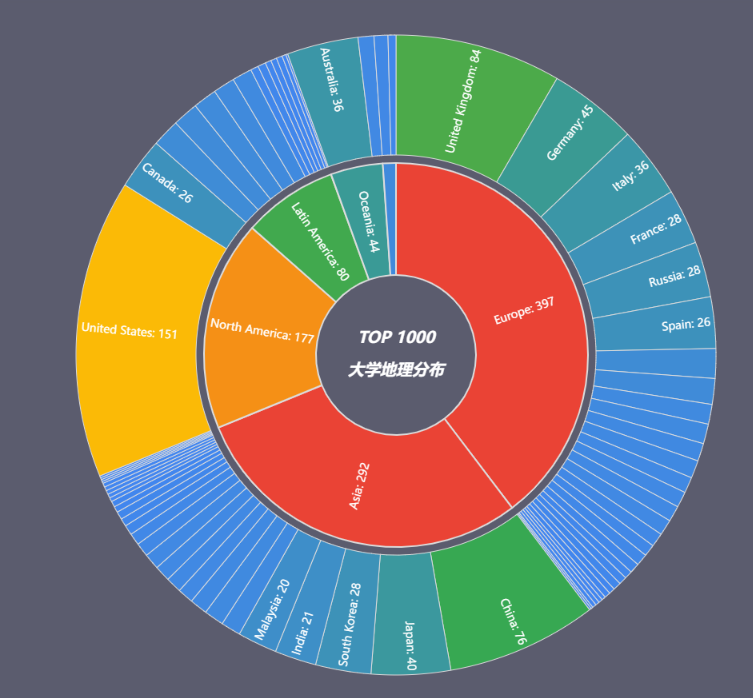

大洲-國家分布
c = (Sunburst( init_opts=opts.InitOpts( theme='purple-passion', width="1000px", height="1000px")) .add( "", data_pair=data_pair, highlight_policy="ancestor", radius=[0, "100%"], sort_='null', levels=[ {}, { "r0": "20%", "r": "48%", "itemStyle": {"borderColor": 'rgb(220,220,220)', "borderWidth": 2} }, {"r0": "50%", "r": "80%", "label": {"align": "right"}, "itemStyle": {"borderColor": 'rgb(220,220,220)', "borderWidth": 1}} ], ) .set_global_opts( visualmap_opts=opts.VisualMapOpts(is_show=False, max_=300, min_=0, is_piecewise=False, range_color=['#4285f4', '#34a853', '#fbbc05', '#ea4335', '#ea4335']), title_opts=opts.TitleOpts(title="TOP 1000\n\n大學地理分布", pos_left="center", pos_top="center", title_textstyle_opts=opts.TextStyleOpts(font_style='oblique', font_size=20),)) .set_series_opts(label_opts=opts.LabelOpts(font_size=14, formatter="{b}: {c}")) ) c.render_notebook()
