- 正常創建一個maven專案，環境是jDK1.8及以上，maven3.8及以上
- 無論SSM專案、SpringBoot專案還是SpringCloud專案第一件事就是添加相關的依賴，這里是針對SSM整合匯入相關的依賴
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.xsha.ssm</groupId>
<artifactId>java-ssm</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging>
<properties>
<maven.compiler.source>8</maven.compiler.source>
<maven.compiler.target>8</maven.compiler.target>
<!-- 對spring版本進行統一管理 -->
<spring.version>5.2.6.RELEASE</spring.version>
<!-- 對spring security版本進行統一管理 -->
<spring.security.version>4.2.10.RELEASE</spring.security.version>
</properties>
<dependencies>
<!-- Spring 依賴 -->
<!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.aspectj/aspectjweaver -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aspects</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 資料庫依賴 -->
<!-- MySQL 驅動 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.46</version>
</dependency>
<!-- 資料源 -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.2.8</version>
</dependency>
<!-- MyBatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.9</version>
</dependency>
<!-- MyBatis 與 Spring 整合 -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.5</version>
</dependency>
<!-- MyBatis 分頁插件 -->
<dependency>
<groupId>com.github.pagehelper</groupId>
<artifactId>pagehelper</artifactId>
<version>5.3.0</version>
</dependency>
<!-- 日志 -->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>1.7.7</version>
</dependency>
<dependency>
<groupId>ch.qos.logback</groupId>
<artifactId>logback-classic</artifactId>
<version>1.2.3</version>
</dependency>
<!-- JSTL 標簽庫 -->
<dependency>
<groupId>jstl</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<!-- junit 測驗 -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.13.2</version>
<scope>test</scope>
</dependency>
<!-- 引入 Servlet 容器中相關依賴 -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
<scope>provided</scope>
</dependency>
</dependencies>
</project>
- 剛創建的maven專案是沒有web.xml檔案的（如果有就更好，是在webapp/WEB-INF目錄下哦），如果沒有，就要按照如下步驟添加

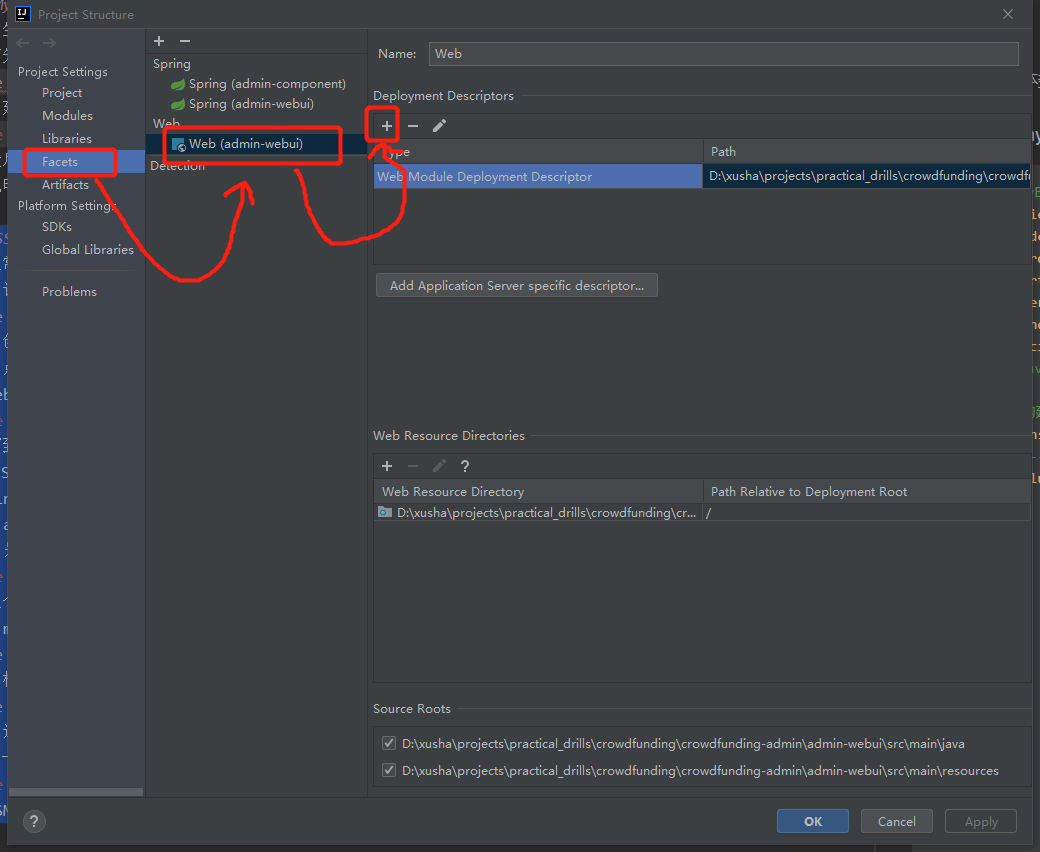

- 點擊File->Project Structure->Facets
- 點擊File->Project Structure->Facets
- web.xml配置的內容基本上就是Servlet程式的三大組件：
Listener監聽器、DispatcherServlet程式（控制器）、Filter過濾器，
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<!-- 指定要加載的Spring組態檔 -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</context-param>
<!-- 監聽器 -->
<listener>
<listener-class>org.springframework.web.context.ContextLoader</listener-class>
</listener>
<!-- 配置前端控制器 -->
<servlet>
<servlet-name>dispatcherServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>dispatcherServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 配置字符編碼過濾器 -->
<filter>
<filter-name>characterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<param-name>forceResponseEncoding</param-name>
<param-value>true</param-value>
</init-param>
<init-param>
<param-name>forceRequestEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>characterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 配置允許前端delete、put、patch等請求的過濾器 -->
<filter>
<filter-name>hiddenHttpMethodFilter</filter-name>
<filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>hiddenHttpMethodFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
- 寫到這里你肯定會發現有一個地方會報紅，那就是缺少了Spring組態檔
applicationContext.xml，其實applicationContext.xml組態檔
就是Spring組態檔的一部分，因為Spring要與Mybatis整合，Spring組態檔一分為二，一部分是Spring與Mybatis整合的組態檔applicationContext.xml，一部分是
Spring與SpringMvc的組態檔dispatcherServlet.xml，- applicationContext.xml
- 另外還需要在類路徑下創建一個mapper的目錄
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
">
<!-- 除了控制器的掃描，當前包下的都會掃描 -->
<context:component-scan base-package="com.xsha.ssm">
<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>
<!-- 引入外部組態檔 -->
<context:property-placeholder location="classpath:jdbc.properties" />
<!-- Spring組態檔，這里主要配置和業務邏輯相關的 -->
<!-- 資料源和事務控制 -->
<bean id="dataSource" >
<property name="driverClassName" value="https://www.cnblogs.com/aitiknowledge/archive/2022/07/21/${jdbc.driverClassName}" />
<property name="url" value="https://www.cnblogs.com/aitiknowledge/archive/2022/07/21/${jdbc.url}" />
<property name="username" value="https://www.cnblogs.com/aitiknowledge/archive/2022/07/21/${jdbc.username}" />
<property name="password" value="https://www.cnblogs.com/aitiknowledge/archive/2022/07/21/${jdbc.password}" />
</bean>
<!-- 配置Spring與Mybatis的整合 -->
<bean id="sqlSessionFactory" >
<!-- 指定Mybatis全域組態檔 -->
<property name="configLocation" value="https://www.cnblogs.com/aitiknowledge/archive/2022/07/21/classpath:mybatisConfig.xml" />
<property name="dataSource" ref="dataSource" />
<!-- 指定Mybatis的mapper.xml檔案的位置 -->
<property name="mapperLocations" value="https://www.cnblogs.com/aitiknowledge/archive/2022/07/21/classpath:mapper/*.xml" />
</bean>
<!-- 配置掃描器，將Mybatis介面的實作加入到IOC容器中 -->
<bean >
<!-- 掃描所有dao（或者mapper）介面的實作類 -->
<property name="basePackage" value="https://www.cnblogs.com/aitiknowledge/archive/2022/07/21/com.xsha.ssm.mapper" />
</bean>
<!-- 事務控制 -->
<bean id="transactionManager" >
<!-- 控制資料源 -->
<property name="dataSource" ref="dataSource" />
</bean>
<!-- 開啟基于注解的事務，使用xml配置形式的事務 -->
<aop:config>
<aop:pointcut id="txPoint" expression="execution(* com.xsha.ssm.service.. *(..))"/>
<!-- 配置事務增強 -->
<aop:advisor advice-ref="txAdvice" pointcut-ref="txPoint" />
</aop:config>
<!-- 配置事務增強，事務如何切入 -->
<tx:advice id="txAdvice">
<tx:attributes>
<!-- 所有方法都是事務方法 -->
<tx:method name="*" />
<!-- 以get開頭的方法 -->
<tx:method name="get*" read-only="true" />
</tx:attributes>
</tx:advice>
</beans>
- 這個配置組態檔的作用主要是Mybatis的全域配置，如物體型別別的別名、駝峰式命名
- mybatisConfig.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<settings>
<setting name="mapUnderscoreToCamelCase" value="https://www.cnblogs.com/aitiknowledge/archive/2022/07/21/true"/>
</settings>
<!-- 設定型別別名 -->
<typeAliases>
<package name="com.xsha.ssm.entity"/>
</typeAliases>
</configuration>
- 同樣，上面還是缺少了一個組態檔，就是連接資料庫的組態檔
jdbc.properties
jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql:///database_name?useUnicode=true&characterEncoding=utf8
jdbc.username=username
jdbc.password=password
- 到這里，就已經實作了Spring和Mybatis的整合，接下來就是實作Spring和SpringMvc的整合，在上面的web.xml就基本配置完成Spring和SpringMvc的整合，
就差一個視圖決議器的組態檔dispatcherServlet.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
">
<!-- SpringMvc的組態檔，包括網站跳轉邏輯控制 -->
<context:component-scan base-package="com.xsha.ssm" use-default-filters="false">
<!-- 只能掃描控制器 -->
<context:include-filter type="annotation" expression="org.springframework.stereotype.Controller" />
</context:component-scan>
<!-- 配置視圖決議器 -->
<bean >
<property name="prefix" value="https://www.cnblogs.com/WEB-INF/views" />
<property name="suffix" value="https://www.cnblogs.com/aitiknowledge/archive/2022/07/21/.jsp" />
</bean>
<!-- 兩個標準配置 -->
<!-- 將SpringMvc不能處理的交割tomcat處理 -->
<mvc:default-servlet-handler />
<mvc:annotation-driven />
</beans>
- SSM的整合已經實作，大家可通過單元測驗
