4、spring+springMVC+mybaits+idea+maven-有解無憂

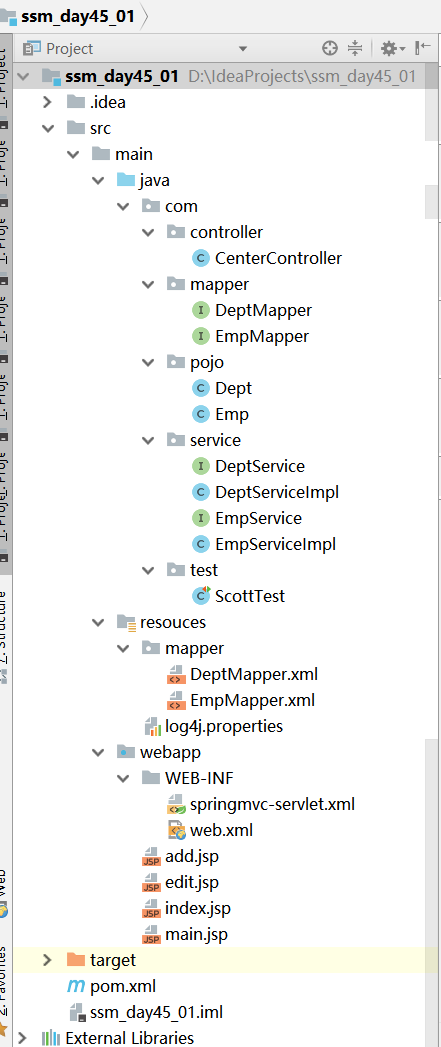

1、構建專案結構如下

2、構建專案中的pom.xml檔案中的依萊澩，里面包含ajax和分頁插件的依賴哦

  1 <?xml version="1.0" encoding="UTF-8"?>
  2
  3 <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  4   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  5   <modelVersion>4.0.0</modelVersion>
  6
  7   <groupId>com</groupId>
  8   <artifactId>ssm_day45_01</artifactId>
  9   <version>1.0-SNAPSHOT</version>
 10   <packaging>war</packaging>
 11
 12   <name>ssm_day45_01 Maven Webapp</name>
 13   <!-- FIXME change it to the project's website -->
 14   <url>http://www.example.com</url>
 15
 16   <properties>
 17     <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
 18     <maven.compiler.source>1.7</maven.compiler.source>
 19     <maven.compiler.target>1.7</maven.compiler.target>
 20   </properties>
 21
 22   <dependencies>
 23     <dependency>
 24       <groupId>junit</groupId>
 25       <artifactId>junit</artifactId>
 26       <version>4.11</version>
 27     </dependency>
 28
 29
 30     <!--1 https://mvnrepository.com/artifact/org.springframework/spring-beans -->
 31     <dependency>
 32       <groupId>org.springframework</groupId>
 33       <artifactId>spring-beans</artifactId>
 34       <version>4.3.6.RELEASE</version>
 35     </dependency>
 36
 37
 38     <!--2 https://mvnrepository.com/artifact/org.springframework/spring-context -->
 39     <dependency>
 40       <groupId>org.springframework</groupId>
 41       <artifactId>spring-context</artifactId>
 42       <version>4.3.6.RELEASE</version>
 43     </dependency>
 44
 45
 46     <!-- 3https://mvnrepository.com/artifact/org.springframework/spring-core -->
 47     <dependency>
 48       <groupId>org.springframework</groupId>
 49       <artifactId>spring-core</artifactId>
 50       <version>4.3.6.RELEASE</version>
 51     </dependency>
 52
 53
 54     <!--4 https://mvnrepository.com/artifact/org.springframework/spring-expression -->
 55     <dependency>
 56       <groupId>org.springframework</groupId>
 57       <artifactId>spring-expression</artifactId>
 58       <version>4.3.6.RELEASE</version>
 59     </dependency>
 60
 61
 62     <!--5 https://mvnrepository.com/artifact/org.springframework/spring-aop -->
 63     <dependency>
 64       <groupId>org.springframework</groupId>
 65       <artifactId>spring-aop</artifactId>
 66       <version>4.3.6.RELEASE</version>
 67     </dependency>
 68
 69
 70     <!--6 https://mvnrepository.com/artifact/aopalliance/aopalliance -->
 71     <dependency>
 72       <groupId>aopalliance</groupId>
 73       <artifactId>aopalliance</artifactId>
 74       <version>1.0</version>
 75     </dependency>
 76
 77
 78     <!--7 https://mvnrepository.com/artifact/org.aspectj/aspectjweaver -->
 79     <dependency>
 80       <groupId>org.aspectj</groupId>
 81       <artifactId>aspectjweaver</artifactId>
 82       <version>1.8.10</version>
 83     </dependency>
 84
 85
 86     <!--8 https://mvnrepository.com/artifact/log4j/log4j -->
 87     <dependency>
 88       <groupId>log4j</groupId>
 89       <artifactId>log4j</artifactId>
 90       <version>1.2.17</version>
 91     </dependency>
 92
 93
 94     <!--9 https://mvnrepository.com/artifact/commons-logging/commons-logging -->
 95     <dependency>
 96       <groupId>commons-logging</groupId>
 97       <artifactId>commons-logging</artifactId>
 98       <version>1.2</version>
 99     </dependency>
100
101
102     <!--10 https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
103     <dependency>
104       <groupId>org.springframework</groupId>
105       <artifactId>spring-jdbc</artifactId>
106       <version>4.3.6.RELEASE</version>
107     </dependency>
108
109
110     <!--11 https://mvnrepository.com/artifact/org.springframework/spring-orm -->
111     <dependency>
112       <groupId>org.springframework</groupId>
113       <artifactId>spring-orm</artifactId>
114       <version>4.3.6.RELEASE</version>
115     </dependency>
116
117
118     <!--12 https://mvnrepository.com/artifact/org.springframework/spring-tx -->
119     <dependency>
120       <groupId>org.springframework</groupId>
121       <artifactId>spring-tx</artifactId>
122       <version>4.3.6.RELEASE</version>
123     </dependency>
124
125
126     <!--13 https://mvnrepository.com/artifact/org.springframework/spring-web -->
127     <dependency>
128       <groupId>org.springframework</groupId>
129       <artifactId>spring-web</artifactId>
130       <version>4.3.6.RELEASE</version>
131     </dependency>
132
133
134     <!--14 https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
135     <dependency>
136       <groupId>org.springframework</groupId>
137       <artifactId>spring-webmvc</artifactId>
138       <version>4.3.6.RELEASE</version>
139     </dependency>
140
141
142     <!--15 https://mvnrepository.com/artifact/org.mybatis/mybatis -->
143     <dependency>
144       <groupId>org.mybatis</groupId>
145       <artifactId>mybatis</artifactId>
146       <version>3.4.6</version>
147     </dependency>
148
149
150     <!--16 https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
151     <dependency>
152       <groupId>mysql</groupId>
153       <artifactId>mysql-connector-java</artifactId>
154       <version>5.1.38</version>
155     </dependency>
156
157
158     <!--17 https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
159     <dependency>
160       <groupId>org.mybatis</groupId>
161       <artifactId>mybatis-spring</artifactId>
162       <version>1.3.2</version>
163     </dependency>
164
165     <!--18 https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
166     <dependency>
167       <groupId>javax.servlet</groupId>
168       <artifactId>javax.servlet-api</artifactId>
169       <version>3.1.0</version>
170     </dependency>
171
172     <!--19 https://mvnrepository.com/artifact/javax.servlet/jstl -->
173     <dependency>
174       <groupId>javax.servlet</groupId>
175       <artifactId>jstl</artifactId>
176       <version>1.2</version>
177     </dependency>
178
179
180     <!--20 https://mvnrepository.com/artifact/taglibs/standard -->
181     <dependency>
182       <groupId>taglibs</groupId>
183       <artifactId>standard</artifactId>
184       <version>1.1.2</version>
185     </dependency>
186
187     <!--檔案上傳使用的jar-->
188     <!--21 https://mvnrepository.com/artifact/commons-io/commons-io -->
189     <dependency>
190       <groupId>commons-io</groupId>
191       <artifactId>commons-io</artifactId>
192       <version>2.4</version>
193     </dependency>
194     <!--22-->
195     <dependency>
196       <groupId>commons-fileupload</groupId>
197       <artifactId>commons-fileupload</artifactId>
198       <version>1.3.3</version>
199     </dependency>
200
201     <!--23 下載ajax封裝資料json格式互動的jar-->
202     <dependency>
203       <groupId>com.fasterxml.jackson.core</groupId>
204       <artifactId>jackson-databind</artifactId>
205       <version>2.9.6</version>
206     </dependency>
207
208     <dependency>
209       <groupId>com.fasterxml.jackson.core</groupId>
210       <artifactId>jackson-core</artifactId>
211       <version>2.9.6</version>
212     </dependency>
213
214     <dependency>
215       <groupId>com.fasterxml.jackson.core</groupId>
216       <artifactId>jackson-annotations</artifactId>
217       <version>2.9.6</version>
218     </dependency>
219
220     <!--使用4的版本否則springmvc的xml-->
221     <dependency>
222       <groupId>com.github.pagehelper</groupId>
223       <artifactId>pagehelper</artifactId>
224       <version>4.1.6</version>
225     </dependency>
226   </dependencies>
227
228 </project>

pom.xml

3、在專案的webapp目錄下的WEB-INF下構建springmvc的xml檔案，即springmvc-servlet.xml

 1 <?xml version="1.0" encoding="UTF-8" ?>
 2 <beans xmlns="http://www.springframework.org/schema/beans"
 3        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 4        xmlns:aop="http://www.springframework.org/schema/aop"
 5        xmlns:context="http://www.springframework.org/schema/context"
 6        xmlns:tx="http://www.springframework.org/schema/tx"
 7        xmlns:mvc="http://www.springframework.org/schema/mvc"
 8        xsi:schemaLocation="http://www.springframework.org/schema/beans
 9        http://www.springframework.org/schema/beans/spring-beans.xsd
10        http://www.springframework.org/schema/aop
11        http://www.springframework.org/schema/aop/spring-aop.xsd
12        http://www.springframework.org/schema/context
13        http://www.springframework.org/schema/context/spring-context.xsd
14        http://www.springframework.org/schema/tx
15        http://www.springframework.org/schema/tx/spring-tx.xsd
16        http://www.springframework.org/schema/mvc
17        http://www.springframework.org/schema/mvc/spring-mvc.xsd
18 ">
19    <!--1.mvc 注解驅動  -->
20     <mvc:annotation-driven/>
21    <!--2.全域掃描包-->
22     <context:component-scan base-package="com"/>
23    <!--3.驅動管理資料源 -->
24     <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
25          <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
26          <property name="url" value="jdbc:mysql://localhost:3306/ar"/>
27          <property name="username" value="root"/>
28          <property name="password" value="123456"/>
29     </bean>
30     <!--4.資料源事務管理-->
31     <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
32          <property name="dataSource" ref="dataSource"/>
33     </bean>
34     <!--5.事務注解驅動-->
35     <tx:annotation-driven transaction-manager="transactionManager"/>
36     <!--6.sqlsessionfactorybean-->
37     <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
38           <property name="dataSource" ref="dataSource"/>
39           <!--映射xml檔案需要類全路徑別名的 配置，將某個包下的所有類全路徑配置別名，別名默認是類名-->
40           <property name="typeAliasesPackage" value="com.pojo"/>
41            <!--參考映射xml檔案-->
42           <property name="mapperLocations" value="classpath:mapper/*.xml"/>
43     </bean>
44     <!--7.映射掃描引數-->
45     <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
46         <property name="basePackage" value="com.mapper"/>
47     </bean>
48
49 </beans>

springmvc-servlet.xml

4、在專案的webapp目錄下的WEB-INF下構建web的xml檔案，即web.xml

 1 <!DOCTYPE web-app PUBLIC
 2  "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 3  "http://java.sun.com/dtd/web-app_2_3.dtd" >
 4
 5 <web-app>
 6   <!--springmvc的過濾器，主要過濾亂碼-->
 7   <filter>
 8     <filter-name>character</filter-name>
 9     <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
10     <init-param>
11       <param-name>encoding</param-name>
12       <param-value>UTF-8</param-value>
13     </init-param>
14   </filter>
15   <filter-mapping>
16     <filter-name>character</filter-name>
17     <url-pattern>/*</url-pattern>
18   </filter-mapping>
19
20   <!--springmvc 核心攔截器-->
21    <servlet>
22      <servlet-name>springmvc</servlet-name>
23      <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
24    </servlet>
25   <servlet-mapping>
26     <servlet-name>springmvc</servlet-name>
27     <url-pattern>*.do</url-pattern>
28   </servlet-mapping>
29
30   <welcome-file-list>
31     <welcome-file>show.do</welcome-file>
32   </welcome-file-list>
33 </web-app>

web.xml

5、在java目錄下的com.pojo包下構建Emp.java和Dept.java檔案

 1 package com.pojo;
 2 import org.springframework.stereotype.Component;
 3
 4 import java.io.Serializable;
 5 import java.util.List;
 6 /**
 7  * 一方參考多方list集合
 8  */
 9 @Component
10 public class Dept implements Serializable {
11   private Integer deptno   ;
12   private String  dname    ;
13   private String  loc          ;
14
15   public Dept() {
16   }
17
18   public Dept(Integer deptno, String dname, String loc) {
19     this.deptno = deptno;
20     this.dname = dname;
21     this.loc = loc;
22   }
23
24   public Integer getDeptno() {
25     return deptno;
26   }
27
28   public void setDeptno(Integer deptno) {
29     this.deptno = deptno;
30   }
31
32
33   public String getDname() {
34     return dname;
35   }
36
37   public void setDname(String dname) {
38     this.dname = dname;
39   }
40
41
42   public String getLoc() {
43     return loc;
44   }
45
46   public void setLoc(String loc) {
47     this.loc = loc;
48   }
49
50   @Override
51   public String toString() {
52     return "Dept{" +
53             "deptno=" + deptno +
54             ", dname='" + dname + '\'' +
55             ", loc='" + loc + '\'' +
56             '}';
57   }
58 }

Dept.java

  1 package com.pojo;
  2
  3 import org.springframework.stereotype.Component;
  4
  5 import java.io.Serializable;
  6
  7 /**
  8  * 多方參考一方物件
  9  */
 10 @Component
 11 public class Emp implements Serializable{
 12   private Integer empno             ;
 13   private String  ename           ;
 14   private String  job         ;
 15   private Integer mgr           ;
 16   private String  hiredate           ;
 17   private Double  sal         ;
 18   private Double  comm               ;
 19   private Dept dept;
 20
 21   public Emp() {
 22   }
 23
 24   public Emp(Integer empno, String ename, String job, Integer mgr, String hiredate, Double sal, Double comm, Dept dept) {
 25     this.empno = empno;
 26     this.ename = ename;
 27     this.job = job;
 28     this.mgr = mgr;
 29     this.hiredate = hiredate;
 30     this.sal = sal;
 31     this.comm = comm;
 32     this.dept = dept;
 33   }
 34
 35   public Integer getEmpno() {
 36     return empno;
 37   }
 38
 39   public void setEmpno(Integer empno) {
 40     this.empno = empno;
 41   }
 42
 43
 44   public String getEname() {
 45     return ename;
 46   }
 47
 48   public void setEname(String ename) {
 49     this.ename = ename;
 50   }
 51
 52
 53   public String getJob() {
 54     return job;
 55   }
 56
 57   public void setJob(String job) {
 58     this.job = job;
 59   }
 60
 61
 62   public Integer getMgr() {
 63     return mgr;
 64   }
 65
 66   public void setMgr(Integer mgr) {
 67     this.mgr = mgr;
 68   }
 69
 70
 71   public String getHiredate() {
 72     return hiredate;
 73   }
 74
 75   public void setHiredate(String hiredate) {
 76     this.hiredate = hiredate;
 77   }
 78
 79
 80   public Double getSal() {
 81     return sal;
 82   }
 83
 84   public void setSal(Double sal) {
 85     this.sal = sal;
 86   }
 87
 88
 89   public Double getComm() {
 90     return comm;
 91   }
 92
 93   public void setComm(Double comm) {
 94     this.comm = comm;
 95   }
 96
 97   public Dept getDept() {
 98     return dept;
 99   }
100
101   public void setDept(Dept dept) {
102     this.dept = dept;
103   }
104
105   @Override
106   public String toString() {
107     return "Emp{" +
108             "empno=" + empno +
109             ", ename='" + ename + '\'' +
110             ", job='" + job + '\'' +
111             ", mgr=" + mgr +
112             ", hiredate='" + hiredate + '\'' +
113             ", sal=" + sal +
114             ", comm=" + comm +
115             ", dept=" + dept +
116             '}';
117   }
118 }

Emp.java

6、在java目錄下的com.mapper包下構建映射介面EmpMapper.java和DeptMapper.java檔案

1 package com.mapper;
2 import com.pojo.Dept;
3 import org.springframework.stereotype.Repository;
4
5 import java.util.List;
6 @Repository
7 public interface DeptMapper {
8     List<Dept> selectAllDept();
9 }

DeptMapper.java

 1 package com.mapper;
 2 import com.pojo.Emp;
 3 import org.springframework.stereotype.Repository;
 4
 5 import java.util.List;
 6 @Repository
 7 public interface EmpMapper {
 8     List<Emp> selectEmp(Emp emp);
 9     int insertEmp(Emp emp);
10     int updateEmp(Emp emp);
11     int deleteEmp(Emp emp);
12 }

EmpMapper.java

7、在java目錄下的com.service包下構建2個業務層介面EmpService.java 和DeptService.java檔案，2個業務層介面實作類EmpServiceImpl.java 和DeptServiceImpl.java檔案

1 package com.service;
2
3 import com.pojo.Dept;
4
5 import java.util.List;
6
7 public interface DeptService {
8     List<Dept> downOption();
9 }

DeptService.java

 1 package com.service;
 2
 3 import com.pojo.Emp;
 4
 5 import java.util.List;
 6
 7 public interface EmpService {
 8     List<Emp> show(Emp emp);
 9     int add(Emp emp);
10     int edit(Emp emp);
11     int del(Emp emp);
12 }

EmpService.java

 1 package com.service;
 2
 3 import com.mapper.DeptMapper;
 4 import com.pojo.Dept;
 5 import org.springframework.beans.factory.annotation.Autowired;
 6 import org.springframework.stereotype.Service;
 7
 8 import java.util.List;
 9 @Service
10 public class DeptServiceImpl implements DeptService{
11     @Autowired
12     private DeptMapper deptMapper;
13
14
15     @Override
16     public List<Dept> downOption() {
17         return deptMapper.selectAllDept();
18     }
19 }

DeptServiceImpl.java

 1 package com.service;
 2
 3 import com.mapper.EmpMapper;
 4 import com.pojo.Emp;
 5 import org.springframework.beans.factory.annotation.Autowired;
 6 import org.springframework.stereotype.Service;
 7
 8 import javax.annotation.Resource;
 9 import java.util.List;
10 /*
11 @Service的功能等同于代理物件在spring的xml檔案中動態添加bean節點,
12 如果不指定名稱，則底層代理在構建bean節點的時候id是類的第一個首字母小寫
13 <bean id="empServiceImpl" />
14 @Service(value = "https://www.cnblogs.com/holly8/p/empse")的功能等同于代理物件在spring的xml檔案中動態添加id值為empse的bean節點
15 <bean id="empse" />
16 */
17 @Service
18 public class EmpServiceImpl implements EmpService {
19     /*
20     @Autowired是spring的資源包下注解，按照物件的型別進行自動注入，
21     和物件名稱無關，只要型別是匹配的，代理就會在你需要的時候給你注入物件值
22     @Resource是javax包下的注解，按照物件屬性名進行注入，
23     和物件名稱關系密切，如果物件名稱不匹配，則不能完成注入，會報錯
24     總結：相比而言，使用@Resource的出錯記錄更大，因此我們常規選擇使用@Autowired
25      */
26     @Autowired
27     private EmpMapper empMapper;
28
29     @Override
30     public List<Emp> show(Emp emp) {
31         return empMapper.selectEmp(emp);
32     }
33
34     @Override
35     public int add(Emp emp) {
36         return empMapper.insertEmp(emp);
37     }
38
39     @Override
40     public int edit(Emp emp) {
41         return empMapper.updateEmp(emp);
42     }
43
44     @Override
45     public int del(Emp emp) {
46         return empMapper.deleteEmp(emp);
47     }
48 }

EmpServiceImpl.java

8、在java目錄下的com.controller包下構建1個核心控制層類CenterController.java

 1 package com.controller;
 2
 3 import com.pojo.Dept;
 4 import com.pojo.Emp;
 5 import com.service.DeptService;
 6 import com.service.EmpService;
 7 import org.springframework.beans.factory.annotation.Autowired;
 8 import org.springframework.stereotype.Controller;
 9 import org.springframework.ui.Model;
10 import org.springframework.web.bind.annotation.RequestMapping;
11 import javax.servlet.http.HttpServletRequest;
12 import javax.servlet.http.HttpServletResponse;
13 import javax.servlet.http.HttpSession;
14 import java.util.List;
15 @Controller
16 public class CenterController {
17     @Autowired
18     private DeptService deptService;
19
20     @Autowired
21     private EmpService empService;
22
23     @RequestMapping("/show.do")
24     public String showData(HttpSession session, Model model){
25         List<Dept> deptlist=deptService.downOption();
26         session.setAttribute("deptlist",deptlist);
27
28          List<Emp> emplist=empService.show(new Emp());
29 //        功能等同于request.setAttribute(key，value)
30         model.addAttribute("emplist",emplist);
31
32         //默認跳轉使用轉發
33         return "main.jsp";
34     }
35
36
37     @RequestMapping("/option.do")
38     public String showOption(Emp emp,Model model){
39         List<Emp> emplist=empService.show(emp);
40
41 //        功能等同于request.setAttribute(key，value)
42         model.addAttribute("emplist",emplist);
43         model.addAttribute("deptno",emp.getDept().getDeptno());
44
45         //默認跳轉使用轉發
46         return "main.jsp";
47     }
48
49     @RequestMapping("/info.do")
50     public String showInfo(Emp emp,Model model){
51         //根據主鍵編號查詢只有一條資料
52         Emp emp2=empService.show(emp).get(0);
53
54 //        功能等同于request.setAttribute(key，value)
55         model.addAttribute("emp2",emp2);
56
57         //默認跳轉使用轉發
58         return "edit.jsp";
59     }
60     @RequestMapping("/edit.do")
61     public String edit(Emp emp){
62         //根據主鍵編號查詢只有一條資料
63         System.out.println(empService.edit(emp)>0?"edit success":"edit fail");;
64         //使用重定向跳轉
65         return "redirect:/show.do";
66     }
67
68     @RequestMapping("/add.do")
69     public String add(Emp emp){
70         //根據主鍵編號查詢只有一條資料
71         System.out.println(empService.add(emp)>0?"add success":"add fail");;
72         //使用重定向跳轉
73         return "redirect:/show.do";
74     }
75
76     @RequestMapping("/del.do")
77     public String del(Emp emp){
78         //根據主鍵編號查詢只有一條資料
79         System.out.println(empService.del(emp)>0?"del success":"del fail");;
80         //使用重定向跳轉
81         return "redirect:/show.do";
82     }
83 }

CenterController.java

9、在resouces目錄下構建1個系統日志記錄檔案log4j.properties

 1 log4j.rootLogger=DEBUG, Console
 2 #Console
 3 log4j.appender.Console=org.apache.log4j.ConsoleAppender
 4 log4j.appender.Console.layout=org.apache.log4j.PatternLayout
 5 log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n
 6
 7 log4j.logger.org.apache=INFO
 8 log4j.logger.java.sql.ResultSet=INFO
 9 log4j.logger.java.sql.Connection=DEBUG
10 log4j.logger.java.sql.Statement=DEBUG
11 log4j.logger.java.sql.PreparedStatement=DEBUG

log4j.properties

10、在resouces目錄下的mapper目錄下構建2個映射xml檔案DeptMapper.xml和EmpMapper.xml

 1 <?xml version="1.0" encoding="UTF-8" ?>
 2 <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
 3 <!--配置規則：-->
 4 <!--有代理的namespace值必須是映射介面全路徑，sql節點的id值必須是映射介面中的方法名-->
 5 <!--無代理的namespace值和sql節點的id值是任意的，但一般情況下和和有代理的原則一樣-->
 6 <mapper namespace="com.mapper.DeptMapper">
 7      <select id="selectAllDept" resultType="Dept">
 8           select * from dept
 9      </select>
10 </mapper>

DeptMapper.xml

  1 <?xml version="1.0" encoding="UTF-8" ?>
  2 <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
  3 <mapper namespace="com.mapper.EmpMapper">
  4    <!-- 案例：select * from emp where empno=#{empno} or ename=#{ename} and job=#{job}
  5     如果select節點中是以上sql陳述句，parameterType是Emp型別，則此情況可以使用where標簽,
  6     where標簽的作用是如果if條件不滿足則執行，如果滿足if條件將會忽略where關鍵字后的
  7     第一個or或and
  8     select * from emp
  9     <where>
 10         <if test="empno!=null">
 11             empno=#{empno}
 12         </if>
 13         <if test="ename!=null">
 14            or ename=#{ename}
 15         </if>
 16         <if test="job!=null">
 17            and job=#{job}
 18         </if>
 19     </where>
 20     -->
 21     <!--if或when的test條件中的屬性判斷，必須從引數物件的第一層屬性判斷起，-->
 22     <!--如果Emp類中有empno屬性，有dept物件屬性，則要判斷empno值和dept中deptno的值，-->
 23     <!--則寫法是empno！=null，dept！=null && dept.deptno!=null-->
 24     <select id="selectEmp" resultMap="empmap" parameterType="Emp">
 25          select d.dname,d.loc,e.* from emp e,dept d where e.deptno=d.deptno
 26          <if test="empno!=null">
 27              and e.empno=#{empno}
 28          </if>
 29          <if test="ename!=null">
 30              and e.ename=#{ename}
 31          </if>
 32          <if test="job!=null">
 33              and e.job=#{job}
 34          </if>
 35          <if test="dept!=null and dept.deptno!=null">
 36              and e.deptno=#{dept.deptno}
 37          </if>
 38     </select>
 39
 40     <resultMap id="empmap" type="Emp">
 41         <!--因為當前多方配置，因此在resultMap中先配置多方的主鍵和普通列的映射-->
 42         <id column="EMPNO" property="empno"/>
 43         <result column="ENAME" property="ename"/>
 44         <result column="JOB " property="job"/>
 45         <result column="MGR" property="mgr"/>
 46         <result column="HIREDATE" property="hiredate"/>
 47         <result column="SAL" property="sal"/>
 48         <result column="COMM" property="comm"/>
 49
 50         <!--因為在多方參考了一方的物件，因此在參考一方物件屬性的地方配置association節點-->
 51         <!--association節點的property屬性對應的多方參考一方的物件屬性名,-->
 52         <!--javaType是多方參考一方的型別別即配置類的全路徑-->
 53         <!--column是多方關聯一方的外鍵列的列名-->
 54         <association property="dept" javaType="Dept" column="DEPTNO">
 55             <!--由于多方參考的了一方物件，因此在association物件節點下配置一方的主鍵和普通欄位-->
 56             <id column="DEPTNO" property="deptno"/>
 57             <result column="DNAME" property="dname"/>
 58             <result column="LOC" property="loc"/>
 59         </association>
 60     </resultMap>
 61
 62     <insert id="insertEmp" parameterType="Emp">
 63          INSERT  INTO emp(empno, ename, job, mgr, hiredate, sal, comm, deptno) VALUES
 64          (#{empno},#{ename},#{job},#{mgr},#{hiredate},#{sal},#{comm},#{dept.deptno})
 65     </insert>
 66
 67     <!--set標簽的結束標簽要在where條件之前-->
 68     <update id="updateEmp" parameterType="Emp">
 69         UPDATE emp
 70         <set>
 71             <if test="ename!=null">
 72                 ename=#{ename} ,
 73             </if>
 74             <if test="job!=null">
 75                 job=#{job} ,
 76             </if>
 77             <if test="mgr!=null">
 78                    mgr=#{mgr} ,
 79             </if>
 80             <if test="hiredate!=null">
 81                 hiredate=#{hiredate} ,
 82             </if>
 83             <if test="sal!=null">
 84                  sal=#{sal},
 85             </if>
 86             <if test="comm!=null">
 87                comm=#{comm},
 88             </if>
 89             <if test="dept!=null and dept.deptno!=null">
 90                deptno=#{dept.deptno}  ,
 91             </if>
 92         </set>
 93         <include refid="wherecondition"/>
 94     </update>
 95
 96     <delete id="deleteEmp" parameterType="Emp">
 97         delete from emp
 98         <include refid="wherecondition"/>
 99     </delete>
100
101      <!--定義公共的sql片段-->
102    <sql id="wherecondition">
103        <where>
104            <if test="empno!=null">
105                empno=#{empno}
106            </if>
107        </where>
108    </sql>
109
110 </mapper>

EmpMapper.xml

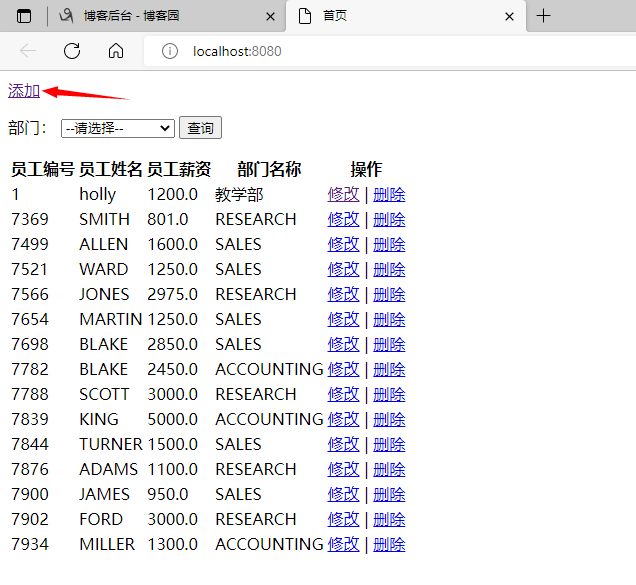

11、在專案的webapp目錄下構建main.jsp

 1 <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
 2 <%@ page contentType="text/html;charset=UTF-8" language="java" %>
 3 <%@ page isELIgnored="false" %>
 4 <html>
 5 <head>
 6     <title>首頁</title>
 7 </head>
 8 <body>
 9    <a href="add.jsp">添加</a>
10     <p>
11       <form action="option.do" method="post">
12          <span>部門：</span>
13         <select name="dept.deptno">
14             <option value="-1">--請選擇--</option>
15             <c:forEach var="i" items="${deptlist}">
16                   <c:choose>
17                       <c:when test="${deptno eq i.deptno}">
18                          <option value="${i.deptno}" selected="selected">${i.dname}</option>
19                       </c:when>
20                       <c:otherwise>
21                          <option value="${i.deptno}">${i.dname}</option>
22                       </c:otherwise>
23                   </c:choose>
24             </c:forEach>
25         </select>
26         <input type="submit" value="查詢">
27       </form>
28     </p>
29     <table>
30         <tr>
31             <th>員工編號</th>
32             <th>員工姓名</th>
33             <th>員工薪資</th>
34             <th>部門名稱</th>
35             <th>操作</th>
36         </tr>
37         <c:forEach var="i" items="${emplist}">
38              <tr>
39                  <td>${i.empno}</td>
40                  <td>${i.ename}</td>
41                  <td>${i.sal}</td>
42                  <td>${i.dept.dname}</td>
43                  <td>
44                      <a href="info.do?empno=${i.empno}">修改</a>
45                      |
46                      <a href="del.do?empno=${i.empno}">洗掉</a>
47                  </td>
48              </tr>
49         </c:forEach>
50     </table>
51 </body>
52 </html>

main.jsp

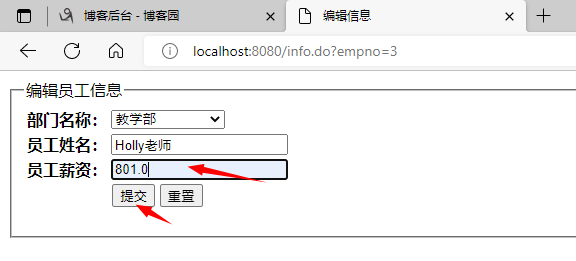

12、在專案的webapp目錄下構建edit.jsp

 1 <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
 2 <%@ page contentType="text/html;charset=UTF-8" language="java" %>
 3 <%@ page isELIgnored="false" %>
 4 <html>
 5 <head>
 6     <title>編輯資訊</title>
 7 </head>
 8 <body>
 9    <fieldset>
10        <legend>編輯員工資訊</legend>
11        <form action="edit.do?empno=${emp2.empno}" method="post">
12            <table>
13                <tr>
14                    <th>部門名稱：</th>
15                    <td>
16                        <select name="dept.deptno">
17                            <option value="-1">--請選擇--</option>
18                            <c:forEach var="i" items="${deptlist}">
19                                <c:choose>
20                                    <c:when test="${emp2.dept.deptno eq i.deptno}">
21                                        <option value="${i.deptno}" selected="selected">${i.dname}</option>
22                                    </c:when>
23                                    <c:otherwise>
24                                        <option value="${i.deptno}">${i.dname}</option>
25                                    </c:otherwise>
26                                </c:choose>
27                            </c:forEach>
28                        </select>
29                    </td>
30                </tr>
31                <tr>
32                    <th>員工姓名：</th>
33                    <td><input type="text" name="ename" value="${emp2.ename}"/></td>
34                </tr>
35                <tr>
36                    <th>員工薪資：</th>
37                    <td><input type="text" name="sal" value="${emp2.sal}"/></td>
38                </tr>
39                <tr>
40                    <td colspan="2" align="center">
41                        <input type="submit" value="提交"/>
42                        <input type="reset" value="重置"/>
43                    </td>
44                </tr>
45            </table>
46        </form>
47    </fieldset>
48
49 </body>
50 </html>

edit.jsp

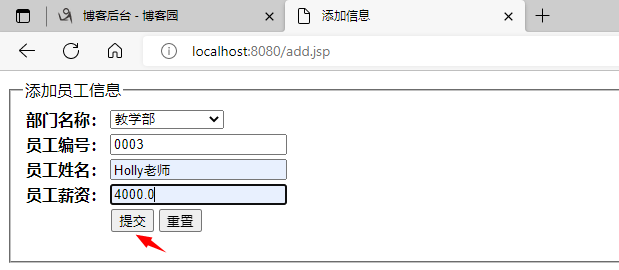

13、在專案的webapp目錄下構建add.jsp

 1 <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
 2 <%@ page contentType="text/html;charset=UTF-8" language="java" %>
 3 <%@ page isELIgnored="false" %>
 4 <html>
 5 <head>
 6     <title>添加資訊</title>
 7 </head>
 8 <body>
 9    <fieldset>
10        <legend>添加員工資訊</legend>
11        <form action="add.do" method="post">
12            <table>
13                <tr>
14                    <th>部門名稱：</th>
15                    <td>
16                        <select name="dept.deptno">
17                            <option value="-1">--請選擇--</option>
18                            <c:forEach var="i" items="${deptlist}">
19                                <option value="${i.deptno}">${i.dname}</option>
20                            </c:forEach>
21                        </select>
22                    </td>
23                </tr>
24                <tr>
25                    <th>員工編號：</th>
26                    <td><input type="text" name="empno"/></td>
27                </tr>
28                <tr>
29                    <th>員工姓名：</th>
30                    <td><input type="text" name="ename" /></td>
31                </tr>
32                <tr>
33                    <th>員工薪資：</th>
34                    <td><input type="text" name="sal" /></td>
35                </tr>
36                <tr>
37                    <td colspan="2" align="center">
38                        <input type="submit" value="提交"/>
39                        <input type="reset" value="重置"/>
40                    </td>
41                </tr>
42            </table>
43        </form>
44    </fieldset>
45 </body>
46 </html>

add.jsp

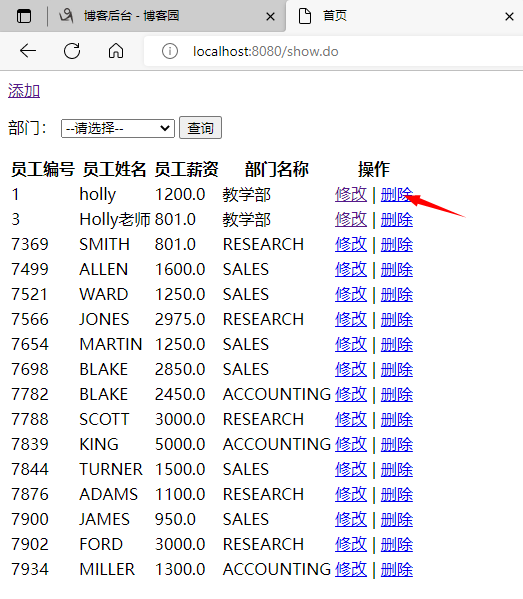

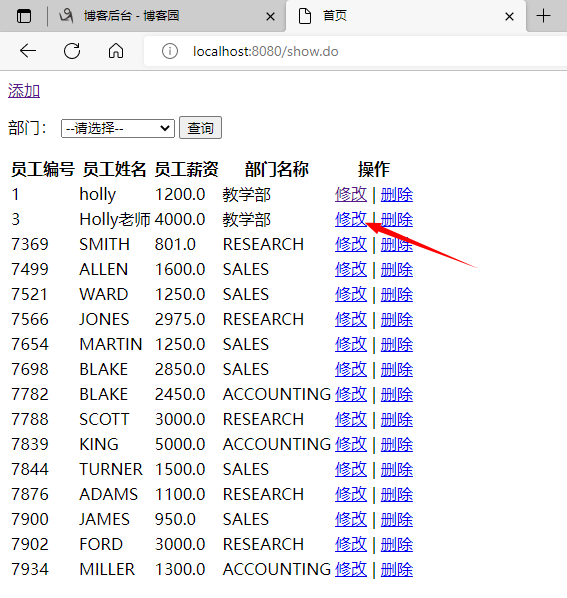

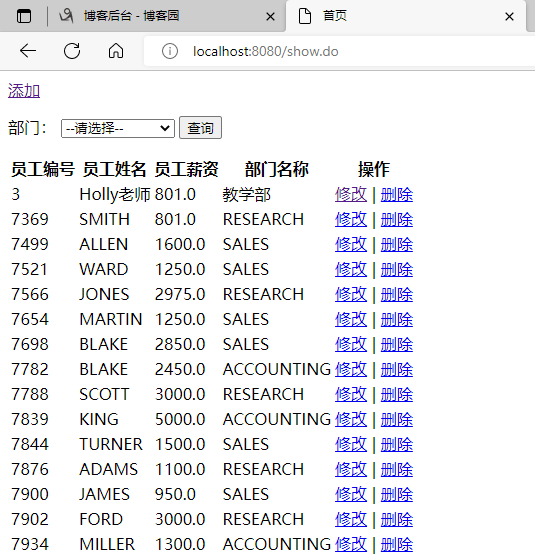

14、部署啟動專案查看效果

此文章為原創，轉載請注明出處！需要本案例原始碼，理論講解視頻，代碼操作視頻的，請私信聯系作者！

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/502288.html

標籤：Java

上一篇：Java精進-手寫持久層框架

下一篇：Restful風格
