Flink SQL 批模式下 ClickHouse 批量寫入
內置使用
JdbcBatchingOutputFormat批量處理類
pom依賴
<dependency>
<groupId>ru.yandex.clickhouse</groupId>
<artifactId>clickhouse-jdbc</artifactId>
<version>0.3.1-patch</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-jdbc_2.11</artifactId>
<version>${flink.version}</version>
</dependency>
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>${hutool.version}</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql.version}</version>
</dependency>
clickHouse資料源需要的擴展類：
工廠類
public class ClickHouseDynamicTableFactory implements DynamicTableSinkFactory {
public static final String IDENTIFIER = "clickhouse";
private static final String DRIVER_NAME = "ru.yandex.clickhouse.ClickHouseDriver";
public static final ConfigOption<String> URL = ConfigOptions
.key("url")
.stringType()
.noDefaultValue()
.withDescription("the jdbc database url.");
public static final ConfigOption<String> TABLE_NAME = ConfigOptions
.key("table-name")
.stringType()
.noDefaultValue()
.withDescription("the jdbc table name.");
public static final ConfigOption<String> USERNAME = ConfigOptions
.key("username")
.stringType()
.noDefaultValue()
.withDescription("the jdbc user name.");
public static final ConfigOption<String> PASSWORD = ConfigOptions
.key("password")
.stringType()
.noDefaultValue()
.withDescription("the jdbc password.");
public static final ConfigOption<String> FORMAT = ConfigOptions
.key("format")
.stringType()
.noDefaultValue()
.withDescription("the format.");
@Override
public String factoryIdentifier() {
return IDENTIFIER;
}
@Override
public Set<ConfigOption<?>> requiredOptions() {
Set<ConfigOption<?>> requiredOptions = new HashSet<>();
requiredOptions.add(TABLE_NAME);
requiredOptions.add(URL);
return requiredOptions;
}
@Override
public Set<ConfigOption<?>> optionalOptions() {
return new HashSet<>();
}
@Override
public DynamicTableSink createDynamicTableSink(Context context) {
// either implement your custom validation logic here ...
final FactoryUtil.TableFactoryHelper helper = FactoryUtil.createTableFactoryHelper(this, context);
final ReadableConfig config = helper.getOptions();
// validate all options
helper.validate();
// get the validated options
JdbcOptions jdbcOptions = getJdbcOptions(config);
// derive the produced data type (excluding computed columns) from the catalog table
final DataType dataType = context.getCatalogTable().getResolvedSchema().toPhysicalRowDataType();
// table sink
return new ClickHouseDynamicTableSink(jdbcOptions, dataType);
}
private JdbcOptions getJdbcOptions(ReadableConfig readableConfig) {
final String url = readableConfig.get(URL);
final JdbcOptions.Builder builder = JdbcOptions.builder()
.setDriverName(DRIVER_NAME)
.setDBUrl(url)
.setTableName(readableConfig.get(TABLE_NAME))
.setDialect(new ClickHouseDialect());
readableConfig.getOptional(USERNAME).ifPresent(builder::setUsername);
readableConfig.getOptional(PASSWORD).ifPresent(builder::setPassword);
return builder.build();
}
}
方言類
public class ClickHouseDialect implements JdbcDialect {
private static final long serialVersionUID = 1L;
@Override
public String dialectName() {
return "ClickHouse";
}
@Override
public boolean canHandle(String url) {
return url.startsWith("jdbc:clickhouse:");
}
@Override
public JdbcRowConverter getRowConverter(RowType rowType) {
return new ClickHouseRowConverter(rowType);
}
@Override
public String getLimitClause(long l) {
return "limit num : " + l;
}
@Override
public Optional<String> defaultDriverName() {
return Optional.of(ClickHouseDriver.class.getName());
}
@Override
public String quoteIdentifier(String identifier) {
return "`" + identifier + "`";
}
}
Sink輸出類（重點）
public class ClickHouseDynamicTableSink implements DynamicTableSink {
private final JdbcOptions jdbcOptions;
private final DataType dataType;
private static final JdbcExecutionOptions DEFAULT_EXECUTION_OPTIONS = JdbcExecutionOptions.builder()
// 寫入觸發資料量閾值
.withBatchSize(2000)
// 寫入觸發時間閾值
.withBatchIntervalMs(1000)
// 重試次數
.withMaxRetries(3)
.build();
public ClickHouseDynamicTableSink(JdbcOptions jdbcOptions, DataType dataType) {
this.jdbcOptions = jdbcOptions;
this.dataType = dataType;
}
@Override
public ChangelogMode getChangelogMode(ChangelogMode requestedMode) {
return requestedMode;
}
@SneakyThrows
@Override
public SinkRuntimeProvider getSinkRuntimeProvider(Context context) {
ClickHouseTableEnum tableEnum = ClickHouseTableEnum.valueOf(jdbcOptions.getTableName());
TableService tableService = new TableServiceImpl(dataType, tableEnum);
return SinkFunctionProvider.of(new GenericJdbcSinkFunction<>(
new JdbcBatchingOutputFormat<>(
new SimpleJdbcConnectionProvider(jdbcOptions),
DEFAULT_EXECUTION_OPTIONS,
thisContext -> JdbcBatchStatementExecutor.simple(
tableService.getInsertSql(),
tableService.getStatementBuilder(),
Function.identity()),
// 批模式下，資料物件重復利用，會發生覆寫問題，需要深拷貝物件
new RowDataConventFunction())));
}
@Override
public DynamicTableSink copy() {
return new ClickHouseDynamicTableSink(jdbcOptions, dataType);
}
@Override
public String asSummaryString() {
return "ClickHouse Table Sink";
}
@Slf4j
static class RowDataConventFunction implements JdbcBatchingOutputFormat.RecordExtractor<RowData, RowData>, Serializable {
@Override
public RowData apply(RowData rowData) {
BoxedWrapperRowData newRowData = https://www.cnblogs.com/lalala1/archive/2022/09/14/null;
try {
newRowData = new BoxedWrapperRowData(rowData.getArity());
// 利用反射拷貝舊物件的值
Field field = ReflectUtil.getField(BoxedWrapperRowData.class,"fields");
Object[] fields = (Object[]) ReflectUtil.getFieldValue(rowData, field);
Object[] newFields = new Object[fields.length];
for (int i = 0; i < fields.length; i++) {
newFields[i] = Objects.isNull(fields[i]) ? null : ReflectUtil.invoke(fields[i], "copy");
}
ReflectUtil.setFieldValue(newRowData, "fields", newFields);
} catch (Exception e) {
log.error("convert error,data:{},", rowData, e);
}
return newRowData;
}
}
}
轉換類
public class ClickHouseRowConverter extends AbstractJdbcRowConverter {
private static final long serialVersionUID = 1L;
public ClickHouseRowConverter(RowType rowType) {
super(rowType);
}
@Override
public String converterName() {
return "ClickHouse";
}
}
支持序列化的BiFunction
@FunctionalInterface
public interface MyBiFunction<T, U, R> extends Serializable {
R apply(T t, U u);
}
sql 生成類
public class TableServiceImpl {
private final List<LogicalType> logicalTypeList;
private final String insertSql;
public TableServiceImpl(DataType dataType, ClickHouseTableEnum tableEnum) {
this.logicalTypeList = dataType.getLogicalType().getChildren();
this.insertSql = initInsertSql(tableEnum);
}
private static final Map<Class<? extends LogicalType>, MyBiFunction<RowData, Integer, Object>> FUNCTION_MAP = Maps.newHashMap();
static {
// 我的業務中用到的型別，可根據自己的業務，進行增加
FUNCTION_MAP.put(IntType.class, RowData::getInt);
FUNCTION_MAP.put(VarCharType.class, RowData::getString);
FUNCTION_MAP.put(DoubleType.class, RowData::getDouble);
FUNCTION_MAP.put(BigIntType.class, RowData::getLong);
FUNCTION_MAP.put(CharType.class, RowData::getString);
}
public String getInsertSql() {
return insertSql;
}
public JdbcStatementBuilder<RowData> getStatementBuilder() {
return (statement, value) -> {
for (int i = 0; i < logicalTypeList.size(); i++) {
LogicalType logicalType = logicalTypeList.get(i);
Object realValue = https://www.cnblogs.com/lalala1/archive/2022/09/14/FUNCTION_MAP.get(logicalType.getClass()).apply(value, i);
statement.setObject(i + 1, realValue);
}
};
}
// 根據列舉欄位配置，生成 insert sql
public static String initInsertSql(ClickHouseTableEnum tableEnum) {
List columns = tableEnum.getColumns().stream().map(ClickHouseTableEnum.ColumnObj::getColumnName).collect(Collectors.toList());
return String.format("insert into %s (%s) values (%s)"
, tableEnum.name()
, StrUtil.join(",", columns)
, StrUtil.repeatAndJoin("?", columns.size(), ","));
}
public static void main(String[] args) {
System.out.println(initInsertSql(ClickHouseTableEnum.attr_order_group));
}
}
clickHouseTable 列舉類
@Getter
public enum ClickHouseTableEnum {
/**
* 測驗表，因為業務需要，我定義的 ColumnObj 類，實際用個字串就ok
*/
test(Lists.newArrayList(
ColumnObj.of("name")
, ColumnObj.of("age")
)),
;
private final List<ColumnObj> columns;
ClickHouseTableEnum(List<ColumnObj> columns) {
this.columns = columns;
}
@Getter
@Setter
@ToString
public static class ColumnObj {
/**
* clickHouse 中欄位名稱
*/
private String columnName;
/**
* flink sql 中獲取欄位的key
*/
private String sqlColumnKey;
/**
* 兩個值相同的情況，使用此建構式
*/
private ColumnObj(String columnName) {
this.columnName = columnName;
this.sqlColumnKey = columnName;
}
}
}

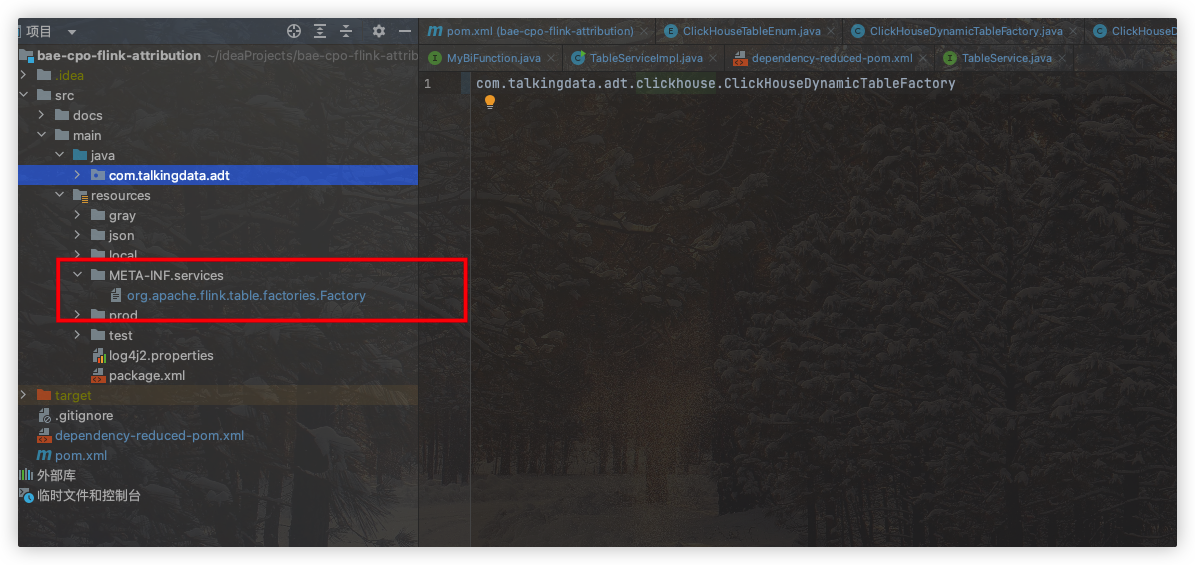

Spi 配置自定義的工廠
resources目錄下，創建META-INF/services目錄創建檔案：
org.apache.flink.table.factories.Factory
內容如下：指向自己的工廠類全路徑
com.xxx.xxx.xxx.ClickHouseDynamicTableFactory
輸出測驗
public class Test {
public static void main(String[] args) {
// 初始化 批模式環境
EnvironmentSettings settings = EnvironmentSettings.newInstance().inBatchMode().build();
Configuration configuration = settings.toConfiguration();
configuration.set(CoreOptions.DEFAULT_PARALLELISM, 5);
TableEnvironment tableEnv = TableEnvironment.create(configuration);
// 創建 clickHouse 輸出表
// 注意，WITH 后面的引數，table-name 需要跟 clickHouseTable 列舉類中對應上
tableEnv.executeSql("CREATE TABLE out_table_test (\n" +
" `name` STRING,\n" +
" `age` INT\n" +
") WITH (\n" +
" 'connector' = 'clickhouse',\n" +
" 'url' = 'jdbc:clickhouse://172.23.4.32:8123/test',\n" +
" 'table-name' = 'test'\n" +
")");
Table table = tableEnv.sqlQuery("select 'alice',18 ");
table.executeInsert("out_table_test");
// 列印日志
printLog(tableEnv, table, "test");
}
private static void printLog(TableEnvironment tableEnv, Table endTable, String outTableName) {
String outPrint = "consolePrint_" + outTableName;
tableEnv.executeSql("CREATE TABLE " + outPrint + " " + endTable.getResolvedSchema() + " WITH (\n" +
" 'connector' = 'print'\n" +
")");
endTable.executeInsert(outPrint);
Table countTable = tableEnv.sqlQuery("select count(*) from " + endTable);
tableEnv.executeSql("CREATE TABLE " + outPrint + "_count " + countTable.getResolvedSchema() + " WITH (\n" +
" 'connector' = 'print'\n" +
")");
countTable.executeInsert(outPrint + "_count");
}
}
