pytorch-實作天氣識別

一 前期作業

環境：python3.6，1080ti，pytorch1.10（實驗室服務器的環境????）

1.設定GPU或者cpu

import torch
import torch.nn as nn
import matplotlib.pyplot as plt
import torchvision

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

device

2.匯入資料

import os,PIL,random,pathlib

data_dir = 'weather_photos/'
data_dir = pathlib.Path(data_dir)
print(data_dir)

data_paths = list(data_dir.glob('*'))
print(data_paths)
classeNames = [str(path).split("/")[1] for path in data_paths]
classeNames

二 資料預處理

資料格式設定

total_datadir = 'weather_photos/'

# 關于transforms.Compose的更多介紹可以參考：https://blog.csdn.net/qq_38251616/article/details/124878863
train_transforms = transforms.Compose([
    transforms.Resize([224, 224]),  # 將輸入圖片resize成統一尺寸
    transforms.ToTensor(),          # 將PIL Image或numpy.ndarray轉換為tensor，并歸一化到[0,1]之間
    transforms.Normalize(           # 標準化處理-->轉換為標準正太分布（高斯分布），使模型更容易收斂
        mean=[0.485, 0.456, 0.406],
        std=[0.229, 0.224, 0.225])  # 其中 mean=[0.485,0.456,0.406]與std=[0.229,0.224,0.225] 從資料集中隨機抽樣計算得到的，
])

total_data = datasets.ImageFolder(total_datadir,transform=train_transforms)
total_data

資料集劃分

train_size = int(0.8 * len(total_data))
test_size  = len(total_data) - train_size
train_dataset, test_dataset = torch.utils.data.random_split(total_data, [train_size, test_size])
train_dataset, test_dataset

設定dataset

batch_size = 32

train_dl = torch.utils.data.DataLoader(train_dataset,
                                           batch_size=batch_size,
                                           shuffle=True,
                                           num_workers=1)
test_dl = torch.utils.data.DataLoader(test_dataset,
                                          batch_size=batch_size,
                                          shuffle=True,
                                          num_workers=1)

檢查資料格式

for X, y in test_dl:
    print("Shape of X [N, C, H, W]: ", X.shape)
    print("Shape of y: ", y.shape, y.dtype)
    break

三 搭建網路


import torch
from torch import nn
from torch.nn import Conv2d, MaxPool2d, Flatten, Linear, Sequential,ReLU

num_classes = 4

class Model(nn.Module):
    def __init__(self):
        super(Model,self).__init__()
        # 卷積層
        self.layers = Sequential(
            # 第一層
            nn.Conv2d(3, 24, kernel_size=5),
            nn.BatchNorm2d(24),
            nn.ReLU(),
            # 第二層
            nn.Conv2d(24,64 , kernel_size=5),
            nn.BatchNorm2d(64),
            nn.ReLU(),
            nn.MaxPool2d(2,2),
            nn.Conv2d(64, 128, kernel_size=5),
            nn.BatchNorm2d(128),
            nn.ReLU(),
            nn.Conv2d(128, 24, kernel_size=5),
            nn.BatchNorm2d(24),
            nn.ReLU(),
            nn.MaxPool2d(2,2),
            nn.Flatten(),
            nn.Linear(24*50*50, 516,bias=True),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(516, 215,bias=True),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(215, num_classes,bias=True),
        )

    def forward(self, x):

        x = self.layers(x)
        return x


device = "cuda" if torch.cuda.is_available() else "cpu"
print("Using {} device".format(device))

model = Model().to(device)
model

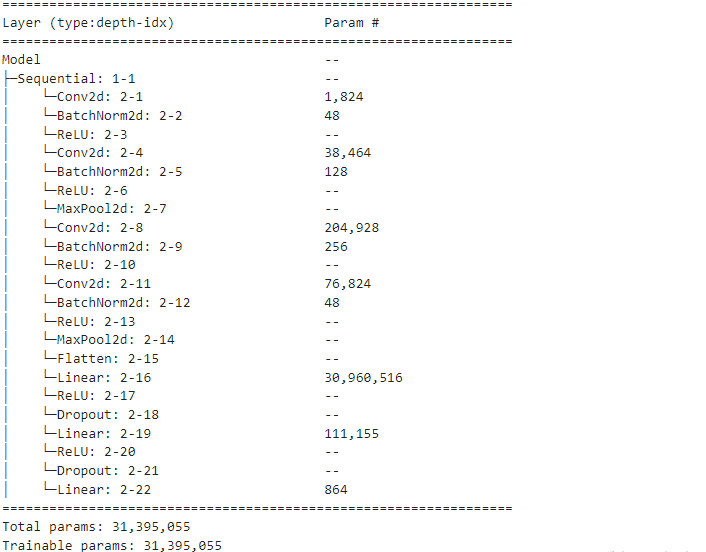

列印網路結構

四 訓練模型

1.設定學習率

loss_fn    = nn.CrossEntropyLoss() # 創建損失函式
learn_rate = 1e-3 # 學習率
opt        = torch.optim.SGD(model.parameters(),lr=learn_rate)

2.模型訓練

訓練函式

# 訓練回圈
def train(dataloader, model, loss_fn, optimizer):
    size = len(dataloader.dataset)  # 訓練集的大小，一共60000張圖片
    num_batches = len(dataloader)   # 批次數目，1875（60000/32）

    train_loss, train_acc = 0, 0  # 初始化訓練損失和正確率

    for X, y in dataloader:  # 獲取圖片及其標簽
        X, y = X.to(device), y.to(device)

        # 計算預測誤差
        pred = model(X)          # 網路輸出
        loss = loss_fn(pred, y)  # 計算網路輸出和真實值之間的差距，targets為真實值，計算二者差值即為損失

        # 反向傳播
        optimizer.zero_grad()  # grad屬性歸零
        loss.backward()        # 反向傳播
        optimizer.step()       # 每一步自動更新

        # 記錄acc與loss
        train_acc  += (pred.argmax(1) == y).type(torch.float).sum().item()
        train_loss += loss.item()

    train_acc  /= size
    train_loss /= num_batches

    return train_acc, train_loss

測驗函式

def test (dataloader, model, loss_fn):
    size        = len(dataloader.dataset)  # 測驗集的大小，一共10000張圖片
    num_batches = len(dataloader)          # 批次數目，313（10000/32=312.5，向上取整）
    test_loss, test_acc = 0, 0

    # 當不進行訓練時，停止梯度更新，節省計算記憶體消耗
    with torch.no_grad():
        for imgs, target in dataloader:
            imgs, target = imgs.to(device), target.to(device)

            # 計算loss
            target_pred = model(imgs)
            loss        = loss_fn(target_pred, target)

            test_loss += loss.item()
            test_acc  += (target_pred.argmax(1) == target).type(torch.float).sum().item()

    test_acc  /= size
    test_loss /= num_batches

    return test_acc, test_loss

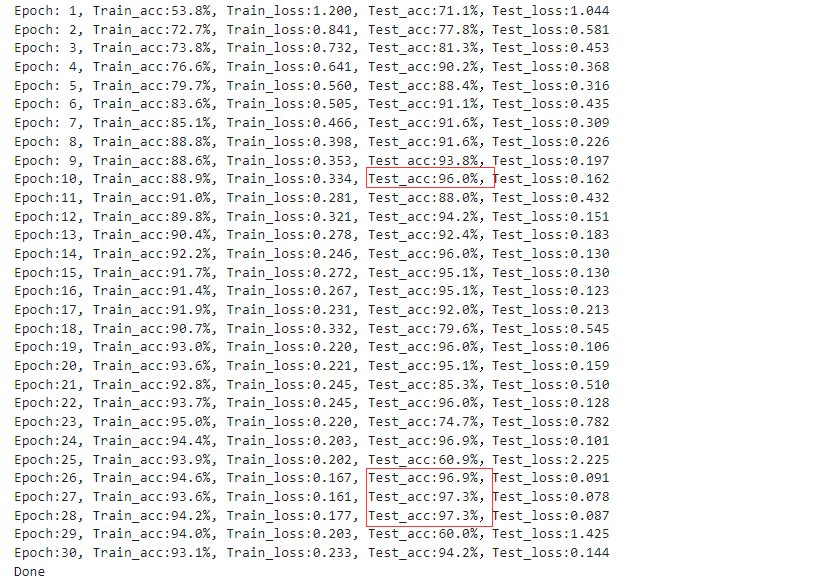

具體訓練代碼

epochs     = 30
train_loss = []
train_acc  = []
test_loss  = []
test_acc   = []

for epoch in range(epochs):
    model.train()
    epoch_train_acc, epoch_train_loss = train(train_dl, model, loss_fn, opt)

    model.eval()
    epoch_test_acc, epoch_test_loss = test(test_dl, model, loss_fn)

    train_acc.append(epoch_train_acc)
    train_loss.append(epoch_train_loss)
    test_acc.append(epoch_test_acc)
    test_loss.append(epoch_test_loss)

    template = ('Epoch:{:2d}, Train_acc:{:.1f}%, Train_loss:{:.3f}, Test_acc:{:.1f}%，Test_loss:{:.3f}')
    print(template.format(epoch+1, epoch_train_acc*100, epoch_train_loss, epoch_test_acc*100, epoch_test_loss))
print('Done')

五 模型評估

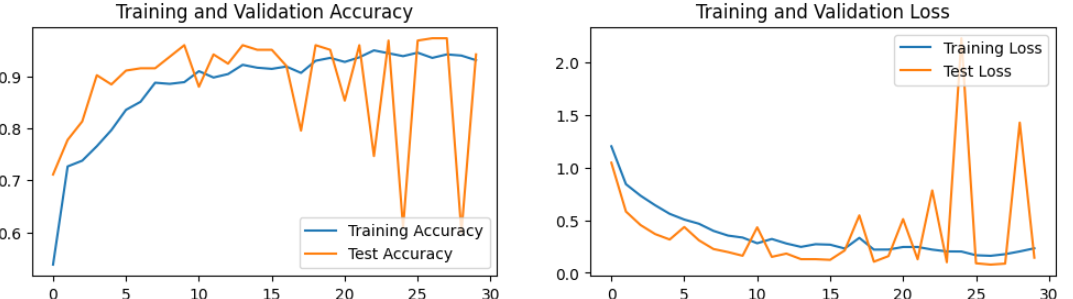

1.Loss和Accuracy圖

import matplotlib.pyplot as plt
#隱藏警告
import warnings
warnings.filterwarnings("ignore")               #忽略警告資訊
plt.rcParams['font.sans-serif']    = ['SimHei'] # 用來正常顯示中文標簽
plt.rcParams['axes.unicode_minus'] = False      # 用來正常顯示負號
plt.rcParams['figure.dpi']         = 100        #解析度

epochs_range = range(epochs)

plt.figure(figsize=(12, 3))
plt.subplot(1, 2, 1)

plt.plot(epochs_range, train_acc, label='Training Accuracy')
plt.plot(epochs_range, test_acc, label='Test Accuracy')
plt.legend(loc='lower right')
plt.title('Training and Validation Accuracy')

plt.subplot(1, 2, 2)
plt.plot(epochs_range, train_loss, label='Training Loss')
plt.plot(epochs_range, test_loss, label='Test Loss')
plt.legend(loc='upper right')
plt.title('Training and Validation Loss')
plt.show()

2.對結果進行預測

import os
import json

import torch
from PIL import Image
from torchvision import transforms
import matplotlib.pyplot as plt

img_path = "weather_photos/cloudy/cloudy1.jpg"
classes = ['cloudy', 'rain', 'shine', 'sunrise']
data_transform = transforms.Compose([
    transforms.Resize([224, 224]),  # 將輸入圖片resize成統一尺寸
    transforms.ToTensor(),          # 將PIL Image或numpy.ndarray轉換為tensor，并歸一化到[0,1]之間
    transforms.Normalize(           # 標準化處理-->轉換為標準正太分布（高斯分布），使模型更容易收斂
        mean=[0.485, 0.456, 0.406],
        std=[0.229, 0.224, 0.225])  # 其中 mean=[0.485,0.456,0.406]與std=[0.229,0.224,0.225] 從資料集中隨機抽樣計算得到的，
])
def main():
    device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")

    img = Image.open(img_path)
    plt.imshow(img)
    # [N, C, H, W]
    img = data_transform(img)
    # expand batch dimension
    img = torch.unsqueeze(img, dim=0)
    model.eval()
    with torch.no_grad():
        # predict class
        output = torch.squeeze(model(img.to(device))).cpu()
        predict = torch.softmax(output, dim=0)
        predict_cla = torch.argmax(predict).numpy()
        print(classes[predict_cla])
    plt.show()

if __name__ == '__main__':
    main()

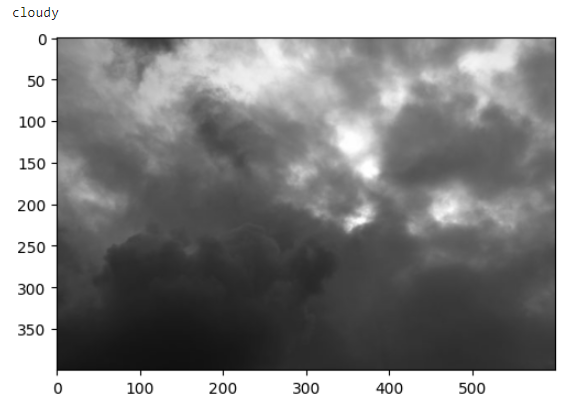

預測結果如下：

3.總結

 1.本次能主要對以下函式進行了學習
