開始分析
【1】分析入口類做了什么
//org.apache.zookeeper.server.quorum包下QuorumPeerMain類 public static void main(String[] args) { QuorumPeerMain main = new QuorumPeerMain(); try { main.initializeAndRun(args); } catch (IllegalArgumentException e) {..} catch (ConfigException e) {..} catch (DatadirException e) {..} catch (AdminServerException e) {..} catch (Exception e) {..} ServiceUtils.requestSystemExit(ExitCode.EXECUTION_FINISHED.getValue()); } protected void initializeAndRun(String[] args) throws ConfigException, IOException, AdminServerException { QuorumPeerConfig config = new QuorumPeerConfig(); if (args.length == 1) { //決議組態檔加載到記憶體 //主要是呼叫了QuorumPeerConfig類#parse方法，決議邏輯在parseProperties方法 config.parse(args[0]); } //啟動延時的定期清理快照資料檔案 DatadirCleanupManager purgeMgr = new DatadirCleanupManager( config.getDataDir(), config.getDataLogDir(), config.getSnapRetainCount(), config.getPurgeInterval()); purgeMgr.start(); if (args.length == 1 && config.isDistributed()) { //集群的入口 runFromConfig(config); } else { //單機的入口 ZooKeeperServerMain.main(args); } }
【2】runFromConfig方法做了什么
public void runFromConfig(QuorumPeerConfig config) throws IOException, AdminServerException { try { ManagedUtil.registerLog4jMBeans(); } catch (JMException e) { LOG.warn("Unable to register log4j JMX control", e); } LOG.info("Starting quorum peer, myid=" + config.getServerId()); final MetricsProvider metricsProvider; try { metricsProvider = MetricsProviderBootstrap.startMetricsProvider( config.getMetricsProviderClassName(), config.getMetricsProviderConfiguration()); } catch (MetricsProviderLifeCycleException error) { throw new IOException("Cannot boot MetricsProvider " + config.getMetricsProviderClassName(), error); } try { ServerMetrics.metricsProviderInitialized(metricsProvider); ProviderRegistry.initialize(); ServerCnxnFactory cnxnFactory = null; ServerCnxnFactory secureCnxnFactory = null; if (config.getClientPortAddress() != null) { //初始化服務端連接物件 cnxnFactory = ServerCnxnFactory.createFactory(); //設定監聽埠，從組態檔中拿 cnxnFactory.configure(config.getClientPortAddress(), config.getMaxClientCnxns(), config.getClientPortListenBacklog(), false); } if (config.getSecureClientPortAddress() != null) { secureCnxnFactory = ServerCnxnFactory.createFactory(); secureCnxnFactory.configure(config.getSecureClientPortAddress(), config.getMaxClientCnxns(), config.getClientPortListenBacklog(), true); } //構建本機節點，并將配置引數的資料傳入 quorumPeer = getQuorumPeer(); quorumPeer.setTxnFactory(new FileTxnSnapLog(config.getDataLogDir(), config.getDataDir())); quorumPeer.enableLocalSessions(config.areLocalSessionsEnabled()); quorumPeer.enableLocalSessionsUpgrading(config.isLocalSessionsUpgradingEnabled()); //quorumPeer.setQuorumPeers(config.getAllMembers()); quorumPeer.setElectionType(config.getElectionAlg()); quorumPeer.setMyid(config.getServerId()); quorumPeer.setTickTime(config.getTickTime()); quorumPeer.setMinSessionTimeout(config.getMinSessionTimeout()); quorumPeer.setMaxSessionTimeout(config.getMaxSessionTimeout()); quorumPeer.setInitLimit(config.getInitLimit()); quorumPeer.setSyncLimit(config.getSyncLimit()); quorumPeer.setConnectToLearnerMasterLimit(config.getConnectToLearnerMasterLimit()); quorumPeer.setObserverMasterPort(config.getObserverMasterPort()); quorumPeer.setConfigFileName(config.getConfigFilename()); quorumPeer.setClientPortListenBacklog(config.getClientPortListenBacklog()); quorumPeer.setZKDatabase(new ZKDatabase(quorumPeer.getTxnFactory())); quorumPeer.setQuorumVerifier(config.getQuorumVerifier(), false); if (config.getLastSeenQuorumVerifier() != null) { quorumPeer.setLastSeenQuorumVerifier(config.getLastSeenQuorumVerifier(), false); } quorumPeer.initConfigInZKDatabase(); //將連接物件也存入本節點 quorumPeer.setCnxnFactory(cnxnFactory); quorumPeer.setSecureCnxnFactory(secureCnxnFactory); quorumPeer.setSslQuorum(config.isSslQuorum()); quorumPeer.setUsePortUnification(config.shouldUsePortUnification()); quorumPeer.setLearnerType(config.getPeerType()); quorumPeer.setSyncEnabled(config.getSyncEnabled()); quorumPeer.setQuorumListenOnAllIPs(config.getQuorumListenOnAllIPs()); if (config.sslQuorumReloadCertFiles) { quorumPeer.getX509Util().enableCertFileReloading(); } quorumPeer.setMultiAddressEnabled(config.isMultiAddressEnabled()); quorumPeer.setMultiAddressReachabilityCheckEnabled(config.isMultiAddressReachabilityCheckEnabled()); quorumPeer.setMultiAddressReachabilityCheckTimeoutMs(config.getMultiAddressReachabilityCheckTimeoutMs()); // sets quorum sasl authentication configurations quorumPeer.setQuorumSaslEnabled(config.quorumEnableSasl); if (quorumPeer.isQuorumSaslAuthEnabled()) { quorumPeer.setQuorumServerSaslRequired(config.quorumServerRequireSasl); quorumPeer.setQuorumLearnerSaslRequired(config.quorumLearnerRequireSasl); quorumPeer.setQuorumServicePrincipal(config.quorumServicePrincipal); quorumPeer.setQuorumServerLoginContext(config.quorumServerLoginContext); quorumPeer.setQuorumLearnerLoginContext(config.quorumLearnerLoginContext); } quorumPeer.setQuorumCnxnThreadsSize(config.quorumCnxnThreadsSize); quorumPeer.initialize(); if (config.jvmPauseMonitorToRun) { quorumPeer.setJvmPauseMonitor(new JvmPauseMonitor(config)); } //啟動節點 quorumPeer.start(); ZKAuditProvider.addZKStartStopAuditLog(); quorumPeer.join(); } catch (InterruptedException e) { // warn, but generally this is ok LOG.warn("Quorum Peer interrupted", e); } finally { try { metricsProvider.stop(); } catch (Throwable error) { LOG.warn("Error while stopping metrics", error); } } }
【3】通信物件的選擇
//ServerCnxnFactory類#createFactory方法 //初始化通信物件 public static ServerCnxnFactory createFactory() throws IOException { //屬性值展示：String ZOOKEEPER_SERVER_CNXN_FACTORY = "zookeeper.serverCnxnFactory" //官方推薦netty：則應該是ServerCnxnFactory類的子類NettyServerCnxnFactory String serverCnxnFactoryName = System.getProperty(ZOOKEEPER_SERVER_CNXN_FACTORY); if (serverCnxnFactoryName == null) { //但是默認是子類NIOServerCnxnFactory serverCnxnFactoryName = NIOServerCnxnFactory.class.getName(); } try { //利用反射進行初始化 ServerCnxnFactory serverCnxnFactory = (ServerCnxnFactory) Class.forName(serverCnxnFactoryName).getDeclaredConstructor().newInstance(); LOG.info("Using {} as server connection factory", serverCnxnFactoryName); return serverCnxnFactory; } catch (Exception e) { IOException ioe = new IOException("Couldn't instantiate " + serverCnxnFactoryName, e); throw ioe; } }
【4】記憶體資料庫的設計
//org.apache.zookeeper.server包下DataTree類 //節點資料是final NodeHashMap nodes; public class DataTree { private static final Logger LOG = LoggerFactory.getLogger(DataTree.class); private final RateLogger RATE_LOGGER = new RateLogger(LOG, 15 * 60 * 1000); //該映射提供了對datanode的快速查找 private final NodeHashMap nodes; private IWatchManager dataWatches; private IWatchManager childWatches; //快取所有datanode的路徑和資料的總大小 private final AtomicLong nodeDataSize = new AtomicLong(0); //根結點 private static final String rootZookeeper = "/"; private static final String procZookeeper = Quotas.procZookeeper; private static final String procChildZookeeper = procZookeeper.substring(1); private static final String quotaZookeeper = Quotas.quotaZookeeper; private static final String quotaChildZookeeper = quotaZookeeper.substring(procZookeeper.length() + 1); private static final String configZookeeper = ZooDefs.CONFIG_NODE; private static final String configChildZookeeper = configZookeeper.substring(procZookeeper.length() + 1); private final PathTrie pTrie = new PathTrie(); public static final int STAT_OVERHEAD_BYTES = (6 * 8) + (5 * 4); private final Map<Long, HashSet<String>> ephemerals = new ConcurrentHashMap<Long, HashSet<String>>(); private final Set<String> containers = Collections.newSetFromMap(new ConcurrentHashMap<String, Boolean>()); private final Set<String> ttls = Collections.newSetFromMap(new ConcurrentHashMap<String, Boolean>()); private final ReferenceCountedACLCache aclCache = new ReferenceCountedACLCache(); public static final int DIGEST_LOG_LIMIT = 1024; public static final int DIGEST_LOG_INTERVAL = 128; private ZxidDigest digestFromLoadedSnapshot; private volatile ZxidDigest lastProcessedZxidDigest; private boolean firstMismatchTxn = true; private final List<DigestWatcher> digestWatchers = new ArrayList<>(); private LinkedList<ZxidDigest> digestLog = new LinkedList<>(); private final DigestCalculator digestCalculator; } public class DataNode implements Record { private volatile long digest; // 指示該節點的摘要是否是最新的 volatile boolean digestCached; byte[] data; Long acl; public StatPersisted stat; private Set<String> children = null; private static final Set<String> EMPTY_SET = Collections.emptySet(); }
【5】quorumPeer.start()節點啟動方法又做了什么
@Override public synchronized void start() { if (!getView().containsKey(myid)) { throw new RuntimeException("My id " + myid + " not in the peer list"); } //加載快照檔案資料到記憶體 loadDataBase(); //啟動通信物件 startServerCnxnFactory(); try { //JettyAdminServer，啟動內嵌Jetty服務，默認8080埠 adminServer.start(); } catch (AdminServerException e) { LOG.warn("Problem starting AdminServer", e); } //初始化選舉資料 startLeaderElection(); startJvmPauseMonitor(); super.start(); } private void startServerCnxnFactory() { if (cnxnFactory != null) { //如果有配置netty通信，則NettyServerCnxnFactory類#start方法 cnxnFactory.start(); } if (secureCnxnFactory != null) { secureCnxnFactory.start(); } } //NettyServerCnxnFactory類#start方法 @Override public void start() { if (listenBacklog != -1) { bootstrap.option(ChannelOption.SO_BACKLOG, listenBacklog); } LOG.info("binding to port {}", localAddress); parentChannel = bootstrap.bind(localAddress).syncUninterruptibly().channel(); // Port changes after bind() if the original port was 0, update // localAddress to get the real port. localAddress = (InetSocketAddress) parentChannel.localAddress(); LOG.info("bound to port {}", getLocalPort()); } //選舉資料構建 public synchronized void startLeaderElection() { try { if (getPeerState() == ServerState.LOOKING) { //構建選票，myid服務器id標記，最大的事務id，當前服務器的選舉輪次 currentVote = new Vote(myid, getLastLoggedZxid(), getCurrentEpoch()); } } catch (IOException e) { RuntimeException re = new RuntimeException(e.getMessage()); re.setStackTrace(e.getStackTrace()); throw re; } //確定選舉演算法，默認傳的是3 this.electionAlg = createElectionAlgorithm(electionType); } //節點狀態 public enum ServerState { LOOKING, //等待狀態 FOLLOWING, //從節點 LEADING, //主節點 OBSERVING //觀察狀態 }
【6】選舉演算法分析（內涵多層佇列架構）
//選舉演算法分析（3.8版本已經將過時的演算法去除了） protected Election createElectionAlgorithm(int electionAlgorithm) { Election le = null; //TODO: use a factory rather than a switch switch (electionAlgorithm) { case 1: throw new UnsupportedOperationException("Election Algorithm 1 is not supported."); case 2: throw new UnsupportedOperationException("Election Algorithm 2 is not supported."); case 3: QuorumCnxManager qcm = createCnxnManager(); QuorumCnxManager oldQcm = qcmRef.getAndSet(qcm); if (oldQcm != null) { LOG.warn("Clobbering already-set QuorumCnxManager (restarting leader election?)"); oldQcm.halt(); } QuorumCnxManager.Listener listener = qcm.listener; if (listener != null) { //啟動監聽執行緒 listener.start(); //構建收發訊息執行緒 FastLeaderElection fle = new FastLeaderElection(this, qcm); fle.start(); le = fle; } else { LOG.error("Null listener when initializing cnx manager"); } break; default: assert false; } return le; }
【7】翻閱監聽執行緒 listener 做了什么
//翻閱監聽執行緒做了什么，主要是看run方法 @Override public void run() { if (!shutdown) { LOG.debug("Listener thread started, myId: {}", self.getId()); Set<InetSocketAddress> addresses; if (self.getQuorumListenOnAllIPs()) { addresses = self.getElectionAddress().getWildcardAddresses(); } else { addresses = self.getElectionAddress().getAllAddresses(); } CountDownLatch latch = new CountDownLatch(addresses.size()); //回圈的方式針對每個地址構建一個ListenerHandler listenerHandlers = addresses.stream().map(address -> new ListenerHandler(address, self.shouldUsePortUnification(), self.isSslQuorum(), latch)) .collect(Collectors.toList()); //針對每個ListenerHandler都會有一個對應的執行緒進行處理（執行緒池） final ExecutorService executor = Executors.newFixedThreadPool(addresses.size()); try { listenerHandlers.forEach(executor::submit); } finally { // prevent executor's threads to leak after ListenerHandler tasks complete executor.shutdown(); } try { latch.await(); } catch (InterruptedException ie) {..} finally { // Clean up for shutdown. for (ListenerHandler handler : listenerHandlers) { try { handler.close(); } catch (IOException ie) {...} } } } LOG.info("Leaving listener"); if (!shutdown) { if (socketException.get()) { // After leaving listener thread, the host cannot join the quorum anymore, // this is a severe error that we cannot recover from, so we need to exit socketBindErrorHandler.run(); } } } class ListenerHandler implements Runnable, Closeable { private ServerSocket serverSocket; private InetSocketAddress address; private boolean portUnification; private boolean sslQuorum; private CountDownLatch latch; ListenerHandler(InetSocketAddress address, boolean portUnification, boolean sslQuorum,CountDownLatch latch) { this.address = address; this.portUnification = portUnification; this.sslQuorum = sslQuorum; this.latch = latch; } /** * Sleeps on acceptConnections(). */ @Override public void run() { try { Thread.currentThread().setName("ListenerHandler-" + address); //建立連接 acceptConnections(); try { close(); } catch (IOException e) {...} } catch (Exception e) {...} finally { latch.countDown(); } } @Override public synchronized void close() throws IOException { if (serverSocket != null && !serverSocket.isClosed()) { LOG.debug("Trying to close listeners: {}", serverSocket); serverSocket.close(); } } /** * Sleeps on accept(). */ private void acceptConnections() { int numRetries = 0; Socket client = null; while ((!shutdown) && (portBindMaxRetry == 0 || numRetries < portBindMaxRetry)) { try { //創建serverSocket serverSocket = createNewServerSocket(); LOG.info("{} is accepting connections now, my election bind port: {}", QuorumCnxManager.this.mySid, address.toString()); while (!shutdown) { try { client = serverSocket.accept(); setSockOpts(client); //處理連接訊息 if (quorumSaslAuthEnabled) { receiveConnectionAsync(client); } else { receiveConnection(client); } numRetries = 0; } catch (SocketTimeoutException e) {...} } } catch (IOException e) { if (shutdown) { break; } if (e instanceof SocketException) { socketException.set(true); } numRetries++; try { close(); Thread.sleep(1000); } catch (IOException ie) {...} catch (InterruptedException ie) {...} closeSocket(client); } } if (!shutdown) {...} } private ServerSocket createNewServerSocket() throws IOException { ServerSocket socket; if (portUnification) { LOG.info("Creating TLS-enabled quorum server socket"); socket = new UnifiedServerSocket(self.getX509Util(), true); } else if (sslQuorum) { LOG.info("Creating TLS-only quorum server socket"); socket = new UnifiedServerSocket(self.getX509Util(), false); } else { socket = new ServerSocket(); } socket.setReuseAddress(true); address = new InetSocketAddress(address.getHostString(), address.getPort()); //系結地址與埠 socket.bind(address); return socket; } }
【7.1】receiveConnection方法怎么處理接收到的訊息
public void receiveConnection(final Socket sock) { DataInputStream din = null; try { din = new DataInputStream(new BufferedInputStream(sock.getInputStream())); handleConnection(sock, din); } catch (IOException e) { closeSocket(sock); } } private void handleConnection(Socket sock, DataInputStream din) throws IOException { Long sid = null, protocolVersion = null; MultipleAddresses electionAddr = null; try { // 從輸入流中讀入一個Long（實際上是服務的ID） protocolVersion = din.readLong(); if (protocolVersion >= 0) { // this is a server id and not a protocol version sid = protocolVersion; } else { try { InitialMessage init = InitialMessage.parse(protocolVersion, din); sid = init.sid; if (!init.electionAddr.isEmpty()) { electionAddr = new MultipleAddresses(init.electionAddr, Duration.ofMillis(self.getMultiAddressReachabilityCheckTimeoutMs())); } } catch (InitialMessage.InitialMessageException ex) { closeSocket(sock); return; } } if (sid == QuorumPeer.OBSERVER_ID) { sid = observerCounter.getAndDecrement(); } } catch (IOException e) { closeSocket(sock); return; } // do authenticating learner authServer.authenticate(sock, din); //關閉不必要的連接 //因為socket是雙工的，而之前我們是針對了每個服務都要與之建立連接（則有，我連它【自身發起的連接】，它連了我【對方發起的連接】） //說白了兩條通道有一條不是必要的 if (sid < self.getId()) { //對方的id小于自身id SendWorker sw = senderWorkerMap.get(sid); if (sw != null) { sw.finish(); } // 關閉當前連接 closeSocket(sock); // 創建當前節點到對面節點的連接 if (electionAddr != null) { connectOne(sid, electionAddr); } else { connectOne(sid); } } //自身的話不需要做什么 else if (sid == self.getId()) {...} else { // 對方id大于自身id // 使用目標節點到當前節點的連接 SendWorker sw = new SendWorker(sock, sid); RecvWorker rw = new RecvWorker(sock, din, sid, sw); sw.setRecv(rw); SendWorker vsw = senderWorkerMap.get(sid); if (vsw != null) { vsw.finish(); } //更新senderWorker與queueSend senderWorkerMap.put(sid, sw); queueSendMap.putIfAbsent(sid, new CircularBlockingQueue<>(SEND_CAPACITY)); sw.start(); rw.start(); } } // 創建當前節點到對面節點的連接 synchronized boolean connectOne(long sid, MultipleAddresses electionAddr) { // 判斷連接是否已經存在 if (senderWorkerMap.get(sid) != null) { if (self.isMultiAddressEnabled() && electionAddr.size() > 1 && self.isMultiAddressReachabilityCheckEnabled()) { senderWorkerMap.get(sid).asyncValidateIfSocketIsStillReachable(); } return true; } //初始化連接 return initiateConnectionAsync(electionAddr, sid); } public boolean initiateConnectionAsync(final MultipleAddresses electionAddr, final Long sid) { if (!inprogressConnections.add(sid)) { return true; } try { connectionExecutor.execute(new QuorumConnectionReqThread(electionAddr, sid)); connectionThreadCnt.incrementAndGet(); } catch (Throwable e) { inprogressConnections.remove(sid); return false; } return true; } //QuorumConnectionReqThread類#run方法 @Override public void run() { try { initiateConnection(electionAddr, sid); } finally { inprogressConnections.remove(sid); } } //真正建立socket連接 public void initiateConnection(final MultipleAddresses electionAddr, final Long sid) { Socket sock = null; try { if (self.isSslQuorum()) { sock = self.getX509Util().createSSLSocket(); } else { sock = SOCKET_FACTORY.get(); } setSockOpts(sock); sock.connect(electionAddr.getReachableOrOne(), cnxTO); if (sock instanceof SSLSocket) { SSLSocket sslSock = (SSLSocket) sock; sslSock.startHandshake(); } } catch (X509Exception e) { closeSocket(sock); return; } catch (UnresolvedAddressException | IOException e) { closeSocket(sock); return; } try { startConnection(sock, sid); } catch (IOException e) { closeSocket(sock); } } private boolean startConnection(Socket sock, Long sid) throws IOException { DataOutputStream dout = null; DataInputStream din = null; try { BufferedOutputStream buf = new BufferedOutputStream(sock.getOutputStream()); dout = new DataOutputStream(buf); long protocolVersion = self.isMultiAddressEnabled() ? PROTOCOL_VERSION_V2 : PROTOCOL_VERSION_V1; dout.writeLong(protocolVersion); dout.writeLong(self.getId()); // now we send our election address. For the new protocol version, we can send multiple addresses. Collection<InetSocketAddress> addressesToSend = protocolVersion == PROTOCOL_VERSION_V2 ? self.getElectionAddress().getAllAddresses() : Arrays.asList(self.getElectionAddress().getOne()); String addr = addressesToSend.stream() .map(NetUtils::formatInetAddr).collect(Collectors.joining("|")); byte[] addr_bytes = addr.getBytes(); dout.writeInt(addr_bytes.length); dout.write(addr_bytes); dout.flush(); din = new DataInputStream(new BufferedInputStream(sock.getInputStream())); } catch (IOException e) { closeSocket(sock); return false; } // authenticate learner QuorumPeer.QuorumServer qps = self.getVotingView().get(sid); if (qps != null) { authLearner.authenticate(sock, qps.hostname); } // If lost the challenge, then drop the new connection if (sid > self.getId()) { closeSocket(sock); } else { SendWorker sw = new SendWorker(sock, sid); RecvWorker rw = new RecvWorker(sock, din, sid, sw); sw.setRecv(rw); SendWorker vsw = senderWorkerMap.get(sid); if (vsw != null) { vsw.finish(); } senderWorkerMap.put(sid, sw); queueSendMap.putIfAbsent(sid, new CircularBlockingQueue<>(SEND_CAPACITY)); sw.start(); rw.start(); return true; } return false; }
【8】構建FastLeaderElection做了什么
//構建FastLeaderElection做了什么 public FastLeaderElection(QuorumPeer self, QuorumCnxManager manager) { this.stop = false; this.manager = manager; starter(self, manager); } private void starter(QuorumPeer self, QuorumCnxManager manager) { this.self = self; proposedLeader = -1; proposedZxid = -1; sendqueue = new LinkedBlockingQueue<ToSend>(); recvqueue = new LinkedBlockingQueue<Notification>(); this.messenger = new Messenger(manager); } public static class Notification { public static final int CURRENTVERSION = 0x2; int version; long leader; long zxid; long electionEpoch; QuorumPeer.ServerState state; long sid; QuorumVerifier qv; long peerEpoch; } public static class ToSend { enum mType { crequest, challenge, notification, ack } long leader; long zxid; long electionEpoch; QuorumPeer.ServerState state; long sid; byte[] configData =https://www.cnblogs.com/chafry/archive/2022/10/20/ dummyData; long peerEpoch; } Messenger(QuorumCnxManager manager) { this.ws = new WorkerSender(manager); this.wsThread = new Thread(this.ws, "WorkerSender[myid=" + self.getId() + "]"); this.wsThread.setDaemon(true); this.wr = new WorkerReceiver(manager); this.wrThread = new Thread(this.wr, "WorkerReceiver[myid=" + self.getId() + "]"); this.wrThread.setDaemon(true); } //FastLeaderElection的start()方法做了什么 public void start() { this.messenger.start(); } void start() { this.wsThread.start(); this.wrThread.start(); }
【9】分析發送作業者WorkerSender做了什么
//發送作業者WorkerSender做了什么 class WorkerSender extends ZooKeeperThread { volatile boolean stop; QuorumCnxManager manager; WorkerSender(QuorumCnxManager manager) { super("WorkerSender"); this.stop = false; this.manager = manager; } public void run() { while (!stop) { try { ToSend m = sendqueue.poll(3000, TimeUnit.MILLISECONDS); if (m == null) { continue; } process(m); } catch (InterruptedException e) { break; } } } void process(ToSend m) { ByteBuffer requestBuffer = buildMsg(m.state.ordinal(), m.leader, m.zxid, m.electionEpoch, m.peerEpoch, m.configData); manager.toSend(m.sid, requestBuffer); } } //QuorumCnxManager類#toSend方法 public void toSend(Long sid, ByteBuffer b) { //If sending message to myself, then simply enqueue it (loopback). if (this.mySid == sid) { b.position(0); addToRecvQueue(new Message(b.duplicate(), sid)); //Otherwise send to the corresponding thread to send. } else { //應用層的發送佇列陣列，每個服務器對應一個佇列，用他們的機器ID作為下標. BlockingQueue<ByteBuffer> bq = queueSendMap.computeIfAbsent(sid, serverId -> new CircularBlockingQueue<>(SEND_CAPACITY)); addToSendQueue(bq, b); connectOne(sid); } }
【10】分析接收作業者WorkerReceiver做了什么
//接收作業者 class WorkerReceiver extends ZooKeeperThread { volatile boolean stop; QuorumCnxManager manager; WorkerReceiver(QuorumCnxManager manager) { super("WorkerReceiver"); this.stop = false; this.manager = manager; } public void run() { Message response; while (!stop) { // Sleeps on receive try { response = manager.pollRecvQueue(3000, TimeUnit.MILLISECONDS); if (response == null) { continue; } final int capacity = response.buffer.capacity(); // The current protocol and two previous generations all send at least 28 bytes if (capacity < 28) { continue; } // this is the backwardCompatibility mode in place before ZK-107 // It is for a version of the protocol in which we didn't send peer epoch // With peer epoch and version the message became 40 bytes boolean backCompatibility28 = (capacity == 28); // this is the backwardCompatibility mode for no version information boolean backCompatibility40 = (capacity == 40); response.buffer.clear(); // Instantiate Notification and set its attributes Notification n = new Notification(); int rstate = response.buffer.getInt(); long rleader = response.buffer.getLong(); long rzxid = response.buffer.getLong(); long relectionEpoch = response.buffer.getLong(); long rpeerepoch; int version = 0x0; QuorumVerifier rqv = null; try { if (!backCompatibility28) { rpeerepoch = response.buffer.getLong(); if (!backCompatibility40) { version = response.buffer.getInt(); } else {...} } else { rpeerepoch = ZxidUtils.getEpochFromZxid(rzxid); } // check if we have a version that includes config. If so extract config info from message. if (version > 0x1) { int configLength = response.buffer.getInt(); // we want to avoid errors caused by the allocation of a byte array with negative length // (causing NegativeArraySizeException) or huge length (causing e.g. OutOfMemoryError) if (configLength < 0 || configLength > capacity) { throw new IOException(...); } byte[] b = new byte[configLength]; response.buffer.get(b); synchronized (self) { try { rqv = self.configFromString(new String(b, UTF_8)); QuorumVerifier curQV = self.getQuorumVerifier(); if (rqv.getVersion() > curQV.getVersion()) { if (self.getPeerState() == ServerState.LOOKING) { self.processReconfig(rqv, null, null, false); if (!rqv.equals(curQV)) { self.shuttingDownLE = true; self.getElectionAlg().shutdown(); break; } } else {...} } } catch (IOException | ConfigException e) {...} } } else {...} } catch (BufferUnderflowException | IOException e) { continue; } /* * If it is from a non-voting server (such as an observer or * a non-voting follower), respond right away. */ if (!validVoter(response.sid)) { Vote current = self.getCurrentVote(); QuorumVerifier qv = self.getQuorumVerifier(); ToSend notmsg = new ToSend( ToSend.mType.notification, current.getId(), current.getZxid(), logicalclock.get(), self.getPeerState(), response.sid, current.getPeerEpoch(), qv.toString().getBytes(UTF_8)); sendqueue.offer(notmsg); } else { // Receive new message // State of peer that sent this message QuorumPeer.ServerState ackstate = QuorumPeer.ServerState.LOOKING; switch (rstate) { case 0: ackstate = QuorumPeer.ServerState.LOOKING; break; case 1: ackstate = QuorumPeer.ServerState.FOLLOWING; break; case 2: ackstate = QuorumPeer.ServerState.LEADING; break; case 3: ackstate = QuorumPeer.ServerState.OBSERVING; break; default: continue; } n.leader = rleader; n.zxid = rzxid; n.electionEpoch = relectionEpoch; n.state = ackstate; n.sid = response.sid; n.peerEpoch = rpeerepoch; n.version = version; n.qv = rqv; //如果這個服務器正處于looking狀態，那么發送提議leader if (self.getPeerState() == QuorumPeer.ServerState.LOOKING) { recvqueue.offer(n); /* * Send a notification back if the peer that sent this * message is also looking and its logical clock is * lagging behind. */ if ((ackstate == QuorumPeer.ServerState.LOOKING) && (n.electionEpoch < logicalclock.get())) { Vote v = getVote(); QuorumVerifier qv = self.getQuorumVerifier(); ToSend notmsg = new ToSend( ToSend.mType.notification, v.getId(), v.getZxid(), logicalclock.get(), self.getPeerState(), response.sid, v.getPeerEpoch(), qv.toString().getBytes()); sendqueue.offer(notmsg); } } else { //反之，如果選舉結束了，則將自己服務器記錄的leader資訊發送回給對方 Vote current = self.getCurrentVote(); if (ackstate == QuorumPeer.ServerState.LOOKING) { if (self.leader != null) { if (leadingVoteSet != null) { self.leader.setLeadingVoteSet(leadingVoteSet); leadingVoteSet = null; } self.leader.reportLookingSid(response.sid); } QuorumVerifier qv = self.getQuorumVerifier(); ToSend notmsg = new ToSend( ToSend.mType.notification, current.getId(), current.getZxid(), current.getElectionEpoch(), self.getPeerState(), response.sid, current.getPeerEpoch(), qv.toString().getBytes()); sendqueue.offer(notmsg); } } } } catch (InterruptedException e) {...} } } }
【11】第五步【5】中quorumPeer.start()呼叫了父類的start()，由于父類就是Thread，所以核心在run方法里面
@Override public void run() { updateThreadName(); //監控部分，進行了省略 try { jmxQuorumBean = new QuorumBean(this); ..... } catch (Exception e) { jmxQuorumBean = null; } try { //主體邏輯 while (running) { if (unavailableStartTime == 0) { unavailableStartTime = Time.currentElapsedTime(); } switch (getPeerState()) { case LOOKING: LOG.info("LOOKING"); ServerMetrics.getMetrics().LOOKING_COUNT.add(1); if (Boolean.getBoolean("readonlymode.enabled")) { final ReadOnlyZooKeeperServer roZk = new ReadOnlyZooKeeperServer(logFactory, this, this.zkDb); Thread roZkMgr = new Thread() { public void run() { try { // lower-bound grace period to 2 secs sleep(Math.max(2000, tickTime)); if (ServerState.LOOKING.equals(getPeerState())) { roZk.startup(); } } catch (InterruptedException e) {...} catch (Exception e) {...} } }; try { roZkMgr.start(); reconfigFlagClear(); if (shuttingDownLE) { shuttingDownLE = false; startLeaderElection(); } setCurrentVote(makeLEStrategy().lookForLeader()); } catch (Exception e) { setPeerState(ServerState.LOOKING); } finally { roZkMgr.interrupt(); roZk.shutdown(); } } else { try { reconfigFlagClear(); if (shuttingDownLE) { shuttingDownLE = false; startLeaderElection(); } //設定當前的投票 setCurrentVote(makeLEStrategy().lookForLeader()); } catch (Exception e) { LOG.warn("Unexpected exception", e); setPeerState(ServerState.LOOKING); } } break; case OBSERVING: try { LOG.info("OBSERVING"); setObserver(makeObserver(logFactory)); observer.observeLeader(); } catch (Exception e) { LOG.warn("Unexpected exception", e); } finally { observer.shutdown(); setObserver(null); updateServerState(); // Add delay jitter before we switch to LOOKING // state to reduce the load of ObserverMaster if (isRunning()) { Observer.waitForObserverElectionDelay(); } } break; case FOLLOWING: try { LOG.info("FOLLOWING"); setFollower(makeFollower(logFactory)); follower.followLeader(); } catch (Exception e) { LOG.warn("Unexpected exception", e); } finally { follower.shutdown(); setFollower(null); updateServerState(); } break; case LEADING: LOG.info("LEADING"); try { setLeader(makeLeader(logFactory)); leader.lead(); setLeader(null); } catch (Exception e) { LOG.warn("Unexpected exception", e); } finally { if (leader != null) { leader.shutdown("Forcing shutdown"); setLeader(null); } updateServerState(); } break; } } } finally { LOG.warn("QuorumPeer main thread exited"); MBeanRegistry instance = MBeanRegistry.getInstance(); instance.unregister(jmxQuorumBean); instance.unregister(jmxLocalPeerBean); for (RemotePeerBean remotePeerBean : jmxRemotePeerBean.values()) { instance.unregister(remotePeerBean); } jmxQuorumBean = null; jmxLocalPeerBean = null; jmxRemotePeerBean = null; } }
【12】分析核心的選舉流程代碼
//FastLeaderElection類#lookForLeader方法 //核心的選舉演算法 public Vote lookForLeader() throws InterruptedException { //監控部分省略 try {...} catch (Exception e) {...} self.start_fle = Time.currentElapsedTime(); try { Map<Long, Vote> recvset = new HashMap<Long, Vote>(); Map<Long, Vote> outofelection = new HashMap<Long, Vote>(); int notTimeout = minNotificationInterval; synchronized (this) { //選舉周期自增 logicalclock.incrementAndGet(); //更新選票資訊（初始化的情況下是設定選自己） updateProposal(getInitId(), getInitLastLoggedZxid(), getPeerEpoch()); } //發送選票 sendNotifications(); SyncedLearnerTracker voteSet = null; //在這個回圈中，交換通知，直到找到Leader while ((self.getPeerState() == ServerState.LOOKING) && (!stop)) { //接收其他人發過來的選票 Notification n = recvqueue.poll(notTimeout, TimeUnit.MILLISECONDS); //從recvqueue取出通知為空的情況 //如廣播出去8個，由于網路原因可能只收到3個，第四次取的時候就是空的 //可能收到8個了，但是選舉還沒結束，再次取的時候也是空的 //為了保證選舉還沒結束的時候，能繼續收到其他Server的選票，并繼續處理判斷，直到選出Leader if (n == null) { //判斷是否已經被交付，即檢查所有佇列是否為空，表示所有訊息都已傳遞 if (manager.haveDelivered()) { // 重新發送，目的是為了重新再接收 sendNotifications(); } else { // 重新連接zk集群中的每一個server manager.connectAll(); } notTimeout = Math.min(notTimeout << 1, maxNotificationInterval); if (self.getQuorumVerifier() instanceof QuorumOracleMaj && self.getQuorumVerifier().revalidateVoteset(voteSet, notTimeout != minNotificationInterval)) { setPeerState(proposedLeader, voteSet); Vote endVote = new Vote(proposedLeader, proposedZxid, logicalclock.get(), proposedEpoch); leaveInstance(endVote); return endVote; } } //驗證發送者的ServerId //驗證當前通知推薦的leader的ServerId else if (validVoter(n.sid) && validVoter(n.leader)) { switch (n.state) { case LOOKING: if (getInitLastLoggedZxid() == -1) { break; } if (n.zxid == -1) { break; } // 判斷對方選票的周期是不是比我自身的周期要大 // 這種是針對自身曾經宕機過，導致周期比其他人的要小 if (n.electionEpoch > logicalclock.get()) { logicalclock.set(n.electionEpoch); recvset.clear(); if (totalOrderPredicate(n.leader, n.zxid, n.peerEpoch, getInitId(), getInitLastLoggedZxid(), getPeerEpoch())) { updateProposal(n.leader, n.zxid, n.peerEpoch); } else { updateProposal(getInitId(), getInitLastLoggedZxid(), getPeerEpoch()); } sendNotifications(); } //如果對方選票的周期是不是比我自身的周期要小，則是無用票 else if (n.electionEpoch < logicalclock.get()) { break; } //PK邏輯即 else if (totalOrderPredicate(n.leader, n.zxid, n.peerEpoch, proposedLeader, proposedZxid, proposedEpoch)) { //只有對面的比自身的要好，才會從新發起新票 updateProposal(n.leader, n.zxid, n.peerEpoch); sendNotifications(); } // 將選票放入選票的Set集合 recvset.put(n.sid, new Vote(n.leader, n.zxid, n.electionEpoch, n.peerEpoch)); //獲取voteSet voteSet = getVoteTracker(recvset, new Vote(proposedLeader, proposedZxid, logicalclock.get(), proposedEpoch)); //判斷獲取到了大多數節點對當前 Vote 的支持 if (voteSet.hasAllQuorums()) { //但是這個時候并不能直接判斷 當前Vote 選擇的Leadee就一定是最終的Leader //先等待 finalizeWait = 200ms 的時長，如果接收到了訊息 //且接收到的 Vote 資訊更新，那么放入到接收佇列中，在下一次回圈中再次比較誰的 Vote 更勝一籌 while ((n = recvqueue.poll(finalizeWait, TimeUnit.MILLISECONDS)) != null) { if (totalOrderPredicate(n.leader, n.zxid, n.peerEpoch, proposedLeader, proposedZxid, proposedEpoch)) { recvqueue.put(n); break; } } //當確實沒有 Vote 訊息再傳進來的時候，可以確認最終的Leader，選舉結束 //更新節點狀態 //如果選舉出的 leaderId和自身id一樣，表明自己是Leader ，狀態為LEADING //如果不一樣，表明自己是Follower ，狀態為FOLLOWING //最后，退出選舉程序 if (n == null) { setPeerState(proposedLeader, voteSet); Vote endVote = new Vote(proposedLeader, proposedZxid, logicalclock.get(), proposedEpoch); leaveInstance(endVote); return endVote; } } break; case OBSERVING: break; case FOLLOWING: Vote resultFN = receivedFollowingNotification(recvset, outofelection, voteSet, n); if (resultFN == null) { break; } else { return resultFN; } case LEADING: Vote resultLN = receivedLeadingNotification(recvset, outofelection, voteSet, n); if (resultLN == null) { break; } else { return resultLN; } default: break; } } else { if (!validVoter(n.leader)) {...} if (!validVoter(n.sid)) {...} } } return null; } finally { //監控相關的就省略了 } } //發送選票方法 private void sendNotifications() { //回圈拿出可以參加選舉的節點進行發送選票 for (long sid : self.getCurrentAndNextConfigVoters()) { QuorumVerifier qv = self.getQuorumVerifier(); ToSend notmsg = new ToSend( ToSend.mType.notification, proposedLeader, proposedZxid, logicalclock.get(), //當前的選舉周期 QuorumPeer.ServerState.LOOKING, //當前節點狀態 sid, proposedEpoch, qv.toString().getBytes(UTF_8)); //放入sendqueue佇列【這里面按斬訓圈是會塞入多個，然后等待WorkerSender進行分發】 sendqueue.offer(notmsg); } } //判斷交付邏輯 boolean haveDelivered() { for (BlockingQueue<ByteBuffer> queue : queueSendMap.values()) { final int queueSize = queue.size(); //只要有一個佇列為0就回傳true，后面就不看了，因為之前說過只要有一個佇列為空，就說明當前Server與zk集群的連接沒有問題 if (queueSize == 0) { return true; } } //只有當所有佇列都不為空，才說明當前Server與zk集群失聯 return false; } //選票的PK邏輯 protected boolean totalOrderPredicate(long newId, long newZxid, long newEpoch, long curId, long curZxid, long curEpoch) { if (self.getQuorumVerifier().getWeight(newId) == 0) { return false; } //周期高的 //周期一致，事務id大的 //周期一致，事務id大的，服務器id大的 return ((newEpoch > curEpoch) || ((newEpoch == curEpoch) && ((newZxid > curZxid) || ((newZxid == curZxid) && (newId > curId))))); }
【13】在上面的流程中已經能夠合理的選出了Leader，此時如果有新的節點加入
//接收作業者WorkerReceiver會判斷自身是否還在選舉階段，不是則會將自己服務器記錄的leader資訊發送回給對方 //則此時新加的機器節點的選票狀態會是FOLLOWING或者LEADING private Vote receivedLeadingNotification(Map<Long, Vote> recvset, Map<Long, Vote> outofelection, SyncedLearnerTracker voteSet, Notification n) { Vote result = receivedFollowingNotification(recvset, outofelection, voteSet, n); if (result == null) { if (self.getQuorumVerifier().getNeedOracle() && !self.getQuorumVerifier().askOracle()) { setPeerState(n.leader, voteSet); Vote endVote = new Vote(n.leader, n.zxid, n.electionEpoch, n.peerEpoch); leaveInstance(endVote); return endVote; } else { return null; } } else { return result; } } private Vote receivedFollowingNotification(Map<Long, Vote> recvset, Map<Long, Vote> outofelection, SyncedLearnerTracker voteSet, Notification n) { if (n.electionEpoch == logicalclock.get()) { recvset.put(n.sid, new Vote(n.leader, n.zxid, n.electionEpoch, n.peerEpoch, n.state)); voteSet = getVoteTracker(recvset, new Vote(n.version, n.leader, n.zxid, n.electionEpoch, n.peerEpoch, n.state)); if (voteSet.hasAllQuorums() && checkLeader(recvset, n.leader, n.electionEpoch)) { setPeerState(n.leader, voteSet); Vote endVote = new Vote(n.leader, n.zxid, n.electionEpoch, n.peerEpoch); leaveInstance(endVote); return endVote; } } outofelection.put(n.sid, new Vote(n.version, n.leader, n.zxid, n.electionEpoch, n.peerEpoch, n.state)); voteSet = getVoteTracker(outofelection, new Vote(n.version, n.leader, n.zxid, n.electionEpoch, n.peerEpoch, n.state)); if (voteSet.hasAllQuorums() && checkLeader(outofelection, n.leader, n.electionEpoch)) { synchronized (this) { logicalclock.set(n.electionEpoch); setPeerState(n.leader, voteSet); } Vote endVote = new Vote(n.leader, n.zxid, n.electionEpoch, n.peerEpoch); leaveInstance(endVote); return endVote; } return null; }
【14】總結：整個選舉流程涉及到有價值的點在于：
1.對于多余的socket連接進行了關閉【但個人覺得，為什么不在監聽者那里就進行判斷呢？這樣可以減少連接，而不是建立了又斷開，重復的搞，可能還有我不清楚的點】
2.采用了多層佇列架構（異步來優化性能），分別為
構建FastLeaderElection，持有兩個LinkedBlockingQueue： sendqueue recvqueue 持有messenger，是經過Messenger類包裝過的QuorumCnxManager messenger的持有： //兩個執行緒 WorkerSender，負責從sendqueue拿到資料，然后去queueSendMap找對應的sid的佇列塞入資料 WorkerReceiver，負責從manager的recvQueue中拿資料傳到recvqueue //持有一個佇列 recvQueue //對應每個socket連接都會有 RecvWorker，負責將DataInputStream里面的資料轉而傳到messenger的recvQueue佇列 SendWorker，負責將各自佇列里面的資料寫入 DataOutputStream 而他們的存放 SendWorker持有RecvWorker senderWorkerMap{ ... [sid0->SendWorker], [sid1->SendWorker] } //佇列集合 queueSendMap{ ... [sid0->CircularBlockingQueue], [sid1->CircularBlockingQueue] } //資料傳輸的流為 DataOutputStream DataInputStream

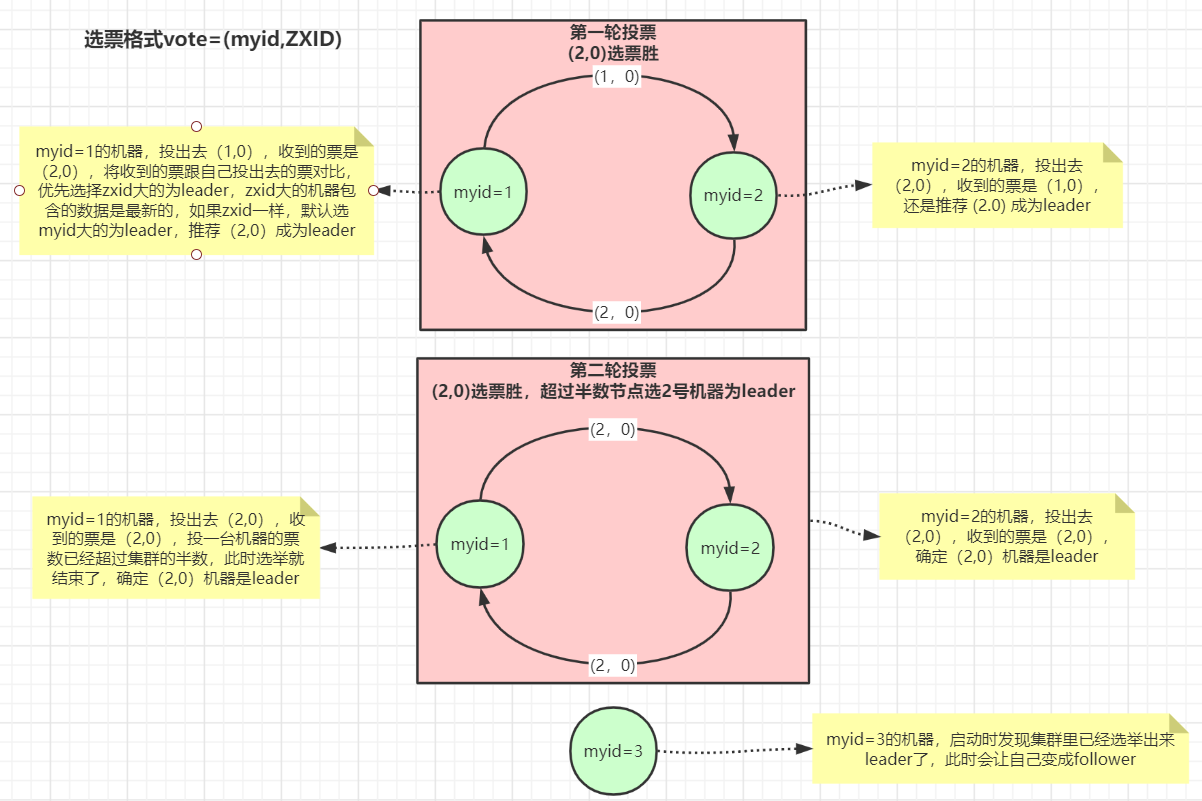

啟動或leader宕機選舉leader流程

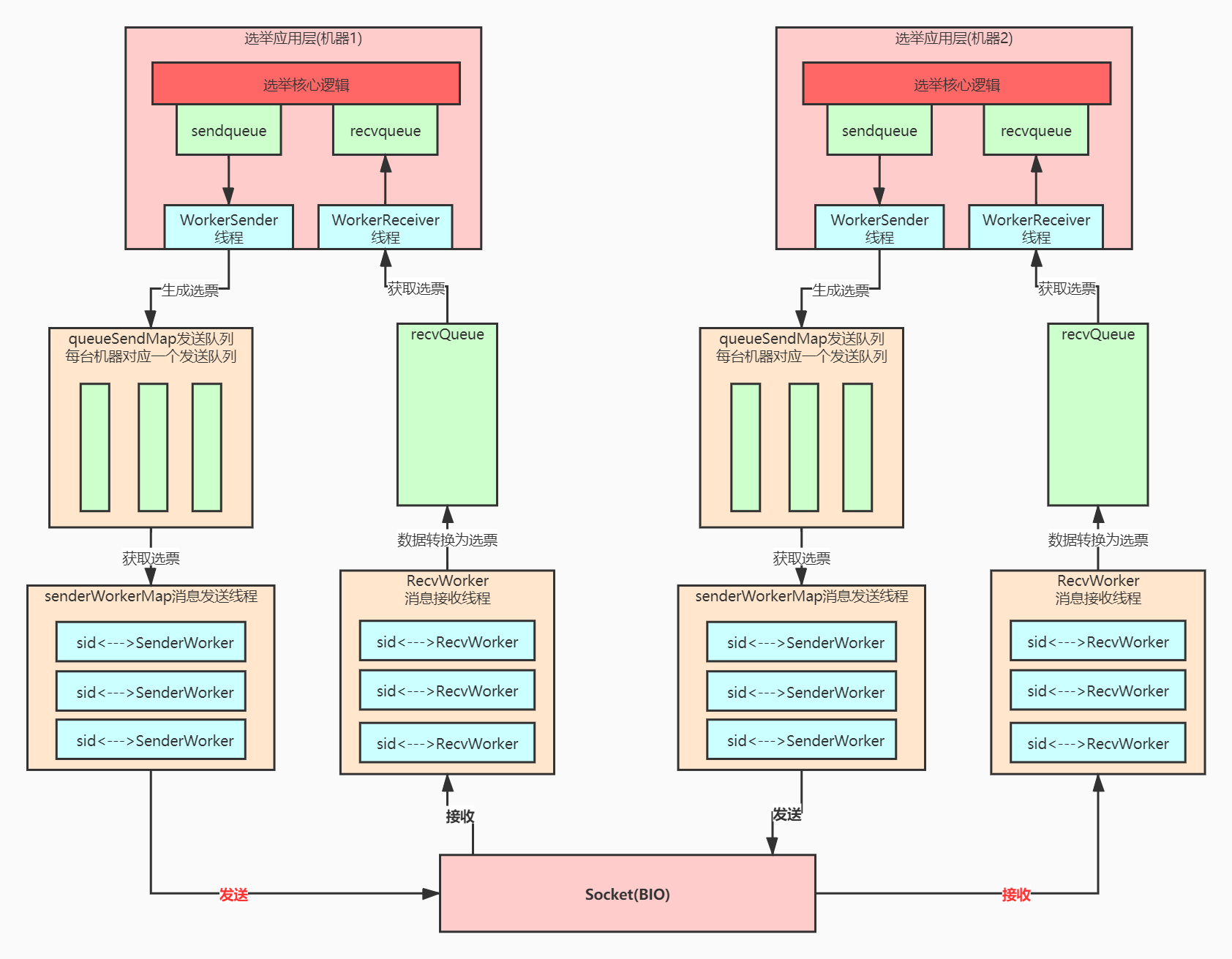

leader選舉多層佇列架構
【1】整個zookeeper選舉底層可以分為選舉應用層和訊息傳輸層，應用層有自己的佇列統一接收和發送選票，傳輸層也設計了自己的佇列，但是按發送的機器分了佇列，避免給每臺機器發送訊息時相互影響，比如某臺機器如果出問題發送不成功則不會影響對正常機器的訊息發送，

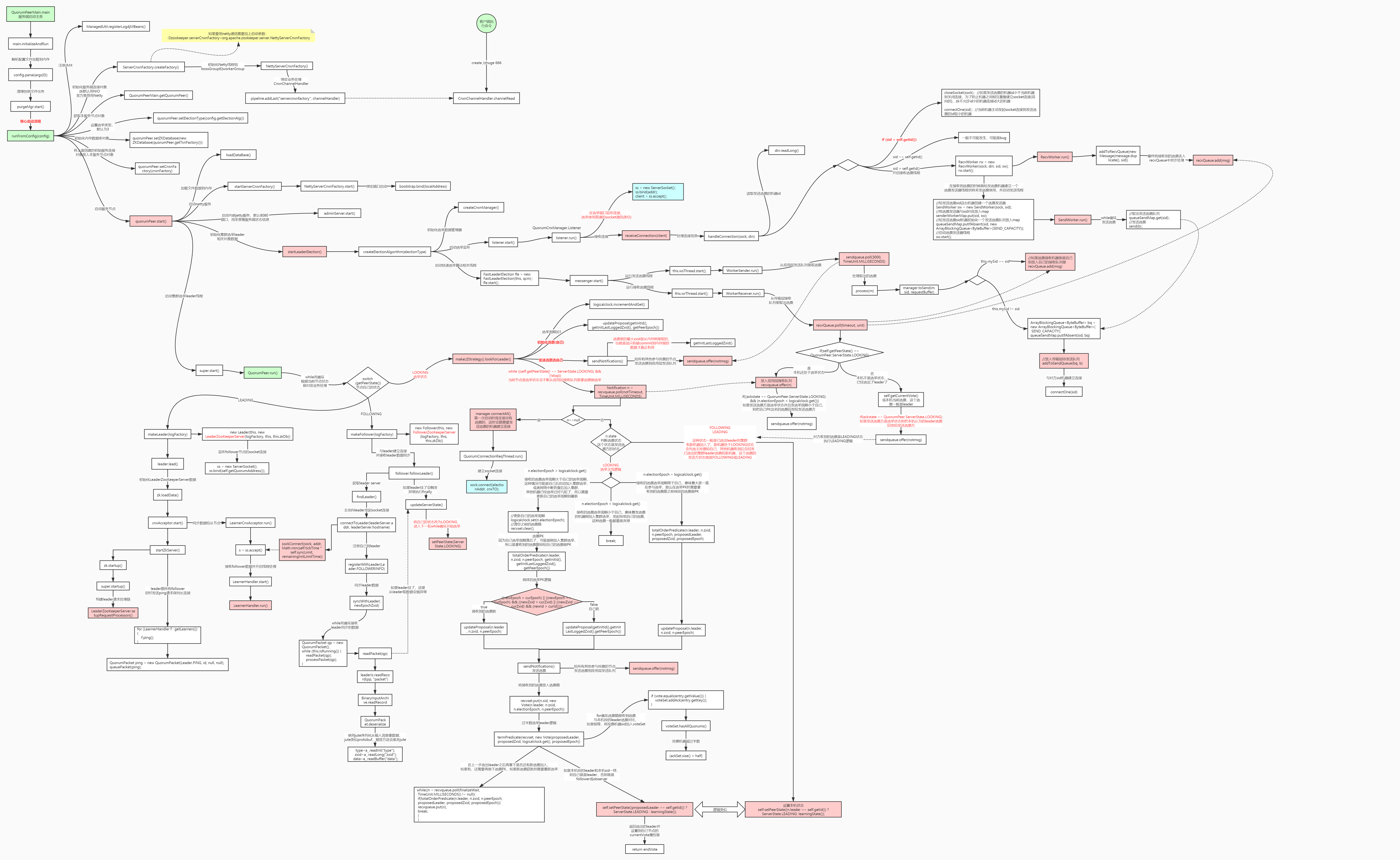

Leader選舉原始碼流程圖
