愛上原始碼，重學Spring MVC深入-有解無憂

1.1 gradle搭建原始碼除錯環境

1）搭建gradle環境

4個步驟

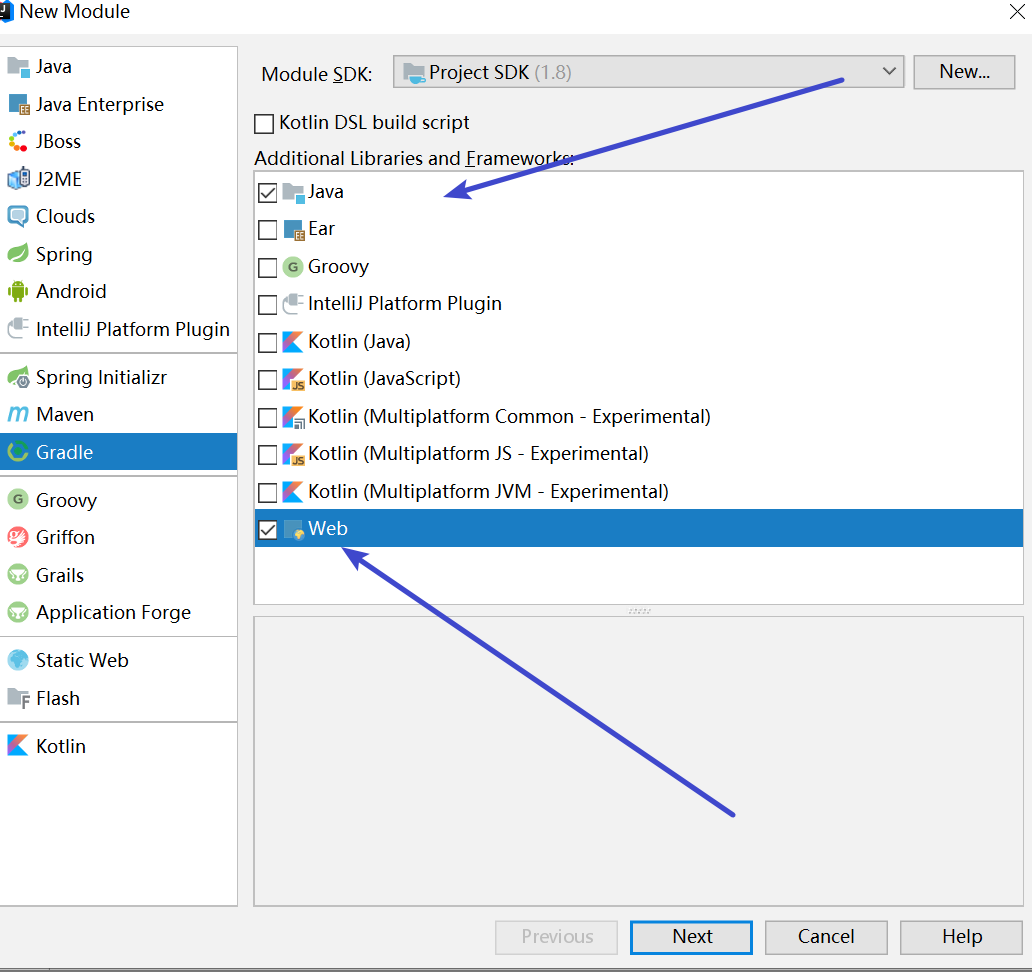

1、File-New-Module

選擇java和web

file

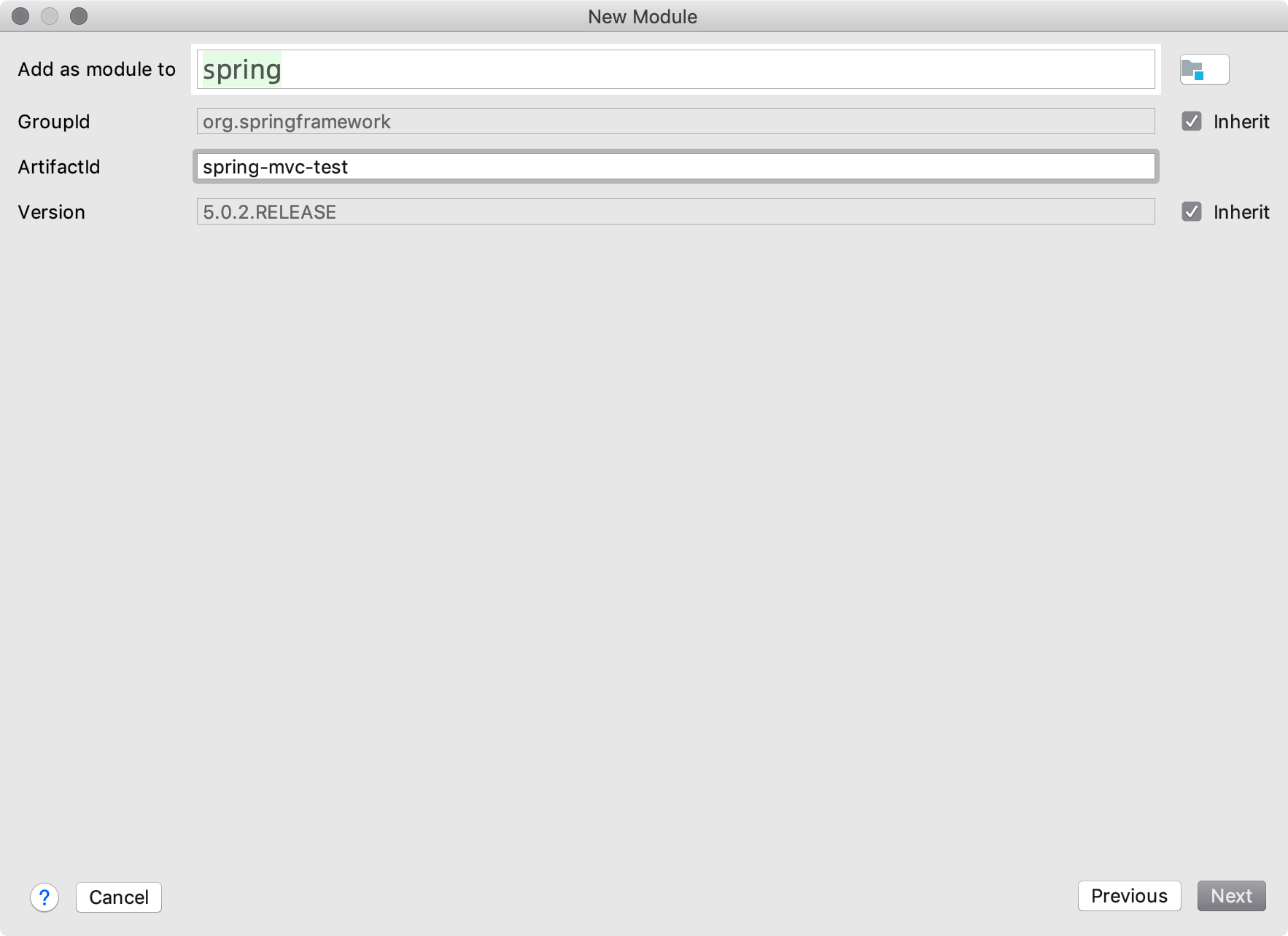

2、填寫包資訊

file

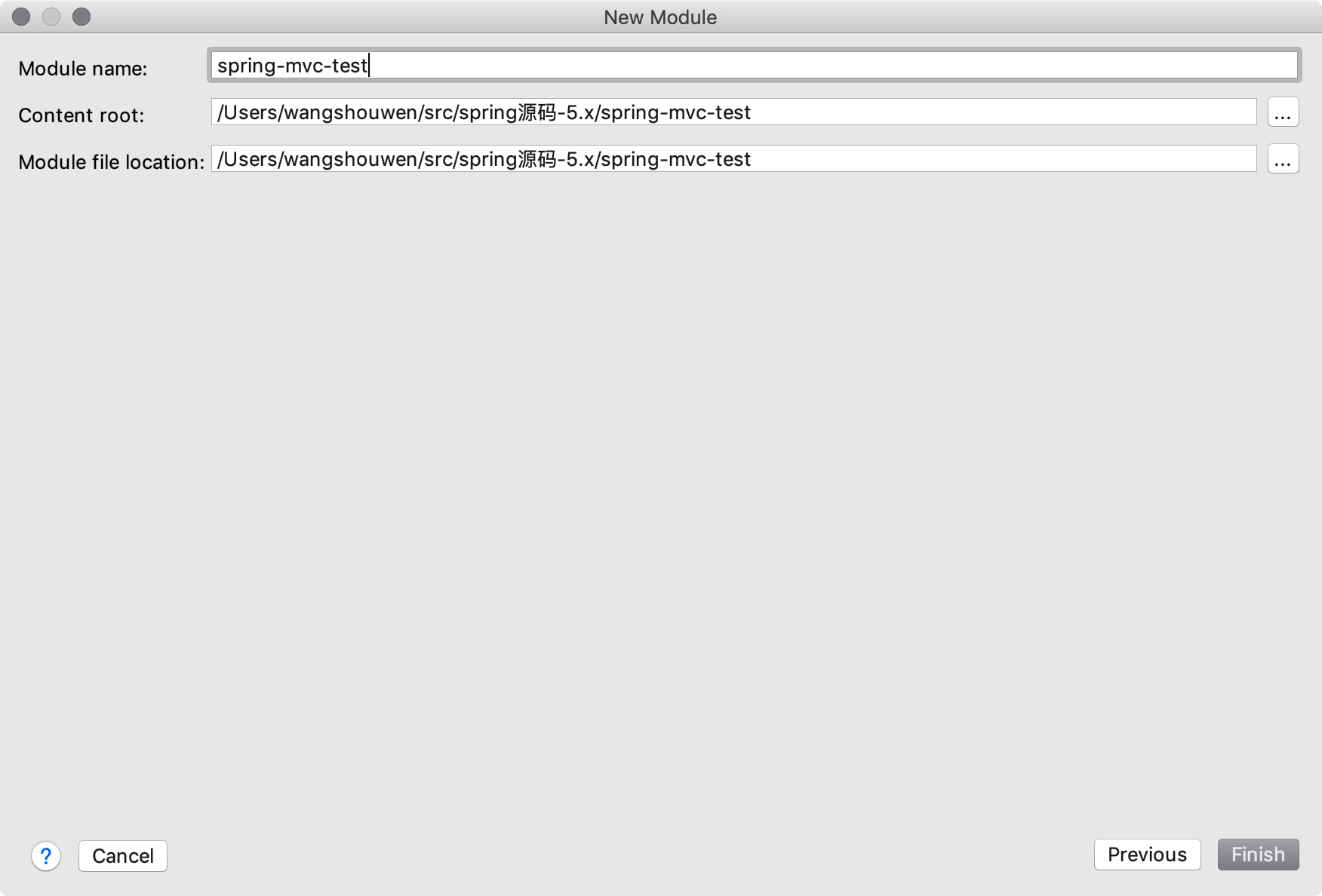

3、存盤路徑

file

2）增加起步依賴

依賴的專案，直接復制粘貼上去

1、對spring的依賴

2、對MVC的依賴

3、對Tomcat插件的依賴

build.gradle

group 'com.spring.test'
version '5.0.2.RELEASE'

apply plugin: 'java'
apply plugin: 'war'
apply plugin: 'com.bmuschko.tomcat' //tomcat: 插件
// tomcat: 以下配置會在第一次啟動時下載插件二進制檔案
//在專案根目錄中執行gradle tomcatRun
buildscript {
    repositories {
        jcenter()
    }

    dependencies {
        classpath 'com.bmuschko:gradle-tomcat-plugin:2.5'
    }
}
// 配置阿里源
allprojects {
    repositories {
        maven{ url 'http://maven.aliyun.com/nexus/content/groups/public/'}
    }
}


dependencies {
    testCompile group: 'org.testng', name: 'testng', version: '6.14.3'
    runtime 'javax.servlet:jstl:1.1.2' // Servlet容器必需
    compile(project(':spring-context'))
    compile(project(':spring-web'))
    compile(project(':spring-webmvc'))

    // tomcat: 將Tomcat運行時庫添加到配置tomcat中: (此處為Tomcat9)
    def tomcatVersion = '9.0.1'
    tomcat "org.apache.tomcat.embed:tomcat-embed-core:${tomcatVersion}",
            "org.apache.tomcat.embed:tomcat-embed-logging-juli:9.0.0.M6",
            "org.apache.tomcat.embed:tomcat-embed-jasper:${tomcatVersion}"
}

// tomcat: 一些協議設定（注意，這里必須加上，不然會拋tomcat的例外，僅限tomcat9）
tomcat {
    httpProtocol = 'org.apache.coyote.http11.Http11Nio2Protocol'
    ajpProtocol  = 'org.apache.coyote.ajp.AjpNio2Protocol'
}



// UTF-8
tasks.withType(JavaCompile) {
    options.encoding = "UTF-8"
}

3）MVC代碼撰寫

前提：

增加WEB-INF目錄和Web.xml

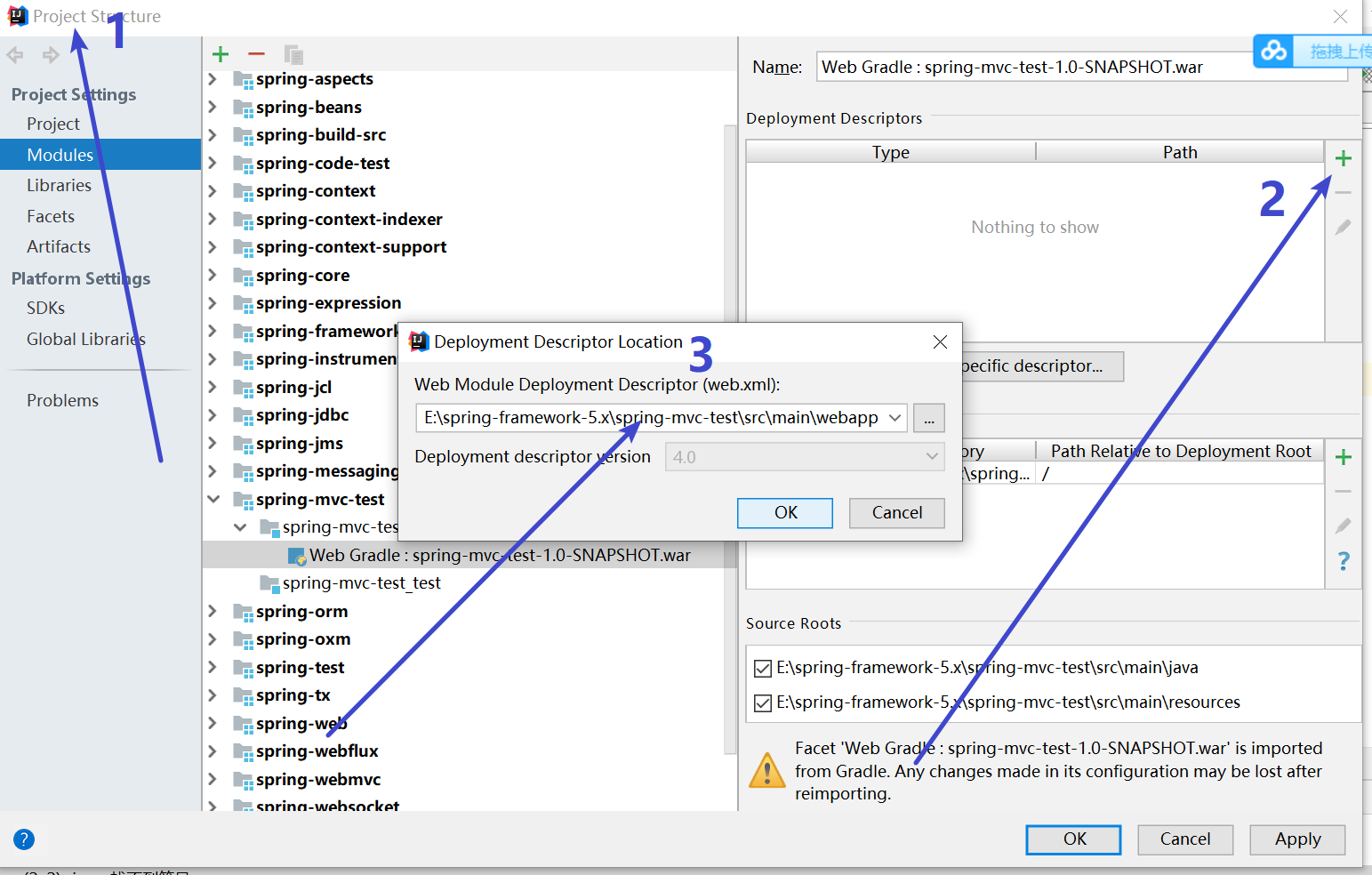

1、打開File - Proect Structrue

2、選中剛才的mvc專案，展開，選中web gradle ，到右邊點擊加號

3、確認路徑

spring-mvc-test\src\main\webapp\WEB-INF\web.xml

WEB-INF和xml創建完畢
file

webapp/WEB-INF/web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

	<!-- Spring MVC配置 -->
	<servlet>
		<servlet-name>mvc</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:mvc-servlet.xml</param-value>
			<!--<param-value>/WEB-INF/mvc-servlet.xml</param-value>-->
		</init-param>
		<!-- load-on-startup元素標記容器是否在啟動的時候就加載這個servlet(實體化并呼叫其init()方法) -->
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>mvc</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

</web-app>

resources/mvc-servlet.xml

<beans xmlns="http://www.springframework.org/schema/beans"
	   xmlns:mvc="http://www.springframework.org/schema/mvc"
	   xmlns:context="http://www.springframework.org/schema/context"
	   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	   xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">

	<!-- 開啟注解掃描 -->
	<context:component-scan base-package="com.spring.mvc.test"/>
	<!-- 視圖決議器物件 -->
	<bean id="internalResourceViewResolver" >
		<property name="prefix" value="https://www.cnblogs.com/"/>
		<!--<property name = "prefix" value="https://www.cnblogs.com/WEB-INF/"></property>-->
		<property name="suffix" value="https://www.cnblogs.com/jiagooushi/p/.jsp"/>
	</bean>
	<!-- 開啟SpringMVC框架注解的支持 -->
	<mvc:annotation-driven/>
	<!--靜態資源(js、image等)的訪問-->
	<mvc:default-servlet-handler/>

</beans>

webapp/index.jsp

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
  <head>
    <title>SpringMvc原始碼深入剖析</title>
  </head>
  <body>
  Gradle構建Spring MVC例子....
  </body>
</html>

MvcController.java

package com.spring.mvc.test;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class MvcController {

	@RequestMapping("/index")
	public ModelAndView getModeAndView() {
		//創建一個模型視圖物件
		ModelAndView mav = new ModelAndView("index");
		return mav;
	}
	@RequestMapping("/text")
	@ResponseBody
	public String text() {
		return "Text...";
	}

}

4）啟動MVC專案

兩種啟動方式

方式一：外掛啟動

idea環境外面啟動（專案根目錄下運行 gradle + task name）

Task Name	Depends On	Type	Description
tomcatRun	-	TomcatRun	啟動Tomcat實體并將Web應用程式部署到該實體，
tomcatRunWar	-	TomcatRunWar	啟動Tomcat實體并將WAR部署
tomcatStop	-	TomcatStop	停止Tomcat實體
tomcatJasper	-	TomcatJasper	運行JSP編譯器并使用Jasper將JSP頁面轉換為Java源代碼，

在專案根目錄中執行gradle tomcatRun

#動Tomcat實體并將Web應用程式部署到該實體
gradle  tomcatRun
#停止Tomcat實體
gradle tomcatStop

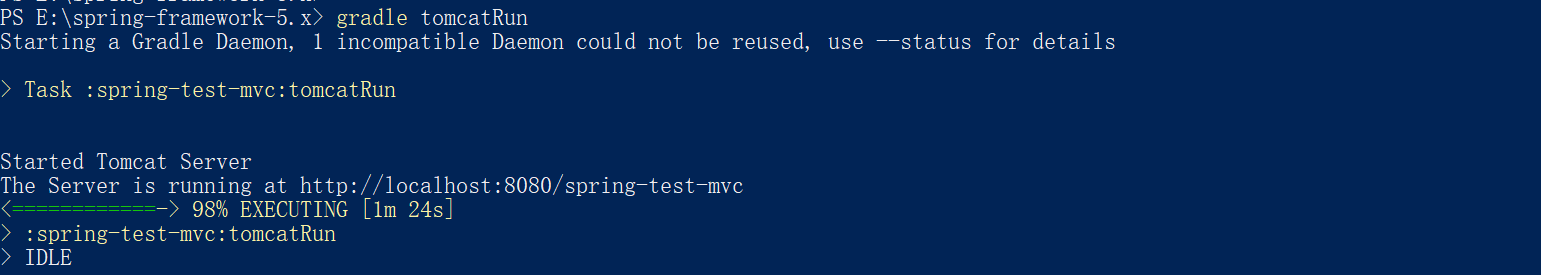

控制臺正常輸出

file

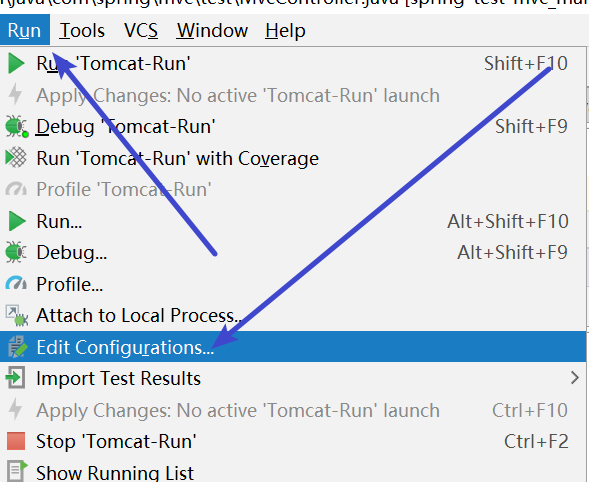

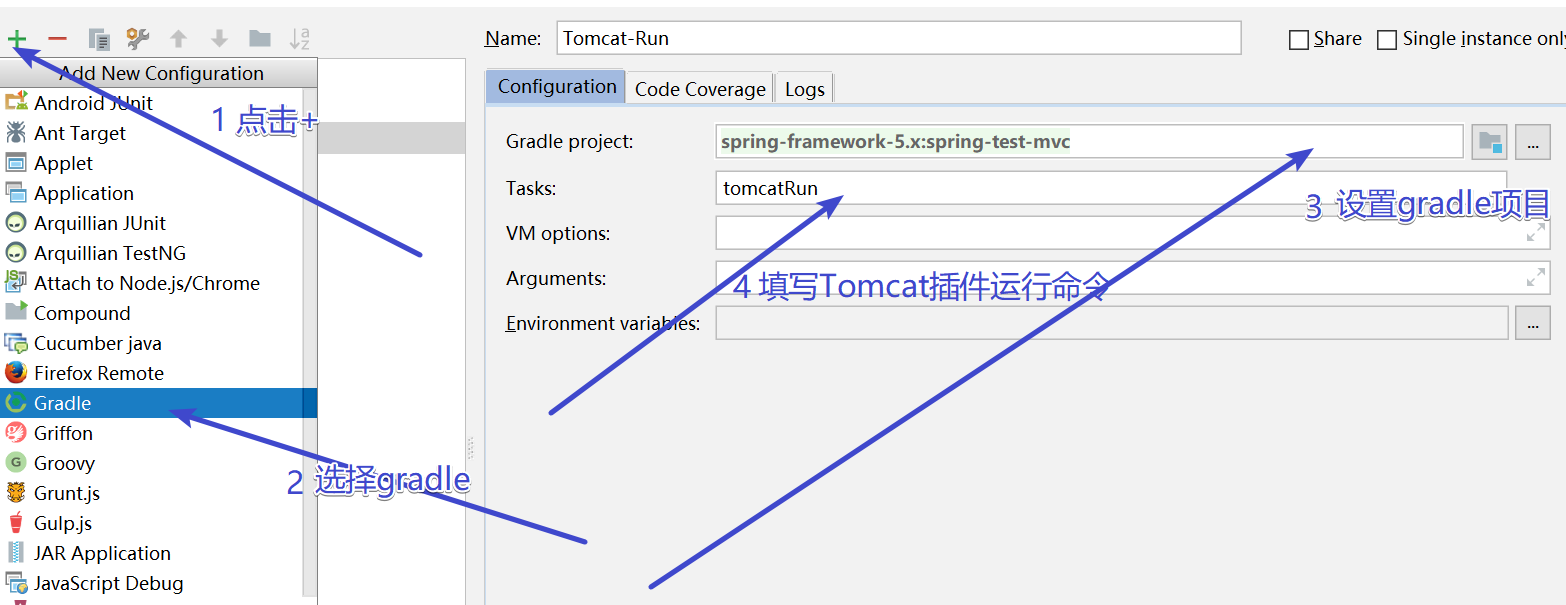

方式二：集成到idea中啟動

file

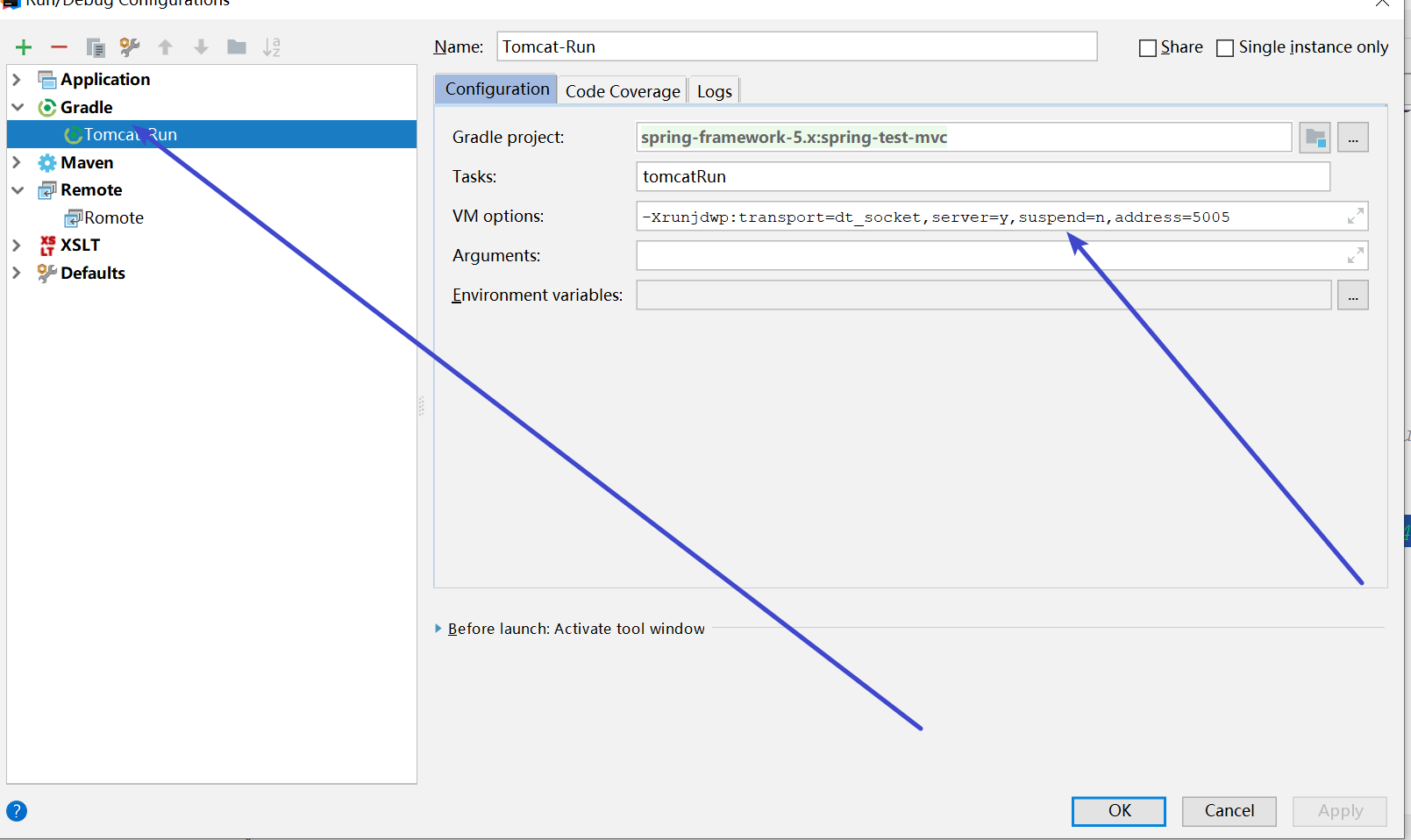

設定

file

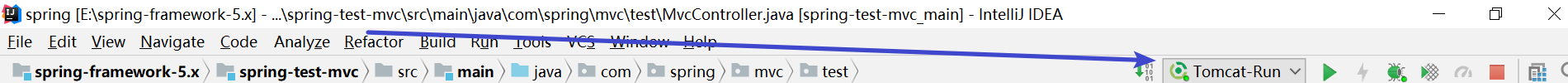

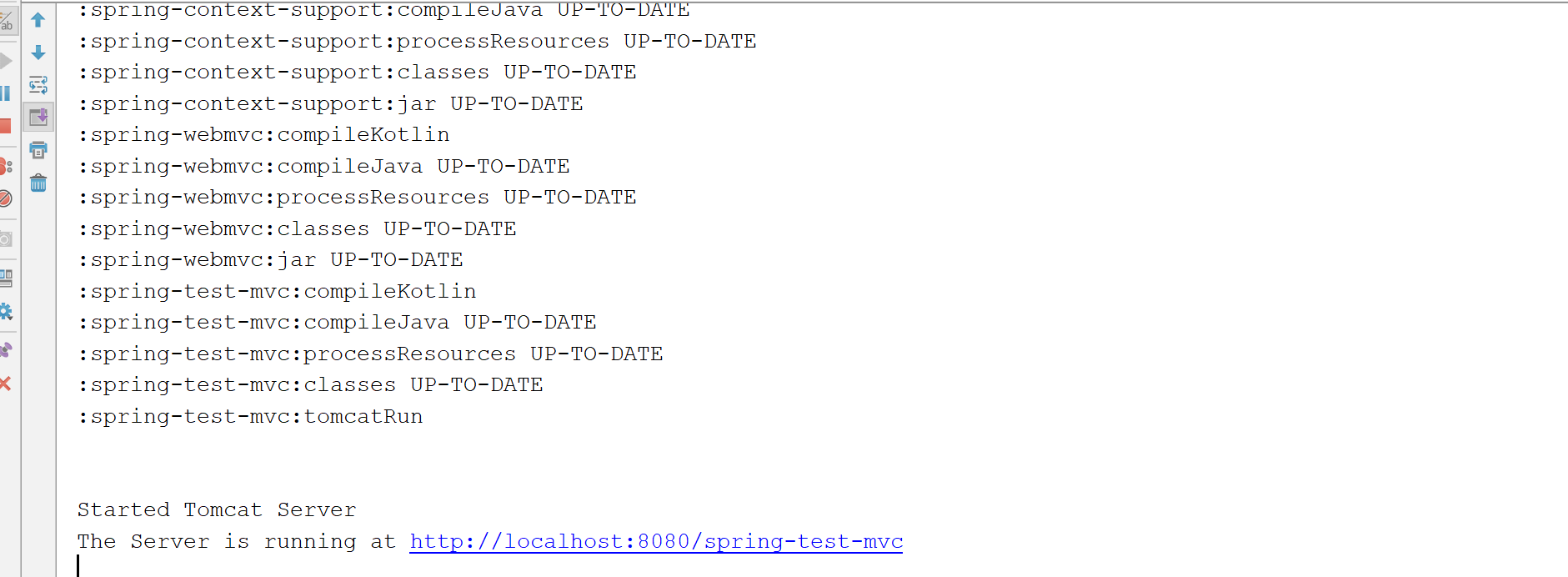

即可點擊運行

file

運行成功

file

方式三：

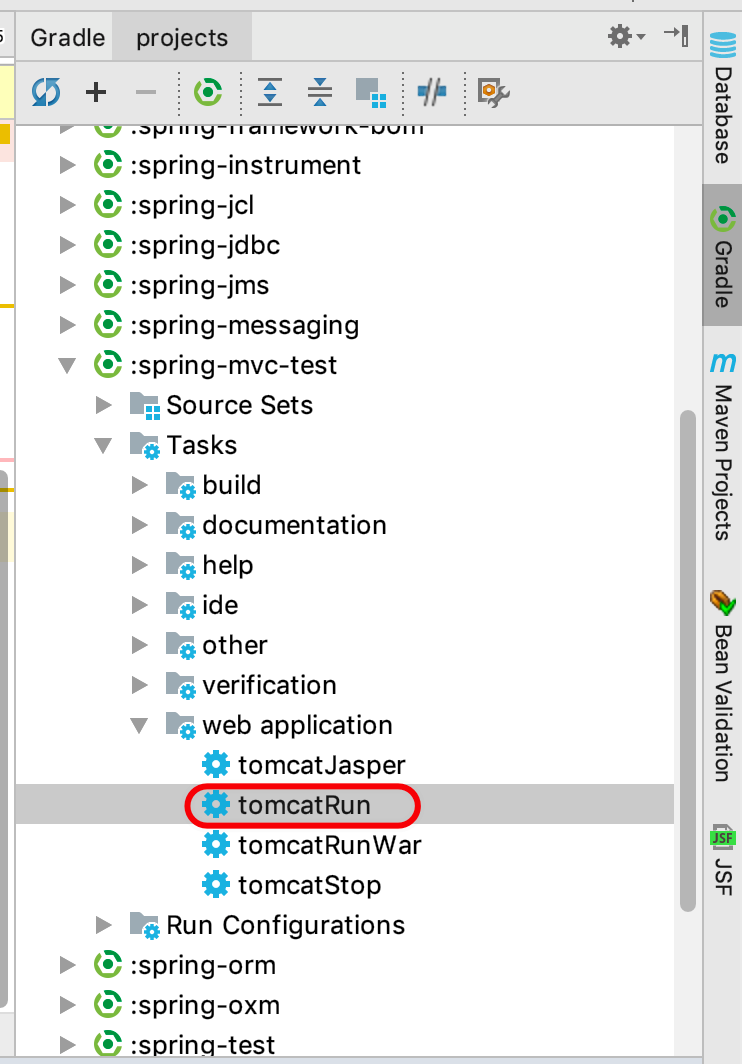

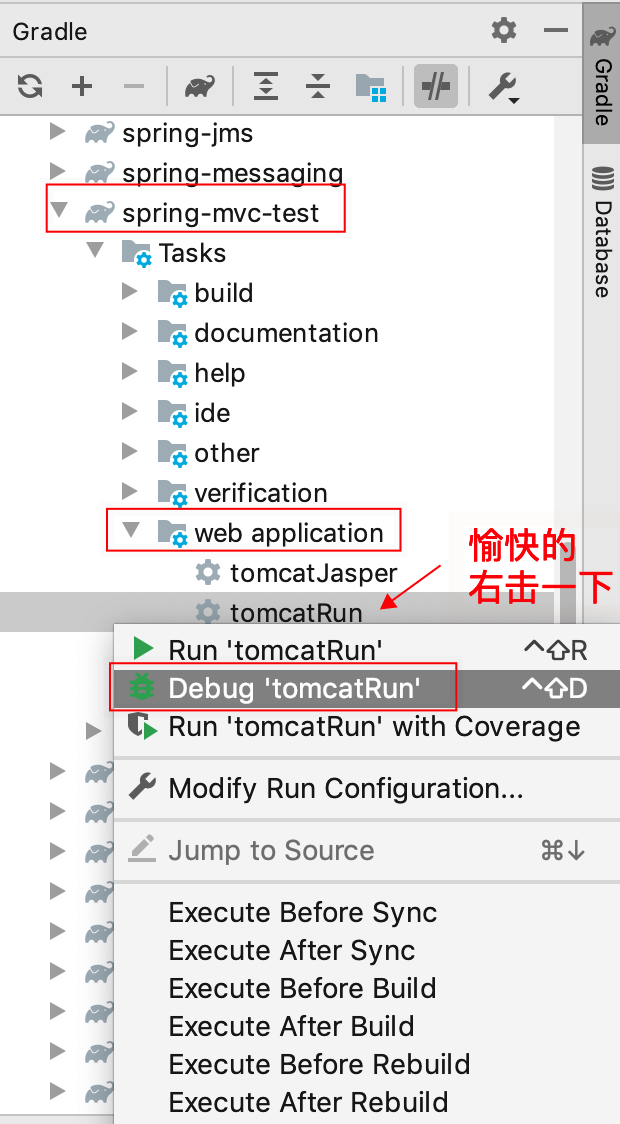

idea右邊找到gradle的task，直接雙擊，這個爽~

file

訪問MVC專案

注意：spring-test-mvc是專案的名稱

http://localhost:8080/spring-test-mvc/index

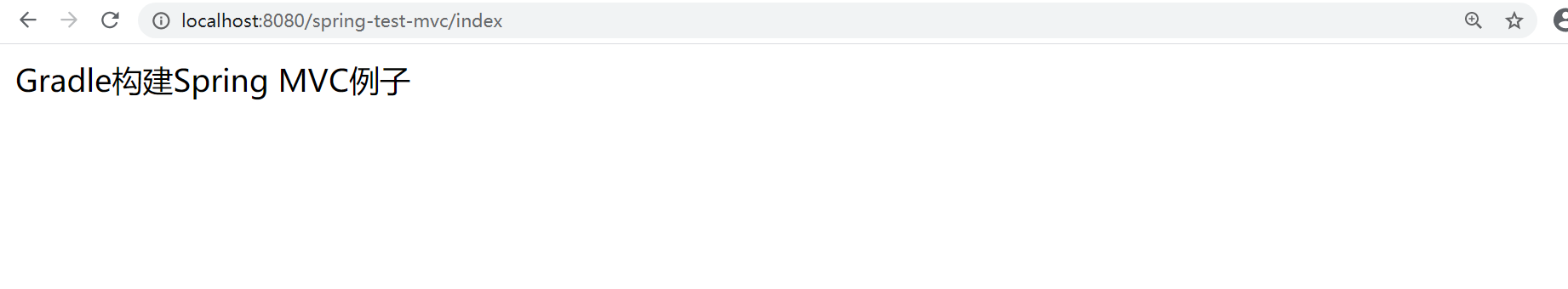

效果如下

file

5）原始碼除錯配置

idea里的除錯

簡單，debug模式啟動tomcat即可

file

遠程除錯模式

重要

想要遠程debug，需要使用上面的方法二，因為debug啟動需要設定gradle的環境變數，

即運行gradle命令的時候插入一些引數命令，

增加debug引數，對外暴露5005埠，即監聽5005埠，

-Xrunjdwp:transport=dt_socket,server=y,suspend=n,address=5005

file

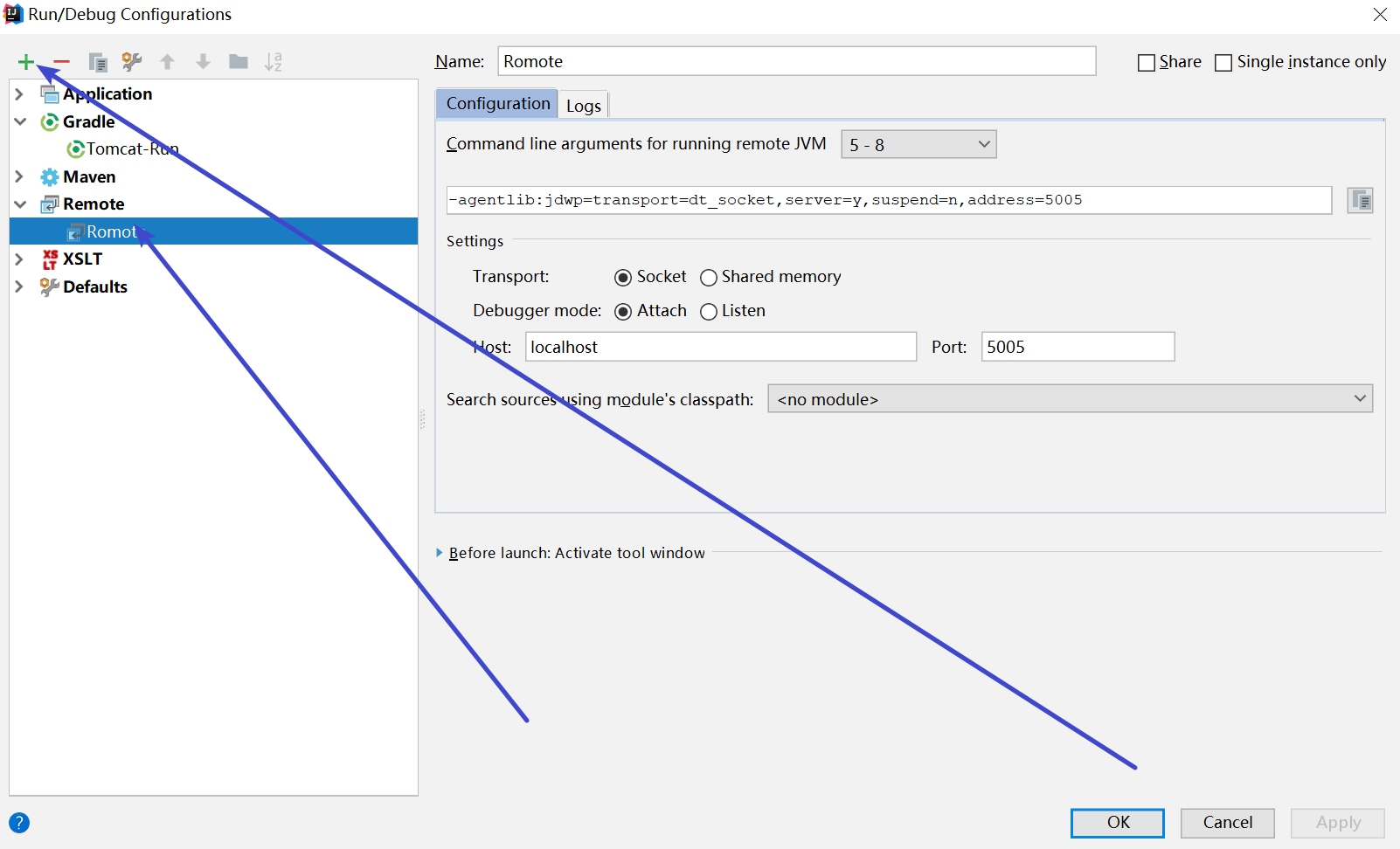

在配置Remote；監聽5005埠

點擊+號，創建Remote；默認配置即可

file
最后一步

1、先運行tomcat

2、再運行remote

http://localhost:8080/spring-test-mvc/index

打上斷點試試！

包括我們之前ioc里的bean創建等地方，隨便打，

1.2 MVC作業原理和繼承關系

1）MVC底層作業原理

目標：認識SpringMVC的作業原理（對照原始碼），如何找到對應的Controller，進行頁面渲染的

步驟：11步

源頭：http://localhost:8080/spring-test-mvc/index

file

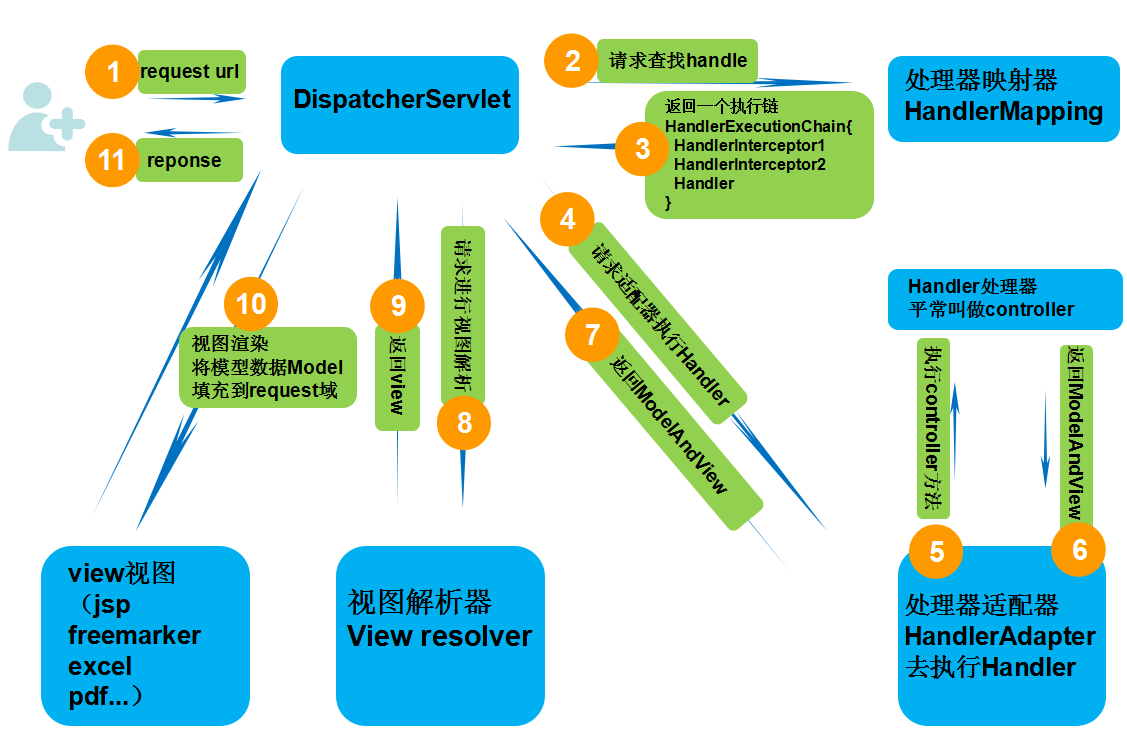

SpringMVC作業原理

1、DispatcherServlet(前端控制器) 是個servlet，負責接收Request 并將Request 轉發給對應的處理組件，

2、 HanlerMapping （處理器映射器）是SpringMVC 中完成url 到Controller 映射的組件，DispatcherServlet 從HandlerMapping 查找處理Request 的Controller，

3、HanlerMapping 回傳一個執行器鏈（url 到Controller 映射的組件）給DispatcherServlet

4、DispatcherServlet請求處理器配接器HandlerAdapter

5、處理器配接器HandlerAdapter去訪問我們的handler（controller）

6、handler（controller）回傳ModelAndView給處理器配接器HandlerAdapter

7、處理器配接器HandlerAdapter回傳ModelAndView給DispatcherServlet

8、DispatcherServlet請求ViewResolver視圖決議器

9、ViewResolver視圖決議器回傳view給DispatcherServlet

10、DispatcherServlet請求view做頁面決議和渲染

11、view將渲染好的資料回傳給DS，DS將渲染好的字符流給client，看到了頁面！

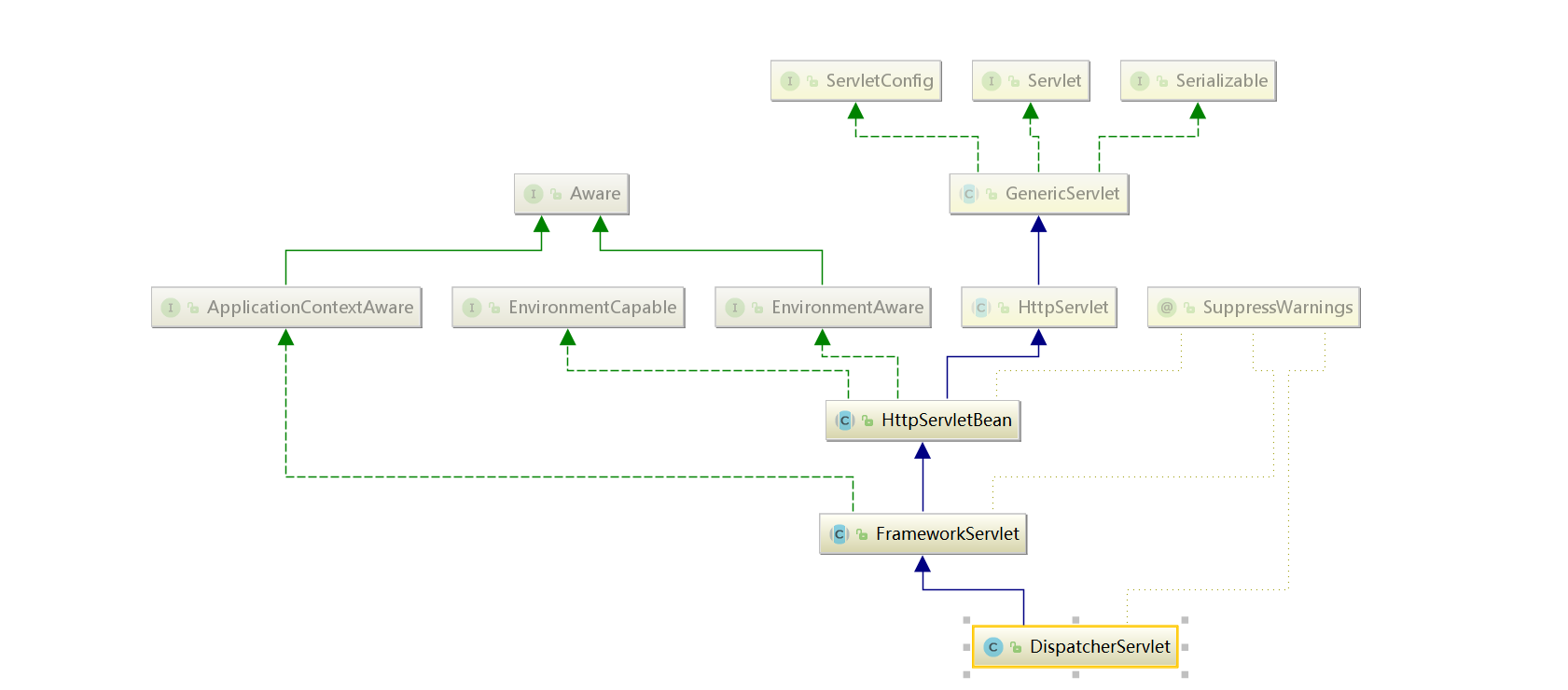

2）MVC核心類繼承關系

目標：簡單認識MVC的繼承關系

tips

不要求記住

file
DispatcherServlet 前端總控制器(webmvc原始碼)

FrameworkServlet (webmvc原始碼)

HttpServletBean 是的一個簡單擴展類（(webmvc原始碼）

HttpServlet（servlet API ，已經離開了spring mvc的控制范圍）

1.3 Spring MVC原始碼深入剖析

引言：
當前原始碼講解思路
1、斷點除錯
2、流程圖對照
3、繼承關系對照

1.3.1 MVC啟動階段

注意，這個階段沒法debug，我們從servlet規范去直接看原始碼

下面的請求階段，再詳細debug請求鏈路的完整程序

web.xml回顧

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

	<!-- Spring MVC配置 -->
	<servlet>
		<servlet-name>mvc</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:mvc-servlet.xml</param-value>
			<!--<param-value>/WEB-INF/mvc-servlet.xml</param-value>-->
		</init-param>
		<!-- load-on-startup元素標記容器是否在啟動的時候就加載這個servlet(實體化并呼叫其init()方法) -->
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>mvc</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>


	 <!--初始化Spring icC容器-->
	<!--<context-param>-->
		<!--<param-name>contextConfigLocation</param-name>-->
	<!--默認的路徑是/WEB-INF/applicationontext.xml,下面多個xml使用，分割-->
		<!--<param-value>classpath: applicationContext-ZH.xml</param-value>-->
	<!--</context-param>-->
	<!--要使用Spring的IoC容器-->
	<!--<listener>-->
		<!--<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>-->
	<!--</listener>-->

</web-app>

從上面的配置，我們可以看出，web.xml中的DS是一個servlet，那就從java web的servlet規范說起

上面類關系，我們說過，springmvc的范疇里，最頂層的是 HttpServletBean 繼承的標準 HttpServlet

1、ioC Bean初始化

org.springframework.web.servlet.HttpServletBean#init

2、9大組件初始化（ioC）

org.springframework.web.servlet.HttpServletBean#init

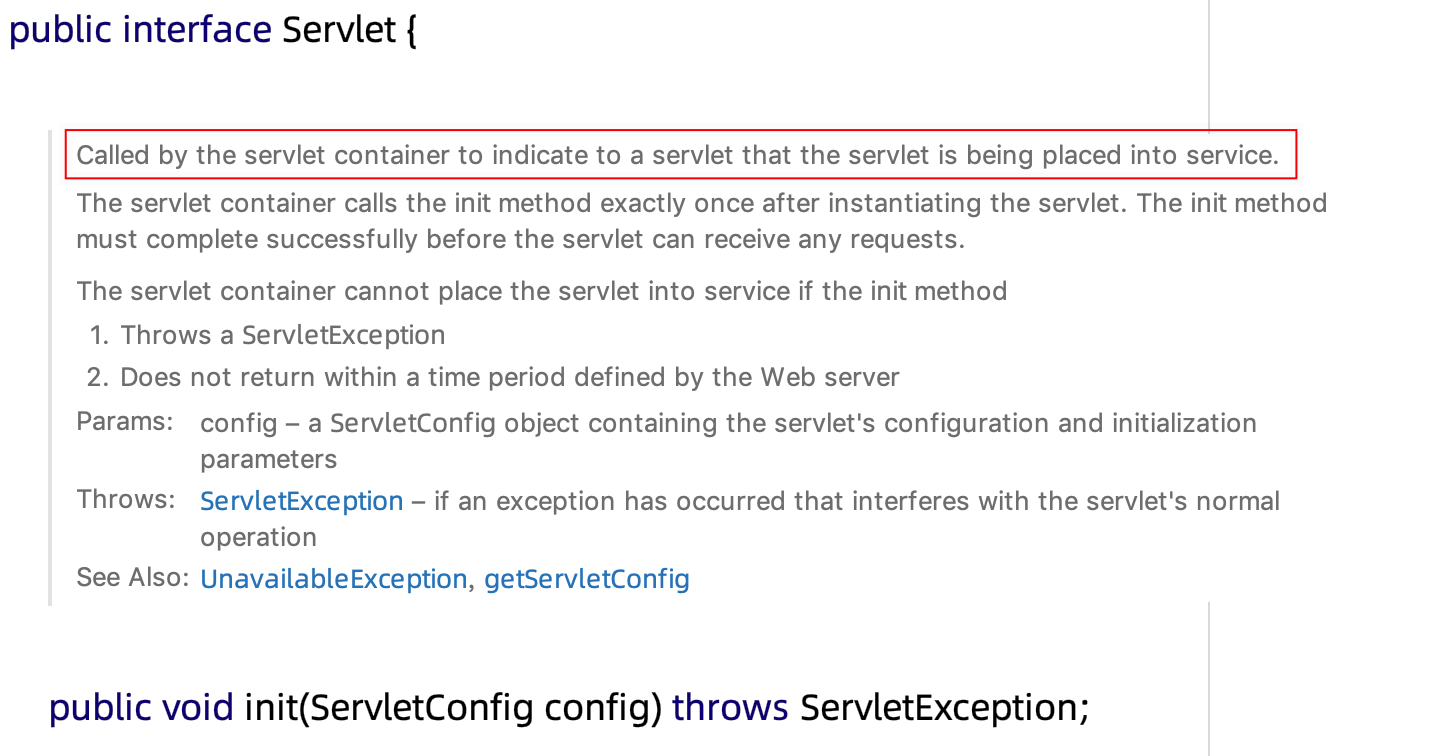

啟動：servlet規范，init方法被容器呼叫

在servlet實體化后，被容器呼叫一次init方法，所以啟動我們找到mvc里的父類從init看起

file

總結：方法呼叫關系（偽代碼）

HttpServletBean{
  init(){
    protected initServletBean();
  }
}

FrameworkServlet extends HttpServletBean{
  @Override
  initServletBean(){
    initWebApplicationContext(){
      WebApplicationContext wac = createWebApplicationContext(rootContext);
      protected onRefresh(wac);
    }
  }
}

DispatcherServlet extends FrameworkServlet{
  onRefresh(wac){
    initStrategies(wac){
      	//多檔案上傳的組件
        initMultipartResolver(context);
        //初始化本地語言環境
        initLocaleResolver(context);
        //初始化模板處理器
        initThemeResolver(context);
        //初始化處理器映射器
        initHandlerMappings(context);
        //初始化處理器配接器
        initHandlerAdapters(context);
        //初始化例外攔截器
        initHandlerExceptionResolvers(context);
        //初始化視圖前處理器
        initRequestToViewNameTranslator(context);
        //初始化視圖轉換器
        initViewResolvers(context);
        //FlashMap 管理器
        initFlashMapManager(context);
    }
  }
}

1.3.2 MVC請求階段

需求：我們在瀏覽器輸入http://localhost:8080/spring-test-mvc/index，背后到底做了哪些事情

目標:MVC如何通過一個url就能找到我們的controller，并回傳資料

1、斷點除錯
2、流程圖對照
3、繼承關系對照

流程圖解：

標準Servlet（回顧tomcat原始碼里，容器最后調的是wrapper的 service 方法）

偽代碼

interface Servlet{
	service()  // 1  , 標準servlet規范的入口
}

HttpServlet implements Servlet{
	public service(ServletRequest req, ServletResponse res){
		//轉成 HttpServletRequest
		protected service(req,res);  // 2
	}
	protected service(HttpServletRequest req, HttpServletResponse resp){
		if(isGet){
			protected doGet()  // 4
		}
	}
	protected void doGet(HttpServletRequest req, HttpServletResponse resp);  // 5
}

//spring mvc

FrameworkServlet extends HttpServlet{
	@Override
	service(){
		super.service();  // 3
	}

	protected void doGet(HttpServletRequest req, HttpServletResponse resp){
		processRequest(request, response){
			protected doService(request, response); // 6
		}
	}
}

DispatcherServlet extends FrameWorkServlet{
	protected doService(request, response);  //  7  , here!
}

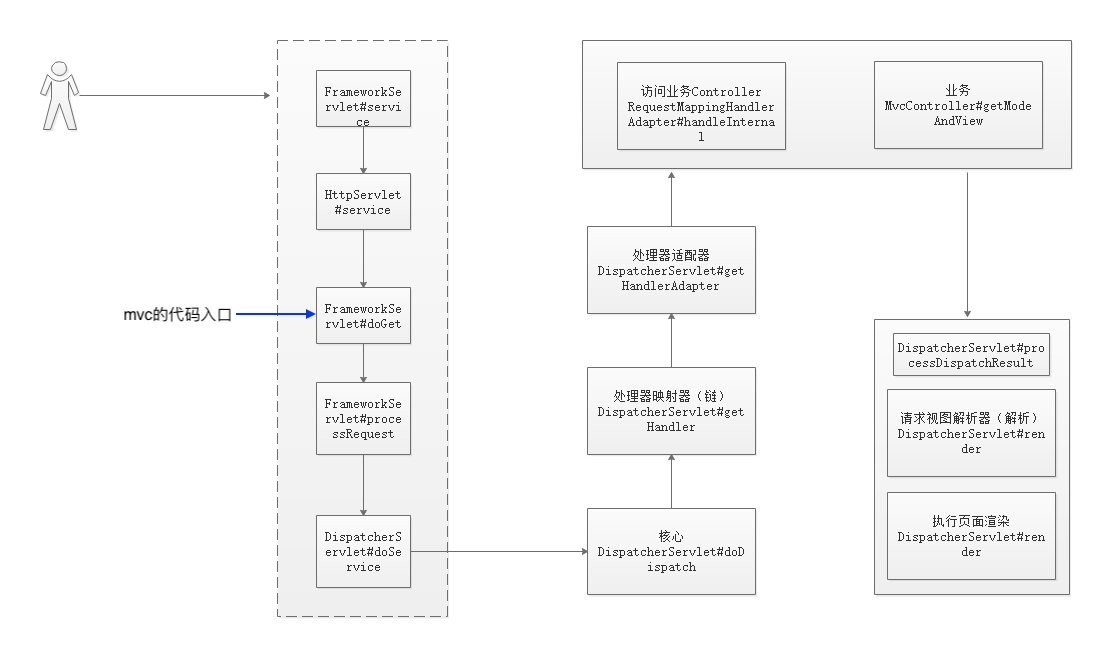

代碼查找的路徑：

file

tips：

spring mvc的 FrameworkServlet ，這是我們原始碼跟蹤的入口

專案啟動

訪問

http://localhost:8080/spring-test-mvc/index

上圖的初始化流程在原始碼中是怎么流轉的呢？

入口：開啟請求的大門

org.springframework.web.servlet.FrameworkServlet：

java web標準告訴我們，request的get會交給標準 HttpServlet的doGet方法

而這個類FrameworkServlet，是HttpServlet的子類，覆寫了上述的doGet，

所以，請求進入spring的第一入口，就在這里！！！

1）org.springframework.web.servlet.FrameworkServlet#doGet

呼叫到了org.springframework.web.servlet.FrameworkServlet#doGet

	//get請求呼叫
	@Override
	protected final void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		processRequest(request, response);
	}

2）org.springframework.web.servlet.FrameworkServlet#processRequest

//	重點關注：doService
	protected final void processRequest(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		long startTime = System.currentTimeMillis();
		Throwable failureCause = null;

		LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
		LocaleContext localeContext = buildLocaleContext(request);

		RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
		ServletRequestAttributes requestAttributes = buildRequestAttributes(request, response, previousAttributes);

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
		asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor());

		initContextHolders(request, localeContext, requestAttributes);

		try {
			//重點查看，跳到DispatcherServlet 類中（子類重寫）
			doService(request, response);
		} catch (ServletException | IOException ex) {
			failureCause = ex;
			throw ex;
		} catch (Throwable ex) {
			failureCause = ex;
			throw new NestedServletException("Request processing failed", ex);
		} finally {
			resetContextHolders(request, previousLocaleContext, previousAttributes);
			if (requestAttributes != null) {
				requestAttributes.requestCompleted();
			}

			if (logger.isDebugEnabled()) {
				if (failureCause != null) {
					this.logger.debug("Could not complete request", failureCause);
				} else {
					if (asyncManager.isConcurrentHandlingStarted()) {
						logger.debug("Leaving response open for concurrent processing");
					} else {
						this.logger.debug("Successfully completed request");
					}
				}
			}

			publishRequestHandledEvent(request, response, startTime, failureCause);
		}
	}

3）org.springframework.web.servlet.DispatcherServlet#doService

	//重寫父類
	//重點關注  doDispatch(request, response);
	@Override
	protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
		if (logger.isDebugEnabled()) {
			String resumed = WebAsyncUtils.getAsyncManager(request).hasConcurrentResult() ? " resumed" : "";
			logger.debug("DispatcherServlet with name '" + getServletName() + "'" + resumed +
					" processing " + request.getMethod() + " request for [" + getRequestUri(request) + "]");
		}

		// Keep a snapshot of the request attributes in case of an include,
		// to be able to restore the original attributes after the include.
		Map<String, Object> attributesSnapshot = null;
		if (WebUtils.isIncludeRequest(request)) {
			attributesSnapshot = new HashMap<>();
			Enumeration<?> attrNames = request.getAttributeNames();
			while (attrNames.hasMoreElements()) {
				String attrName = (String) attrNames.nextElement();
				if (this.cleanupAfterInclude || attrName.startsWith(DEFAULT_STRATEGIES_PREFIX)) {
					attributesSnapshot.put(attrName, request.getAttribute(attrName));
				}
			}
		}

		// Make framework objects available to handlers and view objects.
		request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
		request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
		request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
		request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());

		if (this.flashMapManager != null) {
			FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
			if (inputFlashMap != null) {
				request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
			}
			request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
			request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);
		}

		try {
			//重點關注
			doDispatch(request, response);
		}
		finally {
			if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
				// Restore the original attribute snapshot, in case of an include.
				if (attributesSnapshot != null) {
					restoreAttributesAfterInclude(request, attributesSnapshot);
				}
			}
		}
	}

進入核心

4）org.springframework.web.servlet.DispatcherServlet#doDispatch

//	Spring MVC的最核心代碼
	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			//創建視圖物件
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
				//請求檢查，是否檔案上傳請求（二進制請求）
				processedRequest = checkMultipart(request);
				multipartRequestParsed = (processedRequest != request);

//				根據當前的請求去拿一個Handler.這個Handler其實就是我們的控制器，進入！！！！！
				mappedHandler = getHandler(processedRequest);
				if (mappedHandler == null) {
					noHandlerFound(processedRequest, response);
					return;
				}

				// 處理器配接器，9大組件初始化
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.
				String method = request.getMethod();
				//get方法為true
				boolean isGet = "GET".equals(method);
				//method為get
				if (isGet || "HEAD".equals(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (logger.isDebugEnabled()) {
						logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
					}
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}

				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				// 執行我們的業務控制器方法,com.spring.mvc.test.MvcController.getModeAndView
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

				if (asyncManager.isConcurrentHandlingStarted()) {
					return;
				}
           //視圖決議器
				applyDefaultViewName(processedRequest, mv);
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			catch (Throwable err) {
				// As of 4.3, we're processing Errors thrown from handler methods as well,
				// making them available for @ExceptionHandler methods and other scenarios.
				dispatchException = new NestedServletException("Handler dispatch failed", err);
			}
			//視圖渲染
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		catch (Exception ex) {
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Throwable err) {
			triggerAfterCompletion(processedRequest, response, mappedHandler,
					new NestedServletException("Handler processing failed", err));
		}
		finally {
			if (asyncManager.isConcurrentHandlingStarted()) {
				// Instead of postHandle and afterCompletion
				if (mappedHandler != null) {
					mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
				}
			}
			else {
				// Clean up any resources used by a multipart request.
				if (multipartRequestParsed) {
					cleanupMultipart(processedRequest);
				}
			}
		}
	}

5）org.springframework.web.servlet.DispatcherServlet#getHandler

	@Nullable
	protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		//不止一個，比如BeanNameHandlerMapping、SimpleUrlHandlerMapping，還有我們需要的RequestHandlerMapping
		//在9個組件初始化的時候賦值
		if (this.handlerMappings != null) {
			for (HandlerMapping hm : this.handlerMappings) {
				if (logger.isTraceEnabled()) {
					logger.trace(
							"Testing handler map [" + hm + "] in DispatcherServlet with name '" + getServletName() + "'");
				}
				//這個就是執行器鏈
				HandlerExecutionChain handler = hm.getHandler(request);
				if (handler != null) {
					return handler;
				}
			}
		}
		return null;
	}

org.springframework.web.servlet.DispatcherServlet#getHandlerAdapter

	protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
		if (this.handlerAdapters != null) {
			for (HandlerAdapter ha : this.handlerAdapters) {
				if (logger.isTraceEnabled()) {
					logger.trace("Testing handler adapter [" + ha + "]");
				}
				if (ha.supports(handler)) {
					return ha;
				}
			}
		}
		throw new ServletException("No adapter for handler [" + handler +
				"]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
	}

6） 呼叫業務Controller

// 執行我們的業務控制器方法,com.spring.mvc.test.MvcController.getModeAndView
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter#handleInterna

	@Override
	protected boolean supportsInternal(HandlerMethod handlerMethod) {
		return true;
	}

	@Override
	protected ModelAndView handleInternal(HttpServletRequest request,
			HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

		ModelAndView mav;
		checkRequest(request);

		// Execute invokeHandlerMethod in synchronized block if required.
		if (this.synchronizeOnSession) {
			HttpSession session = request.getSession(false);
			if (session != null) {
				Object mutex = WebUtils.getSessionMutex(session);
				synchronized (mutex) {
					mav = invokeHandlerMethod(request, response, handlerMethod);
				}
			}
			else {
				// No HttpSession available -> no mutex necessary
				mav = invokeHandlerMethod(request, response, handlerMethod);
			}
		}
		else {
			// No synchronization on session demanded at all...
			mav = invokeHandlerMethod(request, response, handlerMethod);
		}

		if (!response.containsHeader(HEADER_CACHE_CONTROL)) {
			if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
				applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
			}
			else {
				prepareResponse(response);
			}
		}

		return mav;
	}

7）org.springframework.web.servlet.DispatcherServlet#processDispatchResult

//1、請求視圖決議器，決議成view
	//2、執行頁面渲染
	private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
			@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
			@Nullable Exception exception) throws Exception {

		boolean errorView = false;
       //如果例外不為空
		if (exception != null) {
			if (exception instanceof ModelAndViewDefiningException) {
				logger.debug("ModelAndViewDefiningException encountered", exception);
				mv = ((ModelAndViewDefiningException) exception).getModelAndView();
			}
			else {
				Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
				mv = processHandlerException(request, response, handler, exception);
				errorView = (mv != null);
			}
		}

		//視圖渲染，回應視圖
		if (mv != null && !mv.wasCleared()) {
			//執行渲染
			render(mv, request, response);
			if (errorView) {
				WebUtils.clearErrorRequestAttributes(request);
			}
		}
		else {
			if (logger.isDebugEnabled()) {
				logger.debug("Null ModelAndView returned to DispatcherServlet with name '" + getServletName() +
						"': assuming HandlerAdapter completed request handling");
			}
		}

		if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
			// Concurrent handling started during a forward
			return;
		}

		if (mappedHandler != null) {
			mappedHandler.triggerAfterCompletion(request, response, null);
		}
	}

本文由傳智教育博學谷教研團隊發布，

如果本文對您有幫助，歡迎關注和點贊；如果您有任何建議也可留言評論或私信，您的支持是我堅持創作的動力，

轉載請注明出處！

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/525857.html

標籤：Java

上一篇：判斷執行緒池是否全部完成的 5 種方法，還有誰不會？

下一篇：微服務框架：如果不用 Spring Boot，還可以選擇誰？
