SpringMVC

2023-02-16 07:30:39 後端開發

第一章 初識SpringMVC

1.1 SpringMVC概述

  • SpringMVC是Spring子框架

  • SpringMVC是Spring 為【展現層|表示層|表述層|控制層】提供的基于 MVC 設計理念的優秀的 Web 框架,是目前最主流的MVC 框架,

  • SpringMVC是非侵入式:可以使用注解讓普通java物件,作為請求處理器【Controller】

  • SpringMVC是用來代替Servlet

    Servlet作用

    1. 處理請求
      - 將資料共享到域中
    2. 做出回應
      - 跳轉頁面【視圖】

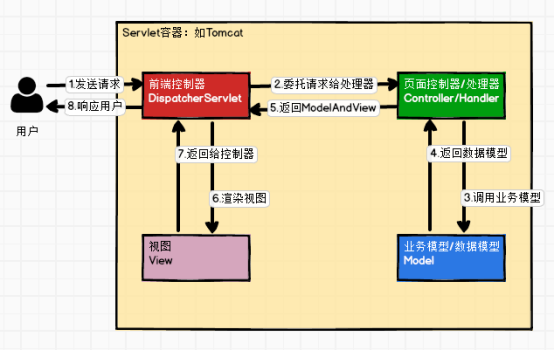

1.2 SpringMVC處理請求原理簡圖

  • 請求
  • DispatcherServlet【前端控制器】
    • 將請求交給Controller|Handler
  • Controller|Handler【請求處理器】
    • 處理請求
    • 回傳資料模型
  • ModelAndView
    • Model:資料模型
    • View:視圖物件或視圖名
  • DispatcherServlet渲染視圖
    • 將資料共享到域中
    • 跳轉頁面【視圖】
  • 回應


第二章 SpringMVC搭建框架

2.1 搭建SpringMVC框架

  • 創建工程【web工程】

  • 匯入jar包

    <!--spring-webmvc-->
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>5.3.1</version>
    </dependency>

    <!-- 匯入thymeleaf與spring5的整合包 -->
    <dependency>
        <groupId>org.thymeleaf</groupId>
        <artifactId>thymeleaf-spring5</artifactId>
        <version>3.0.12.RELEASE</version>
    </dependency>

    <!--servlet-api-->
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>javax.servlet-api</artifactId>
        <version>4.0.1</version>
        <scope>provided</scope>
    </dependency>

  • 撰寫組態檔

    • web.xml注冊DispatcherServlet
      • url配置:/
      • init-param:contextConfigLocation,設定springmvc.xml組態檔路徑【管理容器物件】
      • <load-on-startup>:設定DispatcherServlet優先級【啟動服務器時,創建當前Servlet物件】
    • springmvc.xml
      • 開啟組件掃描
      • 配置視圖決議器【決議視圖(設定視圖前綴&后綴)】
  • 撰寫請求處理器【Controller|Handler】

    • 使用@Controller注解標識請求處理器
    • 使用@RequestMapping注解標識處理方法【URL】
  • 準備頁面進行,測驗

第三章 @RequestMapping詳解

@RequestMapping注解作用:為指定的類或方法設定相應URL

3.1 @RequestMapping注解位置

  • 書寫在類上面
    • 作用:為當前類設定映射URL
    • 注意:不能單獨使用,需要與方法上的@RequestMapping配合使用
  • 書寫在方法上面
    • 作用:為當前方法設定映射URL
    • 注意:可以單獨使用

3.2 @RequestMapping注解屬性

  • value屬性

    • 型別:String[]
    • 作用:設定URL資訊
  • path屬性

    • 型別:String[]
    • 作用:與value屬性作用一致
  • method屬性

    • 型別:RequestMethod[]

      public enum RequestMethod {
         GET, HEAD, POST, PUT, PATCH, DELETE, OPTIONS, TRACE
      }

    • 作用:為當前URL【類或方法】設定請求方式【POST、DELETE、PUT、GET】

    • 注意:

      • 默認情況:所有請求方式均支持
      • 如請求方式不支持,會報如下錯誤
        • 405【Request method 'GET' not supported】
  • params

    • 型別:String[]
    • 作用:為當前URL設定請求引數
    • 注意:如設定指定請求引數,但URL中未攜帶指定引數,會報如下錯誤
      • 400【Parameter conditions "lastName" not met for actual request parameters:】
  • headers

    • 型別:String[]
    • 作用:為當前URL設定請求頭資訊
    • 注意:如設定指定請求頭,但URL中未攜帶請求頭,會報如下錯誤
      • 404:請求資源未找到
  • 示例代碼

    @RequestMapping(value = https://www.cnblogs.com/ygstudy/archive/2023/02/15/{"/saveEmp","/insertEmp"},
                    method = RequestMethod.GET,
                    params = "lastName=lisi",
                    headers = "User-Agent=Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/99.0.4844.84 Safari/537.36")
    public String saveEmp(){
        System.out.println("添加員工資訊!!!!");

        return SUCCESS;
    }

@RequestMapping(method = RequestMethod.POST)
public @interface PostMapping {}
@RequestMapping(method = RequestMethod.GET)
public @interface GetMapping {}
@RequestMapping(method = RequestMethod.PUT)
public @interface PutMapping {}
@RequestMapping(method = RequestMethod.DELETE)
public @interface DeleteMapping {}

3.3 @RequestMapping支持Ant 風格的路徑(了解)

  • 常用通配符

    a) ?:匹配一個字符

    b) *:匹配任意字符

    c) **:匹配多層路徑

  • 示例代碼

    @RequestMapping("/testAnt/**")
    public String testAnt(){
        System.out.println("==>testAnt!!!");
        return SUCCESS;
    }


第四章 @PathVariable 注解

4.1 @PathVariable注解位置

@Target(ElementType.PARAMETER)
  • 書寫在引數前面

4.2 @PathVariable注解作用

  • 獲取URL中占位符引數

  • 占位符語法:{}

  • 示例代碼

    <a th:href="https://www.cnblogs.com/ygstudy/archive/2023/02/15/@{/EmpController/testPathVariable/1001}">測驗PathVariable注解</a><br>

    /**
     * testPathVariable
     * @return
     */
    @RequestMapping("/testPathVariable/{empId}")
    public String testPathVariable(@PathVariable("empId") Integer empId){
        System.out.println("empId = " + empId);
        return SUCCESS;
    }


4.3 @PathVariable注解屬性

  • value屬性
    • 型別:String
    • 作用:設定占位符中的引數名
  • name屬性
    • 型別:String
    • 作用:與name屬性的作用一致
  • required屬性
    • 型別:boolean
    • 作用:設定當前引數是否必須入參【默認值:true】
      • true:表示當前引數必須入參,如未入參會報如下錯誤
        • Missing URI template variable 'empId' for method parameter of type Integer
      • false:表示當前引數不必須入參,如未入參,會裝配null值

第五章 REST【RESTful】風格CRUD

5.1 REST的CRUD與傳統風格CRUD對比

  • 傳統風格CRUD

    • 功能 URL 請求方式
    • 增 /insertEmp POST
    • 刪 /deleteEmp?empId=1001 GET
    • 改 /updateEmp POST
    • 查 /selectEmp?empId=1001 GET
  • REST風格CRUD

    • 功能 URL 請求方式
    • 增 /emp POST
    • 刪 /emp/1001 DELETE
    • 改 /emp PUT
    • 查 /emp/1001 GET

5.2 REST風格CRUD優勢

  • 提高網站排名
    • 排名方式
      • 競價排名
      • 技術排名
  • 便于第三方平臺對接

5.3 實作PUT&DELETE提交方式步驟

  • 注冊過濾器HiddenHttpMethodFilter
  • 設定表單的提交方式為POST
  • 設定引數:_method=PUT或_method=DELETE

5.4 原始碼決議HiddenHttpMethodFilter

public static final String DEFAULT_METHOD_PARAM = "_method";

private String methodParam = DEFAULT_METHOD_PARAM;

@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
      throws ServletException, IOException {

   HttpServletRequest requestToUse = request;

   if ("POST".equals(request.getMethod()) && request.getAttribute(WebUtils.ERROR_EXCEPTION_ATTRIBUTE) == null) {
      String paramValue = https://www.cnblogs.com/ygstudy/archive/2023/02/15/request.getParameter(this.methodParam);
      if (StringUtils.hasLength(paramValue)) {
         String method = paramValue.toUpperCase(Locale.ENGLISH);
         if (ALLOWED_METHODS.contains(method)) {
            requestToUse = new HttpMethodRequestWrapper(request, method);
         }
      }
   }

   filterChain.doFilter(requestToUse, response);
}
/**
	 * Simple {@link HttpServletRequest} wrapper that returns the supplied method for
	 * {@link HttpServletRequest#getMethod()}.
	 */
	private static class HttpMethodRequestWrapper extends HttpServletRequestWrapper {

		private final String method;

		public HttpMethodRequestWrapper(HttpServletRequest request, String method) {
			super(request);
			this.method = method;
		}

		@Override
		public String getMethod() {
			return this.method;
		}
	}

第六章 SpringMVC處理請求資料

使用Servlet處理請求資料

  1. 請求引數
    • String param = request.getParameter();
  2. 請求頭
    • request.getHeader();
  3. Cookie
    • request.getCookies();

6.1 處理請求引數

  • 默認情況:可以將請求引數名,與入參引數名一致的引數,自動入參【自動型別轉換】

  • SpringMVC支持POJO入參

    • 要求:請求引數名與POJO的屬性名保持一致

    • 示例代碼

      <form th:action="@{/saveEmp}" method="POST">
          id:<input type="text" name="id"><br>
          LastName:<input type="text" name="lastName"><br>
          Email:<input type="text" name="email"><br>
          Salary:<input type="text" name="salary"><br>
          <input type="submit" value="https://www.cnblogs.com/ygstudy/archive/2023/02/15/添加員工資訊">
      </form>

      /**
       * 獲取請求引數POJO
       * @return
       */
      @RequestMapping(value = "https://www.cnblogs.com/saveEmp",method = RequestMethod.POST)
      public String saveEmp(Employee employee){
          System.out.println("employee = " + employee);
          return  SUCCESS;
      }

  • @RequestParam注解

    • 作用:如請求引數與入參引數名不一致時,可以使用@RequestParam注解設定入參引數名

    • 屬性

      • value
        • 型別:String
        • 作用:設定需要入參的引數名
      • name
        • 型別:String
        • 作用:與value屬性作用一致
      • required
        • 型別:Boolean
        • 作用:設定當前引數,是否必須入參
          • true【默認值】:表示當前引數必須入參,如未入參會報如下錯誤
            • 400【Required String parameter 'sName' is not present】
          • false:表示當前引數不必須入參,如未入參,裝配null值
      • defaultValue
        • 型別:String
        • 作用:當裝配數值為null時,指定當前defaultValue默認值
    • 示例代碼

      /**
       * 獲取請求引數
       * @return
       */
      @RequestMapping("/requestParam1")
      public String requestParam1(@RequestParam(value = "https://www.cnblogs.com/ygstudy/archive/2023/02/15/sName",required = false,
                                              defaultValue = "https://www.cnblogs.com/ygstudy/archive/2023/02/15/zhangsan")
                                              String stuName,
                                  Integer stuAge){
          System.out.println("stuName = " + stuName);
          System.out.println("stuAge = " + stuAge);
          return SUCCESS;
      }


6.2 處理請頭

  • 語法:@RequestHeader注解

  • 屬性

    • value
      • 型別:String
      • 作用:設定需要獲取請求頭名稱
    • name
      • 型別:String
      • 作用:與value屬性作用一致
    • required
      • 型別:boolean
      • 作用:【默認值true】
        • true:設定當前請求頭是否為必須入參,如未入參會報如下錯誤
          • 400【Required String parameter 'sName' is not present】
        • false:表示當前引數不必須入參,如未入參,裝配null值
    • defaultValue
      • 型別:String
      • 作用:當裝配數值為null時,指定當前defaultValue默認值
  • 示例代碼

    <a th:href="https://www.cnblogs.com/ygstudy/archive/2023/02/15/@{/testGetHeader}">測驗獲取請求頭</a>

    /**
     * 獲取請求頭
     * @return
     */
    @RequestMapping(value = "https://www.cnblogs.com/testGetHeader")
    public String testGetHeader(@RequestHeader("Accept-Language")String al,
                                @RequestHeader("Referer") String ref){
        System.out.println("al = " + al);
        System.out.println("ref = " + ref);
        return SUCCESS;
    }


6.3 處理Cookie資訊

  • 語法:@CookieValue獲取Cookie數值

  • 屬性

    • value
      • 型別:String
      • 作用:設定需要獲取Cookie名稱
    • name
      • 型別:String
      • 作用:與value屬性作用一致
    • required
      • 型別:boolean
      • 作用:【默認值true】
        • true:設定當前Cookie是否為必須入參,如未入參會報如下錯誤
          • 400【Required String parameter 'sName' is not present】
        • false:表示當前Cookie不必須入參,如未入參,裝配null值
    • defaultValue
      • 型別:String
      • 作用:當裝配數值為null時,指定當前defaultValue默認值
  • 示例代碼

    <a th:href="https://www.cnblogs.com/ygstudy/archive/2023/02/15/@{/setCookie}">設定Cookie資訊</a><br>
    <a th:href="https://www.cnblogs.com/ygstudy/archive/2023/02/15/@{/getCookie}">獲取Cookie資訊</a><br>

    /**
         * 設定Cookie
         * @return
         */
        @RequestMapping("/setCookie")
        public String setCookie(HttpSession session){
    //        Cookie cookie = new Cookie();
            System.out.println("session.getId() = " + session.getId());
            return SUCCESS;
        }

        /**
         * 獲取Cookie
         * @return
         */
        @RequestMapping("/getCookie")
        public String getCookie(@CookieValue("JSESSIONID")String cookieValue){
            System.out.println("cookieValue = "https://www.cnblogs.com/ygstudy/archive/2023/02/15/+ cookieValue);
            return SUCCESS;
        }


6.4 使用原生Servlet-API

  • 將原生Servlet相關物件,入參即可
@RequestMapping("/useRequestObject")
public String useRequestObject(HttpServletRequest request){}

第七章 SpringMVC處理回應資料

7.1 使用ModelAndView

  • 使用ModelAndView物件作為方法回傳值型別,處理回應資料

  • ModelAndView是模型資料視圖物件的集成物件,原始碼如下

    public class ModelAndView {

       /** View instance or view name String. */
       //view代表view物件或viewName【建議使用viewName】
       @Nullable
       private Object view;

       /** Model Map. */
       //ModelMap集成LinkedHashMap,存盤資料
       @Nullable
       private ModelMap model;

        /**
        	設定視圖名稱
    	 */
    	public void setViewName(@Nullable String viewName) {
    		this.view = viewName;
    	}

    	/**
    	 * 獲取視圖名稱
    	 */
    	@Nullable
    	public String getViewName() {
    		return (this.view instanceof String ? (String) this.view : null);
    	}

        /**
    	 獲取資料,回傳Map【無序,model可以為null】
    	 */
    	@Nullable
    	protected Map<String, Object> getModelInternal() {
    		return this.model;
    	}

    	/**
    	 * 獲取資料,回傳 ModelMap【有序】
    	 */
    	public ModelMap getModelMap() {
    		if (this.model == null) {
    			this.model = new ModelMap();
    		}
    		return this.model;
    	}

    	/**
    	 * 獲取資料,回傳Map【無序】
    	 */
    	public Map<String, Object> getModel() {
    		return getModelMap();
    	}

        /**
        	設定資料
        */
        public ModelAndView addObject(String attributeName, @Nullable Object attributeValue) {
    		getModelMap().addAttribute(attributeName, attributeValue);
    		return this;
    	}


    }


  • 示例代碼

    @GetMapping("/testMvResponsedata")
    public ModelAndView testMvResponsedata(){
        ModelAndView mv = new ModelAndView();
        //設定邏輯視圖名
        mv.setViewName("response_success");
        //設定資料【將資料共享到域中(request\session\servletContext)】
        mv.addObject("stuName","zhouxu");
        return mv;
    }


7.2 使用Model、ModelMap、Map

  • 使用Model、ModelMap、Map作為方法入參,處理回應資料

  • 示例代碼

    /**
         * 使用Map、Model、ModelMap處理回應資料
         * @return
         */
        @GetMapping("/testMapResponsedata")
        public String testMapResponsedata(Map<String,Object> map
                                             /* Model model
                                            ModelMap modelMap*/){
            map.put("stuName","zhangsan");
    //        model.addAttribute("stuName","lisi");
    //        modelMap.addAttribute("stuName","wangwu");

            return "response_success";
        }


7.3 SpringMVC中域物件

  • SpringMVC封裝資料,默認使用request域物件

  • session域的使用

    • 方式一

      /**
       * 測驗回應資料【其他域物件】
       * @return
       */
      @GetMapping("/testScopeResponsedata")
      public String testScopeResponsedata(HttpSession session){
          session.setAttribute("stuName","xinlai");
          return "response_success";
      }

    • 方式二

      @Controller
      @SessionAttributes(value = "https://www.cnblogs.com/ygstudy/archive/2023/02/15/stuName") //將request域中資料,同步到session域中
      public class TestResponseData {
          /**
           * 使用ModelAndView處理回應資料
           * @return
           */
          @GetMapping("/testMvResponsedata")
          public ModelAndView testMvResponsedata(){
              ModelAndView mv = new ModelAndView();
              //設定邏輯視圖名
              mv.setViewName("response_success");
              //設定資料【將資料共享到域中(request\session\servletContext)】
              mv.addObject("stuName","zhouxu");
              return mv;
          }
      }


第八章 SpringMVC處理請求回應亂碼

8.1 原始碼決議CharacterEncodingFilter

public class CharacterEncodingFilter extends OncePerRequestFilter {

   //需要設定字符集
   @Nullable
   private String encoding;
   //true:處理請亂碼
   private boolean forceRequestEncoding = false;
   //true:處理回應亂碼
   private boolean forceResponseEncoding = false;

    public String getEncoding() {
		return this.encoding;
	}

    public boolean isForceRequestEncoding() {
		return this.forceRequestEncoding;
	}

    public void setForceResponseEncoding(boolean forceResponseEncoding) {
		this.forceResponseEncoding = forceResponseEncoding;
	}

    public void setForceEncoding(boolean forceEncoding) {
		this.forceRequestEncoding = forceEncoding;
		this.forceResponseEncoding = forceEncoding;
	}

 	@Override
	protected void doFilterInternal(
			HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
			throws ServletException, IOException {

		String encoding = getEncoding();
		if (encoding != null) {
			if (isForceRequestEncoding() || request.getCharacterEncoding() == null) {
				request.setCharacterEncoding(encoding);
			}
			if (isForceResponseEncoding()) {
				response.setCharacterEncoding(encoding);
			}
		}

		filterChain.doFilter(request, response);

    }


}

8.2 處理請求與回應亂碼

  • SpringMVC底層默認處理回應亂碼

  • SpringMVC處理請求亂碼步驟

    1. 注冊CharacterEncodingFilter
      • 注冊CharacterEncodingFilter必須是第一Filter位置
    2. 為CharacterEncodingFilter中屬性encoding賦值
    3. 為CharacterEncodingFilter中屬性forceRequestEncoding賦值
  • 示例代碼

    <!--    必須是第一過濾器位置-->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceRequestEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>


第九章 原始碼決議SpringMVC作業原理

9.1 Controller中方法的回傳值問題

  • 無論方法回傳是ModelAndView還是String,最終SpringMVC底層,均會封裝為ModelAndView物件

    //DispatcherServlet的1061行代碼
    ModelAndView mv = null;
    mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

  • SpringMVC決議mv【ModelAndView】

    //DispatcherServlet的1078行代碼
    processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);

  • ThymeleafView物件中344行代碼【SpringMVC底層處理回應亂碼】

    //computedContentType="text/html;charset=UTF-8"
    response.setContentType(computedContentType);

  • WebEngineContext物件中783行代碼【SpringMVC底層將資料默認共享到request域】

    this.request.setAttribute(name, value);


9.2 視圖及視圖決議器原始碼

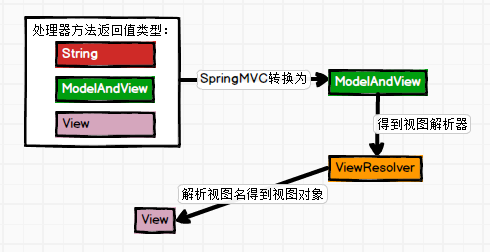

  • 視圖決議器將View從ModelAndView中決議出來

    • ThymeleafViewResolver的837行代碼

      //底層使用反射的方式,newInstance()創建視圖物件
      final AbstractThymeleafView viewInstance = BeanUtils.instantiateClass(getViewClass());


第十章 SpringMVC視圖及視圖決議器

10.1 視圖決議器物件【ViewResolver】

  • 概述:ViewResolver介面的實作類或子介面,稱之為視圖決議器

  • 作用:將ModelAndView中的View物件決議出來


10.2 視圖物件【View】

  • 概述:View介面的實作類或子介面,稱之為視圖物件
  • 作用:視圖渲染
    1. 將資料共享域中
    2. 跳轉路徑【轉發或重定向】

第十一章 視圖控制器&重定向&加載靜態資源

11.1 視圖控制器

  • 語法:view-controller
  • 步驟
    1. 添加<mvc:view-controller>標簽:為指定URL映射html頁面
    2. 添加<mvc:annotation-driven>
      • 有20+種功能
      • 配置了<mvc:view-controller>標簽之后會導致其他請求路徑都失效,添加<mvc:annotation-driven>解決

11.2 重定向

  • 語法:return "redirect:/xxx.html";

11.3 加載靜態資源

  • DefaultServlet加載靜態資源到服務器

    • 靜態資源:html、css、js等資源
    • tomcat->conf->web.xml關鍵代碼如下:
    <servlet>
            <servlet-name>default</servlet-name>
            <servlet-class>org.apache.catalina.servlets.DefaultServlet</servlet-class>
            <init-param>
                <param-name>debug</param-name>
                <param-value>0</param-value>
            </init-param>
            <init-param>
                <param-name>listings</param-name>
                <param-value>false</param-value>
            </init-param>
            <load-on-startup>1</load-on-startup>
        </servlet>
    <servlet-mapping>
            <servlet-name>default</servlet-name>
            <url-pattern>/</url-pattern>
        </servlet-mapping>

  • 發現問題

    • DispatcherServlet與DefaultServlet的URL配置均為:/,導致DispatcherServlet中的配置將DefaultServlet配置的/覆寫了【DefaultServlet失效,無法加載靜態資源
  • 解決方案

    <!--    解決靜態資源加載問題-->
    <mvc:default-servlet-handler></mvc:default-servlet-handler>
    <!-- 添加上述標簽,會導致Controller無法正常使用,需要添加mvc:annotation-driven解決 -->
    <mvc:annotation-driven></mvc:annotation-driven>


11.4 原始碼決議重定向原理

  • 創建RedirectView物件【ThymeleafViewResolver的775行代碼】

    // Process redirects (HTTP redirects)
    if (viewName.startsWith(REDIRECT_URL_PREFIX)) {
        vrlogger.trace("[THYMELEAF] View \"{}\" is a redirect, and will not be handled directly by ThymeleafViewResolver.", viewName);
        final String redirectUrl = viewName.substring(REDIRECT_URL_PREFIX.length(), viewName.length());
        final RedirectView view = new RedirectView(redirectUrl, isRedirectContextRelative(), isRedirectHttp10Compatible());
        return (View) getApplicationContext().getAutowireCapableBeanFactory().initializeBean(view, REDIRECT_URL_PREFIX);
    }

  • RedirectView視圖渲染

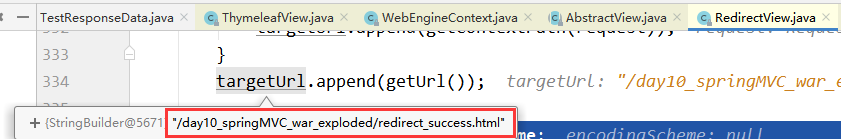

    • RedirectView物件URL處理【330行代碼】

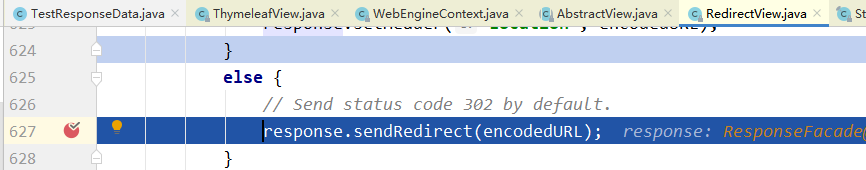

  • 執行重定向【RedirectView的627行代碼】


第十二章 REST風格CRUD練習

12.1 搭建環境

  • 匯入相關jar包

    <!--spring-webmvc-->
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>5.3.1</version>
    </dependency>

    <!-- 匯入thymeleaf與spring5的整合包 -->
    <dependency>
        <groupId>org.thymeleaf</groupId>
        <artifactId>thymeleaf-spring5</artifactId>
        <version>3.0.12.RELEASE</version>
    </dependency>

    <!--servlet-api-->
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>javax.servlet-api</artifactId>
        <version>4.0.1</version>
        <scope>provided</scope>
    </dependency>

  • 撰寫組態檔

    • web.xml
      • CharacterEncodingFilter
      • HiddenHttpMethodFilter
      • DispatcherServlet
    • springmvc.xml
      • 開啟組件掃描
      • 裝配視圖決議器
      • 裝配視圖控制器
      • 解決靜態資源加載問題
      • 裝配annotation-driver
  • dao&pojo

12.2 實作功能思路

  • 實作添加功能思路

    1. 跳轉添加頁面【查詢所有部門資訊】
    2. 實作添加功能
  • 實作洗掉功能思路

    1. 方式一:直接使用表單實作DELETE提交方式

    2. 方式二:使用超鏈接【a】實作DELETE提交方式

      • 使用Vue實作單擊超鏈接,后提交對應表單

      • 取消超鏈接默認行為

      • 示例代碼

        <div align="center" id="app">
            <a href="https://www.cnblogs.com/ygstudy/archive/2023/02/15/#" @click="deleteEmp">洗掉</a>
            <form id="delForm" th:action="@{/emps/}+${emp.id}" method="post">
                <input type="hidden" name="_method" value="https://www.cnblogs.com/ygstudy/archive/2023/02/15/DELETE">
            </form>
        </div>
        <script type="text/javascript" src="https://www.cnblogs.com/ygstudy/archive/2023/02/15/static/js/vue_v2.6.14.js"></script>
        <script type="text/javascript">
            new Vue({
                el:"#app",
                data:{},
                methods:{
                    deleteEmp(){
                        alert("hehe");
                        //獲取回應表單
                        var formEle = document.getElementById("delForm");
                        formEle.submit();
                        //取消超鏈接默認行為
                        event.preventDefault();
                    }
                }
            });
        </script>


轉載請註明出處,本文鏈接:https://www.uj5u.com/houduan/543994.html

標籤:其他

上一篇:【小白必經之路:玩轉STL】array容器

下一篇:Python 內置界面開發框架 Tkinter入門篇 丁

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C#(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 【C++】Microsoft C++、C 和匯編程式檔案

    ......

    uj5u.com 2020-09-10 00:57:23 more
  • 例外宣告

    相比于斷言適用于排除邏輯上不可能存在的狀態,例外通常是用于邏輯上可能發生的錯誤。 例外宣告 Item 1:當函式不可能拋出例外或不能接受拋出例外時,使用noexcept 理由 如果不打算拋出例外的話,程式就會認為無法處理這種錯誤,并且應當盡早終止,如此可以有效地阻止例外的傳播與擴散。 示例 //不可 ......

    uj5u.com 2020-09-10 00:57:27 more
  • Codeforces 1400E Clear the Multiset(貪心 + 分治)

    鏈接:https://codeforces.com/problemset/problem/1400/E 來源:Codeforces 思路:給你一個陣列,現在你可以進行兩種操作,操作1:將一段沒有 0 的區間進行減一的操作,操作2:將 i 位置上的元素歸零。最終問:將這個陣列的全部元素歸零后操作的最少 ......

    uj5u.com 2020-09-10 00:57:30 more
  • UVA11610 【Reverse Prime】

    本人看到此題沒有翻譯,就附帶了一個自己的翻譯版本 思考 這一題,它的第一個要求是找出所有 $7$ 位反向質數及其質因數的個數。 我們應該需要質數篩篩選1~$10^{7}$的所有數,這里就不慢慢介紹了。但是,重讀題,我們突然發現反向質數都是 $7$ 位,而將它反過來后的數字卻是 $6$ 位數,這就說明 ......

    uj5u.com 2020-09-10 00:57:36 more
  • 統計區間素數數量

    1 #pragma GCC optimize(2) 2 #include <bits/stdc++.h> 3 using namespace std; 4 bool isprime[1000000010]; 5 vector<int> prime; 6 inline int getlist(int ......

    uj5u.com 2020-09-10 00:57:47 more
  • C/C++編程筆記:C++中的 const 變數詳解,教你正確認識const用法

    1、C中的const 1、區域const變數存放在堆疊區中,會分配記憶體(也就是說可以通過地址間接修改變數的值)。測驗代碼如下: 運行結果: 2、全域const變數存放在只讀資料段(不能通過地址修改,會發生寫入錯誤), 默認為外部聯編,可以給其他源檔案使用(需要用extern關鍵字修飾) 運行結果: ......

    uj5u.com 2020-09-10 00:58:04 more
  • 【C++犯錯記錄】VS2019 MFC添加資源不懂如何修改資源宏ID

    1. 首先在資源視圖中,添加資源 2. 點擊新添加的資源,復制自動生成的ID 3. 在解決方案資源管理器中找到Resource.h檔案,編輯,使用整個專案搜索和替換的方式快速替換 宏宣告 4. Ctrl+Shift+F 全域搜索,點擊查找全部,然后逐個替換 5. 為什么使用搜索替換而不使用屬性視窗直 ......

    uj5u.com 2020-09-10 00:59:11 more
  • 【C++犯錯記錄】VS2019 MFC不懂的批量添加資源

    1. 打開資源頭檔案Resource.h,在其中預先定義好宏 ID(不清楚其實ID值應該設定多少,可以先新建一個相同的資源項,再在這個資源的ID值的基礎上遞增即可) 2. 在資源視圖中選中專案資源,按F7編輯資源檔案,按 ID 型別 相對路徑的形式添加 資源。(別忘了先把檔案拷貝到專案中的res檔案 ......

    uj5u.com 2020-09-10 01:00:19 more
  • C/C++編程筆記:關于C++的參考型別,專供新手入門使用

    今天要講的是C++中我最喜歡的一個用法——參考,也叫別名。 參考就是給一個變數名取一個變數名,方便我們間接地使用這個變數。我們可以給一個變數創建N個參考,這N + 1個變數共享了同一塊記憶體區域。(參考型別的變數會占用記憶體空間,占用的記憶體空間的大小和指標型別的大小是相同的。雖然參考是一個物件的別名,但 ......

    uj5u.com 2020-09-10 01:00:22 more
  • 【C/C++編程筆記】從頭開始學習C ++:初學者完整指南

    眾所周知,C ++的學習曲線陡峭,但是花時間學習這種語言將為您的職業帶來奇跡,并使您與其他開發人員區分開。您會更輕松地學習新語言,形成真正的解決問題的技能,并在編程的基礎上打下堅實的基礎。 C ++將幫助您養成良好的編程習慣(即清晰一致的編碼風格,在撰寫代碼時注釋代碼,并限制類內部的可見性),并且由 ......

    uj5u.com 2020-09-10 01:00:41 more
最新发布
  • Rust中的智能指標:Box<T> Rc<T> Arc<T> Cell<T> RefCell<T> Weak

    Rust中的智能指標是什么 智能指標(smart pointers)是一類資料結構,是擁有資料所有權和額外功能的指標。是指標的進一步發展 指標(pointer)是一個包含記憶體地址的變數的通用概念。這個地址參考,或 ” 指向”(points at)一些其 他資料 。參考以 & 符號為標志并借用了他們所 ......

    uj5u.com 2023-04-20 07:24:10 more
  • Java的值傳遞和參考傳遞

    值傳遞不會改變本身,參考傳遞(如果傳遞的值需要實體化到堆里)如果發生修改了會改變本身。 1.基本資料型別都是值傳遞 package com.example.basic; public class Test { public static void main(String[] args) { int ......

    uj5u.com 2023-04-20 07:24:04 more
  • [2]SpinalHDL教程——Scala簡單入門

    第一個 Scala 程式 shell里面輸入 $ scala scala> 1 + 1 res0: Int = 2 scala> println("Hello World!") Hello World! 檔案形式 object HelloWorld { /* 這是我的第一個 Scala 程式 * 以 ......

    uj5u.com 2023-04-20 07:23:58 more
  • 理解函式指標和回呼函式

    理解 函式指標 指向函式的指標。比如: 理解函式指標的偽代碼 void (*p)(int type, char *data); // 定義一個函式指標p void func(int type, char *data); // 宣告一個函式func p = func; // 將指標p指向函式func ......

    uj5u.com 2023-04-20 07:23:52 more
  • Django筆記二十五之資料庫函式之日期函式

    本文首發于公眾號:Hunter后端 原文鏈接:Django筆記二十五之資料庫函式之日期函式 日期函式主要介紹兩個大類,Extract() 和 Trunc() Extract() 函式作用是提取日期,比如我們可以提取一個日期欄位的年份,月份,日等資料 Trunc() 的作用則是截取,比如 2022-0 ......

    uj5u.com 2023-04-20 07:23:45 more
  • 一天吃透JVM面試八股文

    什么是JVM? JVM,全稱Java Virtual Machine(Java虛擬機),是通過在實際的計算機上仿真模擬各種計算機功能來實作的。由一套位元組碼指令集、一組暫存器、一個堆疊、一個垃圾回收堆和一個存盤方法域等組成。JVM屏蔽了與作業系統平臺相關的資訊,使得Java程式只需要生成在Java虛擬機 ......

    uj5u.com 2023-04-20 07:23:31 more
  • 使用Java接入小程式訂閱訊息!

    更新完微信服務號的模板訊息之后,我又趕緊把微信小程式的訂閱訊息給實作了!之前我一直以為微信小程式也是要企業才能申請,沒想到小程式個人就能申請。 訊息推送平臺🔥推送下發【郵件】【短信】【微信服務號】【微信小程式】【企業微信】【釘釘】等訊息型別。 https://gitee.com/zhongfuch ......

    uj5u.com 2023-04-20 07:22:59 more
  • java -- 緩沖流、轉換流、序列化流

    緩沖流 緩沖流, 也叫高效流, 按照資料型別分類: 位元組緩沖流:BufferedInputStream,BufferedOutputStream 字符緩沖流:BufferedReader,BufferedWriter 緩沖流的基本原理,是在創建流物件時,會創建一個內置的默認大小的緩沖區陣列,通過緩沖 ......

    uj5u.com 2023-04-20 07:22:49 more
  • Java-SpringBoot-Range請求頭設定實作視頻分段傳輸

    老實說,人太懶了,現在基本都不喜歡寫筆記了,但是網上有關Range請求頭的文章都太水了 下面是抄的一段StackOverflow的代碼...自己大修改過的,寫的注釋挺全的,應該直接看得懂,就不解釋了 寫的不好...只是希望能給視頻網站開發的新手一點點幫助吧. 業務場景:視頻分段傳輸、視頻多段傳輸(理 ......

    uj5u.com 2023-04-20 07:22:42 more
  • Windows 10開發教程_編程入門自學教程_菜鳥教程-免費教程分享

    教程簡介 Windows 10開發入門教程 - 從簡單的步驟了解Windows 10開發,從基本到高級概念,包括簡介,UWP,第一個應用程式,商店,XAML控制元件,資料系結,XAML性能,自適應設計,自適應UI,自適應代碼,檔案管理,SQLite資料庫,應用程式到應用程式通信,應用程式本地化,應用程式 ......

    uj5u.com 2023-04-20 07:22:35 more
