背景

專案上需要對接scom微軟監控系統告警，能夠拿到手的資料十分有限，只有幾個官方檔案地址：

Operations Manager REST API Reference - Operations Manager REST API | Microsoft Learn

SCOM: Quick Start - REST API - TechNet Articles - United States (English) - TechNet Wiki (microsoft.com)

SCOM告警儀表盤頁面展示：

注意事項

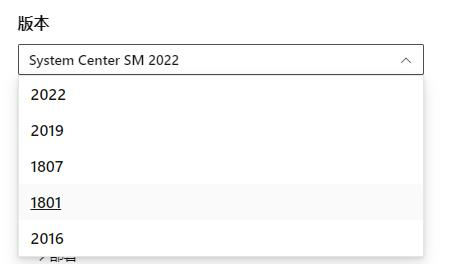

僅支持 System Center Operations Manager 1801 及以上版本有RESTAPI，千萬注意；

對接程序

官網正好有一個獲取告警的示例，但是是powershell版本的：

#Set Headers for the request
$userName ="domain\username";
$password ="Password";
$AuthenticationMode= "Network"
$scomHeaders = New-Object “System.Collections.Generic.Dictionary[[String],[String]]”
$scomHeaders.Add('Content-Type','application/json; charset=utf-8')
$bodyraw = "($AuthenticationMode):$($userName):$($password)” //官網這里寫的還有問題,少了個$
$Bytes = [System.Text.Encoding]::UTF8.GetBytes($bodyraw)
$EncodedText =[Convert]::ToBase64String($Bytes)
$jsonbody = $EncodedText | ConvertTo-Json

$uriBase = 'http://<scomserver>/OperationsManager'

#Authenticate
$auth = Invoke-WebRequest -Method POST -Uri $uriBase/authenticate -Headers $scomheaders -body $jsonbody -UseDefaultCredentials -SessionVariable $websession
#Include CSRF Token
$csrfTocken = $websession.Cookies.GetCookies($uriBase) | ? { $_.Name -eq 'SCOM-CSRF-TOKEN' }
$scomHeaders.Add('SCOM-CSRF-TOKEN', [System.Web.HttpUtility]::UrlDecode($csrfTocken.Value))

#Examples to Invoke the required SCOM API

#Data/alertDescription/{alertid}
$alertid="6A88FBC1-0EDC-4173-9BB1-30FFEC296672"
$uri = "$uriBase/data/alertDetails"
$Response = Invoke-WebRequest -Uri "$uriBase/data/alertDetails/$alertid" -Headers $scomheaders -Method Get -WebSession $websession
$Response.Content | Convertto-json



#Criteria: Enter the displayname of the SCOM object
$Criteria = "DisplayName LIKE '%SQL%'"
#Convert our criteria to JSON format
$JSONBody = $Criteria | ConvertTo-Json
$Response = Invoke-WebRequest -Uri "$uriBase/data/class/monitors" -Method Post -Body $JSONBody -WebSession $WebSession
$Response.Content | Convertto-json


#Data Request in JSON Format
$dashboardbody='
{
  "refreshing": false,
  "Name": "TestAPIDashboard",
  "path": "35b6eba3-6202-8738-a47f-16acf476230f"
}'
$response = Invoke-WebRequest -Uri "$uriBase/monitoring/dashboard" -Headers $scomheaders -Method POST -Body $dashboardbody -ContentType "application/json" -UseDefaultCredentials -WebSession $websession

流程就是：

第一步: 拿到username(用戶名) password(賬密碼) AuthenticationMode(認證模式，示例中是Network) domain(域) 四個配置資訊
第二步: 將資訊按照 AuthenticationMode:domain\username:password 拼接在一起然后通過base64加密：

"TmV0d29yazphYmNcYWRtaW51c2VyOlBXRDEyMw=="
第三步：呼叫認證介面 POST: http://<Servername>/OperationsManager/authenticate ,將上一步的字串放到請求體，Content-Type設定為application/json
第四步：將回應頭的Set-Cookie里面的SCOM-CSRF-TOKEN 設定到請求頭中，發起查詢告警串列請求

POST http://<Servername>/OperationsManager/data/alert

示例很美好，但是一試問題就來了，

問題一：認證介面訪問時一直401

剛開始以為是用戶名密碼或者權限問題，聯系確認了web頁面直接訪問 http://IP/OperationsManager/ 該賬號可以正常登錄查詢，有操作員權限，百思不得其解，意外打開F12發現頁面上也是用的這個介面，于是決定抓包

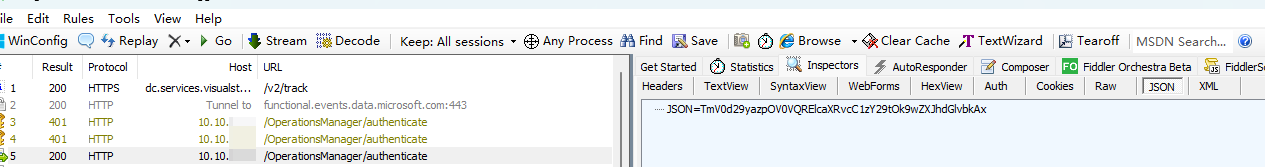

打開fidder/wireshark，抓包認證介面發現居然發起了三次請求

查看response header

反應過來原來還有一層NTLM認證，于是調整java代碼，使用httpclient發起NTLM請求,核心代碼如下：

  public static final String AUTH_URL = "/authenticate";
// 獲取NTLM認證client
public CloseableHttpClient getBasicAuthHttpClient(String username, String password, String workStation, String domain) {
        CredentialsProvider provider = new BasicCredentialsProvider();
        NTCredentials ntCredentials = new NTCredentials(username, password, workStation, domain);
        provider.setCredentials(AuthScope.ANY, ntCredentials);
        return HttpClients.custom().setDefaultCredentialsProvider(provider).useSystemProperties().build();
}
// 認證介面，獲取token
public String askForToken() {
    String result = "";
    HttpPost httppost = new HttpPost(baseUrl + AUTH_URL);
    CloseableHttpClient basicAuthHttpClient;
    try {
        httppost.addHeader("Content-Type", "application/json;charset=UTF-8");
        BASE64Encoder base64Encoder = new BASE64Encoder();
        String encodedText = base64Encoder.encode((authMode + ":" + domain + "\\" + username + ":" + password).getBytes(StandardCharsets.UTF_8));
        httppost.setEntity(new StringEntity("\""+encodedText+"\"", DEFAULT_CHARSET));
        basicAuthHttpClient = getBasicAuthHttpClient(username, password, authMode, domain);
        HttpResponse response = basicAuthHttpClient.execute(httppost);
        Header[] headers = response.getHeaders("Set-Cookie");
        for (Header r : headers) {
            String value = https://www.cnblogs.com/a1exlee/archive/2023/03/06/r.getValue();
            if (value.startsWith("SCOM-CSRF-TOKEN")) {
                return  value.split(";")[0].split("=")[1] ;
            }
        }
        if (log.isDebugEnabled()) {
            log.debug("Request url:{},Request Parameter:{},Response:{}", baseUrl + AUTH_URL, encodedText, result);
        }
    } catch (Exception e) {
        throw new SystemException(e);
    }
    return result;
}

非常順利，成功拿到token，然后遭遇了新的問題

問題二：查詢告警介面依然401

查詢告警http://ip/OperationsManager/data/alert,直接拿上一步獲取的token加入請求Header中，

SCOM-CSRF-TOKEN: yjihbfEsRFLd9fMRgT_Rxf4MzDiact3jgvyXZBrMnQRA4MoKtaO8_si891ahn6Pm98SJltLoiQYQrEENBWhJXX5WkQbLa2hqI6gVG96Hj0Y1%3a5dV5XX9rOLp5850DHjRsJ93ioKTP_Fw2AakOi1QN35SI_Vr0nBYrw4n8bUzh_vbNLxKIek_7w9lHSlftqOA0TfKs6Rs0oU7O3w8GIegHvpPtYt_0fTgktvzq4nL7MTxF0

過濾條件官網給的非常模糊沒有解釋，這里直接跟scom控制臺保持一致，請求體：

{"classId":null,"objectIds":{},"criteria":"((Severity = '0') OR (Severity = '1') OR (Severity = '2')) AND ((Priority = '2') OR (Priority = '1') OR (Priority = '0')) AND ((ResolutionState != '255')) AND TimeRaised >= 'Sun, 30 Jan 2022 07:34:42 GMT'","displayColumns":["severity","monitoringobjectdisplayname","name","lastmodified","description","sitename","alertsource","netbiosdomainname"]}

依然抓包頁面請求，發現依然發起三個

所以NTLM每個請求都要用上一步的getBasicAuthHttpClient()回傳的client來發起請求

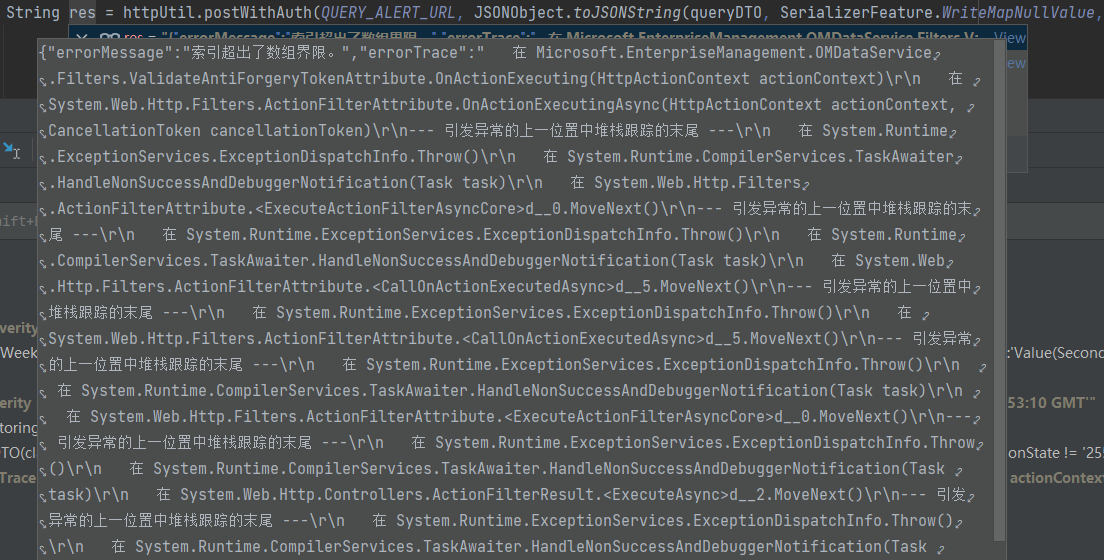

問題三：報錯索引超出了陣列界限

排查發現是header中的SCOM-CSRF-TOKEN需要先URLDecoder一下，不然會決議報錯，

SCOM-CSRF-TOKEN: yjihbfEsRFLd9fMRgT_Rxf4MzDiact3jgvyXZBrMnQRA4MoKtaO8_si891ahn6Pm98SJltLoiQYQrEENBWhJXX5WkQbLa2hqI6gVG96Hj0Y1:5dV5XX9rOLp5850DHjRsJ93ioKTP_Fw2AakOi1QN35SI_Vr0nBYrw4n8bUzh_vbNLxKIek_7w9lHSlftqOA0TfKs6Rs0oU7O3w8GIegHvpPtYt_0fTgktvzq4nL7MTxF0

問題四：提示會話已過期

到這里我們已經接近成功了，原因是因為光設定token到Header還不夠，還要請求的時候還需要攜帶Cookie，把第一步認證介面回傳的Set-Cookie里面的值設定到Cookie中，

httppost.addHeader("Content-Type", "application/json;charset=UTF-8");
httppost.addHeader("SCOM-CSRF-TOKEN", token);//這個token需要decode
httppost.addHeader("Cookie", "SCOM-CSRF-TOKEN="+originToken+";SCOMSessionId="+sessionId+";SCOMUserStatus=loggedIn"); //這個token不需要decode

回應格式：

{
  "tableColumns": [
    {
      "field": "ageinmilliseconds",
      "header": "",
      "type": null,
      "hidden": true
    },
    {
      "field": "severity",
      "header": "Severity",
      "type": null,
      "hidden": false
    },
    {
      "field": "monitoringobjectdisplayname",
      "header": "Source",
      "type": null,
      "hidden": false
    },
    {
      "field": "monitoringobjectpath",
      "header": "Path",
      "type": null,
      "hidden": false
    },
    {
      "field": "name",
      "header": "Name",
      "type": null,
      "hidden": false
    },
    {
      "field": "age",
      "header": "Age",
      "type": null,
      "hidden": false
    },
    {
      "field": "description",
      "header": "Description",
      "type": null,
      "hidden": false
    },
    {
      "field": "owner",
      "header": "Owner",
      "type": null,
      "hidden": false
    },
    {
      "field": "timeadded",
      "header": "Created",
      "type": null,
      "hidden": false
    },
    {
      "field": "id",
      "header": "Id",
      "type": null,
      "hidden": true
    }
  ],
  "rows": [
    {
      "id": "d3144ac9-4316-45ce-94b9-f50936219e24",
      "severity": "Error",
      "monitoringobjectdisplayname": "Test Service Group",
      "monitoringobjectpath": null,
      "name": null,
      "age": "6137 days, 6 hours",
      "ageinmilliseconds": 530260033217.2775,
      "description": "",
      "owner": "DXPSQYVCYBXGIUDZJZVWNLFDYEKA",
      "timeadded": "2022-05-17T03:29:36.7330000Z"
    },
    {
      "id": "d3144ac9-4316-45ce-94b9-f50936219e24",
      "severity": "Error",
      "monitoringobjectdisplayname": "Test Service Group",
      "monitoringobjectpath": null,
      "name": null,
      "age": "6137 days, 6 hours",
      "ageinmilliseconds": 530260149093.94025,
      "description": "",
      "owner": "DXPSQYVCYBXGIUDZJZVWNLFDYEKA",
      "timeadded": "2022-05-17T03:29:36.7330000Z"
    }
  ]
}

決議告警，做屬性轉換：

alarmId->告警唯一ID
netbioscomputername->計算機名(可能為空)
monitoringobjectdisplayname->源
description->告警描述
lastmodified->上次更新時間
principalname->站點
severity->告警級別

步驟總結

1.獲取認證資訊,確認認證方式是否開啟NTLM

2.發起認證NTLM請求，從response header獲取SCOM-CSRF-TOKEN，以及SCOMSessionId

3.發起查詢告警請求，將上一步的token urldecode后設定到request header，將原始token和sessionId設定到Cookie
