mybatis原始碼-注解sql

2023-03-15 07:20:38 後端開發

Mybatis-注解sql

Demo

主啟動類

public class MybatisHelloWorld {
    public static void main(String[] args) throws Exception {
        String resource = "org/mybatis/config.xml";
        InputStream inputStream = Resources.getResourceAsStream(resource);
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
        SqlSession session = sqlSessionFactory.openSession();
        UserMapper mapper = session.getMapper(UserMapper.class);
        List<User> users = mapper.getUsers(1);
        session.close();
    }
}

userMapper.class

public interface UserMapper {
    @Select({"select * from user where age=#{age}"})
    List<User> getUsers(int age);
}

config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <settings>
        //控制臺輸出sql
        <setting name="logImpl" value="https://www.cnblogs.com/sunankang/p/STDOUT_LOGGING"/>
    </settings>

    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="https://www.cnblogs.com/sunankang/p/com.mysql.jdbc.Driver"/>
                <property name="url" value="https://www.cnblogs.com/sunankang/p/jdbc:mysql://localhost:3306/mybatis?serverTimezone=UTC"/>
                <property name="username" value="https://www.cnblogs.com/sunankang/p/root"/>
                <property name="password" value="https://www.cnblogs.com/sunankang/p/root"/>
            </dataSource>
        </environment>
    </environments>

    <mappers>
        <package name="org.mybatis.mapper"/>
    </mappers>
</configuration>

Mybatis通過session來進行資料庫的操作,sqlSessionFactory封裝了session的創建,而SqlSessionFactoryBuilder又封裝了sqlSessionFactory的創建

從上面代碼來看總共做了兩件事

  1. 讀取組態檔,通過SqlSessionFactoryBuilder創建sqlSessionFactory繼而創建session
  2. 獲取mapper進行讀取資料庫

先來看如何將xml組態檔封裝為物件的

決議組態檔

new SqlSessionFactoryBuilder().build(inputStream);

這里使用構造者模式來創建一個sqlSessionFactory,里面使用多載

public SqlSessionFactory build(InputStream inputStream) {
    return build(inputStream, null, null);
}

最終呼叫

SqlSessionFactoryBuilder.java

public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
    try {
        //創建一個xml決議類
        XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
        //決議xml中配置,轉換為configuration類
        return build(parser.parse());
    } catch (Exception e) {
        throw ExceptionFactory.wrapException("Error building SqlSession.", e);
    } finally {
        ErrorContext.instance().reset();
        try {
            inputStream.close();
        } catch (IOException e) {
            // Intentionally ignore. Prefer previous error.
        }
    }
}

mybatis是把一些配置類以及它自己需要使用的各種類封裝成一個大的config物件

org.apache.ibatis.session.Configuration 里面有很多環境,mapper等等的資訊,內容太多就不粘貼了

XMLConfigBuilder.java

public XMLConfigBuilder(InputStream inputStream, String environment, Properties props) {
    this(new XPathParser(inputStream, true, props, new XMLMapperEntityResolver()), environment, props);
}

private XMLConfigBuilder(XPathParser parser, String environment, Properties props) {
    //創建了一個Configuration 物件
    super(new Configuration());
    ErrorContext.instance().resource("SQL Mapper Configuration");
    this.configuration.setVariables(props);
    this.parsed = false;
    //這一行設定環境id
    this.environment = environment;
    this.parser = parser;
}

XMlConfigBuilder類關系圖

BaseBuilder.java

 public BaseBuilder(Configuration configuration) {
    this.configuration = configuration;
    this.typeAliasRegistry = this.configuration.getTypeAliasRegistry();
    this.typeHandlerRegistry = this.configuration.getTypeHandlerRegistry();
  }

決議主組態檔.xml

SqlSessionFactoryBuilder.java

public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
    //....
    return build(parser.parse());
    //....
}

public Configuration parse() {
    if (parsed) {
        throw new BuilderException("Each XMLConfigBuilder can only be used once.");
    }
    parsed = true;
    //讀取configuration節點下的node傳入
    parseConfiguration(parser.evalNode("/configuration"));
    return configuration;
}


private void parseConfiguration(XNode root) {
    try {
        //issue #117 read properties first
        //讀取properties
        propertiesElement(root.evalNode("properties"));
        //讀取一些setting設定
        Properties settings = settingsAsProperties(root.evalNode("settings"));
        loadCustomVfs(settings);
        //注冊別名
        typeAliasesElement(root.evalNode("typeAliases"));
        //插件,進行增強-先略過
        pluginElement(root.evalNode("plugins"));
        //物件工廠,自定義實體化方法--略過
        objectFactoryElement(root.evalNode("objectFactory"));
        objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
        reflectionFactoryElement(root.evalNode("reflectionFactory"));
        settingsElement(settings);
        // read it after objectFactory and objectWrapperFactory issue #631
        //配置環境
        environmentsElement(root.evalNode("environments"));
        //資料廠商表示--略過
        databaseIdProviderElement(root.evalNode("databaseIdProvider"));
        typeHandlerElement(root.evalNode("typeHandlers"));
        //配置mapper
        mapperElement(root.evalNode("mappers"));
    } catch (Exception e) {
        throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
    }
}

決議的東西很多,我們只先看environments和mapper

environmentsElement

XMLConfigBuilder.java

private void environmentsElement(XNode context) throws Exception {
    if (context != null) {
        if (environment == null) {
            environment = context.getStringAttribute("default");
        }
        for (XNode child : context.getChildren()) {
            String id = child.getStringAttribute("id");
            //可以配置多個環境,判斷是不是指定的環境
            if (isSpecifiedEnvironment(id)) {
                //獲取事物管理器,創建事物管理器工廠
                TransactionFactory txFactory = transactionManagerElement(child.evalNode("transactionManager"));
                //獲取datasource工廠-UnpooledDataSourceFactory默認
                DataSourceFactory dsFactory = dataSourceElement(child.evalNode("dataSource"));
                DataSource dataSource = dsFactory.getDataSource();
                Environment.Builder environmentBuilder = new Environment.Builder(id)
                    .transactionFactory(txFactory)
                    .dataSource(dataSource);
                configuration.setEnvironment(environmentBuilder.build());
            }
        }
    }
}

進入發現第一件是就是判斷環境,沒有指定就使用<environments default="development">中default的環境id,在上面的XMLConfigBuilder的有參構造中this.environment = environment;將環境配置設定給了XMLConfigBuilder的environment 點我跳轉到XMLConfigBuilder-有參構造

我們在使用時可以這樣,在組態檔xml中,宣告多個環境

    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="https://www.cnblogs.com/sunankang/p/com.mysql.jdbc.Driver"/>
                <property name="url" value="https://www.cnblogs.com/sunankang/p/jdbc:mysql://localhost:3306/mybatis?serverTimezone=UTC"/>
                <property name="username" value="https://www.cnblogs.com/sunankang/p/root"/>
                <property name="password" value="https://www.cnblogs.com/sunankang/p/root"/>
            </dataSource>
        </environment>

        <environment id="myTest">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="https://www.cnblogs.com/sunankang/p/com.mysql.jdbc.Driver"/>
                <property name="url" value="https://www.cnblogs.com/sunankang/p/jdbc:mysql://localhost:3306/mybatis?serverTimezone=UTC"/>
                <property name="username" value="https://www.cnblogs.com/sunankang/p/root"/>
                <property name="password" value="https://www.cnblogs.com/sunankang/p/root"/>
            </dataSource>
        </environment>
    </environments>

主啟動類中,手動指明一個配置環境

public static void main(String[] args) throws Exception {
    //....
    SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream,"myTest");
    //....
}

回到代碼第一步就是判斷用戶選擇的那個id的環境,之后創建事務管理器

XMLConfigBuilder.java

private void environmentsElement(XNode context) throws Exception {
    //..
    TransactionFactory txFactory = transactionManagerElement(child.evalNode("transactionManager"));
    //..
}
private TransactionFactory transactionManagerElement(XNode context) throws Exception {
    if (context != null) {
        //獲取我們在xml中宣告的事務管理型別,當前是JDBC
        String type = context.getStringAttribute("type");
        //獲取節點下的子節點,當前案例沒有子節點
        Properties props = context.getChildrenAsProperties();
        //這里只是創建工廠類
        TransactionFactory factory = (TransactionFactory) resolveClass(type).newInstance();
        factory.setProperties(props);
        return factory;
    }
    throw new BuilderException("Environment declaration requires a TransactionFactory.");
}

這里呼叫resolveClass()方法是父類BaseBuilder的方法

一直點進去最后如下

TypeAliasRegistry.java


public class TypeAliasRegistry {
	 private final Map<String, Class<?>> TYPE_ALIASES = new HashMap<String, Class<?>>();
    //.....
    public <T> Class<T> resolveAlias(String string) {
        try {
            if (string == null) {
                return null;
            }
            // issue #748
            String key = string.toLowerCase(Locale.ENGLISH);
            Class<T> value;
            if (TYPE_ALIASES.containsKey(key)) {
                value = https://www.cnblogs.com/sunankang/p/(Class) TYPE_ALIASES.get(key);
            } else {
                value = (Class) Resources.classForName(string);
            }
            return value;
        } catch (ClassNotFoundException e) {
            throw new TypeException("Could not resolve type alias '" + string + "'.  Cause: " + e, e);
        }
    }
}

判斷這個TYPE_ALIASES map中是否存在JDBC這個key,如果不存在,則去加載

按理來說這里應該是不存在的,因為你在TypeAliasRegistry中找不到任何一個地方對TYPE_ALIASES添加一個JDBC的key

但是實際它卻存在這個key,在Configuration類的無參構造時,對這個TypeAliasRegistry進行的添加

Configuration.java

 public Configuration() {
    typeAliasRegistry.registerAlias("JDBC", JdbcTransactionFactory.class);
     //...
    typeAliasRegistry.registerAlias("POOLED", PooledDataSourceFactory.class);
    languageRegistry.setDefaultDriverClass(XMLLanguageDriver.class);
	//......
  }

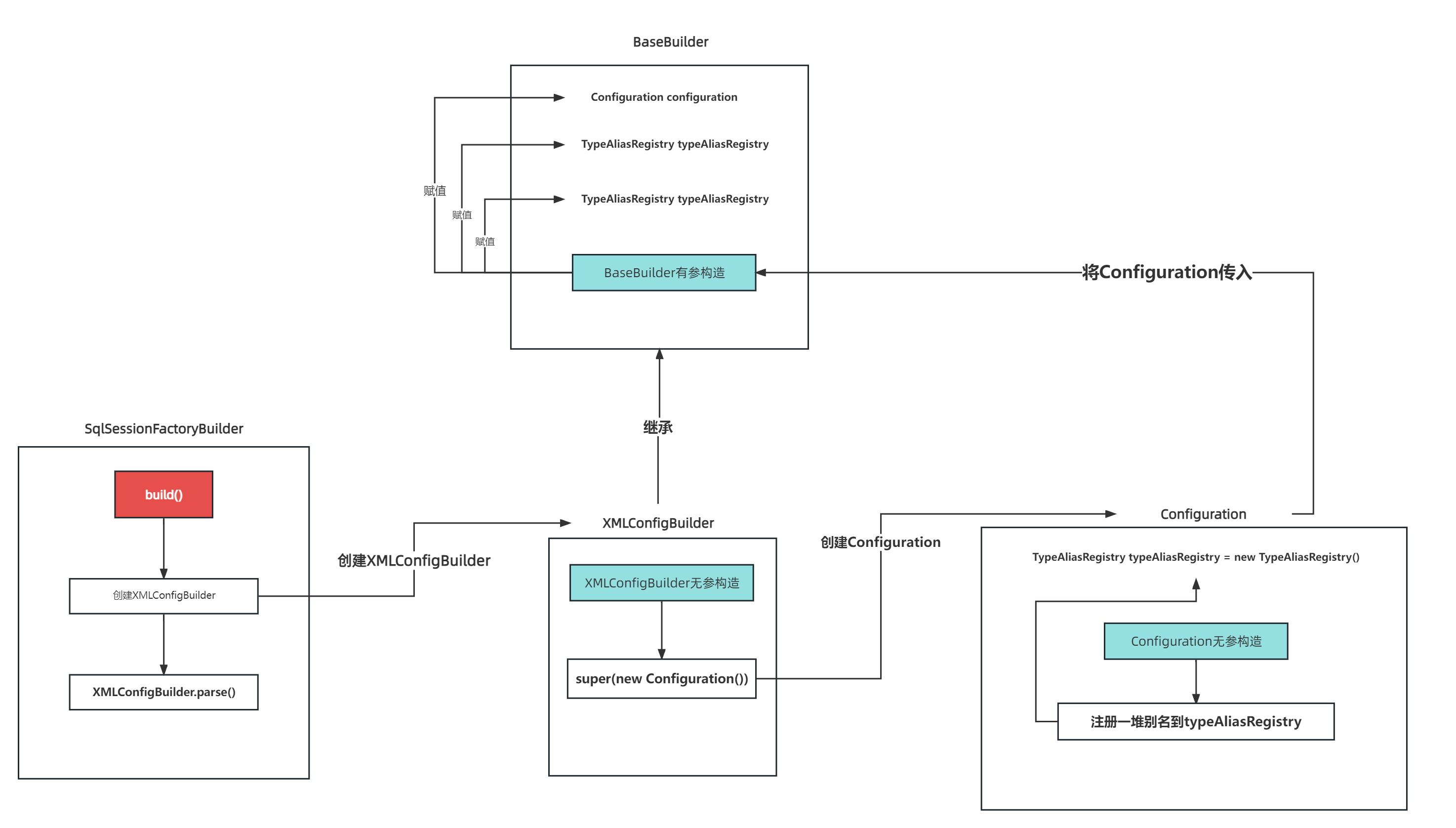

這個程序如下圖

回到代碼因為我們這次案例的配置為<transactionManager type="JDBC"/>所以不會存在子節點context.getChildrenAsProperties();回傳的結果0個配置項,transactionManagerElement方法結束

之后去決議資料庫組態檔

XMLConfigBulider.java

private void environmentsElement(XNode context) throws Exception {
    //...
    //獲取datasource工廠-UnpooledDataSourceFactory默認
    DataSourceFactory dsFactory = dataSourceElement(child.evalNode("dataSource"));
    DataSource dataSource = dsFactory.getDataSource();
    //...
}

和決議環境基本一樣的代碼,不過決議dataSource的時候,子節點就不為空了

會有四個屬性

<dataSource type="POOLED">
    <property name="driver" value="https://www.cnblogs.com/sunankang/p/com.mysql.jdbc.Driver"/>
    <property name="url" value="https://www.cnblogs.com/sunankang/p/jdbc:mysql://localhost:3306/mybatis?serverTimezone=UTC"/>
    <property name="username" value="https://www.cnblogs.com/sunankang/p/root222"/>
    <property name="password" value="https://www.cnblogs.com/sunankang/p/root222"/>
</dataSource>

  private DataSourceFactory dataSourceElement(XNode context) throws Exception {
    if (context != null) {
      String type = context.getStringAttribute("type");
      Properties props = context.getChildrenAsProperties();
       //type為POOLED的默認實作是PooledDataSourceFactory
      DataSourceFactory factory = (DataSourceFactory) resolveClass(type).newInstance();
      factory.setProperties(props);
      return factory;
    }
    throw new BuilderException("Environment declaration requires a DataSourceFactory.");
  }

進入factory.setProperties(props);

public class UnpooledDataSourceFactory implements DataSourceFactory {

    private static final String DRIVER_PROPERTY_PREFIX = "driver.";
    private static final int DRIVER_PROPERTY_PREFIX_LENGTH = DRIVER_PROPERTY_PREFIX.length();

    protected DataSource dataSource;
	//無參默認將dataSource設定為UnpooledDataSource
    public UnpooledDataSourceFactory() {
        this.dataSource = new UnpooledDataSource();
    }

    @Override
    public void setProperties(Properties properties) {
        Properties driverProperties = new Properties();
        //將工廠物件進行包裝
        MetaObject metaDataSource = SystemMetaObject.forObject(dataSource);
        for (Object key : properties.keySet()) {
            String propertyName = (String) key;
            //如果存在driver
            if (propertyName.startsWith(DRIVER_PROPERTY_PREFIX)) {
                String value = https://www.cnblogs.com/sunankang/p/properties.getProperty(propertyName);
                driverProperties.setProperty(propertyName.substring(DRIVER_PROPERTY_PREFIX_LENGTH), value);
            //如果當前屬性在類中有對應的可以寫入的屬性
            } else if (metaDataSource.hasSetter(propertyName)) {
                String value = (String) properties.get(propertyName);
                Object convertedValue = convertValue(metaDataSource, propertyName, value);
                metaDataSource.setValue(propertyName, convertedValue);
            } else {
                throw new DataSourceException("Unknown DataSource property: " + propertyName);
            }
        }
        //如果屬性不為空,則設定給meatDataSource
        if (driverProperties.size() > 0) {
            metaDataSource.setValue("driverProperties", driverProperties);
        }
    }
	//......
}

一頓設定后回到XMLConfigurationBuilder中的environmentsElement方法

最后將讀取出的配置封裝為Environment,賦值給BaseBuilder中的environment

private void environmentsElement(XNode context) throws Exception {
	//.....
    DataSourceFactory dsFactory = dataSourceElement(child.evalNode("dataSource"));
    DataSource dataSource = dsFactory.getDataSource();
    Environment.Builder environmentBuilder = new Environment.Builder(id)
        .transactionFactory(txFactory)
        .dataSource(dataSource);
    configuration.setEnvironment(environmentBuilder.build());
	//.....
}

mapperElement

回到XMLConfigBuilder中的parseConfiguration

private void parseConfiguration(XNode root) {
    //.....
    //配置mapper
    mapperElement(root.evalNode("mappers"));

}

我們只看根據包掃描的,給Configuration中添加了mapper包名

private void mapperElement(XNode parent) throws Exception {
    if (parent != null) {
        for (XNode child : parent.getChildren()) {
            //使用包,默認查找指定包下位置
            if ("package".equals(child.getName())) {
                String mapperPackage = child.getStringAttribute("name");
                configuration.addMappers(mapperPackage);
            }
            //.....
        }
    }
}

Configuration.java

public void addMappers(String packageName) {
    mapperRegistry.addMappers(packageName);
}

MapperRegistry.java

public void addMappers(String packageName) {
    addMappers(packageName, Object.class);
}
//根據包名去查詢該包下的類
public void addMappers(String packageName, Class<?> superType) {
    ResolverUtil<Class<?>> resolverUtil = new ResolverUtil<Class<?>>();
    resolverUtil.find(new ResolverUtil.IsA(superType), packageName);
    Set<Class<? extends Class<?>>> mapperSet = resolverUtil.getClasses();
    for (Class<?> mapperClass : mapperSet) {
        addMapper(mapperClass);
    }
}

之后就是動態代理對應的mapper
MapperRegistry.java

public <T> void addMapper(Class<T> type) {
    if (type.isInterface()) {
        //判斷是否已經存在
        if (hasMapper(type)) {
            throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
        }
        boolean loadCompleted = false;
        try {
            knownMappers.put(type, new MapperProxyFactory<T>(type));
            MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
            parser.parse();
            loadCompleted = true;
        } finally {
            if (!loadCompleted) {
                knownMappers.remove(type);
            }
        }
    }
}

public class MapperProxyFactory<T> {

    private final Class<T> mapperInterface;
    private final Map<Method, MapperMethod> methodCache = new ConcurrentHashMap<Method, MapperMethod>();

    public MapperProxyFactory(Class<T> mapperInterface) {
        this.mapperInterface = mapperInterface;
    }

    public Class<T> getMapperInterface() {
        return mapperInterface;
    }

    public Map<Method, MapperMethod> getMethodCache() {
        return methodCache;
    }

    @SuppressWarnings("unchecked")
    protected T newInstance(MapperProxy<T> mapperProxy) {
        return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
    }

    public T newInstance(SqlSession sqlSession) {
        final MapperProxy<T> mapperProxy = new MapperProxy<T>(sqlSession, mapperInterface, methodCache);
        return newInstance(mapperProxy);
    }

}

主要來看這段

MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
parser.parse();

MapperAnnotationBuilder.java


public class MapperAnnotationBuilder {
    private final Set<Class<? extends Annotation>> sqlAnnotationTypes = new HashSet<Class<? extends Annotation>>();
    private final Set<Class<? extends Annotation>> sqlProviderAnnotationTypes = new HashSet<Class<? extends Annotation>>();
    //....
    /**
    * 在構造時添加mybatis的注解
    */
    public MapperAnnotationBuilder(Configuration configuration, Class<?> type) {
        String resource = type.getName().replace('.', '/') + ".java (best guess)";
        this.assistant = new MapperBuilderAssistant(configuration, resource);
        this.configuration = configuration;
        this.type = type;

        sqlAnnotationTypes.add(Select.class);
        sqlAnnotationTypes.add(Insert.class);
        sqlAnnotationTypes.add(Update.class);
        sqlAnnotationTypes.add(Delete.class);

        sqlProviderAnnotationTypes.add(SelectProvider.class);
        sqlProviderAnnotationTypes.add(InsertProvider.class);
        sqlProviderAnnotationTypes.add(UpdateProvider.class);
        sqlProviderAnnotationTypes.add(DeleteProvider.class);
    }


    public void parse() {
        String resource = type.toString();
        if (!configuration.isResourceLoaded(resource)) {
            loadXmlResource();
            configuration.addLoadedResource(resource);
            assistant.setCurrentNamespace(type.getName());
            parseCache();
            parseCacheRef();
            Method[] methods = type.getMethods();
            for (Method method : methods) {
                try {
                    // issue #237
                    if (!method.isBridge()) {
                        parseStatement(method);
                    }
                } catch (IncompleteElementException e) {
                    configuration.addIncompleteMethod(new MethodResolver(this, method));
                }
            }
        }
        parsePendingMethods();
    }
}

void parseStatement(Method method) {
    Class<?> parameterTypeClass = getParameterType(method);
    LanguageDriver languageDriver = getLanguageDriver(method);
    SqlSource sqlSource = getSqlSourceFromAnnotations(method, parameterTypeClass, languageDriver);
   //...
}

首先第一步是獲取引數型別-代碼如下,如果mapper的入引數量大于1,則回傳的就是ParamMap.class

private Class<?> getParameterType(Method method) {
    Class<?> parameterType = null;
    Class<?>[] parameterTypes = method.getParameterTypes();
    for (int i = 0; i < parameterTypes.length; i++) {
        if (!RowBounds.class.isAssignableFrom(parameterTypes[i]) && !ResultHandler.class.isAssignableFrom(parameterTypes[i])) {
            if (parameterType == null) {
                parameterType = parameterTypes[i];
            } else {
                // issue #135
                parameterType = ParamMap.class;
            }
        }
    }
    return parameterType;
}

之后獲取語言決議,沒有指定就去找默認-默認的是XMLLanguageDriver.class 還是在Configuration類無參構造時添加進去的點我跳轉到Configuration-無參構造


private LanguageDriver getLanguageDriver(Method method) {
    Lang lang = method.getAnnotation(Lang.class);
    Class<?> langClass = null;
    if (lang != null) {
        langClass = lang.value();
    }
    return assistant.getLanguageDriver(langClass);
}

獲取注解上的內容,以及封裝sql就在這個方法

private SqlSource getSqlSourceFromAnnotations(Method method, Class<?> parameterType, LanguageDriver languageDriver) {
    try {
        //獲取是否存在@Select,@Insert....
        Class<? extends Annotation> sqlAnnotationType = getSqlAnnotationType(method);
        //獲取是否存在@SelectProvider,@InsertProvider...
        Class<? extends Annotation> sqlProviderAnnotationType = getSqlProviderAnnotationType(method);
        if (sqlAnnotationType != null) {
            if (sqlProviderAnnotationType != null) {
                throw new BindingException("You cannot supply both a static SQL and SqlProvider to method named " + method.getName());
            }
            Annotation sqlAnnotation = method.getAnnotation(sqlAnnotationType);
            //獲取注解上的值
            final String[] strings = (String[]) sqlAnnotation.getClass().getMethod("value").invoke(sqlAnnotation);
            //回傳sqlSource
            //這個時候還沒有進行填充值
            return buildSqlSourceFromStrings(strings, parameterType, languageDriver);
        } else if (sqlProviderAnnotationType != null) {
            Annotation sqlProviderAnnotation = method.getAnnotation(sqlProviderAnnotationType);
            return new ProviderSqlSource(assistant.getConfiguration(), sqlProviderAnnotation);
        }
        return null;
    } catch (Exception e) {
        throw new BuilderException("Could not find value method on SQL annotation.  Cause: " + e, e);
    }
}

此時的strings值還是 select * from user where age = #{age} 需要給替換為 select * from user where age =?

  private SqlSource buildSqlSourceFromStrings(String[] strings, Class<?> parameterTypeClass, LanguageDriver languageDriver) {
    final StringBuilder sql = new StringBuilder();
    for (String fragment : strings) {
      sql.append(fragment);
      sql.append(" ");
    }
    return languageDriver.createSqlSource(configuration, sql.toString().trim(), parameterTypeClass);
  }

默認的語言驅動是XMLLanguageDriver

XMLLanguageDriver.java

首先判斷注解上的內容是否存在腳本,在mybatis官網,動態SQL下的script有使用案例,使得在注解中可以像在xml中使用<if <where 等標簽

@Override
public SqlSource createSqlSource(Configuration configuration, String script, Class<?> parameterType) {
    // issue #3
    if (script.startsWith("<script>")) {
        XPathParser parser = new XPathParser(script, false, configuration.getVariables(), new XMLMapperEntityResolver());
        return createSqlSource(configuration, parser.evalNode("/script"), parameterType);
    } else {
        // issue #127
        script = PropertyParser.parse(script, configuration.getVariables());
        TextSqlNode textSqlNode = new TextSqlNode(script);
        //判斷是否為動態的sql就取決于使用的是${} 還是#{}  當使用${}時就是動態sql
        if (textSqlNode.isDynamic()) {
            return new DynamicSqlSource(configuration, textSqlNode);
        } else {
            return new RawSqlSource(configuration, script, parameterType);
        }
    }
}

之后在RewSqlSource中對sql進行決議

RewSqlSource.java

public RawSqlSource(Configuration configuration, String sql, Class<?> parameterType) {
    SqlSourceBuilder sqlSourceParser = new SqlSourceBuilder(configuration);
    Class<?> clazz = parameterType == null ? Object.class : parameterType;
    sqlSource = sqlSourceParser.parse(sql, clazz, new HashMap<String, Object>());
}

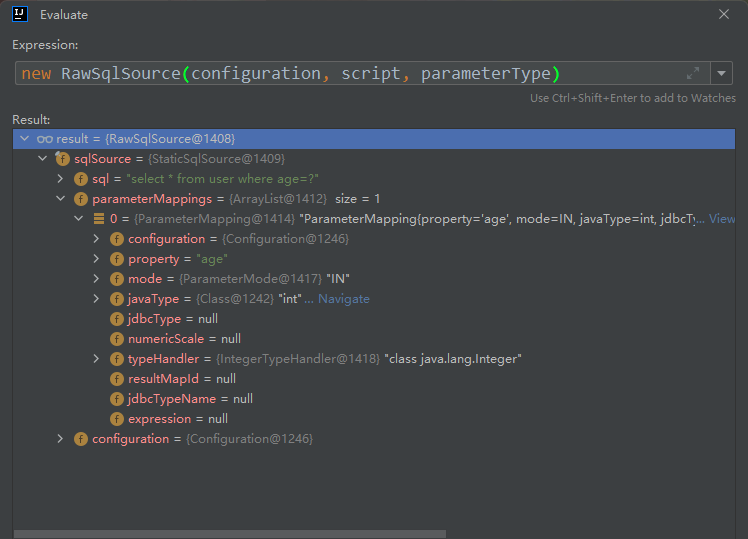

決議完最終結果如下

回到上個方法

  void parseStatement(Method method) {
    Class<?> parameterTypeClass = getParameterType(method);
    LanguageDriver languageDriver = getLanguageDriver(method);
    SqlSource sqlSource = getSqlSourceFromAnnotations(method, parameterTypeClass, languageDriver);
    //從這里繼續
    if (sqlSource != null) {
      Options options = method.getAnnotation(Options.class);
      //mappedStatementId=類全限定+方法名
      final String mappedStatementId = type.getName() + "." + method.getName();
      //設定獲取資料的大小
      Integer fetchSize = null;
      //設定此次查詢超時時間
      Integer timeout = null;
      //https://blog.csdn.net/king101125s/article/details/104167493
      StatementType statementType = StatementType.PREPARED;
      //resultSet結果型別   FORWARD_ONLY 游標只能向前移動
      ResultSetType resultSetType = ResultSetType.FORWARD_ONLY;
      //設定sql型別,當前案例是SELECT
      SqlCommandType sqlCommandType = getSqlCommandType(method);
      boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
      boolean flushCache = !isSelect;
      boolean useCache = isSelect;

      KeyGenerator keyGenerator;
      String keyProperty = "id";
      String keyColumn = null;
      if (SqlCommandType.INSERT.equals(sqlCommandType) || SqlCommandType.UPDATE.equals(sqlCommandType)) {
        // first check for SelectKey annotation - that overrides everything else
        SelectKey selectKey = method.getAnnotation(SelectKey.class);
        if (selectKey != null) {
          keyGenerator = handleSelectKeyAnnotation(selectKey, mappedStatementId, getParameterType(method), languageDriver);
          keyProperty = selectKey.keyProperty();
        } else if (options == null) {
          keyGenerator = configuration.isUseGeneratedKeys() ? new Jdbc3KeyGenerator() : new NoKeyGenerator();
        } else {
          keyGenerator = options.useGeneratedKeys() ? new Jdbc3KeyGenerator() : new NoKeyGenerator();
          keyProperty = options.keyProperty();
          keyColumn = options.keyColumn();
        }
      } else {
        keyGenerator = new NoKeyGenerator();
      }

      if (options != null) {
        flushCache = options.flushCache();
        useCache = options.useCache();
        fetchSize = options.fetchSize() > -1 || options.fetchSize() == Integer.MIN_VALUE ? options.fetchSize() : null; //issue #348
        timeout = options.timeout() > -1 ? options.timeout() : null;
        statementType = options.statementType();
        resultSetType = options.resultSetType();
      }

      String resultMapId = null;
      ResultMap resultMapAnnotation = method.getAnnotation(ResultMap.class);
      if (resultMapAnnotation != null) {
        String[] resultMaps = resultMapAnnotation.value();
        StringBuilder sb = new StringBuilder();
        for (String resultMap : resultMaps) {
          if (sb.length() > 0) {
            sb.append(",");
          }
          sb.append(resultMap);
        }
        resultMapId = sb.toString();
      } else if (isSelect) {
        resultMapId = parseResultMap(method);
      }
	//將引數傳給小助手
      assistant.addMappedStatement(
          mappedStatementId,
          sqlSource,
          statementType,
          sqlCommandType,
          fetchSize,
          timeout,
          // ParameterMapID
          null,
          parameterTypeClass,
          resultMapId,
          getReturnType(method),
          resultSetType,
          flushCache,
          useCache,
          // TODO issue #577
          false,
          keyGenerator,
          keyProperty,
          keyColumn,
          // DatabaseID
          null,
          languageDriver,
          // ResultSets
          null);
    }
  }

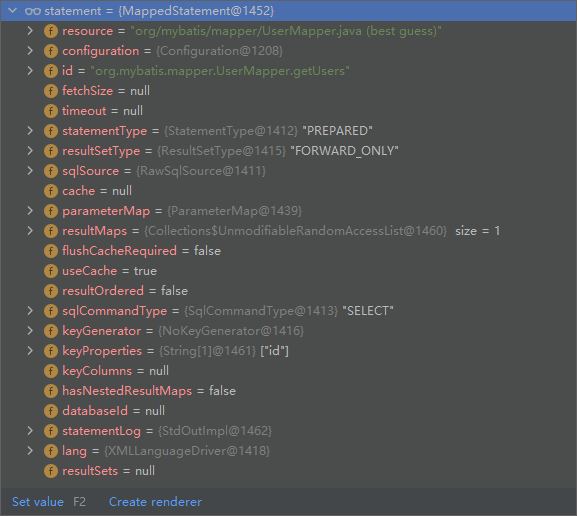

添加mappedStatement

public MappedStatement addMappedStatement(
    String id,
    SqlSource sqlSource,
    StatementType statementType,
    SqlCommandType sqlCommandType,
    Integer fetchSize,
    Integer timeout,
    String parameterMap,
    Class<?> parameterType,
    String resultMap,
    Class<?> resultType,
    ResultSetType resultSetType,
    boolean flushCache,
    boolean useCache,
    boolean resultOrdered,
    KeyGenerator keyGenerator,
    String keyProperty,
    String keyColumn,
    String databaseId,
    LanguageDriver lang,
    String resultSets) {

    if (unresolvedCacheRef) {
        throw new IncompleteElementException("Cache-ref not yet resolved");
    }

    id = applyCurrentNamespace(id, false);
    boolean isSelect = sqlCommandType == SqlCommandType.SELECT;

    MappedStatement.Builder statementBuilder = new MappedStatement.Builder(configuration, id, sqlSource, sqlCommandType)
        .resource(resource)
        .fetchSize(fetchSize)
        .timeout(timeout)
        .statementType(statementType)
        .keyGenerator(keyGenerator)
        .keyProperty(keyProperty)
        .keyColumn(keyColumn)
        .databaseId(databaseId)
        .lang(lang)
        .resultOrdered(resultOrdered)
        .resulSets(resultSets)
        .resultMaps(getStatementResultMaps(resultMap, resultType, id))
        .resultSetType(resultSetType)
        .flushCacheRequired(valueOrDefault(flushCache, !isSelect))
        .useCache(valueOrDefault(useCache, isSelect))
        .cache(currentCache);

    ParameterMap statementParameterMap = getStatementParameterMap(parameterMap, parameterType, id);
    if (statementParameterMap != null) {
        statementBuilder.parameterMap(statementParameterMap);
    }

    MappedStatement statement = statementBuilder.build();
    //這里將這個MappedStatement放入configuration
    configuration.addMappedStatement(statement);
    return statement;
}

將各種引數最后封裝為一個MappedStatement,放入configuration中,這樣一個addMapper的方法就結束了

之后回到SqlSessionFactory的build中,執行多載的build

public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
    XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
    //回到這里
    return build(parser.parse());

}
//默認為DefaultSqlSessionFactory
public SqlSessionFactory build(Configuration config) {
    return new DefaultSqlSessionFactory(config);
}

DefaultSqlSessionFactory.java

public class DefaultSqlSessionFactory implements SqlSessionFactory {

    private final Configuration configuration;

    public DefaultSqlSessionFactory(Configuration configuration) {
        this.configuration = configuration;
    }
    //.....
}

至此new SqlSessionFactoryBuilder().build(inputStream)這段代碼的決議環境和加載mapper就分析完了

sqlSessionFactory

回到主代碼

public static void main(String[] args) throws Exception {
    String resource = "org/mybatis/config.xml";
    InputStream inputStream = Resources.getResourceAsStream(resource);
    SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
    SqlSession session = sqlSessionFactory.openSession();
    //..
}

開始分析sqlSessionFactory.openSession();

點進入發現有兩個實作類,在上面的build中已經明確了創建的就是DefaultSqlSessionFactory

DefaultSqlSessionFactory.java

@Override
public SqlSession openSession() {
    //引數:執行器,默認為simple,每次關閉statement SimpleExecutor
    return openSessionFromDataSource(configuration.getDefaultExecutorType(), null, false);
}

configuration.getDefaultExecutorType()在Configuration類中獲取的是本身的一個屬性,型別是一個ExecutorType的列舉,默認為SIMPE

private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
    Transaction tx = null;
    try {
        //獲取配置類中的事務,datasource封裝類
        final Environment environment = configuration.getEnvironment();
        //通過配置的環境中獲取事務工廠
        final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
        //創建物件/datasource/隔離等級/是否自動提交
        tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
        final Executor executor = configuration.newExecutor(tx, execType);
        return new DefaultSqlSession(configuration, executor, autoCommit);
    } catch (Exception e) {
        closeTransaction(tx); // may have fetched a connection so lets call close()
        throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
    } finally {
        ErrorContext.instance().reset();
    }
}

獲取configuration中的事務工廠之后創建一個執行器

Configuration.java

public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
    executorType = executorType == null ? defaultExecutorType : executorType;
    executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
    Executor executor;
    if (ExecutorType.BATCH == executorType) {
        executor = new BatchExecutor(this, transaction);
    } else if (ExecutorType.REUSE == executorType) {
        executor = new ReuseExecutor(this, transaction);
    } else {
        executor = new SimpleExecutor(this, transaction);
    }
    if (cacheEnabled) {
        executor = new CachingExecutor(executor);
    }
    executor = (Executor) interceptorChain.pluginAll(executor);
    return executor;
}

這里快取是默認開啟的,所以最后回傳的是一個CachingExecutor 包含著一個SimpleExecutor

最后回傳一個默認的DefaultSqlSession

DefaultSqlSession.java

    public DefaultSqlSession(Configuration configuration, Executor executor, boolean autoCommit) {
        this.configuration = configuration;
        this.executor = executor;
        this.dirty = false;
        this.autoCommit = autoCommit;
    }

到這里session也創建完成了之后就是獲取mapper執行查詢了

session.getMapper

DefaultSqlSession.java

@Override
public <T> T getMapper(Class<T> type) {
    return configuration.<T>getMapper(type, this);
}

Configuration.java

public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
    return mapperRegistry.getMapper(type, sqlSession);
}

MapperRegistry.java

public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
    final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
    if (mapperProxyFactory == null) {
        throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
    }
    try {
        return mapperProxyFactory.newInstance(sqlSession);
    } catch (Exception e) {
        throw new BindingException("Error getting mapper instance. Cause: " + e, e);
    }
}

MapperProxyFactory.java

protected T newInstance(MapperProxy<T> mapperProxy) {
    return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
}

public T newInstance(SqlSession sqlSession) {
    final MapperProxy<T> mapperProxy = new MapperProxy<T>(sqlSession, mapperInterface, methodCache);
    return newInstance(mapperProxy);
}

MapperProxy.java

動態代理來實作mapper的方法呼叫


public class MapperProxy<T> implements InvocationHandler, Serializable {

    private static final long serialVersionUID = -6424540398559729838L;
    private final SqlSession sqlSession;
    private final Class<T> mapperInterface;
    private final Map<Method, MapperMethod> methodCache;

    public MapperProxy(SqlSession sqlSession, Class<T> mapperInterface, Map<Method, MapperMethod> methodCache) {
        this.sqlSession = sqlSession;
        this.mapperInterface = mapperInterface;
        this.methodCache = methodCache;
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        if (Object.class.equals(method.getDeclaringClass())) {
            try {
                return method.invoke(this, args);
            } catch (Throwable t) {
                throw ExceptionUtil.unwrapThrowable(t);
            }
        }
        final MapperMethod mapperMethod = cachedMapperMethod(method);
        return mapperMethod.execute(sqlSession, args);
    }

    private MapperMethod cachedMapperMethod(Method method) {
        MapperMethod mapperMethod = methodCache.get(method);
        if (mapperMethod == null) {
            mapperMethod = new MapperMethod(mapperInterface, method, sqlSession.getConfiguration());
            methodCache.put(method, mapperMethod);
        }
        return mapperMethod;
    }

}

當我們執行userMapper.getUsers()的時候,通過動態代理進入invoke方法,之后獲取快取的方法,進入cachedMapperMethod

先找是否已經創建過這個方法的封裝類了,如果沒有則去創建

MapperMethod.java

 public MapperMethod(Class<?> mapperInterface, Method method, Configuration config) {
    this.command = new SqlCommand(config, mapperInterface, method);
    this.method = new MethodSignature(config, method);
  }

MapperMethod.java-SqlCommand.java 靜態內部類

public SqlCommand(Configuration configuration, Class<?> mapperInterface, Method method) {
    String statementName = mapperInterface.getName() + "." + method.getName();
    MappedStatement ms = null;
    //當程式走到這里的時候就會為true
    if (configuration.hasStatement(statementName)) {
        ms = configuration.getMappedStatement(statementName);
    }
    ///......
    if (ms == null) {
    //.....
    } else {
        name = ms.getId();
        type = ms.getSqlCommandType();
        if (type == SqlCommandType.UNKNOWN) {
            throw new BindingException("Unknown execution method for: " + name);
        }
    }
}

Configuration.java

public boolean hasStatement(String statementName) {
    return hasStatement(statementName, true);
}

public boolean hasStatement(String statementName, boolean validateIncompleteStatements) {
    if (validateIncompleteStatements) {
        buildAllStatements();
    }
    //主要這行
    return mappedStatements.containsKey(statementName);
}

可能忘了它什么時候添加進去的了,在那個小助手中的addMappedStatement方法,最后的時候進行的添加點我跳轉到addMappedStatement

那么這里就直接走到最后的if了,將name和type賦值給SqlCommand,方法結束

之后還有創建MethodSignature

MapperMethod.java-MethodSignature.java 靜態內部類

public MethodSignature(Configuration configuration, Method method) {
    this.returnType = method.getReturnType();
    this.returnsVoid = void.class.equals(this.returnType);
    this.returnsMany = (configuration.getObjectFactory().isCollection(this.returnType) || this.returnType.isArray());
    this.mapKey = getMapKey(method);
    this.returnsMap = (this.mapKey != null);
    //是否存在@Param注解
    this.hasNamedParameters = hasNamedParams(method);
    this.rowBoundsIndex = getUniqueParamIndex(method, RowBounds.class);
    this.resultHandlerIndex = getUniqueParamIndex(method, ResultHandler.class);
    this.params = Collections.unmodifiableSortedMap(getParams(method, this.hasNamedParameters));
}

走完這一系列后回到MapperProxy.java中的invoke方法,最后執行mapperMethod.execute(sqlSession, args)

MapperMethod.java

public Object execute(SqlSession sqlSession, Object[] args) {
    Object result;
    if(){
        //.......
    } else if (SqlCommandType.SELECT == command.getType()) {
        if (method.returnsVoid() && method.hasResultHandler()) {
            executeWithResultHandler(sqlSession, args);
            result = null;
        } else if (method.returnsMany()) {
            result = executeForMany(sqlSession, args);
        } else if (method.returnsMap()) {
            result = executeForMap(sqlSession, args);
        } else {
            Object param = method.convertArgsToSqlCommandParam(args);
            result = sqlSession.selectOne(command.getName(), param);
        }
    } else if (SqlCommandType.FLUSH == command.getType()) {
        result = sqlSession.flushStatements();
    } else {
        throw new BindingException("Unknown execution method for: " + command.getName());
    }
    if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
        throw new BindingException("Mapper method '" + command.getName()
                                   + " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
    }
    return result;
}

根據command的型別,當前這個案例是SELECT,進入后判斷回傳型別,當前是回傳一個集合,returnsMany屬性為ture,進入到result = executeForMany(sqlSession, args);

private <E> Object executeForMany(SqlSession sqlSession, Object[] args) {
    List<E> result;
    //封裝入參
    Object param = method.convertArgsToSqlCommandParam(args);
 	//這個為false,沒有設定過邏輯分頁
    if (method.hasRowBounds()) {
        RowBounds rowBounds = method.extractRowBounds(args);
        result = sqlSession.<E>selectList(command.getName(), param, rowBounds);
    } else {
        result = sqlSession.<E>selectList(command.getName(), param);
    }
    // issue #510 Collections & arrays support
    if (!method.getReturnType().isAssignableFrom(result.getClass())) {
        if (method.getReturnType().isArray()) {
            return convertToArray(result);
        } else {
            return convertToDeclaredCollection(sqlSession.getConfiguration(), result);
        }
    }
    return result;
}

public Object convertArgsToSqlCommandParam(Object[] args) {
    final int paramCount = params.size();
    if (args == null || paramCount == 0) {
        return null;
    } else if (!hasNamedParameters && paramCount == 1) {
        return args[params.keySet().iterator().next()];
    } else {
        final Map<String, Object> param = new ParamMap<Object>();
        int i = 0;
        for (Map.Entry<Integer, String> entry : params.entrySet()) {
            param.put(entry.getValue(), args[entry.getKey().intValue()]);
            // issue #71, add param names as param1, param2...but ensure backward compatibility
            final String genericParamName = "param" + String.valueOf(i + 1);
            if (!param.containsKey(genericParamName)) {
                param.put(genericParamName, args[entry.getKey()]);
            }
            i++;
        }
        return param;
    }
}

封裝mapper入參,沒有入參回傳null,一個入參回傳陣列,多個入參回傳ParamMap

最終執行到result = sqlSession.<E>selectList(command.getName(), param);

DefaultSqlSession.java

public <E> List<E> selectList(String statement, Object parameter) {
    return this.selectList(statement, parameter, RowBounds.DEFAULT);
}

@Override
public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
    try {
        MappedStatement ms = configuration.getMappedStatement(statement);
        return executor.query(ms, wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
    } catch (Exception e) {
        throw ExceptionFactory.wrapException("Error querying database.  Cause: " + e, e);
    } finally {
        ErrorContext.instance().reset();
    }
}

warpCollection方法對入參同一封裝了一遍

DefaultSqlSession.java

private Object wrapCollection(final Object object) {
    //如果是集合
    if (object instanceof Collection) {
        StrictMap<Object> map = new StrictMap<Object>();
        map.put("collection", object);
        if (object instanceof List) {
            map.put("list", object);
        }
        return map;
    //如果是陣列
    } else if (object != null && object.getClass().isArray()) {
        StrictMap<Object> map = new StrictMap<Object>();
        map.put("array", object);
        return map;
    }
    return object;
}

之后進入executor.query()

  @Override
  public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
    BoundSql boundSql = ms.getBoundSql(parameter);
    CacheKey key = createCacheKey(ms, parameter, rowBounds, boundSql);
    return query(ms, parameter, rowBounds, resultHandler, key, boundSql);
 }

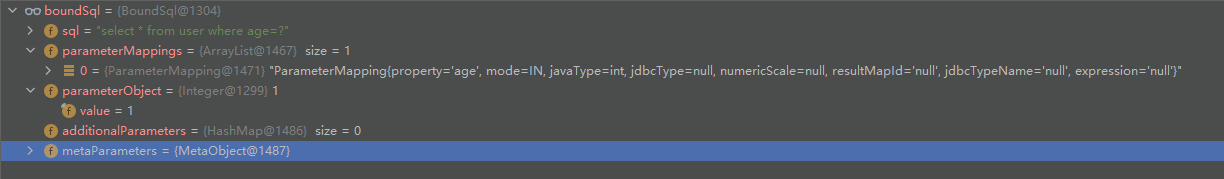

第一步先獲取該方法對應的sql,入參型別,入參引數

ms.getBoundSql(parameter);

之后是創建快取key

@Override
public CacheKey createCacheKey(MappedStatement ms, Object parameterObject, RowBounds rowBounds, BoundSql boundSql) {
    if (closed) {
        throw new ExecutorException("Executor was closed.");
    }
    CacheKey cacheKey = new CacheKey();
    cacheKey.update(ms.getId());
    cacheKey.update(Integer.valueOf(rowBounds.getOffset()));
    cacheKey.update(Integer.valueOf(rowBounds.getLimit()));
    cacheKey.update(boundSql.getSql());
    List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
    TypeHandlerRegistry typeHandlerRegistry = ms.getConfiguration().getTypeHandlerRegistry();
    // mimic DefaultParameterHandler logic
    for (int i = 0; i < parameterMappings.size(); i++) {
        ParameterMapping parameterMapping = parameterMappings.get(i);
        if (parameterMapping.getMode() != ParameterMode.OUT) {
            Object value;
            String propertyName = parameterMapping.getProperty();
            if (boundSql.hasAdditionalParameter(propertyName)) {
                value = https://www.cnblogs.com/sunankang/p/boundSql.getAdditionalParameter(propertyName);
            } else if (parameterObject == null) {
                value = null;
            } else if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
                value = parameterObject;
            } else {
                MetaObject metaObject = configuration.newMetaObject(parameterObject);
                value = metaObject.getValue(propertyName);
            }
            cacheKey.update(value);
        }
    }
    if (configuration.getEnvironment() != null) {
        // issue #176
        cacheKey.update(configuration.getEnvironment().getId());
    }
    return cacheKey;
}

創建CacheKey作為快取key的封裝類,根據以下引數進行生成key

  • MappedStatement的id
  • rowBounds.getOffset() 跳過條數
  • rowBounds.getLimit() 限制條數
  • boundSql.getSql() 要執行的sql陳述句

之后遍歷

如果是陣列就將每個元素取出然后執行doUpdate,否則直接執行

CacheKey.java

private void doUpdate(Object object) {
    int baseHashCode = object == null ? 1 : object.hashCode();

    count++;
    checksum += baseHashCode;
    baseHashCode *= count;

    hashcode = multiplier * hashcode + baseHashCode;

    updateList.add(object);
}

最后走到query

CachingExecutor.java

@Override
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql)
    throws SQLException {
    Cache cache = ms.getCache();
    if (cache != null) {
        flushCacheIfRequired(ms);
        if (ms.isUseCache() && resultHandler == null) {
            ensureNoOutParams(ms, parameterObject, boundSql);
            @SuppressWarnings("unchecked")
            List<E> list = (List<E>) tcm.getObject(cache, key);
            if (list == null) {
                list = delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
                tcm.putObject(cache, key, list); // issue #578 and #116
            }
            return list;
        }
    }
    return delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}

因為是首次進入,沒有快取,直接到BaseExecutor.query方法

BaseExecutor.java


@Override
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
    if (closed) {
        throw new ExecutorException("Executor was closed.");
    }
    if (queryStack == 0 && ms.isFlushCacheRequired()) {
        clearLocalCache();
    }
    List<E> list;
    try {
        queryStack++;
        list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
        if (list != null) {
            handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
        } else {
            list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
        }
    } finally {
        queryStack--;
    }
    if (queryStack == 0) {
        for (DeferredLoad deferredLoad : deferredLoads) {
            deferredLoad.load();
        }
        // issue #601
        deferredLoads.clear();
        if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
            // issue #482
            clearLocalCache();
        }
    }
    return list;
}

進入后判斷如果queryStack==0并且當前MappedStatement宣告了需要清除快取,則去清除快取

@Options(flushCache= Options.FlushCachePolicy.TRUE)

<select id="getUser"  resultType="user" flushCache="true" >

將queryStack++,根據CacheKey獲取對應快取,如果沒有則去查詢資料庫

queryStack的作用

BaseExecutor.java

private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    List<E> list;
    localCache.putObject(key, EXECUTION_PLACEHOLDER);
    try {
        list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
    } finally {
        localCache.removeObject(key);
    }
    localCache.putObject(key, list);
    if (ms.getStatementType() == StatementType.CALLABLE) {
        localOutputParameterCache.putObject(key, parameter);
    }
    return list;
}

進入doQuery

SimpleExecutor.java

@Override
public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    Statement stmt = null;
    try {
        Configuration configuration = ms.getConfiguration();
        StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
        stmt = prepareStatement(handler, ms.getStatementLog());
        return handler.<E>query(stmt, resultHandler);
    } finally {
        closeStatement(stmt);
    }
}

創建statement執行類

public StatementHandler newStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
    StatementHandler statementHandler = new RoutingStatementHandler(executor, mappedStatement, parameterObject, rowBounds, resultHandler, boundSql);
    statementHandler = (StatementHandler) interceptorChain.pluginAll(statementHandler);
    return statementHandler;
}


public RoutingStatementHandler(Executor executor, MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
    switch (ms.getStatementType()) {
        case STATEMENT:
            delegate = new SimpleStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
            break;
        case PREPARED:
            delegate = new PreparedStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
            break;
        case CALLABLE:
            delegate = new CallableStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
            break;
        default:
            throw new ExecutorException("Unknown statement type: " + ms.getStatementType());
    }
}

這里使用的是#{} MappedStatement的getStatementType回傳為PREPARED 最后回傳PreparedStatementHandler

之后決議prepareStatement

  private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
    Statement stmt;
    Connection connection = getConnection(statementLog);
    stmt = handler.prepare(connection);
    handler.parameterize(stmt);
    return stmt;
  }

獲取連接之后決議statement

@Override
public Statement prepare(Connection connection) throws SQLException {
    Statement statement = null;
    statement = instantiateStatement(connection);
    //設定超時
    setStatementTimeout(statement);
    //設定獲取資料大小
    setFetchSize(statement);
    return statement;
	//....
}

PreparedStatementHandler.java

@Override
protected Statement instantiateStatement(Connection connection) throws SQLException {
    String sql = boundSql.getSql();
    if (mappedStatement.getKeyGenerator() instanceof Jdbc3KeyGenerator) {
        String[] keyColumnNames = mappedStatement.getKeyColumns();
        if (keyColumnNames == null) {
            return connection.prepareStatement(sql, PreparedStatement.RETURN_GENERATED_KEYS);
        } else {
            return connection.prepareStatement(sql, keyColumnNames);
        }
    } else if (mappedStatement.getResultSetType() != null) {
        //將會走到這里回傳preparedStatement
        return connection.prepareStatement(sql, mappedStatement.getResultSetType().getValue(), ResultSet.CONCUR_READ_ONLY);
    } else {
        return connection.prepareStatement(sql);
    }
}

之后執行handler.parameterize(stmt);

DefaultParameterHandler.java

@Override
public void setParameters(PreparedStatement ps) {
    ErrorContext.instance().activity("setting parameters").object(mappedStatement.getParameterMap().getId());
    List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
    if (parameterMappings != null) {
        for (int i = 0; i < parameterMappings.size(); i++) {
            ParameterMapping parameterMapping = parameterMappings.get(i);
            if (parameterMapping.getMode() != ParameterMode.OUT) {
                Object value;
                String propertyName = parameterMapping.getProperty();
                if (boundSql.hasAdditionalParameter(propertyName)) { // issue #448 ask first for additional params
                    value = https://www.cnblogs.com/sunankang/p/boundSql.getAdditionalParameter(propertyName);
                } else if (parameterObject == null) {
                    value = null;
                //判斷入參型別是否有對應的決議類
                //去找TYPE_HANDLER_MAP中是否存在對應的型別,當前demo的入參型別是int
                //在TypeHandlerRegistry類的無參構造中已經將常用的基本資料型別和參考資料型別放入到了TYPE_HANDLER_MAP中
                } else if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
                    value = parameterObject;
                } else {
                    MetaObject metaObject = configuration.newMetaObject(parameterObject);
                    value = metaObject.getValue(propertyName);
                }
                //這里獲取的是IntegerTypeHandler
                TypeHandler typeHandler = parameterMapping.getTypeHandler();

                JdbcType jdbcType = parameterMapping.getJdbcType();
                if (value == null && jdbcType == null) {
                    jdbcType = configuration.getJdbcTypeForNull();
                }
                try {
                     //IntegerTypeHandler中的并沒有重寫setParameter
                    //進入BaseTypeHandler的setParameter
                    typeHandler.setParameter(ps, i + 1, value, jdbcType);
                } catch (TypeException e) {
                    throw new TypeException("Could not set parameters for mapping: " + parameterMapping + ". Cause: " + e, e);
                } catch (SQLException e) {
                    throw new TypeException("Could not set parameters for mapping: " + parameterMapping + ". Cause: " + e, e);
                }
            }
        }
    }
}

BaseTypeHandler.java

@Override
public void setParameter(PreparedStatement ps, int i, T parameter, JdbcType jdbcType) throws SQLException {
    if (parameter == null) {
        if (jdbcType == null) {
            throw new TypeException("JDBC requires that the JdbcType must be specified for all nullable parameters.");
        }
        try {
            ps.setNull(i, jdbcType.TYPE_CODE);
        } catch (SQLException e) {
            throw new TypeException("Error setting null for parameter #" + i + " with JdbcType " + jdbcType + " . " +
                                    "Try setting a different JdbcType for this parameter or a different jdbcTypeForNull configuration property. " +
                                    "Cause: " + e, e);
        }
    } else {
        try {
            //進入這里
            setNonNullParameter(ps, i, parameter, jdbcType);
        } catch (Exception e) {
            throw new TypeException("Error setting non null for parameter #" + i + " with JdbcType " + jdbcType + " . " +
                                    "Try setting a different JdbcType for this parameter or a different configuration property. " +
                                    "Cause: " + e, e);
        }
    }
}

public class IntegerTypeHandler extends BaseTypeHandler<Integer> {
    @Override
    public void setNonNullParameter(PreparedStatement ps, int i, Integer parameter, JdbcType jdbcType)
        throws SQLException {
        ps.setInt(i, parameter);
    }
}

最后回到SimpleExecutor類中的prepareStatement方法,回傳PreparedStatement

@Override
public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    Statement stmt = null;
    try {
        Configuration configuration = ms.getConfiguration();
        StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
        stmt = prepareStatement(handler, ms.getStatementLog());
        //獲取回傳的stmt,進行查詢
        return handler.<E>query(stmt, resultHandler);
    } finally {
        closeStatement(stmt);
    }
}

PreparedStatementHandler.java

@Override
public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
    PreparedStatement ps = (PreparedStatement) statement;
    ps.execute();
    return resultSetHandler.<E> handleResultSets(ps);
}

DefaultResultSetHandler.java

@Override
public List<Object> handleResultSets(Statement stmt) throws SQLException {
    ErrorContext.instance().activity("handling results").object(mappedStatement.getId());

    final List<Object> multipleResults = new ArrayList<Object>();

    int resultSetCount = 0;
    //先將結果進行封裝

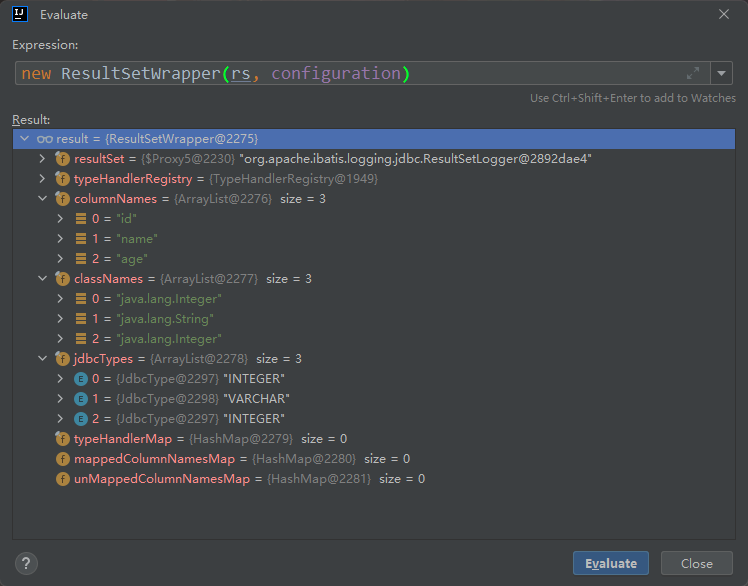

    ResultSetWrapper rsw = getFirstResultSet(stmt);
	//.....
}

private ResultSetWrapper getFirstResultSet(Statement stmt) throws SQLException {
    ResultSet rs = stmt.getResultSet();
    while (rs == null) {
        // move forward to get the first resultset in case the driver
        // doesn't return the resultset as the first result (HSQLDB 2.1)
        if (stmt.getMoreResults()) {
            rs = stmt.getResultSet();
        } else {
            if (stmt.getUpdateCount() == -1) {
                // no more results. Must be no resultset
                break;
            }
        }
    }
    return rs != null ? new ResultSetWrapper(rs, configuration) : null;
}

ResultSetWrapper.java

將結果對應的查詢列名,資料庫列型別,類名

public ResultSetWrapper(ResultSet rs, Configuration configuration) throws SQLException {
    super();
    this.typeHandlerRegistry = configuration.getTypeHandlerRegistry();
    this.resultSet = rs;
    final ResultSetMetaData metaData = https://www.cnblogs.com/sunankang/p/rs.getMetaData();
    final int columnCount = metaData.getColumnCount();
    for (int i = 1; i <= columnCount; i++) {
        columnNames.add(configuration.isUseColumnLabel() ? metaData.getColumnLabel(i) : metaData.getColumnName(i));
        jdbcTypes.add(JdbcType.forCode(metaData.getColumnType(i)));
        classNames.add(metaData.getColumnClassName(i));
    }
}

回到DefaultResultSetHandler的handleResultSets方法

@Override
public List<Object> handleResultSets(Statement stmt) throws SQLException {
    ErrorContext.instance().activity("handling results").object(mappedStatement.getId());

    final List<Object> multipleResults = new ArrayList<Object>();

    int resultSetCount = 0;
    ResultSetWrapper rsw = getFirstResultSet(stmt);

    List<ResultMap> resultMaps = mappedStatement.getResultMaps();
    int resultMapCount = resultMaps.size();
    //檢查查詢結果是否指定對應的類或resultMap
    validateResultMapsCount(rsw, resultMapCount);
    while (rsw != null && resultMapCount > resultSetCount) {
        ResultMap resultMap = resultMaps.get(resultSetCount);
        //處理結果,當前demo是封裝為User
        handleResultSet(rsw, resultMap, multipleResults, null);
        rsw = getNextResultSet(stmt);
        cleanUpAfterHandlingResultSet();
        resultSetCount++;
    }
    //.......
}

private void handleResultSet(ResultSetWrapper rsw, ResultMap resultMap, List<Object> multipleResults, ResultMapping parentMapping) throws SQLException {
    try {
        if (parentMapping != null) {
            handleRowValues(rsw, resultMap, null, RowBounds.DEFAULT, parentMapping);
        } else {
            //是否存在自定義的結果處理器
            if (resultHandler == null) {
                //我們沒有設定,則使用默認結果處理
                DefaultResultHandler defaultResultHandler = new DefaultResultHandler(objectFactory);
                //處理一行資料
                handleRowValues(rsw, resultMap, defaultResultHandler, rowBounds, null);
                multipleResults.add(defaultResultHandler.getResultList());
            } else {
                handleRowValues(rsw, resultMap, resultHandler, rowBounds, null);
            }
        }
    } finally {
        // issue #228 (close resultsets)
        closeResultSet(rsw.getResultSet());
    }
}

private void handleRowValues(ResultSetWrapper rsw, ResultMap resultMap, ResultHandler<?> resultHandler, RowBounds rowBounds, ResultMapping parentMapping) throws SQLException {
    //如果設定了resultMap,我們沒有設定,走else
    if (resultMap.hasNestedResultMaps()) {
        ensureNoRowBounds();
        checkResultHandler();
        handleRowValuesForNestedResultMap(rsw, resultMap, resultHandler, rowBounds, parentMapping);
    } else {
        handleRowValuesForSimpleResultMap(rsw, resultMap, resultHandler, rowBounds, parentMapping);
    }
}

private void handleRowValuesForSimpleResultMap(ResultSetWrapper rsw, ResultMap resultMap, ResultHandler<?> resultHandler, RowBounds rowBounds, ResultMapping parentMapping)
    throws SQLException {
    DefaultResultContext<Object> resultContext = new DefaultResultContext<Object>();
    //根據rowBounds跳過行數
    skipRows(rsw.getResultSet(), rowBounds);
   	//判斷是否應該處理更多 && 移動resultSet游標并且回傳是否還有更多資料
    while (shouldProcessMoreRows(resultContext, rowBounds) && rsw.getResultSet().next()) {
        ResultMap discriminatedResultMap = resolveDiscriminatedResultMap(rsw.getResultSet(), resultMap, null);
        //填充值方法
        Object rowValue = https://www.cnblogs.com/sunankang/p/getRowValue(rsw, discriminatedResultMap);
        storeObject(resultHandler, resultContext, rowValue, parentMapping, rsw.getResultSet());
    }
}

判斷當前結果背景關系是否已經關閉,并且判斷當前結果集合總數是否小于rowBounds規定的限制

private boolean shouldProcessMoreRows(ResultContext<?> context, RowBounds rowBounds) throws SQLException {
    return !context.isStopped() && context.getResultCount() < rowBounds.getLimit();
}

private Object getRowValue(ResultSetWrapper rsw, ResultMap resultMap) throws SQLException {
    final ResultLoaderMap lazyLoader = new ResultLoaderMap();
    //創建物體物件
    Object resultObject = createResultObject(rsw, resultMap, lazyLoader, null);
    if (resultObject != null && !typeHandlerRegistry.hasTypeHandler(resultMap.getType())) {
        final MetaObject metaObject = configuration.newMetaObject(resultObject);
        boolean foundValues = !resultMap.getConstructorResultMappings().isEmpty();
        if (shouldApplyAutomaticMappings(resultMap, false)) {
            foundValues = applyAutomaticMappings(rsw, resultMap, metaObject, null) || foundValues;
        }
        foundValues = applyPropertyMappings(rsw, resultMap, metaObject, lazyLoader, null) || foundValues;
        foundValues = lazyLoader.size() > 0 || foundValues;
        resultObject = foundValues ? resultObject : null;
        return resultObject;
    }
    return resultObject;
}

private Object createResultObject(ResultSetWrapper rsw, ResultMap resultMap, ResultLoaderMap lazyLoader, String columnPrefix) throws SQLException {
    final List<Class<?>> constructorArgTypes = new ArrayList<Class<?>>();
    final List<Object> constructorArgs = new ArrayList<Object>();
    //創建物件
    final Object resultObject = createResultObject(rsw, resultMap, constructorArgTypes, constructorArgs, columnPrefix);
    //.....
    return resultObject;
}

private Object createResultObject(ResultSetWrapper rsw, ResultMap resultMap, List<Class<?>> constructorArgTypes, List<Object> constructorArgs, String columnPrefix)
    throws SQLException {
    final Class<?> resultType = resultMap.getType();
    //獲取類的元資料 例如類存在幾個屬性,幾個getter 幾個setter等等類的基本資訊
    final MetaClass metaType = MetaClass.forClass(resultType, reflectorFactory);
    //判斷用戶是否指明了使用@ConstructorArgs來填充引數,當前demo沒有,所以這個集合為空
    final List<ResultMapping> constructorMappings = resultMap.getConstructorResultMappings();
    //判斷該類是否存在對應的型別處理器
    if (typeHandlerRegistry.hasTypeHandler(resultType)) {
        return createPrimitiveResultObject(rsw, resultMap, columnPrefix);
     //判斷是否需要通過有參構造方式填充
    } else if (!constructorMappings.isEmpty()) {
        return createParameterizedResultObject(rsw, resultType, constructorMappings, constructorArgTypes, constructorArgs, columnPrefix);
     //判斷如果當前類hi介面,或者存在默認構造
    } else if (resultType.isInterface() || metaType.hasDefaultConstructor()) {
        //里面最終使用class.newInstance()回傳物件
        return objectFactory.create(resultType);
    } else if (shouldApplyAutomaticMappings(resultMap, false)) {
        return createByConstructorSignature(rsw, resultType, constructorArgTypes, constructorArgs, columnPrefix);
    }
    throw new ExecutorException("Do not know how to create an instance of " + resultType);
}

走完這些就會回到DefaultResultSetHandler中的 getRowValue方法,其中還有些方法沒有對類進行實際修改就省略了

private Object getRowValue(ResultSetWrapper rsw, ResultMap resultMap) throws SQLException {
    final ResultLoaderMap lazyLoader = new ResultLoaderMap();
    //回到這里
    Object resultObject = createResultObject(rsw, resultMap, lazyLoader, null);
    //是否有對應的型別處理器
    if (resultObject != null && !typeHandlerRegistry.hasTypeHandler(resultMap.getType())) {
        final MetaObject metaObject = configuration.newMetaObject(resultObject);
        //獲取是否通過構造填充引數,當前demo為空取反false
        boolean foundValues = !resultMap.getConstructorResultMappings().isEmpty();
        //判斷是否使用了自動映射
        //https://mybatis.org/mybatis-3/zh/configuration.html#settings   setting設定autoMappingBehavior
        if (shouldApplyAutomaticMappings(resultMap, false)) {
            //應用自動映射
            foundValues = applyAutomaticMappings(rsw, resultMap, metaObject, null) || foundValues;
        }
        //應用已經映射好的
        foundValues = applyPropertyMappings(rsw, resultMap, metaObject, lazyLoader, null) || foundValues;
        //判斷懶加載或當前填充完成
        foundValues = lazyLoader.size() > 0 || foundValues;
        resultObject = foundValues ? resultObject : null;
        return resultObject;
    }
    return resultObject;
}

private boolean applyAutomaticMappings(ResultSetWrapper rsw, ResultMap resultMap, MetaObject metaObject, String columnPrefix) throws SQLException {
    //創建自動映射的列
    List<UnMappedColumAutoMapping> autoMapping = createAutomaticMappings(rsw, resultMap, metaObject, columnPrefix);
    boolean foundValues = false;
    if (autoMapping.size() > 0) {
        for (UnMappedColumAutoMapping mapping : autoMapping) {
            final Object value = https://www.cnblogs.com/sunankang/p/mapping.typeHandler.getResult(rsw.getResultSet(), mapping.column);
            // issue #377, call setter on nulls
            //如果獲取的值不為空,或者允許設定空值
            if (value != null || configuration.isCallSettersOnNulls()) {
                //如果value不為空 或者值不是基本資料型別
                if (value != null || !mapping.primitive) {
                    //反射設定值
                    metaObject.setValue(mapping.property, value);
                }
                foundValues = true;
            }
        }
    }
    return foundValues;
}

private List<UnMappedColumAutoMapping> createAutomaticMappings(ResultSetWrapper rsw, ResultMap resultMap, MetaObject metaObject, String columnPrefix) throws SQLException {
    final String mapKey = resultMap.getId() + ":" + columnPrefix;
    List<UnMappedColumAutoMapping> autoMapping = autoMappingsCache.get(mapKey);
    if (autoMapping == null) {
        autoMapping = new ArrayList<UnMappedColumAutoMapping>();
        //獲取沒有映射的欄位名稱
        final List<String> unmappedColumnNames = rsw.getUnmappedColumnNames(resultMap, columnPrefix);
        for (String columnName : unmappedColumnNames) {
            String propertyName = columnName;
           	//...
            //根據名稱獲取對應物體類的屬性名   isMapUnderscoreToCamelCase 是否開啟下劃線轉到駝峰
            final String property = metaObject.findProperty(propertyName, configuration.isMapUnderscoreToCamelCase());
            if (property != null && metaObject.hasSetter(property)) {
                //獲取對應屬性的set方法的型別
                final Class<?> propertyType = metaObject.getSetterType(property);
                //尋找是否有對應的型別轉換
                if (typeHandlerRegistry.hasTypeHandler(propertyType)) {
                    final TypeHandler<?> typeHandler = rsw.getTypeHandler(propertyType, columnName);
                    autoMapping.add(new UnMappedColumAutoMapping(columnName, property, typeHandler, propertyType.isPrimitive()));
                }
            }
        }
        //放入快取
        autoMappingsCache.put(mapKey, autoMapping);
    }
    return autoMapping;
}

之后就是獲取ResultSet中的值填充到物體類中

BaseTypeHandler.java

@Override
public T getResult(ResultSet rs, String columnName) throws SQLException {
    T result;
    try {
        result = getNullableResult(rs, columnName);
    } catch (Exception e) {
        throw new ResultMapException("Error attempting to get column '" + columnName + "' from result set.  Cause: " + e, e);
    }
    if (rs.wasNull()) {
        return null;
    } else {
        return result;
    }
}

IntegerTypeHandler.java

@Override
public Integer getNullableResult(ResultSet rs, String columnName)
    throws SQLException {
    return rs.getInt(columnName);
}

這個時候物件已經填充完一個了

之后呼叫storeObject

DefaultResultSetHandler.java

private void storeObject(ResultHandler<?> resultHandler, DefaultResultContext<Object> resultContext, Object rowValue, ResultMapping parentMapping, ResultSet rs) throws SQLException {
    if (parentMapping != null) {
        linkToParents(rs, parentMapping, rowValue);
    } else {
        //進入這里
        callResultHandler(resultHandler, resultContext, rowValue);
    }
}

private void callResultHandler(ResultHandler<?> resultHandler, DefaultResultContext<Object> resultContext, Object rowValue) {
    //將物件存盤到resultContext
    resultContext.nextResultObject(rowValue);
    ((ResultHandler<Object>)resultHandler).handleResult(resultContext);
}

DefaultResultContext.java

public void nextResultObject(T resultObject) {
    resultCount++;
    this.resultObject = resultObject;
}

之后執行handleResult

public class DefaultResultHandler implements ResultHandler<Object> {

  private final List<Object> list;
  //....
  @Override
  public void handleResult(ResultContext<? extends Object> context) {
    list.add(context.getResultObject());
  }

  public List<Object> getResultList() {
    return list;
  }
}

至此一個物件的創建/填充就完成了,之后回到DefaultResultSetHandler的handleRowValuesForSimpleResultMap方法繼續下一個物件的回圈

private void handleRowValuesForSimpleResultMap(ResultSetWrapper rsw, ResultMap resultMap, ResultHandler<?> resultHandler, RowBounds rowBounds, ResultMapping parentMapping)
    throws SQLException {
    DefaultResultContext<Object> resultContext = new DefaultResultContext<Object>();
    skipRows(rsw.getResultSet(), rowBounds);
    //一直把result的資料回圈完
    while (shouldProcessMoreRows(resultContext, rowBounds) && rsw.getResultSet().next()) {
        ResultMap discriminatedResultMap = resolveDiscriminatedResultMap(rsw.getResultSet(), resultMap, null);
        Object rowValue = https://www.cnblogs.com/sunankang/p/getRowValue(rsw, discriminatedResultMap);
        storeObject(resultHandler, resultContext, rowValue, parentMapping, rsw.getResultSet());
    }
}

然后方法一直回傳到DefaultResultSetHandler的handleResultSets方法

@Override
public List<Object> handleResultSets(Statement stmt) throws SQLException {
    ErrorContext.instance().activity("handling results").object(mappedStatement.getId());

    final List<Object> multipleResults = new ArrayList<Object>();

    int resultSetCount = 0;
    ResultSetWrapper rsw = getFirstResultSet(stmt);

    List<ResultMap> resultMaps = mappedStatement.getResultMaps();
    int resultMapCount = resultMaps.size();
    validateResultMapsCount(rsw, resultMapCount);
    while (rsw != null && resultMapCount > resultSetCount) {
        ResultMap resultMap = resultMaps.get(resultSetCount);
        //回到這里
        handleResultSet(rsw, resultMap, multipleResults, null);
        //判斷是否存在下一個resultSet 一般一個statement只會回傳一個resultSet
        rsw = getNextResultSet(stmt);
        cleanUpAfterHandlingResultSet();
        resultSetCount++;
    }
	//......
    return collapseSingleResultList(multipleResults);
}

private List<Object> collapseSingleResultList(List<Object> multipleResults) {
    return multipleResults.size() == 1 ? (List<Object>) multipleResults.get(0) : multipleResults;
}

最后,回傳這個list,整個方法結束

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/546779.html

標籤：Java

上一篇：劍指 Offer 68 - II. 二叉樹的最近公共祖先（java解題）

下一篇：Spring筆記_mybatis

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 【C++】Microsoft C++、C 和匯編程式檔案

    ......

    uj5u.com 2020-09-10 00:57:23 more
  • 例外宣告

    相比于斷言適用于排除邏輯上不可能存在的狀態，例外通常是用于邏輯上可能發生的錯誤。 例外宣告 Item 1：當函式不可能拋出例外或不能接受拋出例外時，使用noexcept 理由 如果不打算拋出例外的話，程式就會認為無法處理這種錯誤，并且應當盡早終止，如此可以有效地阻止例外的傳播與擴散。 示例 //不可 ......

    uj5u.com 2020-09-10 00:57:27 more
  • Codeforces 1400E Clear the Multiset(貪心 + 分治)

    鏈接：https://codeforces.com/problemset/problem/1400/E 來源：Codeforces 思路：給你一個陣列，現在你可以進行兩種操作，操作1：將一段沒有 0 的區間進行減一的操作，操作2：將 i 位置上的元素歸零。最終問：將這個陣列的全部元素歸零后操作的最少 ......

    uj5u.com 2020-09-10 00:57:30 more
  • UVA11610 【Reverse Prime】

    本人看到此題沒有翻譯，就附帶了一個自己的翻譯版本 思考 這一題，它的第一個要求是找出所有 $7$ 位反向質數及其質因數的個數。 我們應該需要質數篩篩選1~$10^{7}$的所有數，這里就不慢慢介紹了。但是，重讀題，我們突然發現反向質數都是 $7$ 位，而將它反過來后的數字卻是 $6$ 位數，這就說明 ......

    uj5u.com 2020-09-10 00:57:36 more
  • 統計區間素數數量

    1 #pragma GCC optimize(2) 2 #include <bits/stdc++.h> 3 using namespace std; 4 bool isprime[1000000010]; 5 vector<int> prime; 6 inline int getlist(int ......

    uj5u.com 2020-09-10 00:57:47 more
  • C/C++編程筆記：C++中的 const 變數詳解，教你正確認識const用法

    1、C中的const 1、區域const變數存放在堆疊區中，會分配記憶體（也就是說可以通過地址間接修改變數的值）。測驗代碼如下： 運行結果： 2、全域const變數存放在只讀資料段（不能通過地址修改，會發生寫入錯誤）， 默認為外部聯編，可以給其他源檔案使用（需要用extern關鍵字修飾） 運行結果： ......

    uj5u.com 2020-09-10 00:58:04 more
  • 【C++犯錯記錄】VS2019 MFC添加資源不懂如何修改資源宏ID

    1. 首先在資源視圖中，添加資源 2. 點擊新添加的資源，復制自動生成的ID 3. 在解決方案資源管理器中找到Resource.h檔案，編輯，使用整個專案搜索和替換的方式快速替換 宏宣告 4. Ctrl+Shift+F 全域搜索，點擊查找全部，然后逐個替換 5. 為什么使用搜索替換而不使用屬性視窗直 ......

    uj5u.com 2020-09-10 00:59:11 more
  • 【C++犯錯記錄】VS2019 MFC不懂的批量添加資源

    1. 打開資源頭檔案Resource.h，在其中預先定義好宏 ID（不清楚其實ID值應該設定多少，可以先新建一個相同的資源項，再在這個資源的ID值的基礎上遞增即可） 2. 在資源視圖中選中專案資源，按F7編輯資源檔案，按 ID 型別 相對路徑的形式添加 資源。（別忘了先把檔案拷貝到專案中的res檔案 ......

    uj5u.com 2020-09-10 01:00:19 more
  • C/C++編程筆記：關于C++的參考型別，專供新手入門使用

    今天要講的是C++中我最喜歡的一個用法——參考，也叫別名。 參考就是給一個變數名取一個變數名，方便我們間接地使用這個變數。我們可以給一個變數創建N個參考，這N + 1個變數共享了同一塊記憶體區域。(參考型別的變數會占用記憶體空間，占用的記憶體空間的大小和指標型別的大小是相同的。雖然參考是一個物件的別名，但 ......

    uj5u.com 2020-09-10 01:00:22 more
  • 【C/C++編程筆記】從頭開始學習C ++：初學者完整指南

    眾所周知，C ++的學習曲線陡峭，但是花時間學習這種語言將為您的職業帶來奇跡，并使您與其他開發人員區分開。您會更輕松地學習新語言，形成真正的解決問題的技能，并在編程的基礎上打下堅實的基礎。 C ++將幫助您養成良好的編程習慣（即清晰一致的編碼風格，在撰寫代碼時注釋代碼，并限制類內部的可見性），并且由 ......

    uj5u.com 2020-09-10 01:00:41 more
最新发布
  • Rust中的智能指標:Box<T> Rc<T> Arc<T> Cell<T> RefCell<T> Weak

    Rust中的智能指標是什么 智能指標（smart pointers）是一類資料結構，是擁有資料所有權和額外功能的指標。是指標的進一步發展 指標（pointer）是一個包含記憶體地址的變數的通用概念。這個地址參考，或 ” 指向”（points at）一些其 他資料 。參考以 & 符號為標志并借用了他們所 ......

    uj5u.com 2023-04-20 07:24:10 more
  • Java的值傳遞和參考傳遞

    值傳遞不會改變本身，參考傳遞（如果傳遞的值需要實體化到堆里）如果發生修改了會改變本身。 1.基本資料型別都是值傳遞 package com.example.basic; public class Test { public static void main(String[] args) { int ......

    uj5u.com 2023-04-20 07:24:04 more
  • [2]SpinalHDL教程——Scala簡單入門

    第一個 Scala 程式 shell里面輸入 $ scala scala> 1 + 1 res0: Int = 2 scala> println("Hello World!") Hello World! 檔案形式 object HelloWorld { /* 這是我的第一個 Scala 程式 * 以 ......

    uj5u.com 2023-04-20 07:23:58 more
  • 理解函式指標和回呼函式

    理解 函式指標 指向函式的指標。比如： 理解函式指標的偽代碼 void (*p)(int type, char *data); // 定義一個函式指標p void func(int type, char *data); // 宣告一個函式func p = func; // 將指標p指向函式func ......

    uj5u.com 2023-04-20 07:23:52 more
  • Django筆記二十五之資料庫函式之日期函式

    本文首發于公眾號：Hunter后端 原文鏈接：Django筆記二十五之資料庫函式之日期函式 日期函式主要介紹兩個大類，Extract() 和 Trunc() Extract() 函式作用是提取日期，比如我們可以提取一個日期欄位的年份，月份，日等資料 Trunc() 的作用則是截取，比如 2022-0 ......

    uj5u.com 2023-04-20 07:23:45 more
  • 一天吃透JVM面試八股文

    什么是JVM？ JVM，全稱Java Virtual Machine（Java虛擬機），是通過在實際的計算機上仿真模擬各種計算機功能來實作的。由一套位元組碼指令集、一組暫存器、一個堆疊、一個垃圾回收堆和一個存盤方法域等組成。JVM屏蔽了與作業系統平臺相關的資訊，使得Java程式只需要生成在Java虛擬機 ......

    uj5u.com 2023-04-20 07:23:31 more
  • 使用Java接入小程式訂閱訊息！

    更新完微信服務號的模板訊息之后，我又趕緊把微信小程式的訂閱訊息給實作了！之前我一直以為微信小程式也是要企業才能申請，沒想到小程式個人就能申請。 訊息推送平臺🔥推送下發【郵件】【短信】【微信服務號】【微信小程式】【企業微信】【釘釘】等訊息型別。 https://gitee.com/zhongfuch ......

    uj5u.com 2023-04-20 07:22:59 more
  • java -- 緩沖流、轉換流、序列化流

    緩沖流 緩沖流, 也叫高效流, 按照資料型別分類： 位元組緩沖流：BufferedInputStream，BufferedOutputStream 字符緩沖流：BufferedReader，BufferedWriter 緩沖流的基本原理，是在創建流物件時，會創建一個內置的默認大小的緩沖區陣列，通過緩沖 ......

    uj5u.com 2023-04-20 07:22:49 more
  • Java-SpringBoot-Range請求頭設定實作視頻分段傳輸

    老實說，人太懶了，現在基本都不喜歡寫筆記了，但是網上有關Range請求頭的文章都太水了 下面是抄的一段StackOverflow的代碼...自己大修改過的，寫的注釋挺全的，應該直接看得懂，就不解釋了 寫的不好...只是希望能給視頻網站開發的新手一點點幫助吧. 業務場景：視頻分段傳輸、視頻多段傳輸（理 ......

    uj5u.com 2023-04-20 07:22:42 more
  • Windows 10開發教程_編程入門自學教程_菜鳥教程-免費教程分享

    教程簡介 Windows 10開發入門教程 - 從簡單的步驟了解Windows 10開發，從基本到高級概念，包括簡介，UWP，第一個應用程式，商店，XAML控制元件，資料系結，XAML性能，自適應設計，自適應UI，自適應代碼，檔案管理，SQLite資料庫，應用程式到應用程式通信，應用程式本地化，應用程式 ......

    uj5u.com 2023-04-20 07:22:35 more

Copyright © 2010-2020 有解無憂
