大家好，我是大彬~
今天給大家分享幾個SQL常見的“壞毛病”及優化技巧，

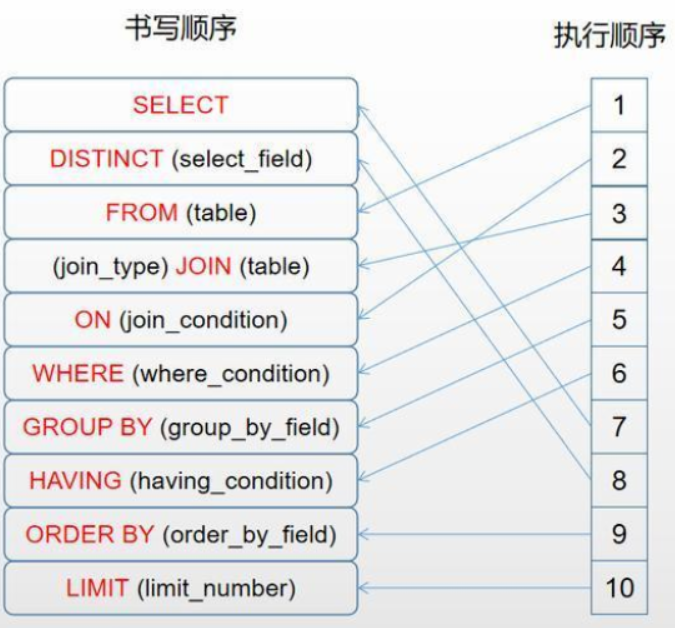

SQL陳述句的執行順序：
1、LIMIT 陳述句
分頁查詢是最常用的場景之一，但也通常也是最容易出問題的地方，比如對于下面簡單的陳述句，一般 DBA 想到的辦法是在 type, name, create_time 欄位上加組合索引，這樣條件排序都能有效的利用到索引，性能迅速提升，
SELECT *
FROM operation
WHERE type = 'SQLStats'
AND name = 'SlowLog'
ORDER BY create_time
LIMIT 1000, 10;
好吧，可能90%以上的 DBA 解決該問題就到此為止，但當 LIMIT 子句變成 “LIMIT 1000000,10” 時，程式員仍然會抱怨：我只取10條記錄為什么還是慢？
要知道資料庫也并不知道第1000000條記錄從什么地方開始，即使有索引也需要從頭計算一次，出現這種性能問題，多數情形下是程式員偷懶了，
在前端資料瀏覽翻頁，或者大資料分批匯出等場景下，是可以將上一頁的最大值當成引數作為查詢條件的，SQL 重新設計如下：
SELECT *
FROM operation
WHERE type = 'SQLStats'
AND name = 'SlowLog'
AND create_time > '2017-03-16 14:00:00'
ORDER BY create_time limit 10;
在新設計下查詢時間基本固定，不會隨著資料量的增長而發生變化，
2、隱式轉換
SQL陳述句中查詢變數和欄位定義型別不匹配是另一個常見的錯誤，比如下面的陳述句：
mysql> explain extended SELECT *
> FROM my_balance b
> WHERE b.bpn = 14000000123
> AND b.isverified IS NULL ;
mysql> show warnings;
| Warning | 1739 | Cannot use ref access on index 'bpn' due to type or collation conversion on field 'bpn'
其中欄位 bpn 的定義為 varchar(20)，MySQL 的策略是將字串轉換為數字之后再比較，函式作用于表欄位，索引失效，
上述情況可能是應用程式框架自動填入的引數，而不是程式員的原意，現在應用框架很多很繁雜，使用方便的同時也小心它可能給自己挖坑，
最全面的Java面試網站
3、關聯更新、洗掉
雖然 MySQL5.6 引入了物化特性，但需要特別注意它目前僅僅針對查詢陳述句的優化，對于更新或洗掉需要手工重寫成 JOIN，
比如下面 UPDATE 陳述句，MySQL 實際執行的是回圈/嵌套子查詢（DEPENDENT SUBQUERY)，其執行時間可想而知，
UPDATE operation o
SET status = 'applying'
WHERE o.id IN (SELECT id
FROM (SELECT o.id,
o.status
FROM operation o
WHERE o.group = 123
AND o.status NOT IN ( 'done' )
ORDER BY o.parent,
o.id
LIMIT 1) t);
執行計劃：
最全面的Java面試網站
+----+--------------------+-------+-------+---------------+---------+---------+-------+------+-----------------------------------------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+--------------------+-------+-------+---------------+---------+---------+-------+------+-----------------------------------------------------+
| 1 | PRIMARY | o | index | | PRIMARY | 8 | | 24 | Using where; Using temporary |
| 2 | DEPENDENT SUBQUERY | | | | | | | | Impossible WHERE noticed after reading const tables |
| 3 | DERIVED | o | ref | idx_2,idx_5 | idx_5 | 8 | const | 1 | Using where; Using filesort |
+----+--------------------+-------+-------+---------------+---------+---------+-------+------+-----------------------------------------------------+
重寫為 JOIN 之后，子查詢的選擇模式從 DEPENDENT SUBQUERY 變成 DERIVED，執行速度大大加快，從7秒降低到2毫秒，
UPDATE operation o
JOIN (SELECT o.id,
o.status
FROM operation o
WHERE o.group = 123
AND o.status NOT IN ( 'done' )
ORDER BY o.parent,
o.id
LIMIT 1) t
ON o.id = t.id
SET status = 'applying'
執行計劃簡化為：
+----+-------------+-------+------+---------------+-------+---------+-------+------+-----------------------------------------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+-------+---------+-------+------+-----------------------------------------------------+
| 1 | PRIMARY | | | | | | | | Impossible WHERE noticed after reading const tables |
| 2 | DERIVED | o | ref | idx_2,idx_5 | idx_5 | 8 | const | 1 | Using where; Using filesort |
+----+-------------+-------+------+---------------+-------+---------+-------+------+-----------------------------------------------------+
4、混合排序
MySQL 不能利用索引進行混合排序，但在某些場景，還是有機會使用特殊方法提升性能的，
SELECT *
FROM my_order o
INNER JOIN my_appraise a ON a.orderid = o.id
ORDER BY a.is_reply ASC,
a.appraise_time DESC
LIMIT 0, 20
執行計劃顯示為全表掃描：
+----+-------------+-------+--------+-------------+---------+---------+---------------+---------+-+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra
+----+-------------+-------+--------+-------------+---------+---------+---------------+---------+-+
| 1 | SIMPLE | a | ALL | idx_orderid | NULL | NULL | NULL | 1967647 | Using filesort |
| 1 | SIMPLE | o | eq_ref | PRIMARY | PRIMARY | 122 | a.orderid | 1 | NULL |
+----+-------------+-------+--------+---------+---------+---------+-----------------+---------+-+
由于 is_reply 只有0和1兩種狀態，我們按照下面的方法重寫后，執行時間從1.58秒降低到2毫秒，
SELECT *
FROM ((SELECT *
FROM my_order o
INNER JOIN my_appraise a
ON a.orderid = o.id
AND is_reply = 0
ORDER BY appraise_time DESC
LIMIT 0, 20)
UNION ALL
(SELECT *
FROM my_order o
INNER JOIN my_appraise a
ON a.orderid = o.id
AND is_reply = 1
ORDER BY appraise_time DESC
LIMIT 0, 20)) t
ORDER BY is_reply ASC,
appraisetime DESC
LIMIT 20;
5、EXISTS陳述句
MySQL 對待 EXISTS 子句時，仍然采用嵌套子查詢的執行方式，如下面的 SQL 陳述句：
SELECT *
FROM my_neighbor n
LEFT JOIN my_neighbor_apply sra
ON n.id = sra.neighbor_id
AND sra.user_id = 'xxx'
WHERE n.topic_status < 4
AND EXISTS(SELECT 1
FROM message_info m
WHERE n.id = m.neighbor_id
AND m.inuser = 'xxx')
AND n.topic_type <> 5
執行計劃為：
+----+--------------------+-------+------+-----+------------------------------------------+---------+-------+---------+ -----+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+--------------------+-------+------+ -----+------------------------------------------+---------+-------+---------+ -----+
| 1 | PRIMARY | n | ALL | | NULL | NULL | NULL | 1086041 | Using where |
| 1 | PRIMARY | sra | ref | | idx_user_id | 123 | const | 1 | Using where |
| 2 | DEPENDENT SUBQUERY | m | ref | | idx_message_info | 122 | const | 1 | Using index condition; Using where |
+----+--------------------+-------+------+ -----+------------------------------------------+---------+-------+---------+ -----+
去掉 exists 更改為 join，能夠避免嵌套子查詢，將執行時間從1.93秒降低為1毫秒，
SELECT *
FROM my_neighbor n
INNER JOIN message_info m
ON n.id = m.neighbor_id
AND m.inuser = 'xxx'
LEFT JOIN my_neighbor_apply sra
ON n.id = sra.neighbor_id
AND sra.user_id = 'xxx'
WHERE n.topic_status < 4
AND n.topic_type <> 5
新的執行計劃：
+----+-------------+-------+--------+ -----+------------------------------------------+---------+ -----+------+ -----+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+--------+ -----+------------------------------------------+---------+ -----+------+ -----+
| 1 | SIMPLE | m | ref | | idx_message_info | 122 | const | 1 | Using index condition |
| 1 | SIMPLE | n | eq_ref | | PRIMARY | 122 | ighbor_id | 1 | Using where |
| 1 | SIMPLE | sra | ref | | idx_user_id | 123 | const | 1 | Using where |
+----+-------------+-------+--------+ -----+------------------------------------------+---------+ -----+------+ -----+
6、條件下推
外部查詢條件不能夠下推到復雜的視圖或子查詢的情況有：
1、聚合子查詢；
2、含有 LIMIT 的子查詢；
3、UNION 或 UNION ALL 子查詢；
4、輸出欄位中的子查詢；
如下面的陳述句，從執行計劃可以看出其條件作用于聚合子查詢之后：
SELECT *
FROM (SELECT target,
Count(*)
FROM operation
GROUP BY target) t
WHERE target = 'rm-xxxx'
+----+-------------+------------+-------+---------------+-------------+---------+-------+------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+------------+-------+---------------+-------------+---------+-------+------+-------------+
| 1 | PRIMARY | <derived2> | ref | <auto_key0> | <auto_key0> | 514 | const | 2 | Using where |
| 2 | DERIVED | operation | index | idx_4 | idx_4 | 519 | NULL | 20 | Using index |
+----+-------------+------------+-------+---------------+-------------+---------+-------+------+-------------+
確定從語意上查詢條件可以直接下推后，重寫如下：
SELECT target,
Count(*)
FROM operation
WHERE target = 'rm-xxxx'
GROUP BY target
執行計劃變為：
+----+-------------+-----------+------+---------------+-------+---------+-------+------+--------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-----------+------+---------------+-------+---------+-------+------+--------------------+
| 1 | SIMPLE | operation | ref | idx_4 | idx_4 | 514 | const | 1 | Using where; Using index |
+----+-------------+-----------+------+---------------+-------+---------+-------+------+--------------------+
關于 MySQL 外部條件不能下推的詳細解釋說明請參考以前文章：MySQL · 性能優化 · 條件下推到物化表 http://mysql.taobao.org/monthly/2016/07/08
7、提前縮小范圍
先上初始 SQL 陳述句：
SELECT *
FROM my_order o
LEFT JOIN my_userinfo u
ON o.uid = u.uid
LEFT JOIN my_productinfo p
ON o.pid = p.pid
WHERE ( o.display = 0 )
AND ( o.ostaus = 1 )
ORDER BY o.selltime DESC
LIMIT 0, 15
該SQL陳述句原意是：先做一系列的左連接，然后排序取前15條記錄，從執行計劃也可以看出，最后一步估算排序記錄數為90萬，時間消耗為12秒，
+----+-------------+-------+--------+---------------+---------+---------+-----------------+--------+----------------------------------------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+--------+---------------+---------+---------+-----------------+--------+----------------------------------------------------+
| 1 | SIMPLE | o | ALL | NULL | NULL | NULL | NULL | 909119 | Using where; Using temporary; Using filesort |
| 1 | SIMPLE | u | eq_ref | PRIMARY | PRIMARY | 4 | o.uid | 1 | NULL |
| 1 | SIMPLE | p | ALL | PRIMARY | NULL | NULL | NULL | 6 | Using where; Using join buffer (Block Nested Loop) |
+----+-------------+-------+--------+---------------+---------+---------+-----------------+--------+----------------------------------------------------+
由于最后 WHERE 條件以及排序均針對最左主表，因此可以先對 my_order 排序提前縮小資料量再做左連接，SQL 重寫后如下，執行時間縮小為1毫秒左右，
SELECT *
FROM (
SELECT *
FROM my_order o
WHERE ( o.display = 0 )
AND ( o.ostaus = 1 )
ORDER BY o.selltime DESC
LIMIT 0, 15
) o
LEFT JOIN my_userinfo u
ON o.uid = u.uid
LEFT JOIN my_productinfo p
ON o.pid = p.pid
ORDER BY o.selltime DESC
limit 0, 15
再檢查執行計劃：子查詢物化后（select_type=DERIVED)參與 JOIN，雖然估算行掃描仍然為90萬，但是利用了索引以及 LIMIT 子句后，實際執行時間變得很小，
+----+-------------+------------+--------+---------------+---------+---------+-------+--------+----------------------------------------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+------------+--------+---------------+---------+---------+-------+--------+----------------------------------------------------+
| 1 | PRIMARY | <derived2> | ALL | NULL | NULL | NULL | NULL | 15 | Using temporary; Using filesort |
| 1 | PRIMARY | u | eq_ref | PRIMARY | PRIMARY | 4 | o.uid | 1 | NULL |
| 1 | PRIMARY | p | ALL | PRIMARY | NULL | NULL | NULL | 6 | Using where; Using join buffer (Block Nested Loop) |
| 2 | DERIVED | o | index | NULL | idx_1 | 5 | NULL | 909112 | Using where |
+----+-------------+------------+--------+---------------+---------+---------+-------+--------+----------------------------------------------------+
8、中間結果集下推
再來看下面這個已經初步優化過的例子(左連接中的主表優先作用查詢條件)：
SELECT a.*,
c.allocated
FROM (
SELECT resourceid
FROM my_distribute d
WHERE isdelete = 0
AND cusmanagercode = '1234567'
ORDER BY salecode limit 20) a
LEFT JOIN
(
SELECT resourcesid， sum(ifnull(allocation, 0) * 12345) allocated
FROM my_resources
GROUP BY resourcesid) c
ON a.resourceid = c.resourcesid
那么該陳述句還存在其它問題嗎？不難看出子查詢 c 是全表聚合查詢，在表數量特別大的情況下會導致整個陳述句的性能下降，
其實對于子查詢 c，左連接最后結果集只關心能和主表 resourceid 能匹配的資料，因此我們可以重寫陳述句如下，執行時間從原來的2秒下降到2毫秒，
SELECT a.*,
c.allocated
FROM (
SELECT resourceid
FROM my_distribute d
WHERE isdelete = 0
AND cusmanagercode = '1234567'
ORDER BY salecode limit 20) a
LEFT JOIN
(
SELECT resourcesid， sum(ifnull(allocation, 0) * 12345) allocated
FROM my_resources r,
(
SELECT resourceid
FROM my_distribute d
WHERE isdelete = 0
AND cusmanagercode = '1234567'
ORDER BY salecode limit 20) a
WHERE r.resourcesid = a.resourcesid
GROUP BY resourcesid) c
ON a.resourceid = c.resourcesid
但是子查詢 a 在我們的SQL陳述句中出現了多次，這種寫法不僅存在額外的開銷，還使得整個陳述句顯的繁雜，使用 WITH 陳述句再次重寫：
WITH a AS
(
SELECT resourceid
FROM my_distribute d
WHERE isdelete = 0
AND cusmanagercode = '1234567'
ORDER BY salecode limit 20)
SELECT a.*,
c.allocated
FROM a
LEFT JOIN
(
SELECT resourcesid， sum(ifnull(allocation, 0) * 12345) allocated
FROM my_resources r,
a
WHERE r.resourcesid = a.resourcesid
GROUP BY resourcesid) c
ON a.resourceid = c.resourcesid
總結
資料庫編譯器產生執行計劃，決定著SQL的實際執行方式，但是編譯器只是盡力服務，所有資料庫的編譯器都不是盡善盡美的，
上述提到的多數場景，在其它資料庫中也存在性能問題，了解資料庫編譯器的特性，才能避規其短處，寫出高性能的SQL陳述句，
程式員在設計資料模型以及撰寫SQL陳述句時，要把演算法的思想或意識帶進來，
撰寫復雜SQL陳述句要養成使用 WITH 陳述句的習慣，簡潔且思路清晰的SQL陳述句也能減小資料庫的負擔 ，

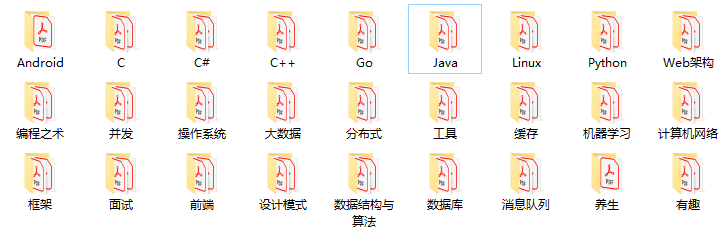

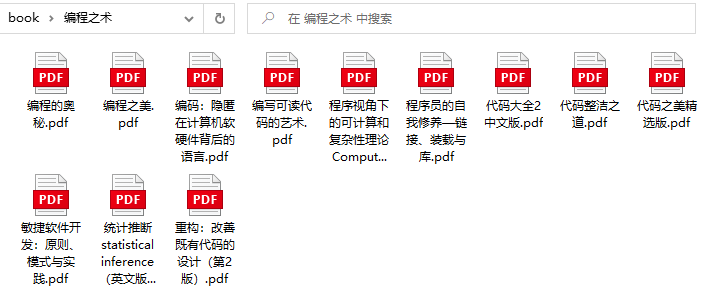

最后給大家分享一個Github倉庫，上面有大彬整理的300多本經典的計算機書籍PDF，包括C語言、C++、Java、Python、前端、資料庫、作業系統、計算機網路、資料結構和演算法、機器學習、編程人生等，可以star一下，下次找書直接在上面搜索，倉庫持續更新中~
