Rust Web 全堆疊開發之撰寫 WebAssembly 應用
MDN Web Docs：https://developer.mozilla.org/zh-CN/docs/WebAssembly
官網：https://webassembly.org/
專案結構 和 功能

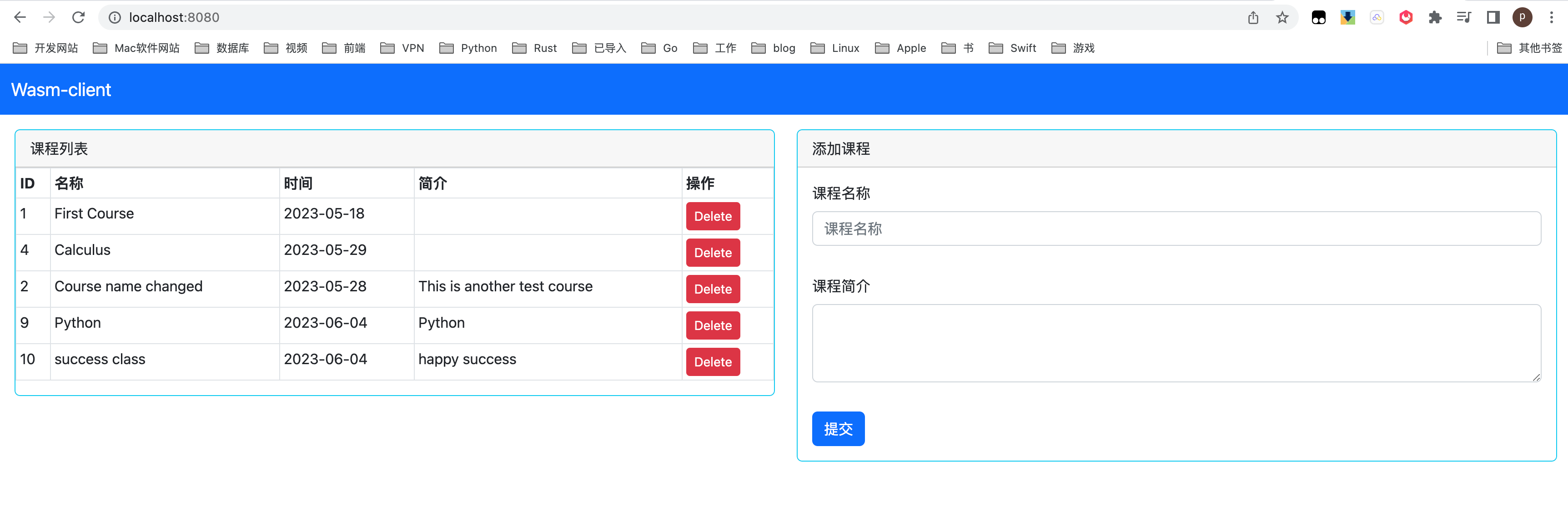

Web App 教師注冊 <-> WebService <-> WebAssembly App 課程管理
什么是 WebAssembly
- WebAssembly 是一種新的編碼方式，可以在現代瀏覽器中運行
- 它是一種低級的類匯編語言
- 具有緊湊的二進制格式
- 可以接近原生的性能運行
- 并為 C/C ++ 、 C# 、 Rust 等語言提供一個編譯目標，以便它們可以在 Web上運行
- 它也被設計為可以與 JavaScript 共存，允許兩者一起作業，
機器碼
- 機器碼是計算機可直接執行的語言
- 匯編語言比較接近機器碼
ASSEMBLY -> ASSEMBLER -> MACHINE CODE
機器碼與 CPU 架構
- 不同的 CPU 架構需要不同的機器碼和匯編
- 高級語言可以“翻譯”成機器碼，以便在 CPU 上運行
- SOURCE CODE
- x64
- x86
- ARM
WebAssembly
- WebAssembly 其實不是匯編語言，它不針對特定的機器，而是針對瀏覽器的，
- WebAssembly 是中間編譯器目標
- SOURCE CODE
- WASM
- x64
- x86
- ARM
- WASM
WebAssembly 是什么樣的？
- 文本格式 .wat
- 二進制格式： .wasm
WebAssembly 能做什么
- 可以把你撰寫 C/C++ 、 C# 、 Rust 等語言的代碼編譯成 WebAssembly 模塊
- 你可以在 Web 應用中加載該模塊，并通過 JavaScript 呼叫它
- 它并不是為了替代 JS ，而是與 JS 一起作業
- 仍然需要 HTML 和 JS ，因為WebAssembly 無法訪問平臺 API ，例如 DOM ， WebGL...
WebAssembly 如何作業
- 這是 C/C++ 的例子
Hello.c -> EMSCRIPTEN（編譯器） -> hello.wasm hello.js hello.html
WebAssembly 的優點
- 快速、高效、可移植
- 通過利用常見的硬體能力， WebAssembly 代碼在不同平臺上能夠以接近本地速度運行，
- 可讀、可除錯
- WebAssembly 是一門低階語言，但是它有確實有一種人類可讀的文本格式（其標準最終版本目前仍在編制），這允許通過手工來寫代碼，看代碼以及除錯代碼，
- 保持安全
- WebAssembly 被限制運行在一個安全的沙箱執行環境中，像其他網路代碼一樣，它遵循瀏覽器的同源策略和授權策略，
- 不破壞網路
- WebAssembly 的設計原則是與其他網路技術和諧共處并保持向后兼容，
Rust WebAssembly 部分相關 crate
- wasm-bindgen
- wasm-bindgen-future
- web-sys
- js-sys
搭建環境
Rust 官網：https://www.rust-lang.org/zh-CN/what/wasm
Rust and WebAssembly：https://rustwasm.github.io/docs/book/
Rust和WebAssembly中文檔案：https://rustwasm.wasmdev.cn/docs/book/
安裝
wasm-pack
下載安裝地址：https://rustwasm.github.io/wasm-pack/installer/
Install wasm-pack
You appear to be running a *nix system (Unix, Linux, MacOS). Install by running:
curl https://rustwasm.github.io/wasm-pack/installer/init.sh -sSf | sh
If you're not on *nix, or you don't like installing from curl, follow the alternate instructions below.
cargo-generate
cargo-generate helps you get up and running quickly with a new Rust project by leveraging a pre-existing git repository as a template.
Install cargo-generate with this command:
cargo install cargo-generate
~ via ?? base
? curl https://rustwasm.github.io/wasm-pack/installer/init.sh -sSf | sh
info: downloading wasm-pack
info: successfully installed wasm-pack to `/Users/qiaopengjun/.cargo/bin/wasm-pack`
~ via ?? base took 8.9s
?
ws on main via ?? 1.67.1 via ?? base took 23.7s
? cargo install cargo-generate
Updating crates.io index
warning: spurious network error (2 tries remaining): failed to connect to github.com: Operation timed out; class=Os (2)
warning: spurious network error (1 tries remaining): failed to connect to github.com: Operation timed out; class=Os (2)
Downloaded cargo-generate v0.18.3
Downloaded 1 crate (94.7 KB) in 0.73s
......
Compiling git2 v0.17.2
Compiling cargo-generate v0.18.3
Finished release [optimized] target(s) in 3m 48s
Installing /Users/qiaopengjun/.cargo/bin/cargo-generate
Installed package `cargo-generate v0.18.3` (executable `cargo-generate`)
ws on main via ?? 1.67.1 via ?? base took 3m 48.8s
? npm --version
9.5.0
ws on main via ?? 1.67.1 via ?? base
Clone the Project Template
ws on main via ?? 1.67.1 via ?? base
? cd ..
~/rust via ?? base
? cargo generate --git https://github.com/rustwasm/wasm-pack-template
?? Project Name: wasm-game-of-life
?? Destination: /Users/qiaopengjun/rust/wasm-game-of-life ...
?? project-name: wasm-game-of-life ...
?? Generating template ...
?? Moving generated files into: `/Users/qiaopengjun/rust/wasm-game-of-life`...
Initializing a fresh Git repository
? Done! New project created /Users/qiaopengjun/rust/wasm-game-of-life
~/rust via ?? base took 21.2s
? cd wasm-game-of-life
wasm-game-of-life on master [?] via ?? 1.67.1 via ?? base
? c
wasm-game-of-life on master [?] via ?? 1.67.1 via ?? base
?
構建專案
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.70.0 via ?? base took 1m 23.4s
? wasm-pack build
[INFO]: ?? Checking for the Wasm target...
info: downloading component 'rust-std' for 'wasm32-unknown-unknown'
info: installing component 'rust-std' for 'wasm32-unknown-unknown'
[INFO]: ?? Compiling to Wasm...
Compiling proc-macro2 v1.0.59
Compiling unicode-ident v1.0.9
Compiling quote v1.0.28
Compiling wasm-bindgen-shared v0.2.86
Compiling log v0.4.18
Compiling bumpalo v3.13.0
Compiling once_cell v1.17.2
Compiling wasm-bindgen v0.2.86
Compiling cfg-if v1.0.0
Compiling syn v2.0.18
Compiling wasm-bindgen-backend v0.2.86
Compiling wasm-bindgen-macro-support v0.2.86
Compiling wasm-bindgen-macro v0.2.86
Compiling console_error_panic_hook v0.1.7
Compiling wasm-game-of-life v0.1.0 (/Users/qiaopengjun/rust/wasm-game-of-life)
warning: function `set_panic_hook` is never used
--> src/utils.rs:1:8
|
1 | pub fn set_panic_hook() {
| ^^^^^^^^^^^^^^
|
= note: `#[warn(dead_code)]` on by default
warning: `wasm-game-of-life` (lib) generated 1 warning
Finished release [optimized] target(s) in 11.45s
[INFO]: ?? Installing wasm-bindgen...
[INFO]: Optimizing wasm binaries with `wasm-opt`...
[INFO]: Optional fields missing from Cargo.toml: 'description', 'repository', and 'license'. These are not necessary, but recommended
[INFO]: ? Done in 1m 41s
[INFO]: ?? Your wasm pkg is ready to publish at /Users/qiaopengjun/rust/wasm-game-of-life/pkg.
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.70.0 via ?? base took 1m 52.0s
?
問題
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.67.1 via ?? base took 3.8s
? wasm-pack build
[INFO]: ?? Checking for the Wasm target...
Error: wasm32-unknown-unknown target not found in sysroot: "/opt/homebrew/Cellar/rust/1.67.1"
Used rustc from the following path: "/opt/homebrew/bin/rustc"
It looks like Rustup is not being used. For non-Rustup setups, the wasm32-unknown-unknown target needs to be installed manually. See https://rustwasm.github.io/wasm-pack/book/prerequisites/non-rustup-setups.html on how to do this.
Caused by: wasm32-unknown-unknown target not found in sysroot: "/opt/homebrew/Cellar/rust/1.67.1"
Used rustc from the following path: "/opt/homebrew/bin/rustc"
It looks like Rustup is not being used. For non-Rustup setups, the wasm32-unknown-unknown target needs to be installed manually. See https://rustwasm.github.io/wasm-pack/book/prerequisites/non-rustup-setups.html on how to do this.
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.67.1 via ?? base
?
解決
https://rustwasm.github.io/wasm-pack/book/prerequisites/non-rustup-setups.html
電腦中有兩個Rust，默認使用的是brew install rust
通過 brew uninstall rust 卸載 Rust
并運行 rustup self uninstall 卸載通過官網安裝的 Rust
最后重新通過官網安裝Rust，再次執行命令解決問題，
Rust安裝
~ via ?? base
? curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh
info: downloading installer
Welcome to Rust!
This will download and install the official compiler for the Rust
programming language, and its package manager, Cargo.
Rustup metadata and toolchains will be installed into the Rustup
home directory, located at:
/Users/qiaopengjun/.rustup
This can be modified with the RUSTUP_HOME environment variable.
The Cargo home directory is located at:
/Users/qiaopengjun/.cargo
This can be modified with the CARGO_HOME environment variable.
The cargo, rustc, rustup and other commands will be added to
Cargo's bin directory, located at:
/Users/qiaopengjun/.cargo/bin
This path will then be added to your PATH environment variable by
modifying the profile files located at:
/Users/qiaopengjun/.profile
/Users/qiaopengjun/.bash_profile
/Users/qiaopengjun/.zshenv
You can uninstall at any time with rustup self uninstall and
these changes will be reverted.
Current installation options:
default host triple: aarch64-apple-darwin
default toolchain: stable (default)
profile: default
modify PATH variable: yes
1) Proceed with installation (default)
2) Customize installation
3) Cancel installation
>1
info: profile set to 'default'
info: default host triple is aarch64-apple-darwin
info: syncing channel updates for 'stable-aarch64-apple-darwin'
info: latest update on 2023-06-01, rust version 1.70.0 (90c541806 2023-05-31)
info: downloading component 'cargo'
info: downloading component 'clippy'
info: downloading component 'rust-docs'
13.5 MiB / 13.5 MiB (100 %) 4.6 MiB/s in 2s ETA: 0s
info: downloading component 'rust-std'
25.5 MiB / 25.5 MiB (100 %) 4.9 MiB/s in 5s ETA: 0s
info: downloading component 'rustc'
52.6 MiB / 52.6 MiB (100 %) 6.5 MiB/s in 8s ETA: 0s
info: downloading component 'rustfmt'
info: installing component 'cargo'
info: installing component 'clippy'
info: installing component 'rust-docs'
13.5 MiB / 13.5 MiB (100 %) 7.9 MiB/s in 1s ETA: 0s
info: installing component 'rust-std'
25.5 MiB / 25.5 MiB (100 %) 20.9 MiB/s in 1s ETA: 0s
info: installing component 'rustc'
52.6 MiB / 52.6 MiB (100 %) 23.6 MiB/s in 2s ETA: 0s
info: installing component 'rustfmt'
info: default toolchain set to 'stable-aarch64-apple-darwin'
stable-aarch64-apple-darwin installed - rustc 1.70.0 (90c541806 2023-05-31)
Rust is installed now. Great!
To get started you may need to restart your current shell.
This would reload your PATH environment variable to include
Cargo's bin directory ($HOME/.cargo/bin).
To configure your current shell, run:
source "$HOME/.cargo/env"
~ via ?? base took 2m 46.4s
? source "$HOME/.cargo/env"
~ via ?? base
? rustc --version
rustc 1.70.0 (90c541806 2023-05-31)
~ via ?? base
? rustup toolchain list
stable-aarch64-apple-darwin (default)
~ via ?? base
?
構建
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.70.0 via ?? base took 1m 23.4s
? wasm-pack build
[INFO]: ?? Checking for the Wasm target...
info: downloading component 'rust-std' for 'wasm32-unknown-unknown'
info: installing component 'rust-std' for 'wasm32-unknown-unknown'
[INFO]: ?? Compiling to Wasm...
Compiling proc-macro2 v1.0.59
Compiling unicode-ident v1.0.9
Compiling quote v1.0.28
Compiling wasm-bindgen-shared v0.2.86
Compiling log v0.4.18
Compiling bumpalo v3.13.0
Compiling once_cell v1.17.2
Compiling wasm-bindgen v0.2.86
Compiling cfg-if v1.0.0
Compiling syn v2.0.18
Compiling wasm-bindgen-backend v0.2.86
Compiling wasm-bindgen-macro-support v0.2.86
Compiling wasm-bindgen-macro v0.2.86
Compiling console_error_panic_hook v0.1.7
Compiling wasm-game-of-life v0.1.0 (/Users/qiaopengjun/rust/wasm-game-of-life)
warning: function `set_panic_hook` is never used
--> src/utils.rs:1:8
|
1 | pub fn set_panic_hook() {
| ^^^^^^^^^^^^^^
|
= note: `#[warn(dead_code)]` on by default
warning: `wasm-game-of-life` (lib) generated 1 warning
Finished release [optimized] target(s) in 11.45s
[INFO]: ?? Installing wasm-bindgen...
[INFO]: Optimizing wasm binaries with `wasm-opt`...
[INFO]: Optional fields missing from Cargo.toml: 'description', 'repository', and 'license'. These are not necessary, but recommended
[INFO]: ? Done in 1m 41s
[INFO]: ?? Your wasm pkg is ready to publish at /Users/qiaopengjun/rust/wasm-game-of-life/pkg.
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.70.0 via ?? base took 1m 52.0s
?
Npm 初始化專案
npm 中文網：https://npm.nodejs.cn/
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.70.0 via ?? base took 24.9s
? npm init wasm-app www
?? Rust + ?? Wasm = ?
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.70.0 via ?? base took 22.7s
?
www/package.json
{
"name": "create-wasm-app",
"version": "0.1.0",
"description": "create an app to consume rust-generated wasm packages",
"main": "index.js",
"bin": {
"create-wasm-app": ".bin/create-wasm-app.js"
},
"scripts": {
"build": "webpack --config webpack.config.js",
"start": "webpack-dev-server"
},
"repository": {
"type": "git",
"url": "git+https://github.com/rustwasm/create-wasm-app.git"
},
"keywords": [
"webassembly",
"wasm",
"rust",
"webpack"
],
"author": "Ashley Williams <[email protected]>",
"license": "(MIT OR Apache-2.0)",
"bugs": {
"url": "https://github.com/rustwasm/create-wasm-app/issues"
},
"homepage": "https://github.com/rustwasm/create-wasm-app#readme",
"dependencies": {
"wasm-game-of-life": "file:../pkg"
},
"devDependencies": {
"hello-wasm-pack": "^0.1.0",
"webpack": "^4.29.3",
"webpack-cli": "^3.1.0",
"webpack-dev-server": "^3.1.5",
"copy-webpack-plugin": "^5.0.0"
}
}
安裝依賴
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.70.0 via ?? base took 22.7s
? cd www
www on master [!] is ?? 0.1.0 via ? v19.7.0 via ?? base
? npm install
www/index.js
import * as wasm from "wasm-game-of-life";
wasm.greet();
運行
www on master [!] is ?? 0.1.0 via ? v19.7.0 via ?? base took 2m 15.4s
? npm run start

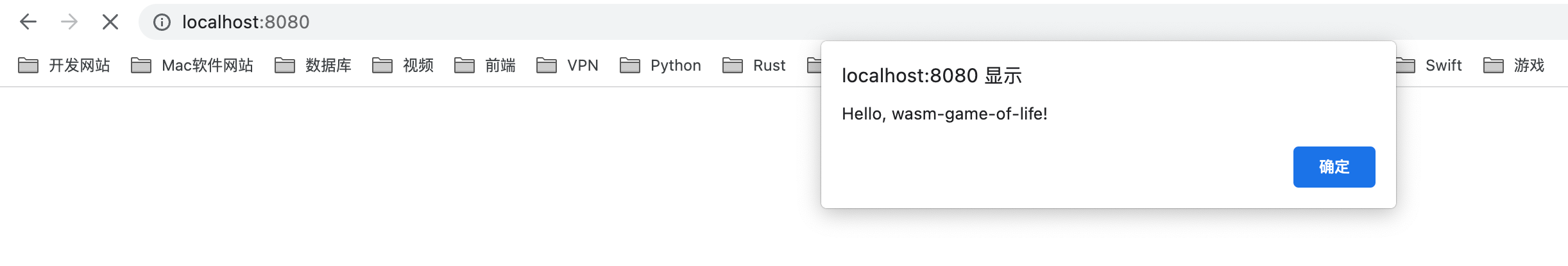

訪問：http://localhost:8080/
src/lib.rs
mod utils;
use wasm_bindgen::prelude::*;
// When the `wee_alloc` feature is enabled, use `wee_alloc` as the global
// allocator.
#[cfg(feature = "wee_alloc")]
#[global_allocator]
static ALLOC: wee_alloc::WeeAlloc = wee_alloc::WeeAlloc::INIT;
#[wasm_bindgen]
extern {
fn alert(s: &str);
}
#[wasm_bindgen]
pub fn greet(s : &str) {
alert(format!("Hello, {}!", s).as_str());
}
構建
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.70.0 via ?? base
? wasm-pack build
[INFO]: ?? Checking for the Wasm target...
[INFO]: ?? Compiling to Wasm...
Compiling wasm-game-of-life v0.1.0 (/Users/qiaopengjun/rust/wasm-game-of-life)
warning: function `set_panic_hook` is never used
--> src/utils.rs:1:8
|
1 | pub fn set_panic_hook() {
| ^^^^^^^^^^^^^^
|
= note: `#[warn(dead_code)]` on by default
warning: `wasm-game-of-life` (lib) generated 1 warning
Finished release [optimized] target(s) in 0.37s
[INFO]: ?? Installing wasm-bindgen...
[INFO]: Optimizing wasm binaries with `wasm-opt`...
[INFO]: Optional fields missing from Cargo.toml: 'description', 'repository', and 'license'. These are not necessary, but recommended
[INFO]: ? Done in 0.80s
[INFO]: ?? Your wasm pkg is ready to publish at /Users/qiaopengjun/rust/wasm-game-of-life/pkg.
wasm-game-of-life on master [?] is ?? 0.1.0 via ?? 1.70.0 via ?? base
?
安裝并運行
www on master [!] is ?? 0.1.0 via ? v19.7.0 via ?? base took 8m 0.8s
? npm install && npm run start
npm WARN deprecated [email protected]: The v1 package contains DANGEROUS / INSECURE binaries. Upgrade to safe fsevents v2

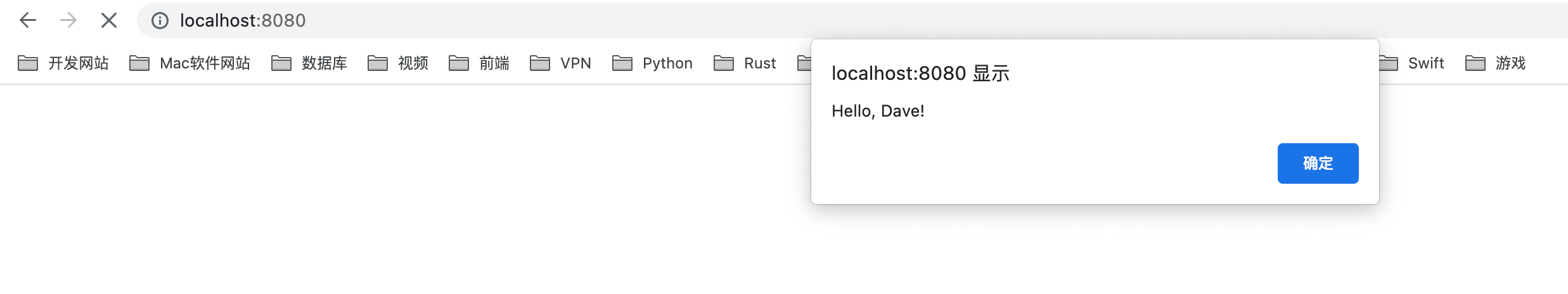

www/index.js
import * as wasm from "wasm-game-of-life";
wasm.greet("Dave");
打開專案 ws
webservice/Cargo.toml
[package]
name = "webservice"
version = "0.1.0"
edition = "2021"
default-run = "teacher-service"
# See more keys and their definitions at https://doc.rust-lang.org/cargo/reference/manifest.html
[dependencies]
actix-cors = "0.6.4"
actix-web = "4.3.1"
actix-rt = "2.8.0"
dotenv = "0.15.0"
serde = { version = "1.0.163", features = ["derive"] }
chrono = { version = "0.4.24", features = ["serde"] }
openssl = { version = "0.10.52", features = ["vendored"] }
sqlx = { version = "0.6.3", default_features = false, features = [
"postgres",
"runtime-tokio-rustls",
"macros",
"chrono",
] }
[[bin]]
name = "teacher-service"
webservice/src/bin/teacher-service.rs
use actix_cors::Cors;
use actix_web::{http, web, App, HttpServer};
use dotenv::dotenv;
use sqlx::postgres::PgPoolOptions;
use std::env;
use std::io;
use std::sync::Mutex;
#[path = "../dbaccess/mod.rs"]
mod dbaccess;
#[path = "../errors.rs"]
mod errors;
#[path = "../handlers/mod.rs"]
mod handlers;
#[path = "../models/mod.rs"]
mod models;
#[path = "../routers.rs"]
mod routers;
#[path = "../state.rs"]
mod state;
use errors::MyError;
use routers::*;
use state::AppState;
#[actix_rt::main]
async fn main() -> io::Result<()> {
dotenv().ok();
let database_url = env::var("DATABASE_URL").expect("DATABASE_URL is not set.");
let db_pool = PgPoolOptions::new().connect(&database_url).await.unwrap();
let shared_data = web::Data::new(AppState {
health_check_response: "I'm Ok.".to_string(),
visit_count: Mutex::new(0),
db: db_pool,
});
let app = move || {
let cors = Cors::default()
.allowed_origin("http://localhost:8080/")
.allowed_origin_fn(|origin, _req_head| {
origin.as_bytes().starts_with(b"http://localhost")
})
.allowed_methods(vec!["GET", "POST", "DELETE"])
.allowed_headers(vec![http::header::AUTHORIZATION, http::header::ACCEPT])
.allowed_header(http::header::CONTENT_TYPE)
.max_age(3600);
App::new()
.app_data(shared_data.clone())
.app_data(web::JsonConfig::default().error_handler(|_err, _req| {
MyError::InvalidInput("Please provide valid json input".to_string()).into()
}))
.configure(general_routes)
.configure(course_routes) // 路由注冊
.wrap(cors)
.configure(teacher_routes)
};
HttpServer::new(app).bind("127.0.0.1:3000")?.run().await
}
Wasm 克隆專案模板
ws on main via ?? 1.70.0 via ?? base
? cargo generate --git https://github.com/rustwasm/wasm-pack-template
?? Project Name: wasm-client
?? Destination: /Users/qiaopengjun/rust/ws/wasm-client ...
?? project-name: wasm-client ...
?? Generating template ...
?? Moving generated files into: `/Users/qiaopengjun/rust/ws/wasm-client`...
Initializing a fresh Git repository
? Done! New project created /Users/qiaopengjun/rust/ws/wasm-client
ws on main [!?] via ?? 1.70.0 via ?? base took 29.2s
?
Npm 初始化專案
ws/wasm-client on main [!?] is ?? 0.1.0 via ?? 1.70.0 via ?? base took 11.9s
? npm init wasm-app www
?? Rust + ?? Wasm = ?
ws/wasm-client on main [!?] is ?? 0.1.0 via ?? 1.70.0 via ?? base took 3.5s
?
構建專案
wasm-pack build
Cargo.toml
[workspace]
members = ["webservice", "webapp", "wasm-client"]
wasm-client/Cargo.toml
[package]
name = "wasm-client"
version = "0.1.0"
authors = ["QiaoPengjun5162 <[email protected]>"]
edition = "2018"
[lib]
crate-type = ["cdylib", "rlib"]
[features]
default = ["console_error_panic_hook"]
[dependencies]
chrono = { version = "0.4.26", features = ["serde"] }
serde = { version = "1.0.163", features = ["derive"] }
serde_derive = "1.0.163"
serde_json = "1.0.96"
js-sys = "0.3.63"
wasm-bindgen = { version = "0.2.86", features = ["serde-serialize"] }
wasm-bindgen-futures = "0.4.36"
web-sys = { version = "0.3.63", features = [
"Headers",
"Request",
"RequestInit",
"RequestMode",
"Response",
"Window",
"Document",
"Element",
"HtmlElement",
"Node",
"console",
] }
# The `console_error_panic_hook` crate provides better debugging of panics by
# logging them with `console.error`. This is great for development, but requires
# all the `std::fmt` and `std::panicking` infrastructure, so isn't great for
# code size when deploying.
console_error_panic_hook = { version = "0.1.6", optional = true }
# `wee_alloc` is a tiny allocator for wasm that is only ~1K in code size
# compared to the default allocator's ~10K. It is slower than the default
# allocator, however.
wee_alloc = { version = "0.4.5", optional = true }
[dev-dependencies]
wasm-bindgen-test = "0.3.13"
[profile.release]
# Tell `rustc` to optimize for small code size.
opt-level = "s"
注意：并不是所有的 Rust crate 都能在wasm中使用
https://getbootstrap.com/docs/5.2/getting-started/introduction/#cdn-links
專案目錄
ws on main [!?] via ?? 1.70.0 via ?? base
? tree -a -I "target|.git|node_modules|.bin"
.
├── .env
├── .gitignore
├── .vscode
│ └── settings.json
├── Cargo.lock
├── Cargo.toml
├── README.md
├── wasm-client
│ ├── .appveyor.yml
│ ├── .gitignore
│ ├── .travis.yml
│ ├── Cargo.toml
│ ├── LICENSE_APACHE
│ ├── LICENSE_MIT
│ ├── README.md
│ ├── pkg
│ │ ├── .gitignore
│ │ ├── README.md
│ │ ├── package.json
│ │ ├── wasm_client.d.ts
│ │ ├── wasm_client.js
│ │ ├── wasm_client_bg.js
│ │ ├── wasm_client_bg.wasm
│ │ └── wasm_client_bg.wasm.d.ts
│ ├── src
│ │ ├── errors.rs
│ │ ├── lib.rs
│ │ ├── models
│ │ │ ├── course.rs
│ │ │ └── mod.rs
│ │ └── utils.rs
│ ├── tests
│ │ └── web.rs
│ └── www
│ ├── .gitignore
│ ├── .travis.yml
│ ├── LICENSE-APACHE
│ ├── LICENSE-MIT
│ ├── README.md
│ ├── bootstrap.js
│ ├── index.html
│ ├── index.js
│ ├── package-lock.json
│ ├── package.json
│ └── webpack.config.js
├── webapp
│ ├── .env
│ ├── Cargo.toml
│ ├── src
│ │ ├── bin
│ │ │ └── svr.rs
│ │ ├── errors.rs
│ │ ├── handlers.rs
│ │ ├── mod.rs
│ │ ├── models.rs
│ │ └── routers.rs
│ └── static
│ ├── css
│ │ └── register.css
│ ├── register.html
│ └── teachers.html
└── webservice
├── Cargo.toml
└── src
├── bin
│ └── teacher-service.rs
├── dbaccess
│ ├── course.rs
│ ├── mod.rs
│ └── teacher.rs
├── errors.rs
├── handlers
│ ├── course.rs
│ ├── general.rs
│ ├── mod.rs
│ └── teacher.rs
├── main.rs
├── models
│ ├── course.rs
│ ├── mod.rs
│ └── teacher.rs
├── routers.rs
└── state.rs
19 directories, 65 files
ws on main [!?] via ?? 1.70.0 via ?? base
?
wasm-client/www/package.json
{
"name": "create-wasm-app",
"version": "0.1.0",
"description": "create an app to consume rust-generated wasm packages",
"main": "index.js",
"bin": {
"create-wasm-app": ".bin/create-wasm-app.js"
},
"scripts": {
"build": "webpack --config webpack.config.js",
"start": "webpack-dev-server"
},
"repository": {
"type": "git",
"url": "git+https://github.com/rustwasm/create-wasm-app.git"
},
"keywords": [
"webassembly",
"wasm",
"rust",
"webpack"
],
"author": "Ashley Williams <[email protected]>",
"license": "(MIT OR Apache-2.0)",
"bugs": {
"url": "https://github.com/rustwasm/create-wasm-app/issues"
},
"homepage": "https://github.com/rustwasm/create-wasm-app#readme",
"dependencies": {
"wasm-client": "file:../pkg"
},
"devDependencies": {
"hello-wasm-pack": "^0.1.0",
"webpack": "^4.29.3",
"webpack-cli": "^3.1.0",
"webpack-dev-server": "^3.1.5",
"copy-webpack-plugin": "^5.0.0"
}
}
wasm-client/src/errors.rs
use serde::Serialize;
#[derive(Debug, Serialize)]
pub enum MyError {
SomeError(String),
}
impl From<String> for MyError {
fn from(s: String) -> Self {
MyError::SomeError(s)
}
}
impl From<wasm_bindgen::JsValue> for MyError {
fn from(js_value: wasm_bindgen::JsValue) -> Self {
MyError::SomeError(js_value.as_string().unwrap())
}
}
wasm-client/src/models/mod.rs
pub mod course;
wasm-client/src/models/course.rs
use super::super::errors::MyError;
use chrono::NaiveDateTime;
use serde::{Deserialize, Serialize};
use wasm_bindgen::JsCast;
use wasm_bindgen_futures::JsFuture;
use web_sys::{Request, RequestInit, RequestMode, Response};
#[derive(Debug, Deserialize, Serialize)]
pub struct Course {
pub teacher_id: i32,
pub id: i32,
pub name: String,
pub time: NaiveDateTime,
pub description: Option<String>,
pub format: Option<String>,
pub structure: Option<String>,
pub duration: Option<String>,
pub price: Option<i32>,
pub language: Option<String>,
pub level: Option<String>,
}
pub async fn get_courses_by_teacher(teacher_id: i32) -> Result<Vec<Course>, MyError> {
// 訪問webservice 讀取課程
let mut opts = RequestInit::new();
opts.method("GET");
opts.mode(RequestMode::Cors); // 跨域
let url = format!("http://localhost:3000/courses/{}", teacher_id);
let request = Request::new_with_str_and_init(&url, &opts)?;
request.headers().set("Accept", "application/json")?;
let window = web_sys::window().ok_or("no window exists".to_string())?;
let resp_value = https://www.cnblogs.com/QiaoPengjun/archive/2023/06/04/JsFuture::from(window.fetch_with_request(&request)).await?;
assert!(resp_value.is_instance_of::());
let resp: Response = resp_value.dyn_into().unwrap();
let json = JsFuture::from(resp.json()?).await?;
// let courses: Vec = json.into_serde().unwrap();
let courses: Vec = serde_wasm_bindgen::from_value(json).unwrap();
Ok(courses)
}
pub async fn delete_course(teacher_id: i32, course_id: i32) -> () {
let mut opts = RequestInit::new();
opts.method("DELETE");
opts.mode(RequestMode::Cors);
let url = format!("http://localhost:3000/courses/{}/{}", teacher_id, course_id);
let request = Request::new_with_str_and_init(&url, &opts).unwrap();
request.headers().set("Accept", "application/json").unwrap();
let window = web_sys::window().unwrap();
let resp_value = https://www.cnblogs.com/QiaoPengjun/archive/2023/06/04/JsFuture::from(window.fetch_with_request(&request))
.await
.unwrap();
assert!(resp_value.is_instance_of::());
let resp: Response = resp_value.dyn_into().unwrap();
let json = JsFuture::from(resp.json().unwrap()).await.unwrap();
// let _course: Course = json.into_serde().unwrap();
let _courses: Course = serde_wasm_bindgen::from_value(json).unwrap();
}
use js_sys::Promise;
use wasm_bindgen::prelude::*;
#[wasm_bindgen]
pub async fn add_course(name: String, description: String) -> Result {
let mut opts = RequestInit::new();
opts.method("POST");
opts.mode(RequestMode::Cors);
let str_json = format!(
r#"
{{
"teacher_id": 1,
"name": "{}",
"description": "{}"
}}
"#,
name, description
);
opts.body(Some(&JsValue::from_str(str_json.as_str())));
let url = "http://localhost:3000/courses/";
let request = Request::new_with_str_and_init(&url, &opts)?;
request.headers().set("Content-Type", "application/json")?;
request.headers().set("Accept", "application/json")?;
let window = web_sys::window().ok_or("no window exists".to_string())?;
let resp_value = https://www.cnblogs.com/QiaoPengjun/archive/2023/06/04/JsFuture::from(window.fetch_with_request(&request))
.await
.unwrap();
assert!(resp_value.is_instance_of::());
let resp: Response = resp_value.dyn_into().unwrap();
Ok(resp.json()?)
}
wasm-client/src/lib.rs
mod utils;
use wasm_bindgen::prelude::*;
// When the `wee_alloc` feature is enabled, use `wee_alloc` as the global
// allocator.
#[cfg(feature = "wee_alloc")]
#[global_allocator]
static ALLOC: wee_alloc::WeeAlloc = wee_alloc::WeeAlloc::INIT;
#[wasm_bindgen]
extern "C" {
fn alert(s: &str);
fn confirm(s: &str) -> bool;
#[wasm_bindgen(js_namespace = console)]
fn log(s: &str);
}
#[wasm_bindgen]
pub fn greet(_name: &str) {
alert("Hello, wasm-client!");
}
pub mod errors;
pub mod models;
use models::course::{delete_course, get_courses_by_teacher, Course};
use wasm_bindgen::JsCast;
use wasm_bindgen_futures::*;
use web_sys::HtmlButtonElement;
#[wasm_bindgen(start)]
pub async fn main() -> Result<(), JsValue> {
let window = web_sys::window().expect("no global window exists");
let document = window.document().expect("no global document exists");
let left_tbody = document
.get_element_by_id("left-tbody")
.expect("left div not exists");
let courses: Vec<Course> = get_courses_by_teacher(1).await.unwrap();
for c in courses.iter() {
let tr = document.create_element("tr")?;
tr.set_attribute("id", format!("tr-{}", c.id).as_str())?;
let td = document.create_element("td")?;
td.set_text_content(Some(format!("{}", c.id).as_str()));
tr.append_child(&td)?;
let td = document.create_element("td")?;
td.set_text_content(Some(c.name.as_str()));
tr.append_child(&td)?;
let td = document.create_element("td")?;
td.set_text_content(Some(c.time.format("%Y-%m-%d").to_string().as_str()));
tr.append_child(&td)?;
let td = document.create_element("td")?;
if let Some(desc) = c.description.clone() {
td.set_text_content(Some(desc.as_str()));
}
tr.append_child(&td)?;
let td = document.create_element("td")?;
// let btn = document.create_element("button")?;
let btn: HtmlButtonElement = document
.create_element("button")
.unwrap()
.dyn_into::<HtmlButtonElement>()
.unwrap();
let cid = c.id;
let click_closure = Closure::wrap(Box::new(move |_event: web_sys::MouseEvent| {
let r = confirm(format!("確認洗掉 ID 為 {} 的課程？", cid).as_str());
match r {
true => {
spawn_local(delete_course(1, cid)); // delete_course 異步函式 spawn_local 把 future 放在當前執行緒
alert("洗掉成功！");
web_sys::window().unwrap().location().reload().unwrap();
}
_ => {}
}
}) as Box<dyn Fn(_)>);
btn.add_event_listener_with_callback("click", click_closure.as_ref().unchecked_ref())?; // 要把閉包轉化為 function 的參考
click_closure.forget(); // 走出作用域后函式依然有效 但會造成記憶體泄漏
btn.set_attribute("class", "btn btn-danger btn-sm")?;
btn.set_text_content(Some("Delete"));
td.append_child(&btn)?;
tr.append_child(&td)?;
left_tbody.append_child(&tr)?;
}
Ok(())
}
wasm-client/www/index.js
import * as wasm from "wasm-client";
const myForm = document.getElementById('form');
myForm.addEventListener('submit', (e) => {
e.preventDefault();
const name = document.getElementById('name').value;
const desc = document.querySelector('#description').value;
wasm.add_course(name, desc).then((json) => {
alert("添加成功！");
window.location.reload();
});
});
wasm-client/www/index.html
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Hello wasm-pack!</title>
<link href="https://cdn.jsdelivr.net/npm/[email protected]/dist/css/bootstrap.min.css" rel="stylesheet"
integrity="sha384-rbsA2VBKQhggwzxH7pPCaAqO46MgnOM80zW1RWuH61DGLwZJEdK2Kadq2F9CUG65" crossorigin="anonymous" />
</head>
<body>
<noscript>This page contains webassembly and javascript content, please enable javascript in your browser.</noscript>
<nav >
<div >
<a href="https://www.cnblogs.com/QiaoPengjun/archive/2023/06/04/#">Wasm-client</a>
</div>
</nav>
<div style="height: 600px">
<div >
<div >
<div >
<div >課程串列</div>
<!-- <div >
<button type="button" >Add</button>
</div> -->
<table >
<thead>
<tr>
<th scope="col">ID</th>
<th scope="col">名稱</th>
<th scope="col">時間</th>
<th scope="col">簡介</th>
<th scope="col">操作</th>
</tr>
</thead>
<tbody id="left-tbody"></tbody>
</table>
<div id="left"></div>
</div>
</div>
<div >
<div >
<div >添加課程</div>
<div >
<form id="form">
<div >
<label for="name" >課程名稱</label>
<input type="name" id="name" required placeholder="課程名稱" />
<div >
請填寫課程名！
</div>
</div>
<div >
<label for="description" >課程簡介</label>
<textarea id="description" rows="3"></textarea>
</div>
<div >
<button type="submit" >提交</button>
</div>
</form>
</div>
</div>
</div>
</div>
</div>
<script src="https://www.cnblogs.com/QiaoPengjun/archive/2023/06/04/bootstrap.js"></script>
</body>
</html>
運行
ws/wasm-client on main [!?] is ?? 0.1.0 via ?? 1.70.0 via ?? base
? wasm-pack build
ws/webservice on main [!?] is ?? 0.1.0 via ?? 1.70.0 via ?? base
? cargo run
www on master [!] is ?? 0.1.0 via ? v19.7.0 via ?? base
? npm install && npm run start
訪問：http://localhost:8080/
問題：報錯 Uncaught (in promise) DOMException: Failed to execute 'appendChild' on 'Node': The new child element contains the parent. 前端獲取不到課程資訊
解決：
這個錯誤提示說明在嘗試將一個元素添加為其父元素的子元素時出現了問題，導致了回圈參考，具體來說，錯誤發生在這一行代碼中：
td.append_child(&td)?;
在這行代碼中，你試圖將創建的td元素添加為其自身的子元素，這是不允許的，因為一個元素不能成為自己的子元素，
正確的代碼是： tr.append_child(&td)?;
修改之后的代碼：
#[wasm_bindgen(start)]
pub async fn main() -> Result<(), JsValue> {
let window = web_sys::window().expect("no global window exists");
let document = window.document().expect("no global document exists");
let left_tbody = document
.get_element_by_id("left-tbody")
.expect("left div not exists");
let courses: Vec<Course> = get_courses_by_teacher(1).await.unwrap();
for c in courses.iter() {
let tr = document.create_element("tr")?;
tr.set_attribute("id", format!("tr-{}", c.id).as_str())?;
let td = document.create_element("td")?;
td.set_text_content(Some(format!("{}", c.id).as_str()));
tr.append_child(&td)?;
let td = document.create_element("td")?;
td.set_text_content(Some(c.name.as_str()));
tr.append_child(&td)?;
let td = document.create_element("td")?;
td.set_text_content(Some(c.time.format("%Y-%m-%d").to_string().as_str()));
tr.append_child(&td)?;
let td = document.create_element("td")?;
if let Some(desc) = c.description.clone() {
td.set_text_content(Some(desc.as_str()));
}
tr.append_child(&td)?;
let td = document.create_element("td")?;
// let btn = document.create_element("button")?;
let btn: HtmlButtonElement = document
.create_element("button")
.unwrap()
.dyn_into::<HtmlButtonElement>()
.unwrap();
let cid = c.id;
let click_closure = Closure::wrap(Box::new(move |_event: web_sys::MouseEvent| {
let r = confirm(format!("確認洗掉 ID 為 {} 的課程？", cid).as_str());
match r {
true => {
spawn_local(delete_course(1, cid)); // delete_course 異步函式 spawn_local 把 future 放在當前執行緒
alert("洗掉成功！");
web_sys::window().unwrap().location().reload().unwrap();
}
_ => {}
}
}) as Box<dyn Fn(_)>);
btn.add_event_listener_with_callback("click", click_closure.as_ref().unchecked_ref())?; // 要把閉包轉化為 function 的參考
click_closure.forget(); // 走出作用域后函式依然有效 但會造成記憶體泄漏
btn.set_attribute("class", "btn btn-danger btn-sm")?;
btn.set_text_content(Some("Delete"));
td.append_child(&btn)?;
tr.append_child(&td)?;
left_tbody.append_child(&tr)?;
}
Ok(())
}
本文來自博客園，作者：QIAOPENGJUN，轉載請注明原文鏈接：https://www.cnblogs.com/QiaoPengjun/p/17455654.html
轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/554259.html
標籤：其他
上一篇：包含參考型別欄位的自定義結構體，能作為map的key嗎
下一篇：返回列表
