todo 串列

clang-format
c++ 整合

軟體安裝

略

基本的環境搭建

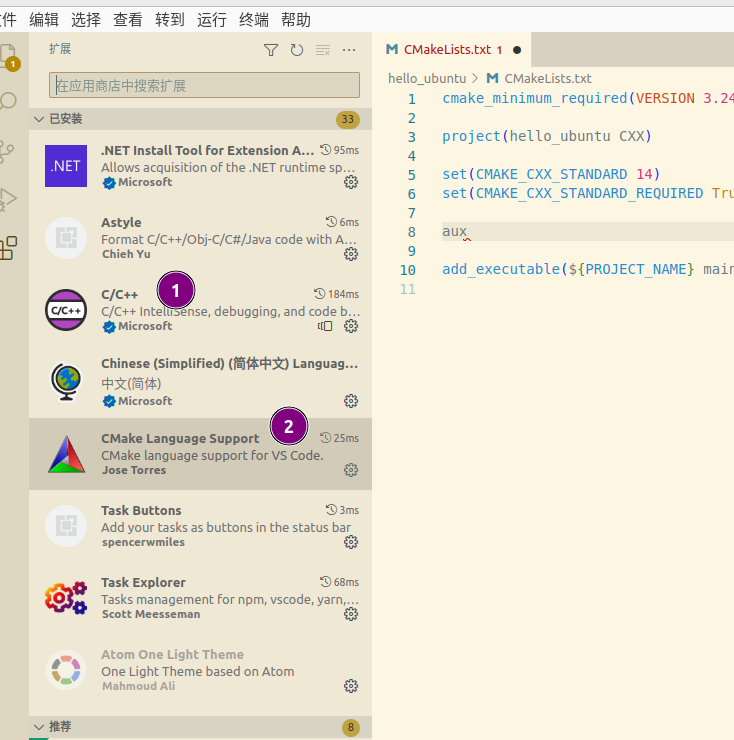

最基本的 vscode 插件

只需要安裝如下兩個插件即可

c/c++ 擴展是為了最基本的代碼提示和除錯支持

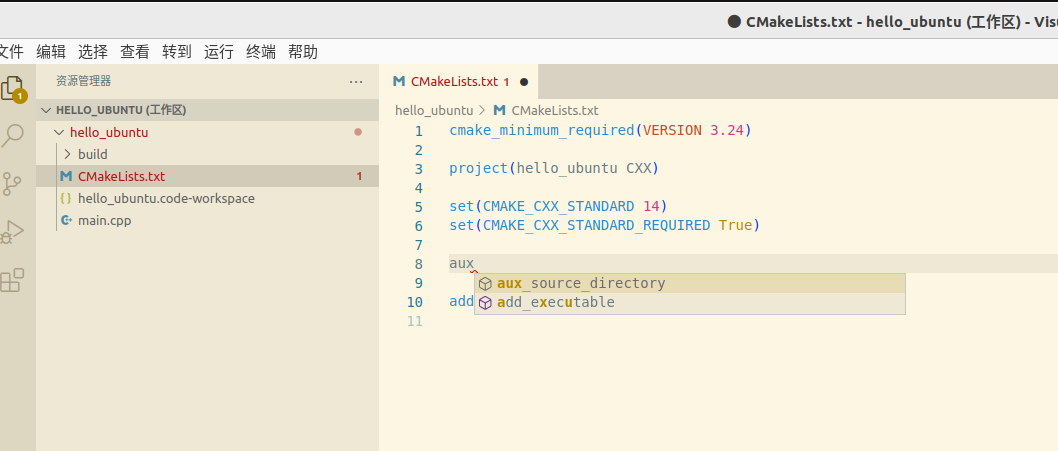

cmake language support 是為了提示 CMakeLists.txt 腳本

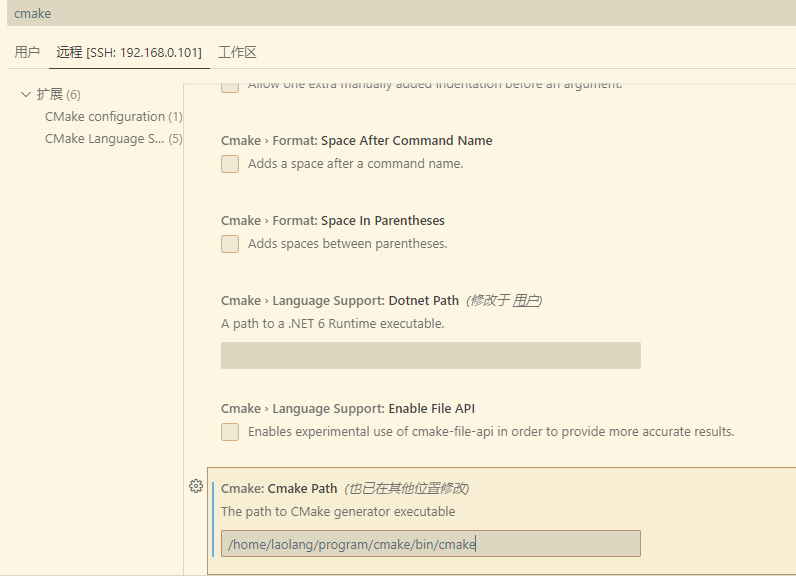

有可能安裝了 cmake language support 還是沒有代碼提示, 注意配置 cmake 路徑

代碼

main.cpp

#include <stdio.h>

int main()
{
    printf("\nhello world\n\n");
    return 0;
}

CMakeLists.txt

cmake_minimum_required(VERSION 3.24)

project(hello_ubuntu CXX)

set(CMAKE_CXX_STANDARD 14)
set(CMAKE_CXX_STANDARD_REQUIRED True)

add_executable(${PROJECT_NAME} main.cpp)

任務配置

{
    // See https://go.microsoft.com/fwlink/?LinkId=733558
    // for the documentation about the tasks.json format
    "version": "2.0.0",
    "tasks": [
        {
            "label": "build-debug",
            "type": "shell",
            "command": "cmake -S . -B cmake-build-debug -DCMAKE_BUILD_TYPE=Debug && cmake --build cmake-build-debug",
            "dependsOn": [
                "configure"
            ]
        },
        {
            "label": "build-release",
            "type": "shell",
            "command": "cmake -S . -B cmake-build-release -DCMAKE_BUILD_TYPE=Release && cmake --build cmake-build-release",
            "dependsOn": [
                "configure"
            ]
        },
        {
            "label": "clean",
            "type": "shell",
            "command": "rm -rf build && rm -rf cmake-build-debug && rm -rf cmake-build-release"
        },
        {
            "label": "rebuild",
            "type": "shell",
            "dependsOn": [
                "clean",
                "build-debug",
                "build-release"
            ]
        },
        {
            "label": "run",
            "type": "shell",
            "command": "./cmake-build-release/hello_ubuntu",
            "dependsOn": [
                "build-release"
            ]
        }
    ]
}

此時可以通過終端選單的運行任務來運行

改進任務的運行方式

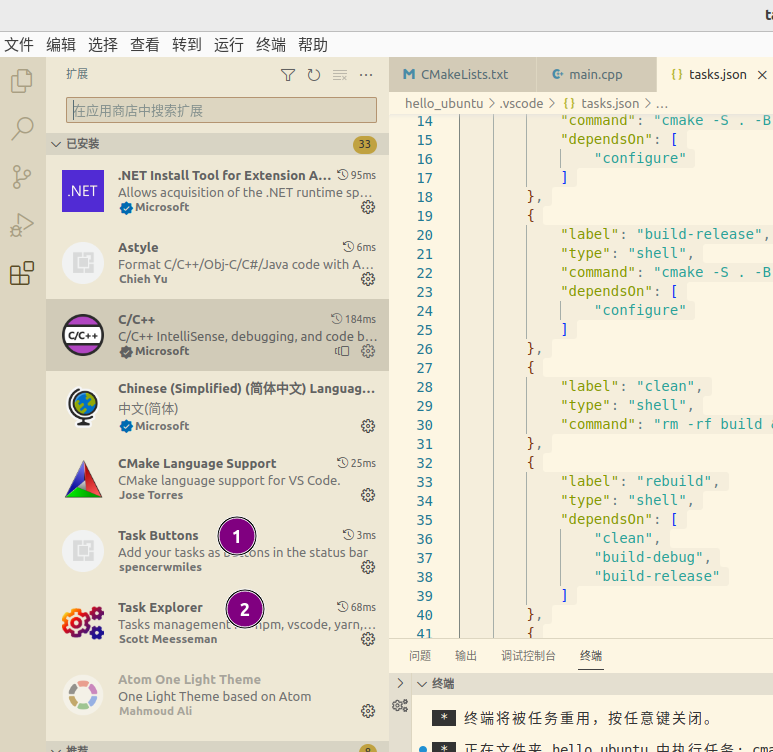

安裝如下插件

Task Buttons 插件

.vscode檔案夾添加.settings.json,并添加如下內容

{
    "VsCodeTaskButtons.showCounter": true,
    "VsCodeTaskButtons.tasks": [
        {
            "label": "$(notebook-delete-cell) clean",
            "task": "clean"
        },
        {
            "label": "$(debug-configure) rebuild",
            "task": "rebuild"
        },
        {
            "label": "$(notebook-execute) run",
            "task": "run"
        }
    ]
}

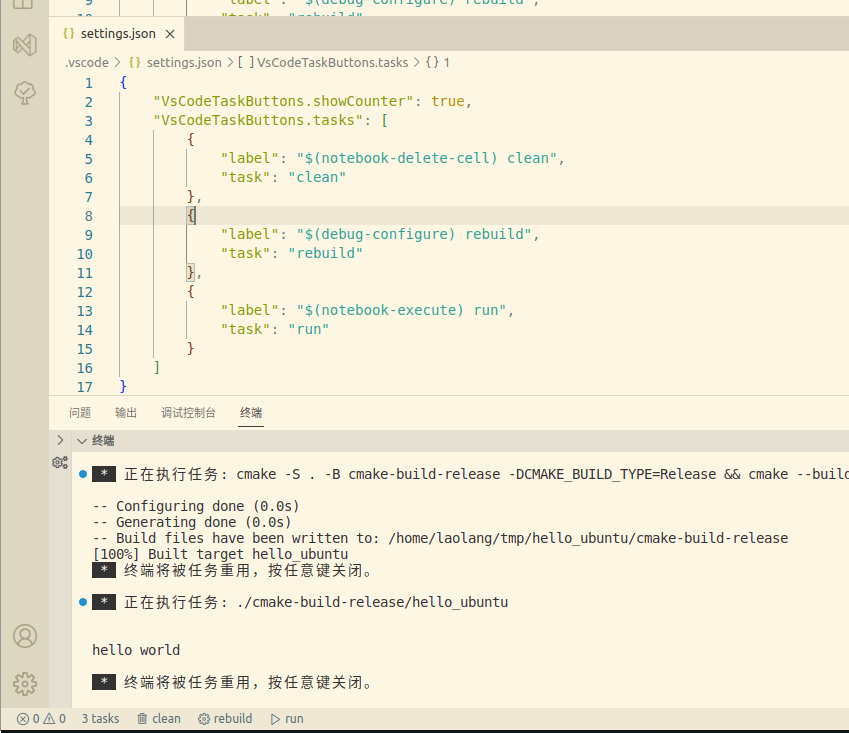

然后狀態欄就會出現對應的按鈕, 直接點擊任務對應的按鈕即可運行任務. 圖示從這里獲取

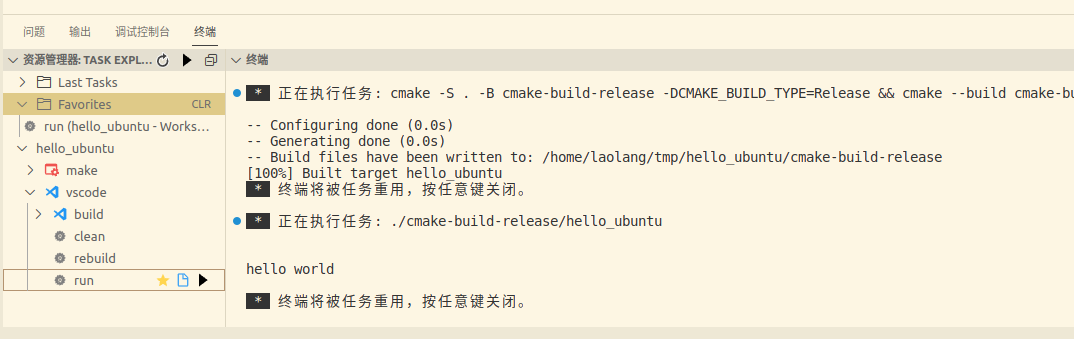

Task Explorer 插件

此插件將提供了一個任務面板, 安裝之后 查看->打開試圖 搜索Task Explorer 即可打開此面板, 拖到自己喜歡的位置然后直接點擊對應任務右側的按鈕即可運行任務. 任務太多的話, 可以將任務加入 Favorites 串列, 把其他的收起來就可以了

快捷鍵

參考: https://blog.csdn.net/qq_45859188/article/details/124529266

debug

參考這里, 直接在 .vscode 檔案夾下添加 launch.json

{
  "version": "0.2.0",
  "configurations": [
    {
      "name": "test-debug",
      "type": "cppdbg",
      "request": "launch",
      "program": "${workspaceRoot}/cmake-build-debug/hello_ubuntu",
      "args": [],
      "stopAtEntry": false,
      "cwd": "${workspaceFolder}",
      "environment": [],
      "externalConsole": false,
      "MIMode": "gdb",
      "miDebuggerPath": "/usr/bin/gdb",
      "setupCommands": [
        {
          "description": "Enable pretty-printing for gdb",
          "text": "-enable-pretty-printing",
          "ignoreFailures": true
        }
      ],
      "preLaunchTask": "rebuild"
    }
  ]
}

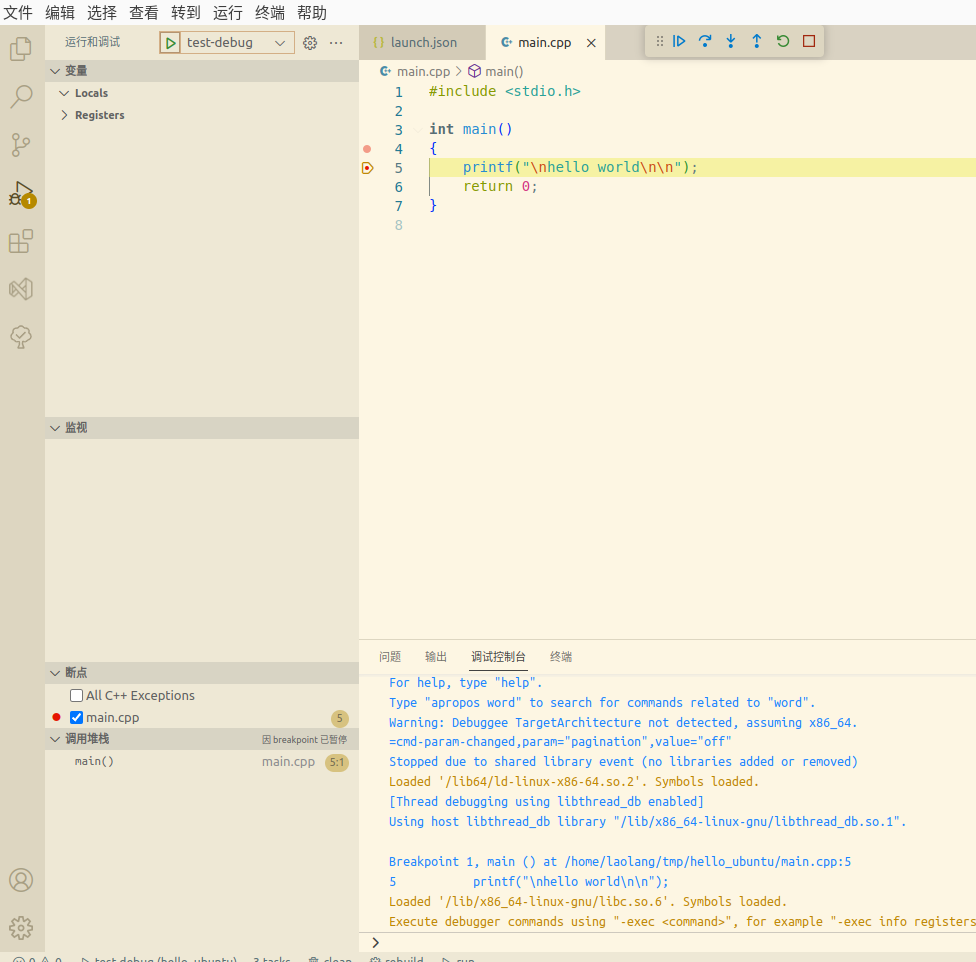

打一個斷點, 然后直接 F5

注意: 有時候 vscode 的 debug 會出問題, 此時直接執行 clean 任務再進行除錯即可

C語言整合

CUnit

參考資料

官網 : https://cunit.sourceforge.net/

github: https://github.com/jacklicn/CUnit

官方手冊: https://cunit.sourceforge.net/doc/index.html

中文手冊: 【單元測驗】CUnit用戶手冊（中文）

簡明教程: 【單元測驗】CUnit單元測驗框架（不支持mock功能）

ubuntu下安裝CUnit出現的問題及解決

安裝

sudo apt-get update
sudo apt-get install build-essential automake autoconf libtool
mv configure.in configure.ac
aclocal
autoconf
autoheader
libtoolize --automake --copy --debug --force
automake --add-missing
automake
./configure
make
sudo make install

測驗

#include <stdio.h>
#include <string.h>
#include <CUnit/Basic.h>
#include <CUnit/Automated.h>

/* 被測驗的函式，在當中故意安裝了一個BUG */
static int sum(int a, int b)
{
    if (a > 4)
    {
        return 0;
    }
    return (a + b);
}

static int suite_init(void)
{
    return 0;
}

static int suite_clean(void)
{
    return 0;
}

static void test_sum(void)
{
    CU_ASSERT_EQUAL(sum(1, 2), 3);
    CU_ASSERT_EQUAL(sum(5, 2), 7);
}

int main()
{
    CU_pSuite pSuite = NULL;

    /* initialize the CUnit test registry */
    if (CUE_SUCCESS != CU_initialize_registry())
    {
        return CU_get_error();
    }

    /* add a suite to the registry */
    pSuite = CU_add_suite("suite_sum", suite_init, suite_clean);
    if (NULL == pSuite)
    {
        CU_cleanup_registry();
        return CU_get_error();
    }

    /* add the tests to the suite */
    if ((NULL == CU_add_test(pSuite, "test_sum", test_sum)))
    {
        CU_cleanup_registry();
        return CU_get_error();
    }

    // basic
    CU_basic_set_mode(CU_BRM_VERBOSE);
    CU_basic_run_tests();

    // automated
    CU_list_tests_to_file();
    CU_automated_run_tests();

    /* Clean up registry and return */
    CU_cleanup_registry();
    return CU_get_error();
}

編譯

gcc test.c `pkg-config --libs --cflags cunit` -o test

此時控制臺有了 basic 模式的輸出, 并且有了 automated 模式的 xml 檔案

laolang@laolang-pc:~/tmp/cunit$ ./test


     CUnit - A unit testing framework for C - Version 2.1-3
     http://cunit.sourceforge.net/


Suite: suite_sum
  Test: test_sum ...FAILED
    1. test.c:33  - CU_ASSERT_EQUAL(sum(5, 2),7)

Run Summary:    Type  Total    Ran Passed Failed Inactive
              suites      1      1    n/a      0        0
               tests      1      1      0      1        0
             asserts      2      2      1      1      n/a

Elapsed time =    0.000 seconds
laolang@laolang-pc:~/tmp/cunit$ l
總計 32K
-rw-rw-r-- 1 laolang laolang 1.7K 2023-06-11 18:17:16 CUnitAutomated-Listing.xml
-rw-rw-r-- 1 laolang laolang 1.6K 2023-06-11 18:17:16 CUnitAutomated-Results.xml
-rwxrwxr-x 1 laolang laolang  17K 2023-06-11 18:17:14 test*
-rw-rw-r-- 1 laolang laolang 1.2K 2023-06-11 18:17:02 test.c
laolang@laolang-pc:~/tmp/cunit$

然后從安裝包復制如下幾個檔案, 和 cunit 輸出的 xml 同級

CUnit-List.dtd
CUnit-List.xsl
CUnit-Run.dtd
CUnit-Run.xsl

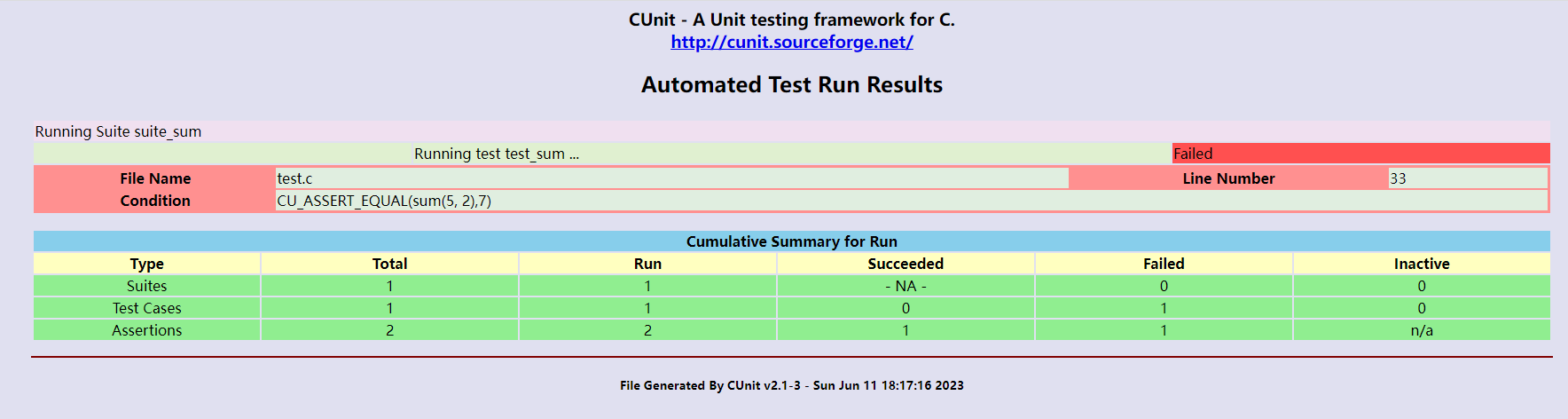

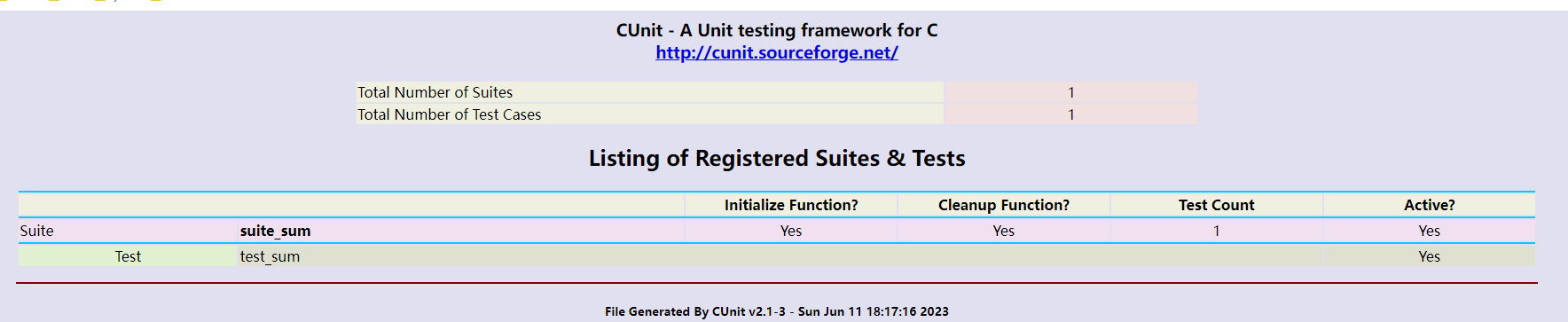

在本地起一個服務器, 比如 npm 的 serve, 兩個檔案效果如下

關于代碼覆寫率

參考: GCOV+LCOV 代碼除錯和覆寫率統計工具

日志

日志框架有很多, 此處選擇 zlog, 官網寫的非常詳細

github: https://github.com/HardySimpson/zlog/

中文手冊: http://hardysimpson.github.io/zlog/UsersGuide-CN.html

整合結果

目錄結構

laolang@laolang-pc:~/tmp/helloc$ tree -a
.
├── app.log
├── CMakeLists.txt
├── coverage.sh
├── .gitignore
├── resources
│   └── cunit
│       ├── CUnit-List.dtd
│       ├── CUnit-List.xsl
│       ├── CUnit-Run.dtd
│       └── CUnit-Run.xsl
├── src
│   ├── app
│   │   ├── CMakeLists.txt
│   │   └── helloc.c
│   ├── CMakeLists.txt
│   ├── common
│   │   ├── CMakeLists.txt
│   │   ├── common.h
│   │   ├── zlog_conf.c
│   │   └── zlog_conf.h
│   └── datastruct
│       ├── CMakeLists.txt
│       ├── sum.c
│       └── sum.h
├── test
│   ├── CMakeLists.txt
│   ├── maintest.c
│   ├── test_sum.c
│   └── test_sum.h
├── .vscode
│   ├── launch.json
│   ├── settings.json
│   └── tasks.json
└── zlog.conf

8 directories, 26 files
laolang@laolang-pc:~/tmp/helloc$

.vscode

tasks.json

{
    "version": "2.0.0",
    "tasks": [
        {
            "label": "build-debug",
            "type": "shell",
            "command": "cmake -S . -B cmake-build-debug -DCMAKE_BUILD_TYPE=Debug && cmake --build cmake-build-debug",
            "dependsOn": [
                "configure"
            ]
        },
        {
            "label": "build-release",
            "type": "shell",
            "command": "cmake -S . -B cmake-build-release -DCMAKE_BUILD_TYPE=Release && cmake --build cmake-build-release",
            "dependsOn": [
                "configure"
            ]
        },
        {
            "label": "clean",
            "type": "shell",
            "command": "rm -rf build && rm -rf cmake-build-debug && rm -rf cmake-build-release"
        },
        {
            "label": "rebuild",
            "type": "shell",
            "dependsOn": [
                "clean",
                "build-debug",
                "build-release"
            ]
        },
        {
            "label": "run",
            "type": "shell",
            "command": "./cmake-build-release/bin/helloc",
            "dependsOn": [
                "build-release"
            ]
        },
        {
            "label": "test",
            "type": "shell",
            "command": "./cmake-build-debug/bin/helloc_test && mkdir -p cmake-build-debug/report && mv CUnit*.xml cmake-build-debug/report && cp resources/cunit/CUnit-*.* cmake-build-debug/report/",
            "dependsOn": [
                "build-debug"
            ]
        },
        {
            "label": "coverage",
            "type": "shell",
            "command": "./coverage.sh",
            "dependsOn": [
                "clean",
                "test"
            ]
        }
    ]
}

settings.json

{
    "files.exclude": {
        "**/.git": true,
        "**/.svn": true,
        "**/.hg": true,
        "**/CVS": true,
        "**/.DS_Store": true,
        "**/Thumbs.db": true,

        "**/cmake-build-debug":true,
        "**/cmake-build-release":true
    },
    "cmake.cmakePath": "/home/laolang/program/cmake/bin/cmake",
    "VsCodeTaskButtons.showCounter": true,
    "VsCodeTaskButtons.tasks": [
        {
            "label": "$(notebook-delete-cell) clean",
            "task": "clean"
        },
        {
            "label": "$(debug-configure) rebuild",
            "task": "rebuild"
        },
        {
            "label": "$(notebook-execute) run",
            "task": "run"
        },
        {
            "label": "$(test-view-icon) test",
            "task": "test"
        },
        {
            "label": "coverage",
            "task": "coverage"
        }
    ]
}

launch.json

{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "app-debug",
            "type": "cppdbg",
            "request": "launch",
            "program": "${workspaceRoot}/cmake-build-debug/bin/helloc",
            "args": [],
            "stopAtEntry": false,
            "cwd": "${workspaceFolder}",
            "environment": [],
            "externalConsole": false,
            "MIMode": "gdb",
            "miDebuggerPath": "/usr/bin/gdb",
            "setupCommands": [
                {
                    "description": "Enable pretty-printing for gdb",
                    "text": "-enable-pretty-printing",
                    "ignoreFailures": true
                }
            ],
            "preLaunchTask": "rebuild"
        }
    ]
}

coverage.sh

#!/bin/bash
BUILD_PATH=cmake-build-debug
lcov -d . -o ${BUILD_PATH}/app.info -b . -c --exclude '*/test/*' --exclude '*/src/main/*'
genhtml ${BUILD_PATH}/app.info -o ${BUILD_PATH}/lcov

zlog.con

[formats]

simple = "%d().%ms %p %V [%F:%L] - %m%n"

[rules]

my_cat.DEBUG    >stdout;    simple
*.*     "app.log", 10MB * 0 ~ "app-%d(%Y%m%d).#2s.log"

cmake

頂層 cmake

cmake_minimum_required(VERSION 3.0)

project(helloc C)

set(CMAKE_C_STANDARD 17)
set(CMAKE_C_STANDARD_REQUIRED True)
set(CMAKE_C_EXTENSIONS ON)
set(CMAKE_BUILD_WITH_INSTALL_RPATH True)

SET(CMAKE_C_FLAGS "${CMAKE_C_FLAGS} -Wall")

if(CMAKE_BUILD_TYPE STREQUAL "Debug")
    SET(CMAKE_C_FLAGS "${CMAKE_C_FLAGS} -fprofile-arcs -ftest-coverage -Wall")
    SET(CMAKE_EXE_LINKER_FLAGS "${CMAKE_EXE_LINKER_FLAGS} -fprofile-arcs -ftest-coverage")
endif()

set(lib_common common)
set(lib_datastruct datastruct)


configure_file(${CMAKE_SOURCE_DIR}/zlog.conf ${CMAKE_BINARY_DIR}/bin/zlog.conf COPYONLY)

add_subdirectory(src)

add_subdirectory(test)
enable_testing()
add_test(NAME helloc_test COMMAND helloc_test)

test cmake

cmake_minimum_required(VERSION 3.25)

project(helloc_test C)

set(CMAKE_C_STANDARD 17)
set(CMAKE_C_STANDARD_REQUIRED True)
set(CMAKE_C_EXTENSIONS ON)
set(CMAKE_BUILD_WITH_INSTALL_RPATH True)
SET(CMAKE_C_FLAGS "${CMAKE_C_FLAGS} -fprofile-arcs -ftest-coverage -Wall")
SET(CMAKE_EXE_LINKER_FLAGS "${CMAKE_EXE_LINKER_FLAGS} -fprofile-arcs -ftest-coverage")

include_directories(${CMAKE_SOURCE_DIR}/test)
include_directories(${CMAKE_SOURCE_DIR}/include)

aux_source_directory(. TEST_SRCS)
set(EXECUTABLE_OUTPUT_PATH ${CMAKE_BINARY_DIR}/bin)
add_executable(${PROJECT_NAME} ${TEST_SRCS})
target_link_libraries(${PROJECT_NAME} cunit zlog ${lib_common} ${lib_datastruct})
set_target_properties(${PROJECT_NAME} PROPERTIES INSTALL_RPATH "\${ORIGIN}/../lib")

其他檔案與腳本

略

效果預覽

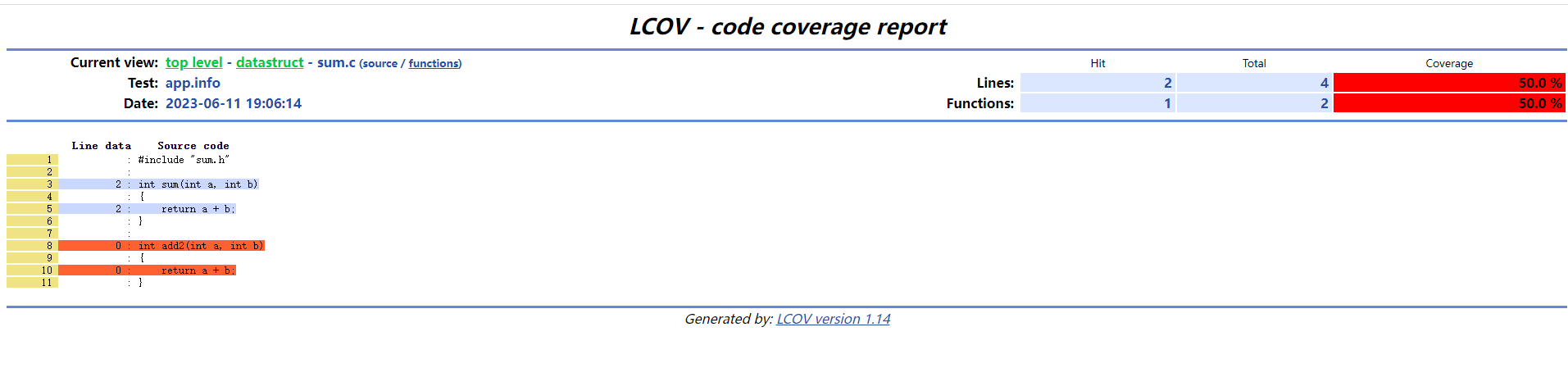

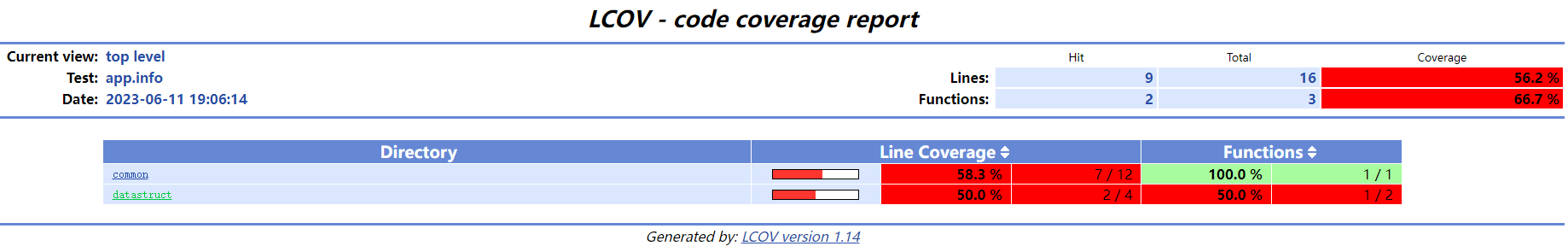

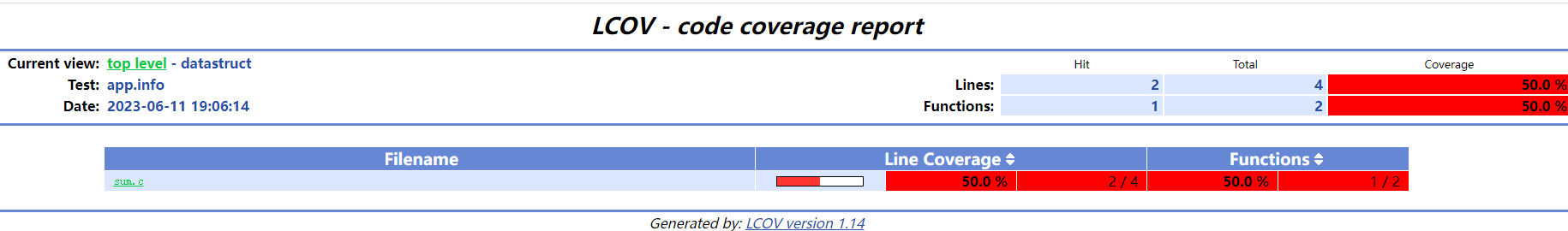

cunit 的測驗報告上面已經有了, 代碼覆寫率如下

注意事項

代碼覆寫率要求代碼必須運行過
如果生成代碼覆寫率或者運行測驗的時候 lcov 報錯, 有可能是因為覆寫率資料檔案沖突, 先執行 clean 再執行 test 或者 coverage 即可
vscode 的 debug 有可能會崩潰, 結束任務, 關閉終端面板, 手動洗掉 build 目錄再次點擊 F5 即可
嘗試在 tasks.json 中配置變數, 失敗了
