Fabric-java-sdk 開通TLS時訪問Fabric網路

2020-11-01 13:32:46 前端設計

Fabric-java-sdk 1.4.1 TLS 通信 訪問Fabric網路

1.組態檔部分

  • Fabric 1.4網路，采用solo模式，背書策略是： ‘OR (’’‘Org1MSP.peer’’’,’’‘Org2MSP.peer’’’)’

不采用 tls通信：
Peer0_Org1_Name=“peer0.org1.example.com”;
Peer0_Org1_Url=“grpc://localhost:7051”;
OrdererName=“orderer.example.com”;
OrdererUrl=“grpcs://localhost:7050”;
采用 tls通信：
Peer0_Org1_Name=“peer0.org1.example.com”;
Peer0_Org1_Url=“grpcs://localhost:7051”;
OrdererName=“orderer.example.com”;
OrdererUrl=“grpcs://localhost:7050”;

整個組態檔ConfigUrl.java如下：

package org.edu.fabric.sdk.config;

import com.google.protobuf.compiler.PluginProtos;

import java.io.File;
import java.nio.file.FileAlreadyExistsException;

public class ConfigUrl {
    //private static String Org1_Admin_name="";
     public static String Org1="org1";

     public static String Org1_Msp="Org1MSP";

    public static String Org2="org2";

    public static String Org2_Msp="Org2MSP";

    public static String Org1_Usr_Admin_Cert= File.separator+"root"+File.separator+"IdeaProjects"+File.separator+"fabricProject"
            +File.separator+"src"+File.separator+"main"+File.separator+"resources"+File.separator+"crypto-config"+File.separator+"peerOrganizations"
            +File.separator+"org1.example.com"+ File.separator+"users"+File.separator+"Admin@org1.example.com"+File.separator+"msp"+File.separator+"admincerts"
            +File.separator+"Admin@org1.example.com-cert.pem";

    public static String Org1_Usr_Admin_PK_Base_Path= File.separator+"root"+File.separator+"IdeaProjects"+File.separator+"fabricProject"
            +File.separator+"src"+File.separator+"main"+File.separator+"resources"+File.separator+"crypto-config"+File.separator+"peerOrganizations"
            +File.separator+"org1.example.com"+ File.separator+"users"+File.separator+"Admin@org1.example.com"+File.separator+"msp"+File.separator+"keystore";

    public static String Org2_Usr_Admin_Cert=File.separator+"root"+File.separator+"IdeaProjects"+File.separator+"fabricProject"
            +File.separator+"src"+File.separator+"main"+File.separator+"resources"+File.separator+"crypto-config"+File.separator+"peerOrganizations"
            +File.separator+"org2.example.com"+ File.separator+"users"+File.separator+"Admin@org2.example.com"+File.separator+"msp"+File.separator+"admincerts"
            +File.separator+"Admin@org2.example.com-cert.pem";

    public static String Org2_Usr_Admin_PK_Base_Path= File.separator+"root"+File.separator+"IdeaProjects"+File.separator+"fabricProject"
            +File.separator+"src"+File.separator+"main"+File.separator+"resources"+File.separator+"crypto-config"+File.separator+"peerOrganizations"
            +File.separator+"org2.example.com"+ File.separator+"users"+File.separator+"Admin@org2.example.com"+File.separator+"msp"+File.separator+"keystore";

    public static String ChannelName="mychannel";

    public static String Admin="admin";

    public static String Admin_Passwd="pass";

    public static String OrdererName="orderer.example.com";

    public static String OrdererUrl="grpcs://localhost:7050";

    public static String Peer0_Org1_Name="peer0.org1.example.com";

    public static String Peer0_Org1_Url="grpcs://localhost:7051";

    public static String Peer1_Org1_Name="peer1.org1.example.com";

    public static String Peer1_Org1_Url="grpc://localhost:8051";

    public static String Peer0_Org2_Name="peer0.org2.example.com";

    public static String Peer0_Org2_Url="grpc://localhost:9051";

    public static String Peer1_Org2_Name="peer1.org2.example.com";

    public static String Peer1_Org2_Url="grpc://localhost:10051";

    public static String CA1_Name="ca-org1";

    public static String CA1_Url="http://localhost:7057";

    public static String CA1_Root_Cert="/root/IdeaProjects/fabricProject/src/main/resources/crypto-config/peerOrganizations/org1.example.com/ca/ca.org1.example.com-cert.pem";

    public static String Org1_TLS_Root_Cert="/root/IdeaProjects/fabricProject/src/main/resources/crypto-config/peerOrganizations/org1.example.com/tlsca/tlsca.org1.example.com-cert.pem";

    public static String Orderer_TLS_Root_Cert="/root/IdeaProjects/fabricProject/src/main/resources/crypto-config/ordererOrganizations/example.com/tlsca/tlsca.example.com-cert.pem";

    public static String Channel_ConfigFile_Path=File.separator+"root"+File.separator+"IdeaProjects"+File.separator+"fabricProject"
            +File.separator+"src"+File.separator+"main"+File.separator+"resources"+File.separator+"channel-artifacts"+File.separator+"channel.tx";

    public static String Chaincode1_Name="mvp";

    public static String Chaincode1_Version="1";

    public static String Chaincode1_Root_Path="/root/IdeaProjects/fabricProject/src/main/resources/chaincode";

    public static String Chaincode1_Path="chaincode_example02/go";

    public static String Chaincode2_Name="haha";

    public static String Chaincode2_Version="1";

    public static String Chaincode2_Root_Path="/root/IdeaProjects/fabricProject/src/main/resources/chaincodetest";

    public static String Chaincode2_Path="testcc/chaincode_example02/go";
}

2.在這個Fabric網路中 orderer2.example.com,
orderer3.example.com,orderer4.example.com,orderer4.example.com這四個排序服務節點都沒有用的，只用到了orderer.example.com,crypto-config目錄如下,：

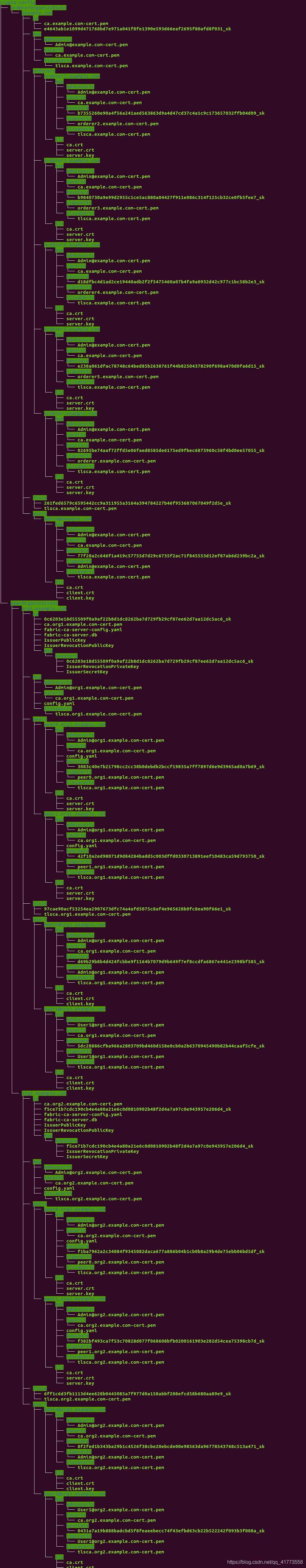

在這個Fabric網路中orderer2.example.com,orderer3.example.com,orderer4.example.com,orderer4.example.com這四個排序服務節點都沒有用的，只用到了orderer，example.com

2. 呼叫鏈碼查詢資訊

QueryChaincodeOpenTls.java代碼如下：

package org.edu.fabric.sdk.testtls;

import org.edu.fabric.sdk.config.ConfigUrl;
import org.edu.fabric.sdk.config.FactoryConfig;
import org.edu.fabric.sdk.impl.UserImpl;
import org.hyperledger.fabric.sdk.*;
import org.hyperledger.fabric.sdk.exception.CryptoException;
import org.hyperledger.fabric.sdk.exception.InvalidArgumentException;
import org.hyperledger.fabric.sdk.exception.ProposalException;
import org.hyperledger.fabric.sdk.exception.TransactionException;
import org.hyperledger.fabric.sdk.security.CryptoSuite;

import java.io.*;
import java.lang.reflect.InvocationTargetException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.Collection;
import java.util.Properties;

public class QueryChaincode {
    public static void main(String args[]) throws IOException, ClassNotFoundException, IllegalAccessException, InvocationTargetException, InvalidArgumentException, InstantiationException, NoSuchMethodException, CryptoException, ProposalException, TransactionException {
        //這里的userContext使用的是cryptogen二進制檔案生成的組織org1.example.com的管理員：Admin@org1.example.com，此外也可以使用CA節點重新去生成userContext
        UserImpl userContext=new UserImpl();
        userContext.setName(ConfigUrl.Admin);
        userContext.setMspId(ConfigUrl.Org1_Msp);
        Enrollment enrollment= FactoryConfig.getEnrollment(ConfigUrl.Org1_Usr_Admin_Cert,ConfigUrl.Org1_Usr_Admin_PK_Base_Path);
        userContext.setEnrollment(enrollment);
        CryptoSuite cryptoSuite=CryptoSuite.Factory.getCryptoSuite();
        HFClient hfClient=HFClient.createNewInstance();
        hfClient.setCryptoSuite(cryptoSuite);
        hfClient.setUserContext(userContext);
        //create peer ,orderer,Eventhub
        String peerCert=new String(Files.readAllBytes(Paths.get("/root/IdeaProjects/fabricProject/src/main/resources/crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt")),"UTF-8");

        Properties peerProperties=new Properties();
        peerProperties.put("pemBytes",peerCert.getBytes());
        peerProperties.setProperty("sslProvider","openSSL");
        peerProperties.setProperty("negotiationType","TLS");
        peerProperties.setProperty("hostnameOverride", ConfigUrl.Peer0_Org1_Name);
        /*
        peerProperties.setProperty("clientKeyFile","");
        peerProperties.setProperty()*/
        Peer peer=hfClient.newPeer(ConfigUrl.Peer0_Org1_Name,ConfigUrl.Peer0_Org1_Url,peerProperties);

        String ordererCert=new String(Files.readAllBytes(Paths.get("/root/IdeaProjects/fabricProject/src/main/resources/crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt")),"UTF-8");
        Properties ordererProperties=new Properties();
        ordererProperties.put("pemBytes",ordererCert.getBytes());
        ordererProperties.setProperty("sslProvider","openSSL");
        ordererProperties.setProperty("negotiationType","TLS");
        ordererProperties.setProperty("hostnameOverride",ConfigUrl.OrdererName);
        Orderer orderer=hfClient.newOrderer(ConfigUrl.OrdererName,ConfigUrl.OrdererUrl,ordererProperties);
        EventHub eventHub=hfClient.newEventHub(ConfigUrl.Peer0_Org1_Name,"grpcs://localhost:7053",peerProperties);

        Channel channel=hfClient.newChannel(ConfigUrl.ChannelName);
        channel.addPeer(peer);
        channel.addOrderer(orderer);
        channel.addEventHub(eventHub);
        channel.initialize();

        //create
        QueryByChaincodeRequest queryByChaincodeRequest=hfClient.newQueryProposalRequest();
        ChaincodeID chaincodeId=ChaincodeID.newBuilder().setName("mycc").build();
        queryByChaincodeRequest.setChaincodeID(chaincodeId);
        queryByChaincodeRequest.setFcn("query");
        queryByChaincodeRequest.setArgs(new String[]{"a"});
        Collection<ProposalResponse> responses=channel.queryByChaincode(queryByChaincodeRequest);

        for(ProposalResponse res:responses){
            if(res.getStatus().getStatus()!=200){
                System.out.println("query fail:"+res.getMessage());
            }else{
                System.out.println(res.getStatus().toString());
                byte[] mes=res.getChaincodeActionResponsePayload();
                System.out.println(new String(mes));

            }
        }
    }
    }

3. 呼叫鏈碼進行轉賬，InvokeChaincodeOpenTls.java代碼如下：

package org.edu.fabric.sdk.testtls;

import org.edu.fabric.sdk.config.ConfigUrl;
import org.edu.fabric.sdk.config.FactoryConfig;
import org.edu.fabric.sdk.impl.UserImpl;
import org.hyperledger.fabric.sdk.*;
import org.hyperledger.fabric.sdk.security.CryptoSuite;
import org.hyperledger.fabric_ca.sdk.HFCAClient;
import org.hyperledger.fabric_ca.sdk.RegistrationRequest;

import java.io.FileOutputStream;
import java.io.ObjectOutputStream;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.Collection;
import java.util.Properties;
import java.util.concurrent.CompletableFuture;

public class InvokdeChaincodeOpenTls {
    public static void main(String args[]) throws Exception {

		//這里的userContext使用的是CA節點生成的userContext，此外也可以采用cryptogen二進制檔案生成的組織org1.example.com的管理員:Admin@org1.example.com
        //create hfcaClient

        String CA1_Cert=new String(Files.readAllBytes(Paths.get(ConfigUrl.CA1_Root_Cert)),"UTF-8");
        Properties properties=new Properties();
        properties.put("pemBytes",CA1_Cert.getBytes());
        properties.setProperty("allowAllHostNames","true");
        HFCAClient hfcaClient=HFCAClient.createNewInstance(ConfigUrl.CA1_Name,ConfigUrl.CA1_Url,properties);
        hfcaClient.setCryptoSuite(CryptoSuite.Factory.getCryptoSuite());
        //create admin
        UserImpl adminUserContext=new UserImpl();
        adminUserContext.setName(ConfigUrl.Admin);
        adminUserContext.setAffiliation(ConfigUrl.Org1);
        adminUserContext.setMspId(ConfigUrl.Org1_Msp);
        //create admin Enrollment
        Enrollment adminEnrollment=hfcaClient.enroll(ConfigUrl.Admin,ConfigUrl.Admin_Passwd);
        adminUserContext.setEnrollment(adminEnrollment);
        //save adminUserContext
        FileOutputStream fio=new FileOutputStream("/root/IdeaProjects/fabricProject/src/main/resources/adminContext/adminContext.txt");
        ObjectOutputStream obj=new ObjectOutputStream(fio);
        obj.writeObject(adminUserContext);
        obj.close();
        fio.close();
        //create userContext,user1只能在CA節點處注冊一次，可以把使用user1生成的userContext保存成本地檔案，下次直接使用時直接讀入，不能再重新由CA節點注冊user1
        UserImpl userContext=new UserImpl();
        userContext.setName("user1");
        userContext.setAffiliation(ConfigUrl.Org1);
        userContext.setMspId(ConfigUrl.Org1_Msp);
        //register user
        RegistrationRequest registrationRequest=new RegistrationRequest("user1",ConfigUrl.Org1);
        String enrollmentSecret =hfcaClient.register(registrationRequest,adminUserContext);
        //enroll user
        Enrollment userEnrollment=hfcaClient.enroll(userContext.getName(),enrollmentSecret);
        userContext.setEnrollment(userEnrollment);
        //save user
        FileOutputStream fio1=new FileOutputStream("/root/IdeaProjects/fabricProject/src/main/resources/adminContext/userContext.txt");
        ObjectOutputStream obj1=new ObjectOutputStream(fio1);
        obj1.writeObject(userContext);
        obj1.close();
        fio1.close();
        /* userContext也可以直接使用這個
        UserImpl userContext=new UserImpl();
        userContext.setName(ConfigUrl.Admin);
        userContext.setMspId(ConfigUrl.Org1_Msp);
        Enrollment enrollment= FactoryConfig.getEnrollment(ConfigUrl.Org1_Usr_Admin_Cert,ConfigUrl.Org1_Usr_Admin_PK_Base_Path);
        userContext.setEnrollment(enrollment);*/
        //create hfClient
        CryptoSuite cryptoSuite=CryptoSuite.Factory.getCryptoSuite();
        HFClient hfClient=HFClient.createNewInstance();
        hfClient.setCryptoSuite(cryptoSuite);
        hfClient.setUserContext(userContext);

        //create peer ,orderer,Eventhub
        String peerCert=new String(Files.readAllBytes(Paths.get("/root/IdeaProjects/fabricProject/src/main/resources/crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt")),"UTF-8");

        Properties peerProperties=new Properties();
        peerProperties.put("pemBytes",peerCert.getBytes());
        peerProperties.setProperty("sslProvider","openSSL");
        peerProperties.setProperty("negotiationType","TLS");
        peerProperties.setProperty("hostnameOverride",ConfigUrl.Peer0_Org1_Name);

        Peer peer=hfClient.newPeer(ConfigUrl.Peer0_Org1_Name,ConfigUrl.Peer0_Org1_Url,peerProperties);

        String ordererCert=new String(Files.readAllBytes(Paths.get("/root/IdeaProjects/fabricProject/src/main/resources/crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt")),"UTF-8");
        Properties ordererProperties=new Properties();
        ordererProperties.put("pemBytes",ordererCert.getBytes());
        ordererProperties.setProperty("sslProvider","openSSL");
        ordererProperties.setProperty("negotiationType","TLS");
        ordererProperties.setProperty("hostnameOverride",ConfigUrl.OrdererName);
        Orderer orderer=hfClient.newOrderer(ConfigUrl.OrdererName,ConfigUrl.OrdererUrl,ordererProperties);
        EventHub eventHub=hfClient.newEventHub(ConfigUrl.Peer0_Org1_Name,"grpcs://localhost:7053",peerProperties);

        Channel channel=hfClient.newChannel(ConfigUrl.ChannelName);
        channel.addPeer(peer);
        channel.addOrderer(orderer);
        channel.addEventHub(eventHub);
        channel.initialize();

        //create Transaction proposal Request
        TransactionProposalRequest request=hfClient.newTransactionProposalRequest();
        ChaincodeID chaincodeID=ChaincodeID.newBuilder().setName("mycc").build();
        request.setChaincodeID(chaincodeID);
        request.setFcn("invoke");
        request.setArgs(new String[]{"a","b","22"});
        // send Transaction Proposal request To ensoder peer
        Collection<ProposalResponse> responses=channel.sendTransactionProposal(request);
        //send Transaction Ensoder Result to orderer
        channel.sendTransaction(responses);

    }
}

4.相關.java檔案

UserImpl.java檔案如下：

package org.edu.fabric.sdk.impl;

import org.hyperledger.fabric.sdk.Enrollment;
import org.hyperledger.fabric.sdk.User;

import java.io.Serializable;
import java.util.Set;

public class UserImpl implements User, Serializable {
    private String name;
    private Set<String>roles;
    private String account;
    private String affiliation;
    private Enrollment enrollment;
    public  UserImpl(){ }

    public UserImpl(String name, Enrollment enrollment, String mspId) {
        this.name = name;
        this.enrollment = enrollment;
        this.mspId = mspId;
    }

    public void setName(String name) {
        this.name = name;
    }

    public void setRoles(Set<String> roles) {
        this.roles = roles;
    }

    public void setAccount(String account) {
        this.account = account;
    }

    public void setAffiliation(String affiliation) {
        this.affiliation = affiliation;
    }

    public void setEnrollment(Enrollment enrollment) {
        this.enrollment = enrollment;
    }

    public void setMspId(String mspId) {
        this.mspId = mspId;
    }

    private String mspId;
    @Override
    public String getName() {
        return this.name;
    }

    @Override
    public Set<String> getRoles() {
        return this.roles;
    }

    @Override
    public String getAccount() {
        return this.account;
    }

    @Override
    public String getAffiliation() {
        return this.affiliation;
    }

    @Override
    public Enrollment getEnrollment() {
        return this.enrollment;
    }

    @Override
    public String getMspId() {
        return this.mspId;
    }
}

FactoryConfig.java檔案如下：

package org.edu.fabric.sdk.config;

import org.edu.fabric.sdk.impl.EnrollmentImpl;
import org.hyperledger.fabric.sdk.Enrollment;
import org.hyperledger.fabric.sdk.exception.CryptoException;
import org.hyperledger.fabric.sdk.security.CryptoPrimitives;

import java.io.*;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.security.PrivateKey;

public  class FactoryConfig {
    public  static Enrollment getEnrollment(String certPath,String pkBasePath) throws IOException, IllegalAccessException, InstantiationException, ClassNotFoundException, CryptoException {
        //get cert
        byte [] certBytes= Files.readAllBytes(Paths.get(certPath));
        //get pk
        File[] files=new File(pkBasePath).listFiles();
        String certName=files[0].getName();
        String pkPath=pkBasePath+File.separator+certName;
        byte [] pkBytes=Files.readAllBytes(Paths.get(pkPath));
        CryptoPrimitives cryptoPrimitives=new CryptoPrimitives();
        PrivateKey PK=cryptoPrimitives.bytesToPrivateKey(pkBytes);
        return new EnrollmentImpl(PK,new String(certBytes,"UTF-8"));
    }

}

EnrollmentImpl.java檔案如下：

package org.edu.fabric.sdk.impl;

import org.hyperledger.fabric.sdk.Enrollment;

import java.security.PrivateKey;

public class EnrollmentImpl implements Enrollment {
    private PrivateKey privateKey;
    private String cert;

    public EnrollmentImpl() {
    }

    public EnrollmentImpl(PrivateKey privateKey, String cert) {
        this.privateKey = privateKey;
        this.cert = cert;
    }

    @Override
    public PrivateKey getKey() {
        return this.privateKey;
    }

    @Override
    public String getCert() {
        return this.cert;
    }

    public void setPrivateKey(PrivateKey privateKey) {
        this.privateKey = privateKey;
    }

    public void setCert(String cert) {
        this.cert = cert;
    }
}

參考文獻：
[1]:https://blog.csdn.net/qq_27348837/article/details/95489720
[2]: https://developer.ibm.com/tutorials/hyperledger-fabric-java-sdk-for-tls-enabled-fabric-network/

轉載請註明出處，本文鏈接：https://www.uj5u.com/qianduan/198109.html

標籤：其他

上一篇：blockchain-explorer環境搭建部署并與Hyperledger Fabric 2.2網路結合

下一篇：golang桶排序

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • vue移動端上拉加載

    可能做得過于簡單或者比較low，請各位大佬留情，一起探討技術 ......

    uj5u.com 2020-09-10 04:38:07 more
  • 優美網站首頁，頂部多層導航

    一個個人用的瀏覽器首頁，可以把一下常用的網站放在這里，平常打開會比較方便。 第一步，HTML代碼 <script src=https://www.cnblogs.com/szharf/p/"js/jquery-3.4.1.min.js"></script> <div id="navigate"> <ul> <li class="labels labels_1"> ......

    uj5u.com 2020-09-10 04:38:47 more
  • 頁面為要加<!DOCTYPE html>

    最近因為寫一個js函式，需要用到$(window).height(); 由于手寫demo的時候，過于自信，其實對前端方面的認識也不夠體系，用文本檔案直接敲出來的html代碼，第一行沒有加上<!DOCTYPE html> 導致了$(window).height();的結果直接是整個document的高 ......

    uj5u.com 2020-09-10 04:38:52 more
  • WordPress網站程式手動升級要做好資料備份

    WordPress博客網站程式在進行升級前，必須要做好網站資料的備份，這個問題良家佐言是遇見過的；在剛開始接觸WordPress博客程式的時候，因為升級問題和博客網站的修改的一些嘗試，良家佐言是吃盡了苦頭。因為購買的是西部數碼的空間和域名，每當佐言把自己的WordPress博客網站搞到一塌糊涂的時候 ......

    uj5u.com 2020-09-10 04:39:30 more
  • WordPress程式不能升級為5.4.2版本的原因

    WordPress是一款個人博客系統，受到英文博客愛好者和中文博客愛好者的追捧，并逐步演化成一款內容管理系統軟體；它是使用PHP語言和MySQL資料庫開發的,用戶可以在支持PHP和MySQL資料庫的服務器上使用自己的博客。每一次WordPress程式的更新，就會牽動無數WordPress愛好者的心， ......

    uj5u.com 2020-09-10 04:39:49 more
  • 使用CSS3的偽元素進行首字母下沉和首行改變樣式

    網頁中常見的一種效果，首字改變樣式或者首行改變樣式，效果如下圖。 代碼： <!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, ......

    uj5u.com 2020-09-10 04:40:09 more
  • 關于a標簽的講解

    什么是a標簽？ <a> 標簽定義超鏈接，用于從一個頁面鏈接到另一個頁面。 <a> 元素最重要的屬性是 href 屬性，它指定鏈接的目標。 a標簽的語法格式：<a href=https://www.cnblogs.com/summerxbc/p/"指定要跳轉的目標界面的鏈接">需要展示給用戶看見的內容</a> a標簽 在所有瀏覽器中，鏈接的默認外觀如下： 未被訪問的鏈接帶 ......

    uj5u.com 2020-09-10 04:40:11 more
  • 前端輪播圖

    在需要輪播的頁面是引入swiper.min.js和swiper.min.css swiper.min.js地址： 鏈接：https://pan.baidu.com/s/15Uh516YHa4CV3X-RyjEIWw 提取碼：4aks swiper.min.css地址 鏈接：https://pan.b ......

    uj5u.com 2020-09-10 04:40:13 more
  • 如何設定html中的背景圖片（全屏顯示，且不拉伸）

    1 <style>2 body{background-image:url(https://uploadbeta.com/api/pictures/random/?key=BingEverydayWallpaperPicture); 3 background-size:cover;background ......

    uj5u.com 2020-09-10 04:40:16 more
  • Java學習——HTML詳解（上）

    HTML詳解 初識HTML Hyper Text Markup Language（超文本標記語言） 1 <!--DOCTYPE:告訴瀏覽器我們要使用什么規范--> 2 <!DOCTYPE html> 3 <html lang="en"> 4 <head> 5 <!--meta 描述性的標簽，描述一些 ......

    uj5u.com 2020-09-10 04:40:33 more
最新发布
  • 我的第一個NPM包:panghu-planebattle-esm(胖虎飛機大戰)使用說明

    好家伙,我的包終于開發完啦 歡迎使用胖虎的飛機大戰包!! 為你的主頁添加色彩 這是一個有趣的網頁小游戲包,使用canvas和js開發 使用ES6模塊化開發 效果圖如下: (覺得圖片太sb的可以自己改) 代碼已開源!! Git: https://gitee.com/tang-and-han-dynas ......

    uj5u.com 2023-04-20 07:59:23 more
  • 生產事故-走近科學之消失的JWT

    入職多年，面對生產環境，盡管都是小心翼翼，慎之又慎，還是難免捅出簍子。輕則滿頭大汗，面紅耳赤。重則系統停擺，損失資金。每一個生產事故的背后，都是寶貴的經驗和教訓，都是專案成員的血淚史。為了更好地防范和遏制今后的各類事故，特開此專題，長期更新和記錄大大小小的各類事故。有些是親身經歷，有些是經人耳傳口授 ......

    uj5u.com 2023-04-18 07:55:04 more
  • 記錄--Canvas實作打飛字游戲

    這里給大家分享我在網上總結出來的一些知識，希望對大家有所幫助 打開游戲界面，看到一個畫面簡潔、卻又富有挑戰性的游戲。螢屏上，有一個白色的矩形框，里面不斷下落著各種單詞，而我需要迅速地輸入這些單詞。如果我輸入的單詞與螢屏上的單詞匹配，那么我就可以獲得得分；如果我輸入的單詞錯誤或者時間過長，那么我就會輸 ......

    uj5u.com 2023-04-04 08:35:30 more
  • 了解 HTTP 看這一篇就夠

    在學習網路之前，了解它的歷史能夠幫助我們明白為何它會發展為如今這個樣子，引發探究網路的興趣。下面的這張圖片就展示了“互聯網”誕生至今的發展歷程。 ......

    uj5u.com 2023-03-16 11:00:15 more
  • 藍牙-低功耗中心設備

    //11.開啟藍牙配接器 openBluetoothAdapter //21.開始搜索藍牙設備 startBluetoothDevicesDiscovery //31.開啟監聽搜索藍牙設備 onBluetoothDeviceFound //30.停止監聽搜索藍牙設備 offBluetoothDevi ......

    uj5u.com 2023-03-15 09:06:45 more
  • canvas畫板（滑鼠和觸摸）

    <!DOCTYPE html> <html> <head> <meta charset="utf-8"> <title>canves</title> <style> #canvas { cursor:url(../images/pen.png),crosshair; } #canvasdiv{ bo ......

    uj5u.com 2023-02-15 08:56:31 more
  • 手機端H5 實作自定義拍照界面

    手機端 H5 實作自定義拍照界面也可以使用 MediaDevices API 和 <video> 標簽來實作，和在桌面端做法基本一致。 首先，使用 MediaDevices.getUserMedia() 方法獲取攝像頭媒體流，并將其傳遞給 <video> 標簽進行渲染。 接著，使用 HTML 的 < ......

    uj5u.com 2023-01-12 07:58:22 more
  • 記錄--短視頻滑動播放在 H5 下的實作

    這里給大家分享我在網上總結出來的一些知識，希望對大家有所幫助 短視頻已經無數不在了，但是主體還是使用 app 來承載的。本文講述 H5 如何實作 app 的視頻滑動體驗。 無聲勝有聲，一圖頂百辯，且看下圖： 網址鏈接（需在微信或者手Q中瀏覽） 從上圖可以看到，我們主要實作的功能也是本文要講解的有： ......

    uj5u.com 2023-01-04 07:29:05 more
  • 一文讀懂 HTTP/1 HTTP/2 HTTP/3

    從 1989 年萬維網（www）誕生，HTTP（HyperText Transfer Protocol）經歷了眾多版本迭代，WebSocket 也在期間萌芽。1991 年 HTTP0.9 被發明。1996 年出現了 HTTP1.0。2015 年 HTTP2 正式發布。2020 年 HTTP3 或能正... ......

    uj5u.com 2022-12-24 06:56:02 more
  • 【HTML基礎篇002】HTML之form表單超詳解

    ??一、form表單是什么

    ??二、form表單的屬性

    ??三、input中的各種Type屬性值

    ??四、標簽 ......

    uj5u.com 2022-12-18 07:17:06 more

Copyright © 2010-2020 有解無憂
