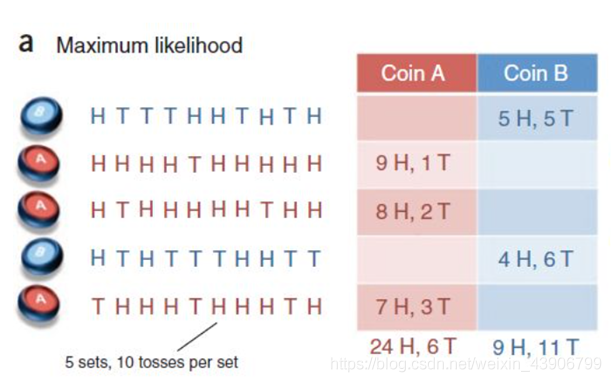

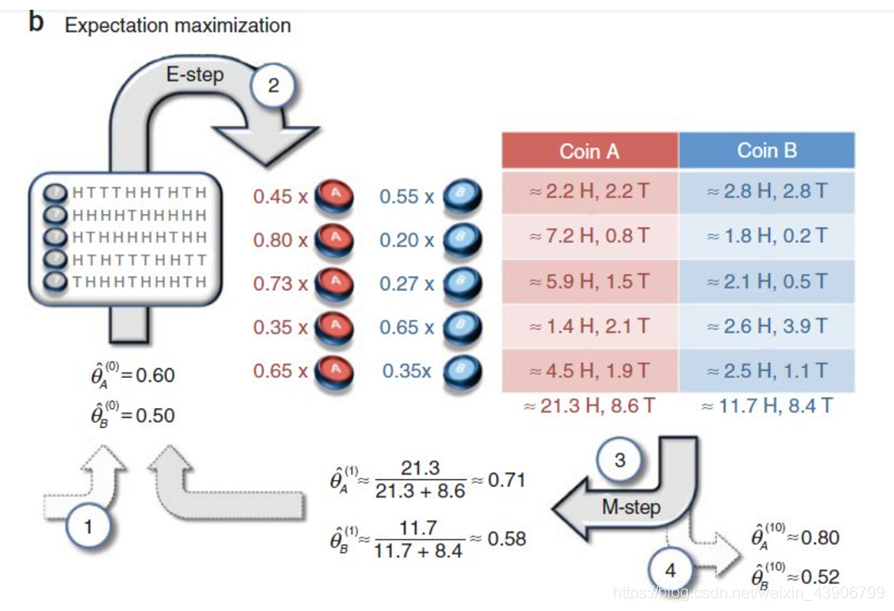

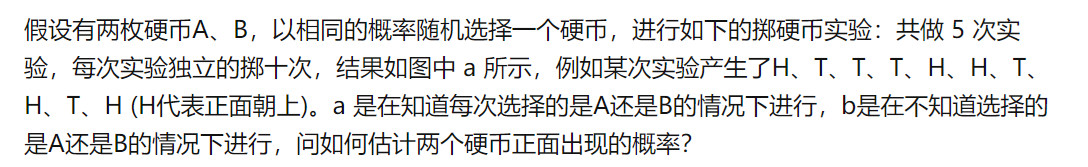

演算法簡介

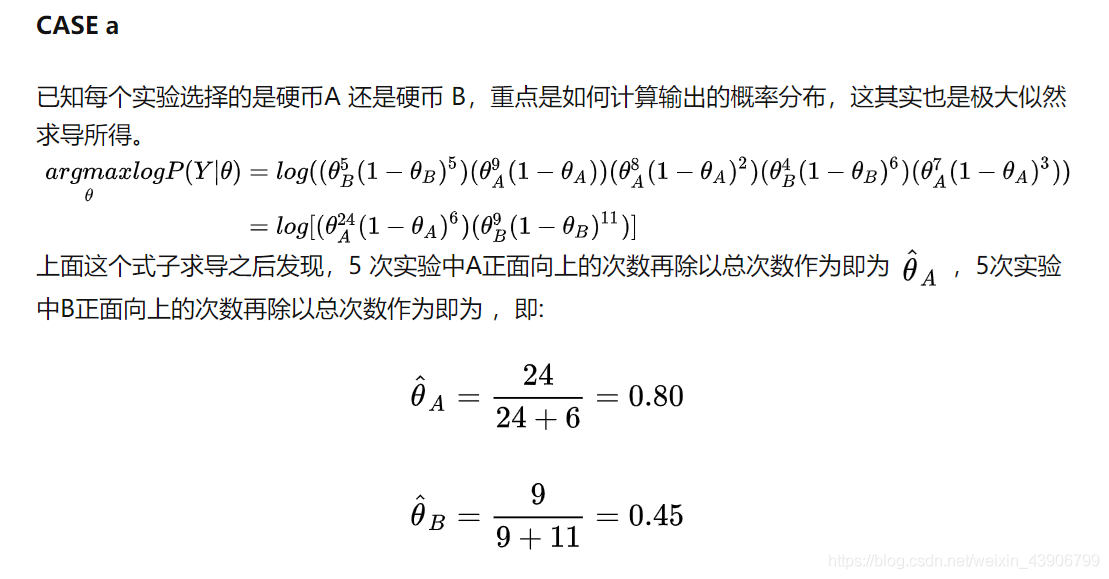

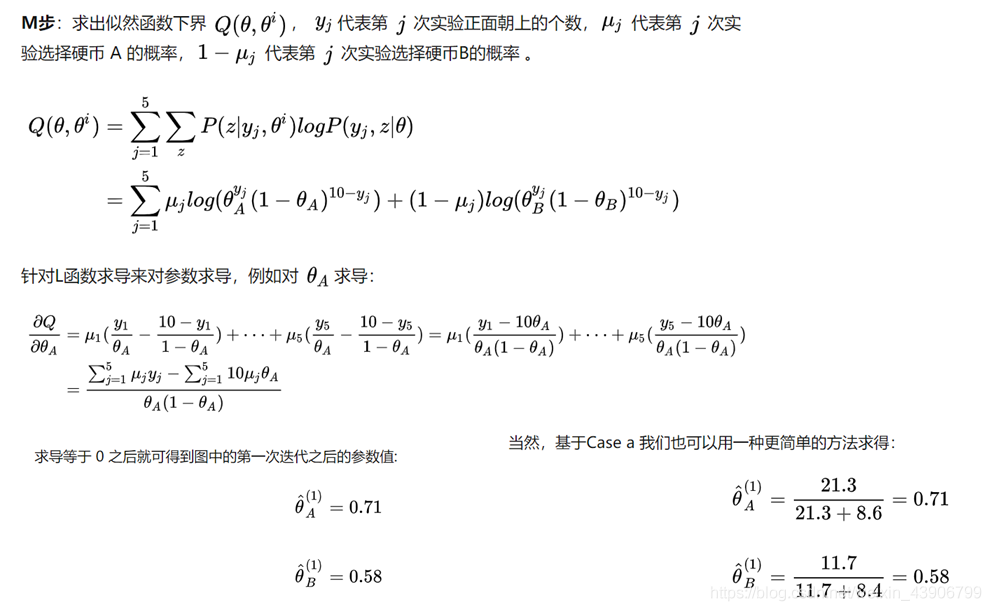

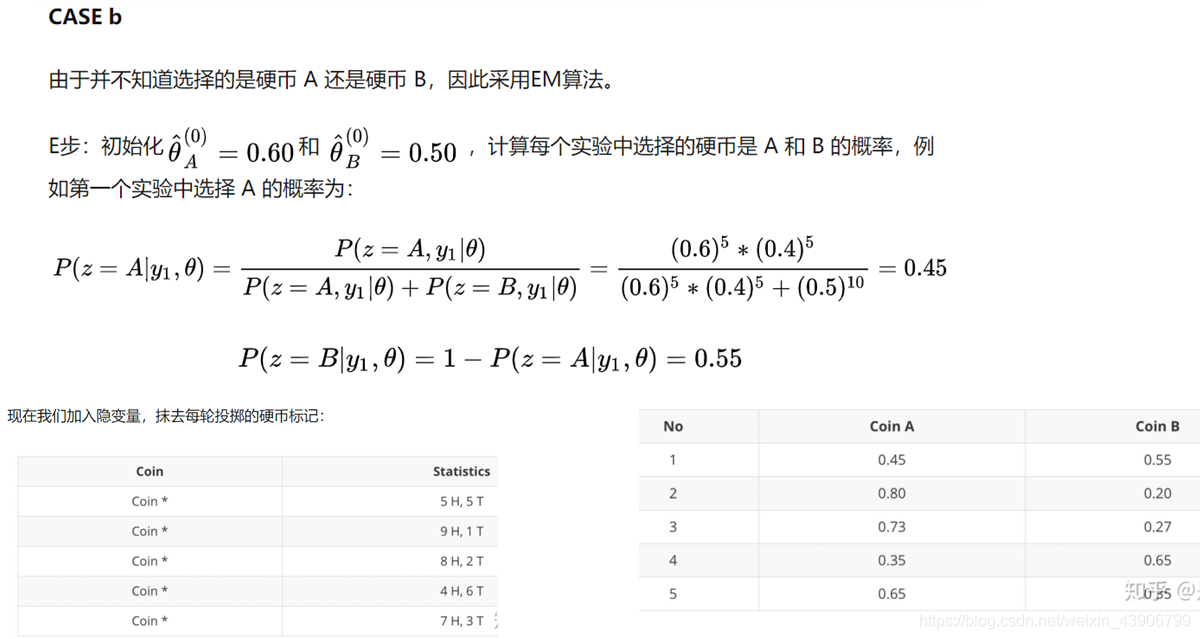

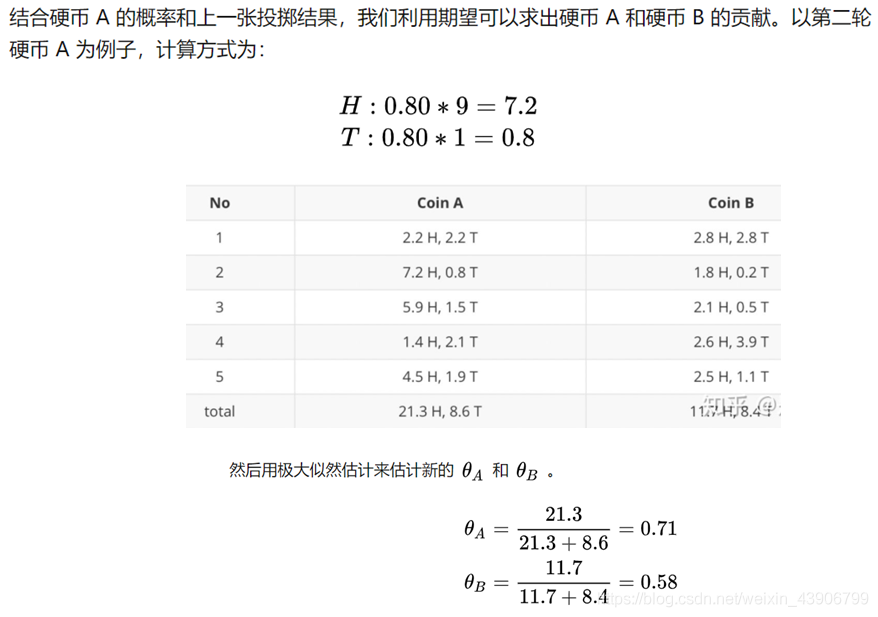

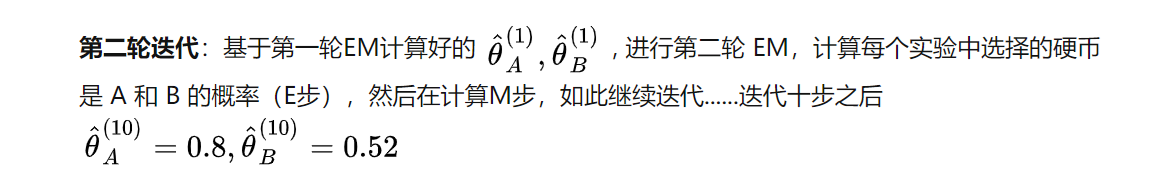

演算法步驟

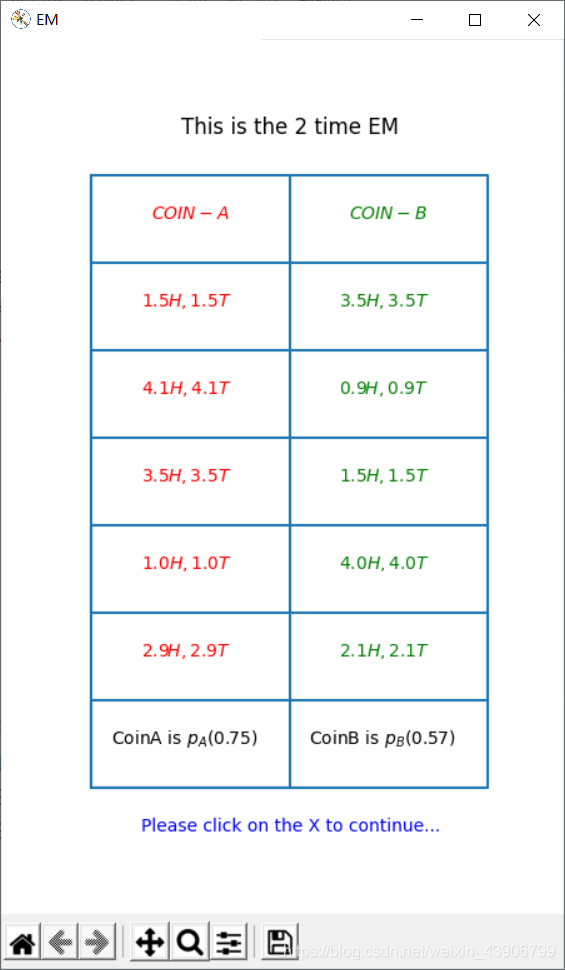

代碼效果展示
第一次
第二次
第n次
代碼實作
import math
import matplotlib.pyplot as plt
class Coin_Distribution():
"""
硬幣的分布
"""
def __init__(self, head, tail):
"""
硬幣的正面和反面的個數
"""
self.head = head
self.tail = tail
class Solution():
def __init__(self, theta_A, theta_B):
"""
初始化條件
"""
self.distribution1 = Coin_Distribution(5, 5)
self.distribution2 = Coin_Distribution(9, 1)
self.distribution3 = Coin_Distribution(8, 2)
self.distribution4 = Coin_Distribution(4, 6)
self.distribution5 = Coin_Distribution(7, 3)
self.distribution = {
'1': 0,
'2': 0,
'3': 0,
'4': 0,
'5': 0,
}
self.A = theta_A
self.B = theta_B
def get_distribution(self, head, tail, key):
"""
求每個分布的概率,A投擲十次出現相應分布的概率
"""
pa = math.pow(self.A, head) * math.pow(1 - self.A, tail)
pb = math.pow(self.B, head) * math.pow(1 - self.B, tail)
self.distribution[key] = pa / (pa + pb)
# print(pa / (pa + pb))
def get_five_distribution(self):
self.get_distribution(self.distribution1.head,
self.distribution1.tail, '1')
self.get_distribution(self.distribution2.head,
self.distribution2.tail, '2')
self.get_distribution(self.distribution3.head,
self.distribution3.tail, '3')
self.get_distribution(self.distribution4.head,
self.distribution4.tail, '4')
self.get_distribution(self.distribution5.head,
self.distribution5.tail, '5')
def M(self):
sum_head_A = 0
sum_tail_A = 0
sum_head_B = 0
sum_tail_B = 0
# get A head
# print(self.distribution['1'], self.distribution1.head)
sum_head_A += self.distribution['1'] * self.distribution1.head
sum_head_A += self.distribution['2'] * self.distribution2.head
sum_head_A += self.distribution['3'] * self.distribution3.head
sum_head_A += self.distribution['4'] * self.distribution4.head
sum_head_A += self.distribution['5'] * self.distribution5.head
# get A tail
sum_tail_A += self.distribution['1'] * self.distribution1.tail
sum_tail_A += self.distribution['2'] * self.distribution2.tail
sum_tail_A += self.distribution['3'] * self.distribution3.tail
sum_tail_A += self.distribution['4'] * self.distribution4.tail
sum_tail_A += self.distribution['5'] * self.distribution5.tail
# get B heBd
sum_head_B += (1 - self.distribution['1']) * self.distribution1.head
sum_head_B += (1 - self.distribution['2']) * self.distribution2.head
sum_head_B += (1 - self.distribution['3']) * self.distribution3.head
sum_head_B += (1 - self.distribution['4']) * self.distribution4.head
sum_head_B += (1 - self.distribution['5']) * self.distribution5.head
# get B tBil
sum_tail_B += (1 - self.distribution['1']) * self.distribution1.tail
sum_tail_B += (1 - self.distribution['2']) * self.distribution2.tail
sum_tail_B += (1 - self.distribution['3']) * self.distribution3.tail
sum_tail_B += (1 - self.distribution['4']) * self.distribution4.tail
sum_tail_B += (1 - self.distribution['5']) * self.distribution5.tail
self.A = sum_head_A / (sum_head_A + sum_tail_A)
self.B = sum_head_B / (sum_head_B + sum_tail_B)
print(self.A, self.B)
def init_image(self):
fig = plt.figure('EM', figsize=(4.5, 7))
plt.title('EM')
plt.xticks([])
plt.yticks([])
def drow_image(self, num):
plt.title('This is the %d time EM' % num)
plt.plot([1, 1, 5, 5, 1, 1, 5, 5, 1, 1, 5, 5, 1, 1, 5, 5, 1, 1, 3, 3],
[1, 8, 8, 1, 1, 2, 2, 3, 3, 4, 4, 5, 5, 6, 6, 7, 7, 8, 8, 1])
plt.text(2, 1.5, r'$%s$' % str('COIN-A'), ha='center', c='r')
plt.text(4, 1.5, r'$%s$' % str('COIN-B'), ha='center', c='g')
# coin A
# print(self.distribution['1'], self.distribution1.head)
plt.text(1.5, 2.5, r'$%.1fH,%.1fT$' % (self.distribution['1'] * self.distribution1.head,
self.distribution['1'] * self.distribution1.tail), c='r')
plt.text(1.5, 3.5, r'$%.1fH,%.1fT$' % (self.distribution['2'] * self.distribution1.head,
self.distribution['2'] * self.distribution1.tail), c='r')
plt.text(1.5, 4.5, r'$%.1fH,%.1fT$' % (self.distribution['3'] * self.distribution1.head,
self.distribution['3'] * self.distribution1.tail), c='r')
plt.text(1.5, 5.5, r'$%.1fH,%.1fT$' % (self.distribution['4'] * self.distribution1.head,
self.distribution['4'] * self.distribution1.tail), c='r')
plt.text(1.5, 6.5, r'$%.1fH,%.1fT$' % (self.distribution['5'] * self.distribution1.head,
self.distribution['5'] * self.distribution1.tail), c='r')
# coin B
plt.text(3.5, 2.5, r'$%.1fH,%.1fT$' % ((1 - self.distribution['1']) * self.distribution1.head,
(1 - self.distribution['1']) * self.distribution1.head), c='g')
plt.text(3.5, 3.5, r'$%.1fH,%.1fT$' % ((1 - self.distribution['2']) * self.distribution1.head,
(1 - self.distribution['2']) * self.distribution1.head), c='g')
plt.text(3.5, 4.5, r'$%.1fH,%.1fT$' % ((1 - self.distribution['3']) * self.distribution1.head,
(1 - self.distribution['3']) * self.distribution1.head), c='g')
plt.text(3.5, 5.5, r'$%.1fH,%.1fT$' % ((1 - self.distribution['4']) * self.distribution1.head,
(1 - self.distribution['4']) * self.distribution1.head), c='g')
plt.text(3.5, 6.5, r'$%.1fH,%.1fT$' % ((1 - self.distribution['5']) * self.distribution1.head,
(1 - self.distribution['5']) * self.distribution1.head), c='g')
# coni A and B
plt.text(1.2, 7.5, r'CoinA is $p_{A}(%.2f)$' % self.A, c='k')
plt.text(3.2, 7.5, r'CoinB is $p_{B}(%.2f)$' % self.B, c='k')
# describe
plt.text(1.5, 8.5, r'Please click on the X to continue...', c='b')
def set_ax(self):
ax = plt.gca()
ax.spines['right'].set_color('none')
ax.spines['bottom'].set_color('none')
ax.spines['top'].set_color('none')
ax.spines['left'].set_color('none')
ax.xaxis.set_ticks_position('top')
ax.invert_yaxis()
def show_image(self, num):
self.init_image()
self.set_ax()
self.drow_image(num)
plt.show()
if __name__ == "__main__":
S = Solution(0.6, 0.5)
for i in range(5):
S.get_five_distribution()
S.M()
S.show_image(i + 1)
