基于MQTT協議實作微信小程式控制樹莓派

在我的github上有原始碼，大家可以直接下載來用
https://github.com/yjc-123/-MQTT- ，這里給大家說一下實作的程序，
小程式端：
需要將我的github檔案引入這三個檔案
在這里插入圖片描述
這是github上的原始碼，具體網站https://github.com/mqttjs/MQTT.js，我們需要講上述檔案引入才可已使用mqtt，

原始碼
你只需要修改opt的資訊就行了，test是你在EMQ創建的用戶和密碼，另外就是你服務器的域名，這里需要ssl，所以你在這個程序中需要講域名安裝證書，

import mqtt from '../../utils/mqtt.js';
//連接的服務器域名，注意格式！！！
const host = 'wxs://www.iot-yjc.cn/mqtt';
Page({

  data: {
    client: null,
    //記錄重連的次數
    reconnectCounts: 0,
    //MQTT連接的配置
    options: {
      protocolVersion: 4, //MQTT連接協議版本c
      clientId: 'wx_' + parseInt(Math.random() * 100 + 800, 10),
      clean: false,
      password: 'test',
      username: 'test',
      reconnectPeriod: 1000, //1000毫秒，兩次重新連接之間的間隔
      connectTimeout: 30 * 1000, //1000毫秒，兩次重新連接之間的間隔
      resubscribe: true //如果連接斷開并重新連接，則會再次自動訂閱已訂閱的主題（默認true）
    }
  },
  onClick_connect: function() {

    var that = this;
    //開始連接
    this.data.client = mqtt.connect(host, this.data.options);
    this.data.client.on('connect', function(connack) {
      wx.showToast({
        title: '連接成功'
      })
    })


    //服務器下發訊息的回呼
    that.data.client.on("message", function(topic, payload) {
      console.log(" 收到 topic:" + topic + " , payload :" + payload)
      wx.showModal({
        content: " 收到topic:[" + topic + "], payload :[" + payload + "]",
        showCancel: false,
      });
    })


    //服務器連接例外的回呼
    that.data.client.on("error", function(error) {
      console.log(" 服務器 error 的回呼" + error)

    })

    //服務器重連連接例外的回呼
    that.data.client.on("reconnect", function() {
      console.log(" 服務器 reconnect的回呼")

    })


    //服務器連接例外的回呼
    that.data.client.on("offline", function(errr) {
      console.log(" 服務器offline的回呼")

    })


  },
  onClick_SubOne: function() {
    if (this.data.client && this.data.client.connected) {
      //僅訂閱單個主題
      this.data.client.subscribe('Topic0', function(err, granted) {
        if (!err) {
          wx.showToast({
            title: '訂閱主題成功'
          })
        } else {
          wx.showToast({
            title: '訂閱主題失敗',
            icon: 'fail',
            duration: 2000
          })
        }
      })
    } else {
      wx.showToast({
        title: '請先連接服務器',
        icon: 'none',
        duration: 2000
      })
    }
  },
  onClick_SubMany: function() {

    if (this.data.client && this.data.client.connected) {
      //僅訂閱多個主題
      this.data.client.subscribe({
        'Topic1': {
          qos: 0
        },
        'Topic2': {
          qos: 1
        }
      }, function(err, granted) {
        if (!err) {
          wx.showToast({
            title: '訂閱多主題成功'
          })
        } else {
          wx.showToast({
            title: '訂閱多主題失敗',
            icon: 'fail',
            duration: 2000
          })
        }
      })
    } else {
      wx.showToast({
        title: '請先連接服務器',
        icon: 'none',
        duration: 2000
      })
    }
  },

  //發布訊息
  listenerSwitch: function(e) {
    if (this.data.client && this.data.client.connected){
      if( e.detail.value == true){
        this.data.client.publish('test', '打開');
        wx.showToast({
          title: '發布成功'
        })
      }
      else if(e.detail.value == false){
        this.data.client.publish('test', '關閉');
        wx.showToast({
          title: '發布成功'
        })
      }
      else{}
    }
    console.log('switch型別開關當前狀態-----', e.detail.value);},
  onClick_PubMsg: function() {
    if (this.data.client && this.data.client.connected) {
      this.data.client.publish('test', '打開');
      wx.showToast({
        title: '發布成功'
      })
    } else {
      wx.showToast({
        title: '請先連接服務器',
        icon: 'none',
        duration: 2000
      })
    }
  },



  onClick_unSubOne: function() {
    if (this.data.client && this.data.client.connected) {
      this.data.client.unsubscribe('Topic1');
    } else {
      wx.showToast({
        title: '請先連接服務器',
        icon: 'none',
        duration: 2000
      })
    }
  },
  onClick_unSubMany: function() {
    if (this.data.client && this.data.client.connected) {
      this.data.client.unsubscribe(['Topic1', 'Topic2']);
    } else {
      wx.showToast({
        title: '請先連接服務器',
        icon: 'none',
        duration: 2000
      })
    }
  },
  onl oad: function() {
    wx.setNavigationBarTitle({
      title: '簡單服務器Mqtt連接'
    })
  }
})

域名安裝證書
1、首先在阿里云下載ssl證書，然后再服務器下載寶塔面板

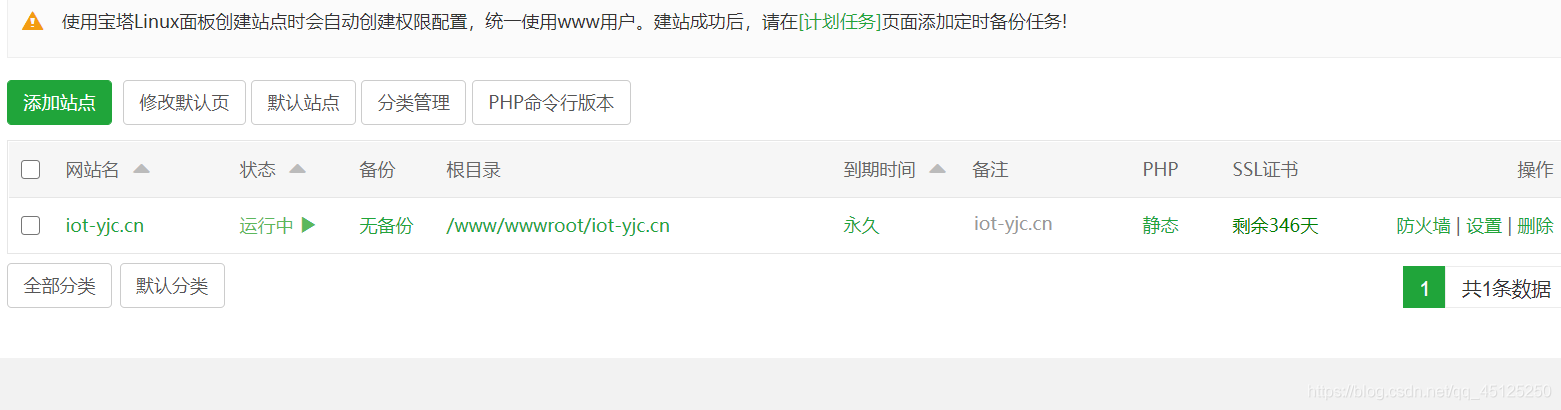

2、在寶塔中下載nignx，然后添加站點

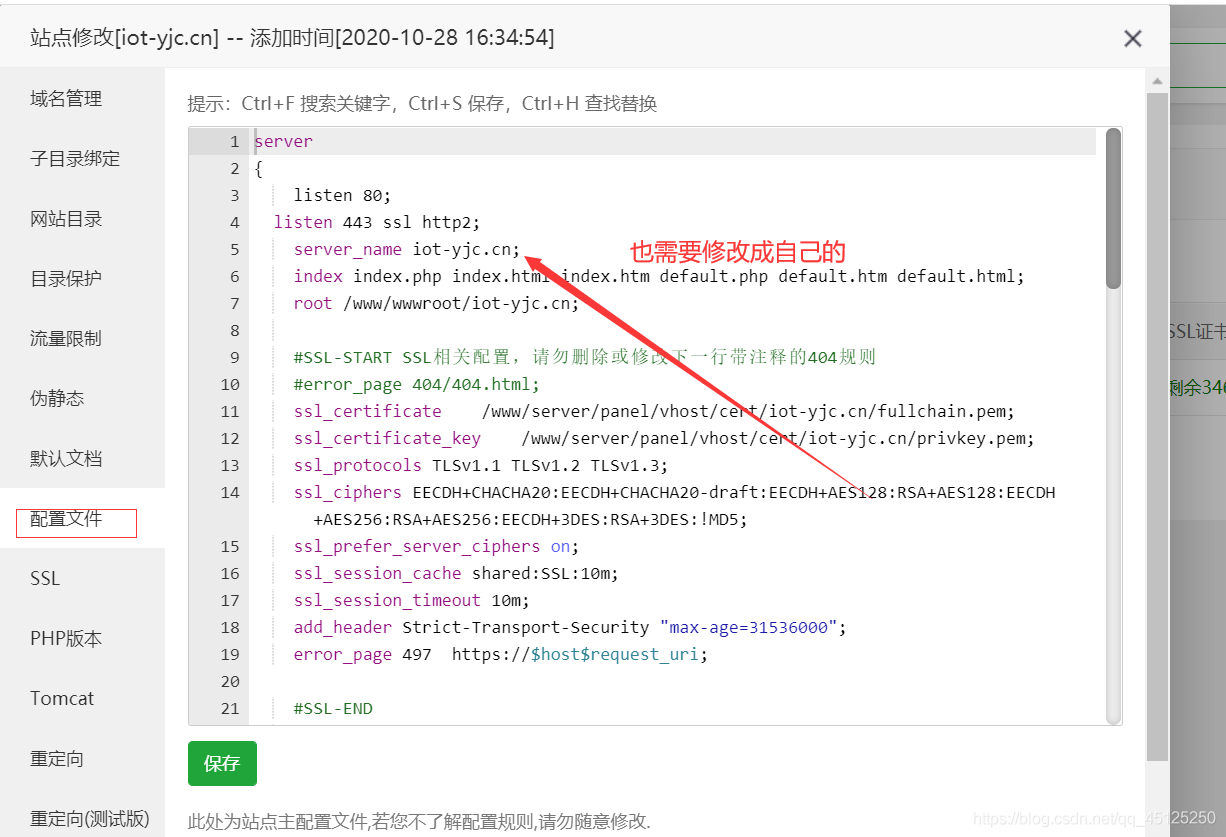

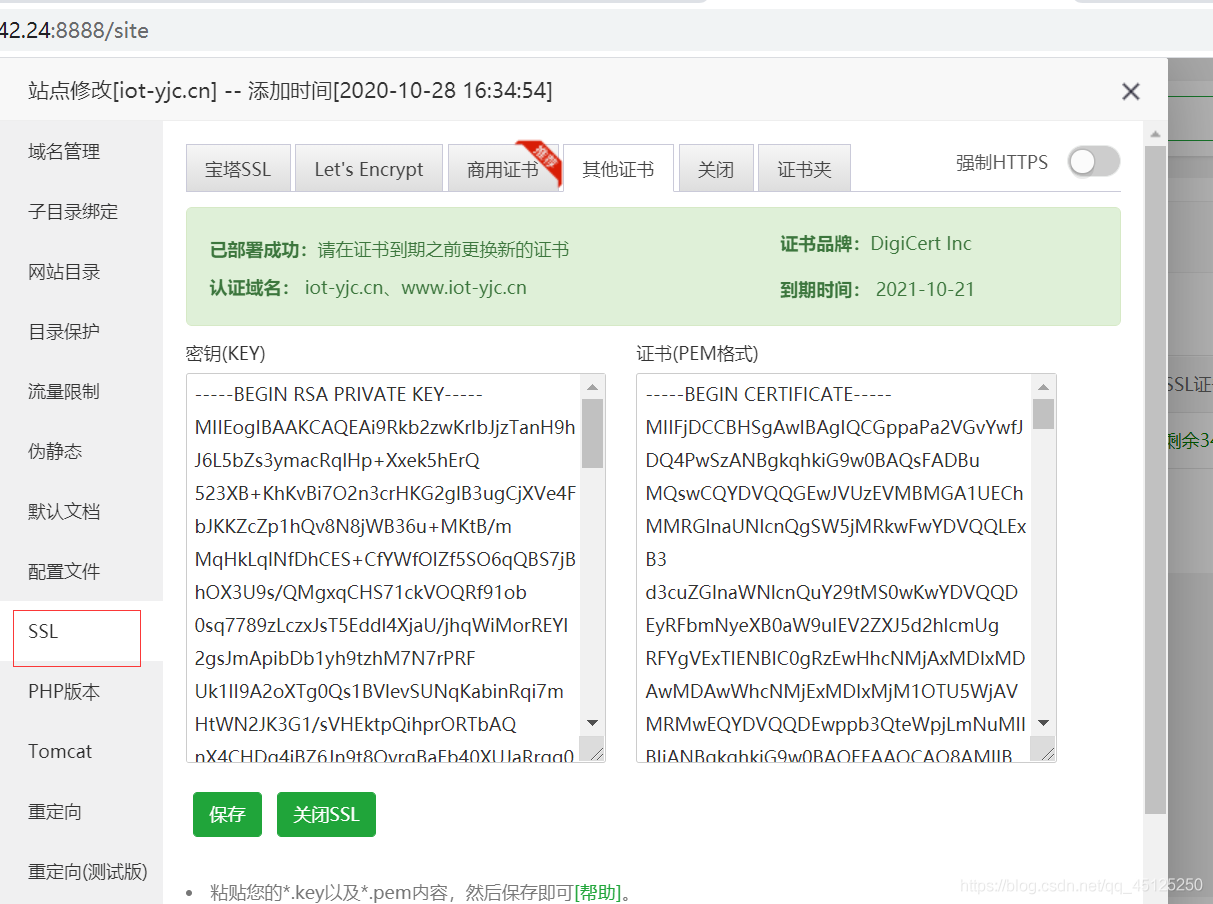

3、點擊設定–>ssl，輸入密鑰和證書，點擊保存，

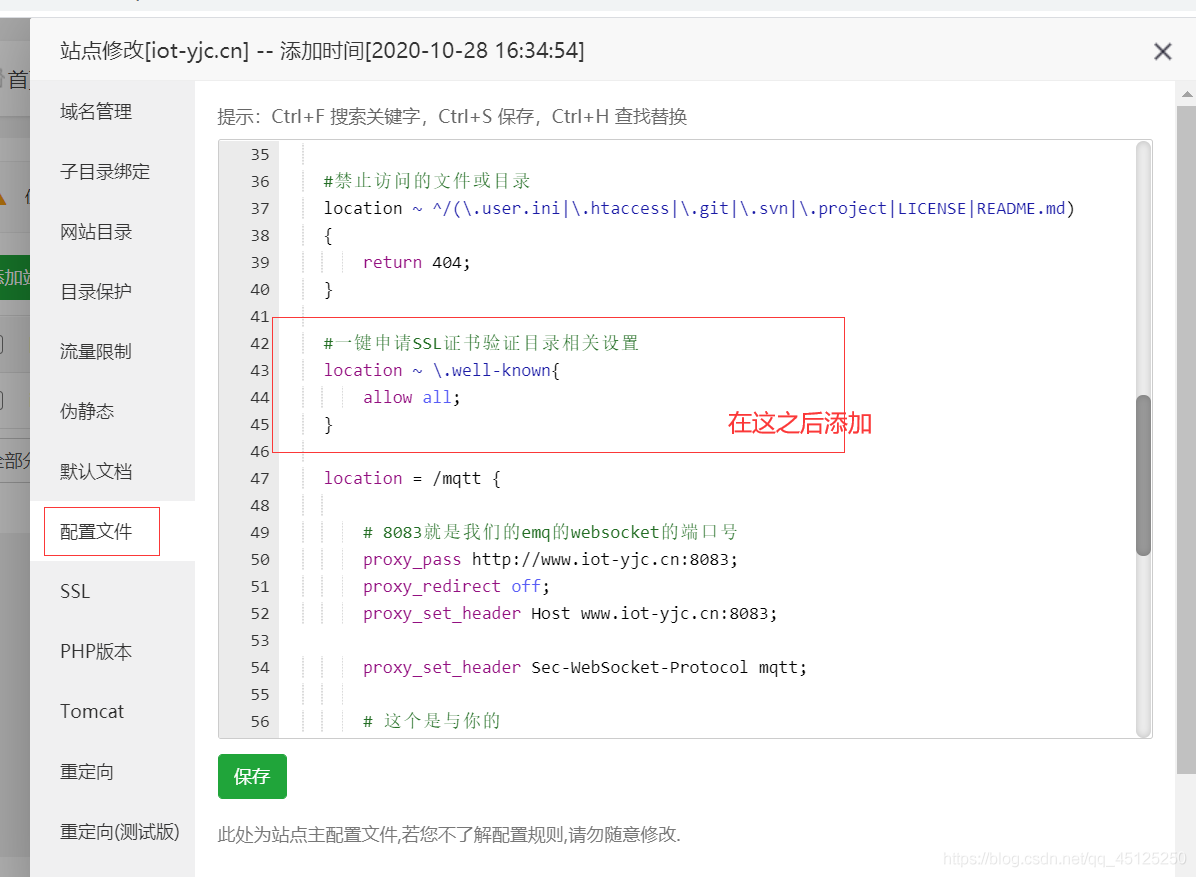

4、添加nignx反向代理

location = /mqtt {
        # 8083就是我們的emq的websocket的埠號
        proxy_pass http://www.xxxxxxx.com:8083;
        proxy_redirect off;
        proxy_set_header Host www.xxxxxxx.com:8083;

        proxy_set_header Sec-WebSocket-Protocol mqtt;

        # 這個是與你的 js客戶端的庫有關系，本博文的不需要，為了兼顧以后小伙伴，我這里注釋了下！
        #more_clear_headers Sec-WebSocket-Protocol;

        # 這些都是 websocket必須要配置的
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        }
}

樹莓派：
這邊只需要實作訂閱跟發布就行了，

發布

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "MQTTClient.h"

#define ADDRESS     "59.110.42.24:1883"
#define CLIENTID    "0bd981c5-a055-4196-8b7f-efb9f7a4d6ac"
#define TOPIC       "test"
#define PAYLOAD     "Hello World!"
#define QOS         1
#define TIMEOUT     10000L

int main(int argc, char* argv[])
{
    //宣告mqtt客戶端
    MQTTClient client;
    //初始化客戶端選項 conn_opts
    MQTTClient_connectOptions conn_opts = MQTTClient_connectOptions_initializer;
    //訊息初始化 pubmsg
    MQTTClient_message pubmsg = MQTTClient_message_initializer;
    MQTTClient_deliveryToken token;
    int rc;
    char *username = "test";
    char *password = "test";
    if ((rc = MQTTClient_create(&client, ADDRESS, CLIENTID,
        MQTTCLIENT_PERSISTENCE_NONE, NULL)) != MQTTCLIENT_SUCCESS)
    {
         printf("Failed to create client, return code %d\n", rc);
         exit(EXIT_FAILURE);
    }
    //保持心跳20
    conn_opts.keepAliveInterval = 20;
    //清理會話
    conn_opts.cleansession = 1;
    //客戶端的用戶名和密碼
    conn_opts.username = username;
    conn_opts.password = password;
    //創建連接
    if ((rc = MQTTClient_connect(client, &conn_opts)) != MQTTCLIENT_SUCCESS)
    {
        printf("Failed to connect, return code %d\n", rc);
        exit(EXIT_FAILURE);
    }
    //訊息負載（內容）
    pubmsg.payload = PAYLOAD;
    //訊息長度
    pubmsg.payloadlen = (int)strlen(PAYLOAD);
    //訊息質量分為0：不重要的訊息比如溫度，可以多次上傳丟失一次沒事，1：可能會丟失1次 2：永遠不會丟失
    pubmsg.qos = QOS;
    //有true和false 判斷訊息是否保留
    pubmsg.retained = 0;
    //發布訊息 token是訊息發布后，傳遞令牌將回傳客戶端檢查令牌是否已成功傳遞到其目的地
    if ((rc = MQTTClient_publishMessage(client, TOPIC, &pubmsg, &token)) != MQTTCLIENT_SUCCESS)
    {
         printf("Failed to publish message, return code %d\n", rc);
         exit(EXIT_FAILURE);
    }

    printf("Waiting for up to %d seconds for publication of %s\n"
            "on topic %s for client with ClientID: %s\n",
            (int)(TIMEOUT/1000), PAYLOAD, TOPIC, CLIENTID);
    //阻塞函式，等待訊息發布
    rc = MQTTClient_waitForCompletion(client, token, TIMEOUT);
    printf("Message with delivery token %d delivered\n", token);

    if ((rc = MQTTClient_disconnect(client, 10000)) != MQTTCLIENT_SUCCESS)
    	printf("Failed to disconnect, return code %d\n", rc);
    //斷開連接
    MQTTClient_destroy(&client);
    return rc;
}

#coding=utf-8
import paho.mqtt.client as mqtt
import time
import RPi.GPIO as GPIO
import sys
reload(sys)
sys.setdefaultencoding('utf-8')
HOST = "59.110.42.24"
PORT = 1883
GPIO_PIN = 17
GPIO.setmode(GPIO.BCM)
GPIO.setup(GPIO_PIN, GPIO.OUT)
def client_loop():
    client_id = "0bd981c5-a055-4196-8b7f-efb9f7a4d6ac"
    client = mqtt.Client(client_id)    # ClientId不能重復，所以使用當前時間
    client.username_pw_set("test", "test")  # 必須設定，否則會回傳「Connected with result code 4」
    client.on_connect = on_connect
    client.on_message = on_message
    client.connect(HOST, PORT, 60)
    client.loop_forever()

def on_connect(client, userdata, flags, rc):
    client.subscribe("test")

def trun(a):

    if(a == "打開"):
        GPIO.output(GPIO_PIN,GPIO.HIGH)
    else:
        GPIO.output(GPIO_PIN,GPIO.LOW)

def on_message(client, userdata, msg):

    print(msg.topic+" "+msg.payload.decode("utf-8"))
    trun(msg.payload.decode("utf-8"))

if __name__ == '__main__':
    global a
    a = -1
    client_loop()

發布

#!/usr/bin/env python
# encoding: utf-8

import json
import sys
import os
import paho.mqtt.client as mqtt
import time

sys.path.append(os.path.abspath(os.path.dirname(__file__) + '/' + '..'))
sys.path.append("..")

TASK_TOPIC = 'test'  # 客戶端發布訊息主題

client_id = time.strftime('%Y%m%d%H%M%S',time.localtime(time.time()))

client = mqtt.Client(client_id, transport='tcp')

client.connect("59.110.42.24", 1883, 60)  # 此處埠默認為1883，通信埠期keepalive默認60
client.loop_start()


def clicent_main(message: str):

    time_now = time.strftime('%Y-%m-%d %H-%M-%S', time.localtime(time.time()))
    payload = {"msg": "%s" % message, "data": "%s" % time_now}
    # publish(主題：Topic; 訊息內容)
    client.publish(TASK_TOPIC, json.dumps(payload, ensure_ascii=False))
    client.publish(TASK_TOPIC,message)
    print("Successful send message!")
    return True
if __name__ == '__main__':
    msg = "我是一條測驗資料！"
    clicent_main(msg)

emq服務器

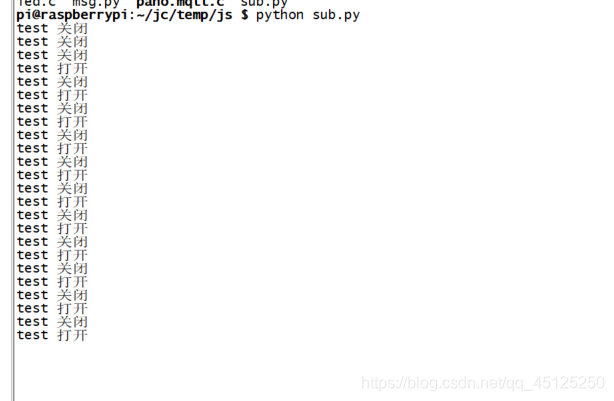

在我之前的博客中有emq服務器怎么安裝，這是最終效果，我小程式只要點擊打開就會發送打開，點擊關閉就會關閉
在這里插入圖片描述
