官網

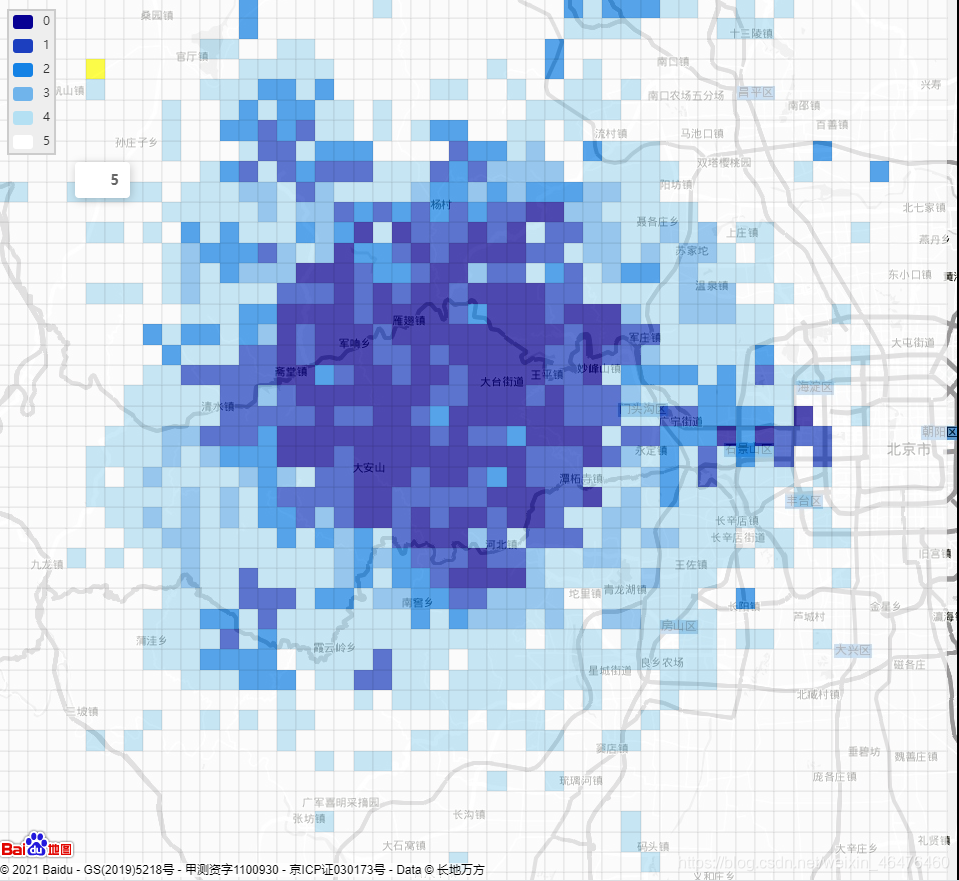

效果圖
在這里插入圖片描述
文末有此demo的報錯總結
首先安裝依賴

npm i  echarts

引入

import echarts from "echarts"; //可視化

map.js

export function loadBMap(ak) {
    return new Promise(function (resolve, reject) {
        if (typeof BMap !== 'undefined') {
            resolve(BMap)
            return true
        }
        window.onBMapCallback = function () {
            resolve(BMap)
        }
        let script = document.createElement('script')
        script.type = 'text/javascript'
        script.src =
            'http://api.map.baidu.com/api?v=2.0&ak=' + ak + '&__ec_v__=20190126&callback=onBMapCallback'
        script.onerror = reject
        document.head.appendChild(script)
    })
}

完整代碼：

<template>
  <div id="app">
    <div id="demo1"></div>
  </div>
</template>
<script>
import echarts from "echarts"; //可視化
import data_arr from "./data";
import { loadBMap } from "./map.js";
export default {
  name: "App",
  components: {},
  data() {
    return {};
  },
  computed: {},
  created() {},
  mounted() {
    this.$nextTick(() => {
    //自己百度ak
      loadBMap("自己百度ak").then(() => {
        this.echarts();
      });
    });
  },
  methods: {
    echarts() {
      var COLORS = [
        "#070093",
        "#1c3fbf",
        "#1482e5",
        "#70b4eb",
        "#b4e0f3",
        "#ffffff",
      ];
      var lngExtent = [39.5, 40.6];
      var latExtent = [115.9, 116.8];
      var cellCount = [50, 50];
      var cellSizeCoord = [
        (lngExtent[1] - lngExtent[0]) / cellCount[0],
        (latExtent[1] - latExtent[0]) / cellCount[1],
      ];
      var gapSize = 0;
      function renderItem(params, api) {
        var context = params.context;
        var lngIndex = api.value(0);
        var latIndex = api.value(1);
        var coordLeftTop = [
          +(latExtent[0] + lngIndex * cellSizeCoord[0]).toFixed(6),
          +(lngExtent[0] + latIndex * cellSizeCoord[1]).toFixed(6),
        ];
        var pointLeftTop = getCoord(params, api, lngIndex, latIndex);
        var pointRightBottom = getCoord(
          params,
          api,
          lngIndex + 1,
          latIndex + 1
        );

        return {
          type: "rect",
          shape: {
            x: pointLeftTop[0],
            y: pointLeftTop[1],
            width: pointRightBottom[0] - pointLeftTop[0],
            height: pointRightBottom[1] - pointLeftTop[1],
          },
          style: api.style({
            stroke: "rgba(0,0,0,0.1)",
          }),
          styleEmphasis: api.styleEmphasis(),
        };
      }

      function getCoord(params, api, lngIndex, latIndex) {
        var coords = params.context.coords || (params.context.coords = []);
        var key = lngIndex + "-" + latIndex;

        // bmap returns point in integer, which makes cell width unstable.
        // So we have to use right bottom point.
        return (
          coords[key] ||
          (coords[key] = api.coord([
            +(latExtent[0] + lngIndex * cellSizeCoord[0]).toFixed(6),
            +(lngExtent[0] + latIndex * cellSizeCoord[1]).toFixed(6),
          ]))
        );
      }
      var option2 = {
        tooltip: {},
        visualMap: {
          type: "piecewise",
          inverse: true,
          top: 10,
          left: 10,
          pieces: [
            {
              value: 0,
              color: COLORS[0],
            },
            {
              value: 1,
              color: COLORS[1],
            },
            {
              value: 2,
              color: COLORS[2],
            },
            {
              value: 3,
              color: COLORS[3],
            },
            {
              value: 4,
              color: COLORS[4],
            },
            {
              value: 5,
              color: COLORS[5],
            },
          ],
          borderColor: "#ccc",
          borderWidth: 2,
          backgroundColor: "#eee",
          dimension: 2,
          inRange: {
            color: COLORS,
            opacity: 0.7,
          },
        },
        series: [
          {
            type: "custom",
            coordinateSystem: "bmap",
            renderItem: renderItem,
            animation: false,
            emphasis: {
              itemStyle: {
                color: "yellow",
              },
            },
            encode: {
              tooltip: 2,
            },
            data: data_arr,
          },
        ],
        bmap: {
          center: [116.46, 39.92],
          zoom: 11.8,
          roam: true,
          mapStyle: {
            styleJson: [
              {
                featureType: "water",
                elementType: "all",
                stylers: {
                  color: "#d1d1d1",
                },
              },
              {
                featureType: "land",
                elementType: "all",
                stylers: {
                  color: "#f3f3f3",
                },
              },
              {
                featureType: "railway",
                elementType: "all",
                stylers: {
                  visibility: "off",
                },
              },
              {
                featureType: "highway",
                elementType: "all",
                stylers: {
                  color: "#999999",
                },
              },
              {
                featureType: "highway",
                elementType: "labels",
                stylers: {
                  visibility: "off",
                },
              },
              {
                featureType: "arterial",
                elementType: "geometry",
                stylers: {
                  color: "#fefefe",
                },
              },
              {
                featureType: "arterial",
                elementType: "geometry.fill",
                stylers: {
                  color: "#fefefe",
                },
              },
              {
                featureType: "poi",
                elementType: "all",
                stylers: {
                  visibility: "off",
                },
              },
              {
                featureType: "green",
                elementType: "all",
                stylers: {
                  visibility: "off",
                },
              },
              {
                featureType: "subway",
                elementType: "all",
                stylers: {
                  visibility: "off",
                },
              },
              {
                featureType: "manmade",
                elementType: "all",
                stylers: {
                  color: "#d1d1d1",
                },
              },
              {
                featureType: "local",
                elementType: "all",
                stylers: {
                  color: "#d1d1d1",
                },
              },
              {
                featureType: "arterial",
                elementType: "labels",
                stylers: {
                  visibility: "off",
                },
              },
              {
                featureType: "boundary",
                elementType: "all",
                stylers: {
                  color: "#fefefe",
                },
              },
              {
                featureType: "building",
                elementType: "all",
                stylers: {
                  color: "#d1d1d1",
                },
              },
              {
                featureType: "label",
                elementType: "labels.text.fill",
                stylers: {
                  color: "rgba(0,0,0,0)",
                },
              },
            ],
          },
        },
      };
      // 引入 ECharts 主模塊
      var echarts = require("echarts/lib/echarts");
      // 引入柱狀圖
      require("echarts/lib/chart/bar");
      // 引入提示框和標題組件
      require("echarts/lib/component/tooltip");
      require("echarts/lib/component/title");
      require("echarts/extension/bmap/bmap");
      // 基于準備好的dom，初始化echarts實體
      var myChart2 = echarts.init(document.getElementById("demo1"));
      // 繪制餅圖
      myChart2.setOption(option2, true);
      console.log("1");
    },
  },
};
</script>
<style lang="scss">
#app {
  width: 100vw;
  height: 100%;
  overflow: hidden;

  display: flex;
  flex-wrap: wrap;
  #demo1 {
    width: 50%;
    height: 100%;
    background: url("../assets/bg.jpg");
    background-size: cover;
    background-position: center;
    background-repeat: no-repeat;
  }
  // color: transparent;
}
@media screen and (max-width: 768px) {
  #app {
    #demo1 {
      width: 100%;
      height: 50%;
      // height: 100%;
    }
  }
}
</style>

data.js檔案（此檔案因為過長所以被我從demo里面提取出來）
此處的datajs 字符數過長，可以參考官網
或者網盤下載
鏈接
https://pan.baidu.com/s/1kWHFsJkVwXUJbiVMyEJlFg
提取碼：c8r6
在這里插入圖片描述
其格式如下

var data = [[0, 0, 5], [1, 0, 5]]
module.exports = data

注意！！！
復制完代碼記得改成自己的百度api地圖密鑰，地圖才會顯示

 mounted() {
  this.$nextTick(() => {
    //自己百度ak
      loadBMap("自己百度ak").then(() => {
        this.echarts();
      });
    });
 }

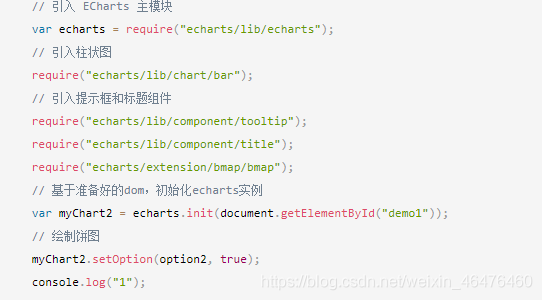

1.api.could is not underfind
繪制函式里面加上

  require("echarts/extension/bmap/bmap");

如圖：
在這里插入圖片描述

2.報錯 BMap api is not loaded
繪制函式里面加上
原因：在mounted初始化地圖的時候，因為異步問題會導致BMap is not defined，也就是百度的api還沒完全引入或者加載完成，就已經進行地圖初始化了
解決方案
1.寫一個map.js檔案，如上面代碼 map.js(為了方便，就直接復制下來)

export function loadBMap(ak) {
    return new Promise(function (resolve, reject) {
        if (typeof BMap !== 'undefined') {
            resolve(BMap)
            return true
        }
        window.onBMapCallback = function () {
            resolve(BMap)
        }
        let script = document.createElement('script')
        script.type = 'text/javascript'
        script.src =
            'http://api.map.baidu.com/api?v=2.0&ak=' + ak + '&__ec_v__=20190126&callback=onBMapCallback'
        script.onerror = reject
        document.head.appendChild(script)
    })
}

2.引入

import { loadBMap } from "./map.js";

3.呼叫

 mounted() {
  this.$nextTick(() => {
    //自己百度ak
      loadBMap("自己百度ak").then(() => {
        this.echarts();
      });
    });
 }
