Ureport2原始碼啟動

由于本人使用的idea，所以接下來全程使用idea

1. 前期準備

先clone一份原始碼到本地， git下載地址 https://gitee.com/youseries/ureport.git

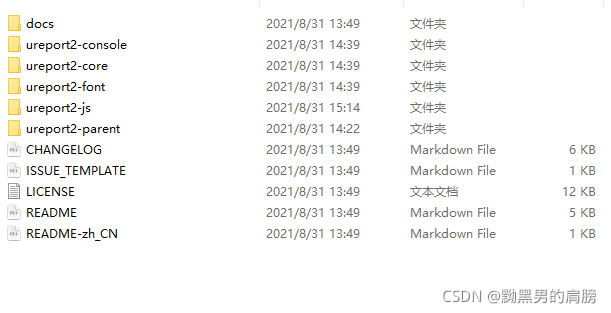

下載的原始碼檔案格式如下：

2. 匯入js專案

idea匯入js專案， ureport2-js 檔案， 如下：
匯入進來后是沒有node_modules檔案的
需要使用npm install 下載包，

• 修改Ureport2-js專案的package.json檔案

1. 在scripts中添加 build及start
2. 在devDependencies中添加webpack及webpack-cli、webpack-dev-server
3. 在dependencies 中添加react及react-dom

  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1",
    "build": "webpack",
    "start": "webpack-dev-server --open"
  },
    "devDependencies": {
    "babel-cli": "^6.26.0",
    "babel-core": "^6.26.0",
    "babel-loader": "^7.1.4",
    "babel-preset-env": "^1.6.1",
    "css-loader": "^0.28.11",
    "expose-loader": "^0.7.1",
    "file-loader": "^0.9.0",
    "style-loader": "^0.13.1",
    "uglifyjs-webpack-plugin": "^1.2.4",
    "url-loader": "^0.5.7",
    "webpack": "^4.46.0",
    "webpack-cli": "^3.3.12",
    "webpack-dev-server": "^3.11.2"
  },
  "dependencies": {
    "bootbox": "^4.4.0",
    "bootstrap": "^3.3.7",
    "bootstrap-colorpicker": "^2.5.0",
    "chart.js": "^2.7.2",
    "chartjs-plugin-datalabels": "^0.3.0",
    "codemirror": "^5.23.0",
    "completer": "^0.1.3",
    "handsontable": "^0.32.0",
    "jquery": "^3.1.1",
    "jquery-contextmenu": "^2.4.2",
    "node-uuid": "^1.4.7",
    "raphael": "^2.2.7",
    "react": "^17.0.1",
    "react-dom": "^17.0.1",
    "save-svg-as-png": "^1.3.2",
    "undo-manager": "^1.0.5"
  }

以上js專案配置完成，
可以試一下npm run start啟動，但是這個專案并不能直接啟動， 如需修改的話，修改后可執行npm run build打包
打包后會在原始碼的Ureoirt2-console專案的src/main/resources/ureport-asserts/js下生成四個js檔案，
分別為common.bundle.js、designer.bundle.js、preview.bundle.js、searchform.bundle.js

具體為什么可以參考js專案的webpack.config.js檔案中的這句話

3. 匯入后端專案

1. 新建一個SpringBoot專案，

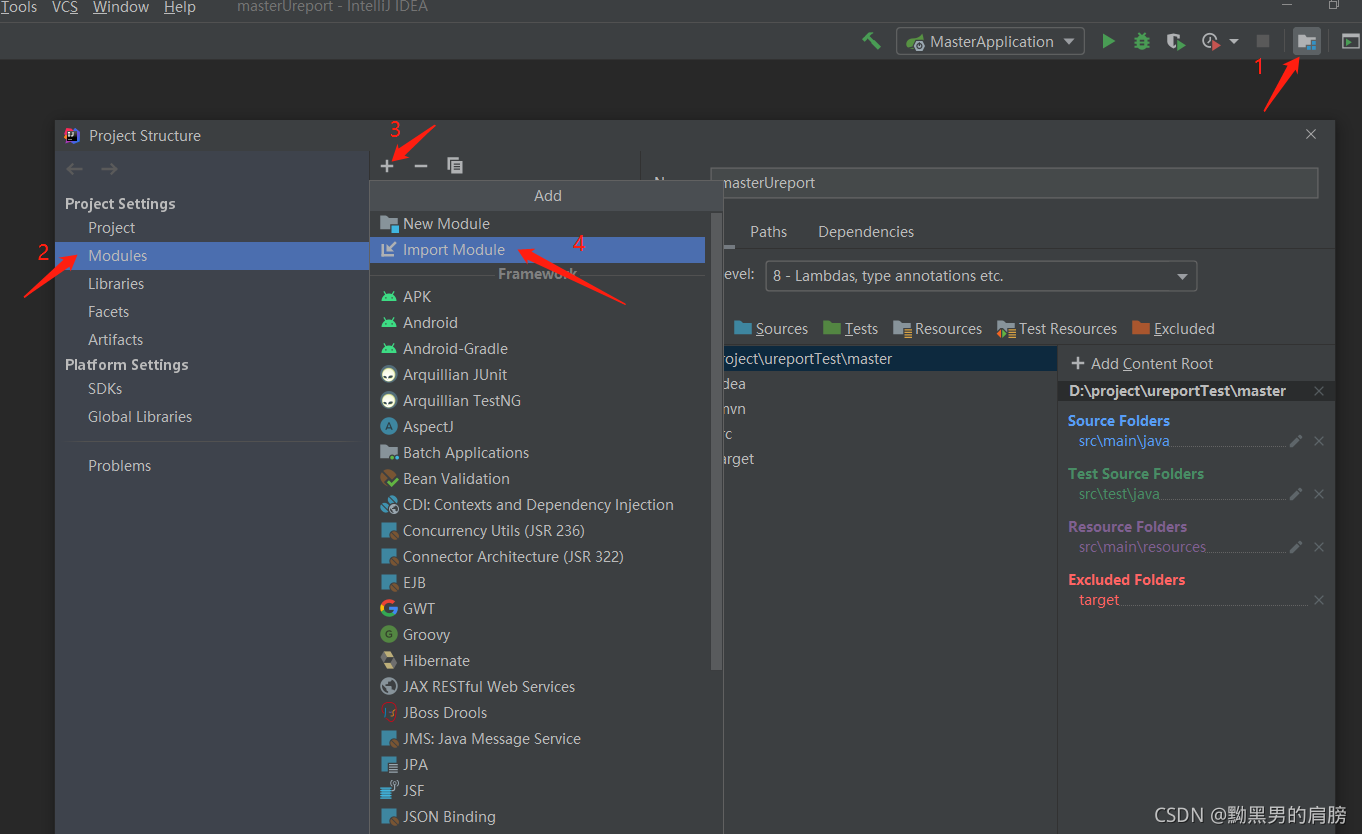

2. 如下步驟所示， 匯入Ureport其他四個專案，匯入Maven格式

• 依次匯入Ureport2-console、Ureport2-core、Ureport2-font、Ureport2-parent，

• 修改SpringBoot中的POM檔案，引入Ureport依賴

<dependency>
            <groupId>com.bstek.ureport</groupId>
            <artifactId>ureport2-console</artifactId>
            <version>2.3.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.bstek.ureport</groupId>
            <artifactId>ureport2-core</artifactId>
            <version>2.3.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.bstek.ureport</groupId>
            <artifactId>ureport2-font</artifactId>
            <version>2.0.1</version>
        </dependency>
<!--我使用的oracle驅動，  如果你使用的mysql，那么自己換成你需要的版本-->
        <dependency>
            <groupId>com.oracle.ojdbc</groupId>
            <artifactId>ojdbc8</artifactId>
            <version>19.3.0.0</version>
        </dependency>

• 組態檔

server:
  port: 8066
  tomcat:
    max-swallow-size: -1
  servlet:
    context-path:
  address: 0.0.0.0
spring:
  datasource:
    url: jdbc:mysql://192.168.999.999:3306/test?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC
    username: root
    password: root
    driver-class-name: com.mysql.cj.jdbc.Driver


ureport:
  disableHttpSessionReportCache: false
  #UReport2默認報表存盤
  disableFileProvider: false
  fileStoreDir: D:/cshi
  debug: true

• 新建Ureport配置類，在SpringBoot包中創建config包

package com.tiancai.master.config;

import com.bstek.ureport.definition.datasource.BuildinDatasource;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.stereotype.Component;

import javax.sql.DataSource;
import java.sql.Connection;
import java.sql.SQLException;

@Component
@Configuration
//不加專案能夠啟動但是會導致加載資料源報錯或加載不了
@ImportResource("classpath:ureport-console-context.xml")
public class UreportDatasource implements BuildinDatasource {

    private static final String NAME = "oracle";
    private Logger log = LoggerFactory.getLogger(UreportDatasource.class);

    @Autowired
    private DataSource dataSource;

    /**
     * 配置ureport的servlet
     * @return
     */
    @Bean
    public ServletRegistrationBean buildUReportServlet() {
        //htreport
        return new ServletRegistrationBean(new UReportServlet(),"/ureport/*");
    }

    /**
     * ds1資料庫配置
     */
    @Bean("ds1")
    @ConfigurationProperties(prefix = "spring.datasource.druid.ds1")
    public DataSource ds1Source() {
        return DataSourceBuilder.create().build();
    }

    @Override
    public String name() {
        return NAME;
    }

    @Override
    public Connection getConnection() {
        try {
            return dataSource.getConnection();
        } catch (SQLException e) {
            log.error("Ureport 資料源 獲取連接失敗！");
            e.printStackTrace();
        }
        return null;
    }

}

• SpringBoot 啟動類如下：
• 啟動后控制臺會輸出路徑，可以訪問了，

public static void main(String[] args) throws UnknownHostException {
        ConfigurableApplicationContext application = SpringApplication.run(MasterApplication.class, args);

        Environment env = application.getEnvironment();
        String ip = InetAddress.getLocalHost().getHostAddress();
        String port = env.getProperty("server.port");
        String path = env.getProperty("server.servlet.context-path")==null?"":env.getProperty("server.servlet.context-path");
        System.out.println("\n----------------------------------------------------------\n\t" +
                "Application UReport is running! Access URLs:\n\t" +
                "Local: \t\thttp://localhost:" + port + path + "/ureport/designer\n\t" +
                "----------------------------------------------------------");
    }

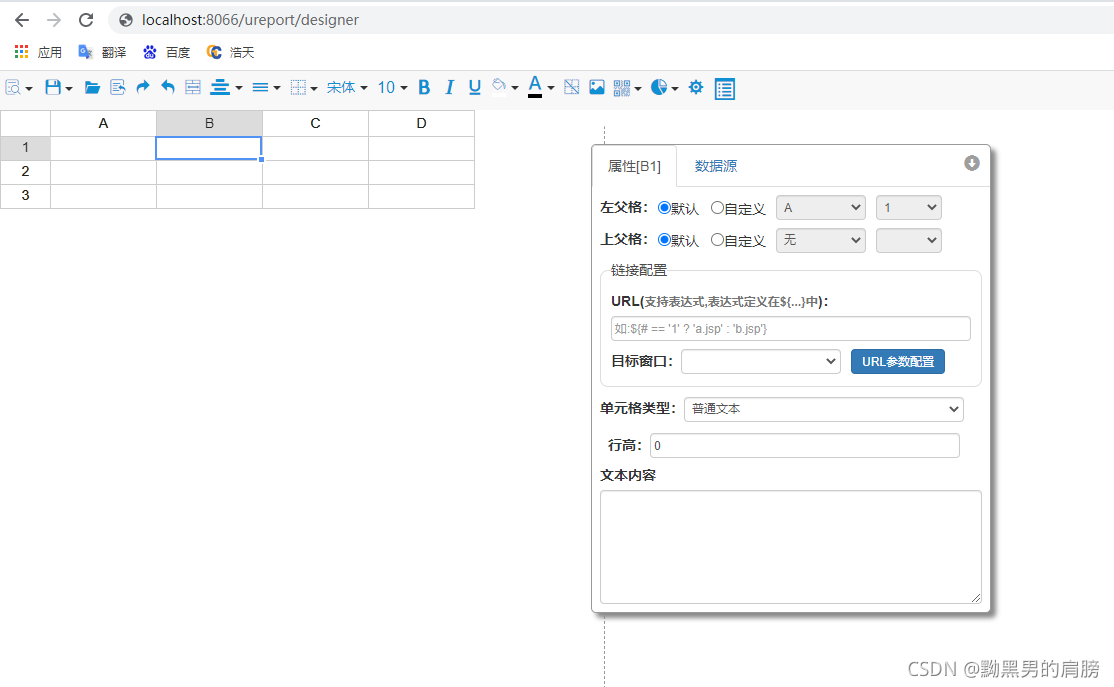

游覽器輸入路徑即可啟動完成，

！！！！歡迎討論，
