商品服務

一、品牌管理

1、效果優化與快速顯示開關

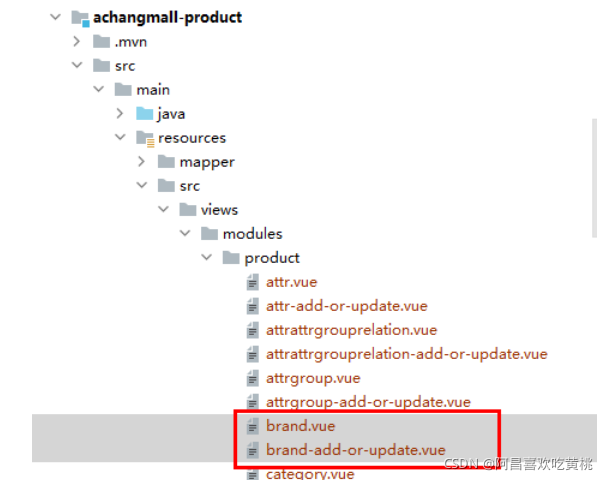

將逆向工程product得到的resources\src\views\modules\product檔案拷貝到achangmall/renren-fast-vue/src/views/modules/product目錄下，也就是下面的兩個檔案

brand.vue ： 顯示的表單
brand-add-or-update.vue：添加和更改功能

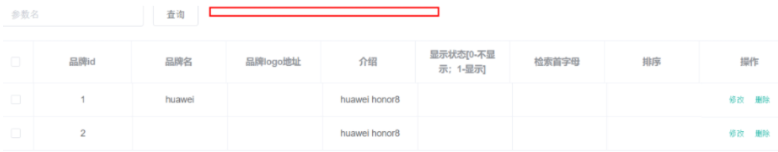

• 但是顯示的頁面沒有新增和洗掉功能，這是因為權限控制的原因

<el-button v-if="isAuth('product:brand:save')" type="primary" @click="addOrUpdateHandle()">新增</el-button>
<el-button v-if="isAuth('product:brand:delete')" type="danger" @click="deleteHandle()" :disabled="dataListSelections.length <= 0">批量洗掉</el-button>

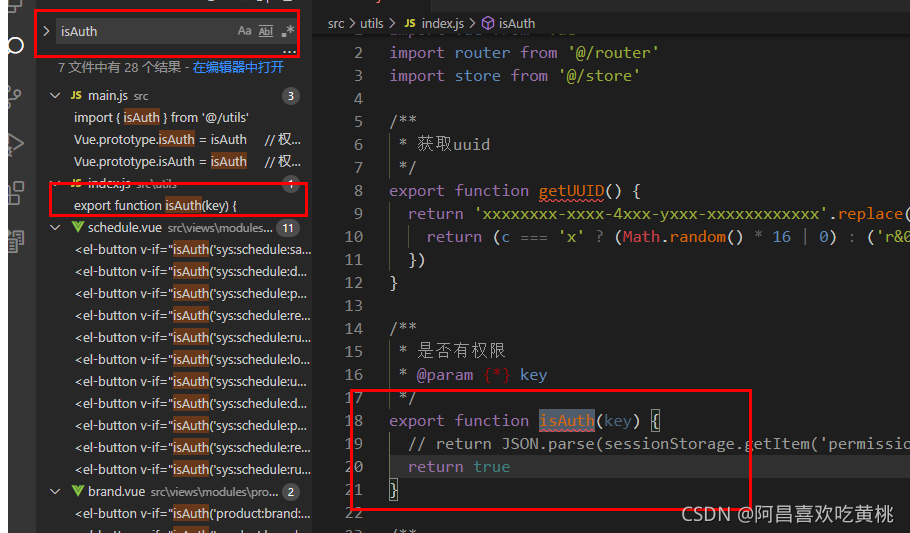

• 查看“isAuth”的定義位置：

它是在“index.js”中定義，暫時將它設定為回傳值為true，即可顯示添加和洗掉功能， 再次重繪頁面能夠看到，按鈕已經出現了：

進行添加 測驗成功

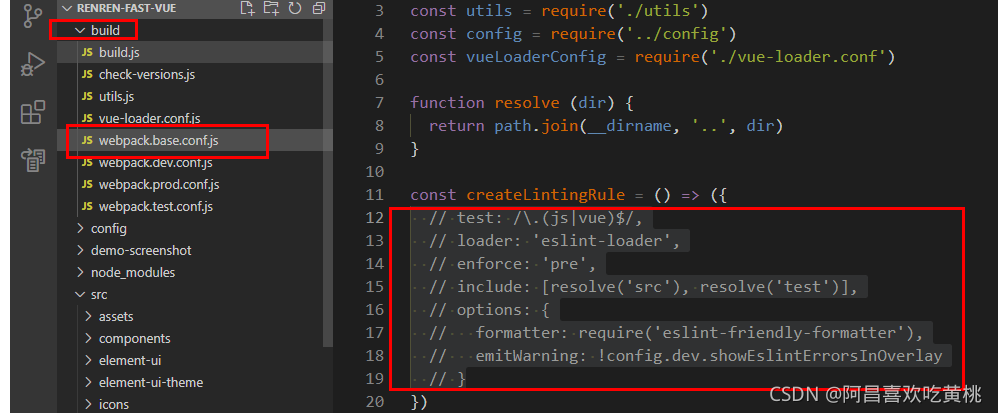

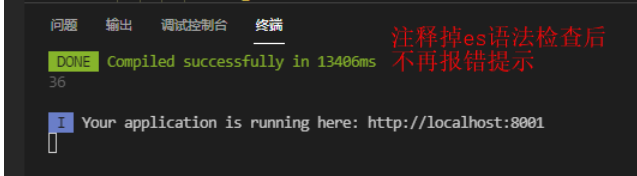

• 進行修改 也會自動回顯 build/webpack.base.conf.js 中注釋掉createLintingRule()函式體，不進行lint語法檢

• brand.vue

<template>
    <div class="mod-config">
        <el-form
                 :inline="true"
                 :model="dataForm"
                 @keyup.enter.native="getDataList()"
                 >
            <el-form-item>
                <el-input
                          v-model="dataForm.key"
                          placeholder="引數名"
                          clearable
                          ></el-input>
            </el-form-item>
            <el-form-item>
                <el-button @click="getDataList()">查詢</el-button>
                <el-button
                           v-if="isAuth('product:brand:save')"
                           type="primary"
                           @click="addOrUpdateHandle()"
                           >新增</el-button
                    >
                <el-button
                           v-if="isAuth('product:brand:delete')"
                           type="danger"
                           @click="deleteHandle()"
                           :disabled="dataListSelections.length <= 0"
                           >批量洗掉</el-button
                    >
            </el-form-item>
        </el-form>
        <el-table
                  :data="dataList"
                  border
                  v-loading="dataListLoading"
                  @selection-change="selectionChangeHandle"
                  style="width: 100%"
                  >
            <el-table-column
                             type="selection"
                             header-align="center"
                             align="center"
                             width="50"
                             >
            </el-table-column>
            <el-table-column
                             prop="brandId"
                             header-align="center"
                             align="center"
                             label="品牌id"
                             >
            </el-table-column>
            <el-table-column
                             prop="name"
                             header-align="center"
                             align="center"
                             label="品牌名"
                             >
            </el-table-column>
            <el-table-column
                             prop="logo"
                             header-align="center"
                             align="center"
                             label="品牌logo地址"
                             >
            </el-table-column>
            <el-table-column
                             prop="descript"
                             header-align="center"
                             align="center"
                             label="介紹"
                             >
            </el-table-column>
            <el-table-column
                             prop="showStatus"
                             header-align="center"
                             align="center"
                             label="顯示狀態"
                             >
                <template slot-scope="scope">
                    <el-switch
                               v-model="scope.row.showStatus"
                               active-color="#13ce66"
                               inactive-color="#ff4949"
                               :active-value="1"
                               :inactive-value="0"
                               @change="updateBrandStatus(scope.row)"
                               >
                    </el-switch>
                </template>
            </el-table-column>
            <el-table-column
                             prop="firstLetter"
                             header-align="center"
                             align="center"
                             label="檢索首字母"
                             >
            </el-table-column>
            <el-table-column
                             prop="sort"
                             header-align="center"
                             align="center"
                             label="排序"
                             >
            </el-table-column>
            <el-table-column
                             fixed="right"
                             header-align="center"
                             align="center"
                             width="150"
                             label="操作"
                             >
                <template slot-scope="scope">
                    <el-button
                               type="text"
                               size="small"
                               @click="addOrUpdateHandle(scope.row.brandId)"
                               >修改</el-button
                        >
                    <el-button
                               type="text"
                               size="small"
                               @click="deleteHandle(scope.row.brandId)"
                               >洗掉</el-button
                        >
                </template>
            </el-table-column>
        </el-table>
        <el-pagination
                       @size-change="sizeChangeHandle"
                       @current-change="currentChangeHandle"
                       :current-page="pageIndex"
                       :page-sizes="[10, 20, 50, 100]"
                       :page-size="pageSize"
                       :total="totalPage"
                       layout="total, sizes, prev, pager, next, jumper"
                       >
        </el-pagination>
        <!-- 彈窗, 新增 / 修改 -->
        <add-or-update
                       v-if="addOrUpdateVisible"
                       ref="addOrUpdate"
                       @refreshDataList="getDataList"
                       ></add-or-update>
    </div>
</template>

<script>
    import AddOrUpdate from "./brand-add-or-update";
    export default {
        data() {
            return {
                dataForm: {
                    key: "",
                },
                dataList: [],
                pageIndex: 1,
                pageSize: 10,
                totalPage: 0,
                dataListLoading: false,
                dataListSelections: [],
                addOrUpdateVisible: false,
            };
        },
        components: {
            AddOrUpdate,
        },
        activated() {
            this.getDataList();
        },
        methods: {
            updateBrandStatus(data) {
                console.log("最新資訊", data);
                let { brandId, showStatus } = data;
                this.$http({
                    url: this.$http.adornUrl("/product/brand/update"),
                    method: "post",
                    data: this.$http.adornData({ brandId, showStatus: showStatus }, false),
                }).then(({ data }) => {
                    this.$message({
                        type: "success",
                        message: "狀態更新成功",
                    });
                });
            },

            // 獲取資料串列
            getDataList() {
                this.dataListLoading = true;
                this.$http({
                    url: this.$http.adornUrl("/product/brand/list"),
                    method: "get",
                    params: this.$http.adornParams({
                        page: this.pageIndex,
                        limit: this.pageSize,
                        key: this.dataForm.key,
                    }),
                }).then(({ data }) => {
                    if (data && data.code === 0) {
                        this.dataList = data.page.list;
                        this.totalPage = data.page.totalCount;
                    } else {
                        this.dataList = [];
                        this.totalPage = 0;
                    }
                    this.dataListLoading = false;
                });
            },
            // 每頁數
            sizeChangeHandle(val) {
                this.pageSize = val;
                this.pageIndex = 1;
                this.getDataList();
            },
            // 當前頁
            currentChangeHandle(val) {
                this.pageIndex = val;
                this.getDataList();
            },
            // 多選
            selectionChangeHandle(val) {
                this.dataListSelections = val;
            },
            // 新增 / 修改
            addOrUpdateHandle(id) {
                this.addOrUpdateVisible = true;
                this.$nextTick(() => {
                    this.$refs.addOrUpdate.init(id);
                });
            },
            // 洗掉
            deleteHandle(id) {
                var ids = id
                ? [id]
                : this.dataListSelections.map((item) => {
                    return item.brandId;
                });
                this.$confirm(
                    `確定對[id=${ids.join(",")}]進行[${id ? "洗掉" : "批量洗掉"}]操作?`,
                    "提示",
                    {
                        confirmButtonText: "確定",
                        cancelButtonText: "取消",
                        type: "warning",
                    }
                ).then(() => {
                    this.$http({
                        url: this.$http.adornUrl("/product/brand/delete"),
                        method: "post",
                        data: this.$http.adornData(ids, false),
                    }).then(({ data }) => {
                        if (data && data.code === 0) {
                            this.$message({
                                message: "操作成功",
                                type: "success",
                                duration: 1500,
                                onClose: () => {
                                    this.getDataList();
                                },
                            });
                        } else {
                            this.$message.error(data.msg);
                        }
                    });
                });
            },
        },
    };
</script>

• brand-add-or-update.vue

<template>
    <el-dialog
               :title="!dataForm.brandId ? '新增' : '修改'"
               :close-on-click-modal="false"
               :visible.sync="visible"
               >
        <el-form
                 :model="dataForm"
                 :rules="dataRule"
                 ref="dataForm"
                 @keyup.enter.native="dataFormSubmit()"
                 label-width="80px"
                 >
            <el-form-item label="品牌名" prop="name">
                <el-input v-model="dataForm.name" placeholder="品牌名"></el-input>
            </el-form-item>
            <el-form-item label="品牌logo地址" prop="logo">
                <el-input v-model="dataForm.logo" placeholder="品牌logo地址"></el-input>
            </el-form-item>
            <el-form-item label="介紹" prop="descript">
                <el-input v-model="dataForm.descript" placeholder="介紹"></el-input>
            </el-form-item>
            <el-form-item label="顯示狀態" prop="showStatus">
                <el-switch
                           v-model="dataForm.showStatus"
                           active-color="#13ce66"
                           inactive-color="#ff4949"
                           >
                </el-switch>
            </el-form-item>
            <el-form-item label="檢索首字母" prop="firstLetter">
                <el-input
                          v-model="dataForm.firstLetter"
                          placeholder="檢索首字母"
                          ></el-input>
            </el-form-item>
            <el-form-item label="排序" prop="sort">
                <el-input v-model="dataForm.sort" placeholder="排序"></el-input>
            </el-form-item>
        </el-form>
        <span slot="footer" class="dialog-footer">
            <el-button @click="visible = false">取消</el-button>
            <el-button type="primary" @click="dataFormSubmit()">確定</el-button>
        </span>
    </el-dialog>
</template>

<script>
    export default {
        data() {
            return {
                visible: false,
                dataForm: {
                    brandId: 0,
                    name: "",
                    logo: "",
                    descript: "",
                    showStatus: "",
                    firstLetter: "",
                    sort: "",
                },
                dataRule: {
                    name: [{ required: true, message: "品牌名不能為空", trigger: "blur" }],
                    logo: [
                        { required: true, message: "品牌logo地址不能為空", trigger: "blur" },
                    ],
                    descript: [
                        { required: true, message: "介紹不能為空", trigger: "blur" },
                    ],
                    showStatus: [
                        {
                            required: true,
                            message: "顯示狀態[0-不顯示；1-顯示]不能為空",
                            trigger: "blur",
                        },
                    ],
                    firstLetter: [
                        { required: true, message: "檢索首字母不能為空", trigger: "blur" },
                    ],
                    sort: [{ required: true, message: "排序不能為空", trigger: "blur" }],
                },
            };
        },
        methods: {
            init(id) {
                this.dataForm.brandId = id || 0;
                this.visible = true;
                this.$nextTick(() => {
                    this.$refs["dataForm"].resetFields();
                    if (this.dataForm.brandId) {
                        this.$http({
                            url: this.$http.adornUrl(
                                `/product/brand/info/${this.dataForm.brandId}`
                            ),
                            method: "get",
                            params: this.$http.adornParams(),
                        }).then(({ data }) => {
                            if (data && data.code === 0) {
                                this.dataForm.name = data.brand.name;
                                this.dataForm.logo = data.brand.logo;
                                this.dataForm.descript = data.brand.descript;
                                this.dataForm.showStatus = data.brand.showStatus;
                                this.dataForm.firstLetter = data.brand.firstLetter;
                                this.dataForm.sort = data.brand.sort;
                            }
                        });
                    }
                });
            },
            // 表單提交
            dataFormSubmit() {
                this.$refs["dataForm"].validate((valid) => {
                    if (valid) {
                        this.$http({
                            url: this.$http.adornUrl(
                                `/product/brand/${!this.dataForm.brandId ? "save" : "update"}`
                            ),
                            method: "post",
                            data: this.$http.adornData({
                                brandId: this.dataForm.brandId || undefined,
                                name: this.dataForm.name,
                                logo: this.dataForm.logo,
                                descript: this.dataForm.descript,
                                showStatus: this.dataForm.showStatus,
                                firstLetter: this.dataForm.firstLetter,
                                sort: this.dataForm.sort,
                            }),
                        }).then(({ data }) => {
                            if (data && data.code === 0) {
                                this.$message({
                                    message: "操作成功",
                                    type: "success",
                                    duration: 1500,
                                    onClose: () => {
                                        this.visible = false;
                                        this.$emit("refreshDataList");
                                    },
                                });
                            } else {
                                this.$message.error(data.msg);
                            }
                        });
                    }
                });
            },
        },
    };
</script>

2、添加上傳

這里我們選擇將圖片放置到阿里云上，使用物件存盤， 阿里云上使使用物件存盤方式：

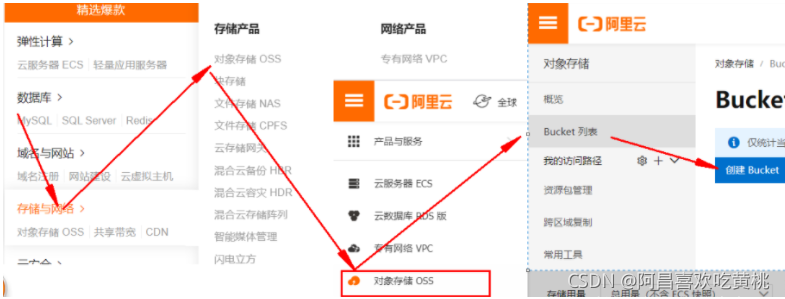

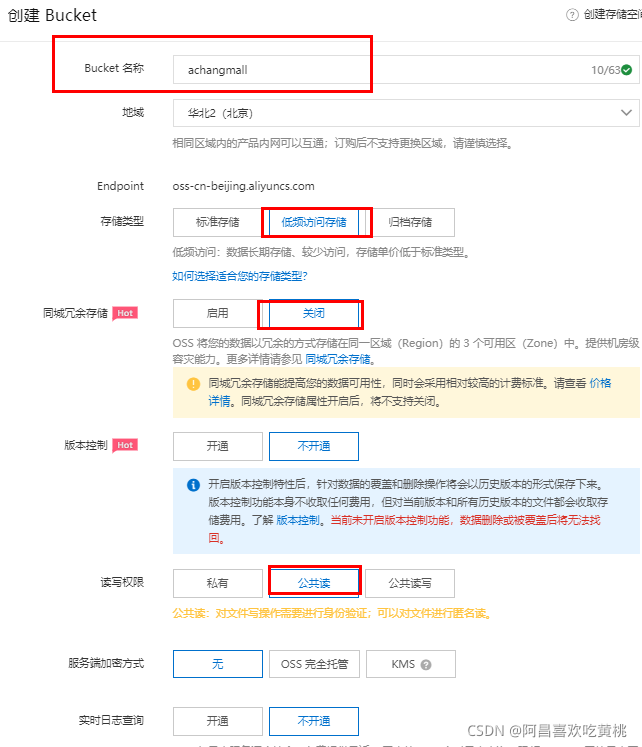

• 創建Bucket（作為專案）

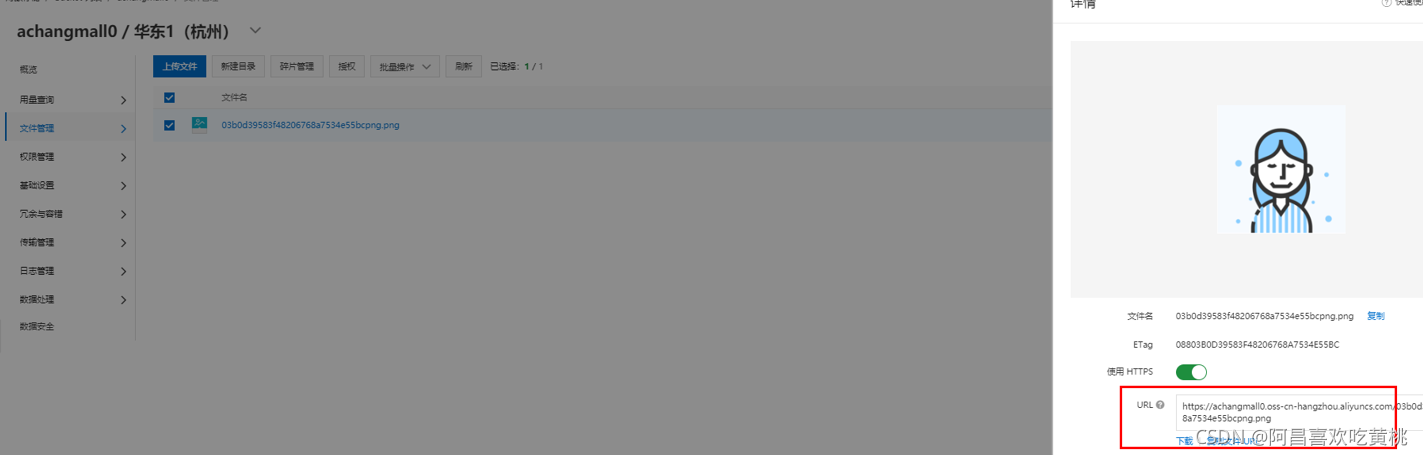

• 上傳檔案：上傳成功后，取得圖片的URL

• 這種方式是手動上傳圖片，實際上我們可以在程式中設定自動上傳圖片到阿里云物件存盤，

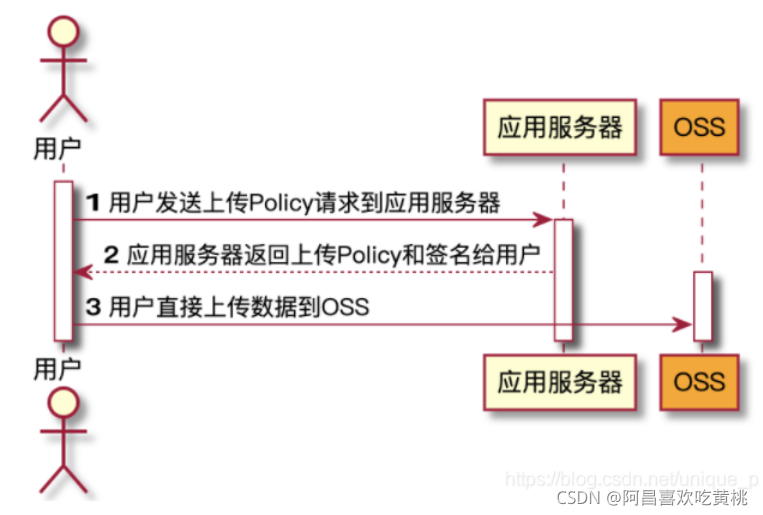

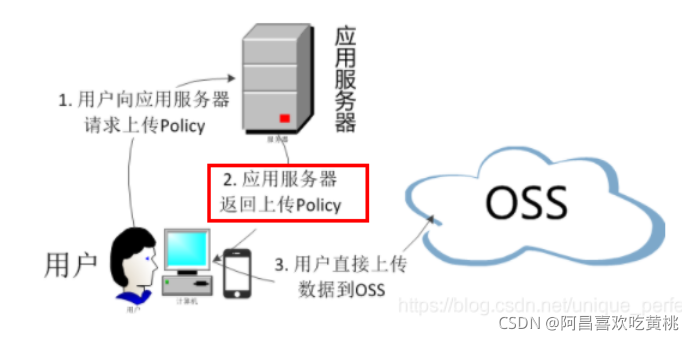

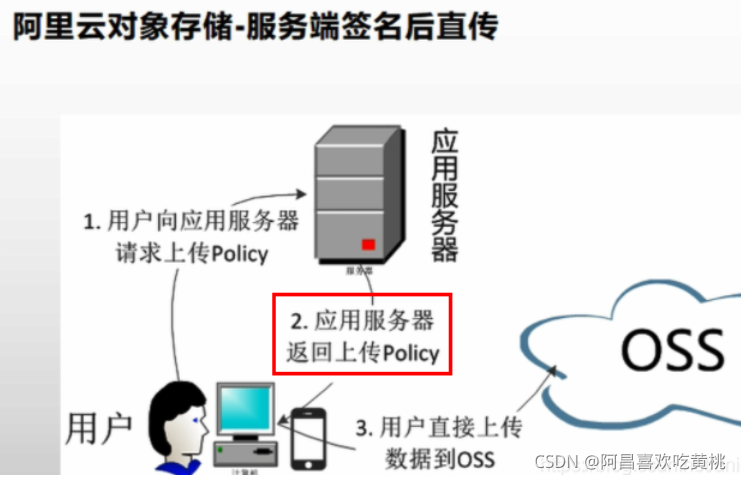

上傳的賬號資訊存盤在應用服務器 上傳先找應用服務器要一個policy上傳策略，生成防偽簽名

• 使用代碼上傳 查看阿里云關于檔案上傳的幫助：

  https://help.aliyun.com/document_detail/32009.html?spm=a2c4g.11186623.6.768.549d59aaWuZMGJ

  • 在achangmall-product/pom.xml中添加依賴包

  <dependency>
      <groupId>com.aliyun.oss</groupId>
      <artifactId>aliyun-sdk-oss</artifactId>
      <version>3.10.2</version>
  </dependency>


  • 上傳檔案流

  使用檔案上傳，您可以將本地檔案上傳到OSS檔案，

  以下代碼用于將本地檔案examplefile.txt上傳到目標存盤空間examplebucket中exampledir目錄下的exampleobject.txt檔案，

  // yourEndpoint填寫Bucket所在地域對應的Endpoint，以華東1（杭州）為例，Endpoint填寫為https://oss-cn-hangzhou.aliyuncs.com，
  String endpoint = "yourEndpoint";
  // 阿里云賬號AccessKey擁有所有API的訪問權限，風險很高，強烈建議您創建并使用RAM用戶進行API訪問或日常運維，請登錄RAM控制臺創建RAM用戶，
  String accessKeyId = "yourAccessKeyId";
  String accessKeySecret = "yourAccessKeySecret";

  // 創建OSSClient實體，
  OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

  // 創建PutObjectRequest物件，
  // 依次填寫Bucket名稱（例如examplebucket）、Object完整路徑（例如exampledir/exampleobject.txt）和本地檔案的完整路徑，Object完整路徑中不能包含Bucket名稱，
  // 如果未指定本地路徑，則默認從示例程式所屬專案對應本地路徑中上傳檔案，
  PutObjectRequest putObjectRequest = new PutObjectRequest("examplebucket", "exampledir/exampleobject.txt", new File("D:\\localpath\\examplefile.txt"));

  // 如果需要上傳時設定存盤型別和訪問權限，請參考以下示例代碼，
  // ObjectMetadata metadata = new ObjectMetadata();
  // metadata.setHeader(OSSHeaders.OSS_STORAGE_CLASS, StorageClass.Standard.toString());
  // metadata.setObjectAcl(CannedAccessControlList.Private);
  // putObjectRequest.setMetadata(metadata);

  // 上傳檔案，
  ossClient.putObject(putObjectRequest);

  // 關閉OSSClient，
  ossClient.shutdown();


  上面代碼的資訊可以通過如下查找：

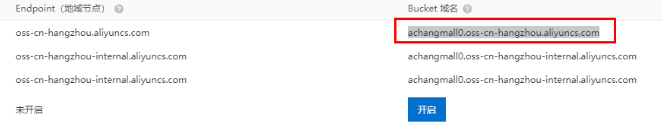

  • endpoint的取值：

  • 點擊概覽就可以看到你的endpoint資訊，endpoint在這里就是上海等地區，如 oss-cn-qingdao.aliyuncs.com

  • bucket域名：

  • 就是簽名加上bucket，如achangmall0.oss-cn-hangzhou.aliyuncs.com

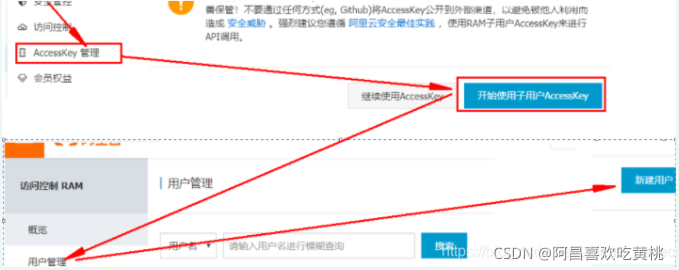

    accessKeyId和accessKeySecret需要創建一個RAM賬號：



  • 選上編程訪問 創建用戶完畢后，會得到一個“AccessKey ID”和“AccessKeySecret”，

    然后復制這兩個值到代碼的“AccessKey ID”和“AccessKeySecret”，

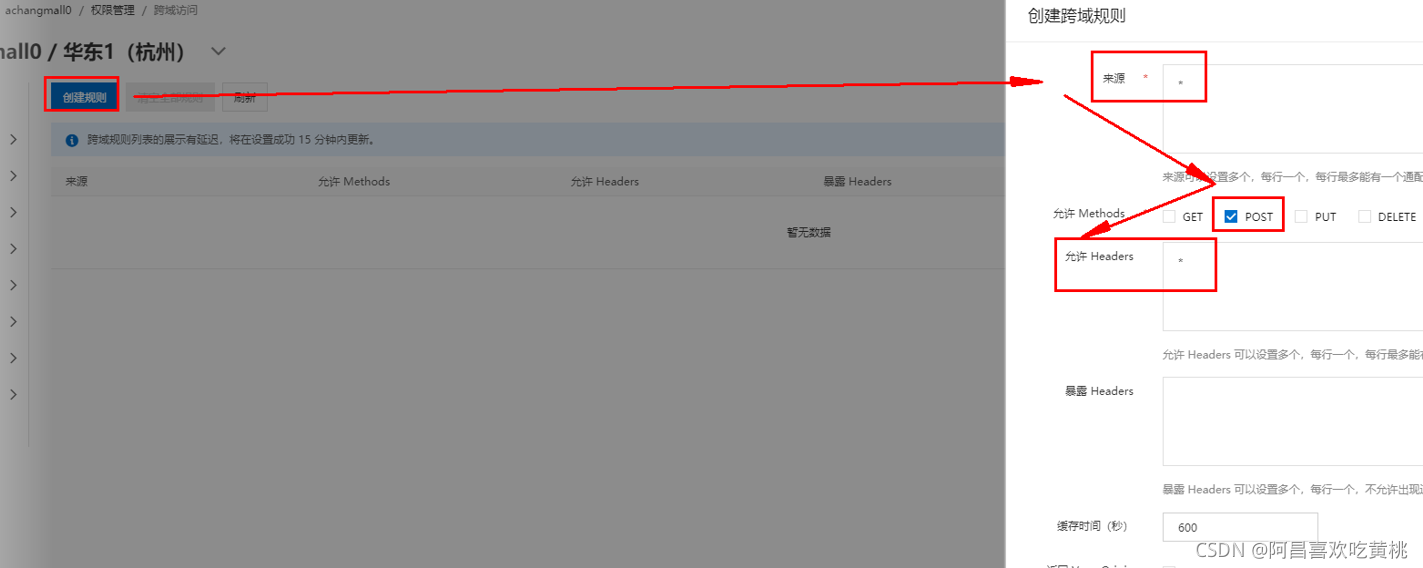

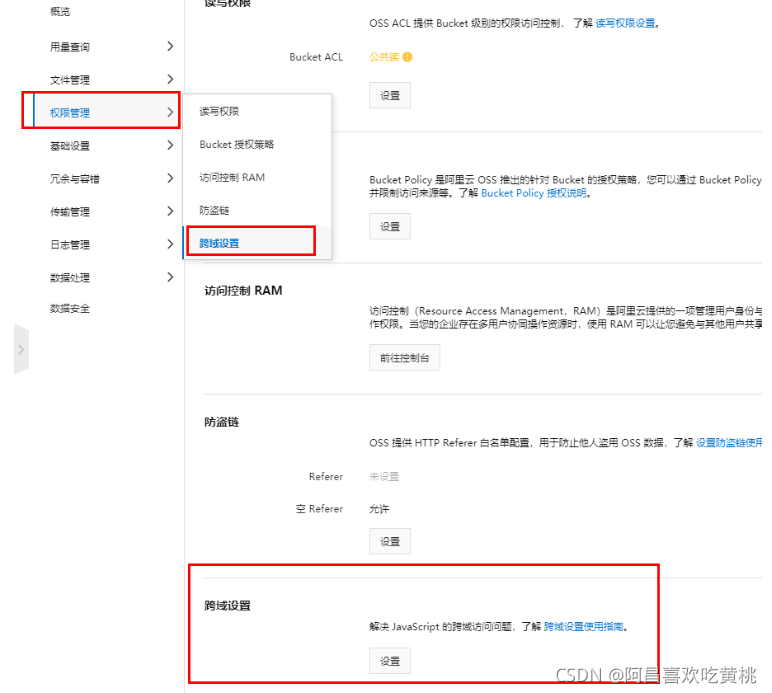

    另外還需要添加訪問控制權限：

    @Test
    void test0() throws FileNotFoundException {
        // Endpoint以杭州為例，其它Region請按實際情況填寫，
        String endpoint = "oss-cn-hangzhou.aliyuncs.com";
        // 云賬號AccessKey有所有API訪問權限，建議遵循阿里云安全最佳實踐，創建并使用RAM子賬號進行API訪問或日常運維，請登錄 https://ram.console.aliyun.com 創建，
        String accessKeyId = "你的accessKeyId";
        String accessKeySecret = "你的accessKeySecret";

        // 創建OSSClient實體，
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        // 上傳檔案流，
        InputStream inputStream = new FileInputStream("C:\\Users\\PePe\\Pictures\\Camera Roll\\321.png");

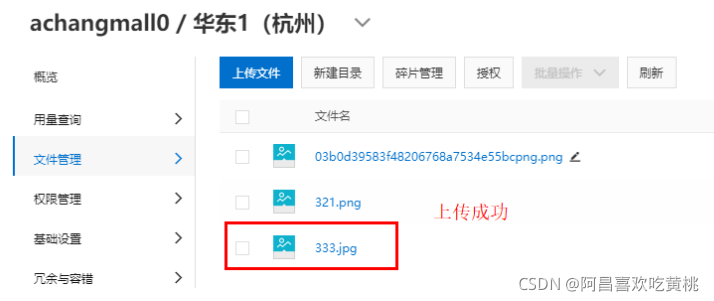

        ossClient.putObject("achangmall0", "321.png", inputStream);

        // 關閉OSSClient，
        ossClient.shutdown();
        System.out.println("上傳成功.");
    }


  • 更為簡單的使用方式，是使用SpringCloud Alibaba

    https://github.com/alibaba/aliyun-spring-boot/blob/master/aliyun-spring-boot-samples/aliyun-oss-spring-boot-sample/README-zh.md

    • 在achangmall-common/pom.xml引入依賴

    具體的可以在maven中央倉庫查找

    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-alicloud-oss</artifactId>
        <version>2.1.1.RELEASE</version>
    </dependency>


    • 在組態檔中配置 OSS 服務對應的 accessKey、secretKey 和 endpoint，

        alicloud:
          access-key: xxx
          secret-key: xxx
          oss:
            endpoint: oss-cn-hangzhou.aliyuncs.com


    • 注入OSSClient并進行檔案上傳下載等操作

    @RunWith(SpringRunner.class)
    @SpringBootTest
    public class OssTest {

        @Resource
        private OSSClient ossClient;

        @Test
        void test1() throws FileNotFoundException {
            // 上傳檔案流，
            InputStream inputStream = new FileInputStream("C:\\Users\\PePe\\Pictures\\Camera Roll\\321.png");
            ossClient.putObject("achangmall0", "321.png", inputStream);

            // 關閉OSSClient，
            ossClient.shutdown();
            System.out.println("上傳完成...");
        }
    }


但是這樣來做還是比較麻煩，如果以后的上傳任務都交給achangmall-product來完成，顯然耦合度高，最好單獨新建一個Module來完成檔案上傳任務，

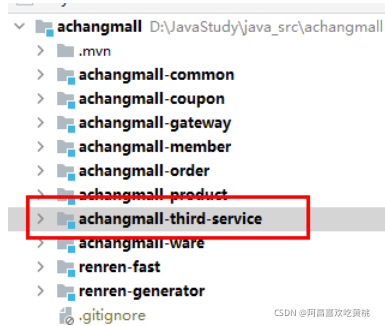

• 創建第三方模塊

• 添加依賴，將原來achangmall-common中的“spring-cloud-starter-alicloud-oss”依賴移動到該專案中

<dependencies>
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-alicloud-oss</artifactId>
        <version>2.1.1.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>com.achang.achangmall</groupId>
        <artifactId>achangmall-common</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

• 主啟動類@EnableDiscoveryClient // 在主啟動類中開啟服務的注冊和發現

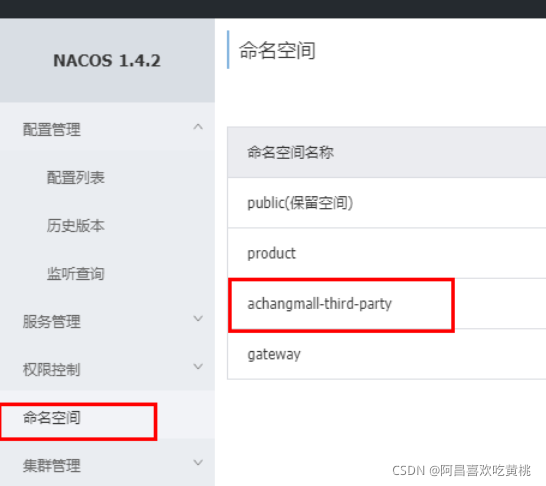

• 在nacos中注冊 在nacos創建命名空間“ achangmall-third-party ”

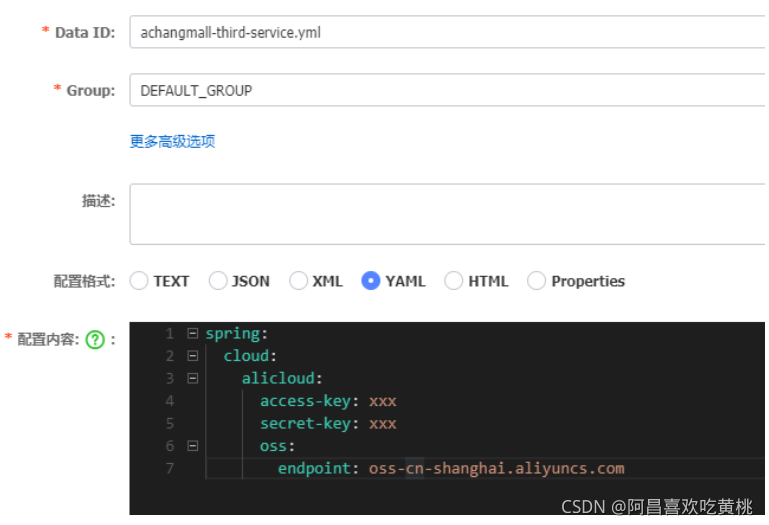

• 在“ achangmall-third-party”命名空間中，創建“ achangmall-third-service.yml”檔案

• 撰寫組態檔 application.yml

server:
  port: 30000

spring:
  application:
    name: achangmall-third-service
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848

• bootstrap.properties

spring.cloud.nacos.config.name=achangmall-third-service
spring.cloud.nacos.config.server-addr=127.0.0.1:8848
spring.cloud.nacos.config.namespace=ad0431b9-a77f-4220-bf61-b48c7e117250
spring.cloud.nacos.config.extension-configs[0].data-id=achangmall-third-service.yml
spring.cloud.nacos.config.extension-configs[0].group=DEFAULT_GROUP
spring.cloud.nacos.config.extension-configs[0].refresh=true

• 撰寫測驗類

@SpringBootTest
@RunWith(SpringRunner.class)
class AchangmallThirdServiceApplicationTests {
    @Resource
    OSSClient ossClient;

    @Test
    void contextLoads() throws FileNotFoundException {
        //上傳檔案流，
        InputStream inputStream = new FileInputStream("C:\\Users\\PePe\\Pictures\\Camera Roll\\123.jpg");
        ossClient.putObject("achangmall0", "333.jpg", inputStream);

        // 關閉OSSClient，
        ossClient.shutdown();
        System.out.println("上傳成功.");
    }
}

• 改進：服務端簽名后直傳

采用JavaScript客戶端直接簽名（參見JavaScript客戶端簽名直傳）時，AccessKeyID和AcessKeySecret會暴露在前端頁面，因此存在嚴重的安全隱患，

因此，OSS提供了服務端簽名后直傳的方案，

• 向服務器獲取到簽名，再去請求oss服務器

• 服務端簽名后直傳的原理如下：

用戶發送上傳Policy請求到應用服務器， 應用服務器回傳上傳Policy和簽名給用戶，

用戶直接上傳資料到OSS，

• 在com.achang.achangmall.controller.OssController撰寫controller

/******
 @author 阿昌
 @create 2021-09-25 14:32
 *******
 */
@RestController
@RequestMapping("third-service/oss")
public class OssController {

    @Resource
    private OSSClient ossClient;

    @Value("${spring.cloud.alicloud.oss.endpoint}")
    public String endpoint;

    @Value("${spring.cloud.alicloud.oss.bucket}")
    public String bucket;

    @Value("${spring.cloud.alicloud.access-key}")
    public String accessId;

    private final SimpleDateFormat format = new SimpleDateFormat("yyyy-MM-dd");

    @GetMapping("/policy")
    public Map<String, String> getPolicy(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        String host = "https://" + bucket + "." + endpoint; // host的格式為 bucketname.endpoint
        // callbackUrl為上傳回呼服務器的URL，請將下面的IP和Port配置為您自己的真實資訊，
        //        String callbackUrl = "http://88.88.88.88:8888";


        String dir = format.format(new Date())+"/"; // 用戶上傳檔案時指定的前綴，以日期格式存盤

        // 創建OSSClient實體，
        Map<String, String> respMap= null;
        try {
            long expireTime = 30;
            long expireEndTime = System.currentTimeMillis() + expireTime * 1000;
            Date expiration = new Date(expireEndTime);
            // PostObject請求最大可支持的檔案大小為5 GB，即CONTENT_LENGTH_RANGE為5*1024*1024*1024，
            PolicyConditions policyConds = new PolicyConditions();
            policyConds.addConditionItem(PolicyConditions.COND_CONTENT_LENGTH_RANGE, 0, 1048576000);
            policyConds.addConditionItem(MatchMode.StartWith, PolicyConditions.COND_KEY, dir);

            String postPolicy = ossClient.generatePostPolicy(expiration, policyConds);//生成協議秘鑰
            byte[] binaryData = postPolicy.getBytes("utf-8");
            String encodedPolicy = BinaryUtil.toBase64String(binaryData);
            String postSignature = ossClient.calculatePostSignature(postPolicy);

            respMap = new LinkedHashMap<String, String>();
            respMap.put("accessid", accessId);
            respMap.put("policy", encodedPolicy);//生成的協議秘鑰
            respMap.put("signature", postSignature);
            respMap.put("dir", dir);
            respMap.put("host", host);
            respMap.put("expire", String.valueOf(expireEndTime / 1000));
            // respMap.put("expire", formatISO8601Date(expiration));


        } catch (Exception e) {
            // Assert.fail(e.getMessage());
            System.out.println(e.getMessage());
        } finally {
            ossClient.shutdown();
        }
        return respMap;
    }

}

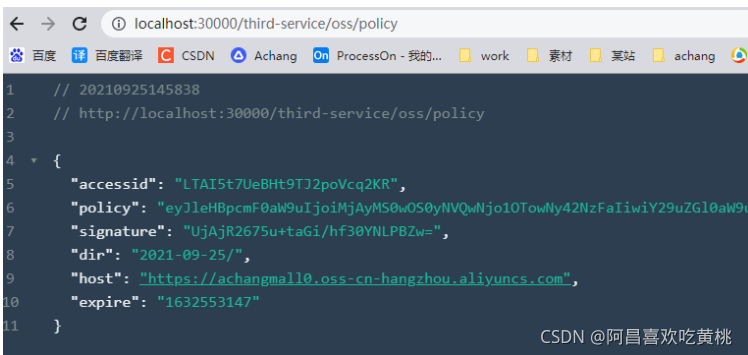

• 測驗請求，http://localhost:30000/third-service/oss/policy，成功獲取



• 然后，我們通過gateway網關代理轉發，在上傳檔案時的訪問路徑為“ http://localhost:88/api/third/oss/policy”，

• 配置網關

        - id: oss_route
          uri: lb://achangmall-third-service
          predicates:
            - Path=/api/third-service/**
          filters:
            - RewritePath=/api/third-service/(?<segment>.*),/$\{segment}

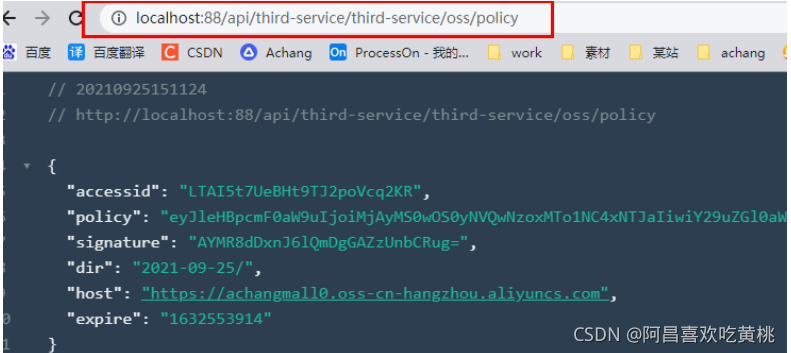

• 訪問http://localhost:88/api/third-service/third-service/oss/policy，測驗是否可以轉發到我們的介面，如下成功訪問

• 上傳組件

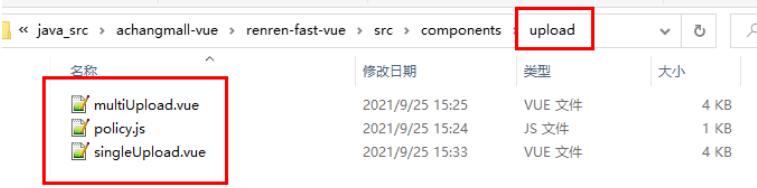

• 放置專案提供的upload檔案夾到components/目錄下，一個是單檔案上傳，另外一個是多檔案上傳

• policy.js封裝一個Promise，發送/thirdparty/oss/policy請求，vue專案會自動加上api前綴

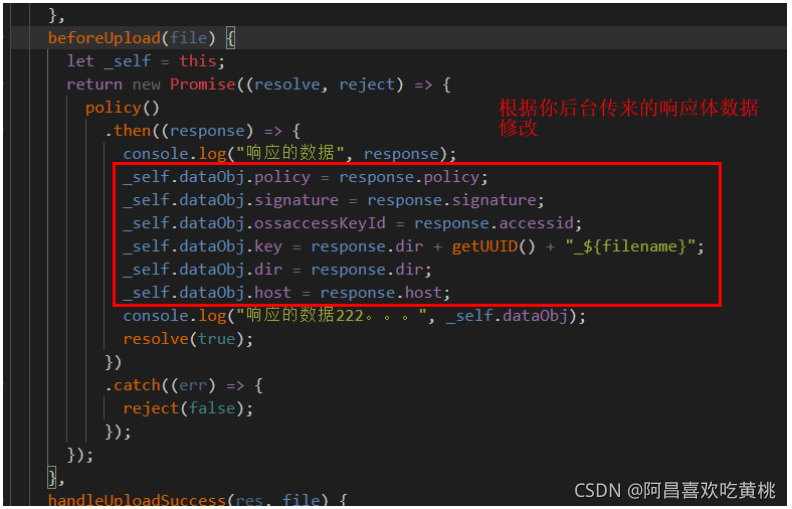

• multiUpload.vue多檔案上傳，要改，改方式如下

• singleUpload.vue單檔案上傳，

  • 要替換里面的action中的內容action=“http://achangmall0.oss-cn-hangzhou.aliyuncs.com”，你的阿里云指定的bucket域名

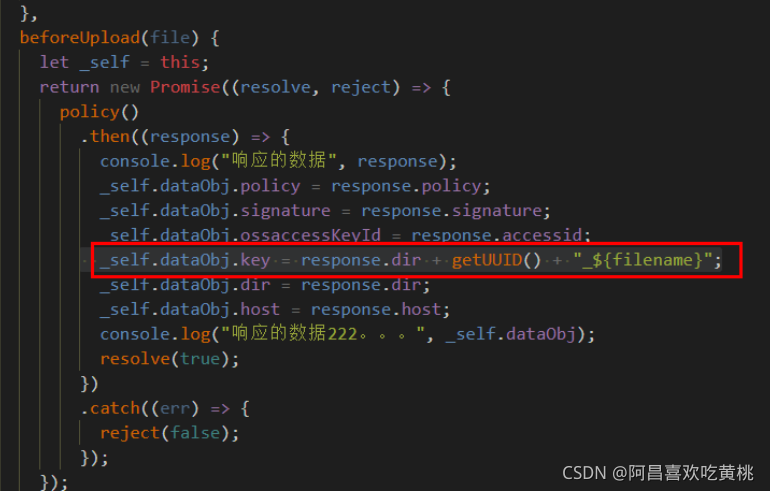

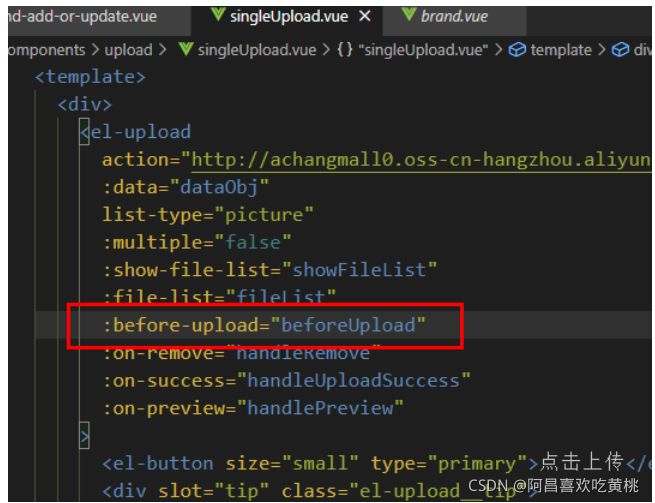

• singleUpload.vue代碼

<template>
  <div>
    <el-upload
      action="http://achangmall0.oss-cn-hangzhou.aliyuncs.com"
      :data="dataObj"
      list-type="picture"
      :multiple="false"
      :show-file-list="showFileList"
      :file-list="fileList"
      :before-upload="beforeUpload"
      :on-remove="handleRemove"
      :on-success="handleUploadSuccess"
      :on-preview="handlePreview"
    >
      <el-button size="small" type="primary">點擊上傳</el-button>
      <div slot="tip" class="el-upload__tip">
        只能上傳jpg/png檔案，且不超過10MB
      </div>
    </el-upload>
    <el-dialog :visible.sync="dialogVisible">
      <img width="100%" :src="fileList[0].url" alt="" />
    </el-dialog>
  </div>
</template>
<script>
import { policy } from "./policy";
import { getUUID } from "@/utils";
export default {
  name: "singleUpload",
  props: {
    value: String,
  },
  computed: {
    imageUrl() {
      return this.value;
    },
    imageName() {
      if (this.value != null && this.value !== "") {
        return this.value.substr(this.value.lastIndexOf("/") + 1);
      } else {
        return null;
      }
    },
    fileList() {
      return [
        {
          name: this.imageName,
          url: this.imageUrl,
        },
      ];
    },
    showFileList: {
      get: function () {
        return (
          this.value !== null && this.value !== "" && this.value !== undefined
        );
      },
      set: function (newValue) {},
    },
  },
  data() {
    return {
      dataObj: {
        policy: "",
        signature: "",
        key: "",
        ossaccessKeyId: "",
        dir: "",
        host: "",
        // callback:'',
      },
      dialogVisible: false,
    };
  },
  methods: {
    emitInput(val) {
      this.$emit("input", val);
    },
    handleRemove(file, fileList) {
      this.emitInput("");
    },
    handlePreview(file) {
      this.dialogVisible = true;
    },
    beforeUpload(file) {
      let _self = this;
      return new Promise((resolve, reject) => {
        policy()
          .then((response) => {
            console.log("回應的資料", response);
            _self.dataObj.policy = response.policy;
            _self.dataObj.signature = response.signature;
            _self.dataObj.ossaccessKeyId = response.accessid;
            _self.dataObj.key = response.dir + getUUID() + "_${filename}";
            _self.dataObj.dir = response.dir;
            _self.dataObj.host = response.host;
            console.log("回應的資料222，，，", _self.dataObj);
            resolve(true);
          })
          .catch((err) => {
            reject(false);
          });
      });
    },
    handleUploadSuccess(res, file) {
      console.log("上傳成功...");
      this.showFileList = true;
      this.fileList.pop();
      this.fileList.push({
        name: file.name,
        url:
          this.dataObj.host +
          "/" +
          this.dataObj.key.replace("${filename}", file.name),
      });
      this.emitInput(this.fileList[0].url);
    },
  },
};
</script>
<style>
</style>

• multiUpload.vue代碼

<template>
    <div>
        <el-upload
                   action="http://achangmall0.oss-cn-hangzhou.aliyuncs.com"
                   :data="dataObj"
                   :list-type="listType"
                   :file-list="fileList"
                   :before-upload="beforeUpload"
                   :on-remove="handleRemove"
                   :on-success="handleUploadSuccess"
                   :on-preview="handlePreview"
                   :limit="maxCount"
                   :on-exceed="handleExceed"
                   :show-file-list="showFile"
                   >
            <i class="el-icon-plus"></i>
        </el-upload>
        <el-dialog :visible.sync="dialogVisible">
            <img width="100%" :src="dialogImageUrl" alt />
        </el-dialog>
    </div>
</template>
<script>
    import { policy } from "./policy";
    import { getUUID } from "@/utils";
    export default {
        name: "multiUpload",
        props: {
            //圖片屬性陣列
            value: Array,
            //最大上傳圖片數量
            maxCount: {
                type: Number,
                default: 30,
            },
            listType: {
                type: String,
                default: "picture-card",
            },
            showFile: {
                type: Boolean,
                default: true,
            },
        },
        data() {
            return {
                dataObj: {
                    policy: "",
                    signature: "",
                    key: "",
                    ossaccessKeyId: "",
                    dir: "",
                    host: "",
                    uuid: "",
                },
                dialogVisible: false,
                dialogImageUrl: null,
            };
        },
        computed: {
            fileList() {
                let fileList = [];
                for (let i = 0; i < this.value.length; i++) {
                    fileList.push({ url: this.value[i] });
                }
                return fileList;
            },
        },
        mounted() {},
        methods: {
            emitInput(fileList) {
                let value = [];
                for (let i = 0; i < fileList.length; i++) {
                    value.push(fileList[i].url);
                }
                this.$emit("input", value);
            },
            handleRemove(file, fileList) {
                this.emitInput(fileList);
            },
            handlePreview(file) {
                this.dialogVisible = true;
                this.dialogImageUrl = file.url;
            },
            beforeUpload(file) {
                let _self = this;
                return new Promise((resolve, reject) => {
                    policy()
                        .then((response) => {
                        console.log("這是什么${filename}");
                        _self.dataObj.policy = response.data.policy;
                        _self.dataObj.signature = response.data.signature;
                        _self.dataObj.ossaccessKeyId = response.data.accessid;
                        _self.dataObj.key = response.data.dir + getUUID() + "_${filename}";
                        _self.dataObj.dir = response.data.dir;
                        _self.dataObj.host = response.data.host;
                        resolve(true);
                    })
                        .catch((err) => {
                        console.log("出錯了...", err);
                        reject(false);
                    });
                });
            },
            handleUploadSuccess(res, file) {
                this.fileList.push({
                    name: file.name,
                    // url: this.dataObj.host + "/" + this.dataObj.dir + "/" + file.name； 替換${filename}為真正的檔案名
                    url:
                    this.dataObj.host +
                    "/" +
                    this.dataObj.key.replace("${filename}", file.name),
                });
                this.emitInput(this.fileList);
            },
            handleExceed(files, fileList) {
                this.$message({
                    message: "最多只能上傳" + this.maxCount + "張圖片",
                    type: "warning",
                    duration: 1000,
                });
            },
        },
    };
</script>
<style>
</style>

• policy.js代碼

/third-service/third-service/oss/policy為你88網關代理的oss服務路由uri地址

import http from '@/utils/httpRequest.js'
export function policy() {
    return new Promise((resolve, reject) => {
        http({
            #修改你88網關代理的oss服務路由uri地址
            url: http.adornUrl("/third-service/third-service/oss/policy"),
            method: "get",
            params: http.adornParams({})
        }).then(({ data }) => {
            resolve(data);
        })
    });
}

• 我們在后端準備好了簽名controller，那么前端是在哪里獲取的呢

而檔案上傳前呼叫的方法：:before-upload=“beforeUpload”發現該方法回傳了一個new Promise，呼叫了policy()，該方法是policy.js中的 import { policy } from “./policy”;

• 在vue中看是response.data.policy，在控制臺看response.policy，所以去java里面改回傳值為R，return R.ok().put(“data”,respMap);
• 也可以像上面，阿昌這樣子直接修改前端代碼，選擇一個即可

• 阿里云開啟跨域

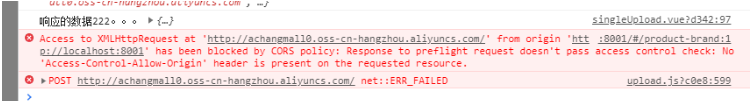

  開始執行上傳，但是在上傳程序中，出現了跨域請求問題：


  這又是一個跨域的問題，解決方法就是在阿里云上開啟跨域訪問：


• 配置oss跨域

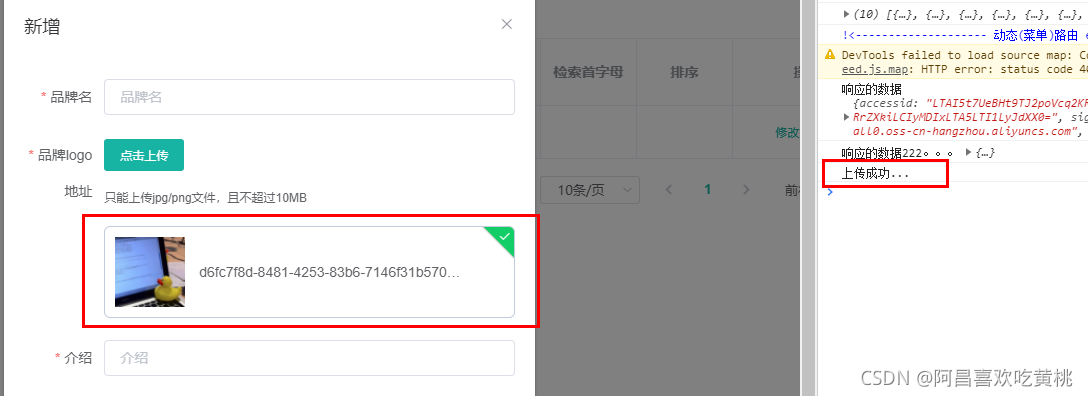

再次執行檔案上傳， 注意上傳時他的key變成了response.dir +getUUID()+"_${filename}";

3、表單校驗&自定義校驗器

• 修改brand-add-or-update如下： :active-value=“1” :inactive-value=“0” # 激活為1，不激活為0

<el-switch
           v-model="dataForm.showStatus"
           active-color="#13ce66"
           inactive-color="#ff4949"
           :active-value="1"
           :inactive-value="0"
           >
</el-switch>

• 添加表單校驗&自定義校驗器

<script>
    firstLetter: [
        {
            validator: (rule, value, callback) => {
                if (value == "") {
                    callback(new Error("首字母必須填寫"));
                } else if (!/^[a-zA-Z]$/.test(value)) {
                    callback(new Error("首字母必須a-z或者A-Z之間"));
                } else {
                    callback();
                }
            },
            trigger: "blur",
        },
    ],
        sort: [{validator: (rule, value, callback) => {
            if (value == "") {
                callback(new Error("排序欄位必須填寫"));
            } else if (!Number.isInteger(parseInt(value)) || parseInt(value) < 0){
                callback(new Error("排序欄位必須是一個整數"));
            } else {
                callback();
            }
        }, trigger: "blur" }]
</script>

• 完整brand-add-or-update修改代碼

<template>
    <el-dialog
               :title="!dataForm.brandId ? '新增' : '修改'"
               :close-on-click-modal="false"
               :visible.sync="visible"
               >
        <el-form
                 :model="dataForm"
                 :rules="dataRule"
                 ref="dataForm"
                 @keyup.enter.native="dataFormSubmit()"
                 label-width="80px"
                 >
            <el-form-item label="品牌名" prop="name">
                <el-input v-model="dataForm.name" placeholder="品牌名"></el-input>
            </el-form-item>
            <el-form-item label="品牌logo地址" prop="logo">
                <!-- <el-input v-model="dataForm.logo" placeholder="品牌logo地址"></el-input> -->
                <singleUpload v-model="dataForm.logo"></singleUpload>
            </el-form-item>
            <el-form-item label="介紹" prop="descript">
                <el-input v-model="dataForm.descript" placeholder="介紹"></el-input>
            </el-form-item>
            <el-form-item label="顯示狀態" prop="showStatus">
                <el-switch
                           v-model="dataForm.showStatus"
                           active-color="#13ce66"
                           inactive-color="#ff4949"
                           :active-value="1"
                           :inactive-value="0"
                           >
                </el-switch>
            </el-form-item>
            <el-form-item label="檢索首字母" prop="firstLetter">
                <el-input
                          v-model="dataForm.firstLetter"
                          placeholder="檢索首字母"
                          ></el-input>
            </el-form-item>
            <el-form-item label="排序" prop="sort">
                <el-input v-model="dataForm.sort" placeholder="排序"></el-input>
            </el-form-item>
        </el-form>
        <span slot="footer" class="dialog-footer">
            <el-button @click="visible = false">取消</el-button>
            <el-button type="primary" @click="dataFormSubmit()">確定</el-button>
        </span>
    </el-dialog>
</template>

<script>
    import singleUpload from "@/components/upload/singleUpload";

    export default {
        components: {
            singleUpload: singleUpload,
        },
        data() {
            return {
                visible: false,
                dataForm: {
                    brandId: 0,
                    name: "",
                    logo: "",
                    descript: "",
                    showStatus: "",
                    firstLetter: "",
                    sort: "",
                },
                dataRule: {
                    name: [{ required: true, message: "品牌名不能為空", trigger: "blur" }],
                    logo: [
                        { required: true, message: "品牌logo地址不能為空", trigger: "blur" },
                    ],
                    descript: [
                        { required: true, message: "介紹不能為空", trigger: "blur" },
                    ],
                    showStatus: [
                        {
                            required: true,
                            message: "顯示狀態[0-不顯示；1-顯示]不能為空",
                            trigger: "blur",
                        },
                    ],
                    firstLetter: [
                        {
                            validator: (rule, value, callback) => {
                                if (value == "") {
                                    callback(new Error("首字母必須填寫"));
                                } else if (!/^[a-zA-Z]$/.test(value)) {
                                    callback(new Error("首字母必須a-z或者A-Z之間"));
                                } else {
                                    callback();
                                }
                            },
                            trigger: "blur",
                        },
                    ],
                    sort: [
                        {
                            validator: (rule, value, callback) => {
                                if (value == "") {
                                    callback(new Error("排序欄位必須填寫"));
                                } else if (
                                    !Number.isInteger(parseInt(value)) ||
                                    parseInt(value) < 0
                                ) {
                                    callback(new Error("排序欄位必須是一個整數"));
                                } else {
                                    callback();
                                }
                            },
                            trigger: "blur",
                        },
                    ],
                },
            };
        },
        methods: {
            init(id) {
                this.dataForm.brandId = id || 0;
                this.visible = true;
                this.$nextTick(() => {
                    this.$refs["dataForm"].resetFields();
                    if (this.dataForm.brandId) {
                        this.$http({
                            url: this.$http.adornUrl(
                                `/product/brand/info/${this.dataForm.brandId}`
                            ),
                            method: "get",
                            params: this.$http.adornParams(),
                        }).then(({ data }) => {
                            if (data && data.code === 0) {
                                this.dataForm.name = data.brand.name;
                                this.dataForm.logo = data.brand.logo;
                                this.dataForm.descript = data.brand.descript;
                                this.dataForm.showStatus = data.brand.showStatus;
                                this.dataForm.firstLetter = data.brand.firstLetter;
                                this.dataForm.sort = data.brand.sort;
                            }
                        });
                    }
                });
            },
            // 表單提交
            dataFormSubmit() {
                this.$refs["dataForm"].validate((valid) => {
                    if (valid) {
                        this.$http({
                            url: this.$http.adornUrl(
                                `/product/brand/${!this.dataForm.brandId ? "save" : "update"}`
                            ),
                            method: "post",
                            data: this.$http.adornData({
                                brandId: this.dataForm.brandId || undefined,
                                name: this.dataForm.name,
                                logo: this.dataForm.logo,
                                descript: this.dataForm.descript,
                                showStatus: this.dataForm.showStatus,
                                firstLetter: this.dataForm.firstLetter,
                                sort: this.dataForm.sort,
                            }),
                        }).then(({ data }) => {
                            if (data && data.code === 0) {
                                this.$message({
                                    message: "操作成功",
                                    type: "success",
                                    duration: 1500,
                                    onClose: () => {
                                        this.visible = false;
                                        this.$emit("refreshDataList");
                                    },
                                });
                            } else {
                                this.$message.error(data.msg);
                            }
                        });
                    }
                });
            },
        },
    };
</script>

4、JSR303資料校驗

• 問題引入：

  填寫form時應該有前端校驗，后端也應該有校驗 前端 前端的校驗是element-ui表單驗證 Form 組件提供了表單驗證的功能，只需要通過 rules 屬性傳入約定的驗證規則，并將 Form-Item 的 prop 屬性設定為需校驗的欄位名即可，

• 如果你的springboot版本沒有默認引入，就匯入依賴

<!--jsr3引數校驗器-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-validation</artifactId>
</dependency>

里面依賴了hibernate-validator 在非空處理方式上提供了@NotNull，@NotBlank和@NotEmpty

在物體類的屬性上使用如上的注解等

@Data
@TableName("pms_brand")
public class BrandEntity implements Serializable {
    private static final long serialVersionUID = 1L;

    /**
	 * 品牌id
	 */
    @TableId
    private Long brandId;
    /**
	 * 品牌名
	 */
    @NotBlank
    private String name;
    /**
	 * 品牌logo地址
	 */
    private String logo;
    /**
	 * 介紹
	 */
    private String descript;
    /**
	 * 顯示狀態[0-不顯示；1-顯示]
	 */
	@NotNull
    private Integer showStatus;
    /**
	 * 檢索首字母
	 */
    @NotEmpty
    private String firstLetter;
	/**
	 * 排序
	 */
	@NotNull
	@Min(0)
	private Integer sort;

}

• 步驟2：controller中加校驗注解@Valid，開啟校驗，

@RequestMapping("/save")
public R save(@RequestBody @Valid BrandEntity brand){
    brandService.save(brand);
    return R.ok();
}

• 可以在添加注解的時候，修改message

  @NotBlank(message = "品牌名必須非空")
  private String name;


• 但是這種回傳的錯誤結果并不符合我們的業務需要，

• 步驟3：給校驗的Bean后，緊跟一個BindResult，就可以獲取到校驗的結果，拿到校驗的結果，就可以自定義的封裝，

@RequestMapping("/save")
public R save(@RequestBody @Valid BrandEntity brand, BindingResult result){
    if( result.hasErrors()) {
        Map<String, String> map = new HashMap<>();
        //1.獲取錯誤的校驗結果
        result.getFieldErrors().forEach((item) -> {
            //獲取發生錯誤時的message
            String message = item.getDefaultMessage();
            //獲取發生錯誤的欄位
            String field = item.getField();
            map.put(field, message);
        });
        return R.error(400, "提交的資料不合法").put("data", map);
    }
    brandService.save(brand);
    return R.ok();
}

這種是針對于該請求設定了一個內容校驗，如果針對于每個請求都單獨進行配置，顯然不是太合適，實際上可以統一的對于例外進行處理，

• 統一例外處理@ControllerAdvice步驟4：統一例外處理

可以使用SpringMvc所提供的@ControllerAdvice，通過“basePackages”能夠說明處理哪些路徑下的例外，

在com.achang.achangmall.product.exception.AchangExceptionControllerAdvice撰寫

@Slf4j
@RestControllerAdvice(basePackages = "com.achang.achangmall.product")
public class AchangExceptionControllerAdvice {

    @ExceptionHandler(value = Exception.class) // 也可以回傳ModelAndView
    public R handleValidException(MethodArgumentNotValidException exception) {

        Map<String, String> map = new HashMap<>();
        // 獲取資料校驗的錯誤結果
        BindingResult bindingResult = exception.getBindingResult();
        bindingResult.getFieldErrors().forEach(fieldError -> {
            String message = fieldError.getDefaultMessage();
            String field = fieldError.getField();
            map.put(field, message);
        });

        log.error("資料校驗出現問題{},例外型別{}", exception.getMessage(), exception.getClass());

        return R.error(400, "資料校驗出現問題").put("data", map);
    }
}

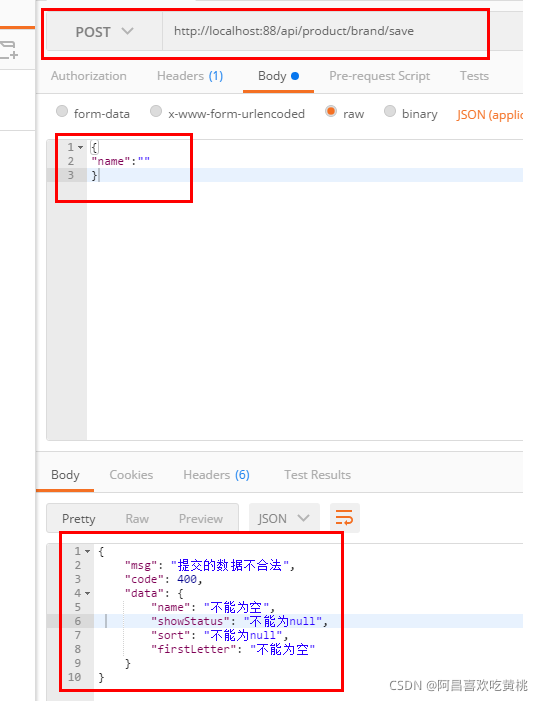

• 測驗： http://localhost:88/api/product/brand/save

如果沒有用，可能是spring沒有掃描到，在主函式上添加@ComponentScan("com.achang.achangmall.product")

• 默認例外處理

    @ExceptionHandler(value = Throwable.class)
    public R handleException(Throwable throwable){
        log.error("未知例外{},例外型別{}",throwable.getMessage(),throwable.getClass());
        return R.error(400,"資料校驗出現問題");
    }

• 錯誤狀態碼

上面代碼中，針對于錯誤狀態碼，是我們進行隨意定義的，然而正規開發程序中，錯誤狀態碼有著嚴格的定義規則，如該在專案中我們的錯誤狀態碼定義

• 為了定義這些錯誤狀態碼，我們可以單獨定義一個常量類，用來存盤這些錯誤狀態碼

com.achang.common.exception,在通用模塊中

/***
 * 錯誤碼和錯誤資訊定義類
 * 1. 錯誤碼定義規則為5為數字
 * 2. 前兩位表示業務場景，最后三位表示錯誤碼，例如：100001，10:通用 001:系統未知例外
 * 3. 維護錯誤碼后需要維護錯誤描述，將他們定義為列舉形式
 * 錯誤碼串列：
 *  10: 通用
 *      001：引數格式校驗
 *  11: 商品
 *  12: 訂單
 *  13: 購物車
 *  14: 物流
 */
public enum BizCodeEnum {
    UNKNOW_EXEPTION(10000,"系統未知例外"),

    VALID_EXCEPTION( 10001,"引數格式校驗失敗");

    private int code;
    private String msg;

    BizCodeEnum(int code, String msg) {
        this.code = code;
        this.msg = msg;
    }

    public int getCode() {
        return code;
    }

    public String getMsg() {
        return msg;
    }
}

5、分組校驗功能（完成多場景的復雜校驗）

• 給校驗注解，標注上groups，指定什么情況下才需要進行校驗

groups里面的內容要以介面的形式顯示出來

如：指定在更新和添加的時候，都需要進行校驗，新增時不需要帶id，修改時必須帶id

• 在通用模塊中創建校驗用的空介面，他只是個標識

achangmall-common中的com.achang.common.vail

//更新校驗
public interface UpdateVail {}

//新增校驗
public interface AddVail {}

• 在實體類上groups標志介面標識

在這種情況下，沒有指定分組的校驗注解，默認是不起作用的，想要起作用就必須要加groups，

@NotNull(message = "修改必須定制品牌id", groups = {UpdateVailGroup.class})
@Null(message = "新增不能指定id", groups = {AddVailGroup.class})
private Long brandId;

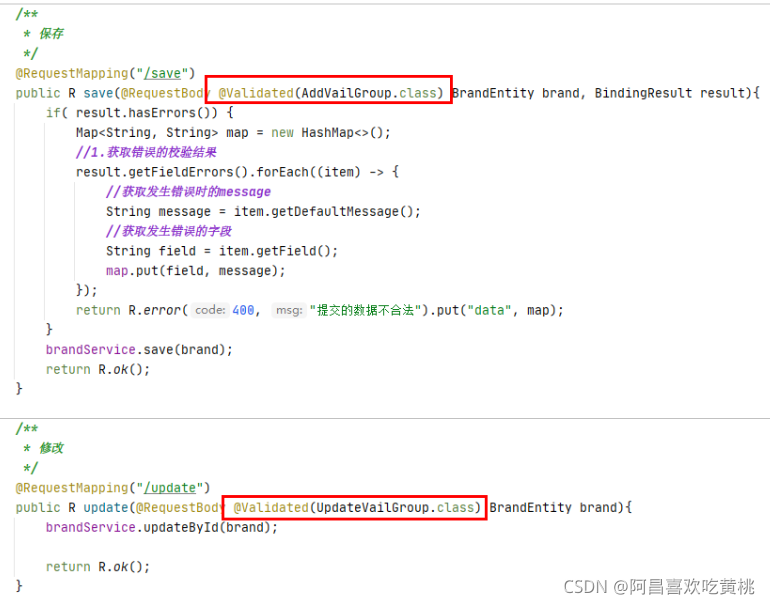

• 業務方法引數上使用@Validated注解，并用@Validated指定使用校驗的介面標識

• 分組情況下，校驗注解生效問題

• 默認情況下，在分組校驗情況下，沒有指定指定分組的校驗注解，將不會生效，它只會在不分組的情況下生效，

6、自定義校驗功能

• 場景：

  • 要校驗showStatus的01狀態，可以用正則，但我們可以利用其他方式解決復雜場景，比如我們想要下面的場景

• 添加依賴

<dependency>
    <groupId>javax.validation</groupId>
    <artifactId>validation-api</artifactId>
    <version>2.0.1.Final</version>
</dependency>

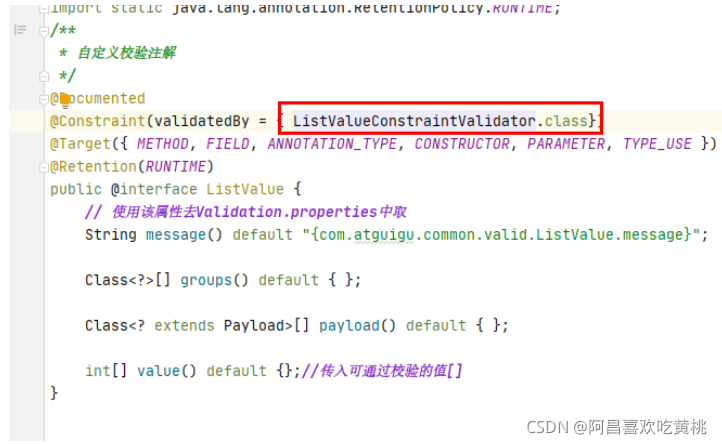

• 撰寫自定義的校驗注解

/**
 * 自定義校驗注解
 */
@Documented
@Constraint(validatedBy = { ListValueConstraintValidator.class})
@Target({ METHOD, FIELD, ANNOTATION_TYPE, CONSTRUCTOR, PARAMETER, TYPE_USE })
@Retention(RUNTIME)
public @interface ListValue {
    // 使用該屬性去Validation.properties中取
    String message() default "{com.atguigu.common.valid.ListValue.message}";

    Class<?>[] groups() default { };

    Class<? extends Payload>[] payload() default { };

    int[] value() default {};//傳入可通過校驗的值[]
}

• 自定義校驗器

/**
 * 自定義校驗器
 */
public class ListValueConstraintValidator implements ConstraintValidator<ListValue,Integer> {//泛型左邊：自定義校驗注解，泛型右邊：校驗的型別

    private Set<Integer> set=new HashSet<>();

    @Override
    public void initialize(ListValue constraintAnnotation) {
        int[] value = constraintAnnotation.value();//獲取可通過的值
        for (int i : value) {
            set.add(i);
        }
    }

    @Override//左側：傳入需要校驗的值
    public boolean isValid(Integer value, ConstraintValidatorContext context) {
        return  set.contains(value);
    }
}

• 關聯校驗器和校驗注解

一個校驗注解可以匹配多個校驗器

• 使用實體

/**
* 顯示狀態[0-不顯示；1-顯示]
* 標識只能接受0,1；其他值都不能通過校驗
*/
@ListValue(value = {0,1},groups ={AddGroup.class})
private Integer showStatus;
