在公司內部或前臺，有時需要展示數字化看板，展示公司的業務資訊，看著別的公司展示的炫酷的數字化大屏，是否很羨慕？本文以Python+flask+jQuery+eCharts，簡述如何開發數字化大屏進行資料展示，僅供學習分享使用，如有不足之處，還請指正，

涉及知識點

Python+flask開發web系統，實作資料傳輸，
jQuery通過ajax技術，實作資料的異步通信，區域重繪，
eCharts進行圖表的展示（包括柱狀圖，折線圖，地圖等），
html+css頁面布局等技術，

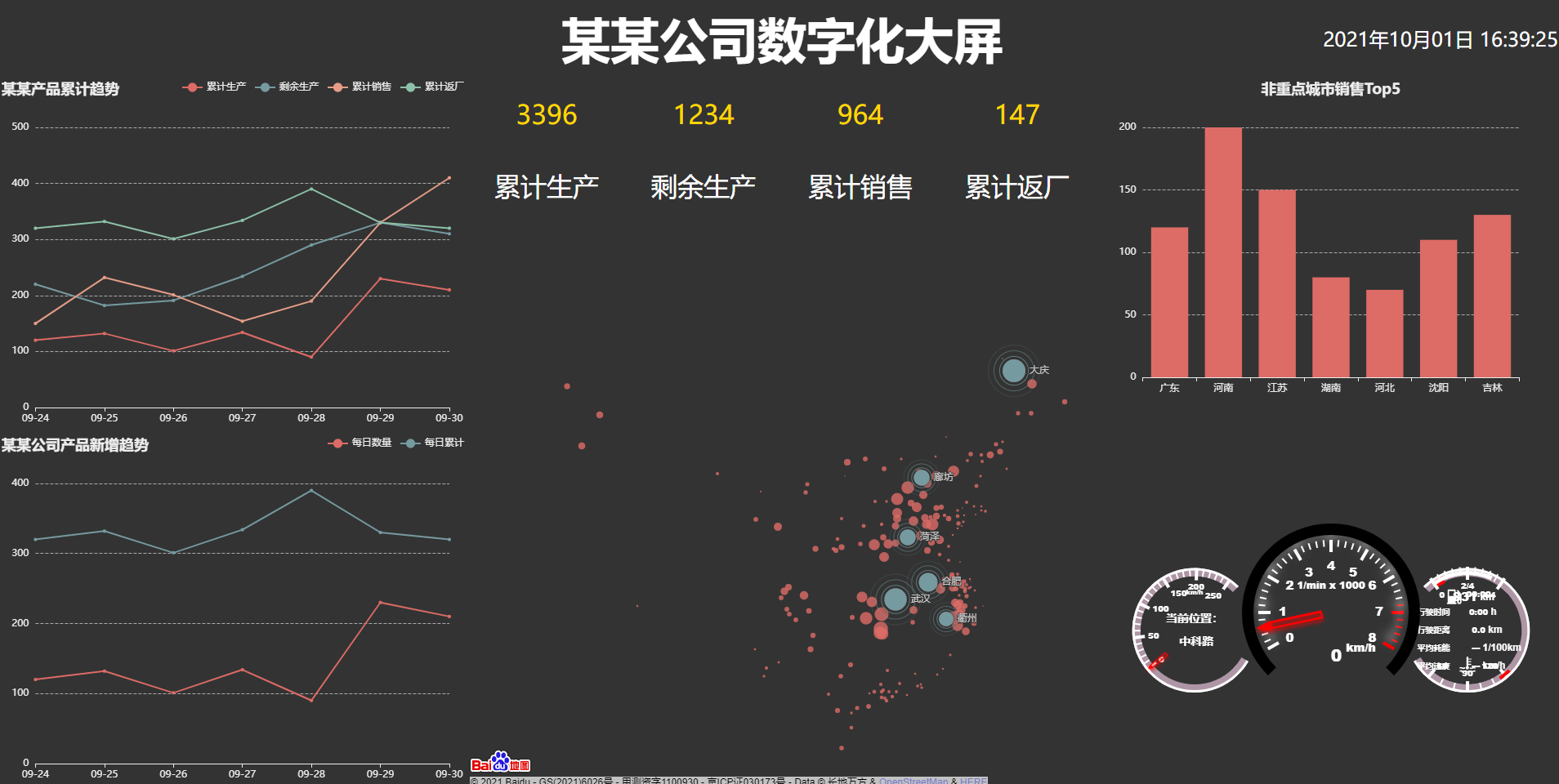

示例效果圖

在本例中，主要展示某公司的產品累計趨勢，產品新增趨勢，銷售柱狀圖，地圖等內容，包括數字，圖表等方式，具體如下所示：

頁面設計

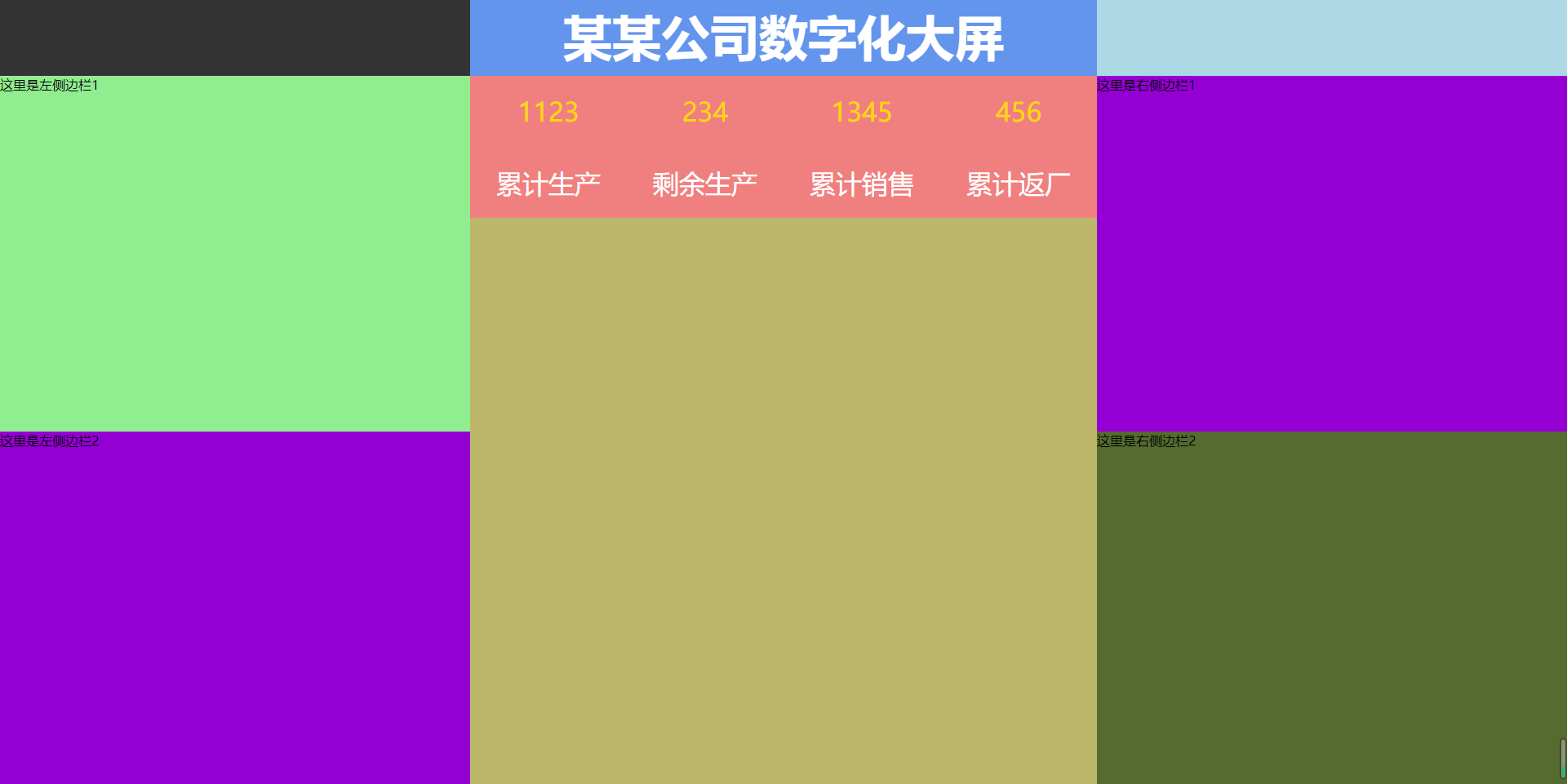

為了資料展示，將數字化大屏頁面分為8個部分（標題，時間，左1，左2，中1，中2，右1，右2）如下所示：

頁面布局核心代碼，如下所示：

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>數字化大屏</title>
    <link rel="stylesheet" href="../static/css/main.css">
</head>
<body>
<header class="head">
    <div class="title">
        <h1>某某公司數字化大屏</h1>
    </div>
    <div class="time"></div>
</header>
<aside class="left">
    <div id="left1" class="left1">這里是左側邊欄1</div>
    <div id="left2" class="left2">這里是左側邊欄2</div>
</aside>
<section class="center">
    <div class="center1">
        <div class="num">1123</div>
        <div class="num">234</div>
        <div class="num">1345</div>
        <div class="num">456</div>
        <div class="txt">累計生產</div>
        <div class="txt">剩余生產</div>
        <div class="txt">累計銷售</div>
        <div class="txt">累計返廠</div>
    </div>
    <div class="center2" id="center2"></div>
</section>
<aside class="right">
    <div id="right1" class="right1">這里是右側邊欄1</div>
    <div id="right2" class="right2">這里是右側邊欄2</div>
</aside>
</body>
</html>

核心代碼

后臺資料

在本例中，flask做為web開發框架，提供了一個輕量級的實作web服務的功能，另本為了演示，實作了部分功能，其他則為靜態資料，如下所示：

from flask import Flask
from flask import request
from flask import render_template
from flask import jsonify
import random

app = Flask(__name__)


@app.route('/main')
def main():
    return render_template('main.html')


@app.route('/get_c1_data', methods=['get', 'post'])
def get_c1_data():
    """獲取C1資料"""
    total_confirmed = random.randint(0, 10000)  # 累計生產
    remain_suspect = random.randint(0, 5000)  # 剩余生產
    total_cure = random.randint(0, 10000)  # 累計銷售
    total_dead = random.randint(0, 200)  # 累計返廠
    return jsonify({"total_confirmed": total_confirmed, "remain_suspect": remain_suspect, "total_cure": total_cure,
                    "total_dead": total_dead})


if __name__ == '__main__':
    app.run()

注意：jQuery進行ajax資料訪問，回傳的json格式的資料，所以引入flask中的jsonify模塊，進行資料轉換，

ajax訪問

在本例中，為了實作區域重繪，采用ajax的方式進行訪問，如下所示：

<script type="text/javascript">
        function get_time() {
            var cur_time = new Date();
            var str_time = cur_time.getFullYear() + "年" + ((cur_time.getMonth() + 1) > 9 ? (cur_time.getMonth() + 1) : "0" + (cur_time.getMonth() + 1)) + "月" + (cur_time.getDate() > 9 ? cur_time.getDate() : "0" + cur_time.getDate()) + "日" + " " + (cur_time.getHours() > 9 ? cur_time.getHours() : "0" + cur_time.getHours()) + ":" + (cur_time.getMinutes() > 9 ? cur_time.getMinutes() : "0" + cur_time.getMinutes()) + ":" + (cur_time.getSeconds() > 9 ? cur_time.getSeconds() : "0" + cur_time.getSeconds());
            $(".time").text(str_time);
        }

        function get_c1_data() {
            $.ajax({
                url: "/get_c1_data",
                type: "post",
                success: function (data) {
                    $(".num").eq(0).text(data.total_confirmed);
                    $(".num").eq(1).text(data.remain_suspect);
                    $(".num").eq(2).text(data.total_cure);
                    $(".num").eq(3).text(data.total_dead);

                },
                error: function () {

                }
            });
        }

        $(document).ready(function () {
            get_time();
            get_c1_data();
            setInterval(get_time, 1000);
            setInterval(get_c1_data,1000);
        });
    </script>

圖表展示

在本例中，展示了多種圖表，且各自獨立，為了方便起見，將各個模塊的圖表，單獨保存在js檔案中，

折線圖（累計趨勢圖）

var left1 = document.getElementById('left1');
var ec_left1 = echarts.init(left1,'dark');
var ec_left1_option;

ec_left1_option = {
  title: {
    text: '某某產品累計趨勢',
    left:'left'
  },
  tooltip: {
    trigger: 'axis'
  },
  legend: {
    data: ['累計生產', '剩余生產', '累計銷售', '累計返廠'],
    left:'right'
  },
  grid: {
    left: '3%',
    right: '4%',
    bottom: '3%',
    containLabel: true
  },
  // toolbox: {
  //   feature: {
  //     saveAsImage: {}
  //   }
  // },
  xAxis: {
    type: 'category',
    boundaryGap: false,
    data: ['09-24', '09-25', '09-26', '09-27', '09-28', '09-29', '09-30']
  },
  yAxis: {
    type: 'value'
  },
  series: [
    {
      name: '累計生產',
      type: 'line',
      //stack: 'Total',
      data: [120, 132, 101, 134, 90, 230, 210]
    },
    {
      name: '剩余生產',
      type: 'line',
      //stack: 'Total',
      data: [220, 182, 191, 234, 290, 330, 310]
    },
    {
      name: '累計銷售',
      type: 'line',
      //stack: 'Total',
      data: [150, 232, 201, 154, 190, 330, 410]
    },
    {
      name: '累計返廠',
      type: 'line',
      //stack: 'Total',
      data: [320, 332, 301, 334, 390, 330, 320]
    }
  ]
};

ec_left1_option && ec_left1.setOption(ec_left1_option);

折線（新增趨勢圖）

var left2 = document.getElementById('left2');
var ec_left2 = echarts.init(left2,'dark');
var ec_left2_option;

ec_left2_option = {
  title: {
    text: '某某公司產品新增趨勢',
    left:'left'
  },
  tooltip: {
    trigger: 'axis'
  },
  legend: {
    data: ['每日數量', '每日累計'],
    left:'right'
  },
  grid: {
    left: '3%',
    right: '4%',
    bottom: '3%',
    containLabel: true
  },
  // toolbox: {
  //   feature: {
  //     saveAsImage: {}
  //   }
  // },
  xAxis: {
    type: 'category',
    boundaryGap: false,
    data: ['09-24', '09-25', '09-26', '09-27', '09-28', '09-29', '09-30']
  },
  yAxis: {
    type: 'value'
  },
  series: [
    {
      name: '每日數量',
      type: 'line',
      //stack: 'Total',
      data: [120, 132, 101, 134, 90, 230, 210]
    },
    {
      name: '每日累計',
      type: 'line',
      //stack: 'Total',
      data: [320, 332, 301, 334, 390, 330, 320]
    }
  ]
};

ec_left2_option && ec_left2.setOption(ec_left2_option);

柱狀圖

var right1 = document.getElementById('right1');
var ec_right1 = echarts.init(right1,'dark');
var ec_right1_option;

ec_right1_option = {
    title: {
    text: '非重點城市銷售Top5',
    left:'center'
  },
  xAxis: {
    type: 'category',
    data: ['廣東', '河南', '江蘇', '湖南', '河北', '沈陽', '吉林']
  },
  yAxis: {
    type: 'value'
  },
  series: [
    {
      data: [120, 200, 150, 80, 70, 110, 130],
      type: 'bar'
    }
  ]
};

ec_right1_option && ec_right1.setOption(ec_right1_option);

圓盤轉速圖

var right2 = document.getElementById('right2');
var ec_right2 = echarts.init(right2,'dark');
var ec_right2_option;

ec_right2_option = {
  backgroundColor: '#333',
  // tooltip: {
  //   formatter: '{a} <br/>{b} : {c}%'
  // },
  // toolbox: {
  //   feature: {
  //     restore: {},
  //     saveAsImage: {}
  //   }
  // },
  series: [
    // left
    {
      name: 'gauge 0',
      type: 'gauge',
      min: -200,
      max: 250,
      startAngle: -30,
      endAngle: -315,
      splitNumber: 9,
      radius: '35%',
      center: ['21%', '55%'],
      axisLine: {
        lineStyle: {
          color: [[1, '#AE96A6']]
        }
      },
      splitLine: {
        show: false
      },
      axisTick: {
        show: false
      },
      axisLabel: {
        show: false
      },
      anchor: {},
      pointer: {
        show: false
      },
      detail: {
        show: false
      },
      title: {
        fontSize: 8,
        fontWeight: 800,
        fontFamily: 'Arial',
        color: '#fff',
        offsetCenter: [0, '-60%']
      },
      progress: {
        show: true,
        width: 3,
        itemStyle: {
          color: '#fff'
        }
      },
      data: [
        {
          value: 250,
          name: 'km/h'
        }
      ]
    },
    {
      name: 'gauge 1',
      type: 'gauge',
      min: 0,
      max: 250,
      startAngle: -140,
      endAngle: -305,
      splitNumber: 5,
      radius: '35%',
      center: ['21%', '55%'],
      axisLine: {
        lineStyle: {
          color: [[1, '#AE96A6']]
        }
      },
      splitLine: {
        distance: -7,
        length: 12,
        lineStyle: {
          color: '#fff',
          width: 4
        }
      },
      axisTick: {
        distance: -8,
        length: 8,
        lineStyle: {
          color: '#fff',
          width: 2
        }
      },
      axisLabel: {
        distance: 14,
        fontSize: 10,
        fontWeight: 800,
        fontFamily: 'Arial',
        color: '#fff'
      },
      anchor: {},
      pointer: {
        icon: 'path://M-36.5,23.9L-41,4.4c-0.1-0.4-0.4-0.7-0.7-0.7c-0.5-0.1-1.1,0.2-1.2,0.7l-4.5,19.5c0,0.1,0,0.1,0,0.2v92.3c0,0.6,0.4,1,1,1h9c0.6,0,1-0.4,1-1V24.1C-36.5,24-36.5,23.9-36.5,23.9z M-39.5,114.6h-5v-85h5V114.6z',
        width: 5,
        length: '40%',
        offsetCenter: [0, '-58%'],
        itemStyle: {
          color: '#f00',
          shadowColor: 'rgba(255, 0, 0)',
          shadowBlur: 5,
          shadowOffsetY: 2
        }
      },
      title: {
        color: '#fff',
        fontSize: 14,
        fontWeight: 800,
        fontFamily: 'Arial',
        offsetCenter: [0, 0]
      },
      detail: {
        show: false
      },
      data: [
        {
          value: 0,
          name: '當前位置：\n \n 中科路'
        }
      ]
    },
    // middle
    {
      name: 'gauge 2',
      type: 'gauge',
      min: 0,
      max: 8,
      z: 10,
      startAngle: 210,
      endAngle: -30,
      splitNumber: 8,
      radius: '50%',
      center: ['50%', '50%'],
      axisLine: {
        show: true,
        lineStyle: {
          width: 0,
          color: [
            [0.825, '#fff'],
            [1, '#f00']
          ]
        }
      },
      splitLine: {
        distance: 20,
        length: 15,
        lineStyle: {
          color: 'auto',
          width: 4,
          shadowColor: 'rgba(255, 255, 255, 0.5)',
          shadowBlur: 15,
          shadowOffsetY: -10
        }
      },
      axisTick: {
        distance: 20,
        length: 8,
        lineStyle: {
          color: 'auto',
          width: 2,
          shadowColor: 'rgba(255, 255, 255)',
          shadowBlur: 10,
          shadowOffsetY: -10
        }
      },
      axisLabel: {
        distance: 10,
        fontSize: 15,
        fontWeight: 800,
        fontFamily: 'Arial',
        color: '#fff'
      },
      anchor: {},
      pointer: {
        icon: 'path://M-36.5,23.9L-41,4.4c-0.1-0.4-0.4-0.7-0.7-0.7c-0.5-0.1-1.1,0.2-1.2,0.7l-4.5,19.5c0,0.1,0,0.1,0,0.2v92.3c0,0.6,0.4,1,1,1h9c0.6,0,1-0.4,1-1V24.1C-36.5,24-36.5,23.9-36.5,23.9z M-39.5,114.6h-5v-85h5V114.6z',
        width: 10,
        offsetCenter: [0, '-10%'],
        length: '75%',
        itemStyle: {
          color: '#f00',
          shadowColor: 'rgba(255, 0, 0)',
          shadowBlur: 5,
          shadowOffsetY: 3
        }
      },
      title: {
        color: '#fff',
        fontSize: 12,
        fontWeight: 800,
        fontFamily: 'Arial',
        offsetCenter: [0, '-30%']
      },
      data: [
        {
          value: 0.6,
          name: '1/min x 1000'
        }
      ],
      detail: {
        show: false
      }
    },
    {
      name: 'gauge 3',
      type: 'gauge',
      min: 0,
      max: 8,
      z: 10,
      splitNumber: 8,
      radius: '50%',
      axisLine: {
        lineStyle: {
          width: 14,
          color: [[1, '#000']]
        }
      },
      splitLine: {
        show: false
      },
      axisTick: {
        show: false
      },
      axisLabel: {
        show: false
      },
      anchor: {},
      pointer: {
        show: false
      },
      title: {
        show: false
      },
      detail: {
        offsetCenter: ['25%', '50%'],
        formatter: '{a|{value}}{b|km/h}',
        rich: {
          a: {
            fontSize: 20,
            fontWeight: 800,
            fontFamily: 'Arial',
            color: '#fff',
            align: 'center',
            padding: [0, 5, 0, 0]
          },
          b: {
            fontSize: 14,
            fontWeight: 800,
            fontFamily: 'Arial',
            color: '#fff',
            padding: [0, 0, 20, 0]
          }
        }
      },
      // value is speed
      data: [
        {
          value: 0,
          name: ''
        }
      ]
    },
    //right
    {
      name: 'gauge 4',
      type: 'gauge',
      min: 0,
      max: 8,
      startAngle: 135,
      endAngle: -150,
      splitNumber: 8,
      radius: '35%',
      center: ['79%', '55%'],
      axisLine: {
        lineStyle: {
          color: [[1, '#AE96A6']]
        }
      },
      splitLine: {
        show: false
      },
      axisTick: {
        show: false
      },
      axisLabel: {
        show: false
      },
      anchor: {},
      pointer: {
        show: false
      },
      title: {},
      detail: {
        offsetCenter: ['-15%', 0],
        formatter: [
          '{a|                  00:00}',
          '{a|行駛時間       0:00}{b| h}',
          '{a|行駛距離        0.0}{b| km}',
          '{a|平均耗能        ---}{b| 1/100km}',
          '{a|平均速度        ---}{b| km/h}'
        ].join('\n'),
        rich: {
          a: {
            fontSize: 10,
            fontWeight: 800,
            fontFamily: 'Arial',
            lineHeight: 22,
            color: '#fff',
            align: 'left'
          },
          b: {
            fontWeight: 600,
            fontFamily: 'Arial',
            lineHeight: 22,
            color: '#fff',
            align: 'left'
          }
        }
      },
      progress: {
        show: true,
        width: 3,
        itemStyle: {
          color: '#fff'
        }
      },
      data: [
        {
          value: 250,
          name: ''
        }
      ]
    },
    {
      name: 'gauge 5',
      type: 'gauge',
      min: 0,
      max: 1,
      startAngle: 125,
      endAngle: 55,
      splitNumber: 2,
      radius: '34%',
      center: ['79%', '55.3%'],
      axisLine: {
        lineStyle: {
          width: 9,
          color: [
            [0.15, '#f00'],
            [1, 'rgba(255, 0, 0, 0)']
          ]
        }
      },
      splitLine: {
        distance: -14,
        length: 16,
        lineStyle: {
          color: '#fff',
          width: 4
        }
      },
      axisTick: {
        distance: -14,
        length: 10,
        lineStyle: {
          color: '#fff',
          width: 2
        }
      },
      axisLabel: {
        distance: 12,
        fontSize: 10,
        fontWeight: 800,
        fontFamily: 'Arial',
        color: '#fff',
        formatter: function (value) {
          if (value === 0.5) {
            return '2/4';
          }
          if (value === 1) {
            return '4/4';
          }
          return value + '';
        }
      },
      progress: {
        show: true,
        width: 5,
        itemStyle: {
          color: '#fff'
        }
      },
      anchor: {
        show: true,
        itemStyle: {},
        offsetCenter: ['-22%', '-57%'],
        size: 18,
        icon: 'path://M1.11979167,1.11111112 C1.11979167,0.497461393 1.61725306,0 2.23090279,0 L12.2309028,0 C12.8445525,1.43824153e-08 13.3420139,0.497461403 13.3420139,1.11111112 L13.3420139,10 L15.5642361,10 C16.7915356,10 17.7864583,10.9949228 17.7864583,12.2222222 L17.7864583,16.6666667 C17.7865523,17.28025 18.2839861,17.7776077 18.8975694,17.7776077 C19.5111527,17.7776077 20.0085866,17.28025 20.0086805,16.6666667 L20.0086805,8.88888888 L17.7864583,8.88888888 C17.1728086,8.88888888 16.6753472,8.3914275 16.6753472,7.77777779 L16.6753472,3.79333333 L15.6197917,2.73777777 C15.1859413,2.30392741 15.1859413,1.60051702 15.6197917,1.16666667 L15.6197917,1.16666667 C16.053642,0.732816318 16.7570524,0.732816318 17.1909028,1.16666667 L21.9053472,5.88111112 C22.1140468,6.08922811 22.2312072,6.37193273 22.2309028,6.66666667 L22.2309028,16.6666667 C22.2309028,18.5076158 20.7385186,20 18.8975695,20 C17.0566203,20 15.5642361,18.5076158 15.5642361,16.6666667 L15.5642361,12.2222222 L13.3420139,12.2222222 L13.3420139,17.7777778 L13.3420139,17.7777778 C13.9556636,17.7777778 14.453125,18.2752392 14.453125,18.8888889 L14.453125,18.8888889 C14.453125,19.5025386 13.9556636,20 13.3420139,20 L1.11979165,20 C0.506141934,20 0.00868054688,19.5025386 0.00868054687,18.8888889 L0.00868054687,18.8888889 C0.00868054688,18.2752392 0.506141934,17.7777778 1.11979165,17.7777778 L1.11979167,17.7777778 L1.11979167,1.11111112 Z M3.34201388,2.22222221 L3.34201388,8.88888888 L11.1197917,8.88888888 L11.1197917,2.22222221 L3.34201388,2.22222221 Z'
      },
      pointer: {
        show: false
      },
      title: {},
      detail: {
        offsetCenter: ['10%', '-56%'],
        formatter: '{a|831}{b| km}',
        rich: {
          a: {
            fontSize: 15,
            fontWeight: 800,
            fontFamily: 'Arial',
            color: '#fff'
          },
          b: {
            fontWeight: 600,
            fontFamily: 'Arial',
            color: '#fff'
          }
        }
      },
      data: [
        {
          value: 0.85,
          name: ''
        }
      ]
    },
    {
      name: 'gauge 6',
      type: 'gauge',
      min: -120,
      max: -60,
      startAngle: 230,
      endAngle: 310,
      clockwise: false,
      splitNumber: 2,
      radius: '35%',
      center: ['79%', '55%'],
      axisLine: {
        lineStyle: {
          color: [
            [1, '#AE96A6'],
            [1.1, '#f00']
          ]
        }
      },
      splitLine: {
        distance: -8,
        length: 12,
        lineStyle: {
          color: '#fff',
          width: 4
        }
      },
      axisTick: {
        splitNumber: 3,
        length: 8,
        distance: -8,
        lineStyle: {
          color: '#fff',
          width: 2
        }
      },
      axisLabel: {
        distance: 14,
        fontSize: 10,
        fontWeight: 800,
        fontFamily: 'Arial',
        color: '#fff',
        formatter: function (value) {
          return -value + '';
        }
      },
      anchor: {
        show: true,
        itemStyle: {},
        offsetCenter: [0, '55%'],
        size: 20,
        icon: 'path://M-34.1-1.1L-34.1-1.1c0-0.3-0.3-0.6-0.6-0.6h-3.6v-1.5c0-0.5-0.2-0.9-0.6-1.1s-0.9-0.2-1.3,0c-0.4,0.2-0.6,0.7-0.6,1.1V7.9c0,0,0,0.1,0,0.1c-0.8,0.5-1.2,1.5-0.9,2.5c0.3,0.9,1.1,1.6,2.1,1.6c1,0,1.8-0.6,2.1-1.5c0.3-0.9,0-1.9-0.8-2.5V6.3h3.5c0.4,0,0.7-0.3,0.7-0.7l0,0c0-0.4-0.3-0.7-0.7-0.7h-3.5V2.9h3.5c0.4,0,0.7-0.3,0.7-0.7l0,0c0-0.4-0.3-0.7-0.7-0.7h-3.5v-2.1h3.6C-34.4-0.5-34.1-0.8-34.1-1.1z M-44.9,11.6c-0.7,0-1.4-0.2-2-0.6c-0.4-0.3-0.9-0.4-1.4-0.4c-0.4,0-0.9,0.2-1.2,0.4c-0.4,0.2-1.4-0.9-0.9-1.3c0.6-0.4,1.3-0.6,2-0.7c0.8,0,1.5,0.2,2.2,0.5c0.4,0.3,0.9,0.4,1.3,0.4c0.6,0,1.1-0.2,1.5-0.6s1.6,0.7,0.9,1.3S-44,11.6-44.9,11.6L-44.9,11.6z M-34.3,11.6c-0.7,0-1.4-0.3-2-0.7c-0.6-0.4,0.5-1.6,0.9-1.3s0.8,0.4,1.2,0.4c0.5,0,1-0.1,1.4-0.4c0.6-0.3,1.3-0.5,2-0.6h0c0.9,0,1.7,0.3,2.4,0.9c0.7,0.5-0.5,1.6-0.9,1.3c-0.4-0.3-1-0.6-1.5-0.6h0c-0.5,0-0.9,0.2-1.3,0.4c-0.6,0.3-1.3,0.5-2,0.6H-34.3z M-33.5,16.3c-0.7,0-1.4-0.3-1.9-0.8c-0.4-0.3-0.6-0.5-1-0.5c-0.4,0-0.7,0.2-1,0.4c-0.6,0.5-1.3,0.7-2,0.7c-0.7,0-1.4-0.3-1.9-0.8c-0.2-0.3-0.6-0.4-0.9-0.4c-0.4,0-0.7,0.1-1.1,0.5c-0.6,0.5-1.3,0.7-2.1,0.7c-0.7-0.1-1.4-0.4-1.9-0.9c-0.4-0.3-0.6-0.5-1-0.5c-0.3,0-0.6,0.2-0.9,0.4s-1.6-0.7-1.1-1.2c0.5-0.5,1.2-0.8,1.9-0.9c1-0.1,1.6,0.4,2.1,0.8c0.3,0.3,0.6,0.5,1,0.5c0.4,0,0.6-0.1,1-0.4c0.6-0.5,1.4-0.8,2.1-0.8c0.7,0,1.4,0.3,1.9,0.8c0.2,0.2,0.6,0.4,0.9,0.4c0.4,0,0.6-0.1,1-0.4c0.6-0.5,1.3-0.7,2-0.7c0.8,0,1.5,0.3,2,0.9c0.4,0.3,0.6,0.4,0.9,0.4c0.3,0,0.7-0.2,1.1-0.5c0.5-0.4,1.2-0.9,2.3-0.8c0.7,0,1.4,0.3,1.9,0.7c0.5,0.4-0.7,1.5-1,1.3s-0.6-0.4-1-0.4c-0.4,0-0.7,0.2-1.2,0.5C-32,15.9-32.7,16.2-33.5,16.3L-33.5,16.3z'
      },
      pointer: {
        icon: 'path://M2.9,0.7L2.9,0.7c1.4,0,2.6,1.2,2.6,2.6v115c0,1.4-1.2,2.6-2.6,2.6l0,0c-1.4,0-2.6-1.2-2.6-2.6V3.3C0.3,1.9,1.4,0.7,2.9,0.7z',
        width: 15,
        length: '4',
        offsetCenter: [0, '-90%'],
        itemStyle: {
          color: '#f00'
        }
      },
      title: {},
      detail: {
        show: false
      },
      data: [
        {
          value: -120,
          name: ''
        }
      ]
    }
  ]
};

ec_right2_option && ec_right2.setOption(ec_right2_option);

中國地圖

// var echarts = require('echarts');
const data = [
  { name: '海門', value: 9 },
  { name: '鄂爾多斯', value: 12 },
  { name: '招遠', value: 12 },
  { name: '舟山', value: 12 },
  { name: '齊齊哈爾', value: 14 },
  { name: '鹽城', value: 15 },
  { name: '赤峰', value: 16 },
  { name: '青島', value: 18 },
  { name: '乳山', value: 18 },
  { name: '金昌', value: 19 },
  { name: '泉州', value: 21 },
  { name: '萊西', value: 21 },
  { name: '日照', value: 21 },
  { name: '膠南', value: 22 },
  { name: '南通', value: 23 },
  { name: '拉薩', value: 24 },
  { name: '云浮', value: 24 },
  { name: '梅州', value: 25 },
  { name: '文登', value: 25 },
  { name: '上海', value: 25 },
  { name: '攀枝花', value: 25 },
  { name: '威海', value: 25 },
  { name: '承德', value: 25 },
  { name: '廈門', value: 26 },
  { name: '汕尾', value: 26 },
  { name: '潮州', value: 26 },
  { name: '丹東', value: 27 },
  { name: '太倉', value: 27 },
  { name: '曲靖', value: 27 },
  { name: '煙臺', value: 28 },
  { name: '福州', value: 29 },
  { name: '瓦房店', value: 30 },
  { name: '即墨', value: 30 },
  { name: '撫順', value: 31 },
  { name: '玉溪', value: 31 },
  { name: '張家口', value: 31 },
  { name: '陽泉', value: 31 },
  { name: '萊州', value: 32 },
  { name: '湖州', value: 32 },
  { name: '汕頭', value: 32 },
  { name: '昆山', value: 33 },
  { name: '寧波', value: 33 },
  { name: '湛江', value: 33 },
  { name: '揭陽', value: 34 },
  { name: '榮成', value: 34 },
  { name: '連云港', value: 35 },
  { name: '葫蘆島', value: 35 },
  { name: '常熟', value: 36 },
  { name: '東莞', value: 36 },
  { name: '河源', value: 36 },
  { name: '淮安', value: 36 },
  { name: '泰州', value: 36 },
  { name: '南寧', value: 37 },
  { name: '營口', value: 37 },
  { name: '惠州', value: 37 },
  { name: '江陰', value: 37 },
  { name: '蓬萊', value: 37 },
  { name: '韶關', value: 38 },
  { name: '嘉峪關', value: 38 },
  { name: '廣州', value: 38 },
  { name: '延安', value: 38 },
  { name: '太原', value: 39 },
  { name: '清遠', value: 39 },
  { name: '中山', value: 39 },
  { name: '昆明', value: 39 },
  { name: '壽光', value: 40 },
  { name: '盤錦', value: 40 },
  { name: '長治', value: 41 },
  { name: '深圳', value: 41 },
  { name: '珠海', value: 42 },
  { name: '宿遷', value: 43 },
  { name: '咸陽', value: 43 },
  { name: '銅川', value: 44 },
  { name: '平度', value: 44 },
  { name: '佛山', value: 44 },
  { name: '海口', value: 44 },
  { name: '江門', value: 45 },
  { name: '章丘', value: 45 },
  { name: '肇慶', value: 46 },
  { name: '大連', value: 47 },
  { name: '臨汾', value: 47 },
  { name: '吳江', value: 47 },
  { name: '石嘴山', value: 49 },
  { name: '沈陽', value: 50 },
  { name: '蘇州', value: 50 },
  { name: '茂名', value: 50 },
  { name: '嘉興', value: 51 },
  { name: '長春', value: 51 },
  { name: '膠州', value: 52 },
  { name: '銀川', value: 52 },
  { name: '張家港', value: 52 },
  { name: '三門峽', value: 53 },
  { name: '錦州', value: 54 },
  { name: '南昌', value: 54 },
  { name: '柳州', value: 54 },
  { name: '三亞', value: 54 },
  { name: '自貢', value: 56 },
  { name: '吉林', value: 56 },
  { name: '陽江', value: 57 },
  { name: '瀘州', value: 57 },
  { name: '西寧', value: 57 },
  { name: '宜賓', value: 58 },
  { name: '呼和浩特', value: 58 },
  { name: '成都', value: 58 },
  { name: '大同', value: 58 },
  { name: '鎮江', value: 59 },
  { name: '桂林', value: 59 },
  { name: '張家界', value: 59 },
  { name: '宜興', value: 59 },
  { name: '北海', value: 60 },
  { name: '西安', value: 61 },
  { name: '金壇', value: 62 },
  { name: '東營', value: 62 },
  { name: '牡丹江', value: 63 },
  { name: '遵義', value: 63 },
  { name: '紹興', value: 63 },
  { name: '揚州', value: 64 },
  { name: '常州', value: 64 },
  { name: '濰坊', value: 65 },
  { name: '重慶', value: 66 },
  { name: '臺州', value: 67 },
  { name: '南京', value: 67 },
  { name: '濱州', value: 70 },
  { name: '貴陽', value: 71 },
  { name: '無錫', value: 71 },
  { name: '本溪', value: 71 },
  { name: '克拉瑪依', value: 72 },
  { name: '渭南', value: 72 },
  { name: '馬鞍山', value: 72 },
  { name: '寶雞', value: 72 },
  { name: '焦作', value: 75 },
  { name: '句容', value: 75 },
  { name: '北京', value: 79 },
  { name: '徐州', value: 79 },
  { name: '衡水', value: 80 },
  { name: '包頭', value: 80 },
  { name: '綿陽', value: 80 },
  { name: '烏魯木齊', value: 84 },
  { name: '棗莊', value: 84 },
  { name: '杭州', value: 84 },
  { name: '淄博', value: 85 },
  { name: '鞍山', value: 86 },
  { name: '溧陽', value: 86 },
  { name: '庫爾勒', value: 86 },
  { name: '安陽', value: 90 },
  { name: '開封', value: 90 },
  { name: '濟南', value: 92 },
  { name: '德陽', value: 93 },
  { name: '溫州', value: 95 },
  { name: '九江', value: 96 },
  { name: '邯鄲', value: 98 },
  { name: '臨安', value: 99 },
  { name: '蘭州', value: 99 },
  { name: '滄州', value: 100 },
  { name: '臨沂', value: 103 },
  { name: '南充', value: 104 },
  { name: '天津', value: 105 },
  { name: '富陽', value: 106 },
  { name: '泰安', value: 112 },
  { name: '諸暨', value: 112 },
  { name: '鄭州', value: 113 },
  { name: '哈爾濱', value: 114 },
  { name: '聊城', value: 116 },
  { name: '蕪湖', value: 117 },
  { name: '唐山', value: 119 },
  { name: '平頂山', value: 119 },
  { name: '邢臺', value: 119 },
  { name: '德州', value: 120 },
  { name: '濟寧', value: 120 },
  { name: '荊州', value: 127 },
  { name: '宜昌', value: 130 },
  { name: '義烏', value: 132 },
  { name: '麗水', value: 133 },
  { name: '洛陽', value: 134 },
  { name: '秦皇島', value: 136 },
  { name: '株洲', value: 143 },
  { name: '石家莊', value: 147 },
  { name: '萊蕪', value: 148 },
  { name: '常德', value: 152 },
  { name: '保定', value: 153 },
  { name: '湘潭', value: 154 },
  { name: '金華', value: 157 },
  { name: '岳陽', value: 169 },
  { name: '長沙', value: 175 },
  { name: '衢州', value: 177 },
  { name: '廊坊', value: 193 },
  { name: '菏澤', value: 194 },
  { name: '合肥', value: 229 },
  { name: '武漢', value: 273 },
  { name: '大慶', value: 279 }
];
const geoCoordMap = {
  海門: [121.15, 31.89],
  鄂爾多斯: [109.781327, 39.608266],
  招遠: [120.38, 37.35],
  舟山: [122.207216, 29.985295],
  齊齊哈爾: [123.97, 47.33],
  鹽城: [120.13, 33.38],
  赤峰: [118.87, 42.28],
  青島: [120.33, 36.07],
  乳山: [121.52, 36.89],
  金昌: [102.188043, 38.520089],
  泉州: [118.58, 24.93],
  萊西: [120.53, 36.86],
  日照: [119.46, 35.42],
  膠南: [119.97, 35.88],
  南通: [121.05, 32.08],
  拉薩: [91.11, 29.97],
  云浮: [112.02, 22.93],
  梅州: [116.1, 24.55],
  文登: [122.05, 37.2],
  上海: [121.48, 31.22],
  攀枝花: [101.718637, 26.582347],
  威海: [122.1, 37.5],
  承德: [117.93, 40.97],
  廈門: [118.1, 24.46],
  汕尾: [115.375279, 22.786211],
  潮州: [116.63, 23.68],
  丹東: [124.37, 40.13],
  太倉: [121.1, 31.45],
  曲靖: [103.79, 25.51],
  煙臺: [121.39, 37.52],
  福州: [119.3, 26.08],
  瓦房店: [121.979603, 39.627114],
  即墨: [120.45, 36.38],
  撫順: [123.97, 41.97],
  玉溪: [102.52, 24.35],
  張家口: [114.87, 40.82],
  陽泉: [113.57, 37.85],
  萊州: [119.942327, 37.177017],
  湖州: [120.1, 30.86],
  汕頭: [116.69, 23.39],
  昆山: [120.95, 31.39],
  寧波: [121.56, 29.86],
  湛江: [110.359377, 21.270708],
  揭陽: [116.35, 23.55],
  榮成: [122.41, 37.16],
  連云港: [119.16, 34.59],
  葫蘆島: [120.836932, 40.711052],
  常熟: [120.74, 31.64],
  東莞: [113.75, 23.04],
  河源: [114.68, 23.73],
  淮安: [119.15, 33.5],
  泰州: [119.9, 32.49],
  南寧: [108.33, 22.84],
  營口: [122.18, 40.65],
  惠州: [114.4, 23.09],
  江陰: [120.26, 31.91],
  蓬萊: [120.75, 37.8],
  韶關: [113.62, 24.84],
  嘉峪關: [98.289152, 39.77313],
  廣州: [113.23, 23.16],
  延安: [109.47, 36.6],
  太原: [112.53, 37.87],
  清遠: [113.01, 23.7],
  中山: [113.38, 22.52],
  昆明: [102.73, 25.04],
  壽光: [118.73, 36.86],
  盤錦: [122.070714, 41.119997],
  長治: [113.08, 36.18],
  深圳: [114.07, 22.62],
  珠海: [113.52, 22.3],
  宿遷: [118.3, 33.96],
  咸陽: [108.72, 34.36],
  銅川: [109.11, 35.09],
  平度: [119.97, 36.77],
  佛山: [113.11, 23.05],
  海口: [110.35, 20.02],
  江門: [113.06, 22.61],
  章丘: [117.53, 36.72],
  肇慶: [112.44, 23.05],
  大連: [121.62, 38.92],
  臨汾: [111.5, 36.08],
  吳江: [120.63, 31.16],
  石嘴山: [106.39, 39.04],
  沈陽: [123.38, 41.8],
  蘇州: [120.62, 31.32],
  茂名: [110.88, 21.68],
  嘉興: [120.76, 30.77],
  長春: [125.35, 43.88],
  膠州: [120.03336, 36.264622],
  銀川: [106.27, 38.47],
  張家港: [120.555821, 31.875428],
  三門峽: [111.19, 34.76],
  錦州: [121.15, 41.13],
  南昌: [115.89, 28.68],
  柳州: [109.4, 24.33],
  三亞: [109.511909, 18.252847],
  自貢: [104.778442, 29.33903],
  吉林: [126.57, 43.87],
  陽江: [111.95, 21.85],
  瀘州: [105.39, 28.91],
  西寧: [101.74, 36.56],
  宜賓: [104.56, 29.77],
  呼和浩特: [111.65, 40.82],
  成都: [104.06, 30.67],
  大同: [113.3, 40.12],
  鎮江: [119.44, 32.2],
  桂林: [110.28, 25.29],
  張家界: [110.479191, 29.117096],
  宜興: [119.82, 31.36],
  北海: [109.12, 21.49],
  西安: [108.95, 34.27],
  金壇: [119.56, 31.74],
  東營: [118.49, 37.46],
  牡丹江: [129.58, 44.6],
  遵義: [106.9, 27.7],
  紹興: [120.58, 30.01],
  揚州: [119.42, 32.39],
  常州: [119.95, 31.79],
  濰坊: [119.1, 36.62],
  重慶: [106.54, 29.59],
  臺州: [121.420757, 28.656386],
  南京: [118.78, 32.04],
  濱州: [118.03, 37.36],
  貴陽: [106.71, 26.57],
  無錫: [120.29, 31.59],
  本溪: [123.73, 41.3],
  克拉瑪依: [84.77, 45.59],
  渭南: [109.5, 34.52],
  馬鞍山: [118.48, 31.56],
  寶雞: [107.15, 34.38],
  焦作: [113.21, 35.24],
  句容: [119.16, 31.95],
  北京: [116.46, 39.92],
  徐州: [117.2, 34.26],
  衡水: [115.72, 37.72],
  包頭: [110, 40.58],
  綿陽: [104.73, 31.48],
  烏魯木齊: [87.68, 43.77],
  棗莊: [117.57, 34.86],
  杭州: [120.19, 30.26],
  淄博: [118.05, 36.78],
  鞍山: [122.85, 41.12],
  溧陽: [119.48, 31.43],
  庫爾勒: [86.06, 41.68],
  安陽: [114.35, 36.1],
  開封: [114.35, 34.79],
  濟南: [117, 36.65],
  德陽: [104.37, 31.13],
  溫州: [120.65, 28.01],
  九江: [115.97, 29.71],
  邯鄲: [114.47, 36.6],
  臨安: [119.72, 30.23],
  蘭州: [103.73, 36.03],
  滄州: [116.83, 38.33],
  臨沂: [118.35, 35.05],
  南充: [106.110698, 30.837793],
  天津: [117.2, 39.13],
  富陽: [119.95, 30.07],
  泰安: [117.13, 36.18],
  諸暨: [120.23, 29.71],
  鄭州: [113.65, 34.76],
  哈爾濱: [126.63, 45.75],
  聊城: [115.97, 36.45],
  蕪湖: [118.38, 31.33],
  唐山: [118.02, 39.63],
  平頂山: [113.29, 33.75],
  邢臺: [114.48, 37.05],
  德州: [116.29, 37.45],
  濟寧: [116.59, 35.38],
  荊州: [112.239741, 30.335165],
  宜昌: [111.3, 30.7],
  義烏: [120.06, 29.32],
  麗水: [119.92, 28.45],
  洛陽: [112.44, 34.7],
  秦皇島: [119.57, 39.95],
  株洲: [113.16, 27.83],
  石家莊: [114.48, 38.03],
  萊蕪: [117.67, 36.19],
  常德: [111.69, 29.05],
  保定: [115.48, 38.85],
  湘潭: [112.91, 27.87],
  金華: [119.64, 29.12],
  岳陽: [113.09, 29.37],
  長沙: [113, 28.21],
  衢州: [118.88, 28.97],
  廊坊: [116.7, 39.53],
  菏澤: [115.480656, 35.23375],
  合肥: [117.27, 31.86],
  武漢: [114.31, 30.52],
  大慶: [125.03, 46.58]
};
const convertData = function (data) {
  var res = [];
  for (var i = 0; i < data.length; i++) {
    var geoCoord = geoCoordMap[data[i].name];
    if (geoCoord) {
      res.push({
        name: data[i].name,
        value: geoCoord.concat(data[i].value)
      });
    }
  }
  return res;
};
const ec_center_option = {
  // title: {
  //   text: '全國主要城市空氣質量 - 百度地圖',
  //   subtext: 'data from PM25.in',
  //   sublink: 'http://www.pm25.in',
  //   left: 'center'
  // },
  tooltip: {
    trigger: 'item'
  },
  bmap: {
    center: [104.114129, 37.550339],
    zoom: 5,
    roam: true,
    mapStyle: {
      styleJson: [
        {
          featureType: 'water',
          elementType: 'all',
          stylers: {
            color: '#d1d1d1'
          }
        },
        {
          featureType: 'land',
          elementType: 'all',
          stylers: {
            color: '#f3f3f3'
          }
        },
        {
          featureType: 'railway',
          elementType: 'all',
          stylers: {
            visibility: 'off'
          }
        },
        {
          featureType: 'highway',
          elementType: 'all',
          stylers: {
            color: '#fdfdfd'
          }
        },
        {
          featureType: 'highway',
          elementType: 'labels',
          stylers: {
            visibility: 'on'
          }
        },
        {
          featureType: 'arterial',
          elementType: 'geometry',
          stylers: {
            color: '#fefefe'
          }
        },
        {
          featureType: 'arterial',
          elementType: 'geometry.fill',
          stylers: {
            color: '#fefefe'
          }
        },
        {
          featureType: 'poi',
          elementType: 'all',
          stylers: {
            visibility: 'off'
          }
        },
        {
          featureType: 'green',
          elementType: 'all',
          stylers: {
            visibility: 'off'
          }
        },
        {
          featureType: 'subway',
          elementType: 'all',
          stylers: {
            visibility: 'off'
          }
        },
        {
          featureType: 'manmade',
          elementType: 'all',
          stylers: {
            color: '#d1d1d1'
          }
        },
        {
          featureType: 'local',
          elementType: 'all',
          stylers: {
            color: '#d1d1d1'
          }
        },
        {
          featureType: 'arterial',
          elementType: 'labels',
          stylers: {
            visibility: 'off'
          }
        },
        {
          featureType: 'boundary',
          elementType: 'all',
          stylers: {
            color: '#fefefe'
          }
        },
        {
          featureType: 'building',
          elementType: 'all',
          stylers: {
            color: '#d1d1d1'
          }
        },
        {
          featureType: 'label',
          elementType: 'labels.text.fill',
          stylers: {
            color: '#999999'
          }
        }
      ]
    }
  },
  series: [
    {
      name: 'pm2.5',
      type: 'scatter',
      coordinateSystem: 'bmap',
      data: convertData(data),
      symbolSize: function (val) {
        return val[2] / 10;
      },
      encode: {
        value: 2
      },
      label: {
        formatter: '{b}',
        position: 'right',
        show: false
      },
      emphasis: {
        label: {
          show: true
        }
      }
    },
    {
      name: 'Top 5',
      type: 'effectScatter',
      coordinateSystem: 'bmap',
      data: convertData(
          data
              .sort(function (a, b) {
                return b.value - a.value;
              })
              .slice(0, 6)
      ),
      symbolSize: function (val) {
        return val[2] / 10;
      },
      encode: {
        value: 2
      },
      showEffectOn: 'render',
      rippleEffect: {
        brushType: 'stroke'
      },
      label: {
        formatter: '{b}',
        position: 'right',
        show: true
      },
      itemStyle: {
        shadowBlur: 10,
        shadowColor: '#333'
      },
      emphasis: {
        scale: true
      },
      zlevel: 1
    }
  ]
};
// 基于準備好的dom，初始化echarts實體
var ec_center = echarts.init(document.getElementById('center2'),'dark');
ec_center_option&&ec_center.setOption(ec_center_option);

頁面整體呼叫

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>數字化大屏</title>
    <link rel="stylesheet" href="../static/css/main.css">
    <script src="../static/js/jquery-3.6.0.js"></script>
    <script src="../static/js/echarts.min.js"></script>
    <script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts@3.6.0/map/js/china.js"></script>
    <script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts@3.6.0/map/js/world.js"></script>
    <script src="../static/js/bmap.min.js"></script>
    <script type="text/javascript" src="https://api.map.baidu.com/api?v=2.0&ak=你的ak"></script>
    <script src="../static/js/dark.js"></script>
    <script type="text/javascript">
        function get_time() {
            var cur_time = new Date();
            var str_time = cur_time.getFullYear() + "年" + ((cur_time.getMonth() + 1) > 9 ? (cur_time.getMonth() + 1) : "0" + (cur_time.getMonth() + 1)) + "月" + (cur_time.getDate() > 9 ? cur_time.getDate() : "0" + cur_time.getDate()) + "日" + " " + (cur_time.getHours() > 9 ? cur_time.getHours() : "0" + cur_time.getHours()) + ":" + (cur_time.getMinutes() > 9 ? cur_time.getMinutes() : "0" + cur_time.getMinutes()) + ":" + (cur_time.getSeconds() > 9 ? cur_time.getSeconds() : "0" + cur_time.getSeconds());
            $(".time").text(str_time);
        }

        function get_c1_data() {
            $.ajax({
                url: "/get_c1_data",
                type: "post",
                success: function (data) {
                    $(".num").eq(0).text(data.total_confirmed);
                    $(".num").eq(1).text(data.remain_suspect);
                    $(".num").eq(2).text(data.total_cure);
                    $(".num").eq(3).text(data.total_dead);

                },
                error: function () {

                }
            });
        }

        $(document).ready(function () {
            get_time();
            get_c1_data();
            setInterval(get_time, 1000);
            setInterval(get_c1_data,1000);
        });
    </script>
</head>
<body>
<header class="head">
    <div class="title">
        <h1>某某公司數字化大屏</h1>
    </div>
    <div class="time"></div>
</header>
<aside class="left">
    <div id="left1" class="left1">這里是左側邊欄1</div>
    <div id="left2" class="left2">這里是左側邊欄2</div>
</aside>
<section class="center">
    <div class="center1">
        <div class="num">1123</div>
        <div class="num">234</div>
        <div class="num">1345</div>
        <div class="num">456</div>
        <div class="txt">累計生產</div>
        <div class="txt">剩余生產</div>
        <div class="txt">累計銷售</div>
        <div class="txt">累計返廠</div>

    </div>
    <div class="center2" id="center2"></div>
</section>
<aside class="right">
    <div id="right1" class="right1">這里是右側邊欄1</div>
    <div id="right2" class="right2">這里是右側邊欄2</div>
</aside>
<script src="../static/js/ec_center.js" type="text/javascript"></script>
<script src="../static/js/ec_left1.js" type="text/javascript"></script>
<script src="../static/js/ec_left2.js" type="text/javascript"></script>
<script src="../static/js/ec_right1.js" type="text/javascript"></script>
<script src="../static/js/ec_right2.js" type="text/javascript"></script>
</body>
</html>

備注

本文主要是記錄學習，拋磚引玉，與大家一起進步，

城南【作者】曾鞏【朝代】宋

雨過橫塘水滿堤，亂山高下路東西，
一番桃李花開盡，惟有青青草色齊，

轉載請註明出處，本文鏈接：https://www.uj5u.com/qianduan/304954.html

標籤：其他

上一篇：Vue原理面試題

下一篇：手寫promise，promise.all，promise.race
